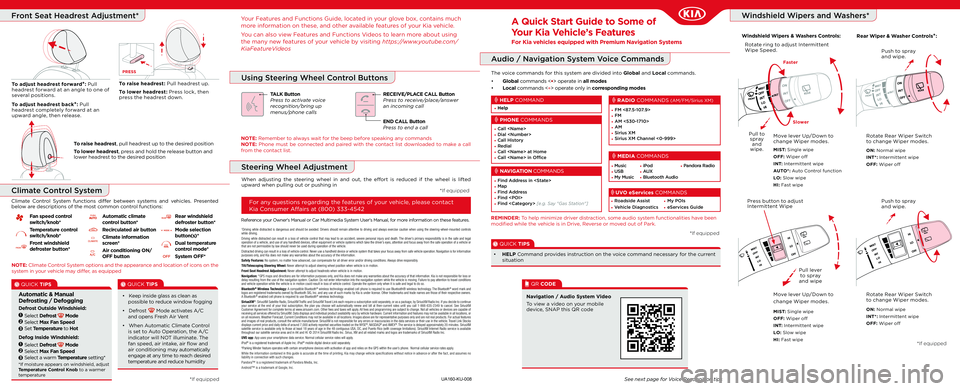

KIA CADENZA 2017 Quick Start Guide with UVO link

A Quick Start Guide to Some of
Your Kia Vehicle’s Features
For Kia vehicles equipped with Premium Navigation Systems
The voice commands for this system are divided into Global and Local commands.
• Global commands <●> operate in all modes
• Local commands <°> operate only in corresponding modes
Audio / Navigation System Voice Commands
See next page for Voice Recognition tipsUA160-KU-008
*If equipped
Reference your Owner's Manual or Car Multimedia System User's Manual, for more information on these features.
For any questions regarding the features of your vehicle, please contact
Kia Consumer Affairs at (800) 333-4542
Front Seat Headrest Adjustment*
• Find Address in • Map• Find Address• Find • Find [e.g. Say "Gas Station"]
NAVIGATION COMMANDS
• Call • Dial • Call History• Redial• Call at Home• Call in Office
PHONE COMMANDS
• FM <87.5-107.9>• FM • AM <530-1710> • AM • Sirius XM• Sirius XM Channel <0-999>
RADIO COMMANDS (AM/FM/Sirius XM)
QUICK TIPS
• HELP Command provides instruction on the voice command necessary for the current situation
To view a video on your mobile device, SNAP this QR code
Navigation / Audio System Video
Windshield Wipers and Washers*
†Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving.Driving while distracted can result in a loss of vehicle control that ma\
y lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of\
the vehicle.Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus awa\
y from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the informat\
ion.Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly. Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in moti\
on.Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.Navigation: °GPS maps and directions are for information purposes only, and Kia does not make any warranties about the accuracy of that informa\
tion. Kia is not responsible for loss or delay resulting from the use of the navigation system. Caution: Do not enter information into the navigation system while the vehicle i\
s moving. Failure to pay attention to travel conditions and vehicle operation while the vehicle is in motion could result in los\
s of vehicle control. Operate the system only when it is safe and legal to do so. Bluetooth® Wireless Technology: A compatible Bluetooth® wireless technology-enabled cell phone is required to use Bluetooth®\
wireless technology. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Kia is under license. Other trademarks and trade names are those of their respective owners. A Bluetooth® enabled cell phone is required to use Bluetooth® wireless technology.SiriusXM®: SiriusXM Satellite Radio, SiriusXM Traffic and SiriusXM Travel Link each require a subscription sold separately, or as a package, by SiriusXM Radio Inc. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of receiving all services offered by SiriusXM. Data displays and individual product availability vary by vehicle hardware. Current information and features may not be available in all locations,\
or on all receivers. Weather Forecast, Current Conditions may not be available in all locations. Images above are for representative purposes only and are not real prod\
ucts. For actual features and images of real products, consult the vehicle manufacturer. SiriusXM is not responsible for any errors or inaccuracies in the data \
services or their use in the vehicle. Travel Link Stocks displays current price and daily delta of around 7,000 actively reported securities traded on the NYSE®, NASDAQ® and AMEX®. The service is delayed approximately 20 minutes. SiriusXM satellite service is available only to those at least 18 years of age in the 48 conti\
guous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM Internet Radio service is available throughout our satellite service area and in AK and HI. © 2014 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc\
. UVO app: App uses your smartphone data service. Normal cellular service rates will apply.iPod® is a registered trademark of Apple Inc. iPod® mobile digital device sold separately.‡Parking Minder feature operates with certain smartphone devices with act\
ivation of app and relies on the GPS within the user’s phone. Normal cellular service rates apply.While the information contained in this guide is accurate at the time of printing, Kia may change vehicle specifications without notice in advance or after the fact, and assumes no liability in connection with such changes.Pandora™ is a registered trademark of Pandora Media, Inc.Android™ is a trademark of Google, Inc.
Windshield Wipers & Washers Controls:Rear Wiper & Washer Controls*:
Move lever Up/Down to change Wiper modes.
M I S T: Single wipe
OFF: Wiper off
I N T: Intermittent wipe
AUTO*: Auto Control function
LO: Slow wipe
HI: Fast wipe
Pull to sprayand wipe.
Rotate ring to adjust Intermittent Wipe Speed. Push to spray and wipe.
ON: Normal wipe
INT*: Intermittent wipe
OFF: Wiper off
Rotate Rear Wiper Switch to change Wiper modes.
Faster
Slower
• Roadside Assist
• Vehicle Diagnostics• My POIs
• eServices Guide
UVO eServices COMMANDS
• Help
HELP COMMAND
*If equipped
To raise headrest: Pull headrest up.
To lower headrest: Press lock, then press the headrest down.
PRESS
To raise headrest, pull headrest up to the desired position
To lower headrest, press and hold the release button and lower headrest to the desired position
To adjust headrest forward*: Pull headrest forward at an angle to one of several positions.
To adjust headrest back*: Pull headrest completely forward at an upward angle, then release.
Move lever Up/Down to
change Wiper modes.
M I S T: Single wipe
OFF: Wiper off
I N T: Intermittent wipe
LO: Slow wipe
HI: Fast wipe
Pull lever to spray and wipe
Push to spray and wipe.
ON: Normal wipe
INT*: Intermittent wipe
OFF: Wiper off
Rotate Rear Wiper Switch to change Wiper modes.
Press button to adjust Intermittent Wipe
*If equipped
Climate Control System
QUICK TIPS
Automatic & Manual Defrosting / Defogging
Defrost Outside Windshield:
Select Defrost ModeSelect Max Fan SpeedSet Temperature to Hot
1
2
3
Defog Inside Windshield:
Select Defrost ModeSelect Max Fan SpeedSelect a warm Temperature setting*
1
2
3
*If moisture appears on windshield, adjust Temperature Control Knob to a warmer temperature
NOTE: Climate Control System options and the appearance and location of icons on the system in your vehicle may differ, as equipped
Fan speed control switch/knob*
Temperature control switch/knob*
Front windshield defroster button*
Automatic climate control button*
Recirculated air button
Climate information screen*
Air conditioning ON/OFF button
Rear windshield defroster button*
Mode selection button(s)*
Dual temperature control mode*
System OFF*B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
B G
C
A
F
E
D
HJ
ED
B
Climate Control System functions differ between systems and vehicles. Presented below are descriptions of the most common control functions:
QUICK TIPS
• Keep inside glass as clean as possible to reduce window fogging
• Defrost Mode activates A/C and opens Fresh Air Vent
• When Automatic Climate Control is set to Auto Operation, the A/C indicator will NOT illuminate. The fan speed, air intake, air flow and air conditioning may automatically engage at any time to reach desired temperature and reduce humidity
Your Features and Functions Guide, located in your glove box, contains much
more information on these, and other available features of your Kia vehicle.
You can also view Features and Functions Videos to learn more about using
the many new features of your vehicle by visiting https://www.youtube.com/
KiaFeatureVideos
Steering Wheel Adjustment
When adjusting the steering wheel in and out, the effort is reduced if the wheel is lifted upward when pulling out or pushing in*If equipped
TALK ButtonPress to activate voice recognition/bring up menus/phone calls
RECEIVE/PLACE CALL ButtonPress to receive/place/answer an incoming call
END CALL ButtonPress to end a call
NOTE: Remember to always wait for the beep before speaking any commands NOTE: Phone must be connected and paired with the contact list downloaded to make a call from the contact list.
Using Steering Wheel Control Buttons
REMINDER: To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park.
QR CODE
• Music• USB • My Music
MEDIA COMMANDS
• iPod• AUX• Bluetooth Audio
• Pandora Radio

How to Save a Preset
Press and hold the desired slot. This saves the current station in the selected slot
Pair Your Phone via Bluetooth® Wireless Technology
NOTE: Vehicle MUST be in “P” or Park
1
2
3
Ensure Bluetooth® wireless technology is turned "on" on your phone
On your vehicle's Audio System, press the SETUP key
In the following sequence, press Phone, Bluetooth® Connection and Add New
In the Bluetooth® menu of your phone, select Search for Bluetooth® Devices. Select the name of your vehicle (KIA MOTORS) displayed on your phone
Follow the instructions on your device to confirm the passkey displayed. Press Ok or Pair to complete pairing. The contact download may take a few minutes.
To adjust the UVO eServices System with Navigation sound settings:
Press the SETUP key
Select the on-screen SOUND button
Select the menu item (Position, Tone, Priority, Advanced)
Use the onscreen buttons to adjust settings
Press the return button to save settings
Radio Presets
QUICK TIPS
The Kia Voice Recognition System may have difficulty understanding some accents or uncommon names. When using Voice Recognition to place a call, speak in a moderate tone, with clear pronunciation. Voice Recognition performance can be improved by ensuring all windows and sunroof are closed, and that Climate Control System fan speed has been lowered to reduce noise in the cabin.
To maximize the use of Voice Recognition, consider these guidelines when storing contacts:
• Use full names vs. short or single syllable names (“John Smith” vs. “Dad”, “Smith Residence” vs. “Home”)
• Avoid using special characters or hyphens (@, &, #, /, -, *, +, etc.)
• Avoid using acronyms (“In Case Emergency” vs. “ICE”)
• Spell words completely, no abbreviations (“Doctor Goodman” vs. “Dr. Goodman”)
NOTE: Always wait for the beep before speaking any commands.
Voice Recognition and Phone Contact Tips
Snap this tag with a QR code reader app on your smart phone to view a video.
*If equipped*If equipped
4
UVO eServices
Setting up UVO eServices
Using a compatible smartphone to access your App Store, download the free Kia UVO app
In your smartphone’s settings, ensure that Location Services are enabled
Using the Kia UVO app, register for a new MyUVO.com account
Follow the In Car Setup Instructions on the Kia UVO app to complete the UVO eServices Activation
2
2
3
3
4
1
1
Using Parking Minder‡
Make sure your smartphone is connected to the system via USB cable and logged in to the Kia UVO app
After parking, and with the vehicle in Park (P), but before turning off the ignition, press the UVO key, then select Parking Minder on the display
The Kia UVO app will register your vehicle’s current parking location. When this is com-pleted turn the ignition off
The Kia UVO app on your Smartphone will now help locate your parked Kia
NOTE: Visit www.MyUVO.com to view a phone compatibility list for UVO eServices
4
Listening to your iPod®
Connect an iPod® device or, if an iPod® device is already connected, repeatedly press the MEDIA key, then press iPod® on the display
NOTE: Use the iPod® cable that was supplied with your device
To pause a track or song, press Pause (II) on the display. Press Play () to resume playback
Manually Selecting iPod® Music
Turn the FILE / TUNE knob on the Audio System to scan through the music selections
When you find the desired file, press the FILE / TUNE knob to play the file
Selecting iPod® Music from a List
Press LIST on the display screen, then select category
Select the song you wish to play from the list
Listening to Music from your Bluetooth® Wireless Technology Device
If not already done, pair your Bluetooth® wireless technology device to the Audio System
Press the MEDIA key, then select Bluetooth® Audio by pressing it on the display screen
Select the Music app on your mobile device
Press the Seek/Track key to scroll through music files
To pause a track or song streaming from your Bluetooth® wireless technology device, press Pause (II) on the display. Press Play () to resume playback
NOTE: Make sure that the listening volume on your mobile device is turned up
2
2
1
1
2
1
2
3
4
1
Insert your media (if not already inserted). Press the MEDIA key to display a list of media devices. Select the desired device by pressing its name on the display screen
To pause a track or song, press Pause (II) on the display. Press Play () to resume playback
Copying Songs to My Music
Media Mode allows you to copy songs from USB Devices, and store them in My Music
While the song is playing, press Menu on the display, then press Save to My Music
Once copying is complete, you can listen to the copied music file in My Music by pressing the MEDIA key, then pressing My Music on the display2
1
2
1
Media mode includes a variety of modes, such as CD, USB, iPod®, Bluetooth® Audio, Aux, and My Music
NOTE: Only MP3 and WMA files may be played or copied to My Music
NOTE: Contact download will occur automatically at initial pairing. Be sure to allow phone book download and future autoconnection on your phone.
NOTE: Ensure that only the "phone contact list" is selected for contact download (not Twitter, Facebook, or email contact lists).
For any questions regarding the features of your vehicle, please contact Kia consumer Affairs.
You can listen to FM, AM and SiriusXM radio and save frequently used stations
1
*If equipped
Media Mode
Sound Settings
5
Slide open tray cover
Place smartphone on the center of the charging pad
Indicator light A will change to amber once the wireless charging begins
Once charging is complete, the amber light will change to green
2
3
1
4
A
If wireless charging does not work, move smartphone around the pad until the charging indicator turns amber. Avoid placing other metal items in the bin while charging as to not impede the charging area.
In some vehicles, engine must be running and doors closed in order to begin charging.
QUICK TIPS
To view a video on your mobile device, snap this QR Code or visit the listed website.
Wireless Charging Video
www.KuTechVideos.com/jf13/2016
NOTE: Requires QI enabled device or QI enabled case.
Wireless Smartphone Charging System*
Apple CarPlay
Apple CarPlay™ is a smarter way to use your iPhone® in the car. It enables your vehicle’s radio to be a display and controller for compatible iPhones when they’re plugged into your Kia’s USB port
Apple CarPlay provides access to compatible Apple apps, such as: Phone, Music, Maps, Messages, iBooks® and Podcasts. Also available are a number of popular third-party apps
REQUIREMENTS
• iPhone 5 or later and it is recommended to always update your iPhone to the latest iOS release
• Apple Lightning® cable provided with your phone or, Apple certified Lightning cable
Android Auto
Android Auto™ is designed to help you stay focused on the road. It equips your vehicle’s radio with display and control functions for compatible Android™ phones when they’re plugged into your Kia’s USB port
Android Auto provides access to a variety of compatible apps, available by visiting Google Play™ on your Android phone
REQUIREMENTS
• Android phones with Android 5.0 Lollipop or higher
• It is recommended to always update your phone to the latest OS release
• Use the USB cable provided with your phone
Apple CarPlay & Android Auto
5
• Your Kia Navigation System offers many features and functions. Be sure to read the Car Multimedia System User's Manual that came with your Kia for complete details and user instructions.
Set Destination:
• Press NAVI key or MAP VOICE key and NAVI button to select Destination. Select the Place or Address search bar.
• Enter a POI name or Address and press Done
Using Your Navigation System°
2
3
4
1
5
Press the SETUP key, then the CLOCK button to display the Clock and Date setting screen. Then use the on-screen buttons to adjust time and date.
Clock Setup
• Press the on-screen return icon to save changes
• When needed, Daylight Savings must be enabled in the Clock Settings screen
• To access manual date and time setting, turn GPS Time OFF in the Clock Settings (UVO eServices with Premium Navigation System*).
SiriusXM Smart FavoritesFor the first six favorite SiriusXM channels, you may play live or repeat from the beginning of a song or a program segment
In Radio mode, choose SiriusXM
Select any of the first six favorites
During song or program play, tap the Skip Backward (I7) icon to start from the beginning of the song or program
Tap the Play Live icon to return to the live broadcast
1
2
3
4
QUICK TIPS
QR CODEQUICK TIPS
To view the Apple CarPlay Quick Start Guide on your mobile device, snap this QR Code
Apple CarPlay Quick Start Guide
QR CODE
To view the Android Auto Quick Start Guide on your mobile device, snap this QR Code
Android Auto Quick Start Guide
