KIA CADENZA 2018 Features and Functions Guide

39
AA
A
BC

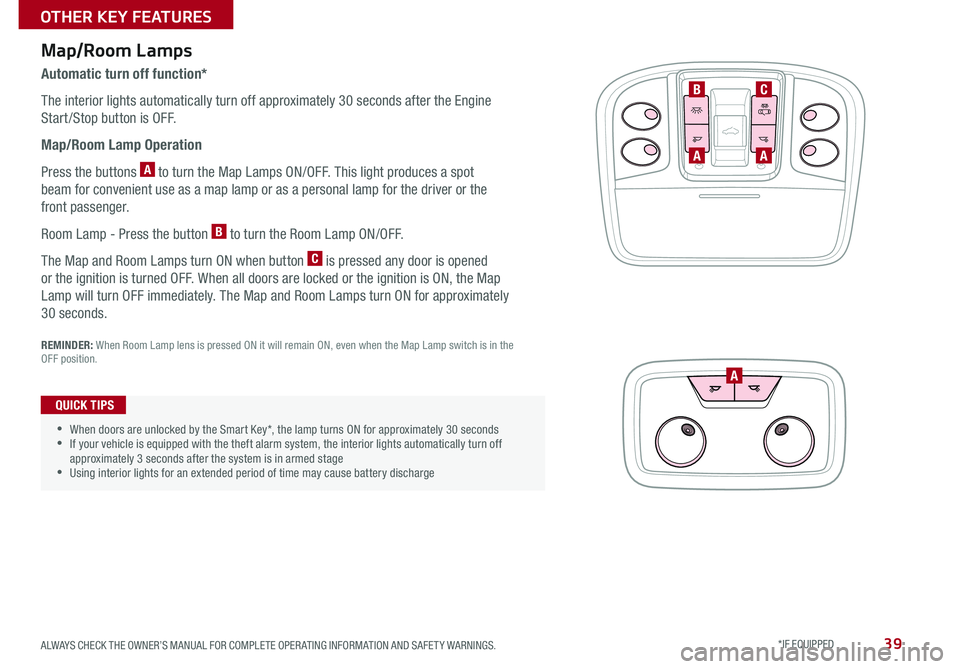

Map/Room Lamps
Automatic turn off function*
The interior lights automatically turn off approximately 30 seconds after the Engine
Start /Stop button is OFF
Map/Room Lamp Operation
Press the buttons A to turn the Map Lamps ON/OFF This light produces a spot
beam for convenient use as a map lamp or as a personal lamp for the driver or the
front passenger
Room Lamp - Press the button B to turn the Room Lamp ON/OFF
The Map and Room Lamps turn ON when button C is pressed any door is opened
or the ignition is turned OFF When all doors are locked or the ignition is ON, the Map
Lamp will turn OFF immediately The Map and Room Lamps turn ON for approximately
30 seconds
REMINDER: When Room Lamp lens is pressed ON it will remain ON, even when the Map Lamp switch is in the OFF position

•When doors are unlocked by the Smart Key*, the lamp turns ON for approximately 30 seconds •If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 3 seconds after the system is in armed stage •Using interior lights for an extended period of time may cause battery discharge
QUICK TIPS
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
OTHER KEY FEATURES

40
A
Panoramic Sunroof Operation*
The Sunroof and Sunshade operation is controlled through a multidirectional
switch/lever A The ignition needs to be in the ON position to operate the
sunroof/sunshade
Slide the Sunshade and Sunroof:
• Auto Open: Slide lever backward to the farthest position and release
• Auto Close: Slide the lever forward to the farthest position and release
Slide the Sunshade:
• Auto Open: Slide the lever partially backward to the first detent position
• Auto Close: Slide the lever forward to the farthest position
Slide the Sunroof (with Sunshade open):
• Open: Slide the lever backward and release
• Auto Close: Slide the lever forward to the first detent position or pull the
lever downward
Tilt the Sunroof:
• Raise: Push lever upward
• Lower: Pull lever downward
• Auto Close Sunroof and Sunshade: Slide the lever forward to the
farthest position
REMINDERS:
•Sunshade needs to remain OPEN while sunroof is open and vehicle is moving
•Sunshade cannot slide when it is in the tilt position or tilt while in an open or slide position
To stop the Sunroof/Sunshade at any position, push or pull the Sunroof control lever in any direction
QUICK TIP
Sunvisor
Use the Sunvisor to shield direct light through the front or side
windows Slide the Sunvisor out and adjust as needed
REMINDERS:
•Do not operate the vehicle if Sunvisor is impairing your visibility
•Sunvisor may not shield all direct light
•The Sunvisor may impair visibility if not adjusted properly
•
Be aware of seating position when adjusting or swinging Sunvisor around to or from the front or side windows
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
OTHER KEY FEATURES

41
Rear-camera

The Rear Parking Assist System is not a substitute for proper and safe backing-up procedures. Always drive safely and use caution when backing up. The Rear Parking Assist System may not detect every object behind the vehicle

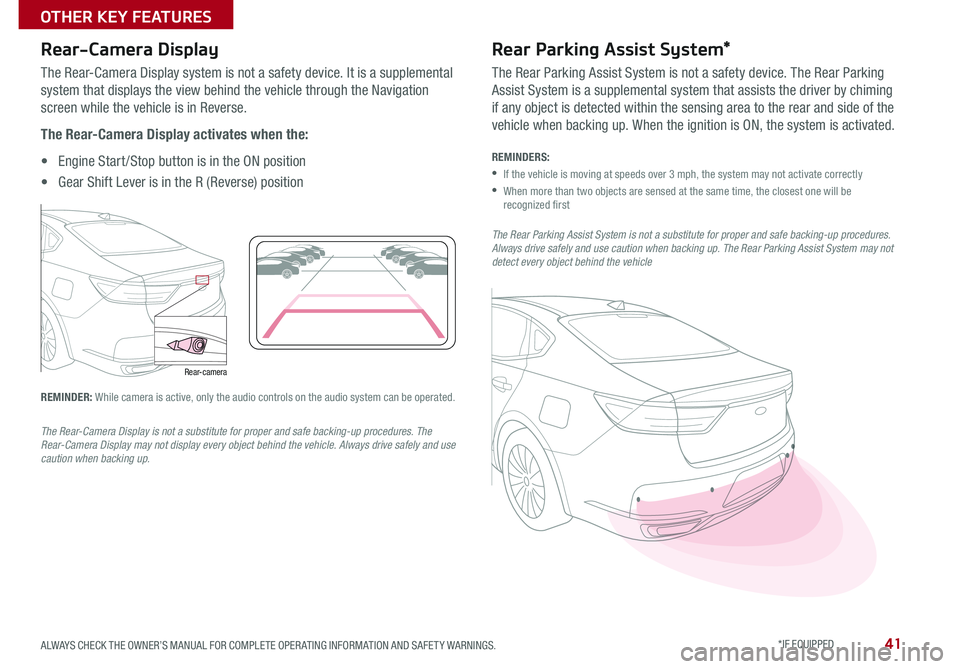

Rear-Camera Display
The Rear-Camera Display system is not a safety device It is a supplemental
system that displays the view behind the vehicle through the Navigation
screen while the vehicle is in Reverse
The Rear-Camera Display activates when the:
• Engine Start /Stop button is in the ON position
• Gear Shift Lever is in the R (Reverse) position
REMINDER: While camera is active, only the audio controls on the audio system can be operated

The Rear-Camera Display is not a substitute for proper and safe backing-up procedures. The Rear-Camera Display may not display every object behind the vehicle. Always drive safely and use caution when backing up.
Rear Parking Assist System*
The Rear Parking Assist System is not a safety device The Rear Parking
Assist System is a supplemental system that assists the driver by chiming
if any object is detected within the sensing area to the rear and side of the
vehicle when backing up When the ignition is ON, the system is activated
REMINDERS:
•If the vehicle is moving at speeds over 3 mph, the system may not activate correctly
•
When more than two objects are sensed at the same time, the closest one will be recognized first
P
R
N
DSHIFTLOCK
RELEASE
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
OTHER KEY FEATURES

42
(located inside trunk lid)(located inside trunk lid)
(located left of steering wheel)
A
C
B

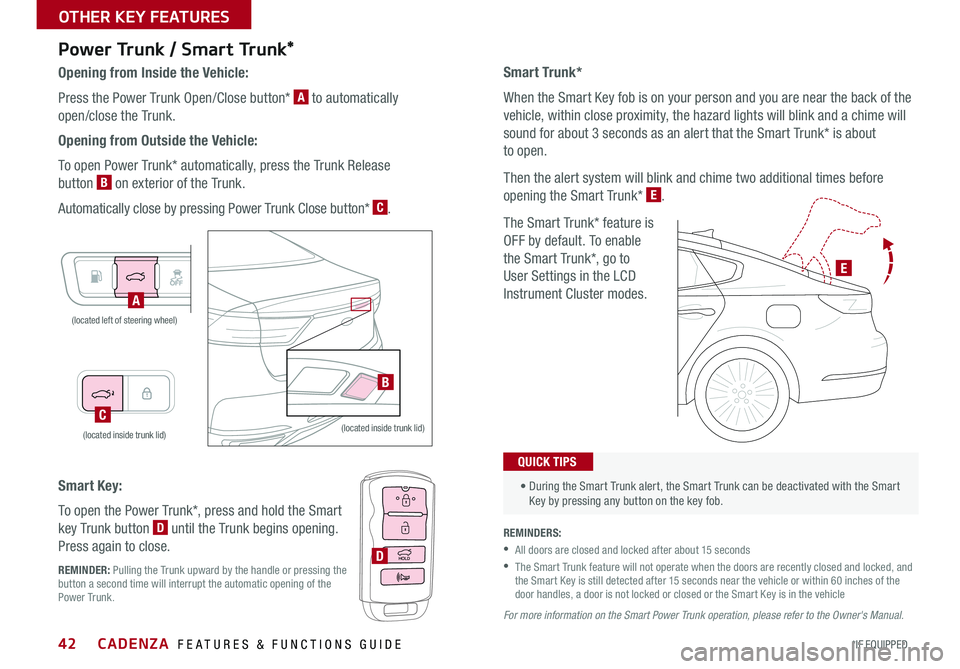

Power Trunk / Smart Trunk*
Opening from Inside the Vehicle:
Press the Power Trunk Open/Close button* A to automatically
open/close the Trunk
Opening from Outside the Vehicle:
To open Power Trunk* automatically, press the Trunk Release
button B on exterior of the Trunk
Automatically close by pressing Power Trunk Close button* C
Smart Key:
To open the Power Trunk*, press and hold the Smart
key Trunk button D until the Trunk begins opening
Press again to close
REMINDER: Pulling the Trunk upward by the handle or pressing the button a second time will interrupt the automatic opening of the Power Trunk
D
Smart Trunk*
When the Smart Key fob is on your person and you are near the back of the
vehicle, within close proximity, the hazard lights will blink and a chime will
sound for about 3 seconds as an alert that the Smart Trunk* is about
to open
Then the alert system will blink and chime two additional times before
opening the Smart Trunk* E
The Smart Trunk* feature is
OFF by default To enable
the Smart Trunk*, go to
User Settings in the LCD
Instrument Cluster modes
E
• During the Smart Trunk alert, the Smart Trunk can be deactivated with the Smart Key by pressing any button on the key fob
QUICK TIPS
REMINDERS:
•All doors are closed and locked after about 15 seconds
•
The Smart Trunk feature will not operate when the doors are recently closed and locked, and the Smart Key is still detected after 15 seconds near the vehicle or within 60 inches of the door handles, a door is not locked or closed or the Smart Key is in the vehicle
For more information on the Smart Power Trunk operation, please refer to the Owner's Manual.
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
OTHER KEY FEATURES

43
( Trunk Release Button)
One-Click Fuel Cap Video To view a video on your mobile device, snap this QR Code or visit the listed website
Refer to page 2 for more information
QR CODE
www.youtube.com/KiaFeatureVideos
A
Trunk Release Button
Located underneath the Trunk lid With Trunk unlocked, press
the Trunk Release button A and pull the Trunk lid up by the
handle to open

•The Trunk must be unlocked before it can be opened by the Trunk Release Button •Smart Key* - The Trunk unlocks automatically, and can then be opened manually, when the Smart Key fob* is within close proximity to the vehicle
QUICK TIPS
Fuel Cap/Malfunction Indicator
(Check Engine Light)
Tighten for ONE CLICK
to prevent Malfunction
Indicator from
illuminating
REMINDER: The Fuel Filler Door Release button is located on the driver’s button panel, left of the Steering Wheel
Child-Protector Rear Door Locks
Located on the rear edge of the rear passenger
doors, turn the Child-Protector Rear Door Lock
to the lock position to disable the inner door
handles from opening the rear doors
REMINDER: Child-Protector Rear Door Lock is located on rear passenger’s door jamb
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
OTHER KEY FEATURES

44
(Lever located near floor below Driver's Panel)
A
B
Hood Release Lever and Latch
Opening the Hood:
1 Pull the Hood Release Lever A to unlatch the Hood
2 In the front of the vehicle, lift the Hood slightly, push the secondary Latch B to the left inside of the Hood’s center and lift the Hood
Closing the Hood:
Lower the Hood about halfway and then press down to securely lock in place
REMINDER: While lowering and closing, keep hands away from under the Hood
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
OTHER KEY FEATURES

45
CLIM AT EMODEA/CSYNCAUTO
FRONT
REAR
OFF
PASSENGER
AIR BAG
OFF
Occupant Detection System (ODS) / Passenger
Airbag Off Indicator
ODS detects the presence and position of the front passenger and adjusts or
turns off airbag deployment accordingly
Depending on the situation and type of accident, the system may:
• Deploy airbag (Adult)
• Not deploy the airbag (Unoccupied)
If the system determines that the airbag should not be deployed, the “PASS
AIR BAG OFF” light will illuminate
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
SAFETY FEATURES

46
PRESS
A
B
D
C
Seat Belts
To properly fasten your seat belts:
1
Insert the tongue belt plate A into the buckle B until it clicks
2
Position the lap portion to the belt across your lap as LOW ON
THE HIPS as possible C Adjust the belt to a SNUG FIT by
pulling up on the shoulder portion D
REMINDER: For maximum protection, always wear your seat belt
The seat belt warning chime operates for driver’s seat only

QUICK TIP
Seat Belt Retractor Locks
Retractor locks allow lap/shoulder safety belts to remain unlocked
during normal vehicle operation for freedom of movement and
increased comfort
During a STRONG STOP, SUDDEN TURN OR CERTAIN COLLISIONS,
seatbelt retractors will automatically lock the belts to reduce the
risk of injury
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
SAFETY FEATURES

47ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED
MAINTENANCE
Normal Maintenance Schedule
When your vehicle requires service, remember that your dealer knows your vehicle best Your dealer has factory-trained technicians, recommended special tools,
genuine Kia replacement parts and is dedicated to your complete satisfaction For expert advice and quality service, see your authorized Kia dealer
7,500 miles
PERFORM:
•Add fuel additive1
•Rotate tires
REPLACE:
•Engine oil and filter
INSPECT*:
•Air cleaner filter
•Battery condition
•Vacuum hose
•
Check your Maintenance Schedule or schedule an appointment with a dealer using your UVO eServices account by logging into your UVO App or your account on MyUVO com (See UVO eServices Setup, page 24)
QUICK TIP
*And, if necessary, adjust, correct, clean or replace 1 If TOP TIER detergent gasoline is not available, one bottle of additive is recommended Additives are available from your authorized Kia dealer along with information on how to use them Do not mix other additives
15,000 miles
PERFORM:
•Add fuel additive1
•Rotate tires
REPLACE:
•Climate control air filter (for evaporator and blower unit)
•Engine oil and filter
INSPECT*:
•Air cleaner filter
•Air conditioning refrigerant
•Drive shafts and boots
•Battery condition
•Brake hoses and lines
•Front disc brakes/pads, calipers
•Rear brake disc/pads
•Exhaust pipe and muffler
•Steering gear box, linkage & boots/ lower
arm ball joint, upper arm ball joint
•Suspension mounting bolts
•Vacuum Hose
*And, if necessary, adjust, correct, clean or replace 1 If TOP TIER detergent gasoline is not available, one bottle of additive is recommended Additives are available from your authorized Kia dealer along with information on how to use them Do not mix other additives

48
Normal Maintenance Schedule (Continued)
22,500 miles
PERFORM:
•Add fuel additive1
•Rotate tires
REPLACE:
•Engine oil and filter
INSPECT*:
•Air cleaner filter
•Battery condition
•Vacuum Hose
*And, if necessary, adjust, correct, clean or replace1 If TOP TIER detergent gasoline is not available, one bottle of additive is recommended Additives are available from your authorized Kia dealer along with information on how to use them Do not mix other additives
30,000 miles
PERFORM:
•Add fuel additive1
•Rotate tires
REPLACE:
•Climate control air filter (for evaporator and blower unit)
•Engine oil and filter
•Air cleaner filter
INSPECT*:
•Air conditioning refrigerant
•Drive shafts and boots
•Fuel filter2
•Fuel lines, fuel hoses and connections
•Fuel tank air filter**
•Vapor hose and fuel filler cap
•Battery condition
•Brake fluid
•Brake hoses and lines
•Exhaust pipe and muffler
•Front brake disc/pads, calipers
•Rear brake disc/pads
•Parking brake
•Steering gear box, linkage & boots/ lower arm
ball joint, upper arm ball joint
•Suspension mounting bolts
•Vacuum hose
*And, if necessary, adjust, correct, clean or replace * *If equipped 1 If TOP TIER detergent gasoline is not available, one bottle of additive is recommended Additives are available from your authorized Kia dealer along with information on how to use them Do not mix other additives 2 Fuel filter & fuel tank air filter are considered to be maintenance free but periodic inspection is recommended for this maintenance schedule depends on fuel quality If there are some important safety matters like fuel flow restriction, surging, loss of power, hard starting problem etc , replace the fuel filter immediately regardless of maintenance schedule and consult an authorized Kia dealer for details
CADENZA FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
MAINTENANCE
