KIA CADENZA 2018 Owners Manual

Maintenance
68
7

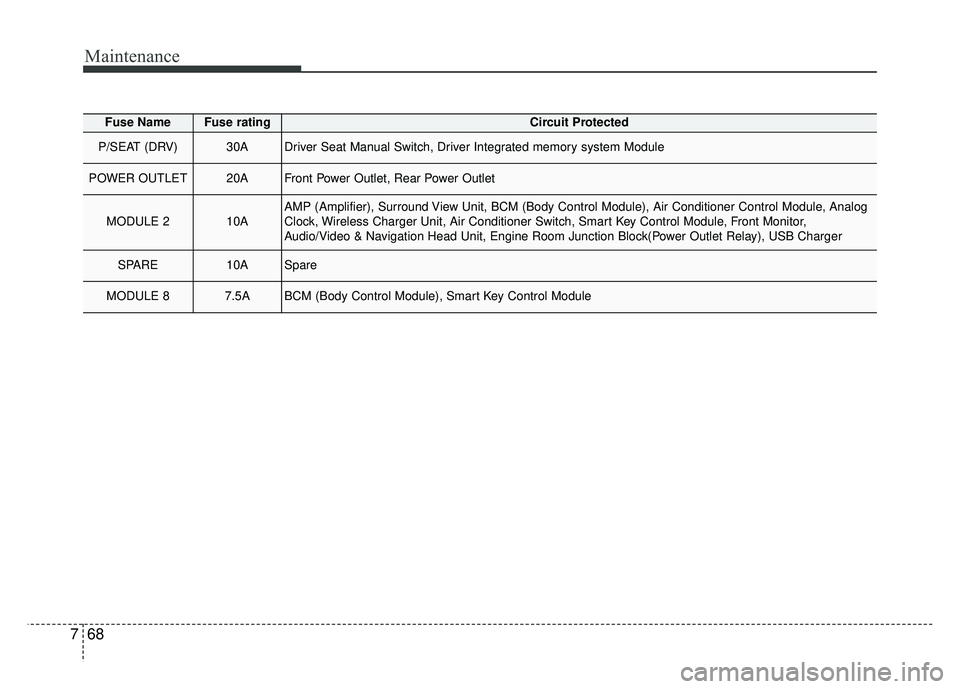

Fuse NameFuse ratingCircuit Protected
P/SEAT (DRV)30ADriver Seat Manual Switch, Driver Integrated memory system Module
POWER OUTLET20AFront Power Outlet, Rear Power Outlet
MODULE 210AAMP (Amplifier), Surround View Unit, BCM (Body Control Module), Air Conditioner Control Module, Analog
Clock, Wireless Charger Unit, Air Conditioner Switch, Smart Key Control Module, Front Monitor,
Audio/Video & Navigation Head Unit, Engine Room Junction Block(Power Outlet Relay), USB Charger
SPARE10ASpare
MODULE 87.5ABCM (Body Control Module), Smart Key Control Module

769
Maintenance

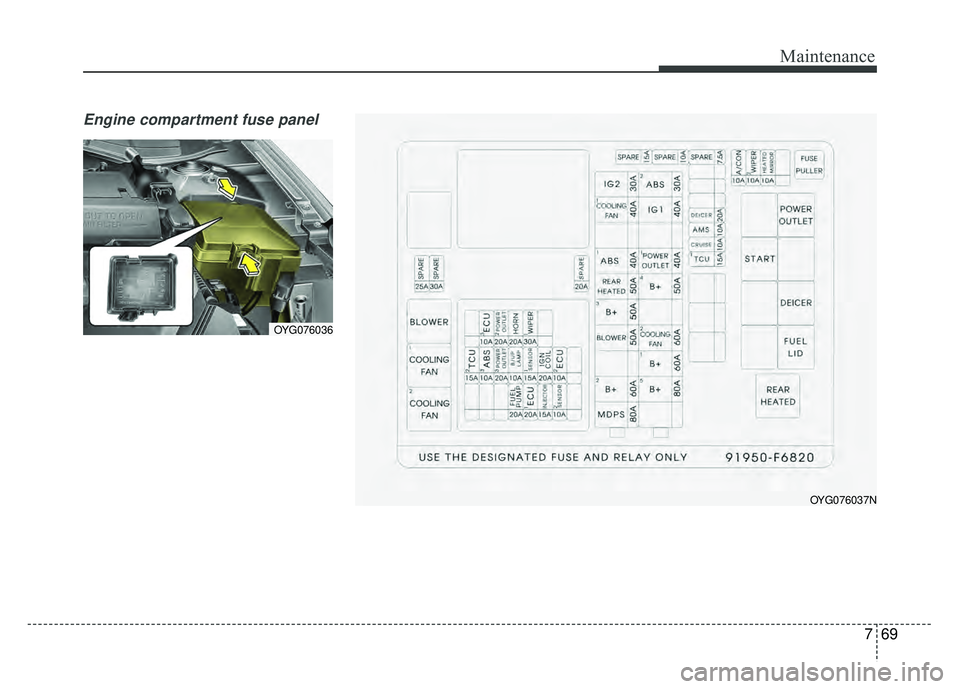

Engine compartment fuse panel
OYG076037N
OYG076036

Maintenance
70
7

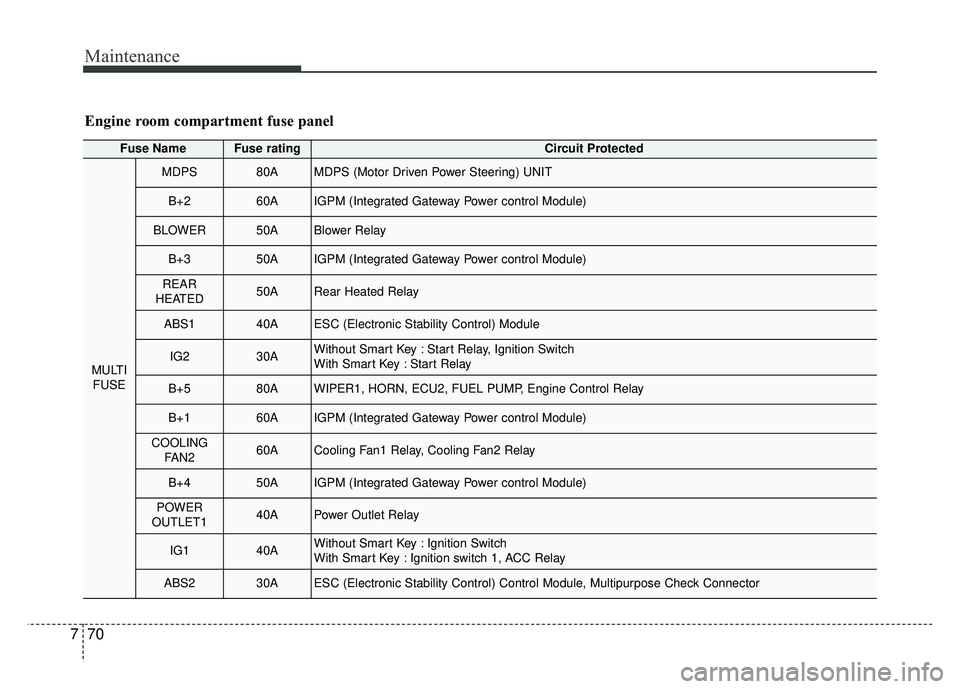

Fuse NameFuse ratingCircuit Protected
MULTI
FUSE
MDPS80AMDPS (Motor Driven Power Steering) UNIT
B+260AIGPM (Integrated Gateway Power control Module)
BLOWER50ABlower Relay
B+350AIGPM (Integrated Gateway Power control Module)
REAR
HEATED50ARear Heated Relay
ABS140AESC (Electronic Stability Control) Module
IG230AWithout Smart Key : Start Relay, Ignition Switch
With Smart Key : Start Relay
B+580AWIPER1, HORN, ECU2, FUEL PUMP, Engine Control Relay
B+160AIGPM (Integrated Gateway Power control Module)
COOLING FAN260ACooling Fan1 Relay, Cooling Fan2 Relay
B+450AIGPM (Integrated Gateway Power control Module)
POWER
OUTLET140APower Outlet Relay
IG140AWithout Smart Key : Ignition Switch
With Smart Key : Ignition switch 1, ACC Relay
ABS230AESC (Electronic Stability Control) Control Module, Multipurpose Check Connector
Engine room compartment fuse panel

771
Maintenance

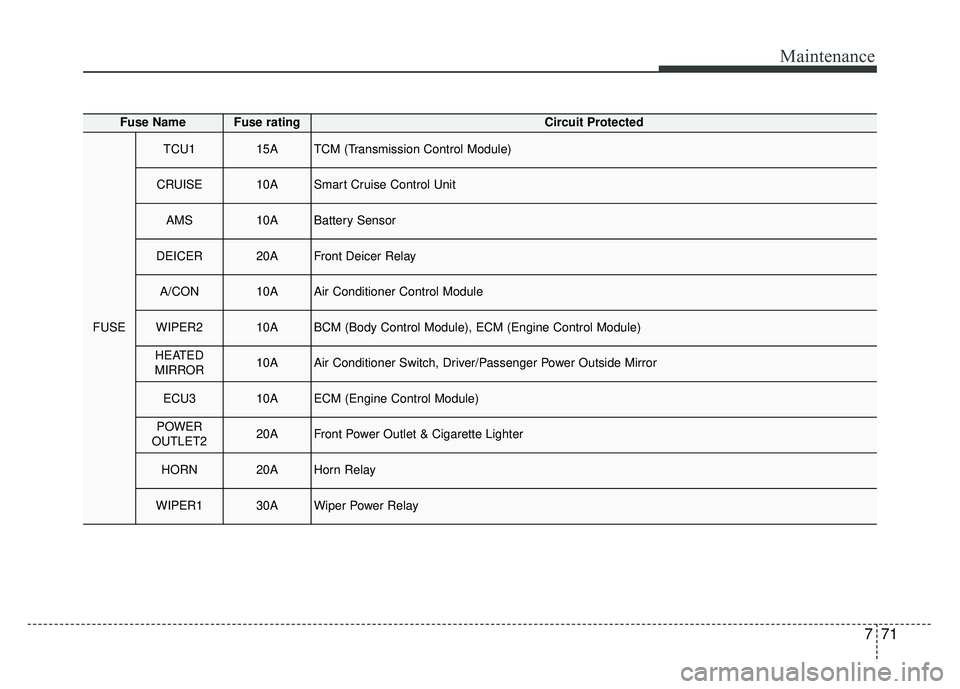

Fuse NameFuse ratingCircuit Protected
FUSE
TCU115ATCM (Transmission Control Module)
CRUISE10ASmart Cruise Control Unit
AMS10ABattery Sensor
DEICER20AFront Deicer Relay
A/CON10AAir Conditioner Control Module
WIPER210ABCM (Body Control Module), ECM (Engine Control Module)
HEATED
MIRROR10AAir Conditioner Switch, Driver/Passenger Power Outside Mirror
ECU310AECM (Engine Control Module)
POWER
OUTLET220AFront Power Outlet & Cigarette Lighter
HORN20AHorn Relay
WIPER130AWiper Power Relay

Maintenance
72
7

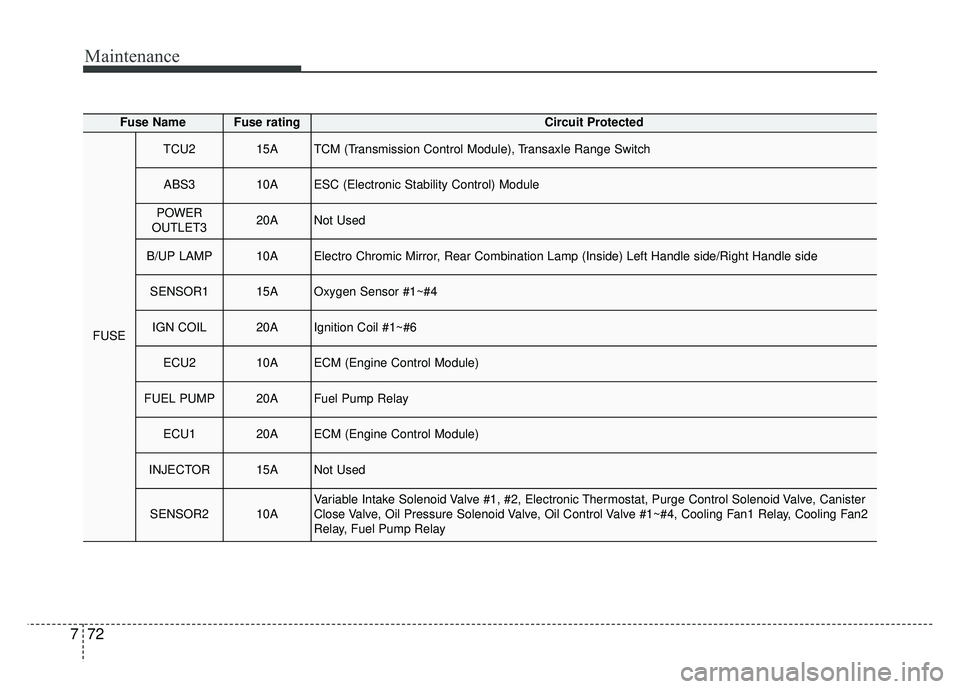

Fuse NameFuse ratingCircuit Protected
FUSE
TCU215ATCM (Transmission Control Module), Transaxle Range Switch
ABS310AESC (Electronic Stability Control) Module
POWER
OUTLET320ANot Used
B/UP LAMP10AElectro Chromic Mirror, Rear Combination Lamp (Inside) Left Handle side/Right Handle side
SENSOR115AOxygen Sensor #1~#4
IGN COIL20AIgnition Coil #1~#6
ECU210AECM (Engine Control Module)
FUEL PUMP20AFuel Pump Relay
ECU120AECM (Engine Control Module)
INJECTOR15ANot Used
SENSOR210AVariable Intake Solenoid Valve #1, #2, Electronic Thermostat, Purge Control Solenoid Valve, Canister
Close Valve, Oil Pressure Solenoid Valve, Oil Control Valve #1~#4, Cooling Fan1 Relay, Cooling Fan2
Relay, Fuel Pump Relay

773
Maintenance

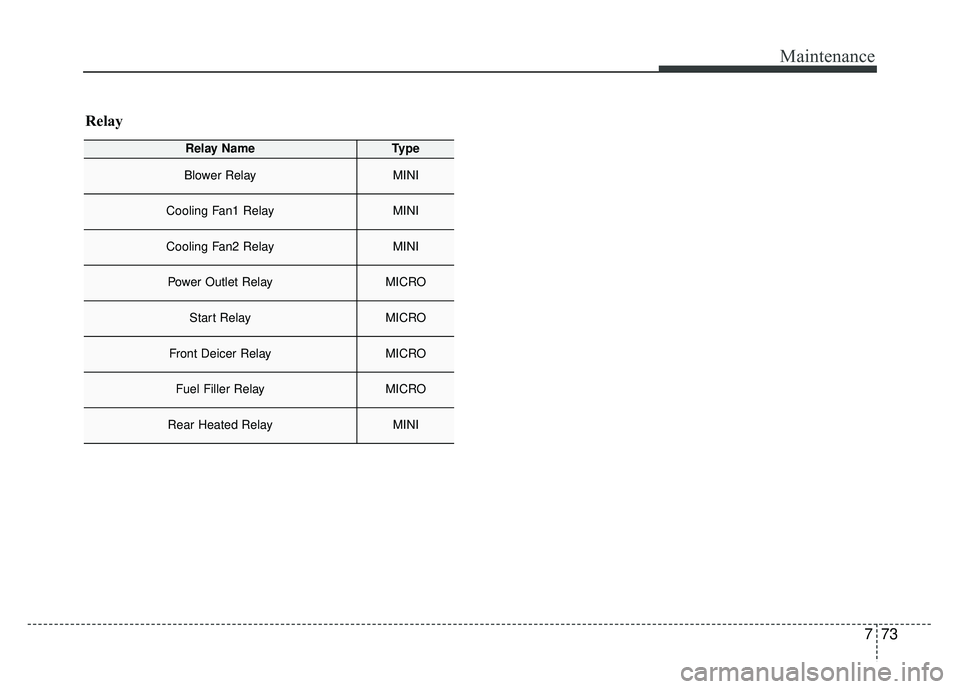

Relay NameType
Blower RelayMINI
Cooling Fan1 RelayMINI
Cooling Fan2 RelayMINI
Power Outlet RelayMICRO
Start RelayMICRO
Front Deicer RelayMICRO
Fuel Filler RelayMICRO
Rear Heated RelayMINI
Relay

Maintenance
74
7

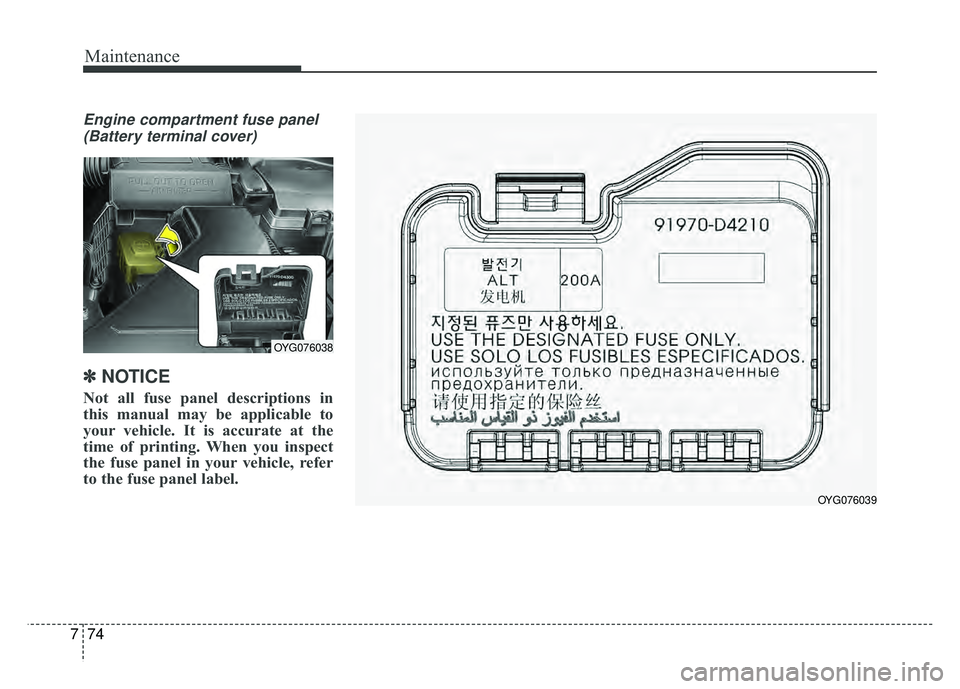

Engine compartment fuse panel
(Battery terminal cover)
✽
✽ NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OYG076038
OYG076039

775
Maintenance

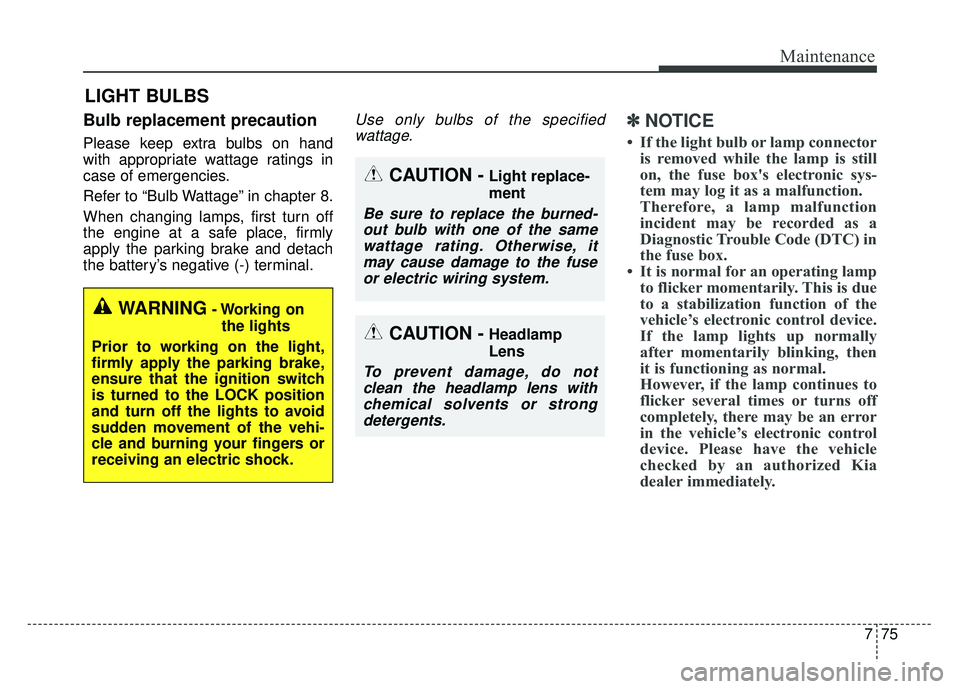

LIGHT BULBS
Bulb replacement precaution
Please keep extra bulbs on hand
with appropriate wattage ratings in
case of emergencies.
Refer to “Bulb Wattage” in chapter 8.
When changing lamps, first turn off
the engine at a safe place, firmly
apply the parking brake and detach
the battery’s negative (-) terminal.
Use only bulbs of the specifiedwattage.✽ ✽ NOTICE
• If the light bulb or lamp connector
is removed while the lamp is still
on, the fuse box's electronic sys-
tem may log it as a malfunction.
Therefore, a lamp malfunction
incident may be recorded as a
Diagnostic Trouble Code (DTC) in
the fuse box.
• It is normal for an operating lamp to flicker momentarily. This is due
to a stabilization function of the
vehicle’s electronic control device.
If the lamp lights up normally
after momentarily blinking, then
it is functioning as normal.
However, if the lamp continues to
flicker several times or turns off
completely, there may be an error
in the vehicle’s electronic control
device. Please have the vehicle
checked by an authorized Kia
dealer immediately.
WARNING- Working on
the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switch
is turned to the LOCK position
and turn off the lights to avoid
sudden movement of the vehi-
cle and burning your fingers or
receiving an electric shock.
CAUTION -Light replace-
ment
Be sure to replace the burned- out bulb with one of the samewattage rating. Otherwise, itmay cause damage to the fuseor electric wiring system.
CAUTION -Headlamp
Lens
To prevent damage, do notclean the headlamp lens withchemical solvents or strongdetergents.

Maintenance
76
7

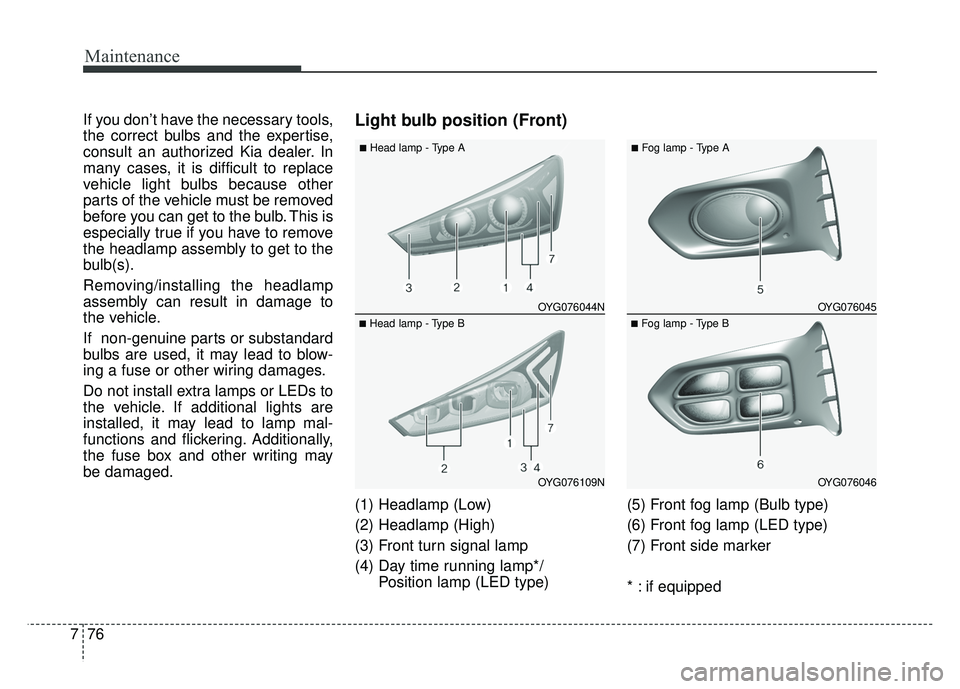

If you don’t have the necessary tools,
the correct bulbs and the expertise,
consult an authorized Kia dealer. In
many cases, it is difficult to replace
vehicle light bulbs because other
parts of the vehicle must be removed
before you can get to the bulb. This is
especially true if you have to remove
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
If non-genuine parts or substandard
bulbs are used, it may lead to blow-
ing a fuse or other wiring damages.
Do not install extra lamps or LEDs to
the vehicle. If additional lights are
installed, it may lead to lamp mal-
functions and flickering. Additionally,
the fuse box and other writing may
be damaged.Light bulb position (Front)
(1) Headlamp (Low)
(2) Headlamp (High)
(3) Front turn signal lamp
(4) Day time running lamp*/
Position lamp (LED type) (5) Front fog lamp (Bulb type)
(6) Front fog lamp (LED type)
(7) Front side marker
* : if equipped
OYG076044N
OYG076109N
■Head lamp - Type A
■Head lamp - Type B
OYG076045
OYG076046
■Fog lamp - Type A
■Fog lamp - Type B

777
Maintenance

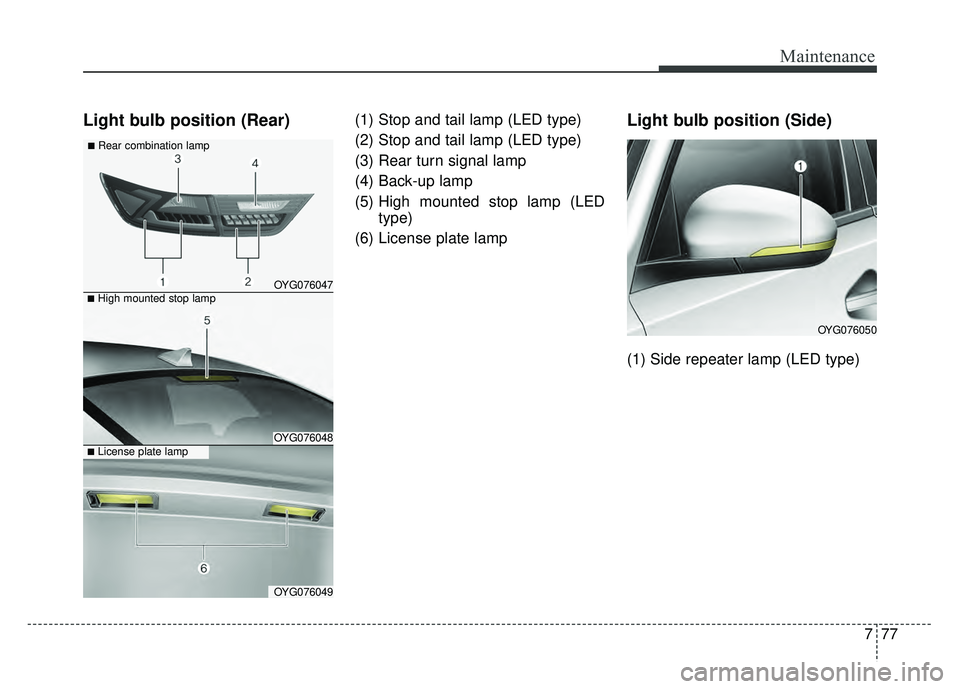

Light bulb position (Rear)(1) Stop and tail lamp (LED type)
(2) Stop and tail lamp (LED type)
(3) Rear turn signal lamp
(4) Back-up lamp
(5) High mounted stop lamp (LEDtype)
(6) License plate lampLight bulb position (Side)
(1) Side repeater lamp (LED type)
OYG076047
OYG076048
OYG076049
■Rear combination lamp
■High mounted stop lamp
■License plate lamp
OYG076050
