oil capacities KIA CADENZA 2018 Owners Manual

725
Maintenance
If it is near or at L, add enough oil to
bring the level to F.Do not overfill.
Use a funnel to help prevent oil
from being spilled on engine com-
ponents.
Use only the specified engine oil. (Refer to “Recommended lubricantsand capacities” in chapter 8.)
Changing the engine oil and
filter
Have engine oil and filter changed by
an authorized Kia dealer according
to the Maintenance Schedule at the
beginning of this chapter.
CALIFORNIA PROPO-
SITION 65 WARNING
Engine oil contains chemicals
known to the State of California
to cause cancer, birth defects
and reproductive harm. Used
engine oil may cause irritation or
cancer of the skin if left in con-
tact with the skin for prolonged
periods of time. Always protect
your skin by washing your
hands thoroughly with soap and
warm water as soon as possible
after handling used oil.OYG076011
■Gasoline Engine (Lambda 3.3L - GDI)

729
Maintenance

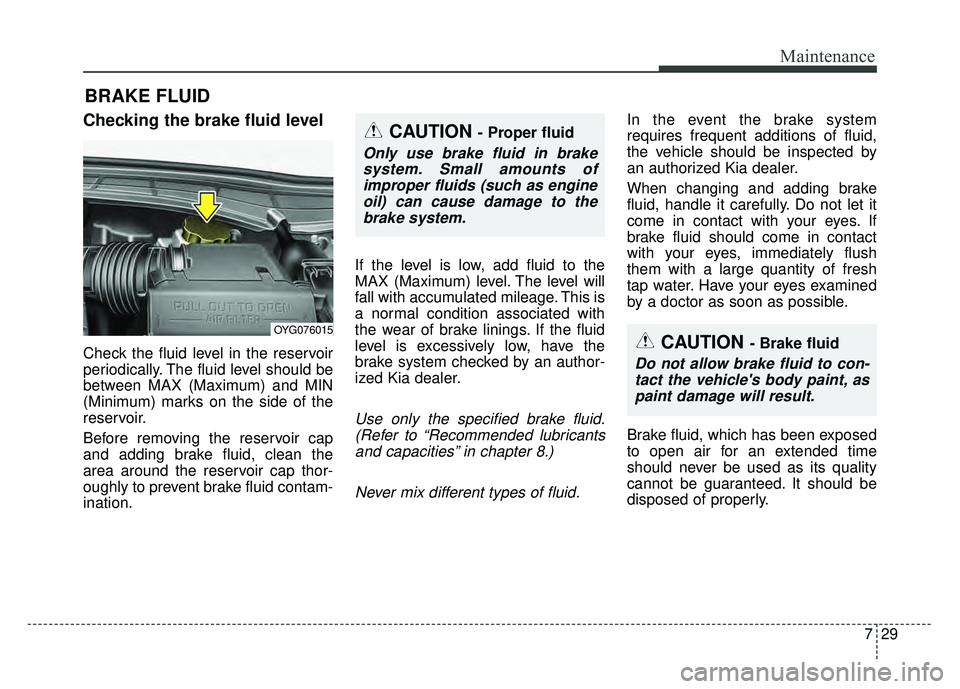

BRAKE FLUID
Checking the brake fluid level
Check the fluid level in the reservoir
periodically. The fluid level should be
between MAX (Maximum) and MIN
(Minimum) marks on the side of the
reservoir.
Before removing the reservoir cap
and adding brake fluid, clean the
area around the reservoir cap thor-
oughly to prevent brake fluid contam-
ination.If the level is low, add fluid to the
MAX (Maximum) level. The level will
fall with accumulated mileage. This is
a normal condition associated with
the wear of brake linings. If the fluid
level is excessively low, have the
brake system checked by an author-
ized Kia dealer.
Use only the specified brake fluid.
(Refer to “Recommended lubricantsand capacities” in chapter 8.)
Never mix different types of fluid.
In the event the brake system
requires frequent additions of fluid,
the vehicle should be inspected by
an authorized Kia dealer.
When changing and adding brake
fluid, handle it carefully. Do not let it
come in contact with your eyes. If
brake fluid should come in contact
with your eyes, immediately flush
them with a large quantity of fresh
tap water. Have your eyes examined
by a doctor as soon as possible.
Brake fluid, which has been exposed
to open air for an extended time
should never be used as its quality
cannot be guaranteed. It should be
disposed of properly.
OYG076015CAUTION - Brake fluid
Do not allow brake fluid to con-tact the vehicle's body paint, aspaint damage will result.
CAUTION - Proper fluid
Only use brake fluid in brakesystem. Small amounts ofimproper fluids (such as engineoil) can cause damage to thebrake system.

Specifications, Consumer information, Reporting safety defects
68
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3: If the API SM engine oil is not available, you can use API SN or above.
*4: If the ILSAC GF-4 engine oil is not available, you can use ILSAC GF-5 or above.
LubricantVolume Classification
Engine oil *1*2
(drain and refill)
Recommends
3.3L GDI6.86 US qt. (6.5 liter)API SM or above*3, ILSAC GF-4 or above*4,
ACEA-A5 or above
Automatic transmission
fluid 3.3L GDI
7.39 US qt. (7.0 liter)ATF SP-IV
(Recommended Kia genuine, Michang, SK, NOCA)
Coolant 3.3L GDI
8.98 US qt. (8.5 liter) Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminum radiator)
Brake fluid
0.74 ~ 0.85 US qt. (0.7 ~ 0.8 liter) FMVSS116 DOT-3 or DOT-4
Fuel
18.5 US gal. (70l) Unleaded gasoline

Index
10I
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-52Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . 4-52
Day/night rearview mirror . . . . . . . . . . . . . . . . . . . . 4-52
"Electric chromic mirror (ECM)with HomeLink
®
system and compass" . . . . . . . . . . . . . . . . . . . . . . . 4-53
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-61
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-62
Folding the outside rearview mirror. . . . . . . . . . . . . 4-63
Occupant Detection System (ODS) . . . . . . . . . . . . . . . 3-46
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
68
Oil (Engine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-24
Online factory authorized manuals . . . . . . . . . . . . . . . . 8-14
Outside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 4-61
Outside Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-68
Overheats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
6-7
Owner maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6 Owner maintenance schedule. . . . . . . . . . . . . . . . . . . 7-6
Panorama sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-41 Sunroof open warning . . . . . . . . . . . . . . . . . . . . . . . 4-42
Sunshade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43\
Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43
Tilting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-45 Closing the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-45
Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . 4-46
Parking & Tail light . . . . . . . . . . . . . . . . . . . . . . . . . . 4-106
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-19 Checking the parking brake . . . . . . . . . . . . . . . . . . . 7-31
Personal lamp bulb replacement . . . . . . . . . . . . . . . . . . 7-87
Position lamp + DRL (LED type) bulb replacement . . 7-81
Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-17
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-145
Power window lock button . . . . . . . . . . . . . . . . . . . . . . 4-34
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25\
Pre-tensioner seat belt. . . . . . . . . . . . . . . . . . . . . . . . . . 3-23
Rear curtain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-151
Rear parking assist system . . . . . . . . . . . . . . . . . . . . . 4-100 Type of warning sound . . . . . . . . . . . . . . . . . . . . . . 4-101
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Rear turn signal lamp bulb replacement . . . . . . . . . . . . 7-82
Rear view camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-104
Recommended lubricants and capacities . . . . . . . . . . . . 8-6 Recommended SAE viscosity number. . . . . . . . . . . . 8-7
Record your key number . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Refrigerant label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Remote control (outside rear view mirror) . . . . . . . . . . 4-62
Remote keyless entry system operations . . . . . . . . . . . . 4-8
Reporting safety defects . . . . . . . . . . . . . . . . . . . . . . . . 8-14
O
P
R
