KIA CADENZA 2019 Owners Manual

595
Driving your vehicle
The vehicle drives on a curvedroad.
The vehicle drives through a toll- gate.
The road pavement (or the periph- eral ground) abnormally contains
metallic components (i.e. possibly
due to subway construction).
There is a fixed object near the vehicle, such as a guardrail.
While going down or up a steep road where the height of the lane is
different.
Driving on a narrow road where trees or grass or overgrown.
Driving in rural areas where the sensor does not detect another
vehicle or structure for an extended
period of time.
Driving on a wet road.
Driving on a road where the guardrail or wall is in double struc-
ture.
A big vehicle is near such as a bus or truck.
When the other vehicle approach- es very close. When the other vehicle passes at a
very fast speed.
While changing lanes.
If the vehicle has started at the same time as the vehicle next to
you and has accelerated.
When the vehicle in the next lane moves two lanes away from you
OR when the vehicle two lanes
away moves to the next lane from
you.
A motorcycle or bicycle is near.
A flat trailer is near.
If there are small objects in the detecting area such as a shopping
cart or a baby stroller.
If there is a low height vehicle such as a sports car.
The brake pedal is depressed.
ESC (Electronic Stability Control) is activated.
ESC (Electronic Stability Control) malfunctions.
The tire pressure is low or a tire is damaged.
The brake is reworked. The vehicle abruptly changes driv-
ing direction.
The vehicle makes sharp lane changes.
The vehicle sharply stops.
Temperature is extremely low around the vehicle.
The vehicle severely vibrates while driving over a bumpy road,
uneven/bumpy road, or concrete
patch.
The vehicle drives on a slippery surface due to snow, water puddle,
or ice.
The Lane Keeping Assist (LKA) or Lane Departure Warning (LDW) do
not operate normally. (if equipped)
For more information refer to “Lane
Keeping Assist (LKA) system” in
this chapter.

Driving your vehicle
96
5

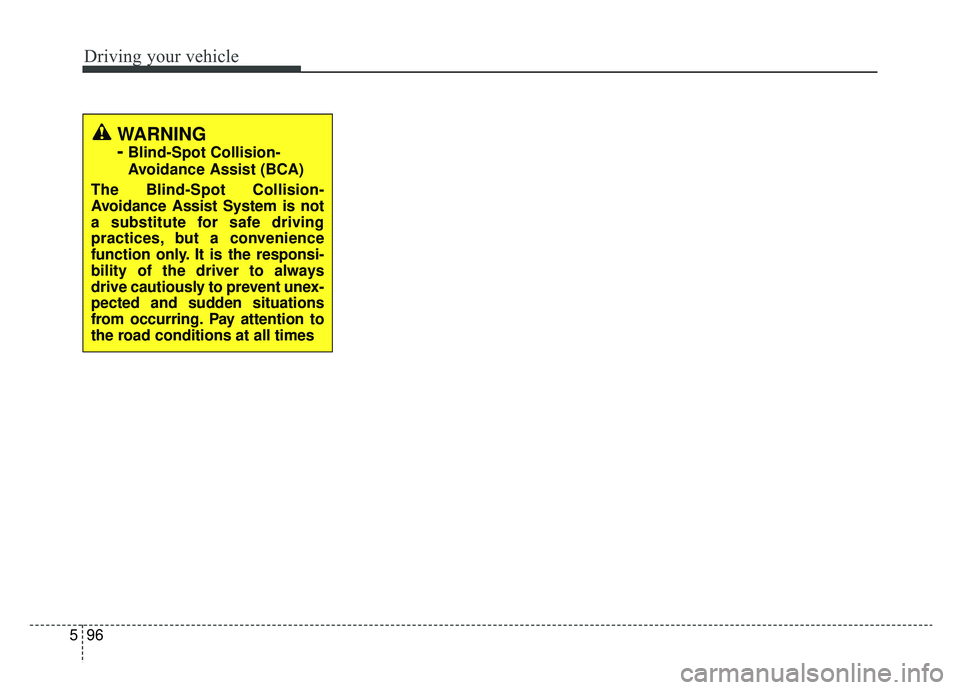

WARNING
-
Blind-Spot Collision-
Avoidance Assist (BCA)
The Blind-Spot Collision-
Avoidance Assist System is not
a substitute for safe driving
practices, but a convenience
function only. It is the responsi-
bility of the driver to always
drive cautiously to prevent unex-
pected and sudden situations
from occurring. Pay attention to
the road conditions at all times

597
Driving your vehicle
LANE KEEPING ASSIST (LKA) SYSTEM (IF EQUIPPED)
The Lane Keeping Assist System is
designed to detect the lane markers
on the road with a front view camera
at the front windshield, and assists
the driver’s steering to help keep the
vehicle in the lanes.
When the system detects the vehicle
straying from its lane, it alerts the
driver with a visual and audible warn-
ing, while applying a slight counter-
steering torque, trying to prevent the
vehicle from moving out of its lane.
✽ ✽
NOTICE
• Driver is responsible for being
aware of surroundings, steering
the vehicle, and safe driving prac-
tices.
• LKA SYSTEM helps prevent the driver from moving out of the lane
unintentionally by assisting the
driver’s steering. However, the
system is just a convenience func-
tion and the steering wheel is not
always controlled. While driving,
the driver should pay attention to
the steering wheel.
• The operation of the LKA SYS- TEM can be cancelled or not work
properly according to road condi-
tion and surroundings. Always be
cautious when driving.
OYG056052
WARNING
Do not turn the steering wheel
suddenly when the vehicle is
being directed by the LKA sys-
tem. This can result in a sudden
loss of control and crash of the
vehicle.
WARNING - The Lane
Keeping
Assist System is a supplemen-
tal system and is not a substi-
tute for safe driving practices. It
is the responsibility of the driv-
er to always pay attention and
drive safely.

Driving your vehicle
98
5
Do not disassemble the front view
camera temporarily for tinted win-
dows or attaching any types of
coatings and accessories. If you
disassemble the camera and
assemble it again, take your vehi-
cle to an authorized Kia dealer and
have the system checked.
When you replace the windshield glass, front view camera or parts of
the steering system take your vehi-
cle to an authorized Kia dealer and
have the system checked.
The system is designed to detect lane markers using a front view
camera. If the lane markers are
hard to detect, then the system
may be limited. Always be cautious
when using the system.
When the lane markers are hard to detect, please refer to “Driver’s
Attention”.
Do not remove or damage the related parts of LKA SYSTEM.
Do not place objects on the dash- board that reflects light such as
mirrors, white paper, etc. This may
prevent the system from function-
ing. You may not hear warning sound of
LKA SYSTEM because of the
excessive audio sound.
If you drive with your hands off the steering wheel, the LKA SYSTEM
will stop controlling the steering
wheel after the hands off alarm.
Afterwards, if you drive with your
hands on the steering wheel, the
control will be activated again.✽ ✽
NOTICE
• If the vehicle speed is high, steer-
ing torque for assistance will not
be enough to keep your vehicle
within the lane. If so, the vehicle
may move out of its lane. Obey
speed limit when using LKA SYS-
TEM.
• If you attach objects to the steer- ing wheel, the system may not
assist steering.
• If you attach objects to the steer- ing wheel, hands off alarm may
not work properly.

599
Driving your vehicle
LKA SYSTEM operation
To activate/deactivate the LKA SYS-
TEM:
With the ignition switch in the ON
position, press the LKA SYSTEM
button located on the instrument
panel on the lower left hand side of
the driver.
The indicator in the cluster display
will initially illuminate white.
When the indicator (white) activated
in the previous ignition cycle, the
system turns on without any control.If you press the LKA SYSTEM button
again, the indicator on the cluster
display will go off.
The color of indicator will change
depend on the condition of LKA
SYSTEM.
- White : Sensor does not detect the
lane marker or vehicle
speed is less than 40 mph
(64 km/h).
- Green : S ensor detects the lane
marker and system is able
to control the steering.
LKA SYSTEM activation
To see the LKA SYSTEM screen on the LCD display in the cluster,
Tab to the Assist mode ( ).
For further details, refer to [menu settings] in chapter 4, [crash pad].
After LKA SYSTEM is activated, if both lane markers are detected,
vehicle speed is over 40 mph (64
km/h) and all the activation condi-
tions are satisfied, a green steering
wheel indicator will illuminate and
the steering wheel will be controlled.
OYG058193
WARNING
The Lane Keeping Assist
System is a system to help pre-
vent the driver from leaving the
lane. However, the driver should
not solely rely on the system
but always check the road con-
ditions when driving.

Driving your vehicle
100
5
If the speed of the vehicle is over
40 mph (64 km/h) and the system
detects lane markers, the color
changes from gray to white. When the conditions below are met,
LKA SYSTEM will be enabled to
assist steering.
Vehicle speed is above 40 mph (64
km/h).
Both lane markers are detected by LKA SYSTEM.
The vehicle is between the lane markers.
If LKA SYSTEM can assist steering,
a green steering wheel indicator will
illuminate.
Warning
If the vehicle leaves a lane, the lane marker you cross will blink on
the LCD display.
OYG058236N
OYG058237N
■ Lane undetected
■Lane detectedOYG058238N
OYG058239N
■ Left lane
■Right lane

5101
Driving your vehicle
If the vehicle moves out its lanebecause steering torque for assis-
tance is not enough, the line indi-
cator will blink.
If all the conditions to activate LKA SYSTEM are not satisfied, the sys-
tem will convert to LDW system
(Lane Departure Warning) and
only warn the driver when the driv-
er crosses the lane lines. In this
scenario, the LDW system does
not provide any steering inputs into
the vehicle for you. Accordingly,
you must take the necessary steps
to maintain control of the vehicle
and keep it within the lanes.

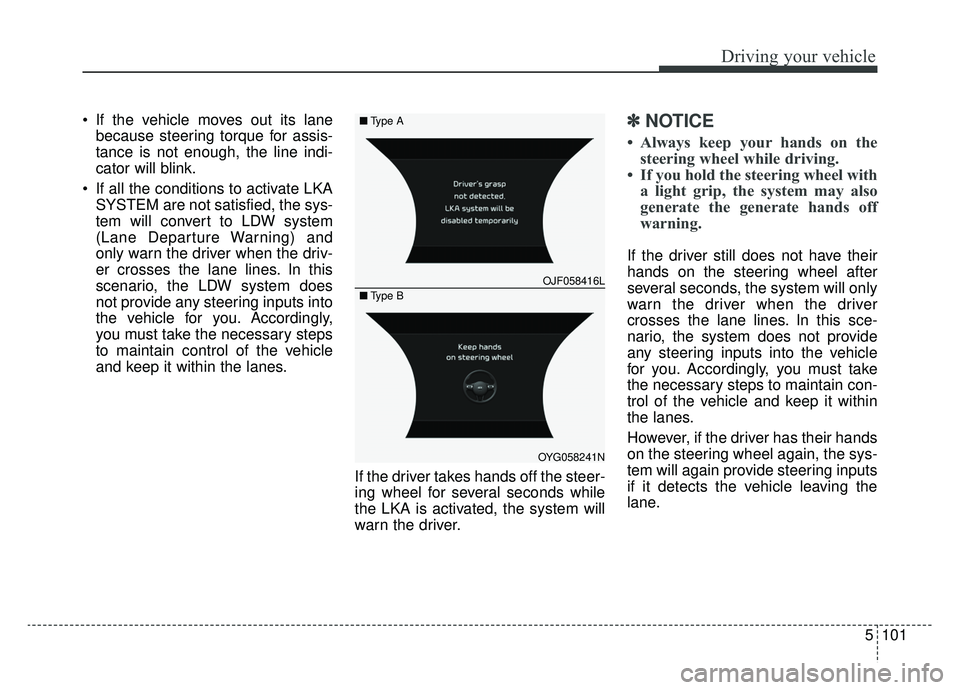

If the driver takes hands off the steer-
ing wheel for several seconds while
the LKA is activated, the system will
warn the driver.✽ ✽
NOTICE
• Always keep your hands on the
steering wheel while driving.
• If you hold the steering wheel with a light grip, the system may also
generate the generate hands off
warning.
If the driver still does not have their
hands on the steering wheel after
several seconds, the system will only
warn the driver when the driver
crosses the lane lines. In this sce-
nario, the system does not provide
any steering inputs into the vehicle
for you. Accordingly, you must take
the necessary steps to maintain con-
trol of the vehicle and keep it within
the lanes.
However, if the driver has their hands
on the steering wheel again, the sys-
tem will again provide steering inputs
if it detects the vehicle leaving the
lane.
OJF058416L
OYG058241N
■ Type A
■Type B

Driving your vehicle
102
5

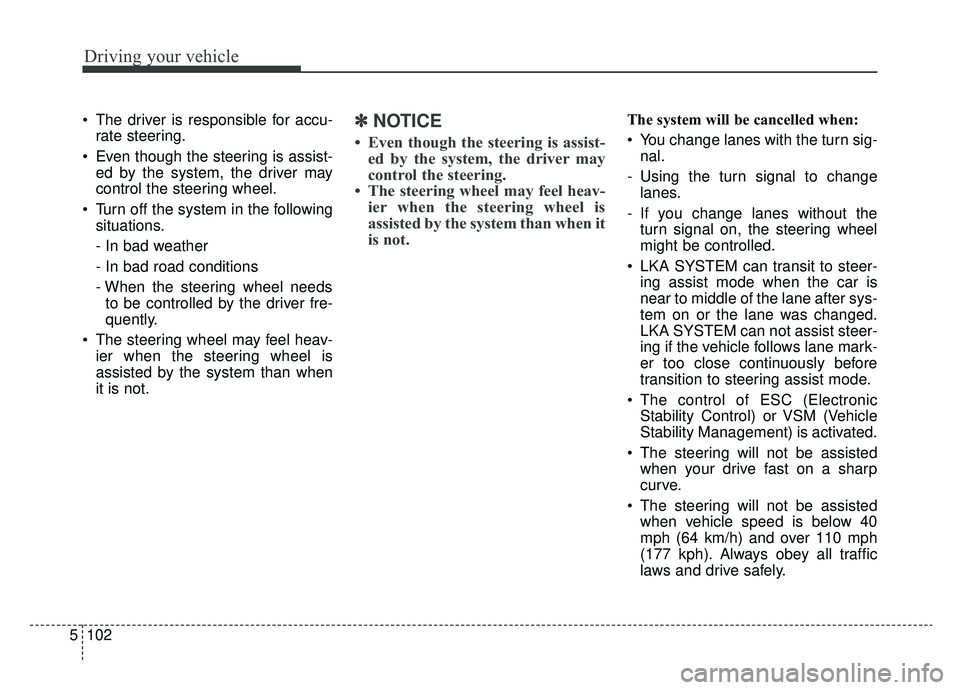

The driver is responsible for accu-
rate steering.
Even though the steering is assist- ed by the system, the driver may
control the steering wheel.
Turn off the system in the following situations.
- In bad weather
- In bad road conditions
- When the steering wheel needsto be controlled by the driver fre-
quently.
The steering wheel may feel heav- ier when the steering wheel is
assisted by the system than when
it is not.✽ ✽
NOTICE
• Even though the steering is assist-
ed by the system, the driver may
control the steering.
• The steering wheel may feel heav- ier when the steering wheel is
assisted by the system than when it
is not.
The system will be cancelled when:
You change lanes with the turn sig-
nal.
- Using the turn signal to change lanes.
- If you change lanes without the turn signal on, the steering wheel
might be controlled.
LKA SYSTEM can transit to steer- ing assist mode when the car is
near to middle of the lane after sys-
tem on or the lane was changed.
LKA SYSTEM can not assist steer-
ing if the vehicle follows lane mark-
er too close continuously before
transition to steering assist mode.
The control of ESC (Electronic Stability Control) or VSM (Vehicle
Stability Management) is activated.
The steering will not be assisted when your drive fast on a sharp
curve.
The steering will not be assisted when vehicle speed is below 40
mph (64 km/h) and over 110 mph
(177 kph). Always obey all traffic
laws and drive safely.

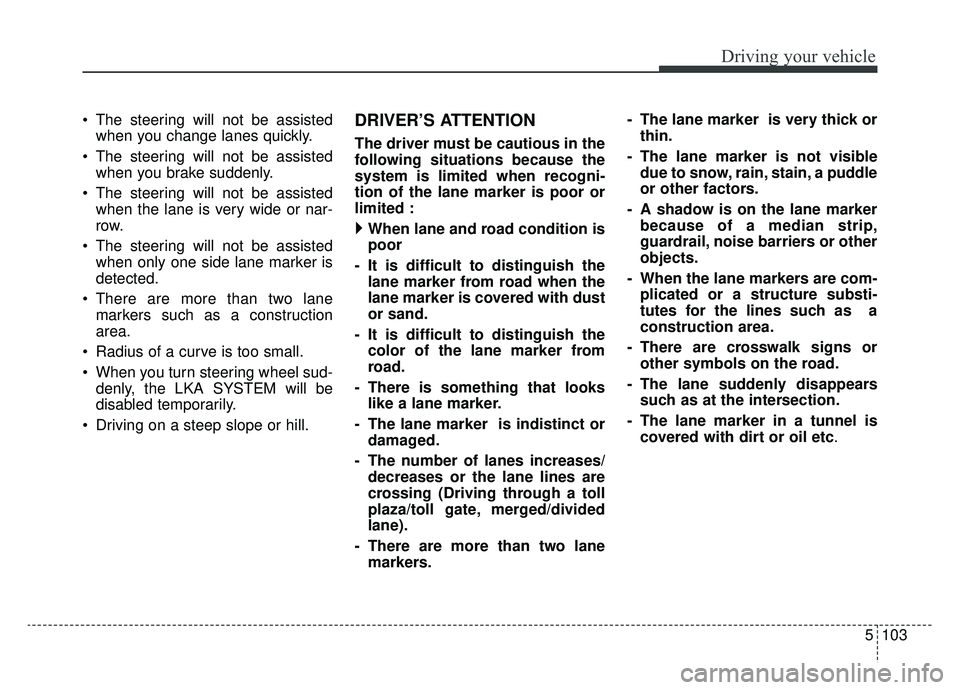

5103
Driving your vehicle
The steering will not be assistedwhen you change lanes quickly.
The steering will not be assisted when you brake suddenly.
The steering will not be assisted when the lane is very wide or nar-
row.
The steering will not be assisted when only one side lane marker is
detected.
There are more than two lane markers such as a construction
area.
Radius of a curve is too small.
When you turn steering wheel sud- denly, the LKA SYSTEM will be
disabled temporarily.
Driving on a steep slope or hill.DRIVER’S ATTENTION
The driver must be cautious in the
following situations because the
system is limited when recogni-
tion of the lane marker is poor or
limited :   When lane and road condition is
poor
- It is difficult to distinguish the lane marker from road when the
lane marker is covered with dust
or sand.
- It is difficult to distinguish the color of the lane marker from
road.
- There is something that looks like a lane marker.
- The lane marker is indistinct or damaged.
- The number of lanes increases/ decreases or the lane lines are
crossing (Driving through a toll
plaza/toll gate, merged/divided
lane).
- There are more than two lane markers. - The lane marker is very thick or
thin.
- The lane marker is not visible due to snow, rain, stain, a puddle
or other factors.
- A shadow is on the lane marker because of a median strip,
guardrail, noise barriers or other
objects.
- When the lane markers are com- plicated or a structure substi-
tutes for the lines such as a
construction area.
- There are crosswalk signs or other symbols on the road.
- The lane suddenly disappears such as at the intersection.
- The lane marker in a tunnel is covered with dirt or oil etc .

Driving your vehicle
104
5

When external condition is inter-
vened
- The brightness of outside changes suddenly when enter-
ing/existing a tunnel or passing
under a bridge.
- The headlamps are not on at night or in a tunnel, or light level
is low.
- There is a boundary structure in the roadway.
- The light reflects from the water on the road.
- When light shines brightly from behind the vehicle.
- The distance from the vehicle ahead is very short or the vehi-
cle ahead covers up the lane
line.
- You drive on a steep grade or a sharp curve.
- The vehicle vibrates heavily.
- The temperature near inside mir- ror is very high due to direct sun
light.
When front visibility is poor
- The lens or windshield is cov- ered by foreign materials.
- The sensor cannot detect the lane because of fog, heavy rain
or snow.
- The windshield is fogged by humid air in the vehicle.
- There is an object on the dash- board that interferes with the
camera.LKA SYSTEM malfunction
If there is a problem with the system
a message will appear. If the problem
continues, the LKA system fail indi-
cator will illuminate.WARNING
The Lane Keeping Assist
System is a system to help pre-
vent the driver from leaving the
lane. However, the driver should
not solely rely on the system
but always take the necessary
actions for safe driving prac-
tices.
OYG058242N
