Page 461 of 518

KIA CADENZA 2019  Owners Manual 761
Maintenance
Fuse NameFuse ratingCircuit Protected
P/SEAT (DRV)30ADriver Seat Manual Switch, Driver Integrated memory system Module
POWER OUTLET20AFront Power Outlet, Rear Power Outlet
MODULE 210AA

Page 462 of 518

KIA CADENZA 2019  Owners Manual Maintenance
62
7

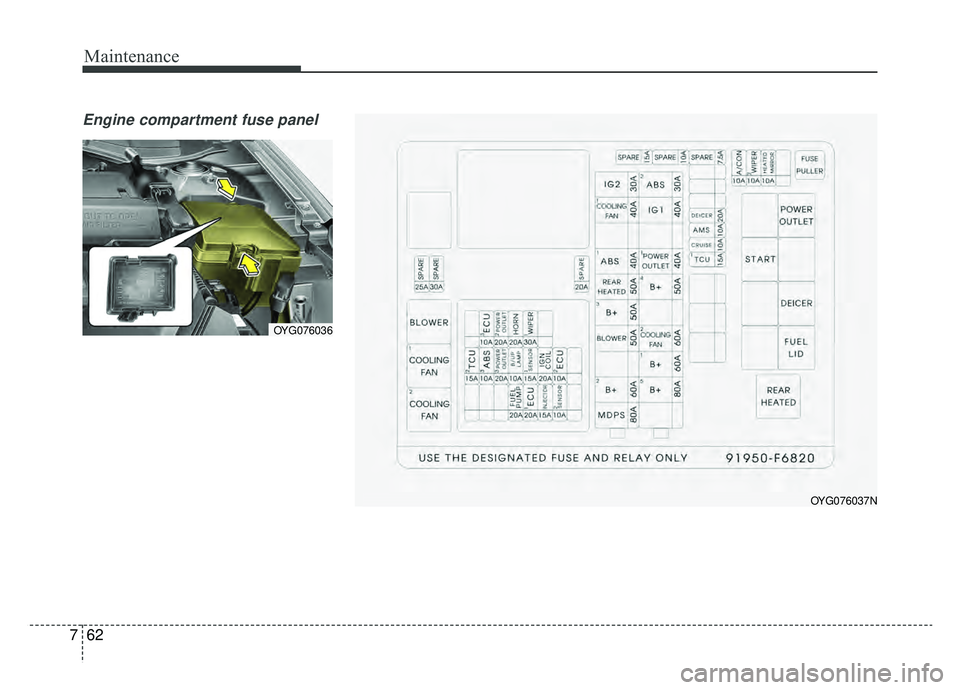

Engine compartment fuse panel
OYG076037N
OYG076036

Page 463 of 518

KIA CADENZA 2019  Owners Manual 763
Maintenance
Fuse NameFuse ratingCircuit Protected
MULTIFUSE
MDPS80AMDPS (Motor Driven Power Steering) UNIT
B+260AIGPM (Integrated Gateway Power control Module)
BLOWER50ABlower Relay
B+350AIGPM (In

Page 464 of 518

KIA CADENZA 2019  Owners Manual Maintenance
64
7
Fuse NameFuse ratingCircuit Protected
FUSE
TCU115ATCM (Transmission Control Module)
CRUISE10ASmart Cruise Control Unit
AMS10ABattery Sensor
DEICER20AFront Deicer Relay
A/CON10AAir Con

Page 465 of 518

KIA CADENZA 2019  Owners Manual 765
Maintenance
Fuse NameFuse ratingCircuit Protected
FUSE
TCU215ATCM (Transmission Control Module), Transaxle Range Switch
ABS310AESC (Electronic Stability Control) Module
POWER
OUTLET320ANot Used
B/

Page 466 of 518

KIA CADENZA 2019  Owners Manual Maintenance
66
7
Relay NameType
Blower RelayMINI
Cooling Fan1 RelayMINI
Cooling Fan2 RelayMINI
Power Outlet RelayMICRO
Start RelayMICRO
Front Deicer RelayMICRO
Fuel Filler RelayMICRO
Rear Heated Relay

Page 467 of 518

KIA CADENZA 2019  Owners Manual 767
Maintenance

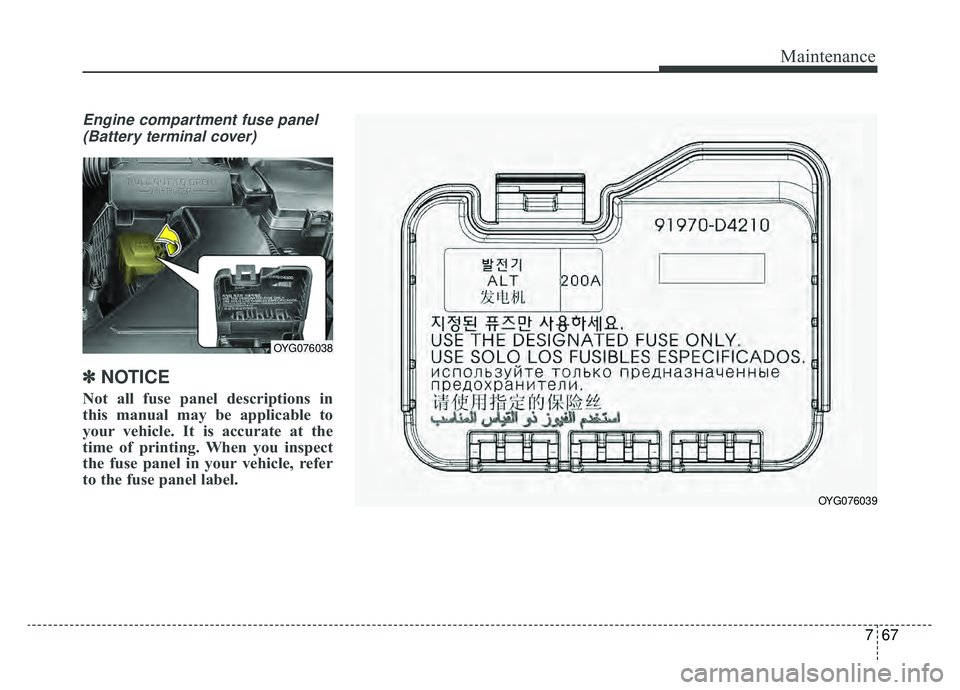

Engine compartment fuse panel(Battery terminal cover)
✽ ✽ NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of pri

Page 468 of 518

KIA CADENZA 2019  Owners Manual Maintenance
68
7

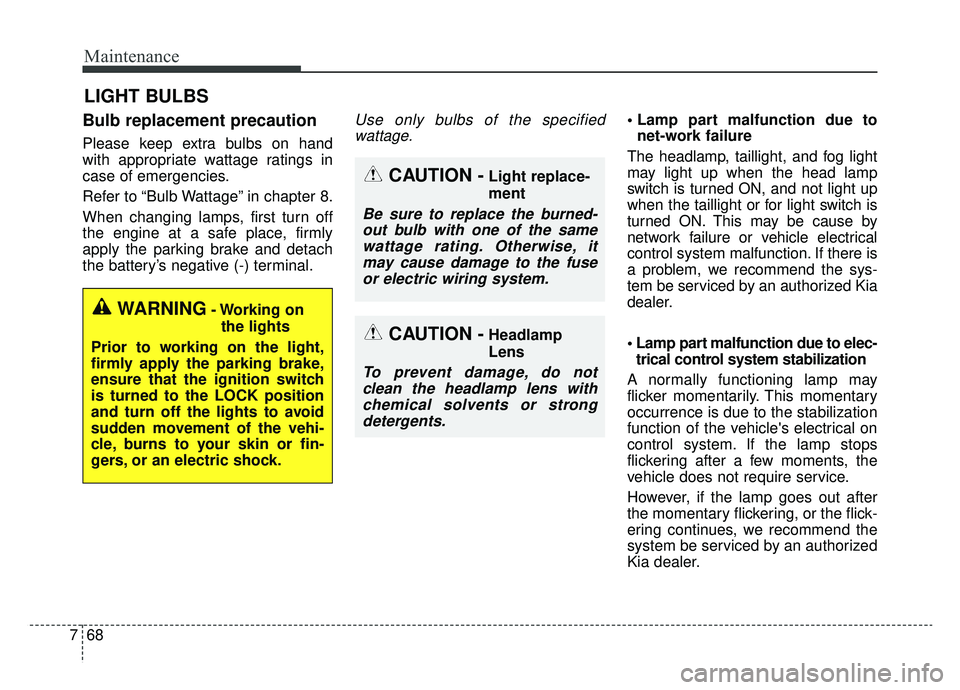

LIGHT BULBS
Bulb replacement precaution
Please keep extra bulbs on hand
with appropriate wattage ratings in
case of emergencies.
Refer to “Bulb Wattage” in chapter 8.
When changi

Page 469 of 518

KIA CADENZA 2019  Owners Manual 769
Maintenance
✽ ✽NOTICE
• If the light bulb or lamp connector
is removed while the lamp is still
on, the fuse box's electronic sys-
tem may log it as a malfunction.
Therefore, a lamp malfu

Page 470 of 518

KIA CADENZA 2019  Owners Manual Maintenance
70
7
If you don’t have the necessary tools,
the correct bulbs and the expertise,
consult an authorized Kia dealer. In
many cases, it is difficult to replace
vehicle light bulbs because o
