KIA CADENZA 2020 Features and Functions Guide

9ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED
To view these videos on your mobile device, snap these QR Codes or visit the listed websites
Refer to page 2 for more information
LCD Display Video
LCD Display: Maintenance Video
QR CODES
www.youtube.com/KiaFeatureVideos
www.youtube.com/KiaFeatureVideos
( Type A; Controls located on Steering Wheel)
Service Interval Mode
To enter Service Interval Mode, go to the Vehicle Settings on the audio head
unit, press Vehicle > Cluster > Service Interval System will display number
of miles remaining until next service is due, and type of service
When service is required, the following will be displayed: Service required
To reset the Service Interval Mode system, press and hold the OK button B
for more than 1 second
To turn Service In OFF, go to User Settings
Service Interval Setting
To set the service interval when in User Settings mode:
• Press the Select /Reset button B up/down and scroll to Service Interval
Press again to enter
• Press the Select /Reset button B and toggle to ON, then press again
to set Then press the Select /Reset button B to scroll and select the
desired miles or months for your next service
• Press the OK button B to enter
AIRBAG
CRUISEA
B
VEHICLE SETTINGS

CADENZA FEATURES & FUNCTIONS GUIDE10*IF EQUIPPED
SMART, ECO, COMFORT and SPORT drive modes A may be changed
according the driver’s preference or road conditions To cycle through
drive modes, rotate the DRIVE MODE knob B
COMFORT Mode – The system’s default mode is COMFORT mode and may
not display on the instrument cluster nor the audio system’s screen (If set to
ECO and ignition is cycled, the system will return to ECO mode)
ECO Mode – An ECO indicator will illuminate on the instrument cluster To
deactivate, rotate the DRIVE MODE knob B again to change the selection
to another setting
SPORT Mode – A SPORT indicator will illuminate on the instrument cluster
To deactivate, rotate the DRIVE MODE knob B again to change the
selection to another setting
SMART Mode – When SMART mode is activated, the system automatically
selects the drive mode best suited to the current driving style (economic,
average, spirited) A SMART indicator will illuminate on the instrument cluster
and change colors or shades, depending on the current driving style To
deactivate, rotate the DRIVE MODE knob B again to change the selection
to another setting
3
/ %
1
"650)0-%
%3*7&.0%&
Drive Mode Integrated Control System Video
To view a video on your mobile device, snap this QR Code or visit the listed website
Refer to page 2 for more information
QR CODE
www.youtube.com/KiaFeatureVideos
For more information on ECO Mode, refer to your Owner’s Manual or contact your local dealership.
When the Engine Start/Stop button is turned off, the system will default to COMFORT mode if the vehicle was last in Sport mode
To help improve your fuel economy:
•Drive at a moderate speed, accelerating smoothly and at a moderate rate •Keep tires inflated to the recommended pressure •Be sure the wheels are properly aligned
QUICK TIPS
ECO Mode (Active ECO)
The Active ECO system is designed to
improve fuel economy by controlling several
vehicle components When activated, it
modifies drivetrain operations such as engine
power and transmission
To turn ON, rotate the DRIVE MODE knob B
and scroll through options until in the ECO
mode The ECO mode indicator light in the
LCD cluster will illuminate, indicating that
the vehicle is in ECO mode and Active ECO is
operating The Active ECO system will remain
on even when the ignition is cycled
To turn the Active ECO system OFF, rotate the
DRIVE MODE knob B again and change to
another mode
Drive Mode Integrated Control System
REMINDERS: •
When ECO mode is selected, the following may occur to help improve fuel economy: – Acceleration may be slightly reduced even when the accelerator is fully depressed – Air conditioner performance may be limited – Shift pattern of the automatic transmission may change – Engine noise may increase – System’s power will be limited when driving uphill •
Steering effort may be slightly increased in Sport mode •
When SPORT mode is selected, fuel economy may decrease
ECO
SMARTCOMFORT
SPORT
DRIVE MODE
SMART
ECO
(Knob located below Gear Shift)
B
A
VEHICLE SETTINGS

12:00 AM Jan. 1
MenuVehicle SettingsSCC ReactionSlowDriving Assist
Drive Mode
Climate
LightsDriver
Assistance
Warning TimeLateWarning VolumeOffDriver Attention Warning
11ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Vehicle Settings
Sound Mood Lamp*
To enter the Vehicle Settings mode in the audio head unit screen, press the SETUP key on the audio head unit Then press the Vehicle icon A,
which will take you to the Vehicle Settings screen B Use the touchscreen to navigate through the menus
Vehicle Settings modes:
Driver Assistance: SCC Reaction, Driving Assist, Warning Time, Warning Volume,
Driver Attention Warning, Forward Safety, Lane Safety, Blind-Spot Safety, Parking Safety
Drive Mode*: Drive Mode Change Alert* (Detailed Alert, Simple Alert, Off)
Climate: Recirculate Air, Defog/Defrost Options, Climate Features*
Lights: Ambient Light, One Touch Turn Signal*, Headlight Delay*, High Beam Assist*
Door: Auto Lock, Auto Unlock, Two-Press Unlock, Smart Trunk
Cluster: Service Interval, Energy Consumption Reset, Content Selection,
Cluster Voice Guidance Volume*, Welcome Sound
Convenience: Welcome Mirror/Light
Seat: Seat Position Change Alert, Smart Posture Care*, Heated/ Ventilated Features*,
Seating Easy Access, Rear Seat Heating Control*
Reset: Reset Vehicle Settings to Factory Defaults
The vehicle’s speaker lights can be customized, including setting the lights to change
according to the mood of the music playing
To change the settings, go to All Menus in the audio head unit Select Sound Mood Lamp
and adjust the different settings C
12:00 AM Jan. 1
MenuMood Lamp
Sound Mood Lamp
Color Theme
Sound MoodMood Lamp responds according to
the theme selected.
Glow Only
Music +Refreshing
SeaSuper Red
B
C
Images are for illustration purposes only and may not reflect actual operation.
Images are for illustration purposes only and may not reflect actual operation.
For more information, refer to the Car Infotainment System Quick Reference Guide.
REMINDERS: •
Mood Lights cannot be changed while vehicle is moving
•
Park vehicle in a safe location before changing the settings
•When any door is opened, the lighting turns off
To reset back to the default settings, press the Reset button on the audio head unit screen
QUICK TIP
VEHICLE SETTINGS
Vehicle
A

CADENZA FEATURES & FUNCTIONS GUIDE12*IF EQUIPPED
(Button panel located left of Steering Wheel)
A
Electronic Stability Control (ESC)*†8
The ESC system is designed to help stabilize the vehicle during certain
cornering maneuvers It is a good idea to keep the ESC turned on for
daily driving whenever possible
Press ESC button A to disable Traction Control in ESC (a “Traction
Control Disabled” message appears)
To turn OFF both the Traction Control and Stability Control, press and
hold for more than 3 seconds Press again to turn ON
REMINDERS:
•
ESC is active by default at vehicle start-up When ignition is cycled, ESC will turn ON again
•
The ESC Indicator Light in the instrument cluster will illuminate whenever the ESC is in operation
For more information on Electronic Stability Control (ESC) and its specific features and operations, please refer to your Owner’s Manual.
Hill-Start Assist Control (HAC)*†8
HAC is designed to prevent the vehicle from rolling backwards when
accelerating from a stop while on a steep incline The HAC automatically
activates whether the ESC is OFF or ON but does NOT activate when the
ESC has malfunctioned
REMINDER: The HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position HAC does not replace the need to apply brakes while stopped on an incline
When HAC is active (e g , during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator
QUICK TIP
DRIVER'S PANEL

13ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
B
Blind-Spot Collision-Avoidance Assist (BCA)†6a
The BCA system is designed to help alert the driver before changing lanes The BCA
system uses a camera on the front windshield and rear radar sensors in the rear
bumper to help alert the driver and temporarily apply braking in certain situations if
it detects an approaching vehicle in the driver’s blind spot area
To turn the BCA system on, go to Vehicle Settings* on the audio head unit Select Driver
Assistance > Blind Spot Safety Then select Active Assist, Warning Only or Off
Deactivate the BCA system by pressing the BCA off button A on the Driver’s Panel
Warning Only – The Warning Only setting will activate the 1st and 2nd stage alerts:
1st-stage: When another vehicle is detected within the BCA system warning
boundary B, a yellow indicator will illuminate on the outside rearview mirrors C
2nd-stage: When the 1st stage alert is on and the driver activates a turn signal, a
flashing yellow indicator will illuminate on the outside rearview mirrors and the system
will sound an alert
To set the initial warning activation time, go to the settings > Driver Assistance >
Warning Time Then select the Normal or the Late option
Active Assist – When Active Assist is selected in the settings, the BCA may activate
the Electronic Stability Control (ESC) and temporarily apply braking power when an
approaching vehicle is detected within a certain distance next to or behind the vehicle
A warning message may appear on the Instrument Cluster LCD
Conditions for the BCA system to operate:
• Warnings - When the vehicle is traveling faster than 20 mph
• Active Assist - When the vehicle is traveling at least 40 mph
• Other vehicle detected on the side of or the rear of the vehicle
The BCA system is a supplemental system. Do not solely rely on this system and always pay attention to the road and its conditions.
For more information, please refer to the Owner’s Manual.
Images are for illustrative purposes only and may not reflect actual operation.
C
REMINDERS: •
The BCA system will not issue a warning if the vehicle speed is 6 mph or more above the surrounding vehicles
•
When BCA is ON and the ignition is cycled, the BCA system returns to its previous state

The BCA Warning Volume can be adjusted in the Vehicle Settings on the audio head unit
QUICK TIP
Blind-Spot Collision- Avoidance Assist (BCA) Video
To view a video on your mobile device, snap this QR Code or visit the listed website
Refer to page 2 for more information
www.youtube.com/KiaFeatureVideos
QR CODE
A
DRIVER'S PANEL

CADENZA FEATURES & FUNCTIONS GUIDE14*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
A
Rear Cross-Traffic Collision-Avoidance Assist (RCCA)†6
If the RCCA system sensors detect approaching vehicles from the left or right side A,
the system will sound an audible alert, the warning indicators on the outside rearview
mirror will illuminate and a message will appear on the LCD screen B
RCCA is designed to operate under the following conditions::
• When the gear shift is in moved into (R) Reverse
• When the vehicle is moving less than 6 mph
REMINDERS:
•
When the BCW system is ON and the ignition is cycled to OFF then ON again, the BCW system returns to ON
•The RCCA feature can be turned OFF/ON in User Settings and will remain in OFF/ON as selected
•When vehicle power is cycled, the RCCA will remain in the previous state
•
The RCCA system will show a warning if the approaching vehicle speed is between 2 5-22 mph within sensing range See owner's manual for other conditions
The RCCA system is a supplemental system. Do not solely rely on this system and always pay attention to the road and its conditions. For more information, please refer to the Owner’s Manual.
Above images are for illustrative purposes only and may not reflect actual operation.
Watch for traffic
B
DRIVER'S PANEL

15ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED
12:00 AM Jan. 1
MenuVehicle SettingsSCC ReactionSlowDriving Assist
Drive Mode
Climate
LightsDriver
Assistance
Warning TimeLateWarning VolumeOffDriver Attention Warning

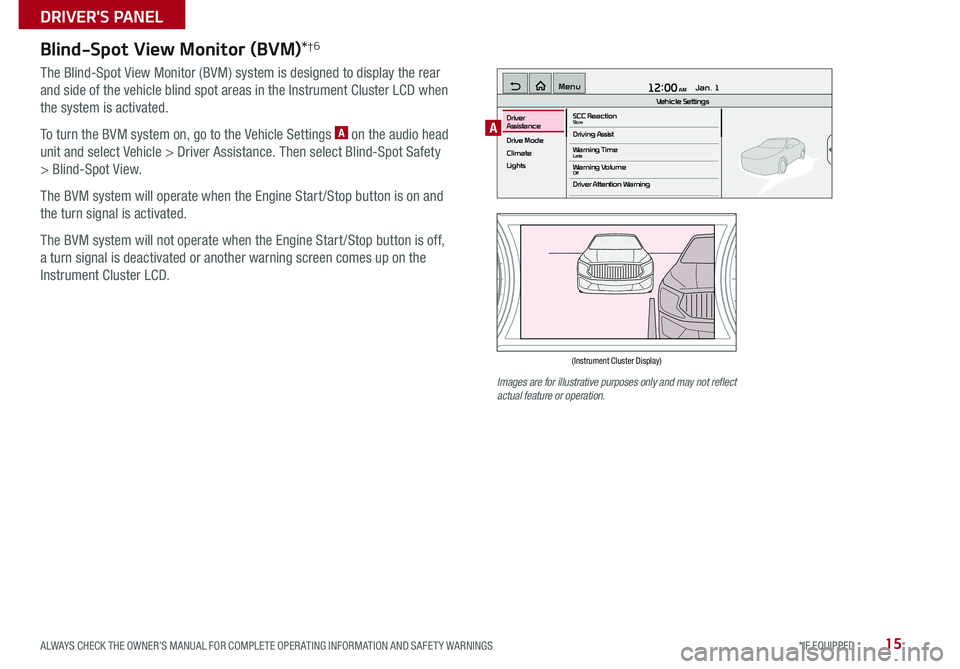

Blind-Spot View Monitor (BVM)*†6
The Blind-Spot View Monitor (BVM) system is designed to display the rear
and side of the vehicle blind spot areas in the Instrument Cluster LCD when
the system is activated
To turn the BVM system on, go to the Vehicle Settings A on the audio head
unit and select Vehicle > Driver Assistance Then select Blind-Spot Safety
> Blind-Spot View
The BVM system will operate when the Engine Start /Stop button is on and
the turn signal is activated
The BVM system will not operate when the Engine Start /Stop button is off,
a turn signal is deactivated or another warning screen comes up on the
Instrument Cluster LCD
Images are for illustrative purposes only and may not reflect actual feature or operation.
AUTO
EPB
ABS0
1
2
3
4
5
6
7
8
x1000rpm
C H010
20
30
40
50
20
40
60
80
100
140
260
230
200
160
60
80
100
120
140
160MPH
km/h
E
F(Instrument Cluster Display)
A
DRIVER'S PANEL

CADENZA FEATURES & FUNCTIONS GUIDE16*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Lane Keeping Assist (LKA)†6
With the Engine Start /Stop button
in the ON position, press the LK A
button A to turn system ON The
instrument cluster indicator
will initially illuminate white It
will remain white when vehicle is
traveling less than 40 mph and the
system does not detect the lane
markers When system detects the lane markers and can assist the
steering, the LK A icon will illuminate green
If the LK A detects that you are moving outside of your lane, the system
may give an audible warning and display a Lane Departure Warning
(LDA) alert on the instrument cluster If the vehicle continues to move
outside of the lane, the LK A may apply steering inputs, trying to prevent
the vehicle from moving outside its lane
LK A is the operating mode by default when the button is depressed to
ON To switch between LK A modes, go to Vehicle Settings on the audio
head unit, select Vehicle, Driver Assistance and Lane Safety Then
select Lane Keeping Assist / Lane Departure Warning / Off
All systems will operate under the following conditions:
•The vehicle exceeds approximately 40 mph
•The LK A system recognizes both lane markers the vehicle is
traveling in
•The vehicle is between the lane markers
When the LK A sensor does not detect the lane traveling in the lanes are not illuminated
When the LK A sensor detects the vehicle moving outside of the lane traveling in, a yellow indicator will illuminate either on the left or right lane (shown in both images above)
Lane Keeping AssistLane Keeping Assist
Lane Keeping Assist
Lane Keeping Assist
Lane Keeping Assist
Lane Keeping Assist
Lane Keeping AssistLane Keeping Assist
Lane Keeping AssistLane Keeping Assist
Lane Keeping Assist
Lane Keeping Assist
Lane Keeping Assist
Lane Keeping Assist
Lane Keeping AssistLane Keeping Assist
When the LK A sensor detects the lane traveling in, both lanes are illuminated
REMINDERS:
•
LK A will not issue a warning if the turn signal or hazard signal is activated
•
If the LK A button is ON and ignition is cycled, the system will turn ON again If the LK A button is OFF, the system remains OFF
•
The LK A /LDW are not substitutes for safe and proper driving Always drive safely and use caution
•
LK A /LDW may not always alert the driver if the vehicle about to be driven outside of its lane Refer to the Owner’s Manual for more information
Lane Keeping Assist (LKA) Video
To view a video on your mobile device, snap this QR Code or visit the listed website Refer to page 2 for more information
QR CODE
www.youtube.com/KiaFeatureVideos
(Button panel located left of Steering Wheel)
A
The Lane Keeping Assist (LKA) / Lane Departure Warning are not substitutes for safe and proper driving. Always drive safely and use caution. LKA/LDW may not always alert the driver if the vehicle is about to be driven outside of its lane.
Images are for illustrative purposes only and may not reflect actual feature or operation.

The LK A Warning Volume can be adjusted in the Vehicle Settings on the audio head unit
QUICK TIP
DRIVER'S PANEL

17
(Button on right of steering wheel)
Lane Following Assist (LFA)†6
The Lane Following Assist (LFA) system monitors lane lines and adjusts
the steering to help position the vehicle in the center of the lane
To enable or disable the LFA system, go to Vehicle Settings on the audio
head unit Press Settings, Vehicle > Driver Assistance > Driving Assist
> Lane Following Assist
To activate or deactivate the LFA system press the LFA button A on the
Steering Wheel
When the LFA system is activated and detects lane markers and/or a
preceding vehicle, the LFA indicator will illuminate green if the
steering assist mode is on, or white if the steering assist mode is off
The LFA system will operate only when these conditions are met:
•When the Smart Cruise Control is on and operating
•The vehicle is traveling slower than 95 mph
A
AIRBAG
CRUISE
Images are for illustrative purposes only and may not reflect actual feature or operation.
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
REMINDERS:
•
If the ignition is cycled, the LFA returns to its previous state, on or off
•The LFA system recognizes the lane the vehicle is traveling in
•
The LFA system is not a substitute for safe and proper driving Always drive safely and use caution
See the Owner’s Manual for more detailed information, limitations and conditions.
A
DRIVER'S PANEL

CADENZA FEATURES & FUNCTIONS GUIDE18*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Forward Collision-Avoidance Assist (FCA)†6
FCA is designed to help alert the driver and, under certain conditions, temporarily apply
braking when rapidly approaching a vehicle that is slowing down, braking or stopped or
if it detects a pedestrian in front of the vehicle Initially, FCA provides Forward Collision
Warning (FCW ) when it detects a potential collision with a vehicle or pedestrian in front,
emitting an audible warning and visual alert on the instrument cluster
If the system detects that the collision risk has increased, the FCA automatically applies the brakes to reduce your speed,
potentially helping to reduce the effects of a possible collision
FCA can be enabled by going to the Vehicle Settings in the audio head unit Go to Vehicle > Driver Assistance > Forward Safety
and select Active Assist, Warning Only or Off
The Warning Time can be adjusted by going to Vehicle > Driver Assistance > Warning Time and Normal or Late
The FCA /FCW will become active when the:
• Engine Start /Stop button is ON• Vehicle is traveling more than 5 mph • Electronic Stability Control (ESC) is ON
Forward Collision-Avoidance Assist (FCA) Video
To view a video on your mobile device, snap this QR Code or visit the listed website Refer to page 2 for more information
QR CODE
www.youtube.com/KiaFeatureVideos
Button configuration may vary depending on vehicle model.
The Forward Collision-Avoidance Assist (FCA)* / Forward Collision Warning (FCW) are not substitutes for safe and proper driving. Always drive safely and use caution. FCA and FCW may not always alert the driver when the vehicle is approaching another vehicle.
REMINDERS:
• If the FCA is operating and the ESC (Electronic Stability Control) is turned off, the FCA system is automatically turned off
• When FCA system is off, the FCA warning indicator is on in the Instrument ClusterImages are for illustrative purposes only and may not reflect actual feature or operation.
Rear Door Locks
If the inner door handle is pulled once when the
door is locked, the door will unlock If the inner door
handle is pulled once more, the door will open
•
To open the Rear Doors, pull the inner door handles two times
QUICK TIP
•
The FCA Warning Volume can be adjusted in the Vehicle Settings on the audio head unit
QUICK TIP
Power Windows, Window Lock & Central Door Lock
A Pull/Press to operate Driver’s & Passenger's Window Auto Up/Down*
B Press to Unlock /Lock All Doors
C Press to disable Rear Passenger Windows and
Rear Sunroof passenger controls
REMINDER: When pressed C, window controls for the Rear Passenger Windows are disabled
Press button again to stop Auto Up/Down function
QUICK TIP
A
BC
(Button/switch panel located on Driver's Door )
DRIVER'S PANEL
