39ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Heated Steering Wheel*
Press Heated Steering Wheel button A to turn
ON/OFF Steering Wheel Heater, while the Engine
Start /Stop button is in the ON position Steering
Wheel Heater will turn off automatically in 30
minutes, or when button is pressed again to
deactivate
Auto Comfort Control* (for driver’s seat)
The Heated Steering Wheel system automatically
adjusts the steering wheel temperature depending
on the ambient temperature, when the ignition
is on The Auto Comfort Control is activated or
deactivated when you select or deselect it in
the Vehicle Settings on the audio head unit Go
to Settings, Vehicle, Seat, Heated/ Ventilated
Features, Auto Comfort Control and then Steering
Wheel Warmer
•If ignition is turned OFF, then ON again within 30 minutes of Steering Wheel Heater being turned ON, the system will remain in the ON position
•System does NOT turn off when ignition is cycled To turn off system, press the Heated Steering Wheel button
QUICK TIPS
Heated and Ventilated Seats Video
To view a video on your mobile device, snap this QR Code or visit the listed website
Refer to page 2 for more information
QR CODE
www.youtube.com/KiaFeatureVideos
Seat Warmers Only:Warming ( Yellow LED)
Seat Warmers / Ventilated Seats:Warming ( Yellow LED)Ventilating (Blue LED)
(
Buttons located below Gear Shift Configuration may vary depending on vehicle model )
Seat Warmers†1 8 / Ventilated Seats*
Seat Warmers only B *
•Press button once for high setting (3 LEDs lit)
•Press button twice for medium setting (2 LED lit)
•Press a third time for low setting (1 LED lit) and again to turn OFF
•Hold button to turn heated seats off
•With the seat warmer switch in the ON position, the heating system in the seat turns OFF or ON automatically depending on the seat temperature
•System turns OFF when ignition is cycled To turn system ON again, press the Heated Steering Wheel button
QUICK TIPSSeat Warmers B / Ventilated Seats C *
Seat Warmers:
•Press top of button once for high setting (3 LEDs lit)
•Press button twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and again to turn OFF
•Hold button to turn seat warmers off
Ventilated Seats:
•Press bottom of button once for high setting (3 LEDs lit)
•Press twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and again to turn OFF
•Hold button to turn ventilated seats off
% 3 * 7 &
. 0 % &
3
/ %
1
" 6 5 0 ) 0 - %
VIEW
% 3 * 7 & . 0 % &
3
/ %
1
" 6 5 0 ) 0 - %
VIEW
A
(Button located below Gear Shift)
B
C
C
B
CENTER PANEL
Page 42 of 58
CADENZA FEATURES & FUNCTIONS GUIDE40*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
REMINDER: Do not attempt to adjust the seat while the vehicle is moving This could result in loss of control of the vehicle
Power Adjustable Driver’s Seat†17
Move/Press controls to adjust Seat, Seat forward/backward, Seat
Cushion tilt up/down, Seatback forward/backward, Lumbar up/down/
forward/backward or Seat Cushion Extension forward/backward
A
B
C
D
AABCD
SeatbackLumbarSeat Cushion ExtensionSeatSeat Cushion
(Buttons located on Driver's Door Panel)
B
C
Driver Position Memory System*
The integrated system stores into memory the position of the Driver’s Seat,
Outside Rearview Mirrors and the Steering Wheel
To store positions into memory, first place the Gear Shift into P (Park) while
the Engine Start /Stop button is in the ON position Then:
1 Adjust the Driver’s Seat, Outside Mirrors and the Steering Wheel
2 Press the SET button B on the control panel System will beep once
3 Press one of the memory buttons C within 5 seconds The system will
beep twice when memory has been stored
4 “Driver (1 or 2) set is memorized” will appear on the instrument cluster
LCD screen
REMINDER: Do not attempt to operate the driver position memory system while the vehicle is moving This could result in loss of control of the vehicle
SEATING
Page 43 of 58
41ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
•
For easy adjustments, hold a headrest post with one hand while using the other hand to pull the headrest from underneath
QUICK TIP

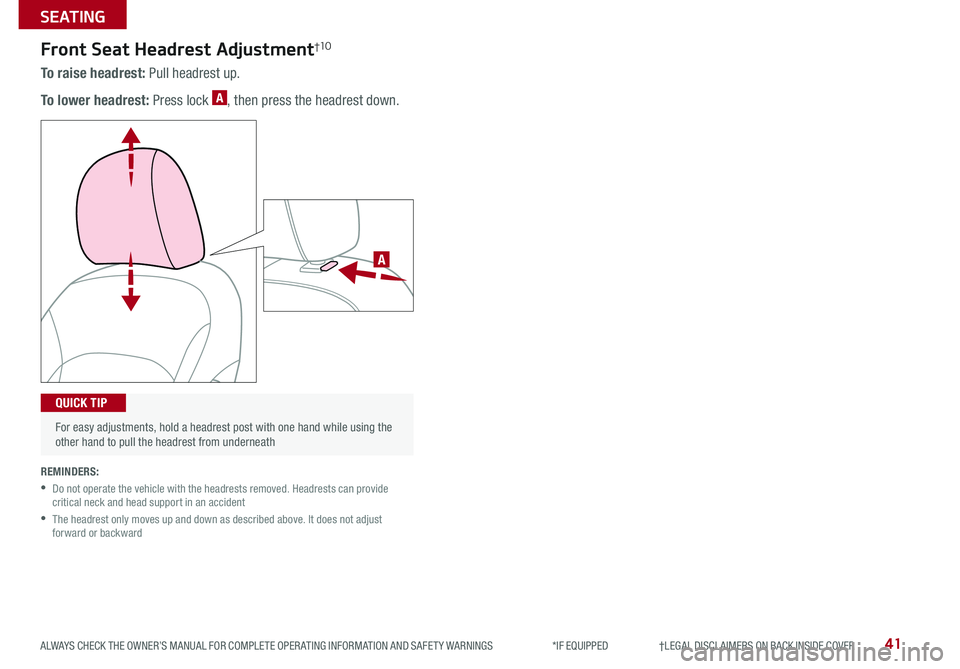

Front Seat Headrest Adjustment†1 0
To raise headrest: Pull headrest up
To lower headrest: Press lock A, then press the headrest down
REMINDERS:
•
Do not operate the vehicle with the headrests removed Headrests can provide critical neck and head support in an accident
•
The headrest only moves up and down as described above It does not adjust forward or backward
A
SEATING
Page 44 of 58
CADENZA FEATURES & FUNCTIONS GUIDE42*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
A
B
C
D
E
Smart Key†9
A Press to lock All Doors
B Press to unlock Driver’s Door Press twice in 4 seconds to unlock All Doors
C Press and hold to unlock Trunk Then lift lid by the handle to manually open Trunk
REMINDERS:
•Trunk lid will partially open To fully open, lift up manually
•The Trunk unlocks when the Smart Key is within close proximity of the vehicle
D Press and hold more than 1 second for Panic Alarm To turn off Alarm, press any button
E Press to release Mechanical Key (Button on reverse side of fob)
F Remote Start Button*: Within four (4) seconds after locking doors, press Remote Start
button for more than two (2) seconds to start the vehicle Press once to turn off
•
•If the Smart Key battery is weak or not working properly, hold the Smart Key fob up to the ENGINE START/STOP button (Lock button side closest) and press to start engine
•The Smart Key’s signal can be blocked by the normal operation of a cell phone or smartphone To help prevent this, store each device separately
QUICK TIPS
Driver’s Door Lock/Unlock button H:
To unlock door(s):
•Press button once to unlock Driver’s door
•Press again within 4 seconds to unlock
all doors
To lock all doors: Press
again to lock
all doors
To view these videos on your mobile device, snap these QR Codes or visit the listed websites
Refer to page 2 for more information
Engine Start/Stop Button & Smart Key Video
Kia Key Fob Video
QR CODES
www.youtube.com/KiaFeatureVideos
Mechanical Key G:
Use to unlock /lock Driver’s Door
1 Remove door handle keyhole cover with
Mechanical Key by pressing up into slot as shown
2 Insert Mechanical Key and turn right to Lock
Driver’s Door
3 Insert Mechanical Key and turn left to Unlock
Driver’s Door
4 Return keyhole cover to its original position
Use to lock and unlock the glove box
REMINDERS:
•
To use Remote Start, lock the doors by pressing the door lock button within thirty-two (32) feet of the vehicle
•
After using the Remote Start to start the vehicle, and no further action is taken in operating the vehicle, the vehicle will automatically turn off within ten (10) minutes
•
Remote button configuration may vary depending on vehicle options
Lock
Unlock
H
G
HOLDHOLD
HOLDF
G
OTHER KEY FEATURES
Page 45 of 58
43ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
How to Sync Transmitter with HomeLink®
If programming for the first time, begin with Step 1 (repeating
this step will delete all information)
To program non-rolling and rolling code garage door openers
and other devices:
1 Press and release one of the Homelink® buttons The
indicator light will turn orange
2 Press and hold the desired Homelink® button you’re
programming for 15-25 seconds until the orange indicator
flashes several times Hold the original garage door opener
transmitter approximately 1 to 3 inches away from the
mirror and press and hold the transmitter button The
HomeLink® Indicator light 8 will turn green and flash
rapidly once the frequency signal has been successfully
programmed
To finish programming rolling code garage door openers,
complete these steps:
3 Locate the “learn” or “smart” button on the garage door’s motor head unit Press and
release the button and complete Step 4 within 30 seconds
4 Firmly press and release the programmed HomeLink® button up to three times
Operating HomeLink®: Press one of the programmed HomeLink® buttons
Erasing programmed buttons: Press and hold Homelink® buttons 1 and 3 simultaneously
for approximately 20 seconds, and then release both buttons within 30 seconds The indicator
above the Homelink® buttons will turn orange for about 10 seconds, then turn green and flash
rapidly
HomeLink®†13 with Auto-Dimming
Rearview Mirror
1 Virtual Assist button
2 UVO button
3 Roadside Assist button
4 Homelink® Channel 1 button
5 Homelink® Channel 2 button
6 Homelink® Channel 3 button
7 Garage Door Closing/Closed Status Light
8 Homelink® Operation Light
9 Garage Door Opening/Open Status Light
10 Homelink® User Interface Light
11 Compass Display
The HomeLink® / Auto-Dimming Rearview Mirror is
designed to reduce glare from a vehicle’s headlights
located in the rear and also connect up to three
electronic transmitters into one location
REMINDER: Mirror indicator light 8 will illuminate when automatic dimming is ON
•You can reprogram a single HomeLink® button by repeating Step 2 •Erasing programmed buttons will delete all trained transmitters
QUICK TIPS
HomeLink® Setup Video
To view a video on your mobile device, snap this QR Code or visit the listed website Refer to page 2 for more information
QR CODE
www.youtube.com/KiaFeatureVideos
If your garage door opener was manufactured in 2011 or later, and you’re unable to program your vehicle’s HomeLink® system, you may need to purchase a HomeLink Repeater Kit. For more information, go to www.HomeLink.com or call (800) 355-3515.
SE11
123456
79
810
OTHER KEY FEATURES
Page 46 of 58
CADENZA FEATURES & FUNCTIONS GUIDE44*IF EQUIPPED
AA
B
BC
Map/Room Lamps
Automatic turn off function
The interior lights automatically turn off approximately 30 seconds after the Engine
Start /Stop button is OFF
Map/Room Lamp Operation
Press the buttons A to turn the Map Lamps ON/OFF This light produces a spot
beam for convenient use as a map lamp or as a personal lamp for the driver or the
front passenger
Room Lamp* – Press the button B to turn the Room Lamp ON/OFF
The Map and Room Lamps turn ON when button C is pressed any door is opened
or the ignition is turned OFF When all doors are locked or the ignition is ON, the Map
Lamp will turn OFF immediately The Map and Room Lamps turn ON for approximately
30 seconds
•When doors are unlocked by the Smart Key, the lamp turns ON for approximately 30 seconds •If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 3 seconds after the system is in armed stage •Using interior lights for an extended period of time may cause battery discharge
QUICK TIPS
(Type B shown)
REMINDER: When Room Lamp lens is pressed ON it will remain ON, even when the Map Lamp switch is in the OFF position
OTHER KEY FEATURES
Page 47 of 58
45ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED
A
Panoramic Sunroof Operation with Power Sunshade
The Sunroof and Sunshade operation is controlled through a multi-directional
switch/lever A The ignition needs to be in the ON position to operate the
sunroof/sunshade
Slide the Sunshade and Sunroof:
• Auto Open: Slide lever backward to the farthest position and release
• Auto Close: Slide the lever forward to the farthest position and release
Slide the Sunshade:
• Auto Open: Slide the lever partially backward to the first detent position
• Auto Close: Slide the lever forward to the farthest position
Slide the Sunroof (with Sunshade open):
• Open: Slide the lever backward to the farthest position and release
• Auto Close: Slide the lever forward to the first detent position or pull
the lever downward
Tilt the Sunroof:
• Raise: Push lever upward
• Lower: Push lever forward
• Auto Close Sunroof and Sunshade: Slide the lever forward to the
farthest position
REMINDERS:
•Sunshade needs to remain OPEN while sunroof is open
•Sunshade cannot slide when it is in the tilt position or tilt while in an open or slide position
•
Do not adjust the sunroof or sunshade while driving This could result in loss of control of the vehicle
To stop the Sunroof/Sunshade at any position, push or pull the Sunroof control lever in any direction
QUICK TIP
Sunroof Operation Video
To view a video on your mobile device, snap this QR Code or visit the listed website Refer to page 2 for more information
QR CODE
www.youtube.com/KiaFeatureVideos
Do not adjust the sunroof or sunshade while driving. This could result in loss of control of the vehicle.
(Type B shown)
OTHER KEY FEATURES
Page 48 of 58
CADENZA FEATURES & FUNCTIONS GUIDE46*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER

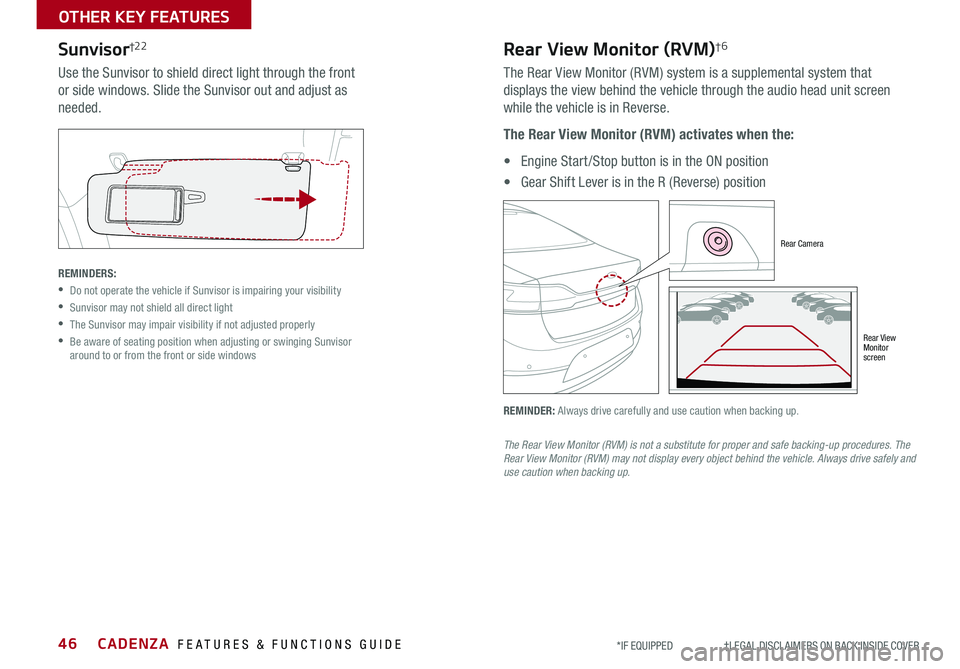

Sunvisor†2 2
Use the Sunvisor to shield direct light through the front
or side windows Slide the Sunvisor out and adjust as
needed
REMINDERS:
•
Do not operate the vehicle if Sunvisor is impairing your visibility
•Sunvisor may not shield all direct light
•
The Sunvisor may impair visibility if not adjusted properly
•
Be aware of seating position when adjusting or swinging Sunvisor around to or from the front or side windows
Rear Camera
Rear View Monitor screen
Rear View Monitor (RVM)†6
The Rear View Monitor (RVM) system is a supplemental system that
displays the view behind the vehicle through the audio head unit screen
while the vehicle is in Reverse
The Rear View Monitor (RVM) activates when the:
• Engine Start /Stop button is in the ON position
• Gear Shift Lever is in the R (Reverse) position
REMINDER: Always drive carefully and use caution when backing up
The Rear View Monitor (RVM) is not a substitute for proper and safe backing-up procedures. The Rear View Monitor (RVM) may not display every object behind the vehicle. Always drive safely and use caution when backing up.
OTHER KEY FEATURES
Page 49 of 58
47ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Reverse Parking Collision-Avoidance Assist (PCA)*†6
Reverse Parking Collision-Avoidance Assist (PCA) is designed to detect certain
objects/pedestrians behind the vehicle and issues an audible warning and/or
apply emergency braking to reduce the possibility of a collision when the vehicle
is in reverse
Reverse PCA can be turned on in the Vehicle Settings* in the audio head unit
by selecting Driver Assistance, Parking Safety then one of the following:
Active Assist, Warning Only, Off
When a potential collision is detected, the system applies emergency braking for
about two seconds A warning message on the Instrument Cluster will display A
reminding the driver to press the brake immediately
REMINDERS:
•
The Reverse PCA system is operational when Active Assist is selected in the Vehicle Settings
•The Reverse PCA system will only operate when the:
– Vehicle speed is below 6 mph
– The trunk is closed
– The gear shift is in R (Reverse)
– Other system such as Rear View Monitor are operating under normal conditions
Brake Now!
The Parking Distance Warning-Reverse is not a substitute for proper and safe backing-up procedures. Always drive safely and use caution when backing up. The Parking Distance Warning-Reverse may not detect every object behind the vehicle
Parking Distance Warning-Reverse*†6
The Parking Distance Warning-Reverse is a supplemental system
that is designed to assist the driver by chiming if any object is
detected within the sensing area to the rear and side of the vehicle
when backing up When the ignition is ON, the system is activated
REMINDERS:
•If the vehicle is moving at speeds over 3 mph, the system may not activate correctly
•
When more than two objects are sensed at the same time, the closest one will be recognized first
A
OTHER KEY FEATURES
Page 50 of 58
CADENZA FEATURES & FUNCTIONS GUIDE48*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Images are for illustration purposes only and may not reflect actual operation.
(located left of steering wheel)
(Note: The KIA badge is the trunk release button)
Trunk / Smart Trunk†15
Opening from Inside the Vehicle:
Press the Smart Power Trunk Open button* A to automatically
open the Trunk
Opening from Outside the Vehicle:
Located on the center of the trunk lid and with the trunk lid
closed, press the trunk release button B at the center of the
KIA badge and pull the trunk lid by the handle to open
Smart Trunk
When the Smart Key fob is on your person and you are near the back of the
vehicle, within close proximity, the hazard lights will blink and a chime will sound
for about 3 seconds as an alert that the Smart Power Trunk is about to open
Then the alert system will blink
and chime two additional times
before opening the Smart Power
Trunk F
The Smart Trunk feature is OFF
by default To enable the Smart
Trunk, go to the Vehicle Settings
in the audio head unit, select
Settings, Vehicle, Door and
Smart Trunk
F
• During the Smart Trunk alert, the Smart Trunk can be deactivated with the Smart Key by pressing any button on the key fob
QUICK TIPS
REMINDERS:
•All doors are closed and locked after about 15 seconds
•
The Smart Trunk feature will not operate when the following occurs:
– Doors are recently closed and locked and the Smart Key is still detected after 15 seconds near the vehicle or within 60 inches of the door handles
– A door is not locked or closed
– The Smart Key is in the vehicle
•Ensure obstacles and people are out of the way of the Smart Trunk
For more information on the Smart Trunk operation, please refer to the Owner’s Manual.
AB
OTHER KEY FEATURES
