Page 81 of 243
4-9
Resuming playback of the previous Bluetooth
audio fi le
You can play the previous Bluetooth audio fi le during playback.
Perform any of the following methods:
000eOn the Bluetooth audio playback screen, touch twice.
000eOn the control panel, press the [
SEEK] button twice.
A
The actions required may diff er depending on the connected
device.
A
You can also run the function by using the Move lever/button
on the steering wheel.
A
On the control panel, turn the [TUNE/FILE] knob to search for
a music fi le and press the knob within 5 seconds to play it.
A
When there is no operation for 5 seconds, the search stops
and the system displays the information of the playing
content.
Pause/Resume
You can pause or resume playback of a Bluetooth audio fi le.
On the Bluetooth audio playback screen, touch
or
.
Resuming playback of the current Bluetooth
audio fi le
You can play the current Bluetooth audio fi le from the beginning.
Perform any of the following methods:
000eOn the Bluetooth audio playback screen, touch .
000eOn the control panel, press the [
SEEK] button.
A
The actions required may diff er depending on the connected
device.
A
You can also run the function by using the Move lever/button
on the steering wheel.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010015000e001a> ß
1 ß
1
Page 82 of 243
4-10
Resuming playback of the next Bluetooth audio
fi le
You can play the next Bluetooth audio fi le during playback.
Perform any of the following methods:
000eOn the Bluetooth audio playback screen, touch .
000eOn the control panel, press the [TRACK
] button.
A
You can also run the function by using the Move lever/button
on the steering wheel.
A
On the control panel, turn the [TUNE/FILE] knob to search for
a music fi le and press the knob within 5 seconds to play it.
A
When there is no operation for 5 seconds, the search stops
and the system displays the information of the playing
content.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010015000e00120011> ß
1 ß
1
Page 89 of 243
5-7
j j Displays quick menu items that can be used during guidance.
k k Can cancel the route guidance. > See “Stopping the route
guidance.”
l l Displays the remaining distance to the destination and
the estimated time of arrival. For more details, touch the
information item.
m m Displays or hides the detailed guidance.
n n You can see the system information on the map. (It can
display up to two items.)
000eTraffi c information (with an icon if there is no HD data
reception)
000eBluetooth connection status
o o Check the range you can drive with the current amount of
battery (EV only).
A
The screen may diff er depending on the vehicle model and
specifi cations.
a a Displays the Home screen.
b b Used to change the map display mode.
000e
(Heading Up): Rotates the map depending on the
travel direction.
000e
(North Up): Displays the map with the north fi xed at
the top.
000e
(3D Map): Rotates the map depending on the travel
direction for 3D view.
c c You can adjust the volume of navigation or GPS warning
sound.
d d Zooms in the map.
e e The scale of the map automatically changes.
f f Zooms out the map.
g g Displays the point to change the driving direction.
h h Displays the next point to change the driving direction.
i i Displays the lanes in diff erent colors.
000eOrange: Recommended lane
000eWhite: Available lane
000eGray: Unavailable lane
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010016000e0018> ß
1 ß
1
Page 119 of 243
06
Phone
Connecting a Bluetooth device
Making a call via Bluetooth
Accepting an incoming call over Bluetooth
Checking a new message over Bluetooth
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010017000e0012> ß
1 ß
1
Page 120 of 243
6-2

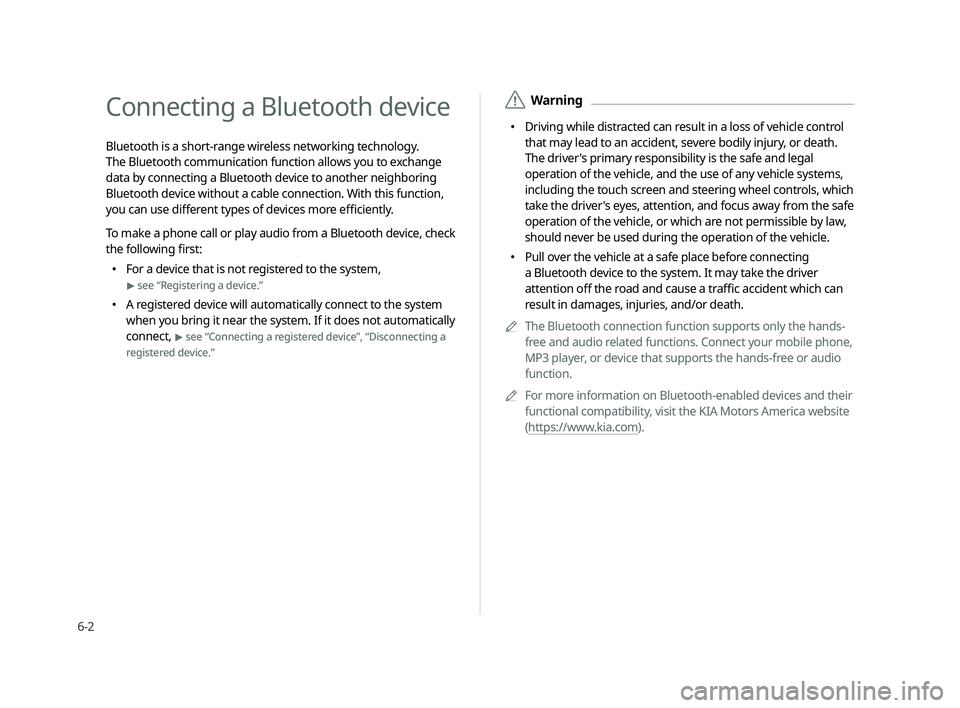

Connecting a Bluetooth device
Bluetooth is a short-range wireless networking technology.
The Bluetooth communication function allows you to exchange
data by connecting a Bluetooth device to another neighboring
Bluetooth device without a cable connection. With this function,
you can use diff erent types of devices more effi ciently.
To make a phone call or play audio from a Bluetooth device, check
the following fi rst:
000eFor a device that is not registered to the system,
> see “Registering a device.”
000eA registered device will automatically connect to the system
when you bring it near the system. If it does not automatically
connect,
> see “Connecting a registered device”, “Disconnecting a
registered device.”
Page 121 of 243
6-3
3 Turn on Bluetooth on the Bluetooth device to
connect and select the vehicle system on the list
of searched devices.
A
The system’s Bluetooth name can be seen on the Add New
window.
4 Check that the authentication code on the
Bluetooth device screen matches the one on the
system screen and approve the connection on the
device.
5 When your smartphone is using Bluetooth
communication, to download contacts from the
phone to the system or use the text message
notifi cation, allow access to your phone.
A
Access is only required to use Bluetooth calling. There will
be no access request when you connect an audio device.
Registering a device
To connect a Bluetooth device to the system, fi rst add the device
to the list of Bluetooth devices on the system.
1 On the All Menus screen, touch Setup >
Device
Connections >
Bluetooth >
Bluetooth
Connections >
Add New.
A
To register a device for the fi rst time, press the Call button
on the steering wheel or by touching Phone on the All
Menus screen.
2 Select the function to connect.
A
To use your phone on the system via Bluetooth
communication, touch Handsfree Calling.
A
To listen to music on the system via Bluetooth
communication, touch Audio Streaming.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010017000e0014> ß
1 ß
1
Page 122 of 243
6-4
Connecting a registered device
To use a Bluetooth device, fi rst connect a registered Bluetooth
device to the system.
A
You can add one Bluetooth hands-free kit or up to two
Bluetooth audio devices.
1 On the All Menus screen, touch Setup >
Device
Connections >
Bluetooth >
Bluetooth
Connections.
A
After the access request is approved, it may take a while
until the Bluetooth connection is completed. As soon as the
Bluetooth connection is completed, the Bluetooth connection
indicator icon appears at the top of the screen.
A
Access to data can be enabled or disabled by using the
Bluetooth Settings menu on the mobile phone. For more
details, refer to the mobile phone’s user manual.
A
You cannot register another device while operating a
Bluetooth device.
A
In order not to use the automatic Bluetooth connection, turn
off the Bluetooth function on the device.
A
You can add Bluetooth devices up to 6.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010017000e0015> ß
1 ß
1
Page 123 of 243
6-5
Bluetooth connection screen
c
a
b
d
e
a a Returns to the previous step.
b b Select hands-free or Bluetooth audio to connect or disconnect
Bluetooth devices.
A
A device list will appear when a Bluetooth device is added
to the system.
c c Add a new device to the system.
d d Delete a registered device from the system.
e e The list of menu items appears.
000eAuto Connection Priority: Set Bluetooth connection
priority for devices to automatically connect them when
starting the vehicle (if equipped).
000eUser's Manual on Web (QR Code): Displays the QR code
that provides access to the online user manual for the
system.
2 Touch the device name or icons to connect.
3 Select the function to connect and touch OK.
A
If you cannot connect your device, check to make sure its
Bluetooth option is enabled.
A
When the connection is terminated abnormally due to
being out of range or device failures, the connection is
automatically restored as soon as the device returns to
the connection range or normal state.
A
When the connection is unstable due to a Bluetooth
communication error, on the All Menus screen, touch
Setup >
Device Connections >
Bluetooth >
Reset to
initialize the Bluetooth function and connect the device
again.
> See “Reset.”
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010017000e0016> ß
1 ß
1
Page 124 of 243
6-6
Deleting a registered device
If you will no longer use a Bluetooth device or you want to add
a new device when 6 devices are already registered, delete an
existing registered device.
1 On the All Menus screen, touch Setup >
Device
Connections >
Bluetooth >
Bluetooth
Connections >
Delete Devices.
2 Select a device to delete and touch Delete.
To delete all registered devices, touch Mark All >
Delete.
3 Touch Yes.
A
When you delete a registered device, all related contacts, call
logs, and text messages are removed from the system.
Disconnecting a registered device
1 On the All Menus screen, touch Setup >
Device
Connections >
Bluetooth >
Bluetooth
Connections.
2 Touch the connected device name or icons.
3 Touch Disconnect in the connection settings
window.
A
To disconnect a function, select the function to disconnect
and touch OK.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010017000e0017> ß
1 ß
1
Page 125 of 243
6-7
Dialing from the recent call list
Make calls directly from call history of your mobile device.
When you connect your mobile device and system over Bluetooth,
the list of recent calls from the device will be downloaded to the
system and you can call them again by selecting them from the
system screen. The system has a built-in microphone and speaker
that make using mobile phones safe and easy.
1 Perform any of the following methods:
000eOn the All Menus screen, touch Phone.
000eOn the steering wheel, press the Call button.
2 On the Bluetooth Call screen, touch .
3 Choose a call from the list.
The system dials the selected number.
A
You can also move to a desired number by using the Move
lever/button on the steering wheel without touching on
the screen.
Making a call via Bluetooth
You can connect a Bluetooth device with the hands-free function
to use a Bluetooth phone. The Bluetooth connection allows you
to view call details directly from the system screen, and to make
calls safely and easily use the system microphone and speaker.
