Page 7 of 243
5
f f SEEK/TRACK button
While listening to the radio, change the station.
While playing media, change the track/fi le. Press and hold to
rewind or fast forward (except for the Bluetooth audio mode).
g g RADIO button
Turns on the radio.
When you press the button repeatedly with the radio turned on,
it toggles between FM, AM and SiriusXM modes.
h h MEDIA button
Run the media.
Press and hold to display the media selection window.
i i SETUP button
Displays the Settings screen.
When you press and hold the button the SW Info/Update screen
appears.
j j TUNE knob/FILE knob/ENTER button
Turn the knob to change the frequency and channel while
listening to the radio.
Turn the knob while playing media to scan for music or fi le.
Press the button to select a channel, music, or fi le during a
search.
Turn the knob on the map screen to zoom in or out the map (if
activated).
When you press and hold the button, the TUNE Knob Function
screen appears.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010016> ß
1 ß
1
Page 19 of 243
7
Using the sound mood lamp 2-16
Playing Sounds of Nature 2-17
Using the HD Radio Data 2-18
Seeing traffi c information by using HD radio data 2-19
Seeing weather information by using HD radio data 2-20
Seeing weather information by using Doppler weather radar 2-20
Seeing fuel price information by using HD radio data 2-21
Seeing the driving information 2-21
Seeing notifi cations 2-22
03 Radio
Listening to the radio 3-2
Radio screen 3-2
Changing the radio mode 3-4
Changing the radio channel 3-4
Saving the current radio channel 3-5
Editing the radio channel list 3-6
Listening to HD Radio™ 3-7
HD Radio™ Technology 3-7
Listening to SiriusXM™ radio 3-8
Changing to SiriusXM mode 3-8
Searching for SiriusXM radio channels 3-10
Selecting channels by using channel numbers 3-10
Seeing the program schedule 3-11
Listening to Featured Favorites channels 3-11
04 Media
Using media 4-2
Listening to music from a USB device 4-2
Listening to music via Bluetooth 4-7
05 Navigation
Navigation functions 5-2
Navigation Menu overview 5-2
Finding a route easily 5-3
Map screen 5-6
Adjusting the navigation volume 5-8
Stopping the route guidance 5-9
Seeing traffi c Information 5-9
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010018> ß
1 ß
1
Page 20 of 243
8
06 Phone
Connecting a Bluetooth device 6-2
Registering a device 6-3
Connecting a registered device 6-4
Disconnecting a registered device 6-6
Deleting a registered device 6-6
Making a call via Bluetooth 6-7
Dialing from the recent call list 6-7
Dialing from the favorites list 6-9
Dialing from the contacts 6-11
Using the dial pad 6-13
Dialing with voice recognition 6-15
Accepting an incoming call over Bluetooth 6-15
Rejecting a call 6-16
Using functions during a call 6-16
Checking a new message over Bluetooth 6-18
Checking a new message 6-18
Checking a new message from the list 6-19
Sending a text by using the voice recognition 6-20
Various ways to fi nd routes 5-10
Searching by keyword 5-10
Searching by previous destinations 5-12
Searching for Kia Dealerships 5-13
Searching the nearby points of interest 5-14
Searching for restaurants 5-17
Searching for emergency services 5-17
Editing the route 5-18
Changing the route search criteria 5-21
Avoiding specifi c zones 5-22
Using the address book 5-22
Registering a searched place as a favorite place 5-22
Registering the current position as a favorite place 5-24
Registering a frequently visited place as a favorite place 5-24
Setting a registered favorite place as a destination 5-25
Registering a frequently visited place as a destination 5-25
Editing the registered place 5-26
Deleting a registered favorite place(s) 5-26
Importing/exporting the address book 5-27
Searching for gas stations 5-27
Searching for EV (Electric Vehicle) charging stations 5-28
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010019> ß
1 ß
1
Page 22 of 243
10
Confi guring the sound settings 9-18
Position 9-19
Volume 9-19
Advanced 9-20
Tone 9-21
Priority 9-21
Navigation Volume 9-22
Reset 9-22
Turning on/off the screen touch sound 9-22
Confi guring the voice recognition settings 9-23
Use Network 9-23
Guidance 9-24
Confi guring the navigation settings 9-24
Display 9-25
Guidance 9-26
Others 9-27
Confi guring the UVO settings 9-28
Activate UVO 9-28
911 Connect 9-29
Modem Information 9-30
Modem Status 9-30
Confi guring the user profi le settings 9-30
Profi le Settings 9-30
09 Settings
Confi guring the vehicle settings 9-2
Head-Up Display 9-2
Driver Assistance 9-3
Drive Mode 9-7
Climate 9-8
Lights 9-8
Door 9-9
Cluster 9-10
Convenience 9-11
Seat 9-12
Reset 9-13
Confi guring the device connection settings 9-13
Bluetooth 9-13
Android Auto 9-15
Apple CarPlay 9-15
Confi guring the advanced system settings 9-15
Return to Map: Set Time 9-15
TUNE Knob Function 9-16
Custom Button ú 9-16
Steering Wheel MODE Button 9-16
Home Screen 9-17
Split Screen 9-17
My Data 9-17
Extend Rear Camera Use 9-18
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f0045004300010001000100120011> ß
1 ß
1
Page 26 of 243
1-2
NAV button
Moves to the navigation/route screen.
When you press and hold the
button, the Places screen appears.
> See “Searching by keyword.”
RADIO button
Turns on the radio.
When you press the button
repeatedly with the radio turned
on, it toggles between FM, AM and
SiriusXM modes.
MEDIA button
Run the media.
Press and hold to display the media
selection window.
SEEK/TRACK
button While listening to the radio, change
the station.
While playing media, change the
track/fi le. Press and hold to rewind or
fast forward (except for the Bluetooth
audio mode).
Custom button
(
) Runs the user-defi ned function.
Press and hold the button to display
the Custom Button settings screen.
> See “Custom Button ú.”
SETUP button
Displays the Settings screen.
When you press and hold the button
the SW Info/Update screen appears.
> See “SW Info/Update.”

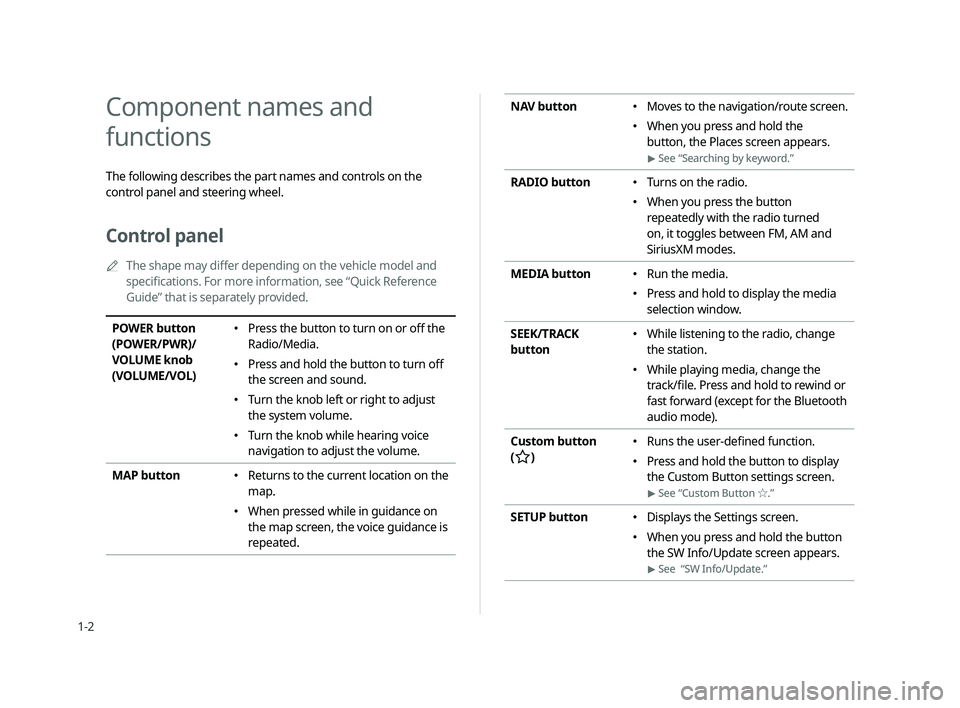

Component names and
functions
The following describes the part names and controls on the
control panel and steering wheel.
Control panel
A
The shape may diff er depending on the vehicle model and
specifi cations. For more information, see “Quick Reference
Guide” that is separately provided.
POWER button
(POWER/PWR)/
VOLUME knob
(VOLUME/VOL) Press the button to turn on or off the
Radio/Media.
Press and hold the button to turn off
the screen and sound.
Turn the knob left or right to adjust
the system volume.
Turn the knob while hearing voice
navigation to adjust the volume.
MAP button
Returns to the current location on the
map.
When pressed while in guidance on
the map screen, the voice guidance is
repeated.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010012000e0013> ß
1 ß
1
Page 28 of 243
1-4
Turning the system on or off
The following explains how to turn on or off the system. Before
using the system, be sure to read the user's manual for safe and
convenient manipulation.
Turning on the system
1 Turn on the vehicle.
2 When a safety warning message appears, read it
and touch Confi rm.
A
To change the display language, touch Language.
Type A
Move lever/button
(
/) 000eWhile listening to the radio, switch
between the stations on the preset
list. Press and hold to search for a
station.
000eWhile playing media, change the
track/fi le. Press and hold to rewind or
fast forward (except for the Bluetooth
audio mode).
Call button
(
) 000eBefore connection of Bluetooth: Press
to display the Bluetooth connection
window.
000eAfter connection of Bluetooth: Press
to display the recent calls list, press
and hold to redial the last number,
and press for an incoming call to
answer it.
000eOn a Bluetooth call: Press to switch
to Call Waiting and press and hold
to switch between the system and
mobile phone.
End Call button
(
) 000eDuring a Bluetooth call, press to end
the call.
000ePress to ignore a call with the
Bluetooth connected.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010012000e0015> ß
1 ß
1
Page 43 of 243
2-5

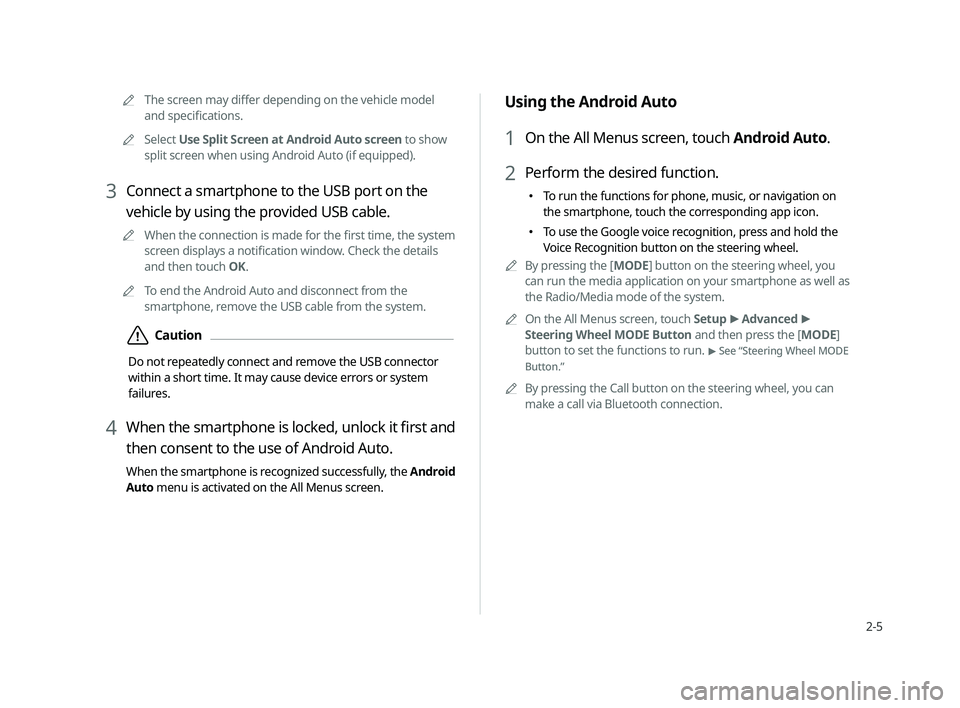

Using the Android Auto
1 On the All Menus screen, touch Android Auto.
2 Perform the desired function.
000eTo run the functions for phone, music, or navigation on
the smartphone, touch the corresponding app icon.
000eTo use the Google voice recognition, press and hold the
Voice Recognition button on the steering wheel.
A
By pressing the [MODE] button on the steering wheel, you
can run the media application on your smartphone as well as
the Radio/Media mode of the system.
A
On the All Menus screen, touch Setup >
Advanced >
Steering Wheel MODE Button and then press the [MODE]
button to set the functions to run.
> See “Steering Wheel MODE
Button.”
A
By pressing the Call button on the steering wheel, you can
make a call via Bluetooth connection. A
The screen may diff er depending on the vehicle model
and specifi cations.
A
Select Use Split Screen at Android Auto screen to show
split screen when using Android Auto (if equipped).
3 Connect a smartphone to the USB port on the
vehicle by using the provided USB cable.
A
When the connection is made for the fi rst time, the system
screen displays a notifi cation window. Check the details
and then touch OK.
A
To end the Android Auto and disconnect from the
smartphone, remove the USB cable from the system.
Page 74 of 243
4-2
Using media
You can use the USB mode to play music fi les on a connected
mobile device, such as USB device and MP3 player. You can also
play Bluetooth music by connecting a Bluetooth device, which
supports a Bluetooth function.
Listening to music from a USB device
1 Connect a media device to play to the USB port on
the vehicle.
A
Playback may start automatically depending on the media
type.
A
For more information about supportable devices and fi le
types:
> see “USB mode.”
A
The shapes and arrangement of the buttons and USB
ports may diff er depending on the vehicle model and
specifi cations.
2 Perform any of the following methods:
000eOn the Home screen, touch the Radio/Media info widget.
000eOn the control panel, press the [MEDIA] button.
A
When multiple media are connected, press the [MEDIA]
button once more and then press the desired media
source from the media selection window.
USB music screen
a
b
dde
f
gh
k
ij
c
a a Returns to the previous step.
b b Moves to the fi le list screen.
c c Displays the sequence number of the current fi le and the total
number of fi les for playback.
d d Displays the information of the current music. Touch the artist
or album info of the current song to go to list of songs by the
artist or from the album.
e e Used to change the repeat playback mode.
f f Used to turn on or off the random playback mode.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010015000e0013> ß
1 ß
1
Page 79 of 243
4-7
Listening to music via Bluetooth
To use a Bluetooth device for audio playback, connect a device
that supports Bluetooth communication such as mobile phone
and MP3 player.
For more information about Bluetooth connection:
> see “Connecting a Bluetooth device.”
A
The controls or display screens may diff er depending on the
connected Bluetooth device, phone model, and music player
application.
A
The streaming may not be supported in some music player
applications.
A
Some functions may not be available depending on the
connected Bluetooth device or phone model.
A
When a media device or mobile phone is connected by both
the Bluetooth and USB cable at the same time, the device
or system may not work properly. To use the Bluetooth
connection, remove all cables from the device. A
When connecting a USB storage, do not use a separate
extension cable and directly connect to the USB port. When
you connect a USB storage via a USB hub or extension cable,
the device may not be recognized.
A
Push the USB connector fully into the USB port. When the
connector is not fully inserted, a communication problem
may occur.
A
Noise may occur when removing a USB device from the
system.
A
You can play only the fi les that have been encoded in the
standard format.
A
The following USB devices may not be recognized or may not
work properly.
000dEncrypted MP3 players
000dUSB devices that are not recognized as removable disks
A
USB devices may not be recognized depending on the device
status.
A
Some USB devices may not be supported due to compatibility
issues.
A
USB device recognition may take longer than usual depending
on the device type, capacity, and fi le formats on the device.
A
Some devices may not be charged through USB connection. It
depends on the USB specifi cations.
A
You can hide fi les only in the USB device formatted in exFAT/
NTFS/FAT16/32. The hidden fi les can be found in the “Hidden_”
folder.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010015000e0018> ß
1 ß
1
Page 80 of 243
4-8
j j Displays the total number of fi les for playback.
k k Moves to the music list screen.
A
The list of Bluetooth audio fi les may not appear
depending on the connected device or app.
l l The list of menu items appears.
000eMedia Sources: Opens the media selection window.
000eSound Settings: Can confi gure system sound settings.
> See “Confi guring the sound settings.”
000eChange Device: Find and connect other Bluetooth
devices.
000eUser's Manual on Web (QR Code): Displays the QR code
that provides access to the online user manual for the
system.
000eSplit Screen: Can turn on or off the split screen mode.
A
The screen may diff er depending on the vehicle model and
specifi cations.
A
The sound eff ect settings button may appear on the screen
depending on the amp specifi cations.
Bluetooth audio playback screen
The media player runs when you play a music fi le from a
connected audio device via Bluetooth.
a
kc
l
d
efg
j
h
i
b
a a Returns to the previous step.
b b Name of the connected Bluetooth device
c c When two Bluetooth audio devices are connected to the
system, select a device to play music.
d d Displays the information of the current music.
e e Restart playing the current fi le or play the previous fi le.
f f Can pause or resume playback.
g g Can play the next fi le.
h h Can see the duration of the playing song and the current
playback position.
i i Find and connect other Bluetooth devices.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f004500430001000100010015000e0019> ß
1 ß
1
