KIA CADENZA 2020 Navigation System Quick Reference Guide
Manufacturer: KIA, Model Year: 2020, Model line: CADENZA, Model: KIA CADENZA 2020Pages: 243, PDF Size: 10.41 MB

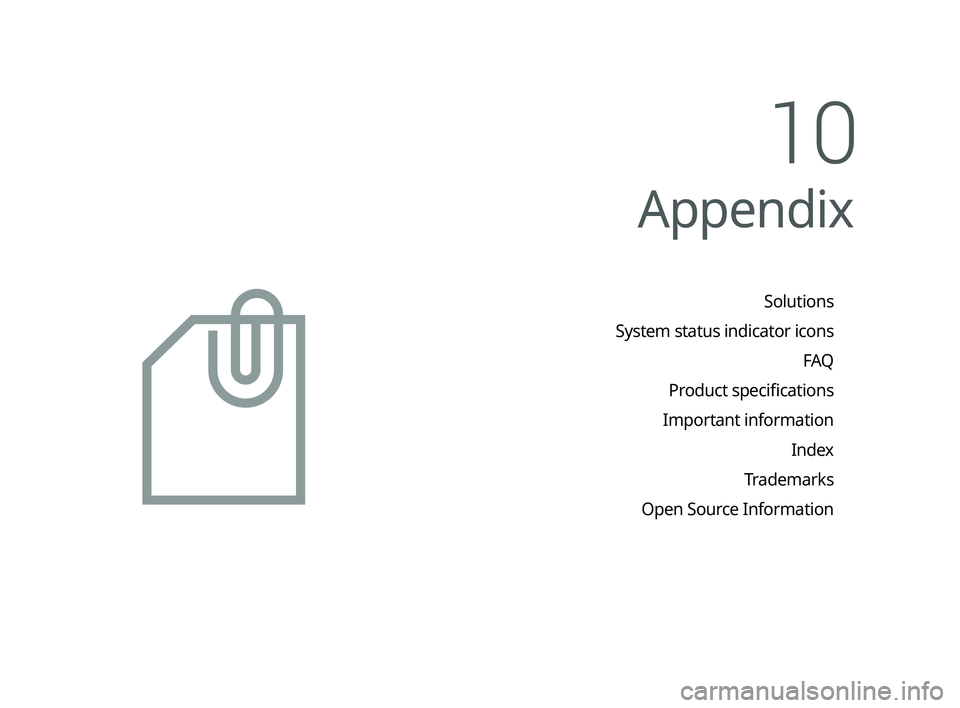

Page 211 of 243
10
Appendix
Solutions
System status indicator icons
FAQ
Product specifi cations
Important information
Index
Trademarks
Open Source Information
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f0045004300010001000100120011000e0012> ß
1 ß
1
Page 212 of 243
10-2
Solutions
Before reporting a malfunctioning system, refer to the following table and see if you can identify and fi x the problem. If the problem persists
or you are unable to locate your specifi c need, contact your place of purchase or dealer.
Sound and display
Symptom Possible cause Solution
A blank screen appears and
sound is not audible.The system is turned off .
000eCheck that the start switch is in “ACC” or “ON.”
000ePress the Power button on the control panel to turn on the
system.
Sound volume is too low. Turn the Volume knob on the control panel to adjust the volume.
Sound is muted. Press the Mute button on the steering wheel to unmute.
Sound is audible from only one
side of the speakers.Sound is imbalanced. On the All Menus screen, touch Setup >
Sound >
Position
and adjust the sound outputs for the left and right speakers.
> See “Position.”
The sound is cut off or noise is
heard.Vibration occurs in the system. When the system vibrates, the sound may be cut off or noise may
occur. This is not a system failure. The system is restored as soon as
the vibration stops.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f0045004300010001000100120011000e0013> ß
1 ß
1
Page 213 of 243
10-3
Symptom Possible cause Solution
The image quality is poor. Screen adjustment is required. On the All Menus screen, touch Setup >
Display >
Illumination,
and then adjust the brightness.
> See “Illumination.”
Vibration occurs in the system. The images may get distorted when vibration occurs in the system.
This is not a system failure. The system is restored as soon as the
vibration stops.
The display is aged or the system
performance is degraded.If the problem persists, contact your place of purchase or dealer.
Small red, blue, and green dots
are shown on the screen.LCD has very high-density pixels. For this reason, there may be dead
pixels (that are always off ) or lit pixels (that are always on) within 0.01
percent of the total pixels.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f0045004300010001000100120011000e0014> ß
1 ß
1
Page 214 of 243
10-4
USB playback
Symptom Possible cause Solution
Files in a USB device cannot be
played.There are no compatible fi les for
playbackCopy the fi les that can be played by the system to the USB device
and connect the device again.
> See “USB mode.”
Poor connection is found. Remove the USB device from the USB port and then reconnect it
properly.
The USB device is dirty. Remove foreign materials from the surface that contacts the USB
device and USB port.
A USB hub or extension cable is
used.
Connect the USB device directly to the USB port on the vehicle.
The USB device is non-standard. Use a USB device that is compatible with the system.
> See “USB
mode.”
The USB device is damaged. Use your computer to format the USB device and then connect the
device again. Format the device in FAT16/32 format.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f0045004300010001000100120011000e0015> ß
1 ß
1
Page 215 of 243
10-5
Bluetooth connection
Symptom Possible cause Solution
The system is not detected by a
Bluetooth device.Registration mode needs to be
run.On the All Menus screen, touch Setup >
Device Connections
>
Bluetooth >
Bluetooth Connections >
Add New to run the
registration mode and perform search again from the Bluetooth
device.
> See “Connecting a Bluetooth device.”
The Bluetooth device is not
connected.The Bluetooth function should
be activated.Activate the Bluetooth function on the Bluetooth device to connect.
Any error occurs while using the
Bluetooth function. 000eTurn the Bluetooth function OFF / ON on the Bluetooth device
and then connect the device again.
000eTurn the Bluetooth device off and on and then connect the device
again.
000eRemove the battery from the Bluetooth device and attach it back,
turn on the device, and then connect the device again.
000eDelete the system and Bluetooth device from the registration lists
respectively, and then connect the device again.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f0045004300010001000100120011000e0016> ß
1 ß
1
Page 216 of 243
10-6
Phone projection
Symptom Possible cause Solution
The phone projection function
is not performed when a
smartphone is connected using
a USB cable.Phone projection is not
supported.
Visit the website to check whether your smartphone supports the
phone projection.
000eAndroid Auto: https://support.google.com/androidauto
000eApple CarPlay: http://www.apple.com/ios/carplay
The function is inactive.
000eOn the All Menus screen, touch Setup >
Device Connections,
select the function to use, and then turn on the phone projection
option.
000eMake sure that the phone projection is not disabled in the
application settings or block-out settings on your smartphone.
Smartphone is encountered with
poor operation or malfunction. 000eCheck that the smartphone battery level is not too low.
Recognition may not work properly when the battery level is too
low.
000eThe phone projection may not work properly when the signal
strength is weak.
000eWhen the smartphone is locked, fi rst unlock it.
000eInitialize the smartphone and connect the device again.
A black screen appears when
the phone projection is
activated or in use.The smartphone malfunctions.
000eRemove the USB cable from the smartphone and connect the
device again.
000eInitialize the smartphone and connect the device again.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f0045004300010001000100120011000e0017> ß
1 ß
1
Page 217 of 243
10-7
System operation
Symptom Possible cause Solution
The previous media mode does
not appear when the system is
turned off and on.It is encountered with poor
media connection or playback
error.When the media source is not connected or played normally, the
previous mode appears. Connect the media source again or play it
again.
The system slows down or does
not operate at all.An internal error occurs in the
system. 000eRestart the system by pressing the reset button with a sharp
object such as pen or clip.
000eIf the problem persists, contact your place of purchase or dealer.
The system is not turned on. Fuse-related issues
000eVisit an auto service shop and replace the fuse with a new one of
appropriate capacity.
000eIf the problem persists, contact your place of purchase or dealer.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f0045004300010001000100120011000e0018> ß
1 ß
1
Page 218 of 243
10-8
Navigation system operation
Symptom Possible cause Solution
The destination is not searched. Outdated map data To update your system, visit your local dealership.
Route guidance of the navigation
system does not match the
actual road conditions.Outdated map data To update your system, visit your local dealership.
There have been changes in the
road after a map update.Route guidance of the navigation system may not match the actual
road conditions even after the map is updated to the latest version
because the update depends on the creation date. Be sure to drive
according to actual road conditions and regulations.
Guidance is made by bypassing
the route or the speed camera
alerts are not followed.The update for the system and
map data is required.To update your system, visit your local dealership.
The real-time traffi c information
is not received.Poor signal reception
000eReception of traffi c information may not be made smoothly in
mountain and island areas. Check the reception status again in
a region with strong signals.
000eIf the problem persists, contact your place of purchase or dealer.
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f0045004300010001000100120011000e0019> ß
1 ß
1
Page 219 of 243
10-9
System status indicator icons
You can see the system status by checking the status indicator
icons at the top right of the system screen.
Diff erent status indicator icons appear when each function is
performed. The meanings of the icons are as follows:
Mute/memo recording
Navigation sound muted
Radio/Media sound muted
All sound outputs muted
Recording a voice memo
Bluetooth/call
Connecting a phone via Bluetooth
Connecting an audio device via Bluetooth
Connecting a phone and an audio device via Bluetooth
Making a call via a Bluetooth phone
Bluetooth phone’s microphone off
Downloading the contact and list of recent calls from
the connected Bluetooth phone
, @ / " ' , @ : ( 1 & @ ( 8 * % & < 6 4 " @ & 6 > " 7 / 5 @ ' . 4 $ # @ J O E C <002c0040002f00220027002c0011001100140040003a002800010012001a003100260040002800160038002a00250026003c003600340022004000260036003e00220037002f0035004000270017002e00340018002400230011001100110040000f004a00
4f0045004300010001000100120011000e001a> ß
1 ß
1
Page 220 of 243
10-10
Available functions in the rear seat
(if equipped)
Rear-seat remote control locked
Rear-seat sleep mode On
Front-seat driver is having a conversation with a rear-
seat occupant
Wireless charging
Wireless charging in progress
Wireless charging complete
Wireless charging failure
A
Some icons may not appear depending on the vehicle model
and specifi cations.
UVO
Talking with a UVO phone
UVO phone’s microphone off
Vehicle location sharing
Sending the vehicle location
Receiving the vehicle location
Sending/receiving the vehicle location
UVO network’s signal strength
System update
Scheduling the update
Updating
