Dimensions / 8-2
Bulb wattage / 8-2
Tires and wheels / 8-3
Recommended lubricants and capacities / 8-4
Vehicle identification number (VIN) / 8-6
Vehicle certification label / 8-6
Tire specification and pressure label / 8-6
Engine number / 8-7
Specifications & Consumer information

Specifications & Consumer information2 8
Item mm (in)
Overall length 4545 (178.9)
Overall width 1820 (71.6)
Overall height 1650 (65.0) / 1720 (66.7) *
1
Front tread 1573 (61.9) / 1563 (61.5) *
2
Rear tread 1569 (61.8) / 1560 (61.4) *
2

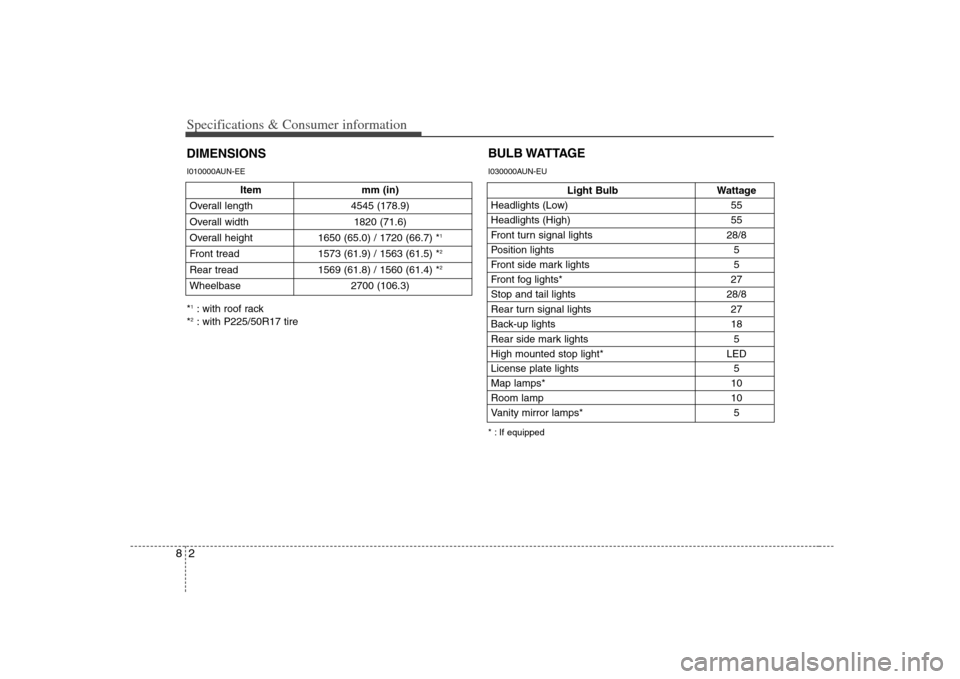

Wheelbase 2700 (106.3)DIMENSIONS
Light Bulb Wattage
Headlights (Low) 55
Headlights (High) 55
Front turn signal lights 28/8
Position lights 5
Front side mark lights 5
Front fog lights* 27
Stop and tail lights 28/8
Rear turn signal lights 27
Back-up lights 18
Rear side mark lights 5
High mounted stop light* LED
License plate lights 5
Map lamps* 10
Room lamp 10
Vanity mirror lamps* 5
BULB WATTAGE* : If equipped
*1: with roof rack
*2: with P225/50R17 tireI010000AUN-EE I030000AUN-EU

83
Specifications & Consumer information

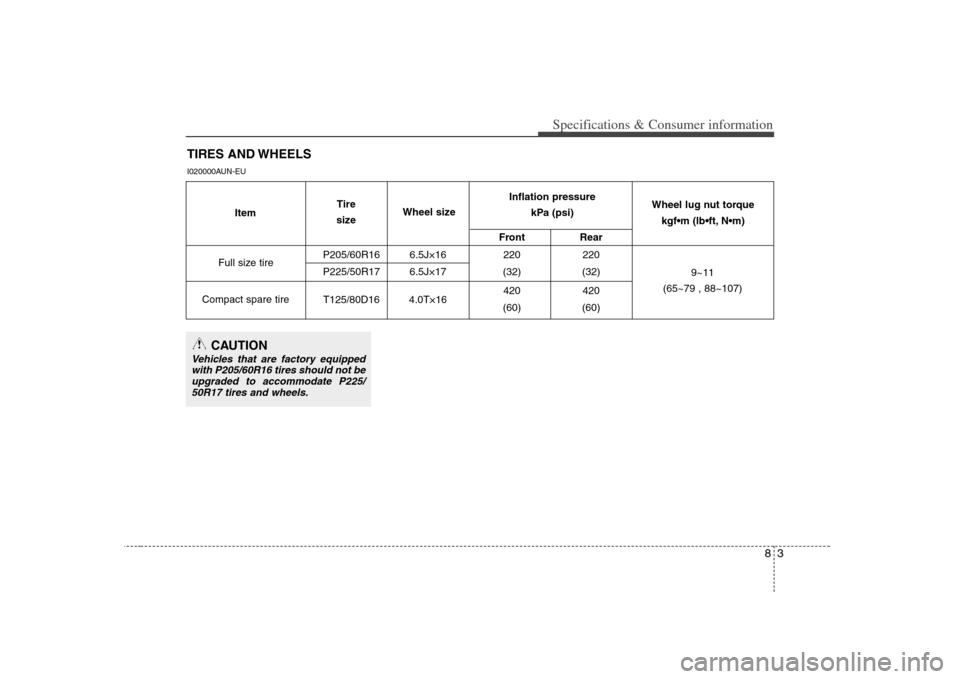

TIRES AND WHEELSI020000AUN-EU
Front Rear
P205/60R16 6.5J×16 220 220
P225/50R17 6.5J×17 (32) (32)
420 420
T125/80D16 4.0T×16
(60) (60)
Full size tire
Compact spare tireWheel lug nut torque
kgf•m (lb N
9~11
(65~79 , 88~107) ItemTire
sizeWheel sizeInflation pressure
kPa (psi)CAUTION
Vehicles that are factory equipped
with P205/60R16 tires should not be
upgraded to accommodate P225/
50R17 tires and wheels.

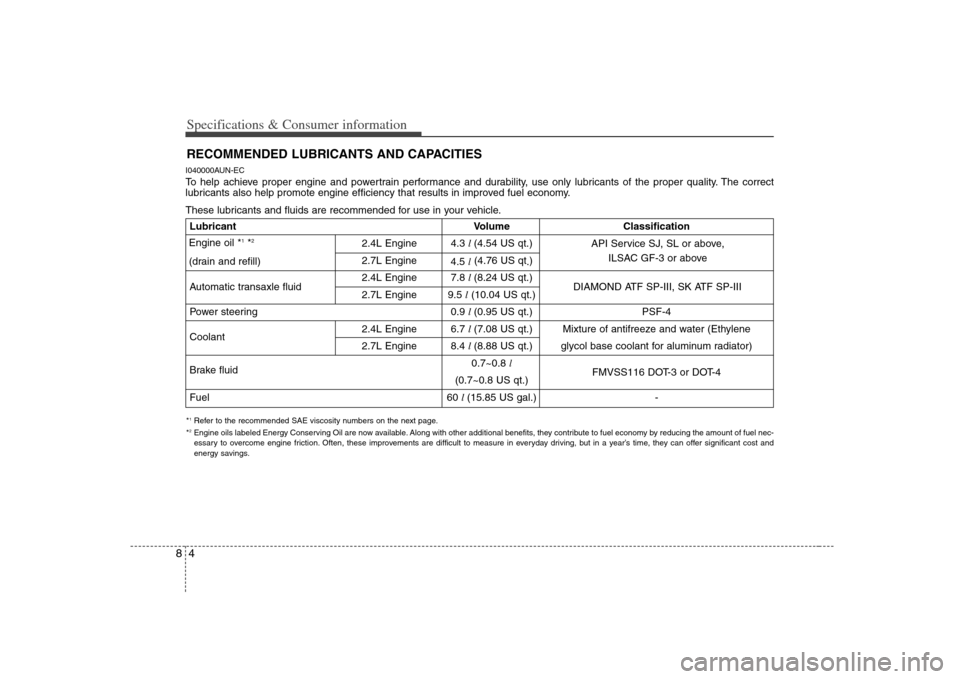

Specifications & Consumer information4 8RECOMMENDED LUBRICANTS AND CAPACITIES I040000AUN-ECTo help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.These lubricants and fluids are recommended for use in your vehicle.*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing the amount of fuel nec-
essary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s time, they can offer significant cost and
energy savings.Lubricant Volume Classification
2.4L Engine 4.3 l (4.54 US qt.)
2.7L Engine
4.5 l(4.76 US qt
.)
2.4L Engine 7.8 l (8.24 US qt.)
Automatic transaxle fluid
2.7L Engine 9.5 l(10.04 US qt.)
Power steering 0.9 l (0.95 US qt.) PSF-4
Coolant2.4L Engine 6.7 l (7.08 US qt.) Mixture of antifreeze and water (Ethylene
2.7L Engine 8.4 l (8.88 US qt.) glycol base coolant for aluminum radiator)
Brake fluid0.7~0.8 l
(0.7~0.8 US qt.)FMVSS116 DOT-3 or DOT-4
Fuel 60 l (15.85 US gal.) -Engine oil *
1*2
(drain and refill)API Service SJ, SL or above,
ILSAC GF-3 or above
DIAMOND ATF SP-III, SK ATF SP-III

85
Specifications & Consumer information
I040100AUN-EURecommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-
ommended could result in engine dam-
age.When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or drain-
ing any lubricant. This is especially
important in dusty or sandy areas
and when the vehicle is used on
unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt
and grit from entering the engine
and other mechanisms that could
be damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Engine Oil *
1°C
(°F)
-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
1. For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-
20, 5W-30 (API SJ, SL / ILSAC GF-3 or above). However, if the engine oil is not available in
your country, select the proper engine oil using the engine oil viscosity chart.
10W-30
5W-20, 5W-30

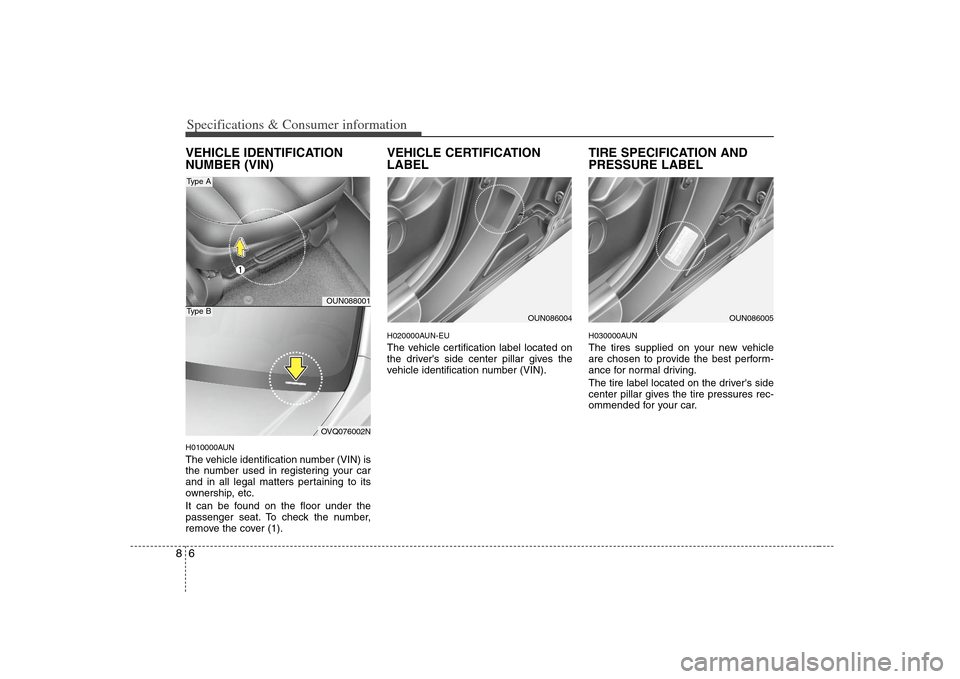

Specifications & Consumer information6 8VEHICLE IDENTIFICATION
NUMBER (VIN)H010000AUNThe vehicle identification number (VIN) is
the number used in registering your car
and in all legal matters pertaining to its
ownership, etc.
It can be found on the floor under the
passenger seat. To check the number,
remove the cover (1).
VEHICLE CERTIFICATION
LABELH020000AUN-EUThe vehicle certification label located on
the driver's side center pillar gives the
vehicle identification number (VIN).
TIRE SPECIFICATION AND
PRESSURE LABELH030000AUNThe tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your car.
OUN086004
OUN086005
OUN088001OVQ076002N
Type AType B

87
Specifications & Consumer information

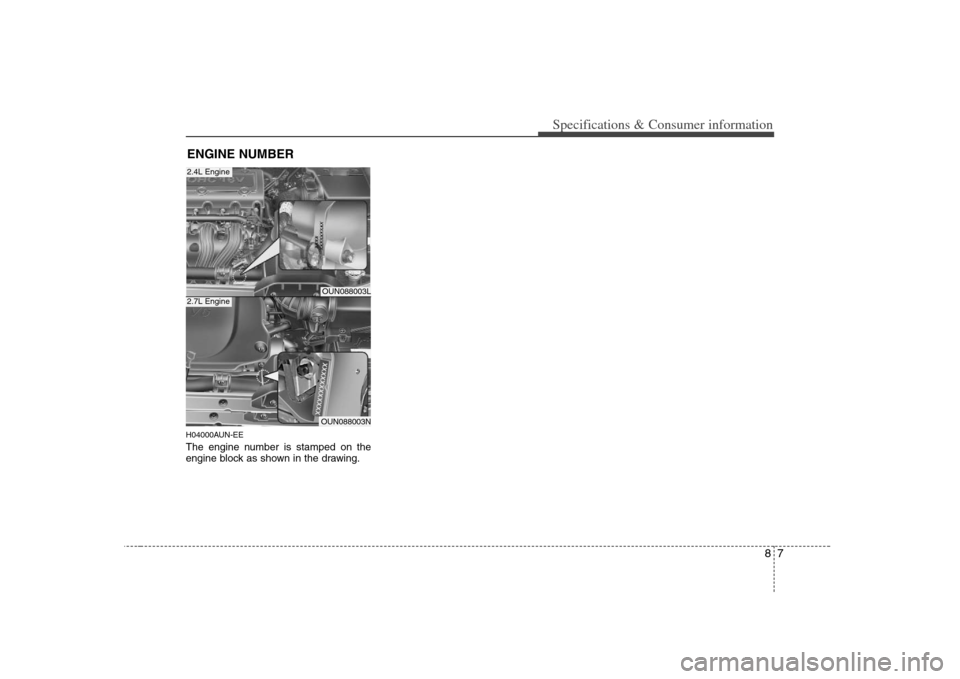

H04000AUN-EEThe engine number is stamped on the
engine block as shown in the drawing.ENGINE NUMBER
OUN088003LOUN088003N
2.7L Engine2.4L Engine

I
