Maintenance
80
8

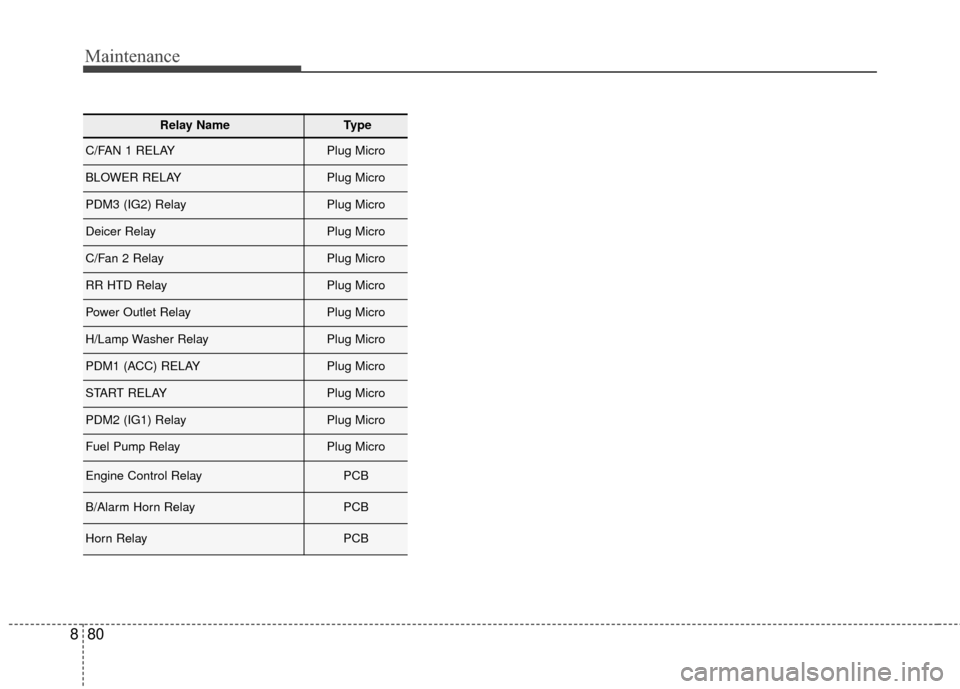

Relay NameType
C/FAN 1 RELAYPlug Micro
BLOWER RELAYPlug Micro
PDM3 (IG2) RelayPlug Micro
Deicer RelayPlug Micro
C/Fan 2 RelayPlug Micro
RR HTD RelayPlug Micro
Power Outlet RelayPlug Micro
H/Lamp Washer RelayPlug Micro
PDM1 (ACC) RELAYPlug Micro
START RELAYPlug Micro
PDM2 (IG1) RelayPlug Micro
Fuel Pump RelayPlug Micro
Engine Control RelayPCB
B/Alarm Horn RelayPCB
Horn RelayPCB

Index
6I
Flex steer........................................................................\
4-51
Floor mat anchor(s) ....................................................4-165
Floor under tray ..........................................................4-155
FluidBrake fluid ..................................................................8-35
Washer fluid ................................................................8-36
Folding key ......................................................................4-\
4 Record your key number ..............................................4-4
Key operations ..............................................................4-4
Transmitter precautions ................................................4-6
Battery replacement ......................................................4-7
Immobilizer system ......................................................4-8
Folding the outside rearview mirror ..............................4-56
Front fog light ..............................................................4-109
Front fog light ................................................................8-85
Front light replacement..................................................8-82
Front Position/Turn signal light ....................................8-84
Front seat adjustment (manual) ......................................3-5
Front seat adjustment (power) ........................................3-6
Fuel filler lid ..................................................................4-39 Opening the fuel filler lid ..........................................4-39
Closing the fuel filler lid ............................................4-39
Fuel Gauge ....................................................................4-61\
Fuel requirements ............................................................1-3
Fuses ........................................................................\
......8-66 Inner panel fuse replacement ....................................8-68
Engine compartment fuse replacement ......................8-69
Fuse/relay panel description ......................................8-72 Gauges ........................................................................\
..4-60
Glove box ....................................................................4-15\
2
Gross vehicle weight ......................................................9-5
Hazard warning flasher....................................................7-2
Hazardous driving conditions ........................................6-59
Headlight (Low, HID type),DRL (LED type)
bulb replacement ........................................................8-83
Headlight (Low, High Non-HID Type) bulb replacement ........................................................8-82
Headlight leveling device ............................................4-109
Headlight position........................................................4-105
Headlight washer ........................................................4-116
Headlight welcome function ......................................4-105
Headrest (rear) ..............................................................3-18
Headrest(front) ................................................................3-9
Heated steering wheel....................................................4-50
High - beam operation ................................................4-107
High mounted stop light bulb replacement ..................8-89
Highway driving ............................................................6-62
Hill-start assist control (HAC) ......................................6-40
Hood ........................................................................\
......4-35
How to use this manual ..................................................1-2
Horn ........................................................................\
......4-50
