KIA CARENS RHD 2018 Owners Manual

45
Features of your vehicle

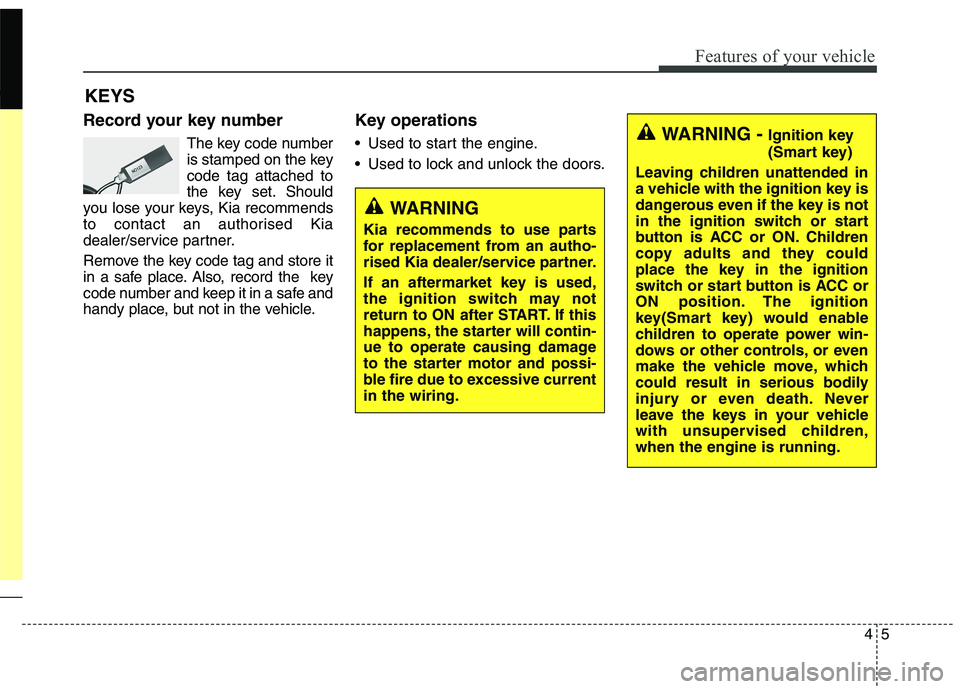

Record your key numberThe key code number
is stamped on the keycode tag attached to
the key set. Should
you lose your keys, Kia recommends
to contact an authorised Kia
dealer/service partner.
Remove the key code tag and store it
in a safe place. Also, record the key
code number and keep it in a safe and
handy place, but not in the vehicle. Key operations
• Used to start the engine.
Used to lock and unlock the doors.
KEYSWARNING -
Ignition key
(Smart key)
Leaving children unattended in
a vehicle with the ignition key is
dangerous even if the key is not
in the ignition switch or start
button is ACC or ON. Children
copy adults and they could
place the key in the ignition
switch or start button is ACC or
ON position. The ignition
key(Smart key) would enable
children to operate power win-
dows or other controls, or even
make the vehicle move, which
could result in serious bodily
injury or even death. Never
leave the keys in your vehicle
with unsupervised children,when the engine is running.
WARNING
Kia recommends to use parts
for replacement from an autho-
rised Kia dealer/service partner.
If an aftermarket key is used,
the ignition switch may not
return to ON after START. If this
happens, the starter will contin-
ue to operate causing damage
to the starter motor and possi-
ble fire due to excessive currentin the wiring.

Features of your vehicle
6
4

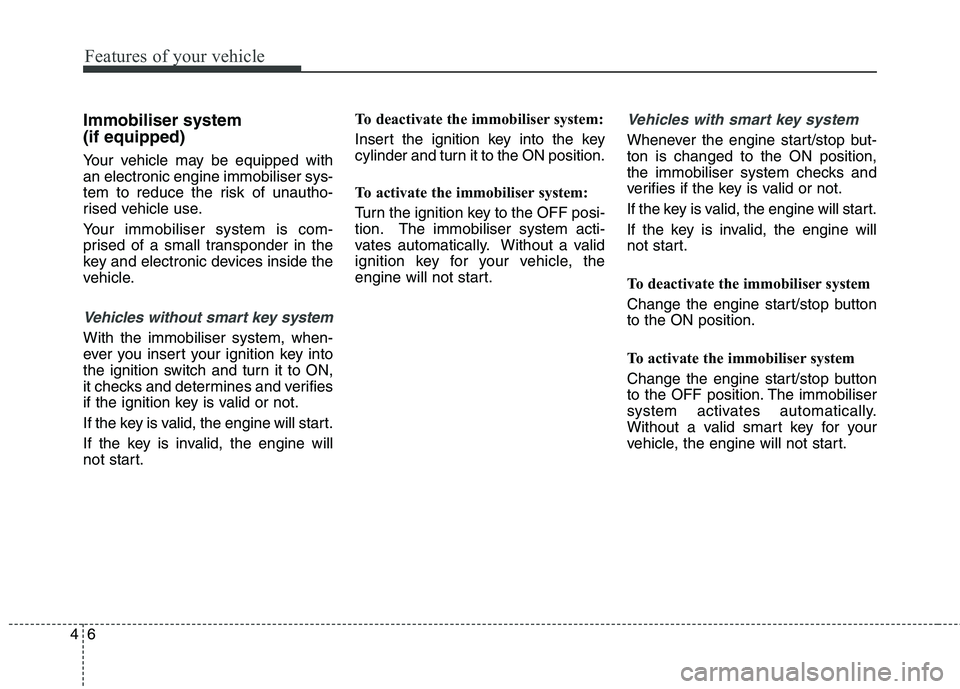

Immobiliser system (if equipped)
Your vehicle may be equipped with an electronic engine immobiliser sys-
tem to reduce the risk of unautho-
rised vehicle use.
Your immobiliser system is com-
prised of a small transponder in the
key and electronic devices inside the
vehicle.
Vehicles without smart key system
With the immobiliser system, when-
ever you insert your ignition key into
the ignition switch and turn it to ON,
it checks and determines and verifies
if the ignition key is valid or not.
If the key is valid, the engine will start.
If the key is invalid, the engine will
not start. To deactivate the immobiliser system:
Insert the ignition key into the key
cylinder and turn it to the ON position.
To activate the immobiliser system:
Turn the ignition key to the OFF posi-
tion. The immobiliser system acti-
vates automatically. Without a valid
ignition key for your vehicle, the
engine will not start.
Vehicles with smart key system
Whenever the engine start/stop but- ton is changed to the ON position,
the immobiliser system checks and
verifies if the key is valid or not.
If the key is valid, the engine will start.
If the key is invalid, the engine will
not start.
To deactivate the immobiliser system
Change the engine start/stop button to the ON position.
To activate the immobiliser system
Change the engine start/stop button
to the OFF position. The immobiliser
system activates automatically.
Without a valid smart key for your
vehicle, the engine will not start.

47
Features of your vehicle

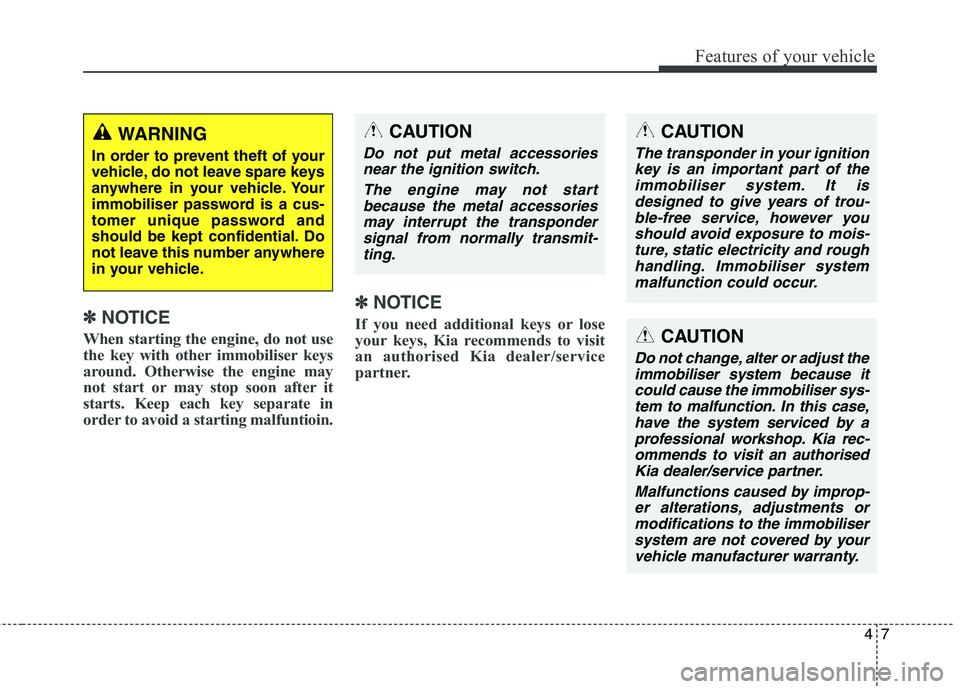

✽✽NOTICE
When starting the engine, do not use
the key with other immobiliser keys
around. Otherwise the engine may
not start or may stop soon after it
starts. Keep each key separate in
order to avoid a starting malfuntioin. ✽✽
NOTICE
If you need additional keys or lose
your keys, Kia recommends to visit
an authorised Kia dealer/service
partner.
CAUTION
The transponder in your ignition key is an important part of theimmobiliser system. It is designed to give years of trou-ble-free service, however youshould avoid exposure to mois-ture, static electricity and rough handling. Immobiliser systemmalfunction could occur.
CAUTION
Do not change, alter or adjust theimmobiliser system because itcould cause the immobiliser sys- tem to malfunction. In this case,have the system serviced by aprofessional workshop. Kia rec-ommends to visit an authorised Kia dealer/service partner.
Malfunctions caused by improp-er alterations, adjustments ormodifications to the immobiliser system are not covered by yourvehicle manufacturer warranty.
WARNING
In order to prevent theft of your
vehicle, do not leave spare keys
anywhere in your vehicle. Your
immobiliser password is a cus-
tomer unique password and
should be kept confidential. Do
not leave this number anywhere
in your vehicle.CAUTION
Do not put metal accessories near the ignition switch.
The engine may not startbecause the metal accessoriesmay interrupt the transponder signal from normally transmit-ting.

Features of your vehicle
8
4

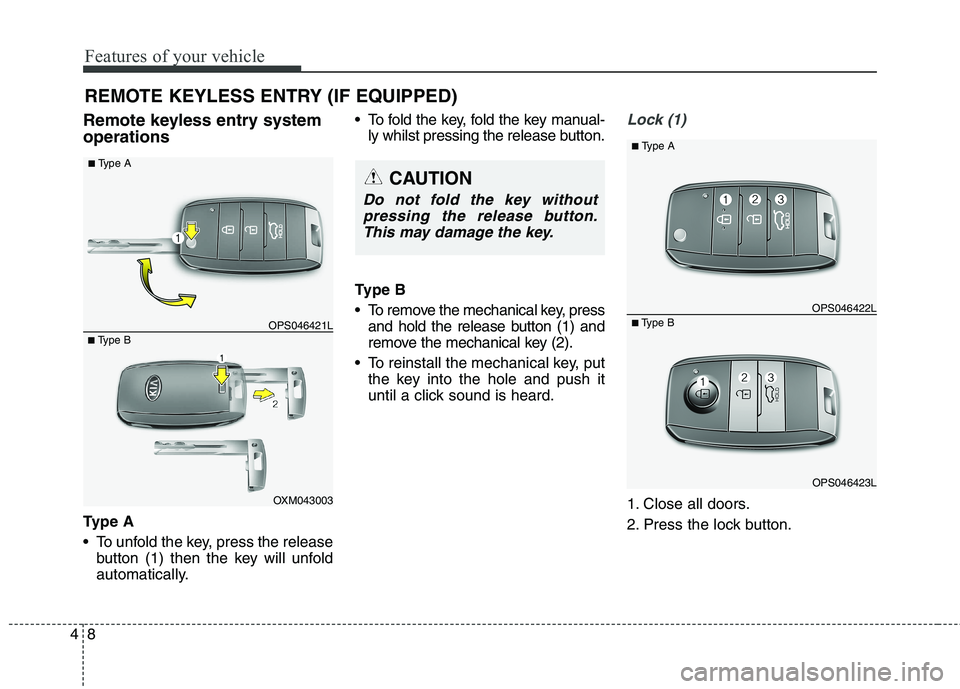

Remote keyless entry system operations
Ty p e A
To unfold the key, press the release
button (1) then the key will unfold
automatically. To fold the key, fold the key manual-
ly whilst pressing the release button.
Type B
To remove the mechanical key, press and hold the release button (1) and
remove the mechanical key (2).
To reinstall the mechanical key, put the key into the hole and push it
until a click sound is heard.Lock (1)
1. Close all doors.
2. Press the lock button.
REMOTE KEYLESS ENTRY (IF EQUIPPED)
CAUTION
Do not fold the key without
pressing the release button.This may damage the key.
OXM043003
■
Type B OPS046421L
■
Type A
OPS046423L
■
Type B OPS046422L
■
Type A

49
Features of your vehicle

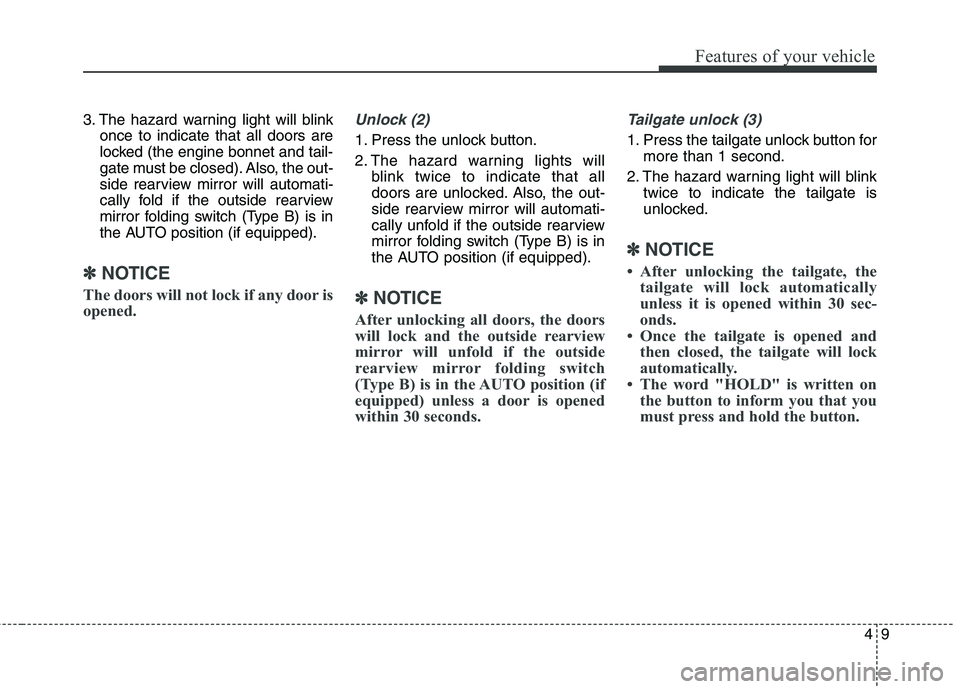

3. The hazard warning light will blinkonce to indicate that all doors are
locked (the engine bonnet and tail-
gate must be closed). Also, the out-
side rearview mirror will automati-
cally fold if the outside rearview
mirror folding switch (Type B) is in
the AUTO position (if equipped).
✽✽ NOTICE
The doors will not lock if any door is
opened.
Unlock (2)
1. Press the unlock button.
2. The hazard warning lights will blink twice to indicate that all
doors are unlocked. Also, the out-
side rearview mirror will automati-
cally unfold if the outside rearview
mirror folding switch (Type B) is in
the AUTO position (if equipped).
✽✽ NOTICE
After unlocking all doors, the doors
will lock and the outside rearview
mirror will unfold if the outside
rearview mirror folding switch
(Type B) is in the AUTO position (if
equipped) unless a door is opened
within 30 seconds.
Tailgate unlock (3)
1. Press the tailgate unlock button for more than 1 second.
2. The hazard warning light will blink twice to indicate the tailgate is
unlocked.
✽✽ NOTICE
 After unlocking the tailgate, the tailgate will lock automatically
unless it is opened within 30 sec-
onds.
 Once the tailgate is opened and then closed, the tailgate will lock
automatically.
 The word "HOLD" is written on the button to inform you that you
must press and hold the button.

Features of your vehicle
10
4

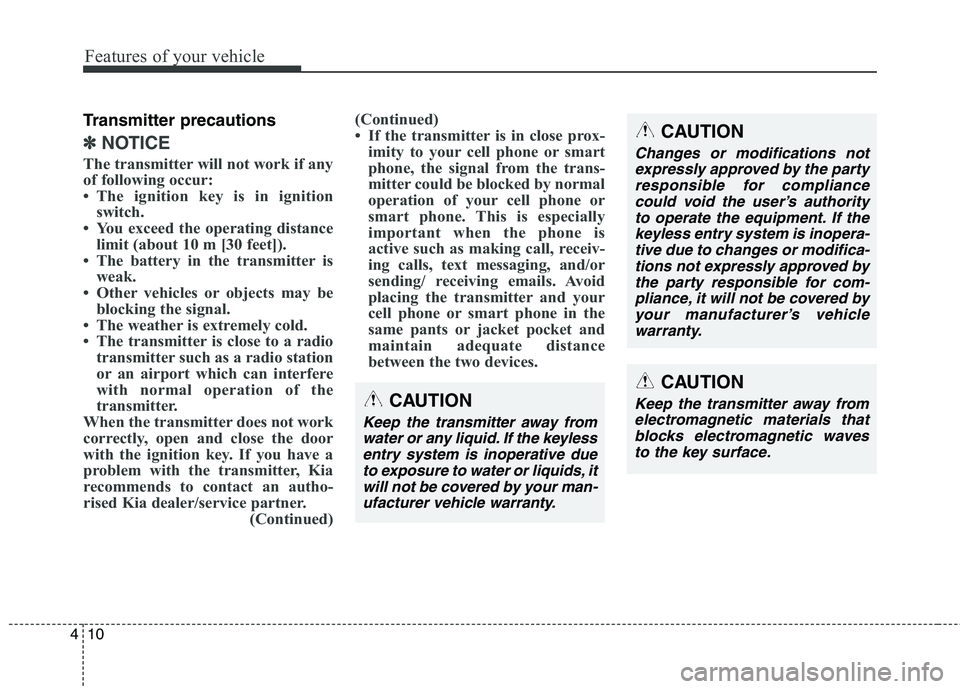

Transmitter precautions
✽✽
NOTICE
The transmitter will not work if any
of following occur:
 The ignition key is in ignition switch.
 You exceed the operating distance limit (about 10 m [30 feet]).
 The battery in the transmitter is weak.
 Other vehicles or objects may be blocking the signal.
 The weather is extremely cold.
 The transmitter is close to a radio transmitter such as a radio station
or an airport which can interfere
with normal operation of the
transmitter.
When the transmitter does not work
correctly, open and close the door
with the ignition key. If you have a
problem with the transmitter, Kia
recommends to contact an autho-
rised Kia dealer/service partner. (Continued)(Continued)
 If the transmitter is in close prox-
imity to your cell phone or smart
phone, the signal from the trans-
mitter could be blocked by normal
operation of your cell phone or
smart phone. This is especially
important when the phone is
active such as making call, receiv-
ing calls, text messaging, and/or
sending/ receiving emails. Avoid
placing the transmitter and your
cell phone or smart phone in the
same pants or jacket pocket and
maintain adequate distance
between the two devices. CAUTION
Changes or modifications not
expressly approved by the partyresponsible for compliancecould void the user’s authority to operate the equipment. If thekeyless entry system is inopera-tive due to changes or modifica- tions not expressly approved bythe party responsible for com-pliance, it will not be covered by your manufacturer’s vehiclewarranty.
CAUTION
Keep the transmitter away fromwater or any liquid. If the keylessentry system is inoperative due to exposure to water or liquids, itwill not be covered by your man-ufacturer vehicle warranty.
CAUTION
Keep the transmitter away fromelectromagnetic materials thatblocks electromagnetic waves to the key surface.

411
Features of your vehicle
Battery replacement
A battery should last for several
years, but if the transmitter or smart
key is not working properly, try
replacing the battery with a new one.
If you are unsure how to use or
replace the battery, Kia recommends
to contact an authorised Kia
dealer/service partner.Type A
1. Insert a slim tool into the slot andgently pry open the transmitter
cover.
2. Replace the battery with a new battery (CR2032). When replacing
the battery, make sure the batteryposition.
3. Install the battery in the reverse order of removal. Ty p e B
1. Pry open the rear cover of the
smart key.
2. Replace the battery with a new battery (CR2032). When replacing
the battery, make sure the batteryposition.
3. Install the battery in the reverse order of removal.
OYDDCO2005OXM043005

Features of your vehicle
12
4
✽✽

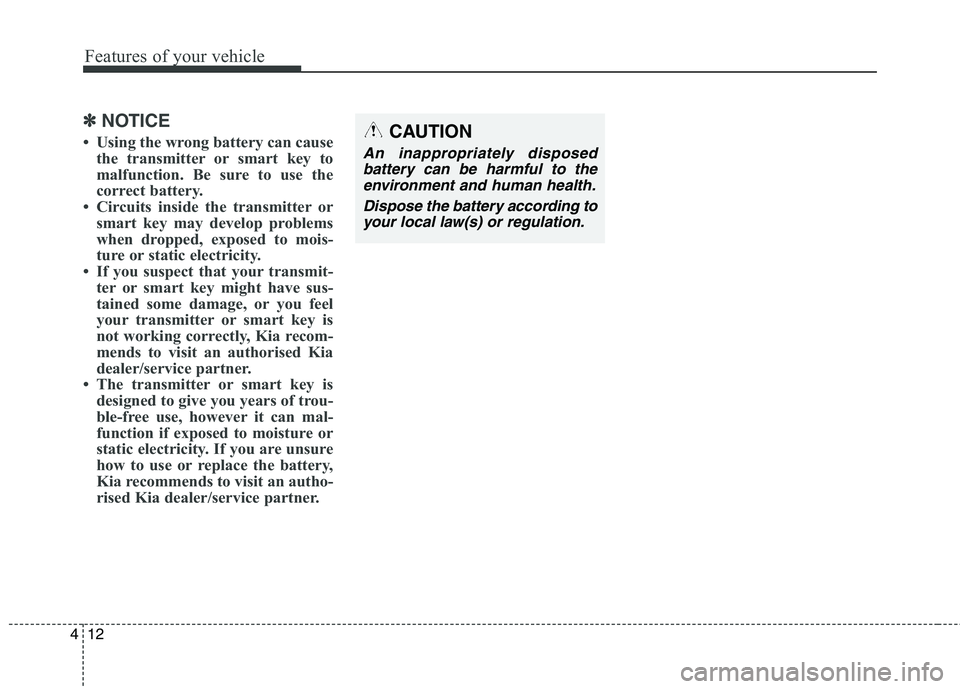

NOTICE
 Using the wrong battery can cause the transmitter or smart key to
malfunction. Be sure to use the
correct battery.
 Circuits inside the transmitter or smart key may develop problems
when dropped, exposed to mois-
ture or static electricity.
 If you suspect that your transmit- ter or smart key might have sus-
tained some damage, or you feel
your transmitter or smart key is
not working correctly, Kia recom-
mends to visit an authorised Kia
dealer/service partner.
 The transmitter or smart key is designed to give you years of trou-
ble-free use, however it can mal-
function if exposed to moisture or
static electricity. If you are unsure
how to use or replace the battery,
Kia recommends to visit an autho-
rised Kia dealer/service partner.CAUTION
An inappropriately disposed
battery can be harmful to theenvironment and human health.
Dispose the battery according toyour local law(s) or regulation.

413
Features of your vehicle

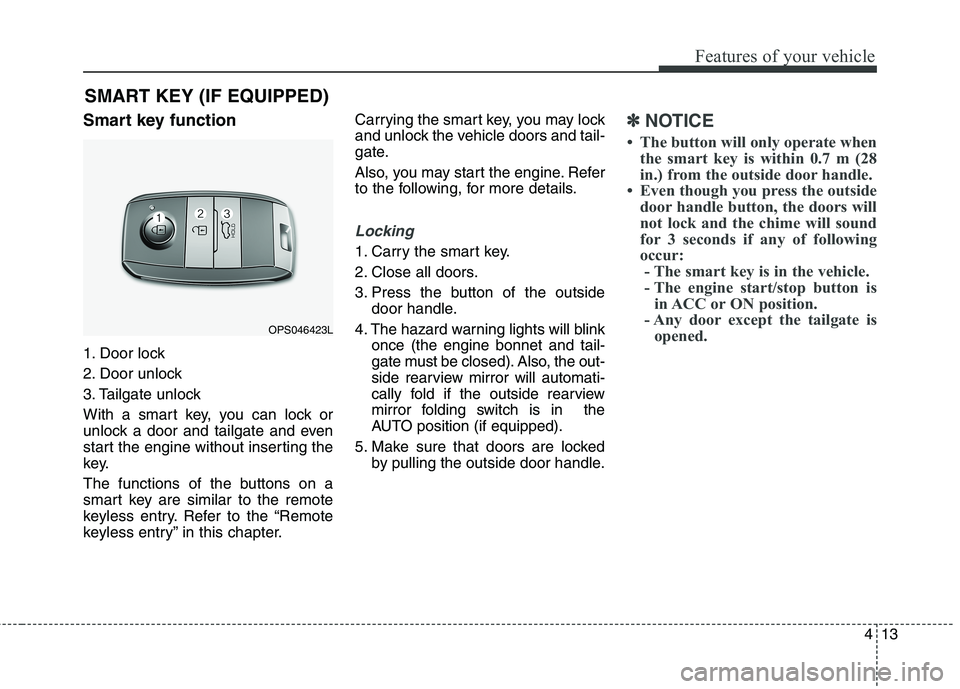

SMART KEY (IF EQUIPPED)
Smart key function
1. Door lock
2. Door unlock
3. Tailgate unlock
With a smart key, you can lock or
unlock a door and tailgate and even
start the engine without inserting the
key.
The functions of the buttons on a
smart key are similar to the remote
keyless entry. Refer to the “Remote
keyless entry” in this chapter. Carrying the smart key, you may lock
and unlock the vehicle doors and tail-
gate.
Also, you may start the engine. Refer
to the following, for more details.
Locking
1. Carry the smart key.
2. Close all doors.
3. Press the button of the outside
door handle.
4. The hazard warning lights will blink once (the engine bonnet and tail-
gate must be closed). Also, the out-
side rearview mirror will automati-
cally fold if the outside rearview
mirror folding switch is in the
AUTO position (if equipped).
5. Make sure that doors are locked by pulling the outside door handle.
✽✽ NOTICE
 The button will only operate when the smart key is within 0.7 m (28
in.) from the outside door handle.
 Even though you press the outside door handle button, the doors will
not lock and the chime will sound
for 3 seconds if any of following
occur:- The smart key is in the vehicle.
- The engine start/stop button is in ACC or ON position.
- Any door except the tailgate is opened.
OPS046423L

Features of your vehicle
14
4

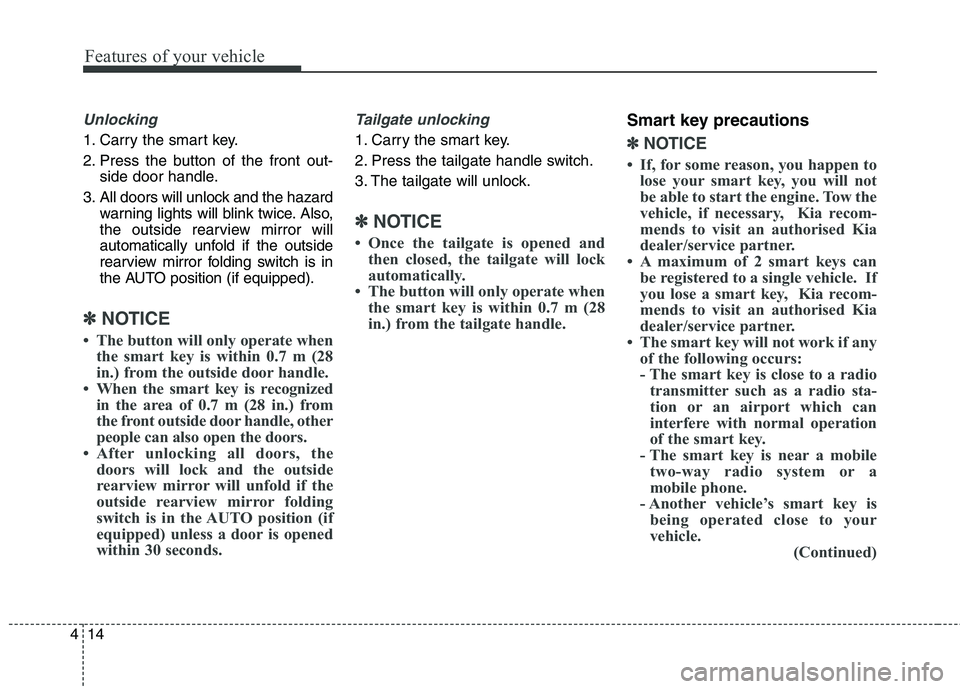

Unlocking
1. Carry the smart key.
2. Press the button of the front out-
side door handle.
3. All doors will unlock and the hazard warning lights will blink twice. Also,
the outside rearview mirror will
automatically unfold if the outside
rearview mirror folding switch is in
the AUTO position (if equipped).
✽✽ NOTICE
 The button will only operate when the smart key is within 0.7 m (28
in.) from the outside door handle.
 When the smart key is recognized in the area of 0.7 m (28 in.) from
the front outside door handle, other
people can also open the doors.
 After unlocking all doors, the doors will lock and the outside
rearview mirror will unfold if the
outside rearview mirror folding
switch is in the AUTO position (if
equipped) unless a door is opened
within 30 seconds.
Tailgate unlocking
1. Carry the smart key.
2. Press the tailgate handle switch.
3. The tailgate will unlock.
✽✽ NOTICE
 Once the tailgate is opened and then closed, the tailgate will lock
automatically.
 The button will only operate when the smart key is within 0.7 m (28
in.) from the tailgate handle.
Smart key precautions
✽✽ NOTICE
 If, for some reason, you happen to lose your smart key, you will not
be able to start the engine. Tow the
vehicle, if necessary, Kia recom-
mends to visit an authorised Kia
dealer/service partner.
 A maximum of 2 smart keys can be registered to a single vehicle. If
you lose a smart key, Kia recom-
mends to visit an authorised Kia
dealer/service partner.
 The smart key will not work if any of the following occurs:
- The smart key is close to a radiotransmitter such as a radio sta-
tion or an airport which can
interfere with normal operation
of the smart key.
- The smart key is near a mobile two-way radio system or a
mobile phone.
- Another vehicle’s smart key is being operated close to your
vehicle. (Continued)
