Safety features of your vehicle
58
3
Passenger’s front air bag
ON indicator (if equipped)
❈ The actual indicator in the vehicle may differ
from the illustration.
The passenger's front airbag ON indicator illuminates
for approximately 4 seconds
after the ignition switch is
turned to the ON position.
The passenger's front air bag ON indi-cator also comes on when the pas-
senger's front air bag ON/OFF switchis set to the ON position and goes off
after approximately 60 seconds.
Passenger’s front air bag OFF indicator (if equipped)
❈The actual indicator in the vehicle may differ
from the illustration.
The passenger’s front airbag OFF indicator illumi-
nates for about 4 seconds
after the ignition switch is
turned to the ON position.
The passenger’s front air bag OFFindicator also comes on when the
passenger’s front air bag ON/OFF
switch is set to the OFF position and
goes off when the passenger’s front
air bag ON/OFF switch is set to theON position.
ORP032041RORP032042R
CAUTION
If the passenger’s front air bag ON/OFF switch malfunctions,the passenger’s front air bagOFF indicator will not illuminate (The passenger's front air bagON indicator comes on and goesoff after approximately 60 sec- onds) and the passenger’s frontair bag will inflate in a frontalimpact even if the passenger’s front air bag ON/OFF switch isset to the OFF position.
In this case, have the passen-ger’s front air bag ON/OFFswitch and the SRS air bag sys- tem inspected by a professionalworkshop.
Kia recommends to visit anauthorised Kia dealer/servicepartner.

359
Safety features of your vehicle
SRS components and functions
The SRS consists of the following components:
1. Driver's front air bag module
2. Passenger's front air bag module
3. Side air bag modules*
4. Curtain air bag modules*
5. Retractor pre-tensioner assemblies
6. Air bag warning light
7. SRS control module (SRSCM)
8. Front impact sensors
9. Side impact sensors*10. Passenger’s front air bag
ON/OFF indicator*
11. Passenger’s front air bag ON/OFF switch*
12. EFD (Emergency Fastening Device)*
* : if equipped
The SRSCM continually monitors all
elements whilst the ignition switch is
ON to determine if a frontal, near-frontal impact or side impact is
severe enough to require air bag
deployment or pre-tensioner seat belt
deployment.
The SRS air bag warning light on the
instrument panel will illuminate forabout 6 seconds after the ignition
switch is turned to the ON position,
after which the air bag warning lightshould go out.
ORP036093R
WARNING
If any of the following condi-
tions occurs, this indicates a
malfunction of the SRS. In this
case, have the system inspect-
ed by a professional workshop.Kia recommends to visit an
authorised Kia dealer/service
partner.
The light does not turn on briefly when you turn the igni- tion ON.
The light stays on after illumi- nating for approximately 6seconds.
The light comes on whilst the vehicle is in motion.
The light blinks when the igni- tion switch is in ON position.

Safety features of your vehicle
66
3
(Continued)
If the SRS air bag warning light blinks or does not illuminatewhen the ignition switch is turned to the ON position, or ifit illuminates whilst the vehicleis being driven, have the sys-tem inspected by a profession- al workshop. Kia recommendsto visit an authorised Kia deal-er/service partner.CAUTION
If the passenger’s front air bag ON/OFF switch is not workingproperly, the air bag warninglight ( )on the instrumentpanel will illuminate.
And, the passenger's front airbag OFF indicator ( ) will not illuminate (The passenger'sfront air bag ON indicatorcomes on and goes off after approximately 60 seconds),the SRS Control Module reac-tivates the passenger’s front air bag and the passenger’sfront air bag will inflate infrontal impact crashes even if the passenger’s front air bagON/OFF switch is set to theOFF position.
In this case, have the systeminspected by a professional workshop. Kia recommends tovisit an authorised Kia deal-er/service partner.
(Continued)
WARNING
The driver is responsible for the proper position of the pas-
senger’s front air bag ON/OFF
switch.
Deactivate the passenger's front air bag only when the
ignition switch is switched off,
or the malfunction may occur
in the SRS Control Module.
And there may be a danger
that the driver's and/or front
passenger’s and/or side and
curtain air bag may fail to trig-
ger, or not trigger correctlyduring a collision.
Never install a rearward facing child seat on the front passen-
ger's seat unless the passen-
ger's front air bag has been
deactivated. The infant or child
could be severely injured or
killed by an air bag deploy-ment in case of an accident.
(Continued)

481
Features of your vehicle

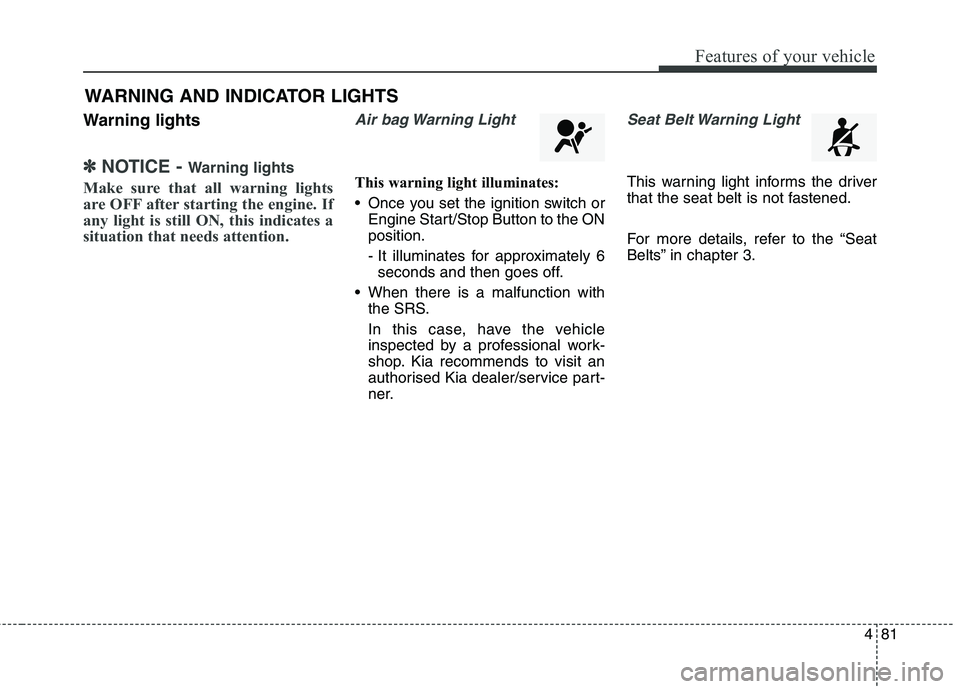

WARNING AND INDICATOR LIGHTS
Warning lights
✽✽ NOTICE - Warning lights
Make sure that all warning lights
are OFF after starting the engine. If
any light is still ON, this indicates a
situation that needs attention.
Air bag Warning Light
This warning light illuminates:
Once you set the ignition switch or Engine Start/Stop Button to the ON position.
- It illuminates for approximately 6seconds and then goes off.
When there is a malfunction with the SRS.
In this case, have the vehicle
inspected by a professional work-
shop. Kia recommends to visit an
authorised Kia dealer/service part-
ner.
Seat Belt Warning Light
This warning light informs the driver
that the seat belt is not fastened.
For more details, refer to the “Seat
Belts” in chapter 3.

Features of your vehicle
84
4
✽✽
NOTICE- Electronic Brake
force Distribution(EBD) System
Warning Light
When the ABS Warning Light is on
or both ABS and Parking Brake &
Brake Fluid Warning Lights are on,
the speedometer, odometer, or trip-
meter may not work. Also, the EPS
Warning Light may illuminate and
the steering effort may increase or
decrease.
In this case, have the vehicle inspect-
ed by a professional workshop. Kia
recommends to visit an authorised
Kia dealer/service partner.Electronic Parking Brake (EPB) Warning Light (if equipped)
This warning light illuminates:
Once you set the ignition switch or Engine Start/Stop Button to the ON position.
- It illuminates for approximately 3seconds and then goes off.
When there is a malfunction with the EPB.
In this case, have the vehicle
inspected by a professional work-
shop. Kia recommends to visit an
authorised Kia dealer/service part-
ner.
✽✽ NOTICE - Electronic Parking
Brake (EPB) Warning Light
The Electronic Parking Brake
(EPB) Warning Light may illumi-
nates when the Electronic Stability
control (ESC) Indicator Light comes
on to indicates that the ESC is not
working properly (This does not
indicate malfunction of the EPB).
Electronic Power Steering (EPS) Warning Light
This warning light illuminates:
Once you set the ignition switch or Engine Start/Stop Button to the ON position.
- It remains on until the engine isstarted.
When there is a malfunction with the EPS.
In this case, have the vehicle
inspected by a professional work-
shop. Kia recommends to visit an
authorised Kia dealer/service part-
ner.
EPB

485
Features of your vehicle
Malfunction IndicatorLamp (MIL)
This warning light illuminates:
Once you set the ignition switch or Engine Start/Stop Button to the ON position. - It remains on until the engine is
started.
When there is a malfunction with the emission control system.
In this case, have the vehicle
inspected by a professional work-
shop. Kia recommends to visit an
authorised Kia dealer/service part-
ner.
CAUTION - Petrol Engine
If the Malfunction Indicator
Lamp (MIL) illuminates, poten-tial catalytic converter damage is possible which could result inloss of engine power.
In this case, have the vehicleinspected by a professionalworkshop. Kia recommends to visit an authorised Kiadealer/service partner.
CAUTION - Diesel Engine with DPF (if equipped)
When the Malfunction Indicator
Lamp (MIL) blinks, it may stopblinking after driving the vehicle:
- at more than 60km/h (37 mph), or- at more than 2nd gear with 1500 ~ 2000 engine rpm for a certaintime (for about 25 minutes).
If the Malfunction Indicator Lamp (MIL) continues to blink inspite of the procedure, have the DPF system checked by a pro-fessional workshop. Kia recom-mends to visit an authorised Kiadealer/service partner.
If you continue to drive with theMalfunction Indicator Lamp(MIL) blinking for a long time,the DPF system can be dam- aged and fuel consumption canworsen.
CAUTION - Malfunction IndicatorLamp (MIL)
Driving with the Malfunction
Indicator Lamp (MIL) on maycause damage to the emission control systems which couldeffect drivability and/or fueleconomy.

Features of your vehicle
86
4
Charging System
Warning Light
This warning light illuminates:
Once you set the ignition switch or Engine Start/Stop Button to the ON position.
- It remains on until the engine isstarted.
When there is a malfunction with either the alternator or electrical charging system.
If there is a malfunction with either the
alternator or electrical charging system:
1. Drive carefully to the nearest safe location and stop your vehicle.
2. Turn the engine off and check the alternator drive belt for looseness
or breakage.
If the belt is adjusted properly,
there may be a problem in the
electrical charging system.
In this case, have the vehicle
inspected by a professional work-
shop as soon as possible. Kia rec-
ommends to visit an authorised
Kia dealer/service partner.
Engine Coolant Temperature Warning Light (if equipped)
This warning light illuminates:
When the engine coolant tempera- ture is above 120°C (248°F). This
means that the engine is overheat-
ed and may be damaged.
If your vehicle is overheated, refer
to “Overheating” in chapter 7.
CAUTION - Diesel Engine
If the Malfunction Indicator
Lamp (MIL) blinks, some errorrelated to the injection quantity adjustment occurs which couldresult in loss of engine power,combustion noise and poor emission.
In this case, have the enginecontrol system inspected by aprofessional workshop. Kia rec-ommends to visit an authorised Kia dealer/service partner.
CAUTION - Engine Overheating
Do not continue driving with the
engine overheated. Otherwiseengine may be damaged.

491
Features of your vehicle
Indicator Lights
Electronic StabilityControl (ESC) Indicator Light (if equipped)
This indicator light illuminates:
Once you set the ignition switch or Engine Start/Stop Button to the ON position.
- It illuminates for approximately 3seconds and then goes off.
When there is a malfunction with the ESC system.
In this case, have the vehicle
inspected by a professional work-
shop. Kia recommends to visit an
authorised Kia dealer/service part-
ner.
This indicator light blinks:
Whilst the ESC is operating.
For more details, refer to “Electronic
Stability Control (ESC)” in chapter 6.
Electronic Stability Control (ESC) OFF Indicator Light (if equipped)
This indicator light illuminates:
Once you set the ignition switch or Engine Start/Stop Button to the ON position.
- It illuminates for approximately 3seconds and then goes off.
When you deactivate the ESC sys- tem by pressing the ESC OFF but- ton.
For more details, refer to “Electronic
Stability Control (ESC)” in chapter 6.
ECO Indicator Light (if equipped)
This indicator light illuminates:
When you activate the active ECO
system by pressing the ACTIVE ECO
button.
For more details, refer to “Active
ECO System” in chapter 6.
ECO

Features of your vehicle
92
4
Auto stop indicator
(if equipped)
This indicator will illuminate when the engine enters the Idle Stop mode ofthe ISG (Idle Stop and Go) system.
When the automatic starting occurs, the auto stop indicator on the cluster
will blink for 5 seconds.
For more details, refer to the ISG (Idle Stop and Go) system in chapter 6.
✽✽ NOTICE
When the engine automatically starts
by the ISG system, some warning
lights (ABS, ESC, ESC OFF, EPS or
Parking brake warning light) may
turn on for a few seconds.
This happens because of the low bat-
tery voltage. It does not mean the
system is malfunctioning.
Immobiliser Indicator Light (Without Smart Key) (if equipped)
This indicator light illuminates:
When the vehicle detects the immobiliser in your key properly
whilst the ignition switch is ON.
- At this time, you can start theengine.
- The indicator light goes off after starting the engine.
This indicator light blinks:
When there is a malfunction with the immobiliser system.
In this case, have the vehicle
inspected by a professional work-
shop. Kia recommends to visit an
authorised Kia dealer/service part-
ner.
Immobiliser Indicator
Light (With Smart Key) (if equipped)
This indicator light illuminates for up
to 30 seconds:
When the vehicle detects the smart key in the vehicle properly
whilst the Engine Start/Stop Button
is ACC or ON.
- At this time, you can start theengine.
- The indicator light goes off after starting the engine.
This indicator light blinks for a few
seconds:
When the smart key is not in the vehicle.
- At this time, you can not start theengine.

493
Features of your vehicle
This indicator light illuminates for 2
seconds and goes off:
When the vehicle can not detectthe smart key which is in the vehi-
cle whilst the Engine Start/StopButton is ON.
In this case, have the vehicle
inspected by a professional work-
shop. Kia recommends to visit an
authorised Kia dealer/service part-
ner.
This indicator light blinks:
When the battery of the smart key is weak.
- At this time, you can not start theengine. However, you can start the
engine if you press the Engine
Start/Stop Button with the smart
key. (For more details, refer to
“Starting the Engine” in chapter 6).
When there is a malfunction with the immobiliser system.
In this case, have the vehicle
inspected by a professional work-
shop. Kia recommends to visit an
authorised Kia dealer/service part-
ner.Turn Signal Indicator
Light
This indicator light blinks:
When you turn the turn signal light on.
If any of the following occurs, there
may a malfunction with the turn signal
system. In this case, have the vehicle
inspected by a professional work-
shop. Kia recommends to visit an
authorised Kia dealer/service partner. - The indicator light does not blinkbut illuminates.
- The indicator light blinks more rapidly.
- The indicator light does not illumi- nate at all.
Low Beam Indicator
Light (if equipped)
This indicator light illuminates:
When the headlights are on.
High Beam IndicatorLight
This indicator light illuminates:
When the headlights are on and in the high beam position
When the turn signal lever is pulled into the Flash-to-Pass position.
Light ON Indicator Light
This indicator light illuminates:
When the tail lights or headlightsare on.
