Temperature Control Actuator

2007 > 2.7L V6 GASOLINE >
DESCRIPTION
1.Heater unit includes mode control actuator and temperature control actuator.
2. Temperature control actuator is located at the heater unit. It regulates the temperature by the procedure as follows.
Signal from control unit adjusts position of temperature door by operating temperature switch and then temperature
will be regulated by the hot/cold air ratio decided by position of temperature door

2007 > 2.7L V6 GASOLINE >

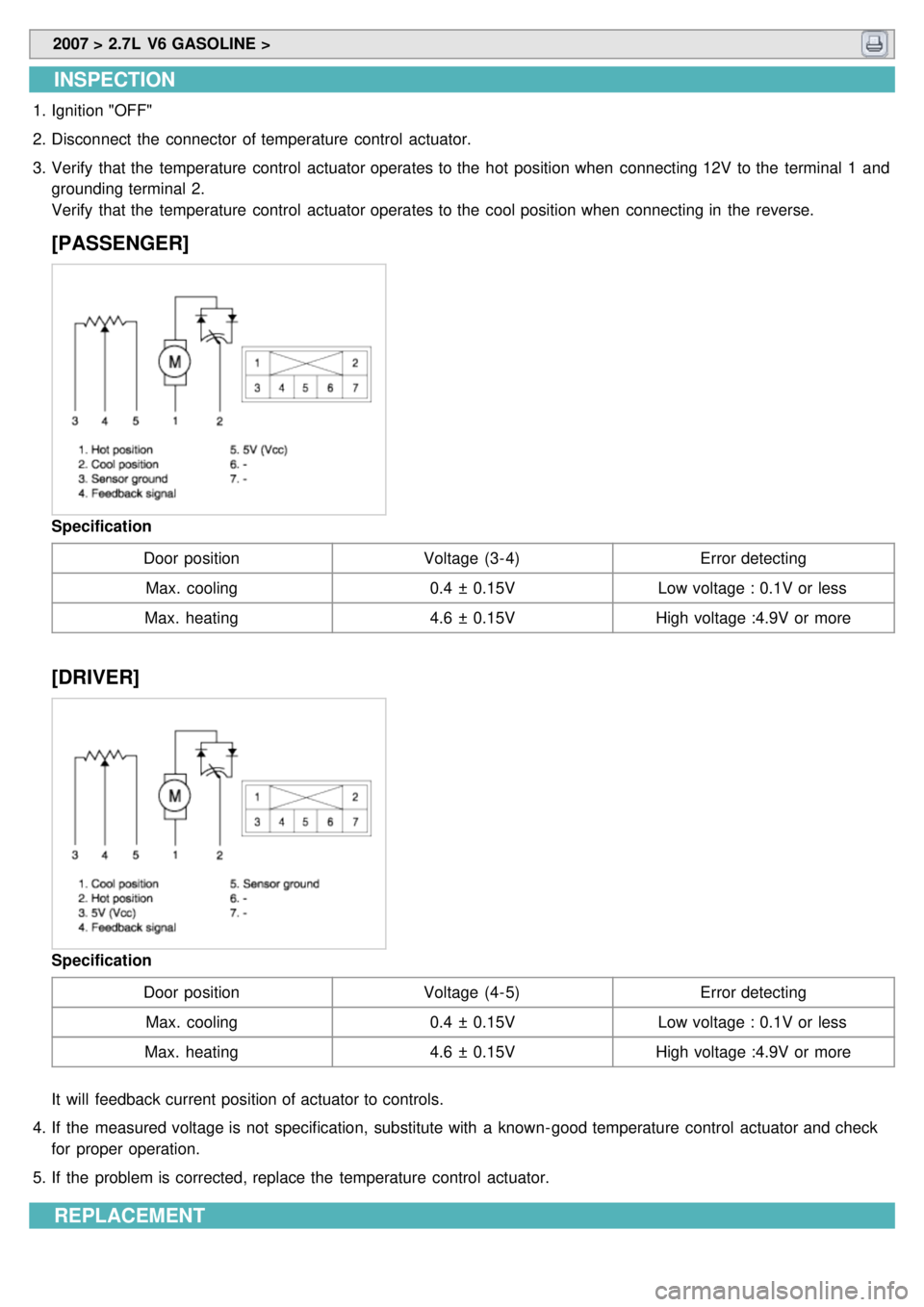

INSPECTION
1.Ignition "OFF"
2. Disconnect the connector of temperature control actuator.
3. Verify that the temperature control actuator operates to the hot position when connecting 12V to the terminal 1 and
grounding terminal 2.
Verify that the temperature control actuator operates to the cool position when connecting in the reverse.
[PASSENGER]
Specification
Door position Voltage (3- 4)Error detecting
Max. cooling 0.4 ± 0.15VLow voltage : 0.1V or less
Max. heating 4.6 ± 0.15VHigh voltage :4.9V or more
[DRIVER]
Specification
Door position Voltage (4- 5)Error detecting
Max. cooling 0.4 ± 0.15VLow voltage : 0.1V or less
Max. heating 4.6 ± 0.15VHigh voltage :4.9V or more
It will feedback current position of actuator to controls.
4. If the measured voltage is not specification, substitute with a known- good temperature control actuator and check
for proper operation.
5. If the problem is corrected, replace the temperature control actuator.
REPLACEMENT

1.Disconnect the negative ( - ) battery terminal.
2. Remove the driver’s crush pad lower panel (Refer to BD group).
3. Disconnect the temperature control actuator connector (A) after removing the air duct.
4. Loosen the mounting screw and then remove the temperature control actuator (B).
[Passenger's]
[Driver's]
5.Installation is the reverse order of removal.

Model Control Actuator

2007 > 2.7L V6 GASOLINE >
DESCRIPTION
The mode control actuator is located at the heater unit.
It adjusts position of mode door by operating mode control actuator based on signal of A/C control unit. Pressing mode
select switch makes the mode control actuator shift in order of vent→ B/L → floor → mix.

2007 > 2.7L V6 GASOLINE >
INSPECTION
1.Ignition "OFF"
2. Disconnect the connector of mode control actuator.
3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to the terminal 1 and
grounding terminal 2.
4. Verify that the mode control actuator operates to the vent mode when connecting in the reverse.
[DRIVER]
[PASSENGER]
5.Check the voltage between terminals 3 and 4.
Door position Voltage (3- 4)Error detecting
Vent 0.4 ± 0.15VLow voltage :0.1V or less
Defrost 4.6 ± 0.15VHigh voltage :4.9V or more
It will feedback current position of actuator to controls.
6. If the measured voltage is not specification, substitute with a known- good mode control actuator and check for
proper operation.
7. If the problem is corrected, replace the mode control actuator.
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the driver’s crush pad lower panel (Refer to BD group).
3. Disconnect the temperature control actuator connector (A) after removing the air duct.
4. Loosen the mounting screw and then remove the temperature control actuator (B).

Rear Temperature Control Actuator

2007 > 2.7L V6 GASOLINE >
DESCRIPTION
1.Heater unit includes mode control actuator and temperature control actuator.
2. Temperature control actuator is located at the heater unit. It regulates the temperature by the procedure as follows.
Signal from control unit adjusts position of temperature door by operating temperature switch and then temperature
will be regulated by the hot/cold air ratio decided by position of temperature door.

2007 > 2.7L V6 GASOLINE >
INSPECTION
1.Ignition "OFF".
2. Disconnect the connector of temperature control actuator.
3. Verify that the temperature control actuator operates to the hot position when connecting 12V to the terminal 1 and
grounding terminal 2.
Verify that the temperature control actuator operates to the cool position when connecting in the reverse.
4.Check the voltage between terminals 3 and 4.
Specification
Door position Voltage (3- 4)Error detecting
Max. cooling 0.4 ± 0.15VLow voltage : 0.1V or less
Max. heating 4.6 ± 0.15VHigh voltage : 4.9V or more
* It will feedback current position of actuator to controls.
5. If the measured voltage is not specification, substitute with a known- good temperature control actuator and check
for proper operation.
6. If the problem is corrected, replace the temperature control actuator.
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the luggage side trim (Refer to BD - ).
3. Remove the rear heater unit (Refer to HA - ).
4. Disconnect the temperature control actuator connector after removing the air duct.
5. Loosen the mounting screw and then remove the temperature control actuator (A).
6.Installation is the reverse order of removal.
