power steering fluid KIA CARNIVAL 2007 User Guide

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Drain the power steering fluid.
2. Disconnect the pressure tube (A) and suction tube (B) from the power steering oil pump.
Tightening torque Nm (kgf.m, lb - ft):
55 ~ 65 (4.5 ~ 5.5, 40 ~ 47)
[Diesel]
[Gasoline]
3.Disconnect the pressure tube (A) and return tube from the valve body housing.
Tightening torque Nm (kgf.m, lb - ft):
12 ~ 18 (1.2 ~ 1.8, 9 ~ 13)

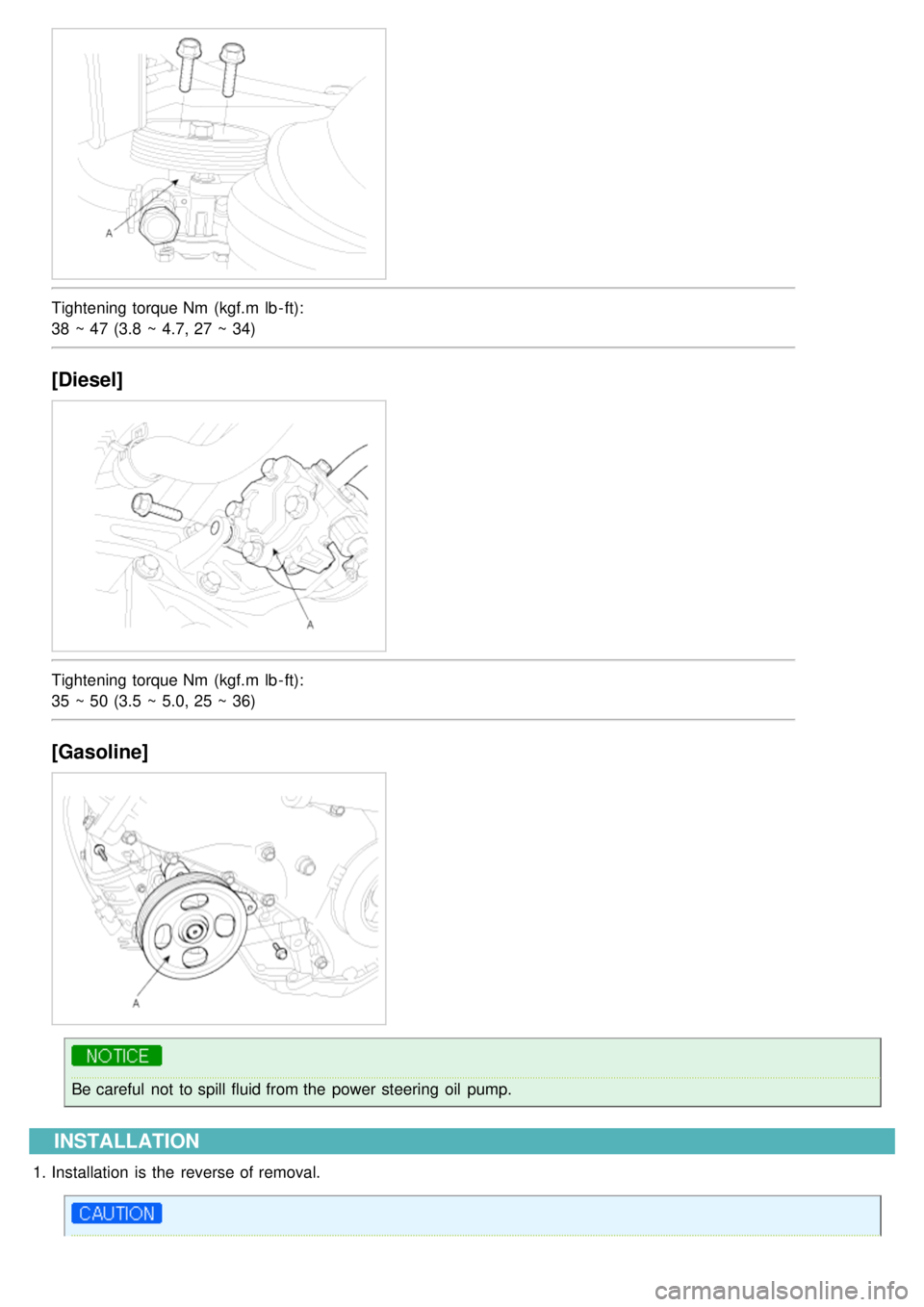

4.Remove the brackets of the pressure tube and hose from the sub- frame.

Tightening torque Nm (kgf.m lb - ft):
38 ~ 47 (3.8 ~ 4.7, 27 ~ 34)
[Diesel]
Tightening torque Nm (kgf.m lb - ft):
35 ~ 50 (3.5 ~ 5.0, 25 ~ 36)
[Gasoline]
Be careful not to spill fluid from the power steering oil pump.
INSTALLATION
1.Installation is the reverse of removal.

The pressure tube does not twist and come in contact with other components.

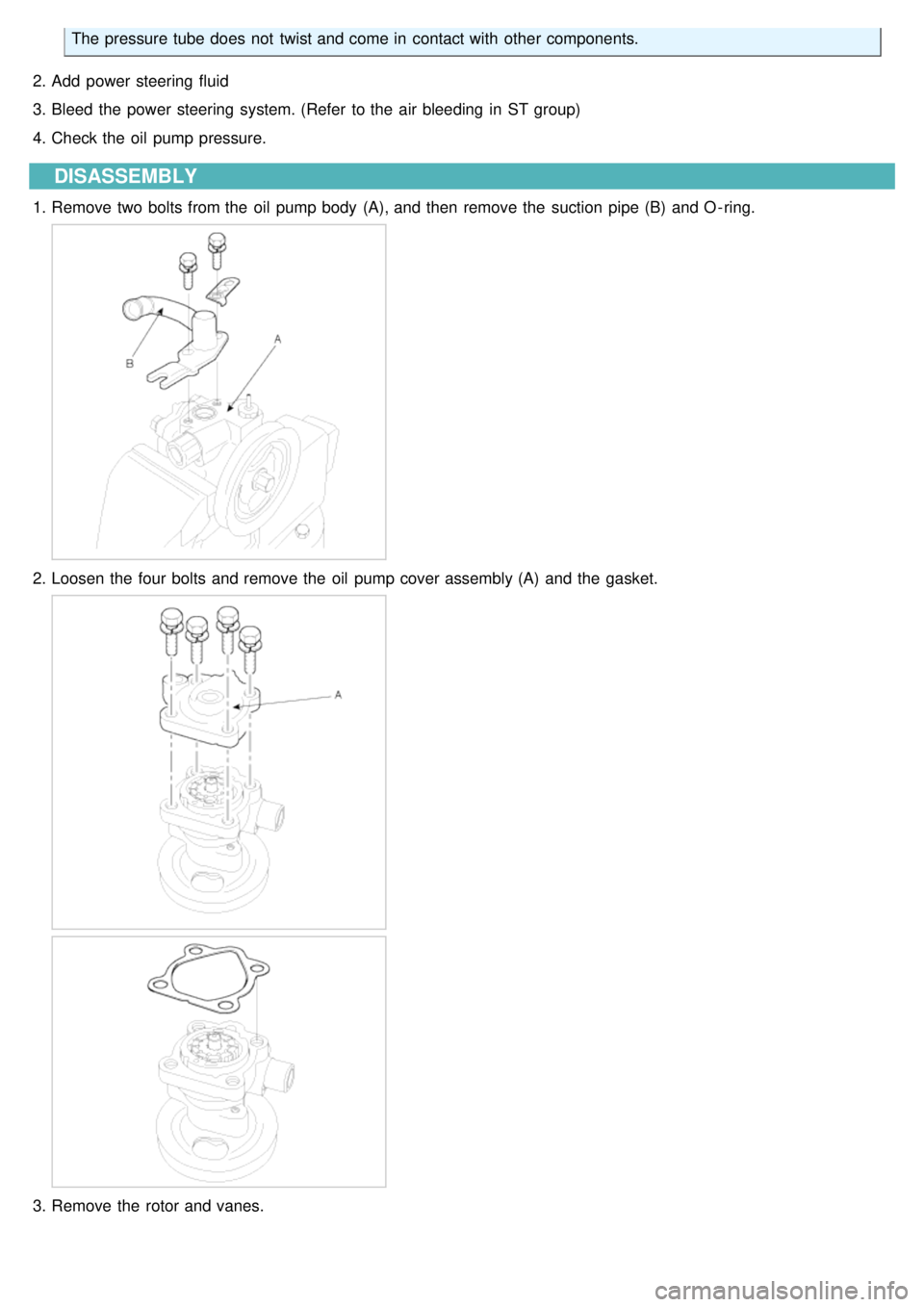

2. Add power steering fluid
3. Bleed the power steering system. (Refer to the air bleeding in ST group)
4. Check the oil pump pressure.
DISASSEMBLY
1.Remove two bolts from the oil pump body (A), and then remove the suction pipe (B) and O - ring.
2.Loosen the four bolts and remove the oil pump cover assembly (A) and the gasket.
3.Remove the rotor and vanes.
