sensor KIA CARNIVAL 2007 Workshop Manual

3.Select the "POWER TAILGATE" menu to check.
4.Select the sensor output. And then check the power tailgate local switch output value changed by the controlling
PTG.
5.If there is no input/output change from OFF to ON during PTG operation, change the power tailgate switch.
REPLACEMENT
OVERHEAD CONSOLE SWITCH
1. Disconnect the negative ( - ) battery terminal.
2. Open the sunglass case cover from the overhead console then remove the 2 screws holding the overhead console
(A). And then disconnect the connector (B).

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the front bumper cover. (Refer to Body group - Front bumper)
3. Remove the washer hose, the washer motor connector (A) and washer level sensor connector (C).
4. Remove the washer reservoir after removing 2 bolts and 1 step bolt.
5.Installation is the reverse of removal.
INSPECTION
1.With the washer motor connected to the reservoir tank, fill the reservoir tank with water.
2. Connect positive (+) battery cables to terminal 2 and negative ( - ) battery cables to terminal 1 respectively.
3. Check that the motor operates normally and the washer motor runs and water sprays from the front nozzles. If they
are abnormal, replace the washer motor.

Rain Sensor

2007 > 2.7L V6 GASOLINE >
DESCRIPTION
The Rain sensing windshield wiper system is a wiper system that, in addition to providing normal wiper functions off,
mist, manual low speed, manual high speed, and wash, provides automatic control of automatic intermittent automatic
low, and automatic high speeds.
When the ignition key is in the ON position, the rain sensor will be activated.
SYSTEM FUNCTION
BASIC PRINCIPLE
Emitted Beam from luminosity diode is reflected entirely against the windshield exterior, and then turn into photo diode.
If there is water on the windshield exterior, beam seperates optically, and the degree of remained beam is measured
in the photo diode.
What there is water in the windshield, it means beam is not reflected all, so the degree of lost beam indicates the
degree of glass surface wet.
Rainsensor consist of two luminosity diode, two photo diode, optic fiber and coupling pad.
OPERATION CONTROL
Wiper ECU transmits the signal as a rainsesor, and then the rainsensor perceives the rainwater to transmit to the
wiping order wiper ECU, wiper ECU controls the wiper motor according to the signal.
CONTACT INFLUENCE
The rain sensor can malfunction due to the following conditions : a. Contamination of the measurement surface.
b. Air bubbles between the windshield and the coupling pad contact surface.
c. The movement of coupling pad by vibration.
d. Damaged wiper blade.
AUTO OPERATION
1.Operation Condition
Operation mode Operation condition
Direct mode Switch AUTO is basic operation condition that rain sensor perceives dry
windshield. From this condition, the rain sensor decides the wiper operation
mode depend on the quantity and time of measured rainwater
Intermittent mode Operation pauses between 0.5~5 seconds, then the wipers switch to
intermittent mode
Low speed Operate continuously at low speed
High speed Operate continuously at high speed

2.Safety Function
a. When there is an ice in the sensing field, the rain sensor cannot recognize the correct working condition.
Do not operate the rain sensing wipers unless the windshield is completely clear of ice and snow.
b. Glass damage : rain sensor cannot perceive the damaged windshield within the sensing field.
c. The rain senson will not operate properly if detached from the windsheld.
d. If the wiper ECU does not transmit any effective data in 5 seconds, the rain sensor turns off LED.
e. If the intermittent wiper signal is interrupted for >2 sec, the wipers are moved to the parking position.
f. If a rain sensor signal communication error lasts for > 5sec, the wipers are moved into the parking position.
g. If the rain sensor transmits an error to the wiper ECU, the wiper ECU stops the AUTO function after 4.5
seconds.

2007 > 2.7L V6 GASOLINE >
REMOVAL
The rain sensor may not operate proprly if contaminated. Protect the rain sensor surface by not removing the
cover until installation time. The coupling pad on the rain sensor surface has adhesive strength. Take care when
installing the sensor. If the sensor is separated from the windshield by force, the sensor or windshield may be
damaged. Take care when removing the sensor.
1. Remove the sensor cover. When removing it, make sure take care to prevent damage. To remove it, press back
the locking hook using the cover hole using an appropriate tool.
2.When removing rain sensor from the bracket, open the spring clip using the ( - )driver, and then remove.
3.Disconnect the wiring harness connector from the sensor.
4. Rain sensor is fitted with 2 spring slides by clip type on the front glass, it can be replaced easily. When replacing
the front glass, take away the rain sensor from the existing glass.
After then attach it to new one again.
INSTALLATION
a.In case of the windshield with reflection layer which reflects the infrared rays in sensing field, remove the
reflection layer from the rain sensor mounting position prior to installation.
b. Bracket and spring slide need for installing the rainsensor, it is covered by sensor cover.

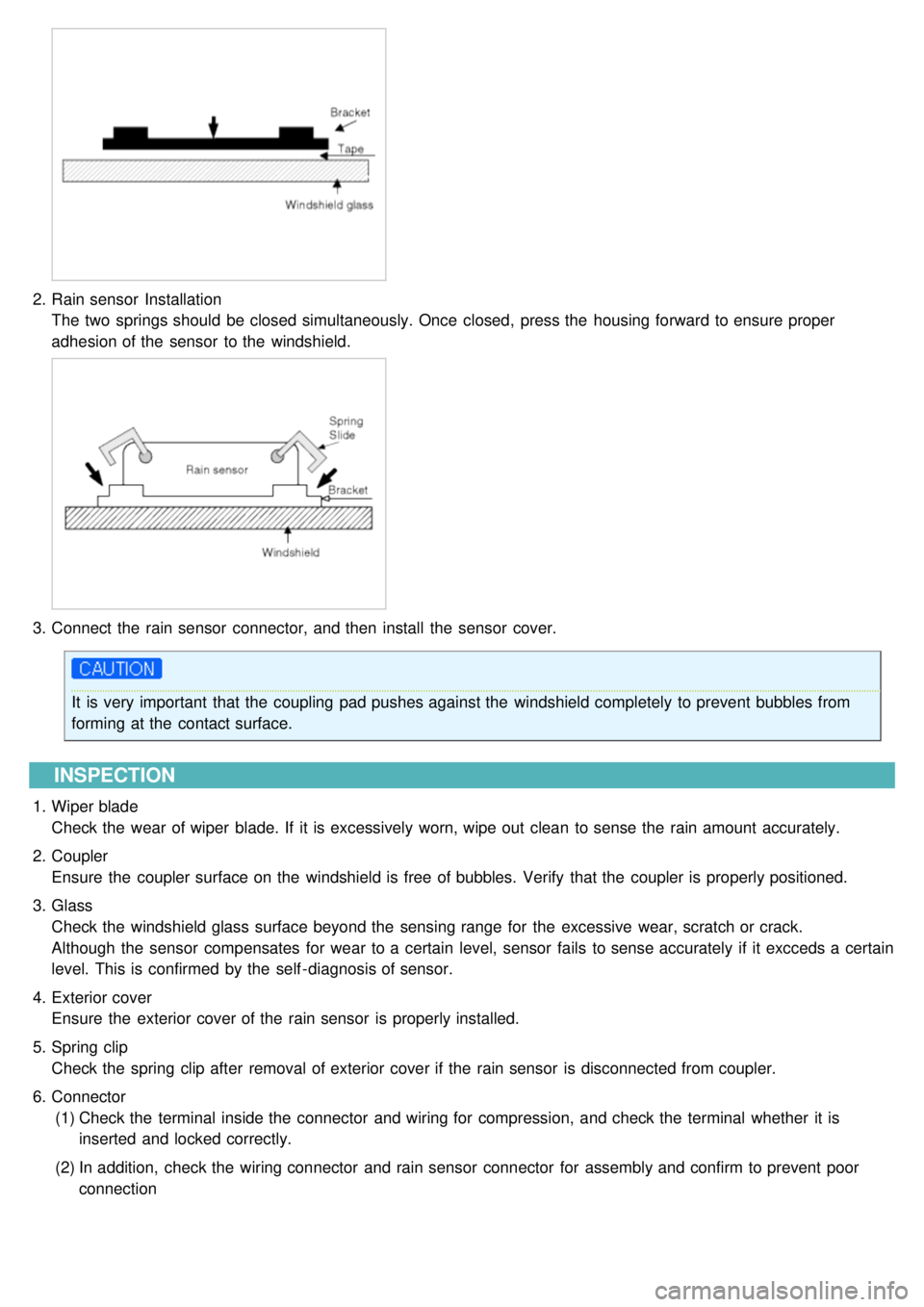

1. Install the rain sensor bracket to the windshield glass using the tape

2.Rain sensor Installation
The two springs should be closed simultaneously. Once closed, press the housing forward to ensure proper
adhesion of the sensor to the windshield.
3.Connect the rain sensor connector, and then install the sensor cover.
It is very important that the coupling pad pushes against the windshield completely to prevent bubbles from
forming at the contact surface.
INSPECTION
1.Wiper blade
Check the wear of wiper blade. If it is excessively worn, wipe out clean to sense the rain amount accurately.
2. Coupler
Ensure the coupler surface on the windshield is free of bubbles. Verify that the coupler is properly positioned.
3. Glass
Check the windshield glass surface beyond the sensing range for the excessive wear, scratch or crack.
Although the sensor compensates for wear to a certain level, sensor fails to sense accurately if it excceds a certain
level. This is confirmed by the self - diagnosis of sensor.
4. Exterior cover
Ensure the exterior cover of the rain sensor is properly installed.
5. Spring clip
Check the spring clip after removal of exterior cover if the rain sensor is disconnected from coupler.
6. Connector
(1) Check the terminal inside the connector and wiring for compression, and check the terminal whether it is
inserted and locked correctly.
(2) In addition, check the wiring connector and rain sensor connector for assembly and confirm to prevent poor
connection

2007 > 2.7L V6 GASOLINE >
DESCRIPTION
The electrochromatic rear view mirror detects the ambient light using a built- in sensor and adjusts the reflectability of
the mirror to prevent excess light (such as the light emitted by a following vehicle's headlights) from reaching the
driver's eyes during night driving. To allow for maximum vision while backing up, the electrochromatic functionality of
the mirror is deactivated whenever the transaxle is in 'R' range.
1.The front sensor sees if the brightness of the surroundings is low enough for the mirror to operate its function.
2. The rearward looking sensor detects glaring of the reflecting light from a following vehicle.
3. The ECM is darkened to the level as determined by the rearward looking sensor. When the glaring is no longer
detected, the mirror stops functioning.

2007 > 2.7L V6 GASOLINE >

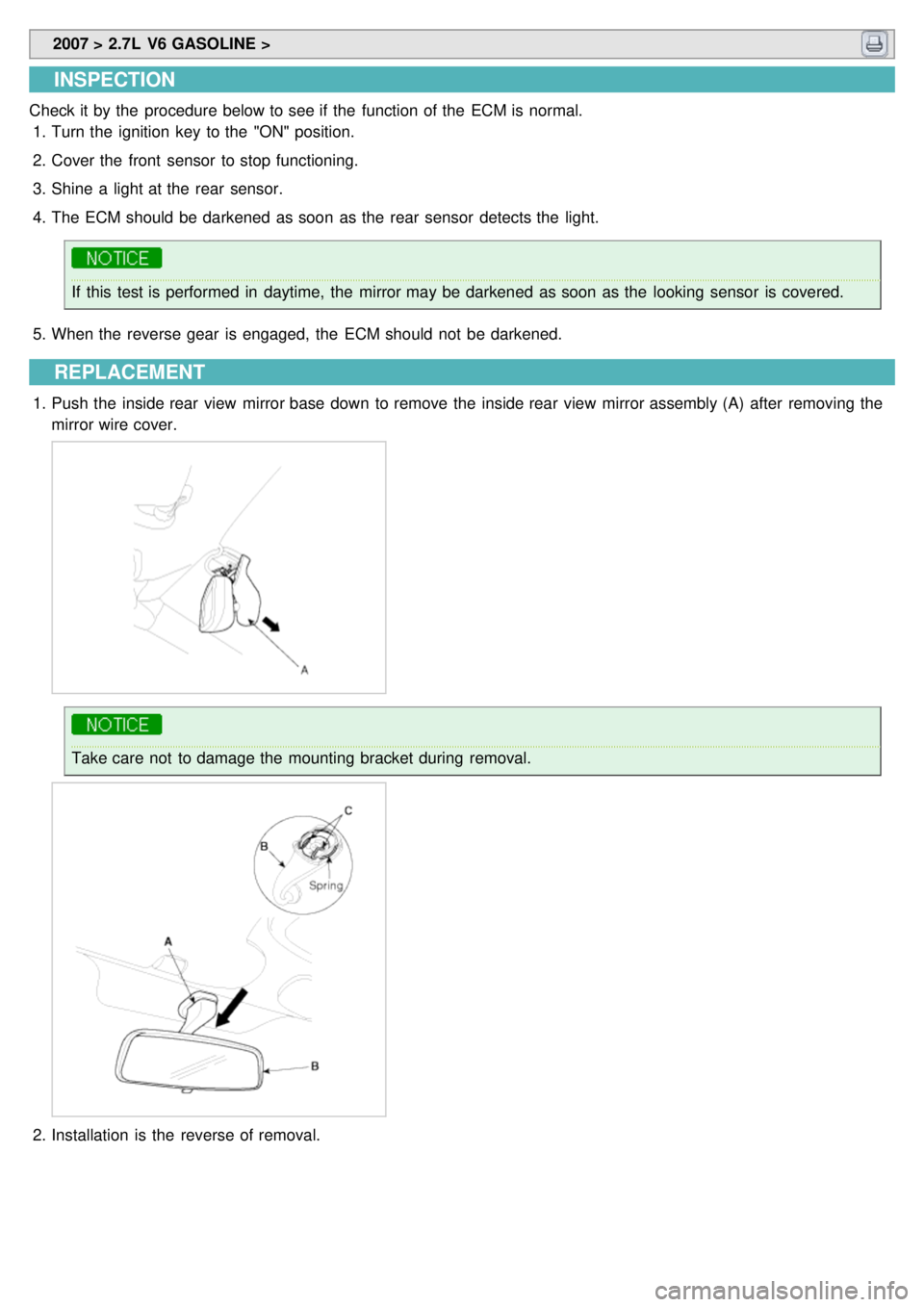

INSPECTION
Check it by the procedure below to see if the function of the ECM is normal.
1. Turn the ignition key to the "ON" position.
2. Cover the front sensor to stop functioning.
3. Shine a light at the rear sensor.
4. The ECM should be darkened as soon as the rear sensor detects the light.
If this test is performed in daytime, the mirror may be darkened as soon as the looking sensor is covered.
5. When the reverse gear is engaged, the ECM should not be darkened.
REPLACEMENT
1.Push the inside rear view mirror base down to remove the inside rear view mirror assembly (A) after removing the
mirror wire cover.
Take care not to damage the mounting bracket during removal.
2.Installation is the reverse of removal.
