heater KIA CARNIVAL 2007 Service Manual

2007 > 2.7L V6 GASOLINE >
DESCRIPTION
1.Heater unit includes mode control actuator and temperature control actuator.
2. Temperature control actuator is located at the heater unit. It regulates the temperature by the procedure as follows.
Signal from control unit adjusts position of temperature door by operating temperature switch and then temperature
will be regulated by the hot/cold air ratio decided by position of temperature door.

2007 > 2.7L V6 GASOLINE >
INSPECTION
1.Ignition "OFF".
2. Disconnect the connector of temperature control actuator.
3. Verify that the temperature control actuator operates to the hot position when connecting 12V to the terminal 1 and
grounding terminal 2.
Verify that the temperature control actuator operates to the cool position when connecting in the reverse.
4.Check the voltage between terminals 3 and 4.
Specification
Door position Voltage (3- 4)Error detecting
Max. cooling 0.4 ± 0.15VLow voltage : 0.1V or less
Max. heating 4.6 ± 0.15VHigh voltage : 4.9V or more
* It will feedback current position of actuator to controls.
5. If the measured voltage is not specification, substitute with a known- good temperature control actuator and check
for proper operation.
6. If the problem is corrected, replace the temperature control actuator.
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the luggage side trim (Refer to BD - ).
3. Remove the rear heater unit (Refer to HA - ).
4. Disconnect the temperature control actuator connector after removing the air duct.
5. Loosen the mounting screw and then remove the temperature control actuator (A).
6.Installation is the reverse order of removal.

2007 > 2.7L V6 GASOLINE >
INSPECTION
1.Ignition "OFF".
2. Disconnect the connector of mode control actuator.
3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to the terminal 1 and
grounding terminal 2.
4. Verify that the mode control actuator operates to the vent mode when connecting in the reverse.
5.Check the voltage between terminals 3 and 4.
Door position Voltage (3- 4)Error detecting
Vent 0.4 ± 0.15VLow voltage :0.1V or less
Defrost 4.6 ± 0.15VHigh voltage :4.9V or more
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the rear heater unit.
3. Disconnect the mode control actuator connector (A).
4. Loosen the mounting screws and then remove the mode control actuator (B).
5.Installation is the reverse order of removal.

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the crush pad.(Refer to BD group)
3. Disconnect the connectors from the intake actuator, the blower motor and power mosfet.
4. Remove the cowl cross bar assembly.(Refer to BD group)
5. Remove the blower unit (A) from the heater unit after loosening a mounting bolt and 2 screws.
Make sure that there is no air leaking out of the blower and duct joints.
6. Installation is the reverse order of removal.

2007 > 2.7L V6 GASOLINE >

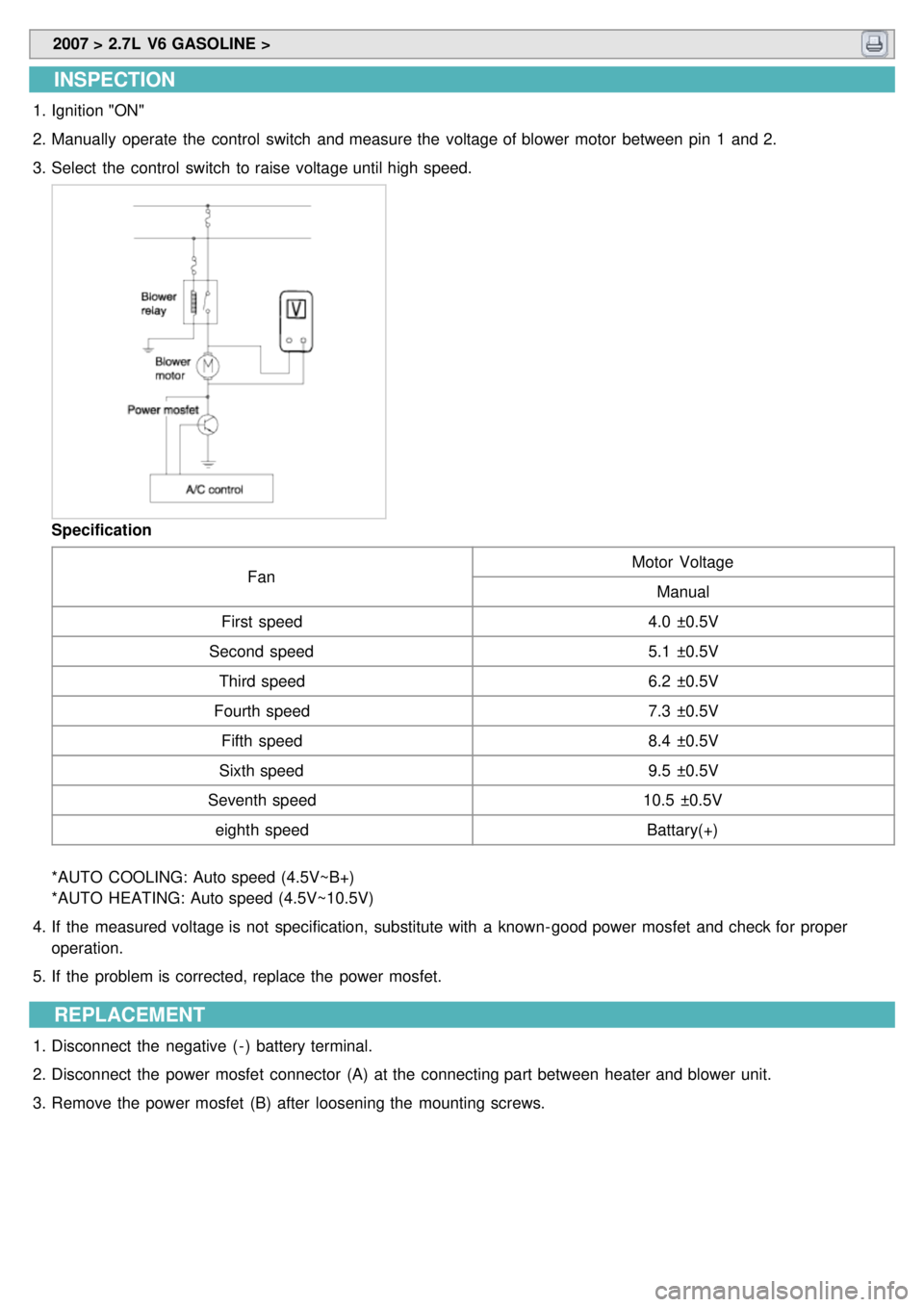

INSPECTION
1.Ignition "ON"
2. Manually operate the control switch and measure the voltage of blower motor between pin 1 and 2.
3. Select the control switch to raise voltage until high speed.
Specification
Fan Motor Voltage
Manual
First speed 4.0 ±0.5V
Second speed 5.1 ±0.5V
Third speed 6.2 ±0.5V
Fourth speed 7.3 ±0.5V
Fifth speed 8.4 ±0.5V
Sixth speed 9.5 ±0.5V
Seventh speed 10.5 ±0.5V
eighth speed Battary(+)
*AUTO COOLING: Auto speed (4.5V~B+)
*AUTO HEATING: Auto speed (4.5V~10.5V)
4. If the measured voltage is not specification, substitute with a known- good power mosfet and check for proper
operation.
5. If the problem is corrected, replace the power mosfet.
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Disconnect the power mosfet connector (A) at the connecting part between heater and blower unit.
3. Remove the power mosfet (B) after loosening the mounting screws.

2007 > 2.7L V6 GASOLINE >

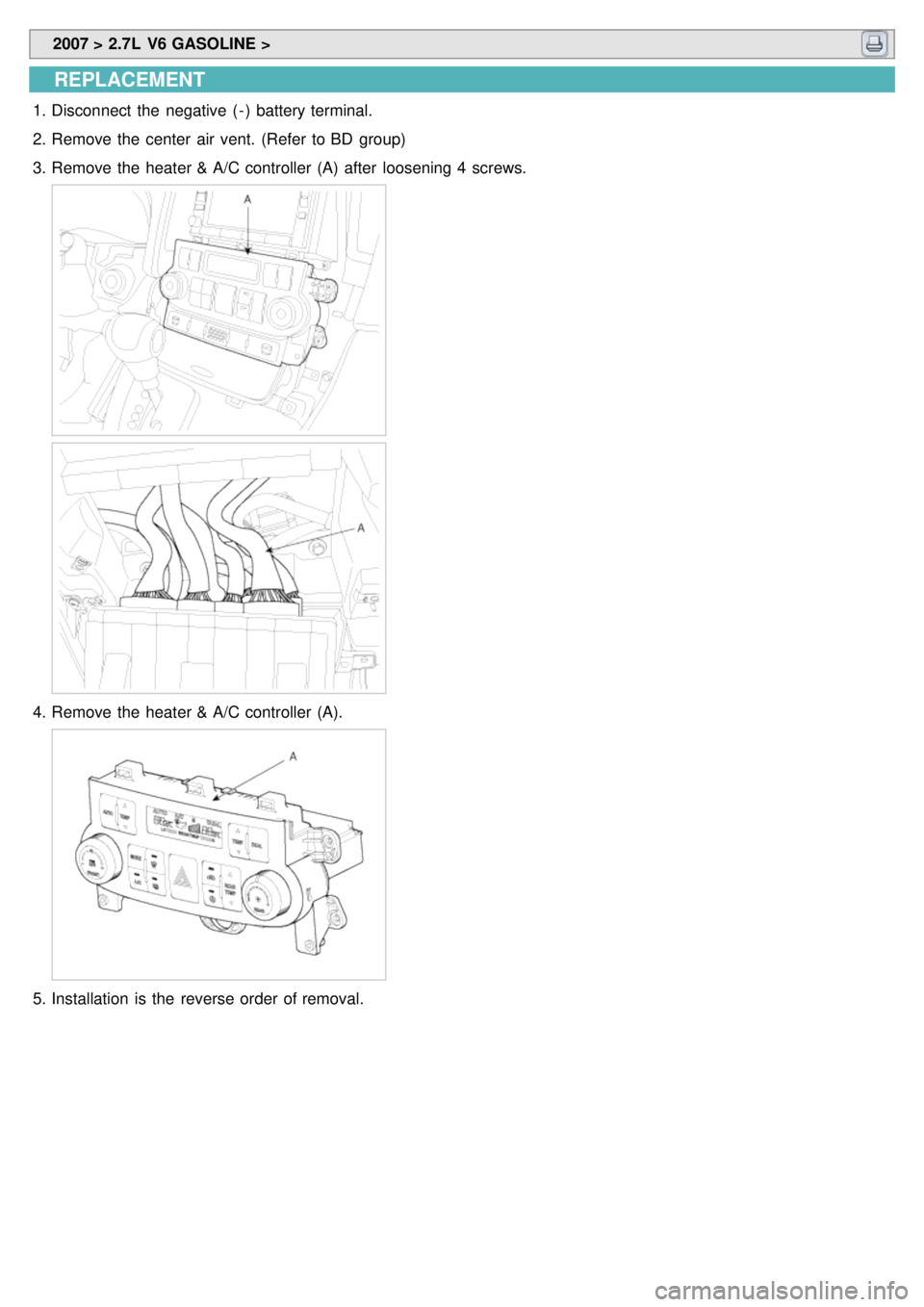

REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the center air vent. (Refer to BD group)
3. Remove the heater & A/C controller (A) after loosening 4 screws.
4.Remove the heater & A/C controller (A).
5.Installation is the reverse order of removal.

2007 > 2.7L V6 GASOLINE >

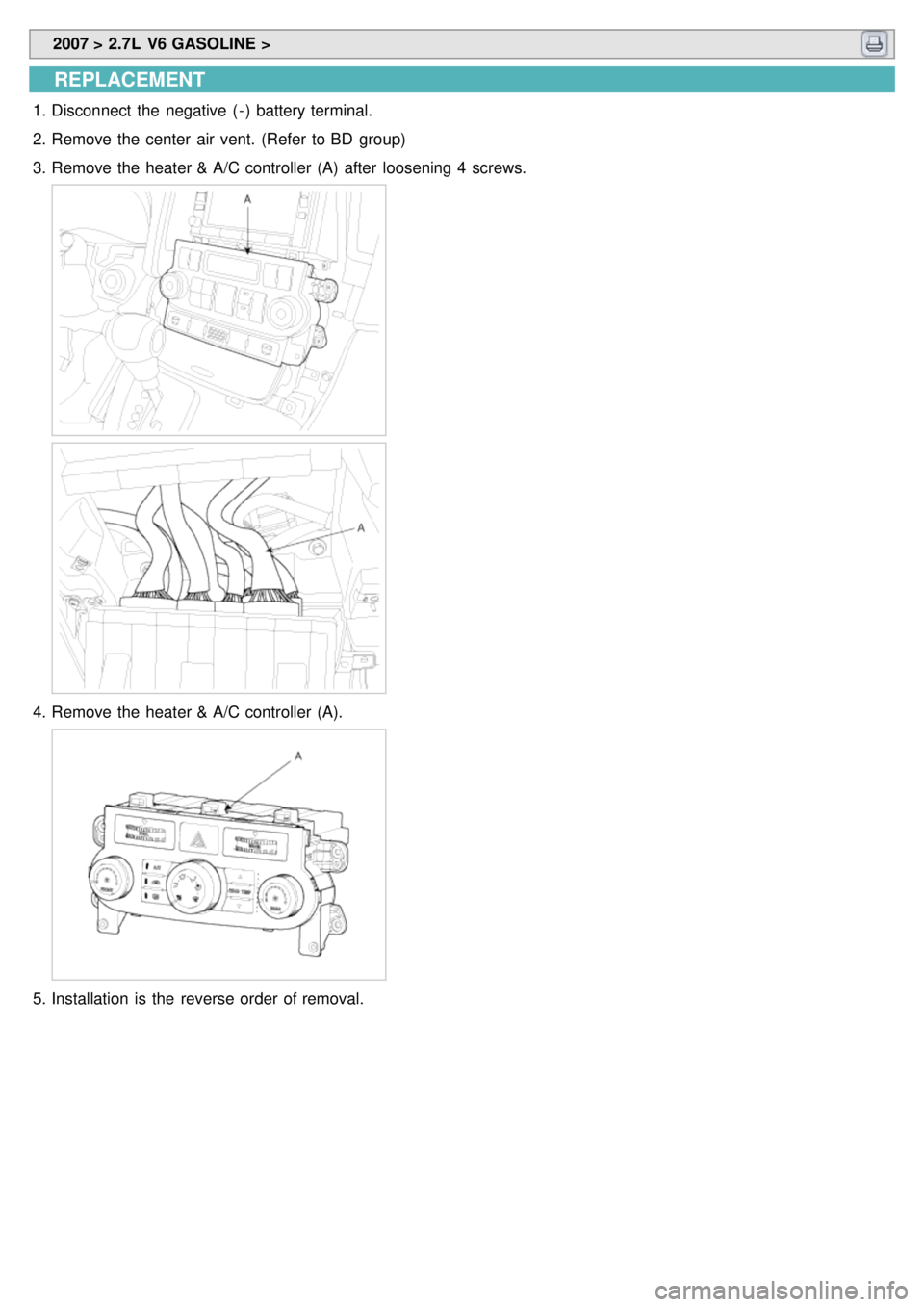

REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the center air vent. (Refer to BD group)
3. Remove the heater & A/C controller (A) after loosening 4 screws.
4.Remove the heater & A/C controller (A).
5.Installation is the reverse order of removal.

2007 > 2.7L V6 GASOLINE >

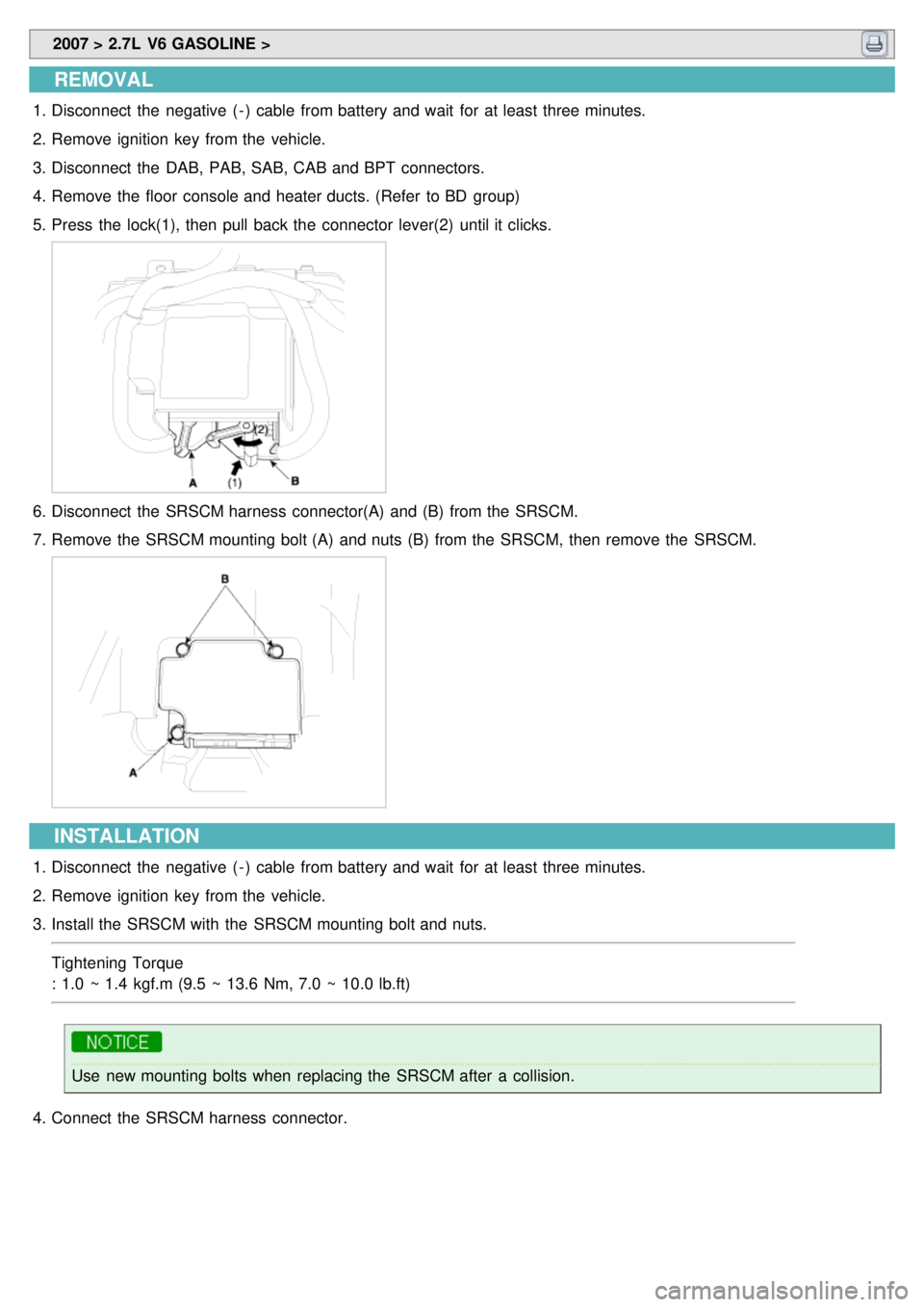

REMOVAL
1.Disconnect the negative ( - ) cable from battery and wait for at least three minutes.
2. Remove ignition key from the vehicle.
3. Disconnect the DAB, PAB, SAB, CAB and BPT connectors.
4. Remove the floor console and heater ducts. (Refer to BD group)
5. Press the lock(1), then pull back the connector lever(2) until it clicks.
6.Disconnect the SRSCM harness connector(A) and (B) from the SRSCM.
7. Remove the SRSCM mounting bolt (A) and nuts (B) from the SRSCM, then remove the SRSCM.
INSTALLATION
1.Disconnect the negative ( - ) cable from battery and wait for at least three minutes.
2. Remove ignition key from the vehicle.
3. Install the SRSCM with the SRSCM mounting bolt and nuts.
Tightening Torque
: 1.0 ~ 1.4 kgf.m (9.5 ~ 13.6 Nm, 7.0 ~ 10.0 lb.ft)
Use new mounting bolts when replacing the SRSCM after a collision.
4. Connect the SRSCM harness connector.

5.Install the heater ducts and floor console. (Refer to BD group)
6. Connect the DAB, PAB, SAB, CAB and BPT connectors.
7. Reconnect the battery negative cable.
8. After installing the SRSCM, confirm proper system operation:
a. Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.

2007 > 2.7L V6 GASOLINE >

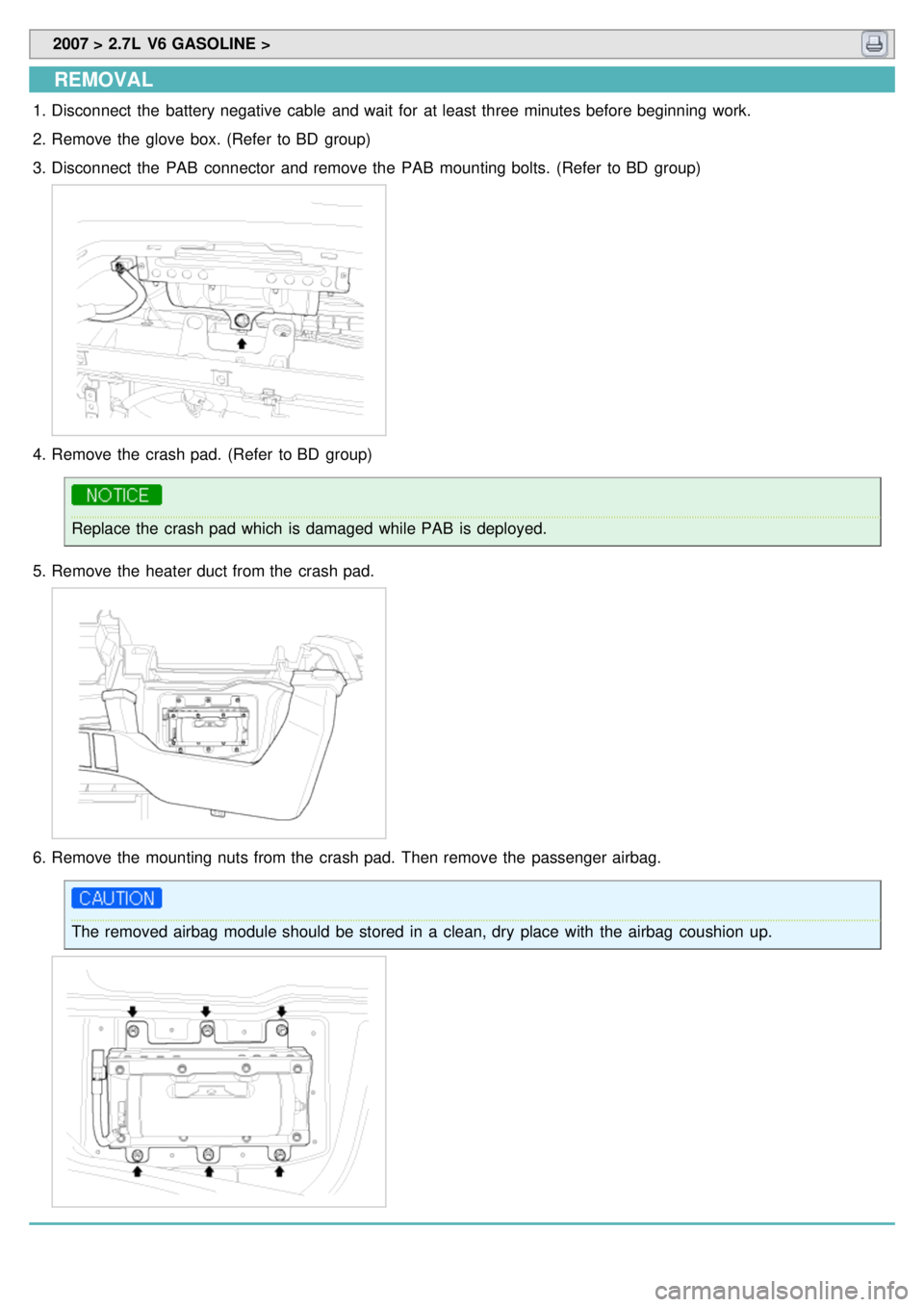

REMOVAL
1.Disconnect the battery negative cable and wait for at least three minutes before beginning work.
2. Remove the glove box. (Refer to BD group)
3. Disconnect the PAB connector and remove the PAB mounting bolts. (Refer to BD group)
4.Remove the crash pad. (Refer to BD group)
Replace the crash pad which is damaged while PAB is deployed.
5. Remove the heater duct from the crash pad.
6.Remove the mounting nuts from the crash pad. Then remove the passenger airbag.
The removed airbag module should be stored in a clean, dry place with the airbag coushion up.
