heater KIA CARNIVAL 2007 Repair Manual

INSTALLATION
1.Disconnect the negative ( - ) cable from battery and wait for at least three minutes.
2. Remove ignition key from the vehicle.
3. Place a Passenger Airbag (PAB) on the crash pad and tighten the Passenger Airbag (PAB) mounting nuts.
Tightening Torque
: 0.7 ~ 0.8 kgf.m (7.0 ~ 8.0 N.m, 5.2 ~ 5.9 lb.ft)
4. Install the heater duct to the crash pad.
5. Install the crash pad. (Refer to BD group)
6. Tighten the PAB mounting bolts.
Tightening Torque
: 1.2 ~ 1.3 kgf.m (12.0 ~ 13.0 N.m, 8.9 ~ 9.6 lb.ft)
7. Connect the Passenger Airbag (PAB) harness connector to the SRS main harness connector.
8. Reinstall the bolve box. (Refer to BD group)
9. Reconnect the battery negative cable.
10. After installing the Passenger Airbag (PAB), confirm proper system operation:
a. Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.

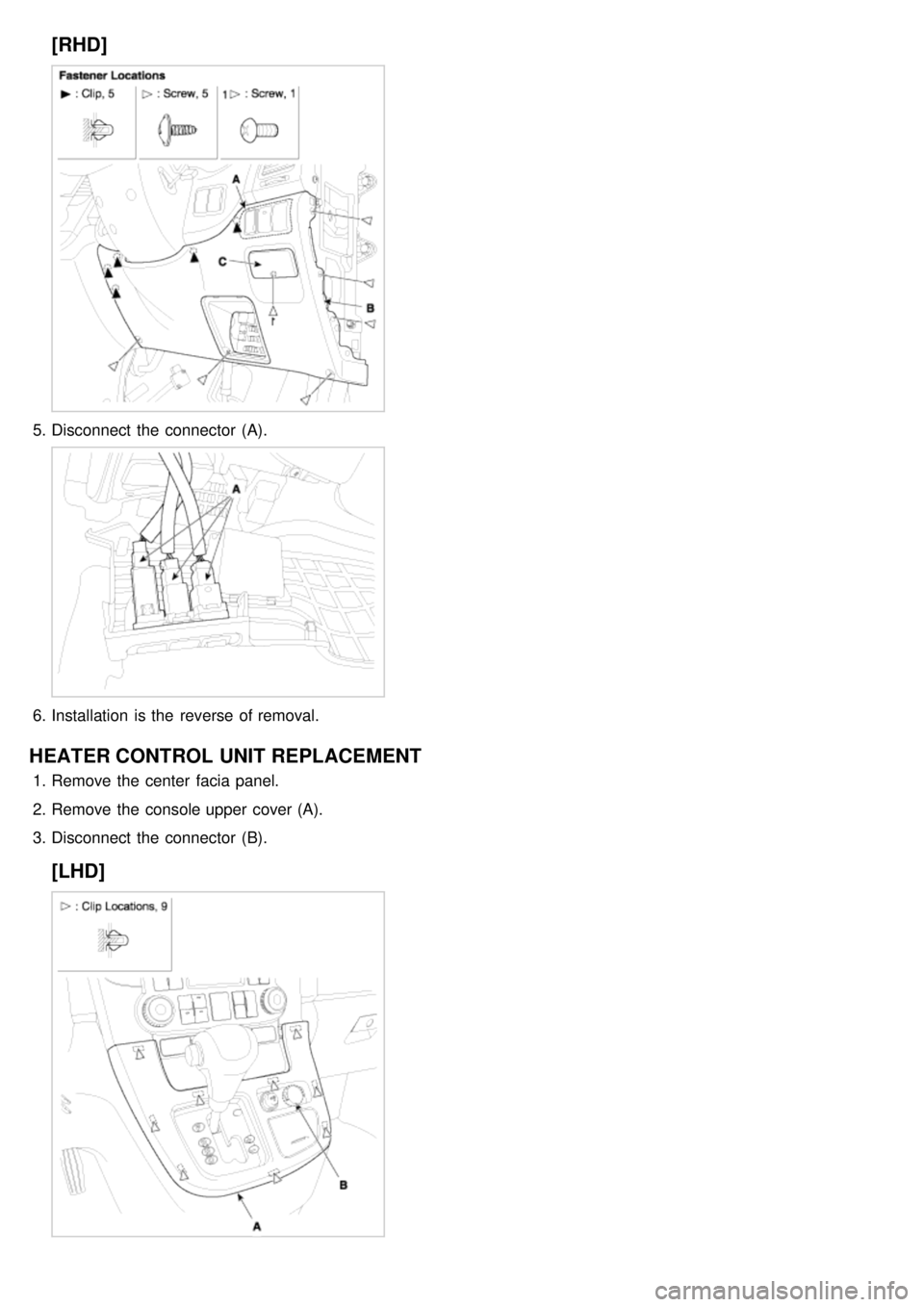

[RHD]
5.Disconnect the connector (A).
6.Installation is the reverse of removal.
HEATER CONTROL UNIT REPLACEMENT
1.Remove the center facia panel.
2. Remove the console upper cover (A).
3. Disconnect the connector (B).
[LHD]

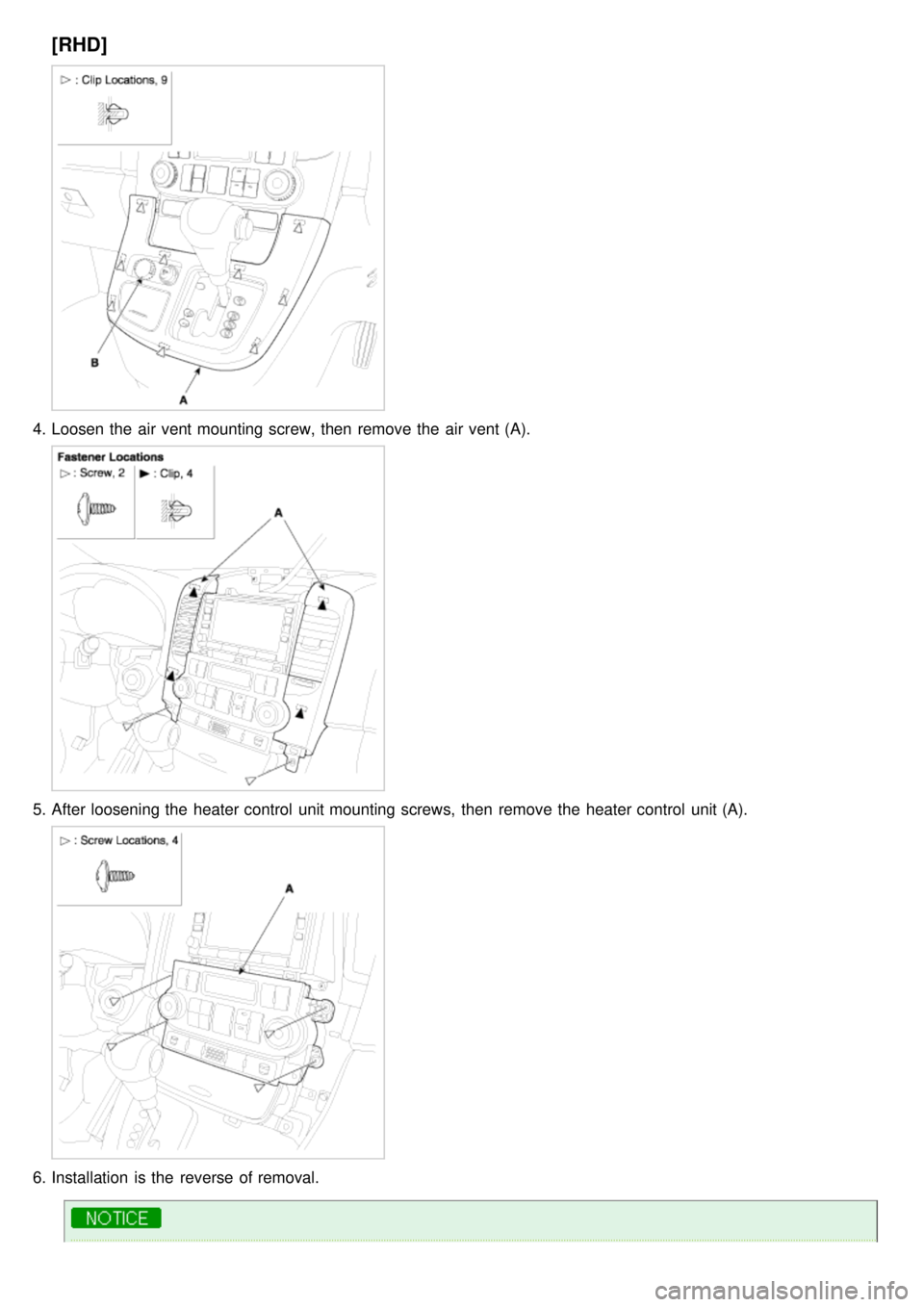

[RHD]
4.Loosen the air vent mounting screw, then remove the air vent (A).
5.After loosening the heater control unit mounting screws, then remove the heater control unit (A).
6.Installation is the reverse of removal.

2007 > 2.7L V6 GASOLINE >
REPLACEMENT

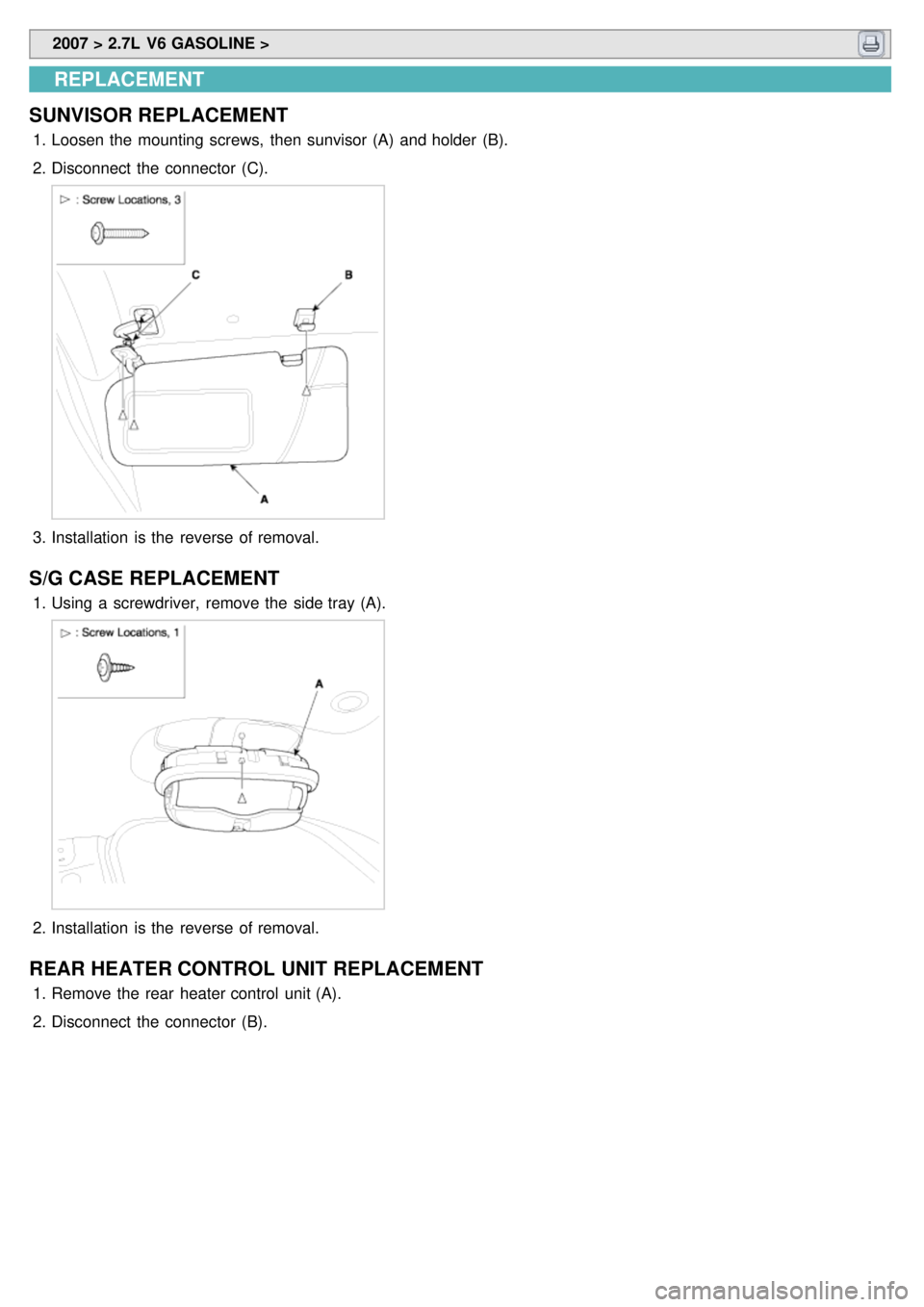

SUNVISOR REPLACEMENT
1. Loosen the mounting screws, then sunvisor (A) and holder (B).
2. Disconnect the connector (C).
3.Installation is the reverse of removal.
S/G CASE REPLACEMENT
1.Using a screwdriver, remove the side tray (A).
2.Installation is the reverse of removal.
REAR HEATER CONTROL UNIT REPLACEMENT
1.Remove the rear heater control unit (A).
2. Disconnect the connector (B).

4.Installation is the reverse of removal.

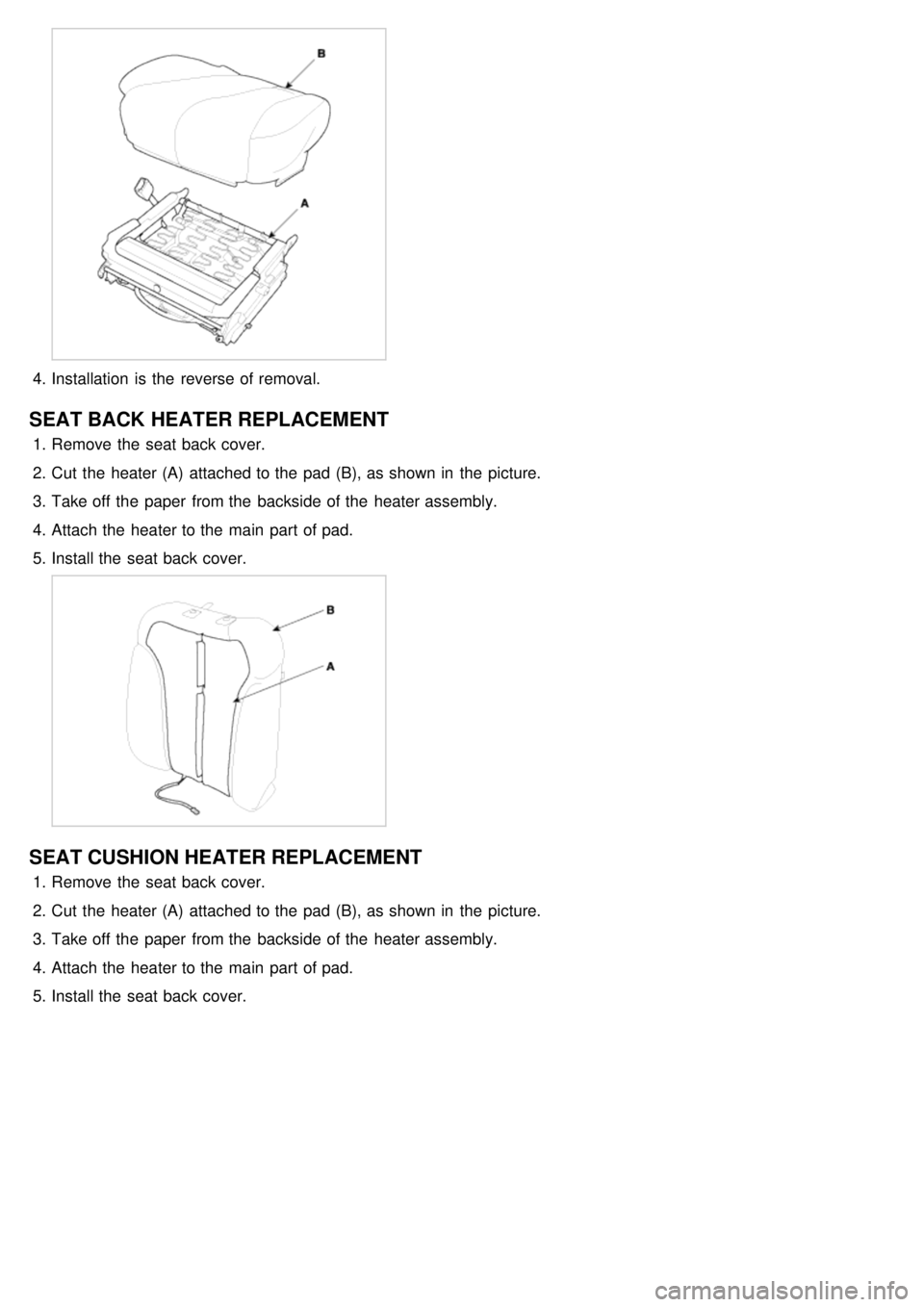

SEAT BACK HEATER REPLACEMENT
1.Remove the seat back cover.
2. Cut the heater (A) attached to the pad (B), as shown in the picture.
3. Take off the paper from the backside of the heater assembly.
4. Attach the heater to the main part of pad.
5. Install the seat back cover.
SEAT CUSHION HEATER REPLACEMENT
1.Remove the seat back cover.
2. Cut the heater (A) attached to the pad (B), as shown in the picture.
3. Take off the paper from the backside of the heater assembly.
4. Attach the heater to the main part of pad.
5. Install the seat back cover.

2007 > 2.7L V6 GASOLINE >
INSPECTION
TAPE HEAD AND CAPSTAN CLEANING
1. To obtain optimum performance, clean the head, and capstan as often as necessary, depending on frequency of
use and tape cleanness.
2. To clean the tape head and capstan, use a cotton swab dipped in ordinary rubbing alcohol. Wipe the head and
capstan.
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the center facia panel, console lower cover, center air vent, switches, tray and heater control panel (A).
(Refer to the Body group - Crash pad)
3.Remove the mounting 4 screws then remove the audio unit (A).
4.Installation is the reverse of removal.
VIDEO JACK (DVD ONLY)
1.Disconnect the negative ( - ) battery terminal.

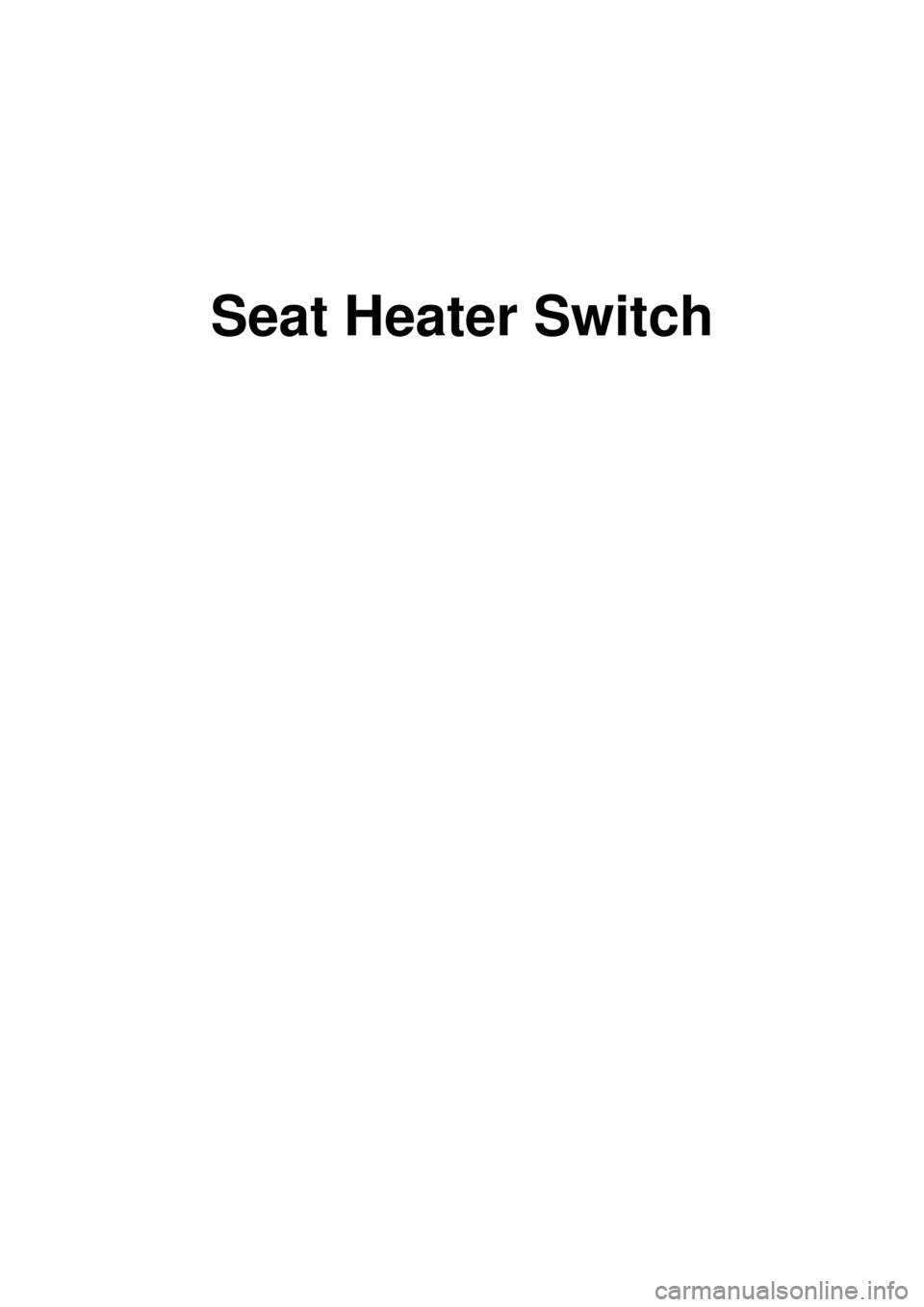

Seat Heater Switch

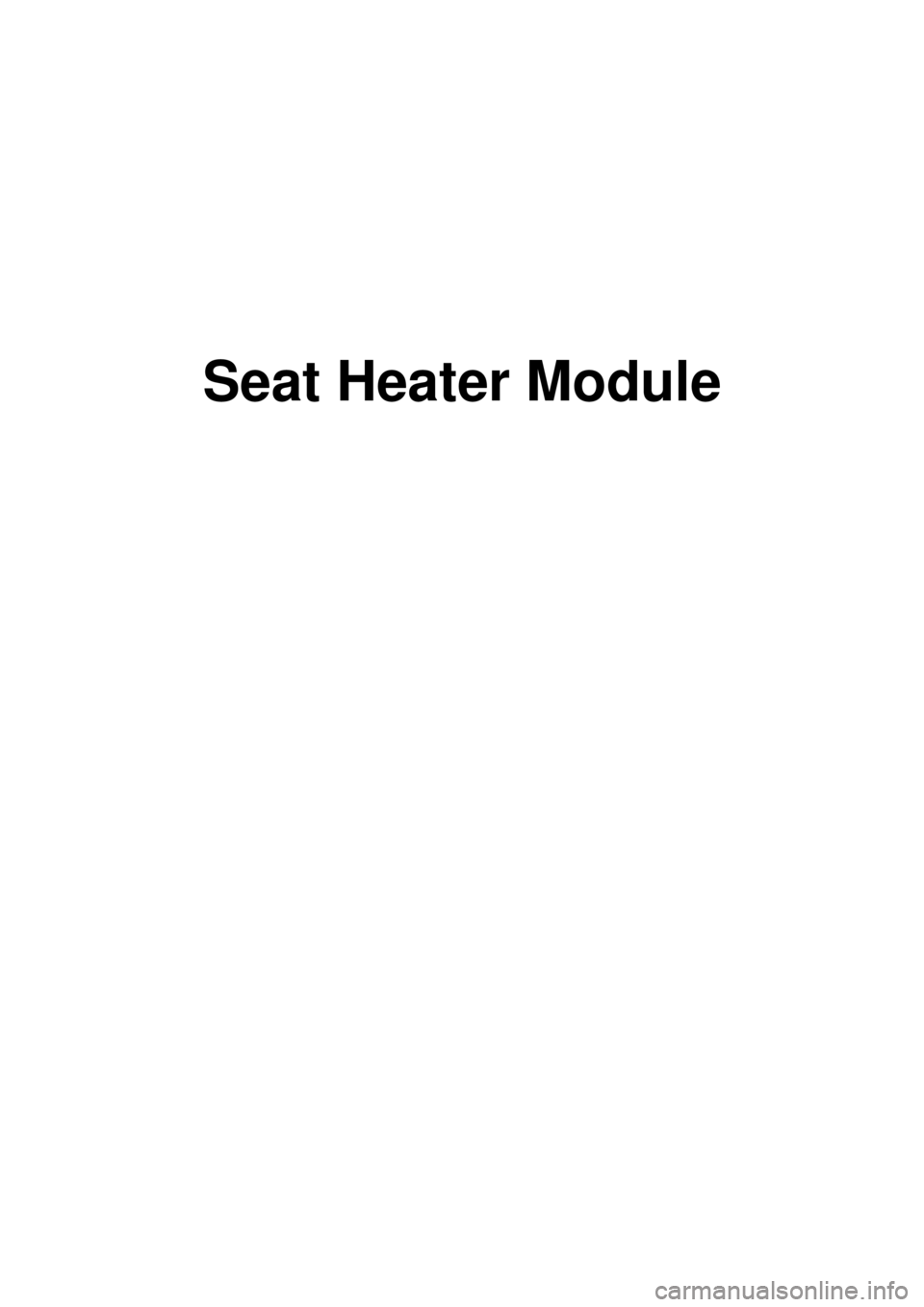

Seat Heater Module

2007 > 2.7L V6 GASOLINE >
REPLACEMENT
1.Disconnect the negative ( - ) battery terminal.
2. Remove the seat cushion (A) (Refer to Body group - front seat)
3.Remove the seat heater module (B) after removing seat heater module mounting screw (2EA) and connector from
rear height motor (A).
4.Installation is the reverse of removal.

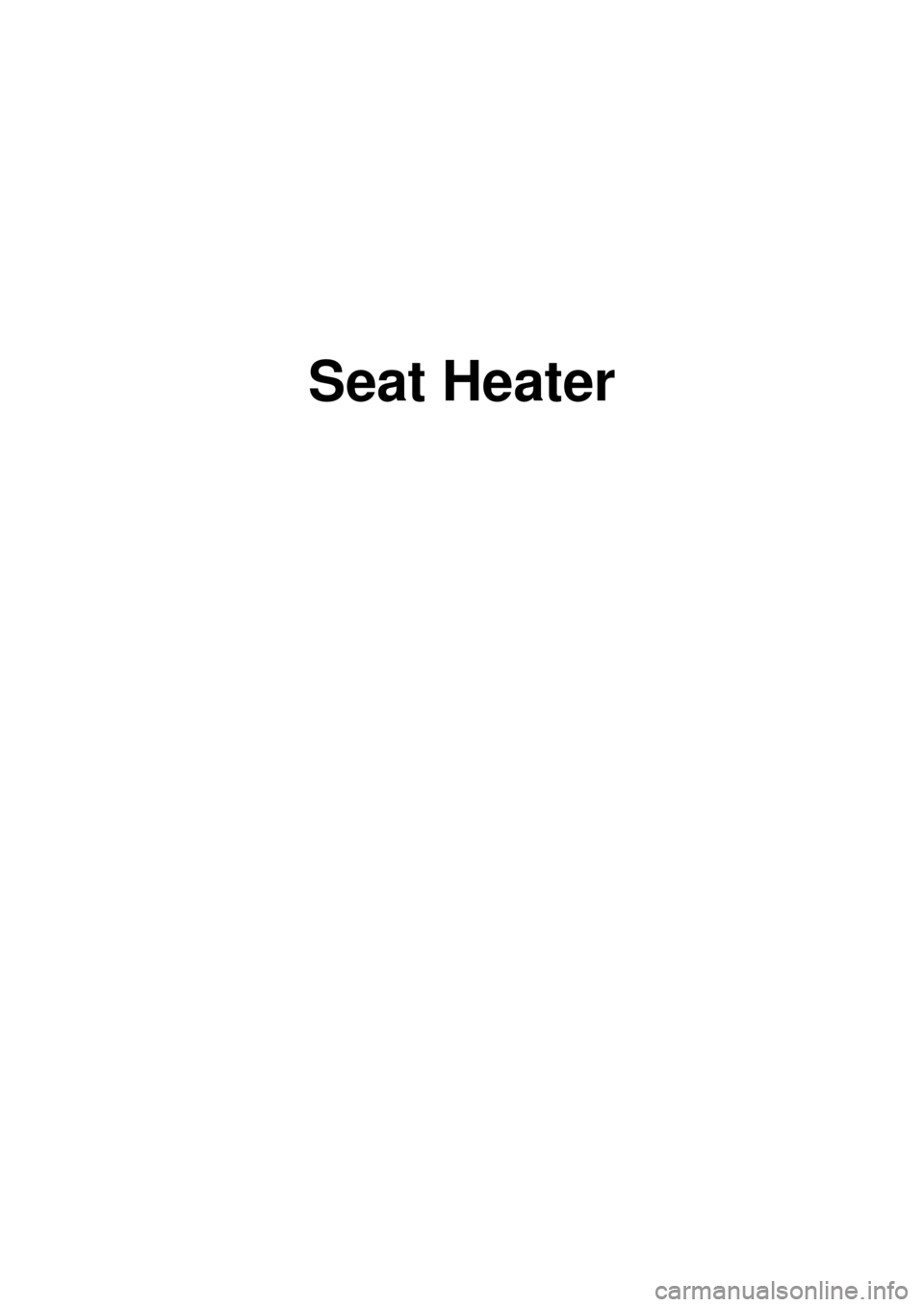

Seat Heater
