2007 > 2.7L V6 GASOLINE >

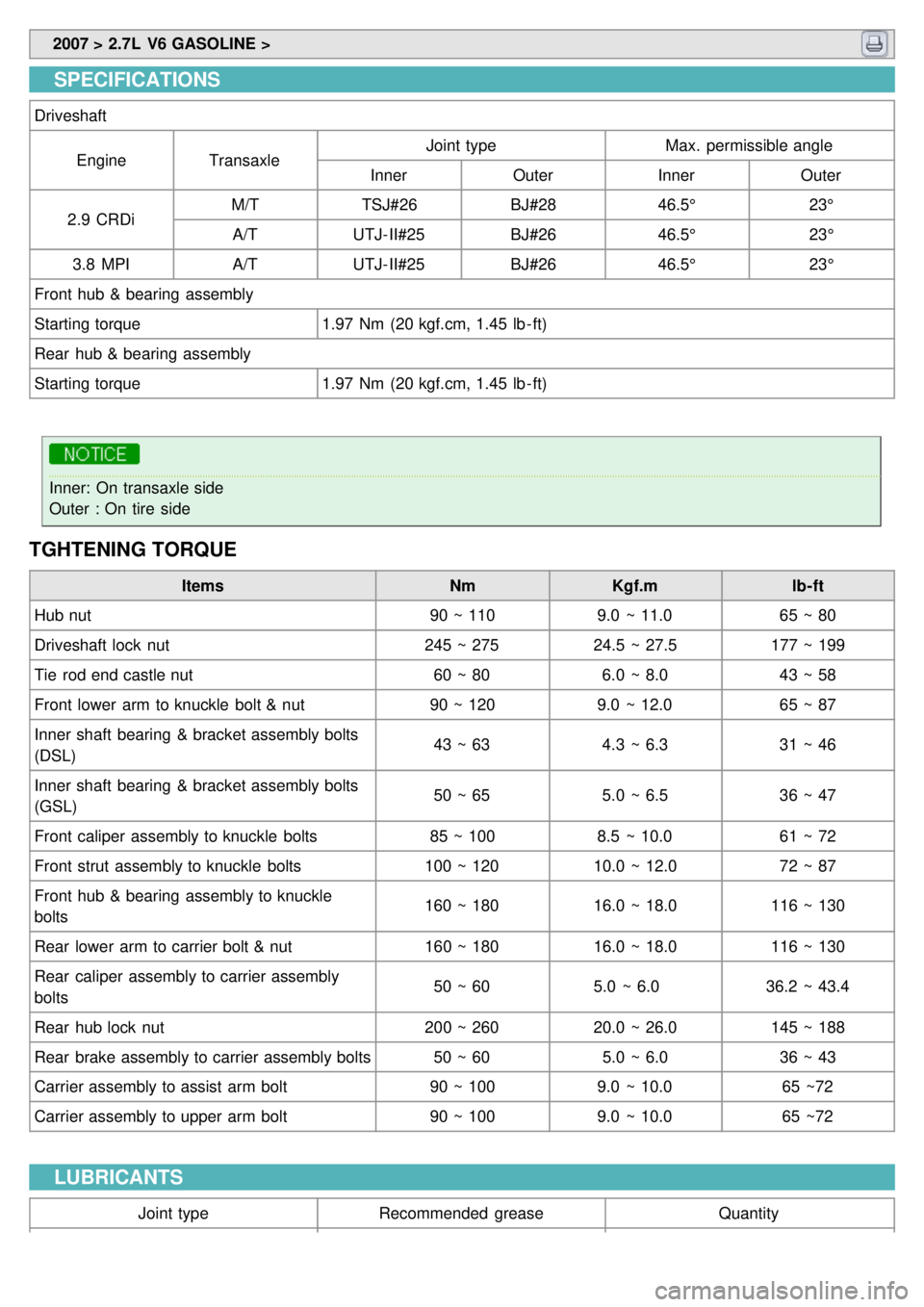

SPECIFICATIONS
Driveshaft
Engine Transaxle Joint type
Max. permissible angle
Inner Outer InnerOuter
2.9 CRDi M/T
TSJ#26 BJ#2846.5° 23°
A/T UTJ- II#25 BJ#2646.5° 23°
3.8 MPI A/TUTJ- II#25 BJ#2646.5° 23°
Front hub & bearing assembly
Starting torque 1.97 Nm (20 kgf.cm, 1.45 lb - ft)
Rear hub & bearing assembly
Starting torque y 1.97 Nm (20 kgf.cm, 1.45 lb - ft)
Inner: On transaxle side
Outer : On tire side
TGHTENING TORQUE
Items NmKgf.m lb- ft
Hub nut 90 ~ 1109.0 ~ 11.0 65 ~ 80
Driveshaft lock nut 245 ~ 27524.5 ~ 27.5 177 ~ 199
Tie rod end castle nut 60 ~ 806.0 ~ 8.0 43 ~ 58
Front lower arm to knuckle bolt & nut 90 ~ 1209.0 ~ 12.0 65 ~ 87
Inner shaft bearing & bracket assembly bolts
(DSL) 43 ~ 63
4.3 ~ 6.3 31 ~ 46
Inner shaft bearing & bracket assembly bolts
(GSL) 50 ~ 65
5.0 ~ 6.5 36 ~ 47
Front caliper assembly to knuckle bolts 85 ~ 1008.5 ~ 10.0 61 ~ 72
Front strut assembly to knuckle bolts 100 ~ 12010.0 ~ 12.0 72 ~ 87
Front hub & bearing assembly to knuckle
bolts 160 ~ 180
16.0 ~ 18.0 116 ~ 130
Rear lower arm to carrier bolt & nut 160 ~ 18016.0 ~ 18.0 116 ~ 130
Rear caliper assembly to carrier assembly
bolts 50 ~ 60
5.0 ~ 6.0y 36.2 ~ 43.4
Rear hub lock nut 200 ~ 26020.0 ~ 26.0 145 ~ 188
Rear brake assembly to carrier assembly bolts 50 ~ 605.0 ~ 6.0 36 ~ 43
Carrier assembly to assist arm bolt 90 ~ 1009.0 ~ 10.0 65 ~72
Carrier assembly to upper arm bolt 90 ~ 1009.0 ~ 10.0 65 ~72
LUBRICANTS
Joint type Recommended grease Quantity
