*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 39
Wireless Smartphone Charging System*
1. Enable Wireless Smartphone Charging System in the User Settings Mode on the Instrument Cluster ’s LCD
2. Place a compatible smartphone on the center of the charging pad A
3. The indicator light B may change to amber once the wireless charging begins
4. Once charging is complete, the amber light may change to green
USB
USB
Requires QI-enabled device or QI-enabled case
Refer to section 4 in the Owner ’s Manual for more information.
CENTER PANEL
CENTER PANEL
B
A
•The smar tphone must be a compatible phone with QI function available
•Wireless charging must be enabled in user set tings
•
If wireless charging does not work, move the smar tphone around the pad until the charging indicator turns amber. Avoid placing other metal items in the bin while charging as to not impede the charging area
•
For wireless charging to occur, all doors (excluding rear hatch) must be closed & the Smar t Key Fob must be detected inside the vehicle
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Wireless Charging Video
QR CODE
REMINDERS:
•
Avoid placing other metal items in the bin while charging as to not impede the charging area
•
This vehicle is equipped with wireless charging technology which allows for a device to be charged using inductive charging; however, device compatibilit y varies. See your Owner ’s Manual for more detailed information and the back page for legal disclaimers
•
Inductive charging systems are less ef ficient than conventional charging through cable. As a result, higher device operating temperatures may be experienced during use
•
Charging Per formance – Device position on the wireless charging system can affect charging per formance. Other factors that may affect the charging rate includes foreign objects, such as coins or pens, and phone case thickness
•If the driver door is opened, charging will be disabled
Page 42 of 66
*IF EQUIPPED40CARNIVAL FEATURES & FUNCTIONS GUIDE
REMINDERS:
•
To reduce the risk of an accident, do not activate Auto Hold while driving downhill, backing up or parking your vehicle
•
Do not solely rely on the Auto Hold system to keep the vehicle stopped. Always pay at tention to traf fic and road conditions, and be prepared to depress the brakes
•Auto Hold turns off when ignition is cycled
Electronic Parking Brake (EPB)
The Electronic Parking Brake (EPB) system utilizes an electric motor to engage the parking brake.
Applying the Parking Brake
Depress the brake pedal and pull up the EPB switch A. Ensure that the indicator light is illuminated on the instrument cluster.
Releasing the Parking Brake
The EPB will automatically release when the shifter is placed in Reverse or Drive.
To release EPB manually, depress the brake pedal and then press the EPB switch A with the ignition switch in the ON position. Ensure that the indicator light is OFF.
REMINDERS:
•
As a bulb check, the EPB malfunction indicator will illuminate for approximately 3 seconds when the ignition switch is turned ON
•
If the warning light does not illuminate temporarily, or continues to remain lit, take your vehicle to an authorized Kia dealer and have the system checked
•The EPB should not be operated while the vehicle is moving
•
A click or electric brake motor sound may be heard while operating or releasing the EPB, but these conditions are normal and indicate that the EPB is functioning properly
DRIVE
MODE AUTO
HOLD
DRIVE
MODE AUTO
HOLD
Auto Hold
Auto Hold temporarily maintains the vehicle at a standstill even if the brake pedal is released. Auto Hold can be turned ON/OFF using the AUTO HOLD switch B on the center panel. Before Auto Hold will operate, the driver ’s door, engine hood and trunk must be closed, and the driver ’s seat belt must be fastened.
The Auto Hold indicator has four states:
Standby (white): With vehicle in Park and at a standstill, and AUTO HOLD switch B turned ON, the indicator will illuminate white. While driving the vehicle (vehicle is not at a standstill), the Auto Hold indicator will remain white.
Engaged (green): When coming to a complete stop and depressing the brake pedal, the Auto Hold indicator changes from white to green.
OFF (not illuminated): The indicator will turn OFF when the AUTO HOLD switch B is turned OFF or when the EPB is manually turned ON.
Malfunction (yellow): When the indicator is illuminated yellow, there may be a system malfunction. Take your vehicle to a local Kia dealer.
Refer to section 5 in the Owner ’s Manual for more information.
(Located below gear shift knob)
CENTER PANEL
CENTER PANEL
•When leaving your keys with parking lot at tendants or valet, make sure to inform them how to operate the EPB
•If parked on a steep incline/decline, pull up the EPB switch for more than 3 seconds for a firmer EPB application
•Pull up and hold the EPB switch a second time to increase brake pressure if parked on a decline or incline
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Electric Parking Brake Video
QR CODE
BA
Page 43 of 66
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 41
Refer to section 5 in the Owner ’s Manual for more information.
Automatic Gear Shift with Sportmatic®*†2 2 Shifting
P: Park
R: Reverse
N: Neutral
D: Drive [+]: Manual Mode Upshift
[–]: Manual Mode Downshift
Manual Mode: To enter Manual mode, move shift lever from D to left gate A.
To shift while in Manual mode, move shift lever up [+] to upshift or down [–] to downshift A.
CENTER PANEL
CENTER PANEL
•Press brake pedal and depress release but ton to move the gearshift from N to P, N to R or from P to any gear
•Manual mode downshifts are made automatically when the vehicle slows down. When the vehicle stops, 1st gear is automatically selected
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Sportmatic® Shifting Video
QR CODE
A
Page 44 of 66
*IF EQUIPPED42CARNIVAL FEATURES & FUNCTIONS GUIDE
(But ton located below Gear Shift)
Heated Steering Wheel*
Press the Heated Steering Wheel button A to turn the Steering Wheel Heater on/off while the ENGINE START/STOP button is in the ON position. The Steering Wheel Heater will turn off automatically in 30 minutes, or when the button is pressed again to deactivate.
REMINDER: If the steering wheel becomes too warm, turn the system off. The heated steering wheel may cause burns even at low temperatures, especially if used for long periods of time.
Refer to section 4 in the Owner ’s Manual for more information.
The Surround View Monitoring (SVM) is only a supplemental device. Drivers should not rely solely on the SVM information when parking and backing up. Drivers should always pay at tention and directly check the left/right and rear.
Images are for illustrative purposes only and may not reflect actual feature or operation. See section 4 in the Owner ’s Manual for more information.
REMINDER: The SVM camera is equipped with an optical lens to provide a wider range of vision and may appear different from the actual distance.
Surround View Monitor (SVM)*
Surround View Monitor (SVM) is a parking support system that shows the areas around the front, rear, left and right sides of the vehicle via four cameras displayed onto the audio head unit screen.
•Press the Parking/ View button B to turn on Surround View Monitor. Press the button again to turn off the function
•Other view modes can be selected by touching the view icons D on the Surround View Monitor screen
•Surround View Monitor Auto On: With Driver Assistance → Parking Safety → Surround View Monitor Auto On selected from the Settings menu, the front parking assist view screen is displayed when Parking Distance Warning warns the driver while driving in D (Drive)
To change the SVM settings, press the onscreen settings icon C, while SVM is operating.
(Located below gear shift knob)
CENTER PANEL
CENTER PANEL
B
C
D
A
•If the ignition is turned OFF and then ON again within 30 minutes of the Steering Wheel Heater being turned ON, the system will remain in the ON position
•The system does NOT turn off when the ignition is cycled. To turn off the system, press the Heated Steering Wheel but ton
QUICK TIPS
The Front View of SVM will turn off when the gear shift is moved into Park or Reverse or the Parking/View but ton is pressed.
QUICK TIP
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Surround View Monitor (SVM) Video
QR CODE
Page 45 of 66
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 43
REMINDER: Use extreme caution when using the seat warmers to avoid burns. Refer to the Owner ’s Manual for more information.
Seat Warmers / Ventilated Seats*†1 9
Seat Warmers button A: Press the button once for high setting (3 LEDs lit). Press the button twice for medium setting (2 LEDs lit). Press the button a third time for low setting (1 LED lit) and again to turn OFF. Hold the button to turn off Seat Warmer.
These illustrations are for demonstration purposes only. Actual features on vehicle may var y.
Refer to section 4 in the Owner ’s Manual for more information.
Seat Warmers / Ventilated Seats* button B: Press top/bottom of the button once for high setting (3 LEDs lit). Press the button twice for medium setting (2 LEDs lit). Press a third time for low setting (1 LED lit) and again to turn OFF. Hold the button to turn off the Seat Warmers / Ventilated Seats.
(But tons located below Gear Shift) (Type A shown)
Warming (Yellow LED)
(But tons located below Gear Shift) (Type A shown)
Warming (Yellow LED)
Ventilating (Blue LED)
CENTER PANEL
CENTER PANEL
•With the Seat Warmer switch in the ON position, the heating system in the seat turns OFF or ON automatically depending on the seat temperature
•System is OFF by default. To turn the system ON, press the but ton to turn ON
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Heated and Ventilated Seats Video
QR CODE
AA
BB
Page 46 of 66
Driver Position Memory System*
The integrated system stores into memory the position of the Driver ’s Seat and the Outside Rearview Mirrors.
To store positions into memory, first place the Gear Shift into P (Park) while the Engine Start/Stop button* is in the ON position. Then:
1. Adjust the Driver ’s Seat and the Outside Rearview Mirrors
2. Press the SET button B on the control panel. System will beep once
3. Press one of the memory buttons C within 5 seconds. The system will beep twice when memory has been stored
Easy Access Function*
•The system will automatically move the driver's seat forward when the ignition or the Engine Start/Stop button is pressed to ON or the ACC position
•The system will automatically move the driver's seat rearward when the ignition or the Engine Start/Stop button is pressed to OFF
•To activate or deactivate the Easy Access Function, go to User Settings in the LCD Instrument Cluster modes
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED44CARNIVAL FEATURES & FUNCTIONS GUIDE
These illustrations are for demonstration purposes only. Actual features on vehicle may var y.
Refer to section 3 in the Owner ’s Manual for more information.
Illustrations are for demonstration purposes only. Actual features on vehicle may var y.
SET(Buttons located on Driver's Door Panel)
Refer to section 3 in the Owner ’s Manual for more information.
SEATING
SEATING
Front Seat Headrest Adjustment†1 0
To raise headrest: Pull headrest up.
To lower headrest: Press lock A and then press the headrest down.
BCC
A
REMINDER: Do not operate the vehicle with the headrests removed. Headrests can provide critical neck and head suppor t in an accident.
REMINDER: Do not at tempt to operate the driver position memor y system while the vehicle is moving. This could result in loss of control of the vehicle.
For easy adjustments, hold a headrest post with one hand while using the other hand to pull the headrest from underneath.
QUICK TIP
Page 47 of 66
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 45
SEATING
MODE
MODE
MODE
MODE
MODE
MODE MODE
MODE
MODE
OKOK
OK
OK
OK
OK
OK
OK
Drive mode (Return button)Cruise Control
Bluetooth Eco L FA
User Settings
HDA
Audio LV DA MSLA - ISLA
MODE
Smart Cruise Control
OK
ROA
MODE
HDA
OK
OK
Rear Occupant Alert (ROA) with Ultrasonic Sensors†6
Rear Occupant Alert (ROA) with Ultrasonic Sensors can help alert the driver when rear passengers are left in the rear seats using the ultrasonic sensors and door monitoring. The system is designed to provide three separate alerts:
•The first alert is a message on the Instrument Cluster, “Check Rear Seats” A, and a chime will sound
After the first alert, when the doors are locked and there is movement detected in the rear seats, the horn will sound for about 25 seconds. This alert may activate up to eight times within 24 hours if movement is still detected and system has not been disabled
•
If you have installed the Kia Access with UVO Link app on your smartphone, logged in and activated the Rear Occupant Alert notification, a third alert (notification) will be sent to your phone
To turn the system on or off, in the Instrument Cluster, go to User Settings, select Convenience, and
then Rear Occupant Alert.
Rear Occupant with Ultrasonic Sensors activates under the following conditions:
•A rear passenger door is opened and closed
•The ignition has been turned off
•The driver ’s door has been opened, then closed
•The doors are locked with the Smart Key or the door lock button on the door handle
This system is not a substitute for one’s at tention and may not detect all movement within the vehicle. Always check the vehicle’s interior before exiting.
Check rear seats
: Alarm OffOK
* N B H F T B S F G P S J M M V T U S B U J W F Q V S Q P T F T P O M Z B O E N B Z O P U S F7U F D U B D U V B M G F B U V S F P S P Q F S B U J P O
SEATING
B
A
REMINDERS:
•
To avoid false aler ts, make sure the vehicle’s windows are rolled up
•
If objects such as boxes are stacked in front of the ultrasonic sensors, the system may not detect any movement
•
The ultrasonic sensors may occasionally detect movement in the vehicle and cause false aler ts when there are no rear occupants present. False aler ts can occur due to:
-The presence of insects near the system sensor
-Rushing air from a window that is rolled down
-Movement around the exterior of the vehicle
-Surrounding noise or vibration
-Vehicle passing through a car wash
-Movement in the driver or front passenger seat being detected
•
The Rear Occupant Aler t with Ultrasonic Sensors system may fail to detect movement and activate an alarm if:
-Movement is subtle or does not continue
-A small child sits directly in a seat without a car seat
-
A rear passenger is covered with an object such as a blanket, obstructing the sensor ’s view
•
The first aler t message will not display on Instrument Cluster if the rear doors are never opened. Either rear door must be opened after unlocking the vehicle before the system will activate
•
To temporarily disable aler ts, press the OK but ton B on the Steering Wheel while the message is displayed
•
To turn the aler t off while sounding, press the unlock but ton on the Smar t Key or press the door lock but ton on the door handle
•
Must be enrolled in UVO ser vices and Kia Access app installed on the phone to receive ROA aler t notifications on your smar tphone
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Rear Occupant Alert (ROA) with Ultrasonic Sensors Video
QR CODE
See section 4 in the Owner ’s Manual for more information.
Page 48 of 66
D
REMINDER: Do not at tempt to adjust the seat while the vehicle is moving. This could result in loss of control of the vehicle.
When adjusting the seat for ward or backward, ensure the seat clicks or locks into place before driving the vehicle.
QUICK TIP
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED46CARNIVAL FEATURES & FUNCTIONS GUIDE

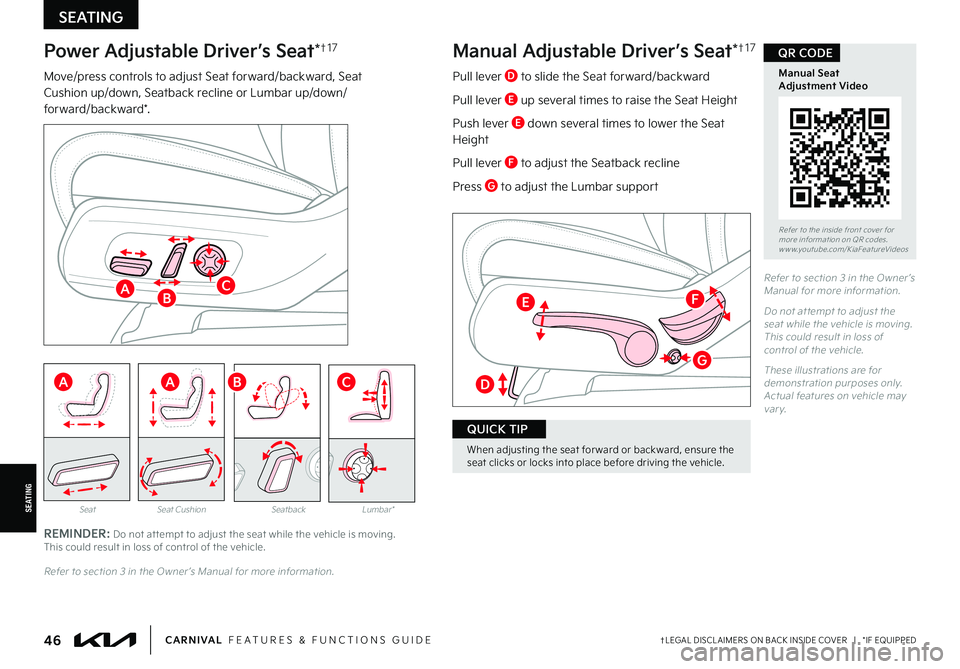

Manual Adjustable Driver’s Seat*†1 7
Pull lever D to slide the Seat forward/backward
Pull lever E up several times to raise the Seat Height
Push lever E down several times to lower the Seat Height
Pull lever F to adjust the Seatback recline
Press G to adjust the Lumbar support
Power Adjustable Driver’s Seat*†1 7
Move/press controls to adjust Seat forward/backward, Seat Cushion up/down, Seatback recline or Lumbar up/down/forward/backward*.
Refer to section 3 in the Owner ’s Manual for more information.
Refer to section 3 in the Owner ’s Manual for more information.
Do not at tempt to adjust the seat while the vehicle is moving. This could result in loss of control of the vehicle.
These illustrations are for demonstration purposes only. Actual features on vehicle may var y.
SeatbackLumbar*SeatSeat CushionSEATING
SEATING
A
AA
B
B
C
C
EF
G
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Manual Seat Adjustment Video
QR CODE
Page 49 of 66
E •When you return the seatback to its original position, ensure it locks (clicks) into place
•It may be necessar y to slide the front seat for ward and adjust the front seatbacks to fully lower the rear seats
•Lower rear headrests to the lowest position
QUICK TIPS
REMINDER: Do not use the but ton while front passenger seat is occupied.
REMINDER: The lever must return to its original position for the seatback to lock.
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Carnival 2nd and 3rd Row Seats Video
QR CODE
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 47
SEATING
Sliding the 2nd-Row Seat forward/backward: Pull the lever A under the front of the seat to adjust seat forward or backward.
Folding the Seatback: Pull the lever B to fold the seatback flat.
Folding and Sliding 2nd-Row Seat for 3rd-Row Access: Pull lever C to fold the seatback and slide the seat forward.
Illustrations are for demonstration purposes only. Actual features on vehicle may var y.
Refer to section 3 in the Owner ’s Manual for more information.
Passenger Walk-In Switch*
To adjust the front passenger seat for easier 2nd-Row Seat access, press the Passenger Walk-in Switches (located on the inside of the front passenger ’s seatback) to do the following:
D Adjust the front passenger seatback forward/backward
E Slide the front passenger seat forward/backward
2nd-Row Removable Seats*†1 7
SEATING
D
B
C
A
Page 50 of 66
REMINDERS:
• Never install or remove the seats while there are occupants in the 3rd-Row Seat
•VIP Seats* are not removable
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Carnival 2nd and 3rd Row Seats Video
QR CODE
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED48CARNIVAL FEATURES & FUNCTIONS GUIDE
Illustrations are for demonstration purposes only. Actual features on vehicle may var y.
Reinstalling the Seats
1. Make sure the front seats are all the way forward
2. Place and align the seat properly on the floor anchors H
3. Lower the seat and push down firmly until it clicks into place
4. Ensure the seat is latched securely by the green indicator I
5. Outboard Seats - Pull on the lever B to move the seatback to its original position
Center Seat - Pull up the center seatback recline straps F or E, lift the seatback backward until it locks (clicks) into place
6. Replace the headrest and return the seat belt to its proper position
SEATING
2nd-Row Removable Seats*†1 7
Removing the Outboard Seats
1. Move the front seats forward to allow for clearance
2. Push the seat belt buckle down into the recession
3. To provide more clearance, remove the headrest by pressing the release button A and pulling up the headrest up and out of the seat
4. Pull lever B to fold the seatback flat;
slide the seat forward or backward to ensure the seat is in the middle position by pulling on the lever C
5. At the rear of the seat, reach under the seat and pull the release bar D and lift the seat up out of the anchors. Remove the seat
Removing the Center Seat
1. To provide more clearance, remove the headrest by pressing the release button A and pulling up the headrest up and out of the seat
2.
At the rear of the center seat, pull on the center seat left strap E to slide the seat forward
3. To fold the seatback flat, pull on the strap F on the front of the seat
4. Pull on the bottom center strap G to release the seat and tumble forward. Remove the seat
Refer to section 3 in the Owner ’s Manual for more information.
SEATING
A
BC
F
D
E
G(Hooks highlighted are inser ted into channel bet ween bar and white adjustment device) (Secure seat indicator on outside of outboard seats)
HI
