KIA CARNIVAL 2022 Features and Functions Guide

J
J
K
K
REMINDER: VIP Seats* are not removable.
•Make sure the VIP seats are moved all the way inward to clear the seatbacks when adjusting and before actuating the relaxation mode
•You may need to move the front passenger seat for ward to make room for the leg extension
•The relaxation mode does not function fully when the seats are in the out ward position
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Carnival 2nd and 3rd Row Seats Video
Unfastening Center Seat Belt Video
QR CODE
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 49
Illustrations are for demonstration purposes only. Actual features on vehicle may var y.
Refer to section 3 in the Owner ’s Manual for more information.
Unfastening Center
Seat Belt
If the Seat Belt is buckled, press the release button on the buckle.
To retract the center seatbelt webbing I in the 2nd and/or 3rd rows, use the lap belt tongue plate J to push the “release button” in the small slot on the center belt buckle K.
SEATING
2nd-Row VIP Seats with Relaxation Mode*†1 7
Forward/backward: Pull up on the lever A to manually move the VIP Seat forward or backward.
Inward/Outward: Pull up on the lever B to manually move the VIP Seat inward or outward. Moving the seat inward allows more space for 3rd-Row access.
Relaxation Mode
Press and hold the front auto-control button C for the VIP Seat to move into relaxation mode. The seatback angles back and the seat cushion tilts up.
Press and hold the rear auto-control button D to move the VIP seat back to its original upright position.
The buttons under the auto-control buttons move the various parts of the seat — seatback forward and backward E, tilt the entire seat F, retract or extend the leg extension G, and seat cushion height adjustment H.
(VIP Seat controls located on the outboard side of seat) (Auto-control but tons located on the inboard side of the VIP Seats)
(VIP Seat adjustment controls located on the inboard side of the VIP Seats)
SEATING
AB
C
EF
H
G
D
I
I

C
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Carnival 2nd and 3rd Row Seats Video
QR CODE
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED50CARNIVAL FEATURES & FUNCTIONS GUIDE
SEATING
Illustrations are for demonstration purposes only. Actual features on vehicle may var y.
Refer to section 3 in the Owner ’s Manual for more information.
Folding 3rd-Row Seat
1. Fully lower headrest by pressing the lock release button B recessed in the seatback (raise headrest to access lock release button)
2. Pull seat folding strap located in the front of the seatback C
3rd-Row Seat - Access, Folding and Stowing*†1 7
3rd-Row Seat Access
To access the 3rd-Row Seat, pull on the 2nd-Row Seat lever A to fold the seatback and slide the seat forward.
Folding and Stowing 3rd-Row Seats
The rear seats can be folded and stowed in the luggage compartment for additional cargo space.
1. Fully lower headrests by pressing the lock release button B recessed in the seatback
2. Pull release handle D in the middle of seatback
3. The seat will fold down backwards towards the stow space. Push the seat down E to stow
Raising the 3rd-Row Seat
1. Pull up on the release handle D to move the seat back to original position
2. Press seat down to ensure it is locked into place (click)
3. Pull on the strap F to raise the seatback
REMINDERS:
•
The seat straps on the front and back of the 3rd-Row Seat are for folding only
•
Do not stow the seat while the seatback is folded down as this may cause damage to the mechanism
E
SEATING
DF
A
(Second Row Seat)
(Third Row Seat)
B
B

Smart Key†9
A Press to lock All Doors; Sliding Doors / Liftgate*: Press and hold for more than 3 seconds to simultaneously close the sliding doors and the liftgate
B Press to unlock the Driver ’s Door. Press twice within 4 seconds to unlock All Doors and the Liftgate. Sliding Doors / Liftgate*: Press and hold for more than 3 seconds to simultaneously open the sliding doors and the liftgate (enable in User Settings / Vehicle Settings*)
C Manual Liftgate*: Press and hold for more than 1 second to unlock the Liftgate. Then lift by the handle to manually open the Liftgate
REMINDERS:
•
The Liftgate does not automatically open when the C but ton is pressed
•
The Liftgate unlocks when the Smar t Key fob is within close proximit y of the vehicle
C
Power Liftgate*: Press and hold for the Power Liftgate to open automatically. Press
again at any time to stop. Press and hold again to automatically close
D Remote Start*: Press for more than two (2) seconds within four (4) seconds after
locking doors to start the vehicle. Press once to turn off
E
Power Sliding Doors*: Press and hold to open the Power Sliding Doors
F Press and hold for more than a half second for the Panic Alarm. To turn OFF the Alarm, press any button
G Press to release Mechanical Key
H Mechanical Key
Mechanical Key H:
•Press the button G on the back of the key fob to release the Mechanical Key
•Use to lock/unlock the Driver ’s Door I
•Use to lock the glove box
B
C
A
F
G
•The Smar t Key ’s signal can be blocked by the normal operation of a cellular phone or smar tphone. To help prevent this, store each device separately
•If the Smar t Key bat ter y is weak or not working properly, hold the Smar t Key fob up to the Engine Star t/Stop but ton (Lock but ton side closest) and press to star t the engine
QUICK TIPS
REMINDER: When reinser ting the mechanical key, make sure it is pushed all the way in until there is a click sound.
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Kia Smart & Folding Key Fobs Video
Remote Start Video
QR CODE
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 51
Lock/Unlock All Doors
•Press once to unlock the Driver ’s Door
•Press again within 4 seconds to unlock All Doors
•Press once to lock All Doors
HOLD
HOLDHOLD
HOLD
HOLD HOLD
HOLD
HOLDHOLD
HOLD
HOLD
HOLDHOLD
HOLD
HOLDHOLD
HOLD
Remote but ton configuration may var y depending on vehicle options.
Refer to section 4 in the Owner ’s Manual for more information.
OTHER KEY FEATURES
OTHER KEY FEATURES
I
H
D
E

Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Carnival Power/Smart Liftgate & Sliding Doors Video
QR CODE
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED52CARNIVAL FEATURES & FUNCTIONS GUIDE
OFFA(But ton located on inside edge of liftgate)

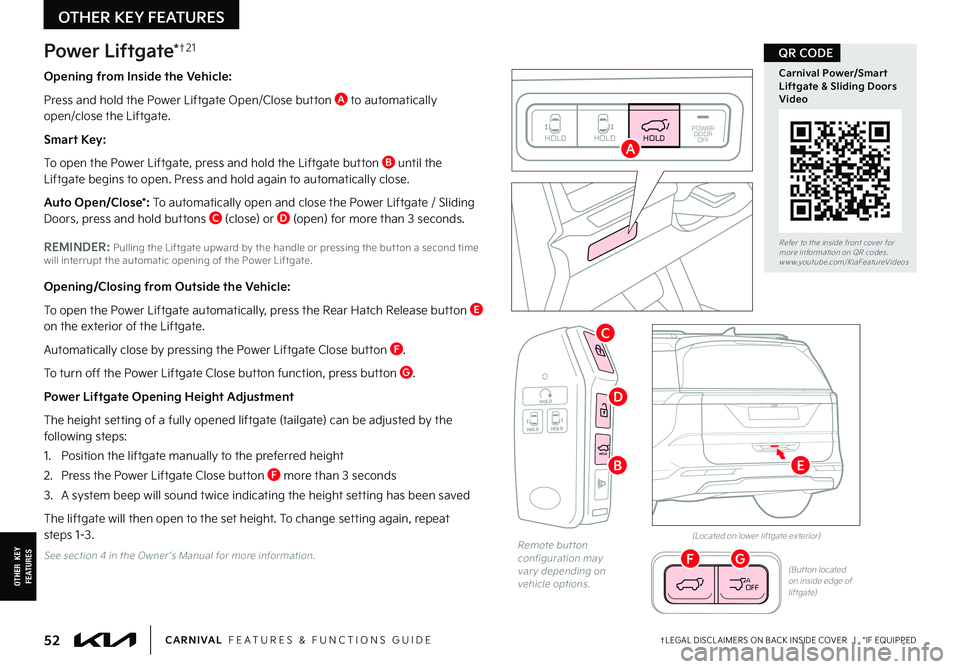

Power Liftgate*†2 1
Opening from Inside the Vehicle:
Press and hold the Power Liftgate Open/Close button A to automatically open/close the Liftgate.
Smart Key:
To open the Power Liftgate, press and hold the Liftgate button B until the Liftgate begins to open. Press and hold again to automatically close.
Auto Open/Close*: To automatically open and close the Power Liftgate / Sliding Doors, press and hold buttons C (close) or D (open) for more than 3 seconds.
REMINDER: Pulling the Liftgate upward by the handle or pressing the but ton a second time will interrupt the automatic opening of the Power Liftgate.
Opening/Closing from Outside the Vehicle:
To open the Power Liftgate automatically, press the Rear Hatch Release button E on the exterior of the Liftgate.
Automatically close by pressing the Power Liftgate Close button F.
To turn off the Power Liftgate Close button function, press button G.
Power Liftgate Opening Height Adjustment
The height setting of a fully opened liftgate (tailgate) can be adjusted by the following steps:
1. Position the liftgate manually to the preferred height
2. Press the Power Liftgate Close button F more than 3 seconds
3. A system beep will sound twice indicating the height setting has been saved
The liftgate will then open to the set height. To change setting again, repeat steps 1-3.
See section 4 in the Owner ’s Manual for more information.
(Located on lower liftgate exterior)
OTHER KEY FEATURES
HOLD
HOLDPOWER
DOOR OFFHOLD
HOLDHOLDPOWER
DOOR OFFHOLD
OTHER KEY FEATURES
A
Remote but ton configuration may var y depending on vehicle options.
HOLD
HOLDHOLD
HOLD
HOLD HOLD
HOLD
HOLDHOLD
HOLD
HOLD
HOLDHOLD
HOLD
HOLDHOLD
HOLDBE
FG
D
C

•
During the Smar t Liftgate with Auto Open & Close aler t, the Smar t Liftgate with Auto Open & Close can be deactivated with the Smar t Key by pressing any but ton on the key fob or moving away from the detection area
•
The open height and speed can be adjusted. For information on how to set the open height and speed, see your owner ’s manual
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Carnival Power/Smart Liftgate & Sliding Doors Video
QR CODE
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 53
OFFA(But ton located on inside edge of liftgate)
See section 4 in the Owner ’s Manual for more information.
Smart Liftgate with Auto Open & Close*†2 1
The Smart Liftgate with Auto Open & Close can open or close the Liftgate
automatically when the driver approaches or leaves the vehicle. For Smart
Liftgate with Auto Open & Close to operate, the Smart Key must be enabled.
Automatically open: When the Smart Key is on your person and you are near
the back of the vehicle, within close proximity, the hazard lights will blink and
a chime will sound for about 3 seconds as an alert that the Smart Liftgate is
about to open. Then the alert system will blink and chime two additional times
before opening the Smart Liftgate.
Automatically close: When the Smart Key fob is on your person and you leave
the vehicle, the chime will sound three times as an alert that the Smart Liftgate
is about to close. Then the alert system will chime two additional times before
closing the Smart Liftgate.
The Smart Liftgate with Auto Open & Close feature is off by default. To enable
on some models, go to User Settings in the LCD Instrument Cluster modes. On
other models, press the Setup key on the audio head unit, followed by pressing
VEHICLE on the screen. Then press DOOR and SMART LIFTGATE.
OFF button: To turn off the Power Liftgate Close button function, press button A.
REMINDERS:
•All doors are closed and locked after about 15 seconds
•The Smar t Liftgate with Auto Open & Close feature will not operate when:
-
The doors are recently closed and locked, and the Smar t Key is still detected after 15 seconds near the vehicle or within 60 inches of the door handles
-A door is not locked or closed
-The Smar t Key is in the vehicle
•
Press any but ton on the Smar t Key fob during the Detect and Aler t stage, or move out of the detection area, to deactivate the Smar t Liftgate with Auto Open & Close function
•
When the ignition is on, the Smar t Liftgate with Auto Open & Close will only operate with the gear shift in the Park (P) position
•
The Smar t Key must be outside of the vehicle for the Smar t Liftgate with Auto Open & Close to operate
•Ensure obstacles and people are out of the way of the Liftgate
OTHER KEY FEATURES
OTHER KEY FEATURES
A

*IF EQUIPPED54CARNIVAL FEATURES & FUNCTIONS GUIDE
OTHER KEY FEATURES
OTHER KEY FEATURES
HOLD
HOLDHOLD
HOLD
HOLDHOLD
HOLD
HOLDHOLD
HOLD
HOLD
HOLDHOLD
HOLD
HOLDHOLD
HOLD
(But tons located on panel to the left of steering wheel)
HOLD
HOLDPOWER
DOOR OFFHOLD
HOLDHOLDPOWER
DOOR OFFHOLD
#VU UPOT
MPDBUFE
PO
DFOUFS
QJMMBST

Power Sliding Doors
Using the driver ’s panel controls, press the left/right Power Sliding Door buttons A, on the driver ’s panel controls, on the center pillars B or on the key fob C to automatically open/close the sliding doors.
REMINDER: If the POWER DOOR OFF but ton F is depressed, the Smar t Power Liftgate* will not operate.
Smart Key Auto Open/Close*: To automatically open and close the Power Liftgate / Sliding Doors, press and hold buttons D (close) and E (open) for more than 3 seconds.
Power Door OFF Button: When button F is ON (not depressed), the power sliding doors and power liftgate can be controlled with the buttons on the center pillar trim B or liftgate. Also, the doors will open/close automatically when pulling the handles from the inside or outside.
Smart Sliding Door with Auto Open
The sliding doors can be opened hands-free if the Smart Key is detected within the system range. The hazard warning lights will flash and a chime will sound two times and the door nearest the Smart Key will open. To activate the Smart Sliding Door with Auto Open, on some models, go the User Settings in
the Instrument Cluster and select Smart Liftgate. On other models, press the SETUP key on the audio head unit. Then press VEHICLE, DOOR and SMART SLIDING DOOR.
Passenger View* / Passenger Talk*
Passenger View, an in-cabin camera, helps the front passenger talk with rear passengers while viewing them on the audio head unit screen. On the head unit screen, press the Passenger View icon G.
Passenger Talk: Press the button H located on the overhead console to use the Passenger Talk, cabin intercom, function.
REMINDER: The system will not operate when the Smar t Key is detected continuously near the vehicle after the doors are locked, or when a door is not locked or closed.
Refer to section 4 in the Owner ’s Manual for more information.
Passenger
View
PassengerView
AAFBB
C
D
E
H
G
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Carnival Power/Smart Liftgate & Sliding Doors Video
QR CODE

REMINDERS:
•The Sunvisor may not shield all direct light
•The Sunvisor may impair visibilit y if not adjusted properly
•
Be aware of the seating position when adjusting or swinging Sunvisor around to or from the front or side windows
•Do not operate the vehicle if the Sunvisor is impairing your visibilit y
•When the doors are unlocked by the Smar t Key*, the lamp turns ON for approximately 30 seconds
•If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 3 seconds after the system is in the armed stage
•Using interior lights for an extended period of time may cause bat ter y discharge
QUICK TIPS
REMINDER: When the Room Lamp lens is pressed ON it will remain ON, even when the Map Lamp switch is in the OFF position.
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 55
Refer to section 4 in the Owner ’s Manual for more information.
Refer to section 4 in the Owner ’s Manual for more information.
FRONTREARFRONTREAR
REARREAR
FRONTREARFRONTREAR
REARREAR
(Lamp controls located in the overhead consoles). Type A shown.
Rear
Front
Map/Room Lamps
Automatic turn off function*
The interior lights automatically turn off approximately 30 seconds after the Engine Start/Stop button is OFF.
Map/Room Lamp Operation
Press the buttons A to turn the Map Lamps ON/OFF. This light produces a spot beam for convenient use as a map lamp or as a personal lamp for the driver or the front passenger.
When the button C is pressed, the following occurs:
•When any door or the liftgate is opened, the Map and Room Lamps turn ON
•When doors are unlocked from the Smart Key or key removed from ignition, the Map and Room Lamps turn ON for approximately 30 seconds or until a door is opened
•When doors are closed, the lamps will gradually turn OFF after approximately 30 seconds
•When all doors are locked or the ignition is turned ON, the Map Lamp will turn OFF immediately
When the button B is pressed, the lamps stay ON continuously.
Room Lamp – Press the lens D to turn the Room Lamp ON/OFF.
Sunvisor†2 4
Use the Sunvisor to shield direct light through the front or side windows. Slide the Sunvisor out and adjust as needed.
OTHER KEY FEATURES
OTHER KEY FEATURES
C
AADD
B

*IF EQUIPPED56CARNIVAL FEATURES & FUNCTIONS GUIDE
OTHER KEY FEATURES
OTHER KEY FEATURES
B
REMINDERS:
•
When the Power Window Lock is depressed, the Rear Sunroof controls cannot operate the Rear Sunroof
•
The Sunshade needs to remain OPEN while the Sunroof is open and the vehicle is moving
•
Do not adjust the Sunroof or Sunshade while driving. This could result in loss of control of the vehicle
REMINDER: The Front Sunroof will automatically open all the way. The Rear Sunroof will only par tially open. To open all the way, slide the Rear Sunroof lever again.
To stop the Sunroof/Sunshade at any position, push or pull the Sunroof control lever in any direction.
QUICK TIP
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Sunroof Operation Video
QR CODE
FRONTREARFRONTREAR
REARREAR
FRONTREARFRONTREAR
REARREAR
(Rear overhead console for Rear Sunroof controls)
Sunroof Operation
The Sunroof and Sunshade operation is controlled through a multidirectional switch/lever. The ignition needs to be in the ON position to operate the Sunroof/Sunshade.
The front and rear Sunroof/Sunshade are operated from separate controls.
Front Sunshade and Sunroof Controls:
Auto Open: Slide lever A backward to the farthest position and release.
Auto Close (Sunroof only): Slide the lever A forward to the farthest position and release.
Slide the Sunroof (with Sunshade open):
Open: Press the Sunroof lever A backward and press again forward/backward until you reach the desired detent position (manual slide feature).
Close: Press the Sunroof lever A forward and press again forward/backward until you reach the desired detent position (manual slide feature)
Tilt the Sunroof:
To raise, push the lever A upward; to lower, push the lever A forward.
Rear Sunshade and Sunroof Controls:
Auto Open: Slide lever B backward to the farthest position and release.
Auto Close (Sunroof only): Slide the lever B forward to the farthest position and release.
Slide the Sunroof (with Sunshade open):
Open: Press the Sunroof lever B backward and press again forward/backward until you reach the desired detent position (manual slide feature).
Close: Press the Sunroof lever B forward and press again forward/backward until you reach the desired detent position (manual slide feature)
AB
(Front overhead console for Front & Rear Sunroof controls)

Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Forward/Reverse Parking Distance Warning (PDW) Video
QR CODE
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 57
(Navigation screen display shown)
Rear View Monitor (RVM)†6
Rear View Monitor is a supplemental system that displays the view behind the vehicle through the audio control head unit screens while the vehicle is in Reverse.
Rear View Monitor activates when the:
•Ignition or the Engine Start/Stop button* is in the ON position (Green Light)
•Gear Shift Lever is in the R (Reverse) position
REMINDER: The screen image on the right is for illustration purposes only. The actual image or graphics may differ in your vehicle.

The Rear View Monitor is not a substitute for proper and safe backing-up procedures. The Rear View Monitor may not display ever y object behind the vehicle. Always drive safely and use caution when backing up.
Refer to section 4 in the Owner ’s Manual for more information.
Forward*/Reverse Parking Distance Warning (PDW)†6
Forward/Reverse Parking Distance Warning (PDW) is a supplemental system that is designed to assist the driver by chiming if any object is detected within the sensing area to the front, rear and side of the vehicle when moving forward or backing up.
To activate PDW, press button A (LED illuminated). PDW is also activated when the ignition is ON and the gear shift is moved into R (Reverse). To deactivate PDW, press Reverse/Parking Safety A (LED not illuminated).
REMINDERS:
•
If the vehicle is moving at speeds over 6 mph, PDW may not activate correctly
•
When more than t wo objects are sensed at the same time, the closest one will be recognized first
For ward*/Reverse Parking Distance Warning is not a substitute for proper and safe backing-up procedures. Always drive safely and use caution when backing up. For ward*/Reverse Parking Distance Warning (PDW) may not detect ever y object in front of or behind the vehicle.
Illustrations are for demonstration purposes only. Actual features on vehicle may var y.
Refer to section 4 in the Owner ’s Manual for more information.
(But ton located below Gear shift)
OTHER KEY FEATURES
OTHER KEY FEATURES
A
Illustrations are for demonstration purposes only. Actual features on vehicle may var y.

*IF EQUIPPED58CARNIVAL FEATURES & FUNCTIONS GUIDE
OTHER KEY FEATURES
OTHER KEY FEATURES
C
F
Place the Fuel Cap on the inside of the Fuel Filler Lid when fueling F.
QUICK TIP
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
One-Click Fuel Cap Video
QR CODE
(Lever located near floor below Driver's Panel) (Secondar y latch located inside lip of Hood)
Closing the Hood:
Lower the Hood by pressing the front center of the Hood. Then, press down to securely lock in place.
REMINDERS:
•While lowering and closing, keep hands away from under the Hood
•
Open the Hood only after turning the engine off, on a flat sur face, with the gear shift in P (Park) position and set ting the parking brake
Refer to section 4 in the Owner ’s Manual for more information.
Hood Release Lever and Latch
Opening the Hood:
1. Pull the Hood Release Lever A to unlatch the Hood
2. In the front of the vehicle, lift the Hood slightly, push the secondary Latch B to the left inside of the Hood’s center and lift the Hood
3. Pull out the support rod from the Hood and set into place to hold the Hood open
REMINDER: Open the Hood only after turning the engine off, on a flat sur face, with the gear shift in P (Park) position and set ting the parking brake.
Fuel Filler Lid Release
To open the Fuel Filler lid:
1. Ensure Driver ’s door is unlocked. Then press the right center edge of the Fuel Filler lid C
2. Pull the Fuel Filler lid out to fully open D
To open the Fuel Cap, turn it counterclockwise E.
REMINDERS:
•The fuel filler lid will unlock when Driver ’s door is unlocked
•To unlock fuel filler lid:
-Press the unlock but ton on your smar t key
-Press the Central Door unlock but ton on armrest trim of driver ’s door
-Pull the driver ’s inside door handle out ward
-The fuel filler lid will lock when all doors are locked
•To lock fuel filler lid:
-Press the lock but ton on your smar t key
-Press the Central Door lock but ton on armrest trim of driver ’s door
-All doors and fuel filler lid will automatically lock after the vehicle speed exceeds 9 mph
Refer to section 4 in the Owner ’s Manual for more information.
A
B
D
E
