KIA CARNIVAL 2023 Features and Functions Guide

0 KMH020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
PWR
60 MPH
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
60 MPH
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
PWR
60 MPHCRUISED
DAUTO
Navigation-based Smart Cruise Control (NSCC)*†3
Navigation-based Smart Cruise Control can automatically adjust the vehicle speed when it detects a curved road ahead and when it receives road information from the navigation system.
To turn on NSCC, go to User Settings in the instrument cluster or the Vehicle Settings* in the infotainment system, by selecting Driving Convenience,* Highway Auto Speed Change. When SCC is on and operating, the vehicle is driving on limited/controlled access highways, and NSCC is turned on, NSCC is enabled and the AUTO icon A will illuminate white on the instrument cluster.
When NSCC detects a curve ahead, activates, and reduces the vehicle speed, the AUTO icon A will turn green. When the vehicle passes the curved road, the vehicle may return to its previously set SCC speed.
Highway Set Speed Auto Change: If the speed is set to the current speed limit on the highway during NSCC operation, the set speed is changed automatically whenever the speed limit changes.
REMINDER: NSCC is only available on controlled access roads and highways.
(Display on LCD screen)
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Navigation-based Smart Cruise Control (NSCC) Video
QR CODE
A
Cruise Control (CC)†3
B
Driving Assist button: Press to turn the Cruise Control On/Off. The indicator will illuminate on the instrument cluster and the set speed will automatically activate at the vehicle’s current speed
C + button: Press up to increase Set speed
- button: Press down to set or decrease Set Speed

Pause/Resume button: Press to pause Cruise Control. Press again to resume Cruise Control
Your vehicle’s steering wheel but tons may differ from those in the illustrations.
Refer to section 5 in the Owner ’s Manual for more information.
•Cruise Control is designed to function at above 20 mph
•Cruise Control will not activate until the brake pedal has been depressed at least once after ignition ON or engine star t
QUICK TIPS
MODE
MODE
MODE
MODE
MODE
MODE MODE
MODE
MODE
OKOK
OK
OK
OK
OK
OK
OK
Drive mode (Return button) Cruise Control
Bluetooth Eco L FA
User Settings
HDA
Audio LV DA MSLA - ISLA
MODE
Smart Cruise Control
OK
ROA
MODE
HDA
OK
OK
$
#
See section 5 in the Owner ’s Manual for more information. For more set ting information, refer to the Car Infotainment System Quick Reference Guide.
NSCC is a supplemental system and is not a substitute for safe driving. It is the responsibilit y of the driver to always check the speed and distance to the vehicle ahead.
REMINDER: In standard Cruise Control, the driver needs to manually assess the distance from other vehicles as the system will not automatically apply brakes.
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 19
ADVANCED DRIVER ASSISTANCE SYSTEM (ADAS)
ADAS

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED20CARNIVAL FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
QR CODES
Intelligent & Manual Speed Limit Assist Video
MODE
MODE
MODE
MODE
MODE
MODE MODE
MODE
MODE
OKOK
OK
OK
OK
OK
OK
OK
Drive mode (Return button)Cruise Control
Bluetooth Eco L FA
User Settings
HDA
Audio LV DA MSLA - ISLA
MODE
Smart Cruise Control
OK
ROA
MODE
HDA
OK
OK
60mphLIMIT
60mphLIMIT
Intelligent Speed Limit Assist (ISLA)*†3
Intelligent Speed Limit Assist monitors the vehicle speed and warns the driver when the vehicle surpasses the posted speed limit. ISL A is designed to use the information from the posted speed limit and the navigation system to also inform the driver to change the set speed for the Manual Speed, Limit Assist or Smart Cruise Control.
When ISL A is on and active, the system will display an alert on the Instrument Cluster LCD A of the detected speed limit. If the vehicle’s current speed exceeds the detected speed limit, a warning will sound and a warning indicator and the vehicle’s current speed will blink on the LCD until the vehicle speed returns to or is below the posted speed limit.
ISLA User Settings:
To turn ISL A on, press the Mode button B on the Steering Wheel and go to User Settings on the Instrument Cluster LCD. Press the Move (OK) button C up/down and select Driver Assistance by pressing the OK button C, then Intelligent Speed Limit Assist.
Select one of the three modes:
•Speed Limit Assist: To help the driver stay within the posted speed limit, ISL A informs the driver of the detected speed limit, displays a message to change the set speed of the SCC
•Speed Limit Warning: Informs the driver of the detected speed limit and warns the driver when the vehicle is traveling faster than the posted speed limit
•Off: ISL A is disabled
REMINDER: Additional information may be displayed if additional road sign information is detected.
When engaged, ISL A is not a substitute for safe and proper driving. Always drive safely and use caution.
Refer to section 5 in the Owner ’s Manual for more information

You can set a speed limit offset to the posted speed limit by going to User Set tings, Driver Assistance, Speed Limit, then Speed Limit Offset. Set the offset to “0” if you want the vehicle to travel at the detected speed limit, when ISL A is on
QUICK TIP
A
B
C
ADVANCED DRIVER ASSISTANCE SYSTEM (ADAS)
ADAS

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 21
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Highway Driving Assist (HDA) Video
QR CODEHighway Driving Assist (HDA)*†3
Highway Driving Assist (HDA) is designed to adjust the speed of the vehicle when driving on limited/controlled access highways.
When HDA is activated and the conditions are met, the Instrument Cluster indicator A will illuminate green. If the conditions are not met, HDA will be in standby mode and the indicator light A will illuminate white. When in operation, and if both lanes are recognized, the Instrument Cluster will show the lanes illuminated white and the HDA indicator illuminated green A.
Hands-off Warning - If the driver takes their hands off the Steering Wheel for several seconds, a warning message will appear on the Instrument Cluster, and an audible warning will sound. If hands on the Steering Wheel is not detected, HDA will cancel.
HDA settings:
•HDA can be turned on/off by going to the Vehicle Settings* in the Infotainment System
•Only adjust settings when the vehicle is at a standstill, gear shift is in Park and the ignition is on or the Engine Start/Stop button* in the on position
•To access Vehicle settings* in the Infotainment System – Press the SETUP key or the onscreen SETUP button. Press VEHICLE to enter Vehicle Settings. Select Driver Assistance, then Driver Convenience. Select Highway Driving Assist to activate
ADVANCED DRIVER ASSISTANCE SYSTEM (ADAS)
REMINDERS:
•
Limited access roads information may var y. See owner ’s manual for more information
•When the ignition is cycled, the system returns to its previous state, on or off
•
If the driver changes the speed while in automatic speed set ting mode, it deactivates and enters a manual mode
When engaged, Highway Driving Assist is not a substitute for safe driving, may not detect all objects around the vehicle, and only functions on cer tain federal highways. Always drive safely and use caution. Refer to section 5 in the Owner ’s Manual for more detailed information, limitations and conditions.
Images are for illustrative purposes only and may not reflect actual feature or operation.
0 KMH020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
PWR
60 MPH
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
60 MPH
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
PWR
60 MPHCRUISED
AUTOA
ADAS

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED22CARNIVAL FEATURES & FUNCTIONS GUIDE
(Navigation screen display shown)
Rear View Monitor (RVM)†3
Rear View Monitor is a supplemental system that displays the view behind the vehicle through the audio control head unit screens while the vehicle is in Reverse.
Rear View Monitor activates when the:
•Ignition or the Engine Start/Stop button* is in the ON position (Green Light)
•Gear Shift Lever is in the R (Reverse) position
REMINDER: The screen image on the right is for illustration purposes only. The actual image or graphics may differ in your vehicle.

The Rear View Monitor is not a substitute for proper and safe backing-up procedures. The Rear View Monitor may not display ever y object behind the vehicle. Always drive safely and use caution when backing up.
Illustrations are for demonstration purposes only. Actual features on vehicle may var y.
Refer to section 4 in the Owner ’s Manual for more information.
REMINDER: The SVM camera is equipped with an optical lens to provide a wider range of vision and may appear different from the actual distance.
The Surround View Monitoring (SVM) is only a supplemental device. Drivers should not rely solely on the SVM information when parking and backing up. Drivers should always pay at tention and directly check the left/right and rear.
Images are for illustrative purposes only and may not reflect actual feature or operation.
Surround View Monitor (SVM)*
Surround View Monitor (SVM) is a parking support system that shows the areas around the front, rear, left and right sides of the vehicle via four cameras displayed onto the audio head unit screen.
•Press the Parking/ View button A to turn on Surround View Monitor. Press the button again to turn off the function
•Other view modes can be selected by touching the view icons B on the Surround View Monitor screen
•Surround View Monitor Auto On: With Driver Assistance → Parking Safety → Surround View Monitor Auto On selected from the Settings menu, the front parking assist view screen is displayed when Parking Distance Warning warns the driver while driving in D (Drive)
To change the SVM settings, press the onscreen settings icon C, while SVM is operating.
(Located below gear shift)
A
C
B
The Front View of SVM will turn off when the gear shift is moved into Park or Reverse or the Parking/View but ton is pressed.
QUICK TIP
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Surround View Monitor (SVM) Video
QR CODE
See section 4 in the Owner ’s Manual for more information.
ADVANCED DRIVER ASSISTANCE SYSTEM (ADAS)
ADAS

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 23
MODE
MODE
MODE
MODE
MODE
MODE MODE
MODE
MODE
OKOK
OK
OK
OK
OK
OK
OK
Drive mode (Return button)Cruise Control
Bluetooth Eco L FA
User Settings
HDA
Audio LV DA MSLA - ISLA
MODE
Smart Cruise Control
OK
ROA
MODE
HDA
OK
OK
Rear Cross-traffic Collision-Avoidance Assist (RCCA)†3
Rear Cross-traffic Collision-Avoidance Assist is designed to detect vehicles approaching from the left and right side while your vehicle is reversing, and warning the driver that a collision is imminent with a warning message and an audible warning. Also, to help prevent collision braking assist is applied.
When the rear-corner radar sensors detect approaching vehicles from the rear left or rear right side of the vehicle A, RCCA will sound a warning, the warning indicators on the outside rearview mirror will illuminate and a message will appear on the Instrument Cluster LCD B and the audio head unit.* If RCCA detects that the collision risk has increased, RCCA automatically applies the brakes to reduce your speed, potentially helping to minimize the effects of a possible collision.
RCCA is designed to operate under the following conditions:
•When the gear shift is in Reverse
•When the vehicle is moving slower than 5 mph
RCCA Settings:
•RCCA can be turned on/off by going to the User Settings* in the Instrument Cluster or the Vehicle Settings* in the Infotainment System
•Only adjust settings when the vehicle is at a standstill, gear shift is in Park and the ignition is ON or the Engine Start/Stop button* in the ON position
•To access User settings* in the Instrument Cluster - Press the Mode button C on the Steering Wheel to toggle to User Settings . Press the OK button D up/down to toggle to Driver Assistance, then Parking Safety. Select Rear Cross Traffic Safety and press the OK button D
•To access Vehicle settings* in the Infotainment System – Press the SETUP key or the onscreen SETUP button. Press VEHICLE to enter Vehicle Settings. Select Driver Assistance, then Parking Safety and select Rear Cross Traffic Safety
•Warning Timing – When in the Driver Assistance menu, select Warning Timing and one of the following:
- Normal: Maximizes the amount of distance between the vehicles before the initial warning occurs
- Later: Reduces the amount of distance between the vehicles before the initial warning occurs
REMINDERS:
•
When vehicle power is cycled, RCCA will remain in the previous state
•
When a vehicle is approaching within the sensing range, and traveling faster than 3 mph, the RCCA system will show a warning
W h e n engaged, RCCA is a supplemental system. Do not solely rely on this system and always pay at tention to the road and its conditions
Refer to section 5 in the Owner ’s Manual for more information.
116mi
R5643mi80 °F
(But tons located on right side of steering wheel)
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Rear Cross-traffic Collision-Avoidance Assist (RCCA) Video
QR CODE
A
B
C
D
Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings on the audio head unit. Go to Driver Assistance, then Warning Volume.
QUICK TIP
ADVANCED DRIVER ASSISTANCE SYSTEM (ADAS)
ADAS

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED24CARNIVAL FEATURES & FUNCTIONS GUIDE
ADVANCED DRIVER ASSISTANCE SYSTEM (ADAS)
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Forward/Reverse Parking Distance Warning (PDW) Video

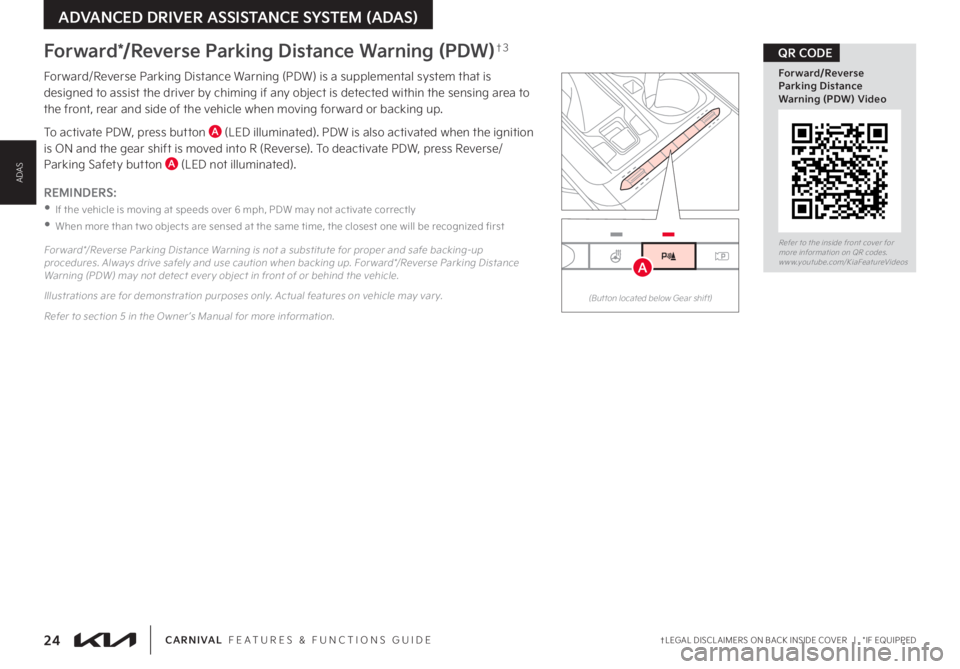

QR CODEForward*/Reverse Parking Distance Warning (PDW)†3
Forward/Reverse Parking Distance Warning (PDW) is a supplemental system that is designed to assist the driver by chiming if any object is detected within the sensing area to the front, rear and side of the vehicle when moving forward or backing up.
To activate PDW, press button A (LED illuminated). PDW is also activated when the ignition is ON and the gear shift is moved into R (Reverse). To deactivate PDW, press Reverse/Parking Safety button A (LED not illuminated).
REMINDERS:
•
If the vehicle is moving at speeds over 6 mph, PDW may not activate correctly
•
When more than t wo objects are sensed at the same time, the closest one will be recognized first
For ward*/Reverse Parking Distance Warning is not a substitute for proper and safe backing-up procedures. Always drive safely and use caution when backing up. For ward*/Reverse Parking Distance Warning (PDW) may not detect ever y object in front of or behind the vehicle.
Illustrations are for demonstration purposes only. Actual features on vehicle may var y.
Refer to section 5 in the Owner ’s Manual for more information.
(But ton located below Gear shift)
A
ADAS

ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 25
Electronic Stability Control (ESC)†5
The ESC system is designed to help stabilize the vehicle during certain cornering maneuvers. It is a good idea to keep the ESC turned on for daily driving whenever possible.
Press the ESC OFF button B to turn Traction Control OFF/ON. Press again to turn on.
To turn OFF both the Traction Control and Stability Control, press and hold for more than 3 seconds. Press again to turn ON.
Hill-start Assist Control (HAC)†5
HAC helps prevent the vehicle from rolling backwards when accelerating from a stop while on a steep incline. HAC automatically activates whether the ESC is OFF or ON but does NOT activate when the ESC has malfunctioned.
HOLD
HOLDPOWER
DOOR OFFHOLD
#VU UPO
QBOFM
MPDBUFE
MFGU
PG
4UFFSJOH
8IFFM

Instrument Cluster Control
With parking lights/headlights ON, press button A (+) or (-) to adjust the brightness of the instrument panel illumination.
REMINDER: The Instrument Cluster Control does not adjust brightness on the audio head unit screens. Use the display set tings in the Setup menu to adjust the brightness on the screen.
HOLD
HOLDPOWER
DOOR OFFHOLD
DRIVER’S PANEL
AB
•HAC provides a t wo second delay before the vehicle may star t rolling backwards
•When HAC is active (e.g., during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator — this is normal HAC operation
QUICK TIPS
REMINDERS:
•
HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position
•
HAC does not replace the need to apply brakes while the vehicle is stopped on an incline
•
In the event of HAC system malfunction, see an authorized Kia dealer for ser vice
Refer to section 5 in the Owner ’s Manual for more information.
REMINDERS:
•
ESC is active by default at vehicle star tup. When ignition is cycled, ESC will turn ON again
•
The ESC Indicator Light in the instrument cluster will be lit momentarily whenever the ESC is active
Refer to section 4 in the Owner ’s Manual for more information.
Refer to section 5 in the Owner ’s Manual for more information.
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED
DRIVER’SPANEL

*IF EQUIPPED26CARNIVAL FEATURES & FUNCTIONS GUIDE
DRIVER’S PANEL
Power Windows, Window Lock & Central Door Lock
A Pull/Press to operate Front Windows Auto Up/Down*
B Press to Unlock/Lock All Doors
C Press to disable Rear Passenger Windows and Rear Sunroof* passenger controls
REMINDER: When C is pressed, window controls for the Rear Passenger Windows are disabled.
Power Folding Outside Mirrors*
Press the L or R buttons D to select the mirror to adjust.
Press button arrows E left/right or up/down to adjust mirror position.
Toggle button F left/right to unfold/fold the outside rearview mirrors.
Toggle button F to center to automatically fold/unfold mirrors when:
•The Smart Key Lock/Unlock buttons are pressed
•The door outside handle button is pressed
Heated Outside Mirrors
Mirror heaters automatically turn ON/OFF at the same time the Rear Window Defroster is turned ON/OFF. The Rear Window Defroster button* is located on the climate control system panel.
Refer to section 4 in the Owner ’s Manual for more information.
Automatic Door
Lock/Unlock
When the gear shift is moved into or out of P (Park), all doors will Lock/Unlock. Refer to the User Settings on how to turn Auto Door Lock/Unlock ON/OFF.
Refer to section 4 in the Owner ’s Manual for more information.
Manual Folding Mirrors*
To fold the mirrors in manually, pull the mirror towards the window.
LRLRLRLR
#VU UPOTXJUDI
QBOFM
MPDBUFE
PO
%SJWFS sT
%PPS


#VU UPO
DPO7THVSBUJPO
NBZ
WBS Z
EFQFOEJOH
PO
WFIJDMF
NPEFM
3FGFS
UP
TFDUJPO

JO
UIF
0XOFS sT
.BOVBM
GPS
NPSF
JOGPSNBUJPO
A
B
C
D
E
F
•Auto Door Lock/Unlock* will engage when the gear shift is moved into or out of the P (Park) position
•To turn Auto Door Lock/Unlock* OFF, go to User Set tings* in the LCD Instrument Cluster modes
QUICK TIPS
•The mirrors will automatically unfold when the Smar t Key is within close proximit y to the vehicle
•To automatically fold mirrors when exiting vehicle, press the LOCK but ton once on the Smar t Key
QUICK TIPS
Press but ton again to stop Auto Up/Down function
QUICK TIP
If needed, pull the mirror firmly until it folds.
QUICK TIP
Refer to section 4 in the Owner ’s Manual for more information.
REMINDER: To lock position of mirrors, toggle switch to the neutral (center) position.
Refer to section 4 in the Owner ’s Manual for more information.
DRIVER’SPANEL

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 27
LRLRLRLR
(But ton/switch panel located on Driver's Door )
(But ton located above center console)
ENGINESTART
STOP
Reverse Parking Aid Function*
Reverse Parking Aid Function will rotate the side-view mirrors downward to help visibility when backing up. The button A needs to be depressed for the Reverse Parking Aid Function to operate.
When the gear shift lever is moved into R (Reverse) and while the vehicle is moving backwards, the outside rearview mirrors B will rotate downward to aid in reverse parking.
To turn OFF the function, press the button again.
The outside rearview mirrors will automatically return to their original positions when:
•The Engine Start/Stop Button is in the OFF position
•The gear shift lever is moved to any position except R (Reverse)
•
Outside rearview mirror switches are not depressed
Engine Start/Stop Button†6
To start the engine:
•Press the brake pedal
•
Press the ENGINE START/STOP button
while the gear shift is in P (Park)
To turn the engine OFF, press the ENGINE START/STOP button.
To use the ENGINE START/STOP button, you must have the Smart Key fob inside the vehicle.
REMINDER: When the but ton A is not depressed, the Reverse Parking Aid Function will not operate and the outside rear view mirrors will not rotate downward
Refer to section 4 in the Owner ’s Manual for more information.
To use electrical accessories:
ACC position
•When in the OFF position and without depressing the brake pedal, press the ENGINE START/STOP but ton once (amber light)
ON position
•When already in the ACC position (orange light) and without depressing the brake pedal, press the ENGINE START/STOP but ton again (reddish orange light)

When in the OFF position and without depressing the brake pedal, press the ENGINE START/STOP but ton t wice (reddish orange light)
Keeping the vehicle in ACC or the ON position for extended periods of time without turning the engine on may discharge the vehicle’s battery
QUICK TIPS
REMINDERS:
•
In an emergency situation while the vehicle is in motion, you are able to turn the engine off and to the ACC position by pressing the ENGINE START/STOP button for more than 2 seconds or 3 times successively within 3 seconds
•
If Smar t Key fob bat ter y is dead, with the lock but ton facing the ENGINE START/STOP but ton, hold the fob up against the ENGINE START/STOP but ton and press to star t the engine while pressing the brake pedal
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Start/Stop Button Video
QR CODE
Refer to section 4 in the Owner ’s Manual for more information.
AB
DRIVER’S PANEL
DRIVER’SPANEL

28CARNIVAL FEATURES & FUNCTIONS GUIDE
STEERING WHEEL CONTROLS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Tilt/Telescoping/Heated Steering Wheel Video
High Beam Assist (HBA) Video
QR CODE
HOLD
HOLDPOWER
DOOR OFFHOLD
OFFOFF
AUTO
OFFOFF
AUTO
Headlight position
Parking light position
AUTOAuto Light / HBA / DRL
OFFOFF position
Tilt/Telescoping Steering Wheel†1 9
To adjust the Steering Wheel, press the Lock-Release Lever A down and adjust B to the desired angle and C to the desired distance.
When finished, pull the Lock-Release Lever A up to lock the Steering Wheel in place.
Headlights & High Beams
To operate:
•Rotate the switch to change the Headlight function
•Push the lever to turn High Beams ON
•Pull the lever to flash Headlights / High Beams
High Beam Assist (HBA)
The High Beam Assist is designed to automatically adjust the head-light range by switching between high and low beams based on light detected from oncoming vehicles and road conditions.
To enable HBA , toggle the light switch to the AUTO Light position and turn on the high beams by pushing the lever away from you. The High Beam Assist indicator will illuminate.
AUTO Light function – When the light switch is in the AUTO Light position, the tail lights and headlights will turn ON/OFF automatically depending on the amount of light outside the vehicle.
Daytime Running Lights (DRL) - DRL may help others to see the front of your vehicle during the day. The lights will turn on automatically when the ignition or Engine Start/Stop button is ON and the headlight switch is in the AUTO position, unless one of the following occurs:
•Headlights are on
•Parking brake is applied
•Engine is turned off
•Headlight switch is in the OFF position
REMINDERS:
•HBA will operate when vehicle speed exceeds 25 mph •
If the lever is pushed away from you while HBA is operational, HBA will turn off and the high beams will be on continuously. If the lever is pulled toward you while HBA is operational, HBA will turn off •
If the light switch is switched to the headlight position, HBA will turn off and low beams will be on continuously
Refer to section 4 in the Owner ’s Manual for more information.
Do not adjust the steering wheel while driving as this may cause you to lose control of the vehicle.
High Beam Assist does not operate below cer tain speeds, or in some lighting and driving conditions. Please be aware of your surroundings and exercise proper road etiquet te when operating a vehicle using the high beams
Refer to section 4 in the Owner ’s Manual for more information.
A
B
C
It may be helpful to pull/push the bot tom of the Steering Wheel towards/away from you to adjust the desired distance prior to adjusting the angle.
QUICK TIP
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED
STEERING WHEEL CONTROLS
