SEATING
SEATING
REMINDERS:
• Never install or remove the seats while there are occupants in the 3rd-Row Seat
•VIP Seats* are not removable
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Carnival 2nd and 3rd Row Seats Video
QR CODE
Illustrations are for demonstration purposes only. Actual features on vehicle may var y.
Reinstalling the Seats
1. Make sure the front seats are all the way forward
2. Place and align the seat properly on the floor anchors H
3. Lower the seat and push down firmly until it clicks into place
4. Ensure the seat is latched securely by the green indicator I
5. Outboard Seats - Pull on the lever B to move the seatback to its original position
6. Center Seat - Pull up the center seatback recline straps F or E, lift the seatback backward until it locks (clicks) into place
7. Replace the headrest and return the seat belt to its proper position
2nd-Row Removable Seats*†1 2
Removing the Outboard Seats
1. Move the front seats forward to allow for clearance
2. Push the seat belt buckle down into the recession
3. To provide more clearance, remove the headrest by pressing the release button A and pulling up the headrest up and out of the seat
4. Pull lever B to fold the seatback flat; slide the seat forward or backward to ensure the seat is in the middle position by pulling on the lever C
5. At the rear of the seat, reach under the seat and pull the release bar D and lift the seat up out of the anchors. Remove the seat
Removing the Center Seat
1. To provide more clearance, remove the headrest by pressing the release button A and pulling up the headrest up and out of the seat
2.
At the rear of the center seat, pull on the center seat left strap E to slide the seat forward
3. To fold the seatback flat, pull on the strap F on the front of the seat
4. Pull on the bottom center strap G to
release the seat and tumble forward. Remove the seat
Refer to section 3 in the Owner ’s Manual for more information.
A
BC
F
D
E
G(Hooks highlighted are inser ted into channel bet ween bar and white adjustment device) (Secure seat indicator on outside of outboard seats)
HI
Page 52 of 64
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED50CARNIVAL FEATURES & FUNCTIONS GUIDE
SEATING
Folding and Stowing 3rd-Row Seats
The rear seats can be folded and stowed in the luggage compartment for additional cargo space.
1. Fully lower headrests by pressing the lock release button B recessed in the seatback
2. Pull release handle D in the middle of seatback
3. The seat will fold down backwards towards the stow space. Push the seat down E to stow
Raising the 3rd-Row Seat
1. Pull up on the release handle D to move the seat back to original position
2. Press seat down to ensure it is locked into place (click)
3. Pull on the strap F to raise the seatback
REMINDERS:
•
The seat straps on the front and back of the 3rd-Row Seat are for folding only
•
Do not stow the seat while the seatback is folded down as this may cause damage to the mechanism
C
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Carnival 2nd and 3rd Row Seats Video
QR CODE
Illustrations are for demonstration purposes only. Actual features on vehicle may var y.
Refer to section 3 in the Owner ’s Manual for more information.
Folding 3rd-Row Seat
1. Fully lower headrest by pressing the lock release button B recessed in the seatback (raise headrest to access lock release button)
2. Pull seat folding strap located in the front of the seatback C

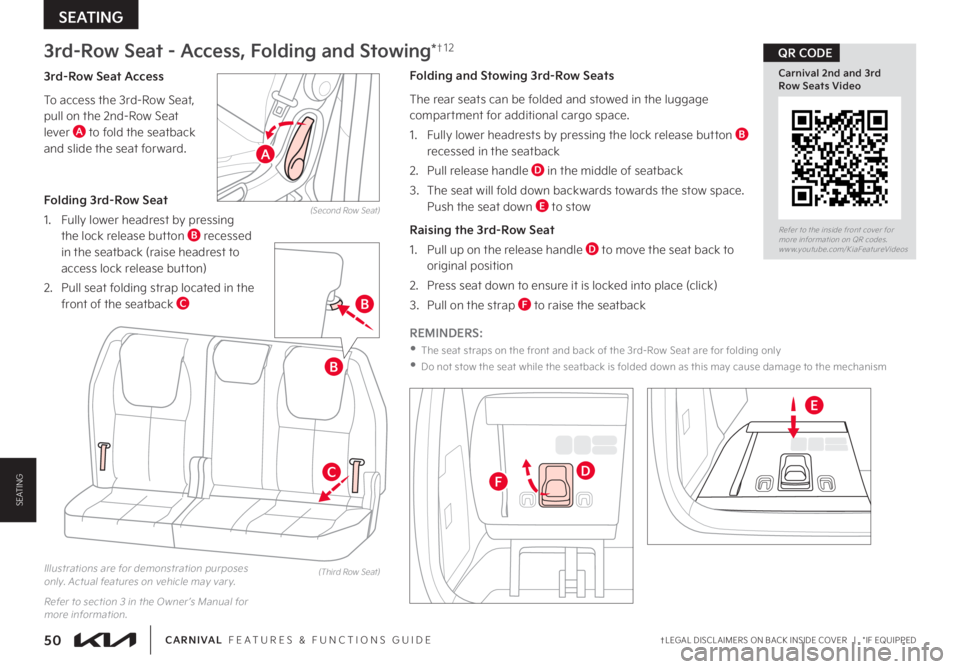

3rd-Row Seat - Access, Folding and Stowing*†1 2
3rd-Row Seat Access
To access the 3rd-Row Seat, pull on the 2nd-Row Seat lever A to fold the seatback and slide the seat forward.
E
DF
A
(Second Row Seat)
(Third Row Seat)
B
B
SEATING
Page 53 of 64
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 51
MODE
MODE
MODE
MODE
MODE
MODE MODE
MODE
MODE
OKOK
OK
OK
OK
OK
OK
OK
Drive mode (Return button)Cruise Control
Bluetooth Eco L FA
User Settings
HDA
Audio LV DA MSLA - ISLA
MODE
Smart Cruise Control
OK
ROA
MODE
HDA
OK
OK
3 F B S 0 D D V Q B O U " M F S U 3 0 "
X J U I 6 M U S B T P O J D 4 F O T P S T†9
Rear Occupant Alert (ROA) with Ultrasonic Sensors can help alert the driver when rear passengers are left in the rear seats using the ultrasonic sensors and door monitoring. The system is designed to provide three separate alerts:
•The first alert is a message on the Instrument Cluster, “Check Rear Seats” A, and a chime will sound
After the first alert, when the doors are locked and there is movement detected in the rear seats, the horn will sound for about 25 seconds. This alert may activate up to eight times within 24 hours if movement is still detected and system has not been disabled
•
If you have installed the Kia Access app on your smartphone, logged in and activated the Rear Occupant Alert notification, a third alert (notification) will be sent to your phone
To turn the system on or off, in the Instrument Cluster, go to User Settings, select Convenience, and
then Rear Occupant Alert.
Rear Occupant with Ultrasonic Sensors activates under the following conditions:
•A rear passenger door is opened and closed
•The ignition has been turned off
•The driver ’s door has been opened, then closed
•The doors are locked with the Smart Key or the door lock button on the door handle
This system is not a substitute for one’s at tention and may not detect all movement within the vehicle. Always check the vehicle’s interior before exiting.
Check rear seats
: Alarm OffOK
* N B H F T B S F G P S J M M V T U S B U J W F Q V S Q P T F T P O M Z B O E N B Z O P U S F7U F D U B D U V B M G F B U V S F P S P Q F S B U J P O
B
A
REMINDERS:
•
To avoid false aler ts, make sure the vehicle’s windows are rolled up
•
If objects such as boxes are stacked in front of the ultrasonic sensors, the system may not detect any movement
•
The ultrasonic sensors may occasionally detect movement in the vehicle and cause false aler ts when there are no rear occupants present. False aler ts can occur due to:
-The presence of insects near the system sensor
-Rushing air from a window that is rolled down
-Movement around the exterior of the vehicle
-Surrounding noise or vibration
-Vehicle passing through a car wash
-Movement in the driver or front passenger seat being detected
•
The Rear Occupant Aler t with Ultrasonic Sensors system may fail to detect movement and activate an alarm if:
-Movement is subtle or does not continue
-A small child sits directly in a seat without a car seat
-
A rear passenger is covered with an object such as a blanket, obstructing the sensor ’s view
•
The first aler t message will not display on Instrument Cluster if the rear doors are never opened. Either rear door must be opened after unlocking the vehicle before the system will activate
•
To temporarily disable aler ts, press the OK but ton B on the Steering Wheel while the message is displayed
•
To turn the aler t off while sounding, press the unlock but ton on the Smar t Key or press the door lock but ton on the door handle
•
Must be enrolled in Kia Connect and Kia Access app installed on the phone to receive ROA aler t notifications on your smar tphone
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Rear Occupant Alert (ROA) with Ultrasonic Sensors Video
QR CODE
See section 4 in the Owner ’s Manual for more information.
OTHER KEY FEATURES
OTHER KEY FEATURES
Page 54 of 64
Smart Key with Remote Start†6
A Press to lock All Doors; Sliding Doors / Liftgate*: Press and hold for more than 3 seconds to simultaneously close the sliding doors and the liftgate
B Press to unlock the Driver ’s Door. Press twice within 4 seconds to unlock All Doors and the Liftgate. Sliding Doors / Liftgate*: Press and hold for more than 3 seconds to simultaneously open the sliding doors and the liftgate (enable in User Settings / Vehicle Settings*)
C Manual Liftgate*: Press and hold for more than 1 second to unlock the Liftgate. Then lift by the handle to manually open the Liftgate
REMINDERS:
•
The Liftgate does not automatically open when the C but ton is pressed
•
The Liftgate unlocks when the Smar t Key fob is within close proximit y of the vehicle
C
Power Liftgate*: Press and hold for the Power Liftgate to open automatically.
Press again at any time to stop. Press and hold again to automatically close
D Remote Start*: First, lock the doors by pressing the door lock button A within 32 feet from the vehicle.
Within four (4) seconds of pressing the door lock button A, press and hold the Remote Start button D
for more than two (2) seconds to start the vehicle. Press D again to turn off. If driver does not enter
vehicle within three minutes of starting the vehicle, the engine will automatically turn off
E
Power Sliding Doors*: Press and hold to open the Power Sliding Doors
F Press and hold for more than a half second for the Panic Alarm.
To turn OFF the Alarm, press any button
G Press to release Mechanical Key
H Mechanical Key
Mechanical Key H:
•Press the button G on the back of the key fob to release the Mechanical Key
•Use to lock/unlock the Driver ’s Door I
•Use to lock the glove box
B
C
A
F
G
•The Smar t Key ’s signal can be blocked by the normal operation of a cellular phone or smar tphone. To help prevent this, store each device separately
•If the Smar t Key bat ter y is weak or not working properly, hold the Smar t Key fob up to the Engine Star t/Stop but ton (Lock but ton side closest) and press to star t the engine
QUICK TIPSRefer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Kia Smart & Folding Key Fobs Video
Remote Start - Smart Key Video
QR CODE
Lock/Unlock All Doors
•Press once to unlock the Driver ’s Door
•Press again within 4 seconds to unlock All Doors
•Press once to lock All Doors
HOLD
HOLDHOLD
HOLD
HOLD HOLD
HOLD
HOLDHOLD
HOLD
HOLD
HOLDHOLD
HOLD
HOLDHOLD
HOLD
Remote but ton configuration may var y depending on vehicle options.
Refer to section 4 in the Owner ’s Manual for more information.
I
H
D
E
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED52CARNIVAL FEATURES & FUNCTIONS GUIDE
OTHER KEY FEATURES
OTHER KEY FEATURES
Page 55 of 64
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 53
OTHER KEY FEATURES
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Carnival Power/Smart Liftgate & Sliding Doors Video
QR CODE
OFFA(But ton located on inside edge of liftgate)

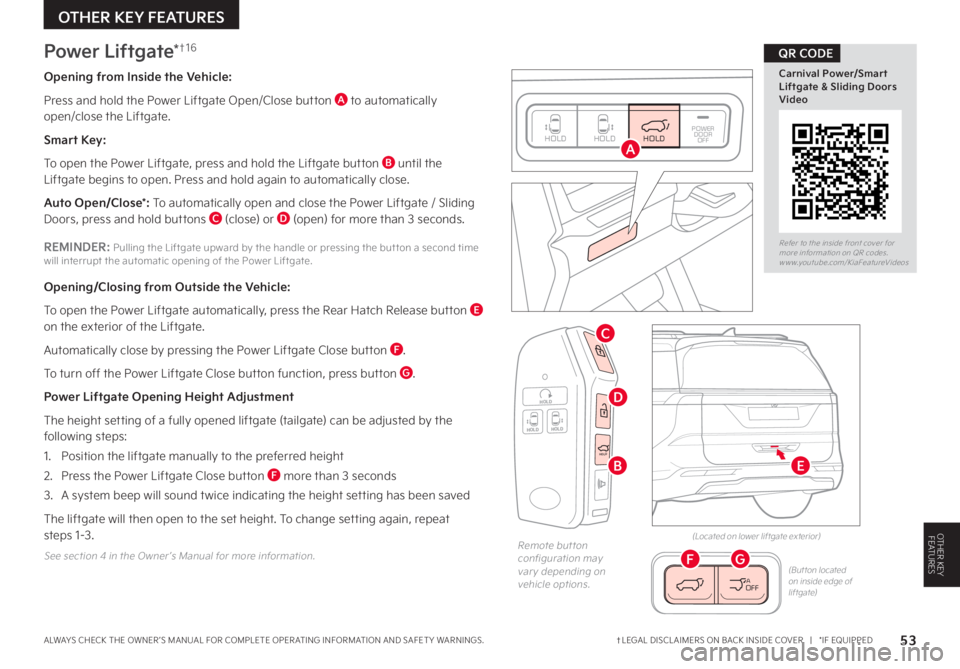

Power Liftgate*†1 6

Opening from Inside the Vehicle:
Press and hold the Power Liftgate Open/Close button A to automatically open/close the Liftgate.
Smart Key:
To open the Power Liftgate, press and hold the Liftgate button B until the Liftgate begins to open. Press and hold again to automatically close.
Auto Open/Close*: To automatically open and close the Power Liftgate / Sliding Doors, press and hold buttons C (close) or D (open) for more than 3 seconds.
REMINDER: Pulling the Liftgate upward by the handle or pressing the but ton a second time will interrupt the automatic opening of the Power Liftgate.
Opening/Closing from Outside the Vehicle:
To open the Power Liftgate automatically, press the Rear Hatch Release button E on the exterior of the Liftgate.
Automatically close by pressing the Power Liftgate Close button F.
To turn off the Power Liftgate Close button function, press button G.
Power Liftgate Opening Height Adjustment
The height setting of a fully opened liftgate (tailgate) can be adjusted by the following steps:
1. Position the liftgate manually to the preferred height
2. Press the Power Liftgate Close button F more than 3 seconds
3. A system beep will sound twice indicating the height setting has been saved
The liftgate will then open to the set height. To change setting again, repeat steps 1-3.
See section 4 in the Owner ’s Manual for more information.
(Located on lower liftgate exterior)
HOLD
HOLDPOWER
DOOR OFFHOLD
HOLDHOLDPOWER
DOOR OFFHOLDA
Remote but ton configuration may var y depending on vehicle options.
HOLD
HOLDHOLD
HOLD
HOLD HOLD
HOLD
HOLDHOLD
HOLD
HOLD
HOLDHOLD
HOLD
HOLDHOLD
HOLDBE
FG
D
C
OTHER KEY FEATURES
Page 56 of 64
•
During the Smar t Liftgate with Auto Open & Close aler t, the Smar t Liftgate with Auto Open & Close can be deactivated with the Smar t Key by pressing any but ton on the key fob or moving away from the detection area
•
The open height and speed can be adjusted. For information on how to set the open height and speed, see your owner ’s manual
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Carnival Power/Smart Liftgate & Sliding Doors Video
QR CODE
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED54CARNIVAL FEATURES & FUNCTIONS GUIDE
OFFA(But ton located on inside edge of liftgate)
See section 4 in the Owner ’s Manual for more information.
Smart Liftgate with Auto Open & Close*†1 6
The Smart Liftgate with Auto Open & Close can open or close the Liftgate
automatically when the driver approaches or leaves the vehicle. For Smart
Liftgate with Auto Open & Close to operate, the Smart Key must be enabled.
Automatically open: When the Smart Key is on your person and you are near
the back of the vehicle, within close proximity, the hazard lights will blink and
a chime will sound for about 3 seconds as an alert that the Smart Liftgate is
about to open. Then the alert system will blink and chime two additional times
before opening the Smart Liftgate.
Automatically close: When the Smart Key fob is on your person and you leave
the vehicle, the chime will sound three times as an alert that the Smart Liftgate
is about to close. Then the alert system will chime two additional times before
closing the Smart Liftgate.
The Smart Liftgate with Auto Open & Close feature is off by default. To enable
on some models, go to User Settings in the LCD Instrument Cluster modes. On
other models, press the Setup key on the audio head unit, followed by pressing
VEHICLE on the screen. Then press DOOR and SMART LIFTGATE.
OFF button: To turn off the Power Liftgate Close button function, press button A.
REMINDERS:
•All doors are closed and locked after about 15 seconds
•The Smar t Liftgate with Auto Open & Close feature will not operate when:
-
The doors are recently closed and locked, and the Smar t Key is still detected after 15 seconds near the vehicle or within 60 inches of the door handles
-A door is not locked or closed
-The Smar t Key is in the vehicle
•
Press any but ton on the Smar t Key fob during the Detect and Aler t stage, or move out of the detection area, to deactivate the Smar t Liftgate with Auto Open & Close function
•
When the ignition is on, the Smar t Liftgate with Auto Open & Close will only operate with the gear shift in the Park (P) position
•
The Smar t Key must be outside of the vehicle for the Smar t Liftgate with Auto Open & Close to operate
•Ensure obstacles and people are out of the way of the Liftgate
OTHER KEY FEATURES
A
OTHER KEY FEATURES
Page 57 of 64
*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 55
OTHER KEY FEATURES
HOLD
HOLDHOLD
HOLD
HOLDHOLD
HOLD
HOLDHOLD
HOLD
HOLD
HOLDHOLD
HOLD
HOLDHOLD
HOLD(But tons located on panel to the left of steering wheel)
HOLD
HOLDPOWER
DOOR OFFHOLD
HOLDHOLDPOWER
DOOR OFFHOLD
# V U U P O T M P D B U F E P O D F O U F S Q J M M B S T
Power Sliding Doors
Using the driver ’s panel controls, press the left/right Power Sliding Door buttons A, on the driver ’s panel controls, on the center pillars B or on the key fob C to automatically open/close the sliding doors.
REMINDER: If the POWER DOOR OFF but ton F is depressed, the Smar t Power Liftgate* will not operate.
Smart Key Auto Open/Close*: To automatically open and close the Power Liftgate / Sliding Doors, press and hold buttons D (close) and E (open) for more than 3 seconds.
Power Door OFF Button: When button F is ON (not depressed), the power sliding doors and power liftgate can be controlled with the buttons on the center pillar trim or liftgate B. Also, the doors will open/close automatically when pulling the handles from the inside or outside.
Smart Sliding Door with Auto Open
The sliding doors can be opened hands-free if the Smart Key is detected within the system range. The hazard warning lights will flash and a chime will sound two times and the door nearest the Smart Key will open. To activate the Smart Sliding Door with Auto Open, on some models, go the User Settings in
the Instrument Cluster and select Smart Liftgate. On other models, press the SETUP key on the audio head unit. Then press VEHICLE, DOOR and SMART SLIDING DOOR.
Passenger View* / Passenger Talk*
Passenger View, an in-cabin camera, helps the front passenger talk with rear passengers while viewing them on the audio head unit screen. On the head unit screen, press the Passenger View icon G.
Passenger Talk: Press the button H located on the overhead console to use the Passenger Talk, cabin intercom, function.
REMINDERS:
• The system will not operate when the Smar t Key is detected continuously near the vehicle after the doors are locked, or when a door is not locked or closed
•
Automatic stop and reversal will not activate in all situations
•
The auto-reverse feature is a supplemental feature and should never be relied upon as a primar y safet y device
•
To prevent injur y, make sure no body par ts are in the way of the sliding door when closing
•
Do not leave children or animals unat tended in the vehicle as they may operate the power sliding door in a manner that could result in injur y to themselves or others
•
If you are present but unable to quickly respond or at tend to children or animals in the vehicle, deactivate the power sliding door by pressing the POWER DOOR OFF but ton F on the driver ’s panel to the left of the steering wheel
Passenger
View
PassengerView
AAFBB
C
D
E
H
G
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Carnival Power/Smart Liftgate & Sliding Doors Video
QR CODE
Refer to section 4 in the Owner ’s Manual for more information.
OTHER KEY FEATURES
Page 58 of 64
REMINDERS:
•The Sunvisor may not shield all direct light
•The Sunvisor may impair visibilit y if not adjusted properly
•
Be aware of the seating position when adjusting or swinging Sunvisor around to or from the front or side windows
•Do not operate the vehicle if the Sunvisor is impairing your visibilit y
•When the doors are unlocked by the Smar t Key*, the lamp turns ON for approximately 30 seconds
•If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 3 seconds after the system is in the armed stage
•Using interior lights for an extended period of time may cause bat ter y discharge
QUICK TIPS
REMINDER: When the Room Lamp lens is pressed ON it will remain ON, even when the Map Lamp switch is in the OFF position.
*IF EQUIPPED56CARNIVAL FEATURES & FUNCTIONS GUIDE
Refer to section 4 in the Owner ’s Manual for more information.
Refer to section 4 in the Owner ’s Manual for more information.
FRONTREARFRONTREAR
REARREAR
FRONTREARFRONTREAR
REARREAR
(Lamp controls located in the overhead consoles). Type A shown.
Rear
Front
Map/Room Lamps
Automatic turn off function*
The interior lights automatically turn off approximately 30 seconds after the Engine Start/Stop button is OFF.
Map/Room Lamp Operation
Press the buttons A to turn the Map Lamps ON/OFF. This light produces a spot beam for convenient use as a map lamp or as a personal lamp for the driver or the front passenger.
When the button B is pressed, the following occurs:
•When any door or the liftgate is opened, the Map and Room Lamps turn ON
•When doors are unlocked from the Smart Key or key removed from ignition, the Map and Room Lamps turn ON for approximately 30 seconds or until a door is opened
•When doors are closed, the lamps will gradually turn OFF after approximately 30 seconds
•When all doors are locked or the ignition is turned ON, the Map Lamp will turn OFF immediately
When the button C is pressed, the lamps stay ON continuously.
Room Lamp – Press the lens D to turn the Room Lamp ON/OFF.
Sunvisor†2 4
Use the Sunvisor to shield direct light through the front or side windows. Slide the Sunvisor out and adjust as needed.
OTHER KEY FEATURES
B
AADD
C
OTHER KEY FEATURES
Page 59 of 64
*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 57
OTHER KEY FEATURES
B
REMINDERS:
•
When the Power Window Lock is depressed, the Rear Sunroof controls cannot operate the Rear Sunroof
•
The Sunshade needs to remain OPEN while the Sunroof is open and the vehicle is moving
•
Do not adjust the Sunroof or Sunshade while driving. This could result in loss of control of the vehicle
REMINDER: The Front Sunroof will automatically open all the way. The Rear Sunroof will only par tially open. To open all the way, slide the Rear Sunroof lever again.
To stop the Sunroof/Sunshade at any position, push or pull the Sunroof control lever in any direction.
QUICK TIP
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Sunroof Operation Video
QR CODE
FRONTREARFRONTREAR
REARREAR
FRONTREARFRONTREAR
REARREAR
(Rear overhead console for Rear Sunroof controls)
Sunroof Operation
The Sunroof and Sunshade operation is controlled through a multidirectional switch/lever. The ignition needs to be in the ON position to operate the Sunroof/Sunshade.
The front and rear Sunroof/Sunshade are operated from separate controls.
Front Sunshade and Sunroof Controls:
Auto Open: Slide lever A backward to the farthest position and release.
Auto Close (Sunroof only): Slide the lever A forward to the farthest position and release.
Slide the Sunroof (with Sunshade open):
Open: Press the Sunroof lever A backward and press again forward/backward until you reach the desired detent position (manual slide feature).
Close: Press the Sunroof lever A forward and press again forward/backward until you reach the desired detent position (manual slide feature)
Tilt the Sunroof:
To raise, push the lever A upward; to lower, push the lever A forward.
Rear Sunshade and Sunroof Controls:
Auto Open: Slide lever B backward to the farthest position and release.
Auto Close (Sunroof only): Slide the lever B forward to the farthest position and release.
Slide the Sunroof (with Sunshade open):
Open: Press the Sunroof lever B backward and press again forward/backward until you reach the desired detent position (manual slide feature).
Close: Press the Sunroof lever B forward and press again forward/backward until you reach the desired detent position (manual slide feature)
AB
(Front overhead console for Front & Rear Sunroof controls)
OTHER KEY FEATURES
Page 60 of 64
*IF EQUIPPED58CARNIVAL FEATURES & FUNCTIONS GUIDE
OTHER KEY FEATURES
C
F
Place the Fuel Cap on the inside of the Fuel Filler Door when fueling F.
QUICK TIP
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Kia Fuel Cap Video
Fuel Filler Door Video
QR CODE
(Lever located near floor below Driver's Panel) (Secondar y latch located inside lip of Hood)
Closing the Hood:
Lower the Hood by pressing the front center of the Hood. Then, press down to securely lock in place.
REMINDERS:
•While lowering and closing, keep hands away from under the Hood
•
Open the Hood only after turning the engine off, on a flat sur face, with the gear shift in P (Park) position and set ting the parking brake
Refer to section 4 in the Owner ’s Manual for more information.
Hood Release Lever and Latch
Opening the Hood:
1. Pull the Hood Release Lever A to unlatch the Hood
2. In the front of the vehicle, lift the Hood slightly, push the secondary Latch B to the left inside of the Hood’s center and lift the Hood
3. Pull out the support rod from the Hood and set into place to hold the Hood open
REMINDER: Open the Hood only after turning the engine off, on a flat sur face, with the gear shift in P (Park) position and set ting the parking brake.
Fuel Filler Door Release
To open the Fuel Filler door:
1. Ensure Driver ’s door is unlocked. Then press the right center edge of the Fuel Filler door C
2. Pull the Fuel Filler door out to fully open D
To open the Fuel Cap, turn it counterclockwise E.
REMINDERS:
•The fuel filler door will unlock when Driver ’s door is unlocked
•To unlock fuel filler door: -Press the unlock but ton on your smar t key -Press the Central Door unlock but ton on armrest trim of driver ’s door -Pull the driver ’s inside door handle out ward -The fuel filler door will lock when all doors are locked
•To lock fuel filler door: -Press the lock but ton on your smar t key -Press the Central Door lock but ton on armrest trim of driver ’s door -All doors and fuel filler door will automatically lock after the vehicle speed exceeds 9 mph
Refer to section 4 in the Owner ’s Manual for more information.
A
B
D
E
REMINDERS:
•
Vehicle must be unlocked first before at tempting to open fuel door
•
It is normal to hear one click when tightening and for the Fuel Cap to click back when released
Fuel Cap / Malfunction Indicator (Check Engine Light)
Tighten for ONE CLICK to prevent
Malfunction Indicator from illuminating.
Refer to section 4 in the Owner ’s Manual for more information.
OTHER KEY FEATURES
