TABLE OF CONTENTS
VIDEOS & QR CODES .........Inside Cover
INSTRUMENT CLUSTER
Instrument Cluster Overview ................03Indicators & Warning Lights .................04Tire Pressure Monitoring System (TPMS) .....05Fuel Economy / Tips for Economical Driving ...05Drive Mode Integrated Control System .......06ECO Mode (Active ECO) .....................06
VEHICLE SETTINGS
Instrument Cluster LCD Modes ..............07Trip Modes / Trip Computer .................07User Settings* - Instrument Cluster ...........08Vehicle Settings* - Infotainment System. . . . . . . 09Service Interval Mode ....................... 10Vehicle Auto Shut-Off* ...................... 10
ADVANCED DRIVER ASSISTANCE SYSTEM (ADAS)
Forward Collision-Avoidance Assist (FCA) .... 11Lane Keeping Assist (LK A) ................... 12Blind-spot Collision-Avoidance Assist (BCA) ... 13Blind-spot View Monitor (BVM) ............... 14Safe Exit Assist (SEA) ........................ 14Lane Following Assist (LFA) .................. 15Driver Attention Warning (DAW) .............. 16Leading Vehicle Departure Alert (LVDA)* ...... 17Smart Cruise Control (SCC)* ................. 18Navigation-based Smart Cruise Control (NSCC)* . 19Cruise Control (CC)* ......................... 19Intelligent Speed Limit Assist (ISL A)* .......... 20Highway Driving Assist (HDA)* ............... 21Rear View Monitor (RVM) .................... 22Surround View Monitor (SVM)* ............... 22Rear Cross-traffic Collision-Avoidance Assist (RCCA) ................................... 23Forward*/Reverse Parking Distance Warning (PDW) .................................... 24
DRIVER’S PANEL
Instrument Cluster Control .................. 25Electronic Stability Control (ESC) ............. 25Hill-start Assist Control (HAC) ................ 25Power Windows, Window Lock & Central Door Lock ....................... 26Power Folding Outside Mirrors* .............. 26Heated Outside Mirrors ..................... 26Automatic Door Lock/Unlock ................ 26Manual Folding Mirrors* ..................... 26Reverse Parking Aid Function* ............... 27Engine Start/Stop Button .................... 27
STEERING WHEEL CONTROLS
Tilt/Telescoping Steering Wheel .............. 28Headlights & High Beams .................... 28High Beam Assist (HBA) ..................... 28Turn Signals & Fog Lights* ................... 29Windshield Wipers & Washers ................ 29Lifting Wipers (Wiper Service Mode) .......... 29Rear Wiper & Washer ........................ 29
INFOTAINMENT SYSTEM
Bluetooth® Wireless Technology .............. 30Audio Controls .............................. 31Android Auto™ / Apple CarPlay® Setup ........ 32Standard Audio System - Value* .............. 33Kia Connect Activation* / Kia Connect Assistance* 34 Kia Access App Download ................... 35Kia Access App Features Guide .............. 35Kia Connect with Navigation* ................ 36
CENTER PANEL
Digital Clock - Infotainment System .......... 37USB Charger Ports, Multimedia USB Port, Power Outlets & AC Inverter ............... 37Automatic Climate Control* .................. 38Manual Climate Control* ..................... 40Wireless Smartphone Charging System* ...... 41Electronic Parking Brake (EPB) / Auto Hold ... 42
CENTER PANEL (CONTINUED)
Automatic Gear Shift / Sportmatic® Shifting* . . 43Heated Steering Wheel* ..................... 44Seat Warmers / Ventilated Seats* ............. 44
SEATING
Front Seat Headrest Adjustment ............. 45Driver Position Memory System* ............. 45Power Adjustable Driver ’s Seat* ..............46Manual Adjustable Driver ’s Seat* .............46 2nd-Row VIP Seats with Relaxation Mode* .... 47Unfastening Center Seat Belt ................ 47 2nd-Row Removable Seats* .................. 48 2nd-Row Tumble (Center) Seat* .............. 49 3rd-Row Seat - Access, Folding and Stowing* . . 50
OTHER KEY FEATURES
Rear Occupant Alert (ROA) with Ultrasonic Sensors .................... 51Smart Key with Remote Start ................ 52Lock/Unlock All Doors ....................... 52Power Liftgate* ............................. 53Smart Liftgate with Auto Open & Close* ....... 54Power Sliding Doors ......................... 55Smart Sliding Door with Auto Open* .......... 55Passenger View* / Passenger Talk* ........... 55Map / Room Lamps / Sunvisor ................ 56Sunroof Operation .......................... 57Hood Release Lever and Latch ............... 58Fuel Filler Door Release ...................... 58Fuel Cap/Malfunction Indicator .............. 58HomeLink® w/Auto-Dimming Rearview Mirror* 59
SAFETY FEATURES
Seat Belts .................................. 60Occupant Detection System (ODS) / Passenger Airbag Off Indicator ............60Child-Protector Rear Door Lock ..............60
LEGAL DISCLAIMERS ....Inside Back Cover
MAINTENANCE SCHEDULE . .Back Cover
*IF EQUIPPED2CARNIVAL FEATURES & FUNCTIONS GUIDE

*IF EQUIPPED4CARNIVAL FEATURES & FUNCTIONS GUIDE

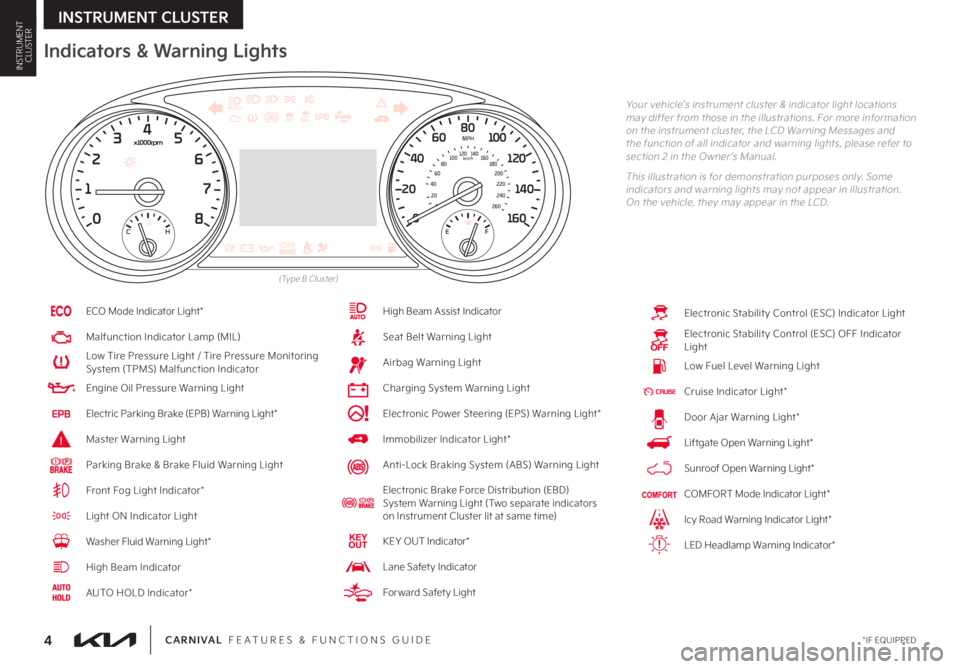

Indicators & Warning Lights
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations. For more information on the instrument cluster, the LCD Warning Messages and the function of all indicator and warning lights, please refer to section 2 in the Owner ’s Manual.
This illustration is for demonstration purposes only. Some indicators and warning lights may not appear in illustration. On the vehicle, they may appear in the LCD.
ECO Mode Indicator Light*
Malfunction Indicator Lamp (MIL)

Low Tire Pressure Light / Tire Pressure Monitoring System (TPMS) Malfunction Indicator
Engine Oil Pressure Warning Light
Electric Parking Brake (EPB) Warning Light*
Master Warning Light
Parking Brake & Brake Fluid Warning Light
Front Fog Light Indicator*
Light ON Indicator Light
Washer Fluid Warning Light*
High Beam Indicator
AUTO HOLD Indicator*
High Beam Assist Indicator
Seat Belt Warning Light
Airbag Warning Light
Charging System Warning Light
Electronic Power Steering (EPS) Warning Light*
Immobilizer Indicator Light*
Anti-Lock Braking System (ABS) Warning Light
Electronic Brake Force Distribution (EBD) System Warning Light (Two separate indicators on Instrument Cluster lit at same time)
KEY OUT Indicator*
Lane Safet y Indicator
For ward Safet y Light
Electronic Stabilit y Control (ESC) Indicator Light
Electronic Stabilit y Control (ESC) OFF Indicator Light
Low Fuel Level Warning Light
Cruise Indicator Light*
Door Ajar Warning Light*
Liftgate Open Warning Light*
Sunroof Open Warning Light*
COMFORT Mode Indicator Light*
Icy Road Warning Indicator Light*
LED Headlamp Warning Indicator*
CHE F
505
EPBAUTO
(Type B Cluster)
INSTRUMENT CLUSTER
INSTRUMENTCLUSTER

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS.
Low Tire Pressure
24
36 36
36
Tire Pressure Monitoring System (TPMS)†2 0
The TPMS indicator functions as both Low Tire Pressure Light and TPMS Malfunction Indicator.
The indicator is designed to illuminate if it detects one or more tires is significantly underinflated, the vehicle has a spare tire installed without TPMS or the outside temperature becomes significantly lower.
Inflate tire to specifications using an accurate digital tire pressure gauge to turn off the Low Tire Pressure Light . See the front driver ’s door jamb for PSI specification.
The Low Tire Pressure Position Indicator A is displayed on the LCD screen in the Instrument Cluster when the tire is underinflated.
When there is a problem with the TPMS, the TPMS Malfunction Indicator will blink for approximately one minute and then illuminate. See dealer for service.
Refer to section 6 in the Owner ’s Manual for more information.
Fuel Economy / Tips for Economical Driving
There are several factors that contribute to your vehicle’s fuel economy, such as maintenance of your vehicle, driving style, environmental conditions, vehicle weight and vehicle aerodynamics. Below are some tips on how to help improve fuel economy:
•Use the climate control system less often. Use the Driver Only* setting as much as possible
•Keep your vehicle in good condition with regular maintenance
•Don’t let the engine idle longer than necessary
•Drive at a moderate speed, accelerating smoothly and at a moderate rate
•Keep tires inflated to the recommended pressure
•Travel lightly, without carrying unnecessary weight in your vehicles
•Avoid placing large or heavy items on roof racks
•Avoid hilly, winding or poorly maintained roads
REMINDERS:
•
Check the recommended tire pressure label located on the left side of driver ’s door jamb, visible when the door is opened
•
Consult your dealer for ser vice if the Low Tire Pressure Light remains illuminated after inflating your tire
•
Personal electronic devices (such as laptops, wireless chargers, remote star t systems, etc.) may inter fere with the TPMS system, which may cause the Malfunction Warning Indicator (Check Engine Light) to illuminate
This illustration is for demonstration purposes only. Actual image on vehicle may var y.
Refer to section 4 in the Owner ’s Manual for more information or snap the QR Code above to view a video.
INSTRUMENT CLUSTER
•Even with TPMS, tire pressure should be checked manually at least once a month. Only adjust tire pressure on “cold tires” that have been sit ting for 3 hours or more, and tires that are not hot in temperature from direct sunlight or heat
•For proper maintenance and optimal fuel economy, maintain recommended tire inflation pressures and stay within the load limits and weight distribution recommended for your vehicle
•A significant drop in temperature can cause tire inflation pressures to drop, which may activate the TMPS light. Manually confirm tire pressures after significant changes in temperature or altitude.
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Tire Pressure Monitoring System Video
QR CODES
Tips for Economical Driving Video
A
5
INSTRUMENTCLUSTER

6
DRIVE
MODE AUTO
HOLD
(Located on Center Panel below Gear Shift)*
Drive Mode Integrated Control System
The Drive Mode may be selected depending on the driver ’s preferences and road conditions.
To cycle through the different Drive Modes A, press the DRIVE MODE button B. The Instrument Cluster will display ECO, SPORT or SMART when selected. When in Normal mode, it will not display in the Instrument Cluster.
REMINDERS:
•
NORMAL mode is the default mode when ignition is cycled, except when in ECO mode, Drive Mode will return to ECO mode
•
The system is turned ON and in NORMAL mode when the ignition is in the ON position
•
When ECO mode is selected, the indicator will display and the system remains on, even when the ignition is cycled
•
Steering effor t may be slightly increased in SPORT or SMART mode
ECO Mode (Active ECO)*
The Active ECO system is designed to help improve fuel economy by controlling several vehicle components. When activated, it can help optimize drivetrain operations such as engine power and transmission to help improve fuel economy.
To turn ON, press the DRIVE MODE button B and scroll through the options until in the ECO mode. The green ECO indicator light in the instrument cluster will illuminate, indicating that Active ECO is operating.
The Active ECO system will remain on even when the ignition is cycled.
To turn Active ECO OFF, press the DRIVE MODE button B again and change to another mode.
Image is for illustrative purposes only and may not reflect actual feature or operation. Refer to section 5 in the Owner ’s Manual for more information.
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Drive Mode Integrated Control System Video
ANORMALECOSPORTSMART
DRIVE
MODE AUTO
HOLD •To help improve your fuel economy:
-Drive at a moderate speed, accelerating smoothly and at a moderate rate
-Keep tires inflated to the recommended pressure
-Be sure the wheels are properly aligned
QUICK TIPS
Your vehicle’s but tons may differ from those in the illustrations. Refer to section 5 in the Owner ’s Manual for more information.
B
QR CODE
CARNIVAL FEATURES & FUNCTIONS GUIDE*IF EQUIPPED
INSTRUMENT CLUSTER
INSTRUMENTCLUSTER

8
User Settings* - Instrument Cluster
To enter the User Settings mode in the Instrument Cluster, press the Mode button A when the vehicle is at a standstill and with the Engine Start/Stop button in the ON position and select User Settings by pressing the OK button B.
You can navigate the selections on the display by pressing the OK button B up or down, and then selecting the item by pressing the OK button B again.
MODE
MODE
MODE
MODE
MODE
MODE MODE
MODE
MODE
OKOK
OK
OK
OK
OK
OK
OK
Drive mode (Return button)Cruise Control
Bluetooth Eco L FA
User Settings
HDA
Audio LV DA MSLA - ISLA
MODE
Smart Cruise Control
OK
ROA
MODE
HDA
OK
OK
Some set tings in cer tain models may be available through the audio head unit screen. See section 4 in the Owner ’s Manual or the Car Infotainment System Quick Reference Guide.
CARNIVAL FEATURES & FUNCTIONS GUIDE*IF EQUIPPED
VEHICLE SETTINGS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Vehicle & User Settings Video
QR CODES
A
B
User Settings Modes:
Driver Assistance*
• Driving Convenience
• Speed Limit: Speed Limit Offset/ Speed
Limit Assist/Speed Limit Warning/Off
• Warning Timing: Standard/Late
• Warning Volume: High/Medium/Low
• Driver Attention Warning: Leading Vehicle
Departure Alert/Inattentive Driving
• Forward Safety: Active Assist/
Warning Only/Off
• Lane Safety: Assist/ Warning Only/Off
• Blind-spot Safety: Blind-spot View, Safe
Exit Assist, Safe Exit Warning, Active
Assist/ Warning Only/Off
• Parking Safety: Surround View Monitor
Auto On, Parking Distance Warning Auto
On, Rear Cross-traffic Safety, Rear Active
Assist/Rear Warning Only/Off
Cluster
• Wipers/Lights Display
• Traffic Signs
• Ice Road Warning
• Cluster Voice Guidance System
• Welcome Sound
• Wallpaper: A/B/C
Lights
• Illumination
• One-Touch Turn Signal: 3/5/7 flashes/off
• Headlight Delay
• High Beam Assist
Door
• Automatically Lock
• Automatically Unlock
• 2-Press Unlock
• Horn Feedback
• Power Liftgate Opening Speed
• Power Liftgate Opening Height
• Liftgate Auto Close
• Smart Liftgate
• Smart Sliding Door
• Remote Power Doors & Liftgate*
Convenience
• Seat Easy Access*
• Rear Occupant Alert
• Welcome Mirror/Light
• Vehicle Auto Shut-off*
• Wireless Charging System*
• Auto Rear Wiper (in R)
• Service Interval
• Oil Change Reminder
Units
• Speedometer Unit*
• Fuel Economy Unit
• Temperature Unit*
• Tire Pressure Unit
Language
• To select the language
Reset
• Reset to factory defaults (except
language and service interval)
(Buttons located on right side of steering wheel)
VEHICLESETTINGS
