Maintenance
68
7
Memory fuse
Your vehicle is equipped with a memory
fuse to prevent battery discharge if your
vehicle is parked without being operated
for prolonged periods. Use the following
procedures before parking the vehicle for
prolonged periods.
1. Turn off the engine.
2. Turn off the headlights and tail lights.
3. Open the driver’s side panel cover and
pull up the memory fuse.
✽✽ NOTICE
 If the memory fuse is pulled up from the fuse panel, the warning chime,
audio, clock and interior lamps, etc.,
will not operate. Some items must be
reset after replacement. Refer to
“Battery” in this section.
 Even though the memory fuse is
pulled up, the battery can still be dis-
charged by operation of the head-
lights or other electrical devices.
Engine compartment panel fuse replacement
1. Turn the ignition switch and all other switches off.
2. Remove the fuse box cover by press- ing the tab and pulling up the cover.
OED066010
OFD079039E/OED066005
Diesel only

769
Maintenance
3. Check the removed fuse; replace it if itis blown. To remove or insert the fuse, use the fuse puller in the engine com-
partment fuse panel.
4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
If it fits loosely, consult an authorized
KIA dealer.
Main fuse
If the main fuse is blown, it must be
removed as follows:
1. Disconnect the negative battery cable.
2. Remove the nuts shown in the pictureabove.
3. Replace the fuse with a new one of the same rating.
4. Reinstall in the reverse order of removal.
✽✽ NOTICE
If the main fuse is blown, consult an
Authorized KIA dealer.
CAUTION
After checking the fuse panel in the engine compartment, securely
install the fuse panel cover. If not,electrical failures may occur fromwater leaking in.OED070102

Maintenance
70
7
✽✽

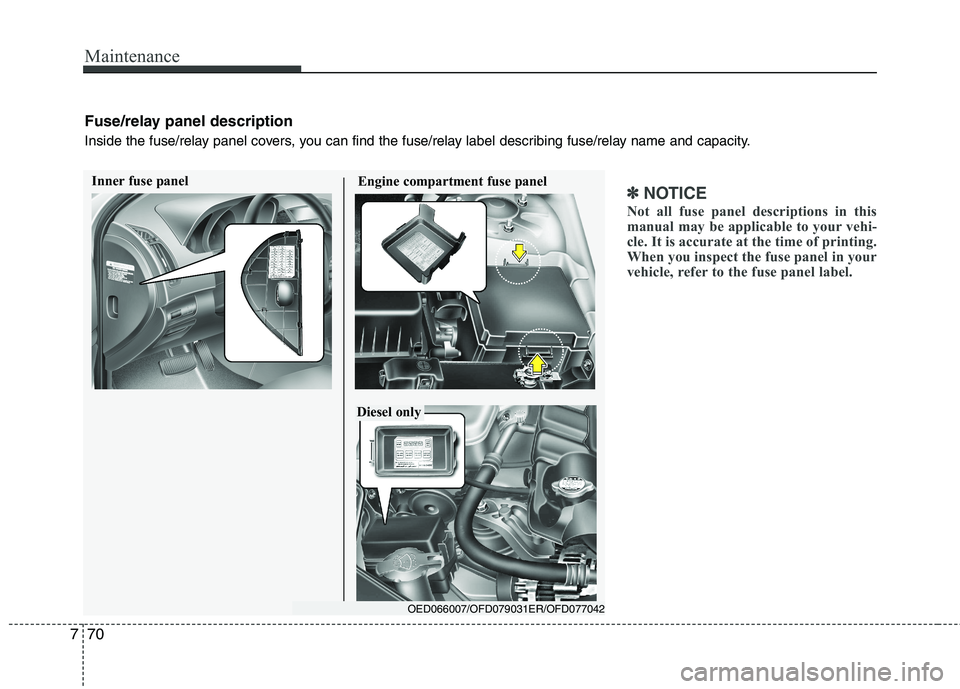

NOTICE
Not all fuse panel descriptions in this
manual may be applicable to your vehi-
cle. It is accurate at the time of printing.
When you inspect the fuse panel in your
vehicle, refer to the fuse panel label.Inner fuse panel Engine compartment fuse panel
OED066007/OFD079031ER/OFD077042
Diesel only
Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

771
Maintenance
Inner fuse panel
Description Fuse rating Protected componentSTART 10A Start motor solenoid
A/CON SW 10A Air-conditioning system HTD MIRR 10A Outside review mirror defrosterSEAT HTR 15A Seat warmer A/CON 10A Air-conditioning system
HEAD LAMP 10A Headlight FR WIPER 25A Wiper (front)
RR WIPER 15A Rear wiper DRL OFF - Daytime running light offRR FOG 10A Fog light (rear)
P/WDW (LH) 25A Power window (left) CLOCK 10A Clock
C/LIGHTER 15A Cigar lighter DR LOCK 20A Sunroof, Door lock/unlockDEICER 15A Front deicer STOP 15A Stop lamp switch
ROOM LP 15A Room lamp AUDIO 15A Audio, Trip ComputerT/LID 15A Tailgate, Folding mirror
SAFETY P/WDW RH 25A Safety power window (right) SAFETY P/WDW LH 25A Safety power window (left) P/WDW(RH) 25A Power window (right)P/OUTLET 15A Power outlet T/SIG 10A Switch module

Maintenance
72
7
Description Fuse rating Protected component
A/BAG IND 10A Air bag indicatorCLUSTER 10A Cluster, TPMS A/BAG 15A Air bag
TAIL RH 10A Tail light (right) TAIL LH 10A Tail light (left) MDPS 15A Motor driven power steering
RR_P/OUTLET 15A Rear power outlet

773
Maintenance
Engine compartment fuse panel
Description Fuse rating Protected componentB+
2 50A I/P Junction Box (S/ROOF 20A, DR LOCK 20A, STOP 15A, T/LID 15A, Power Connector - ROOM 10A,
AUDIO 15A, DEICER 15A, RR P/OUTLET 15A)
B +
1 50A I/P Junction Box (Relay - Power Window, Fuse - P/WDW LH 25A, P/WDW RH 25A, HAZARD 15A),
RR FOG 10A, Relay - Tail Lamp, Fuse - TAIL LH 10, TAIL RH 10A)
C/FAN 40A C/Fan Relay (High), C/Fan Relay (Low) ALT 150A Alternator
ABS 2 20A ABS Control Module, ESP Control Module
ABS 1 40A ABS Control Module, ESP Control Module
RR HTD 40A I/P Junction Box (RR HTD RLY)
BLOWER 40A Blower motor MDPS 80A Motor Driven Power Steering moduleIGN 2 40A Ignition Switch (IG2, START)
ECU 4 20A ECU, ISA, EEGR
F/PUMP 15A Fuel Pump Relay IGN 1 30A Ignition Switch (IG1, ACC)H/LP 20A Head Lamp (High)
F/FOG 15A Front fog HORN 15A Horn
H/LP LO RH 10A Head Lamp RH H/LP LO LH 10A Head Lamp LH, Instrument Cluster (Low Beam Indicator) ABS 10A ABS Control Module, ESP Control Module

Maintenance
74
7

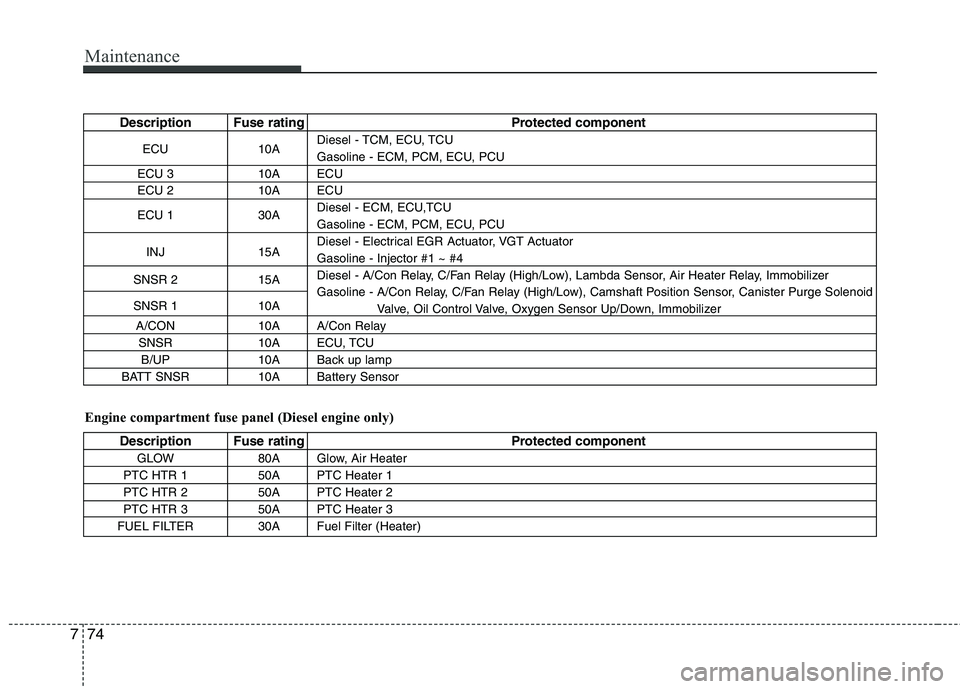

Description Fuse rating Protected component
ECU 10A Diesel - TCM, ECU, TCU
Gasoline - ECM, PCM, ECU, PCU
ECU 3 10A ECU
ECU 2 10A ECU
ECU 1 30A Diesel - ECM, ECU,TCU
Gasoline - ECM, PCM, ECU, PCU
INJ 15A Diesel - Electrical EGR Actuator, VGT Actuator
Gasoline - Injector #1 ~ #4
SNSR 2 15A Diesel - A/Con Relay, C/Fan Relay (High/Low), Lambda Sensor, Air Heater Relay, Immobilizer
SNSR 1 10A Gasoline - A/Con Relay, C/Fan Relay (High/Low), Camshaft Position Sensor, Canister Purge Solenoid
Valve, Oil Control Valve, Oxygen Sensor Up/Down, Immobilizer
A/CON 10A A/Con Relay SNSR 10A ECU, TCU B/UP 10A Back up lamp
BATT SNSR 10A Battery Sensor
Engine compartment fuse panel (Diesel engine only)
Description Fuse rating Protected component GLOW 80A Glow, Air Heater
PTC HTR 1 50A PTC Heater 1
PTC HTR 2 50A PTC Heater 2
PTC HTR 3 50A PTC Heater 3
FUEL FILTER 30A Fuel Filter (Heater)

775
Maintenance
LIGHT BULBS
Use only the bulbs of the specifiedwattage.
✽✽ NOTICE
After heavy, driving rain or washing,
headlight and taillight lenses could
appear frosty. This condition is caused by
the temperature difference between the
lamp inside and outside. This is similar
to the condensation on your windows
inside your vehicle during the rain and
doesn’t indicate a problem with your
vehicle. If the water leaks into the lamp
bulb circuitry, have the vehicle checked
by an authorized KIA dealer.
Headlight, position light, turn signal
light, front fog light bulb replacement
(1) Headlight (Low) (2) Headlight (High)
(3) Position light
(4) Front turn signal light
(5) Front fog light (if equipped)
WARNING - Working on
the lights
Prior to working on the light, firmly
apply the parking brake, ensure
that the ignition switch is turned tothe LOCK position and turn off the
lights to avoid sudden movement
of the vehicle and burning your fin-
gers or receiving an electric shock.
CAUTION
Be sure to replace the burned-out bulb with one of the same wattagerating. Otherwise, it may cause
damage to the fuse or electric wiring system.
CAUTION
If you don’t have necessary tools,the correct bulbs and the expertise,
consult an authorized KIA dealer. Inmany cases, it is difficult to replacevehicle light bulbs because other parts of the vehicle must be
removed before you can get to thebulb. This is especially true if youhave to remove the headlight
assembly to
get to the bulb(s).
Removing/installingthe headlight
assembly can result in damage to the vehicle.
OED070103
* The actual lamp in the vehicle may differ from the illustration.
Type A
OED076044
Type B
