Maintenance
100
7
OMD051055L

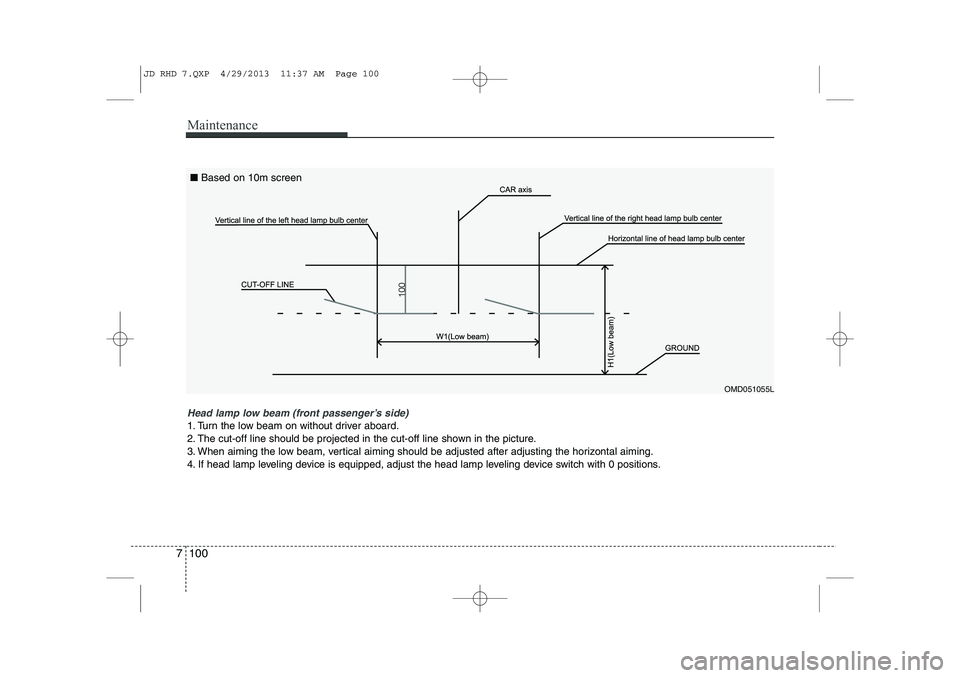

Head lamp low beam (front passenger’s side)
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions. ■
Based on 10m screen
JD RHD 7.QXP 4/29/2013 11:37 AM Page 100

7 101
Maintenance

OGDE071056-JD

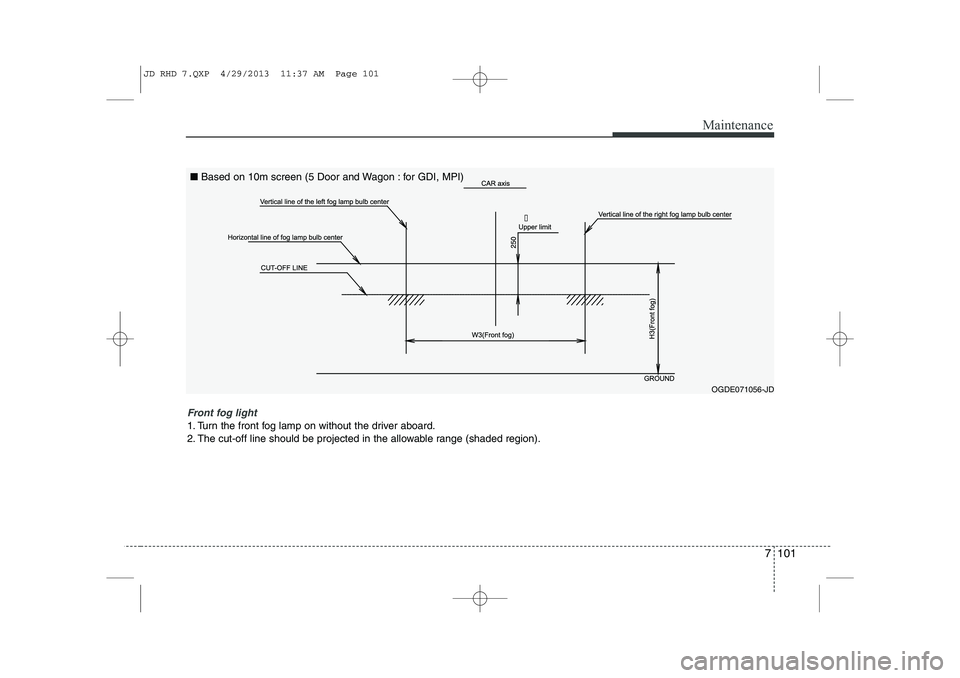

Front fog light
1. Turn the front fog lamp on without the driver aboard.
2. The cut-off line should be projected in the allowable range (shaded region).■
Based on 10m screen (5 Door and Wagon : for GDI, MPI)
JD RHD 7.QXP 4/29/2013 11:37 AM Page 101

Maintenance
102
7

OGDE071056-JD1

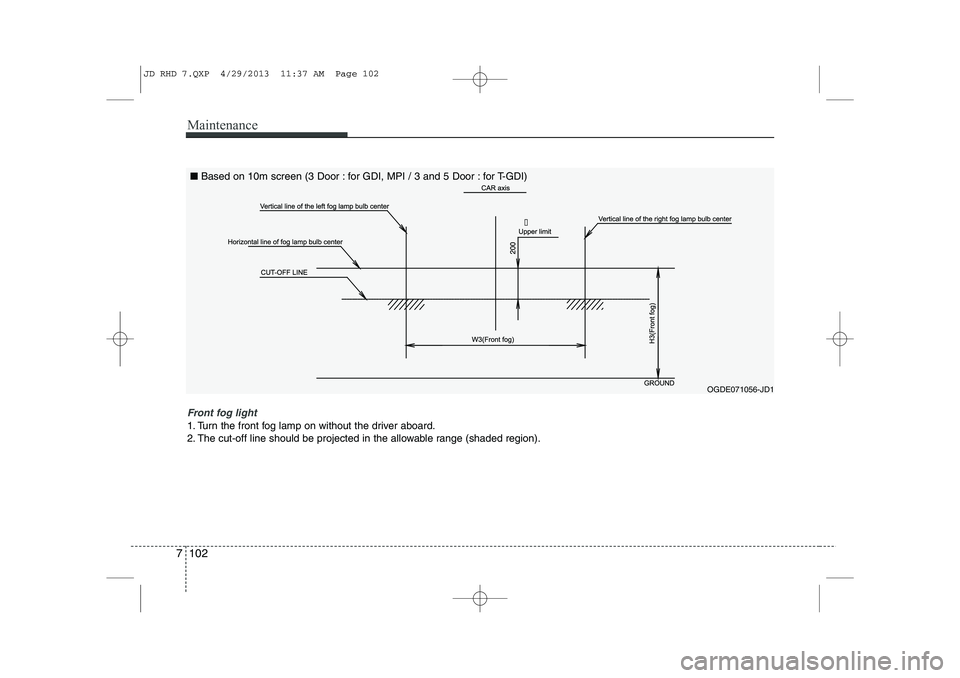

Front fog light
1. Turn the front fog lamp on without the driver aboard.
2. The cut-off line should be projected in the allowable range (shaded region). ■
Based on 10m screen (3 Door : for GDI, MPI / 3 and 5 Door : for T-GDI)
JD RHD 7.QXP 4/29/2013 11:37 AM Page 102

7 103
Maintenance
Side repeater light bulb replace- ment
If the light bulb does not operate, we rec-
ommend that the system be checked by
an authorised Kia dealer.(1) Rear turn signal light (2) Stop/tail light
(3) Back-up light (for 3 Door and 5 Door)
(4) Tail light or stop/tail light (for LED type) (5) Rear fog light (for 5 Door), Rear fog
light (Driver’s side) or back-up light
(Passenger’s side), (for wagon)
(6) Rear fog light (for 3 Door)
(7) Stop light (for 3 Door)
(8) Tail light (for 3 Door)
OJD072029/H

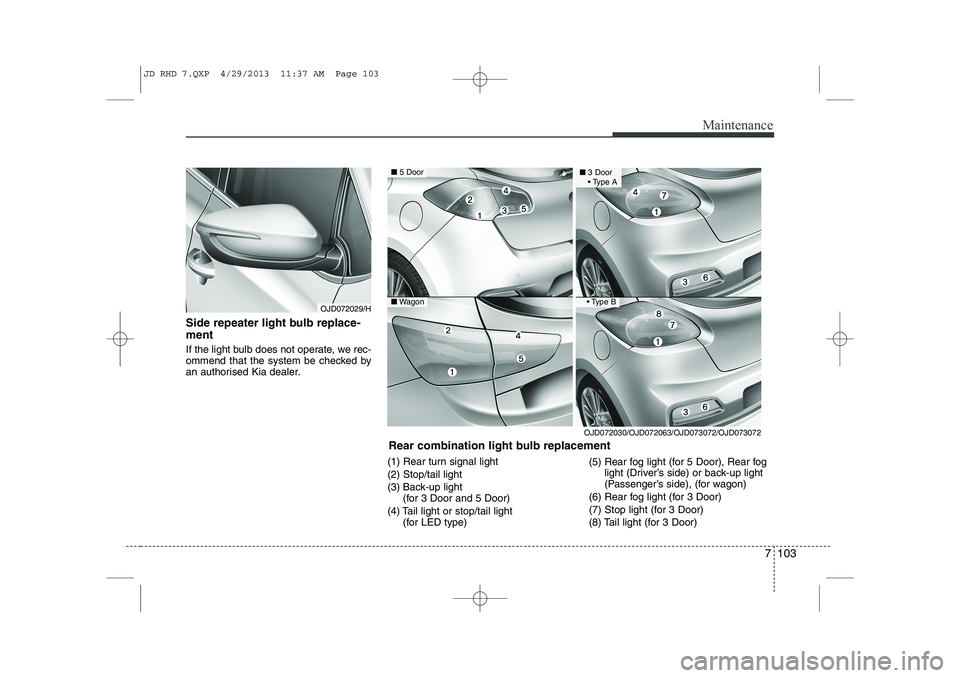

Rear combination light bulb replacement
■5 Door
■Wagon
■ 3 Door
 Type A
 Type B
OJD072030/OJD072063/OJD073072/OJD073072
JD RHD 7.QXP 4/29/2013 11:37 AM Page 103

Maintenance
104
7
❈ The actual rear combination lamp shape in
the vehicle may differ from illustration.
Outside light

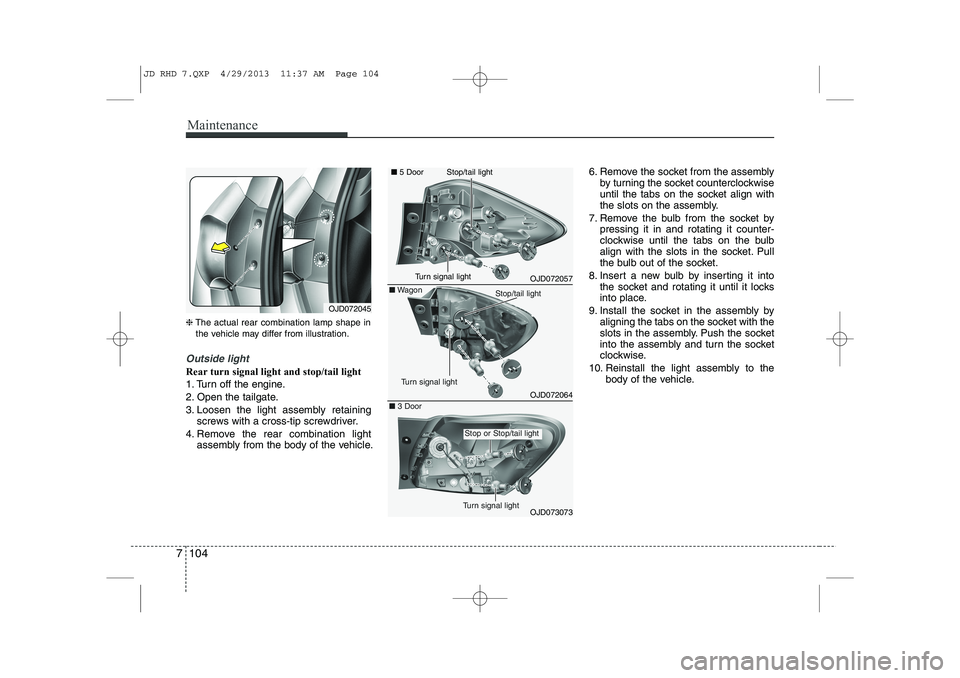

Rear turn signal light and stop/tail light
1. Turn off the engine.
2. Open the tailgate.
3. Loosen the light assembly retaining
screws with a cross-tip screwdriver.
4. Remove the rear combination light assembly from the body of the vehicle. 6. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
7. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
8. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
9. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
10. Reinstall the light assembly to the body of the vehicle.
OJD072045
OJD072057
OJD072064
■
5 Door
■Wagon
OJD073073
■ 3 Door
Turn signal light
Stop/tail light
Stop or Stop/tail light
Turn signal light
Stop/tail light
Turn signal light
JD RHD 7.QXP 4/29/2013 11:37 AM Page 104

7 105
Maintenance
Stop and tail light or tail light (LED type)
If the light does not operate, we recom-
mend that the system be checked by an
authorised Kia dealer.
Inside light (5 Door and Wagon)
1. Turn off the engine.
2. Open the tailgate.
3. Remove the service cover using a flat-blade screwdriver. ❈
These below steps (4~6) only for the 5 Door
vehicle.
4. Loosen the retaining nuts.
5. Disconnect the power connector.
6. Remove the rear combination light assembly from the body of the vehicle.
OJD072047OJD072048
JD RHD 7.QXP 4/29/2013 11:37 AM Page 105

Maintenance
106
7
❈ Rear fog light is located only on the driver’s
side (for wagon) Tail light or tail and stop light (Bulb type)
7. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
8. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
9. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
10. Install the socket in the assembly by aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.

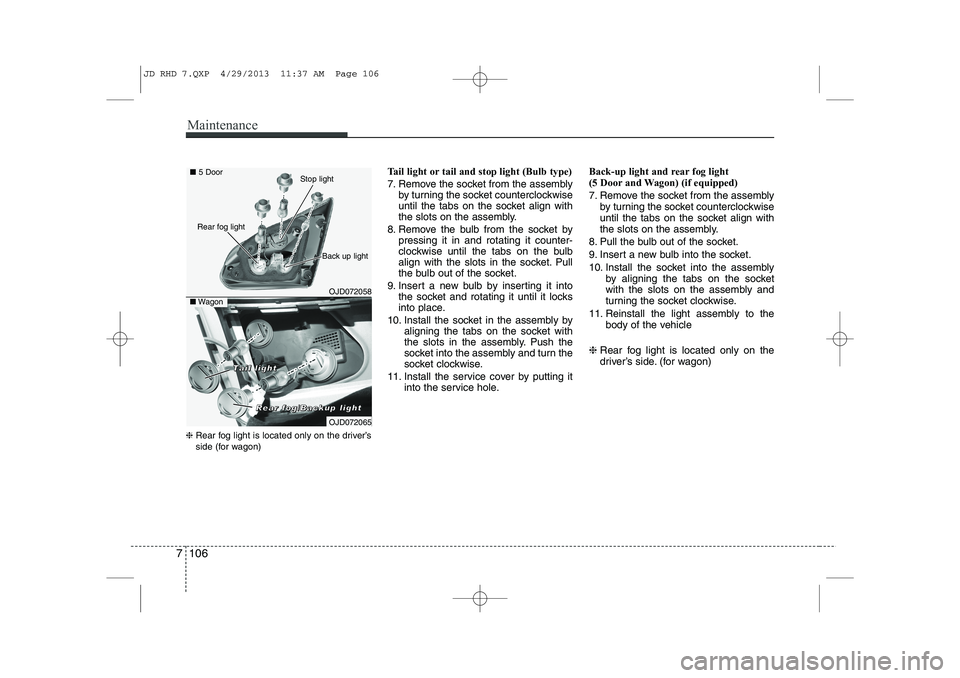

11. Install the service cover by putting it into the service hole. Back-up light and rear fog light
(5 Door and Wagon) (if equipped)
7. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
8. Pull the bulb out of the socket.
9. Insert a new bulb into the socket.
10. Install the socket into the assembly by aligning the tabs on the socket
with the slots on the assembly and
turning the socket clockwise.
11. Reinstall the light assembly to the body of the vehicle
❈ Rear fog light is located only on the
driver’s side. (for wagon)
OJD072058
■5 Door
■Wagon
Rear fog light
Back up light
Stop light
OJD072065
RRRReeeeaaaarrrr ffffoooogggg////BBBBaaaacccckkkkuuuupppp lllliiiigggghhhhtttt
TTTTaaaaiiiillll lllliiiigggghhhhtttt
JD RHD 7.QXP 4/29/2013 11:37 AM Page 106

7 107
Maintenance

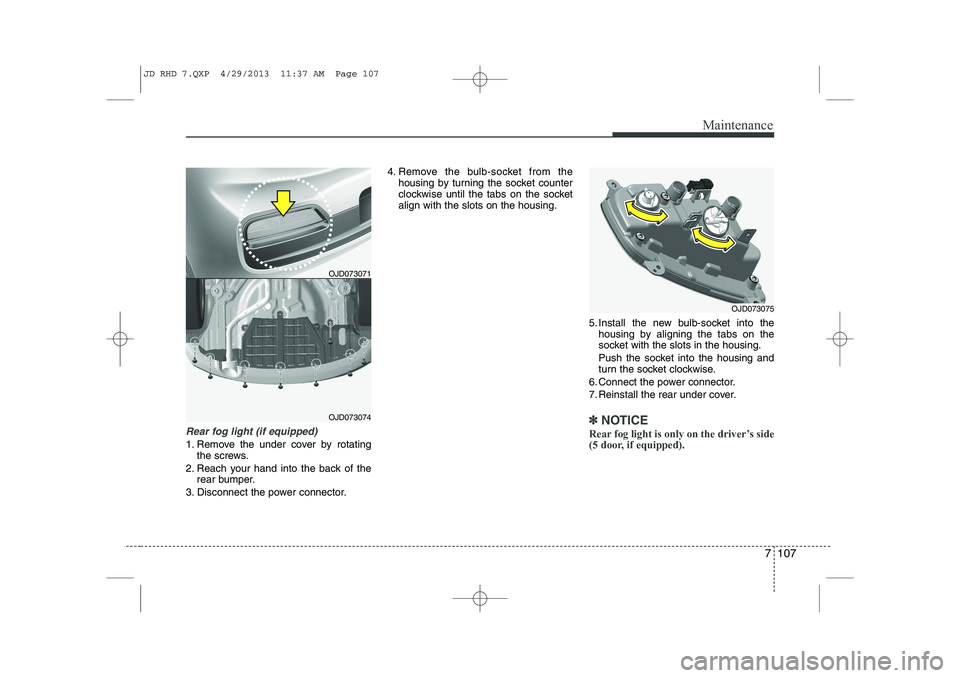

Rear fog light (if equipped)
1. Remove the under cover by rotatingthe screws.
2. Reach your hand into the back of the rear bumper.
3. Disconnect the power connector. 4. Remove the bulb-socket from the
housing by turning the socket counter
clockwise until the tabs on the socketalign with the slots on the housing.
5. Install the new bulb-socket into thehousing by aligning the tabs on the
socket with the slots in the housing.
Push the socket into the housing and
turn the socket clockwise.
6. Connect the power connector.
7. Reinstall the rear under cover.
✽✽ NOTICE
Rear fog light is only on the driver’s side
(5 door, if equipped).
OJD073075
OJD073071 OJD073074
JD RHD 7.QXP 4/29/2013 11:37 AM Page 107

Maintenance
108
7
Tail light or stop and tail light (LED type)
If the light does not operate, we recom-
mend that the system be checked by an
authorised Kia dealer.
High mounted stop light bulb replacement
If the light does not operate, we recom-
mend that the system be checked by an
authorised Kia dealer.License plate light bulb replace- ment
1. Turn off the engine.
2. Remove the bulb assembly by press-
ing the tabs.
3. Remove the socket by turning it coun- terclockwise.
4. Remove the bulb by pulling it straight out.
5. Install a new bulb.
6. Reinstall the bulb assembly securely with the retaining screws.
OJD072037OGD071046
JD RHD 7.QXP 4/29/2013 11:37 AM Page 108

7 109
Maintenance

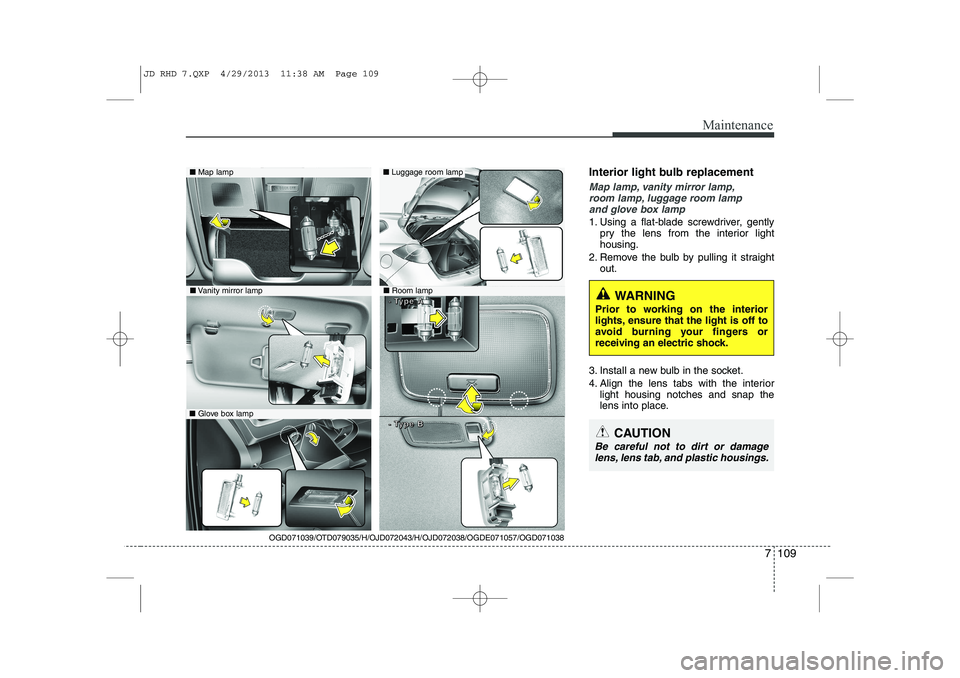

Interior light bulb replacement
Map lamp, vanity mirror lamp,room lamp, luggage room lamp and glove box lamp
1. Using a flat-blade screwdriver, gently pry the lens from the interior light housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior light housing notches and snap the
lens into place.
■Map lamp
■Glove box lamp
■Vanity mirror lamp
■ Luggage room lamp
■Room lamp
OGD071039/OTD079035/H/OJD072043/H/OJD072038/OGDE071057/OGD071038 ---- TTTTyyyyppppeeee AAAA
---- TTTTyyyyppppeeee BBBB
WARNING
Prior to working on the interior
lights, ensure that the light is off to
avoid burning your fingers or
receiving an electric shock.
CAUTION
Be careful not to dirt or damage lens, lens tab, and plastic housings.
JD RHD 7.QXP 4/29/2013 11:38 AM Page 109
