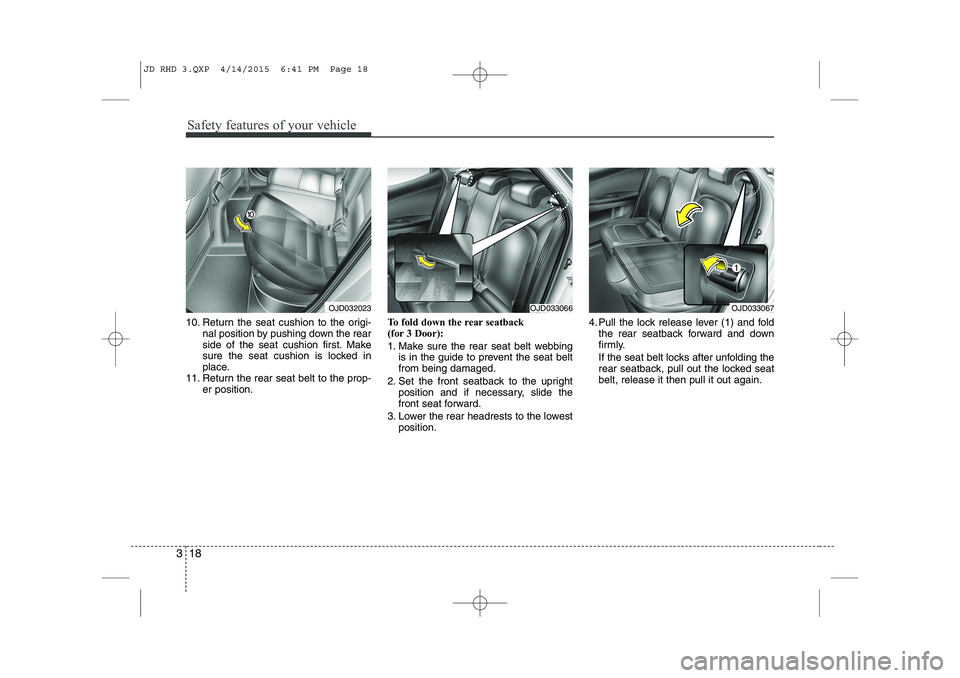

Safety features of your vehicle
18
3
10. Return the seat cushion to the origi-
nal position by pushing down the rear
side of the seat cushion first. Make
sure the seat cushion is locked in
place.
11. Return the rear seat belt to the prop- er position. To fold down the rear seatback
(for 3 Door):
1. Make sure the rear seat belt webbing
is in the guide to prevent the seat belt from being damaged.
2. Set the front seatback to the upright position and if necessary, slide the
front seat forward.
3. Lower the rear headrests to the lowest position. 4. Pull the lock release lever (1) and fold
the rear seatback forward and down
firmly.
If the seat belt locks after unfolding the
rear seatback, pull out the locked seatbelt, release it then pull it out again.
OJD032023OJD033066OJD033067
JD RHD 3.QXP 4/14/2015 6:41 PM Page 18

333

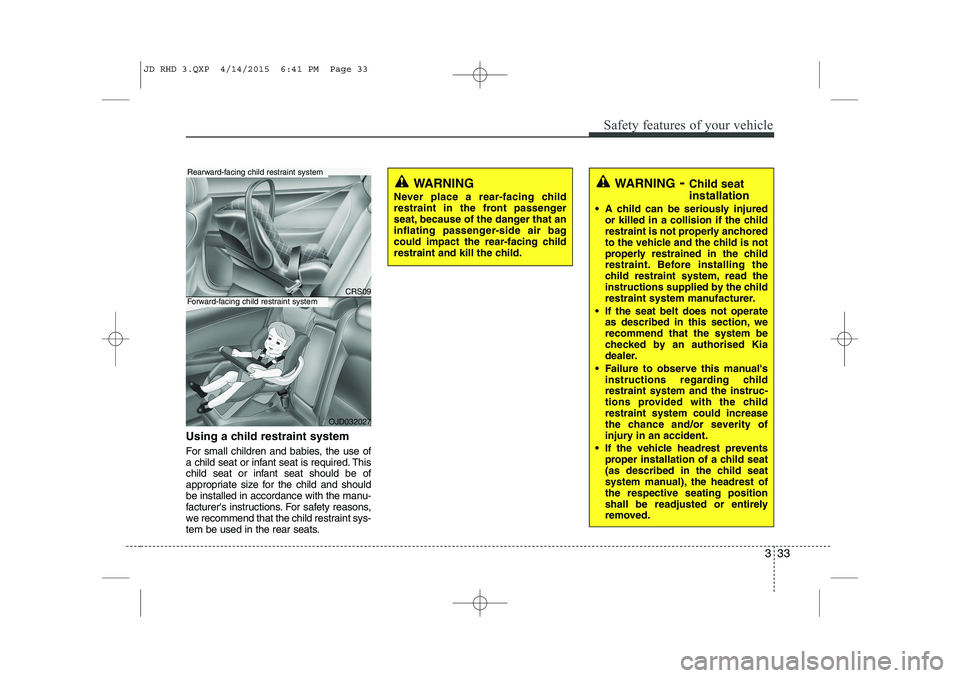

Safety features of your vehicle
Using a child restraint system
For small children and babies, the use of
a child seat or infant seat is required. This
child seat or infant seat should be of
appropriate size for the child and should
be installed in accordance with the manu-
facturer's instructions. For safety reasons,
we recommend that the child restraint sys-
tem be used in the rear seats.
WARNING- Child seat installation
 A child can be seriously injured or killed in a collision if the child
restraint is not properly anchored
to the vehicle and the child is not
properly restrained in the child
restraint. Before installing the
child restraint system, read the
instructions supplied by the child
restraint system manufacturer.
 If the seat belt does not operate as described in this section, werecommend that the system be
checked by an authorised Kia
dealer.
 Failure to observe this manual's instructions regarding childrestraint system and the instruc-
tions provided with the childrestraint system could increase
the chance and/or severity of
injury in an accident.
 If the vehicle headrest prevents proper installation of a child seat
(as described in the child seat
system manual), the headrest ofthe respective seating position
shall be readjusted or entirely
removed.WARNING
Never place a rear-facing child
restraint in the front passenger
seat, because of the danger that an
inflating passenger-side air bag
could impact the rear-facing child
restraint and kill the child.
CRS09
OJD032027
Rearward-facing child restraint system
Forward-facing child restraint system
JD RHD 3.QXP 4/14/2015 6:41 PM Page 33

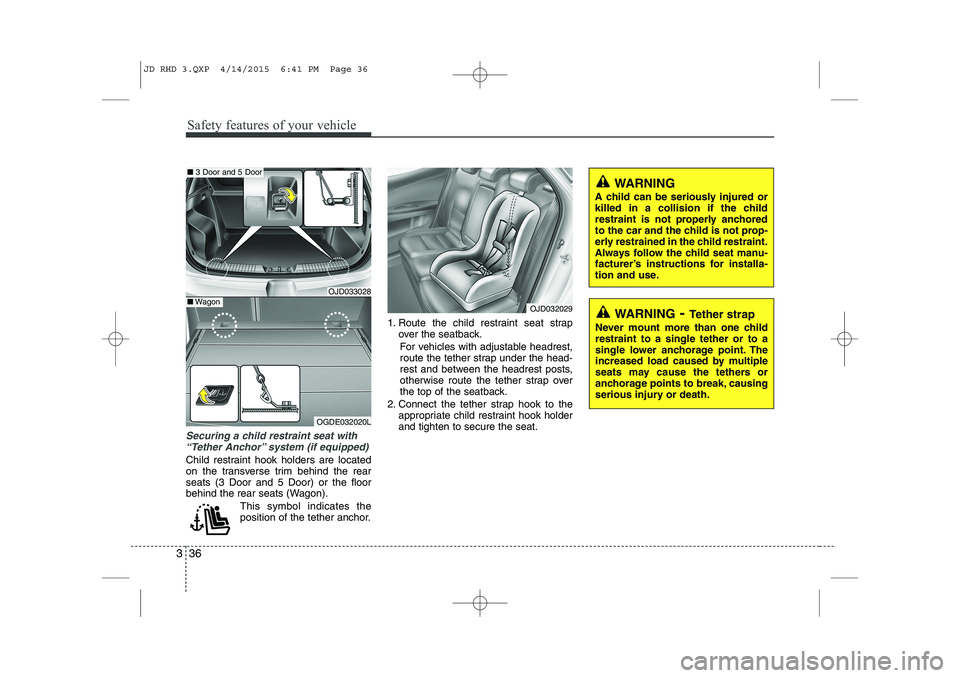

Safety features of your vehicle
36
3
Securing a child restraint seat with
“Tether Anchor” system (if equipped)
Child restraint hook holders are located
on the transverse trim behind the rearseats (3 Door and 5 Door) or the floor
behind the rear seats (Wagon).
This symbol indicates the
position of the tether anchor. 1. Route the child restraint seat strap
over the seatback.
For vehicles with adjustable headrest,
route the tether strap under the head-
rest and between the headrest posts,
otherwise route the tether strap over
the top of the seatback.
2. Connect the tether strap hook to the appropriate child restraint hook holderand tighten to secure the seat.
OJD032029WARNING - Tether strap
Never mount more than one child restraint to a single tether or to a
single lower anchorage point. The
increased load caused by multiple
seats may cause the tethers or
anchorage points to break, causing
serious injury or death.
WARNING
A child can be seriously injured or
killed in a collision if the child
restraint is not properly anchored
to the car and the child is not prop-
erly restrained in the child restraint.
Always follow the child seat manu-
facturer’s instructions for installa-
tion and use.
OJD033028
OGDE032020L
■ 3 Door and 5 Door
■Wagon
JD RHD 3.QXP 4/14/2015 6:41 PM Page 36

4 163

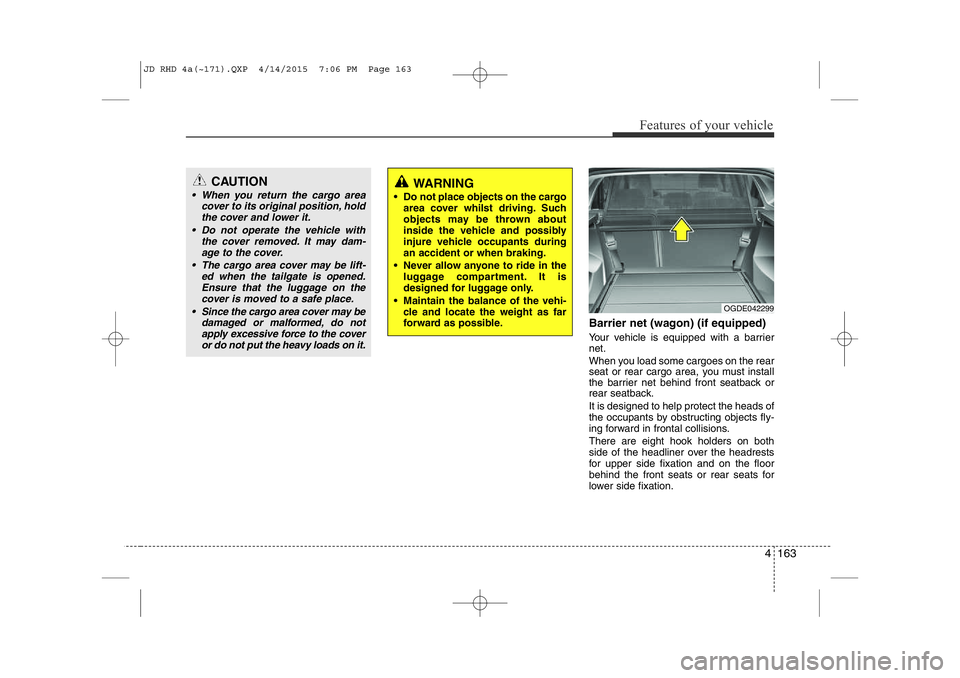

Features of your vehicle
Barrier net (wagon) (if equipped)
Your vehicle is equipped with a barrier net.
When you load some cargoes on the rear
seat or rear cargo area, you must install
the barrier net behind front seatback or
rear seatback. It is designed to help protect the heads of
the occupants by obstructing objects fly-
ing forward in frontal collisions. There are eight hook holders on both
side of the headliner over the headrests
for upper side fixation and on the floor
behind the front seats or rear seats for
lower side fixation.
CAUTION
• When you return the cargo areacover to its original position, holdthe cover and lower it.
• Do not operate the vehicle with the cover removed. It may dam-
age to the cover.
• The cargo area cover may be lift- ed when the tailgate is opened.Ensure that the luggage on the cover is moved to a safe place.
• Since the cargo area cover may be damaged or malformed, do not
apply excessive force to the cover or do not put the heavy loads on it.WARNING
• Do not place objects on the cargo area cover whilst driving. Such
objects may be thrown about
inside the vehicle and possibly
injure vehicle occupants duringan accident or when braking.
• Never allow anyone to ride in the luggage compartment. It is
designed for luggage only.
• Maintain the balance of the vehi- cle and locate the weight as far
forward as possible.
OGDE042299
JD RHD 4a(~171).QXP 4/14/2015 7:06 PM Page 163

Index
6
I
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-68
Engine compartment panel fuse . . . . . . . . . . . . . . . 7-70
Fuse switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-70
Fuse/relay panel description . . . . . . . . . . . . . . . . . . 7-73
Inner panel fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-69
Main fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-71
Multi fuse. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-72
Gauge (Normal vision) Engine coolant temperature gauge . . . . . . . . . . . . . 4-48
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-48
Gauge (Super vision) Engine coolant temperature gauge . . . . . . . . . . . . 4-64
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-62
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-153
Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-125
Hazard warning flasher . . . . . . . . . . . . . . . . . . . . . . 4-110
Hazardous driving conditions . . . . . . . . . . . . . . . . . . 5-64
Headlamp delay function . . . . . . . . . . . . . . . . . . . . . 4-111
Headlight (Headlamp) welcome function . . . . . . . . 4-111
Headlight bulb replacement. . . . . . . . . . . . . . . . . . . . 7-92
Headlight levelling device. . . . . . . . . . . . . . . . . . . . . 4-117
Headlight position . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113 Headlight washer . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-122
Headrest(front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Headrest(rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Heated steering wheel. . . . . . . . . . . . . . . . . . . . . . . . . 4-38
High - beam operation . . . . . . . . . . . . . . . . . . . . . . . 4-114
Hight adjustment (seat belt) . . . . . . . . . . . . . . . . . . . 3-23
Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-66
Hill-start assist control (HAC). . . . . . . . . . . . . . . . . . 5-48
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-39
How to use this manual . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Icy road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-91
Indicators and warnings . . . . . . . . . . . . . . . . . . . . . . 4-79
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 4-42
Instrument cluster
LCD display information . . . . . . . . . . . . . . . . . . . . . 4-73
Warning and indicators . . . . . . . . . . . . . . . . . . . . . . 4-79
Instrument cluster (Normal vision). . . . . . . . . . . . . . 4-46
Automatic transaxle shift position indicator . . . . . 4-49
Double clutch transmission shift indicator . . . . . . 4-50
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-48
Instrument panel illumination . . . . . . . . . . . . . . . . 4-47
Manual transaxle shift indicator. . . . . . . . . . . . . . . 4-49
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-51
Speed limiter indicator. . . . . . . . . . . . . . . . . . . . . . . 4-51
G
H
I
JD RHD Index.QXP 2/17/2015 12:03 PM Page 6

I11
Index
Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
Driver position memory system . . . . . . . . . . . . . . . . 3-8
Folding the rear seat. . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Front seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Headrest(front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Headrest(rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Lumbar support (Automatic Seat) . . . . . . . . . . . . . . 3-7
Lumbar support (Manual seat). . . . . . . . . . . . . . . . . 3-5
Rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Rear seat entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Seat warmer(front) . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Service mode (Normal vision) . . . . . . . . . . . . . . . . . . 4-55
Service mode (Super vision). . . . . . . . . . . . . . . . . . . . 4-70
Shift lock system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-29
Shopping bag holder. . . . . . . . . . . . . . . . . . . . . . . . . 4-168
Side impact air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-55
Sliding armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-152
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Smart parking assist system (SPAS) . . . . . . . . . . . . 4-100
Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-65
Snow tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-67
Spare tyre
Compact spare tyre . . . . . . . . . . . . . . . . . . . . . . . . . 6-15 Compact spare tyre replacement . . . . . . . . . . . . . . 7-62
Removing and storing the spare tyre . . . . . . . . . . . 6-10
SPAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-100
Special driving conditions . . . . . . . . . . . . . . . . . . . . . 5-64 Driving at night. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-65
Driving in flooded areas. . . . . . . . . . . . . . . . . . . . . . 5-66
Driving in the rain . . . . . . . . . . . . . . . . . . . . . . . . . . 5-65
Driving off-road . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-66
Hazardous driving conditions . . . . . . . . . . . . . . . . . 5-64
Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-66
Rocking the vehicle. . . . . . . . . . . . . . . . . . . . . . . . . . 5-64
Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-65
Speed limit control system . . . . . . . . . . . . . . . . . . . . . 5-56
Speed limiter indicator (Normal vision) . . . . . . . . . . 4-51
Speed limiter indicator (Super vision) . . . . . . . . . . . 4-66
Speedometer (Normal vision) . . . . . . . . . . . . . . . . . . 4-47
Speedometer (Super vision) . . . . . . . . . . . . . . . . . . . . 4-62
Sports mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-27
SRS components and functions . . . . . . . . . . . . . . . . . 3-47
Starting difficulties, see engine will not start . . . . . . . 6-4
Static bending light . . . . . . . . . . . . . . . . . . . . . . . . . . 4-112
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37 Electric power steering . . . . . . . . . . . . . . . . . . . . . . 4-37
Flex steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . 4-38
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-39
JD RHD Index.QXP 2/17/2015 12:03 PM Page 11
