KIA CEED 2015 Owners Manual

Features of your vehicle
46
4

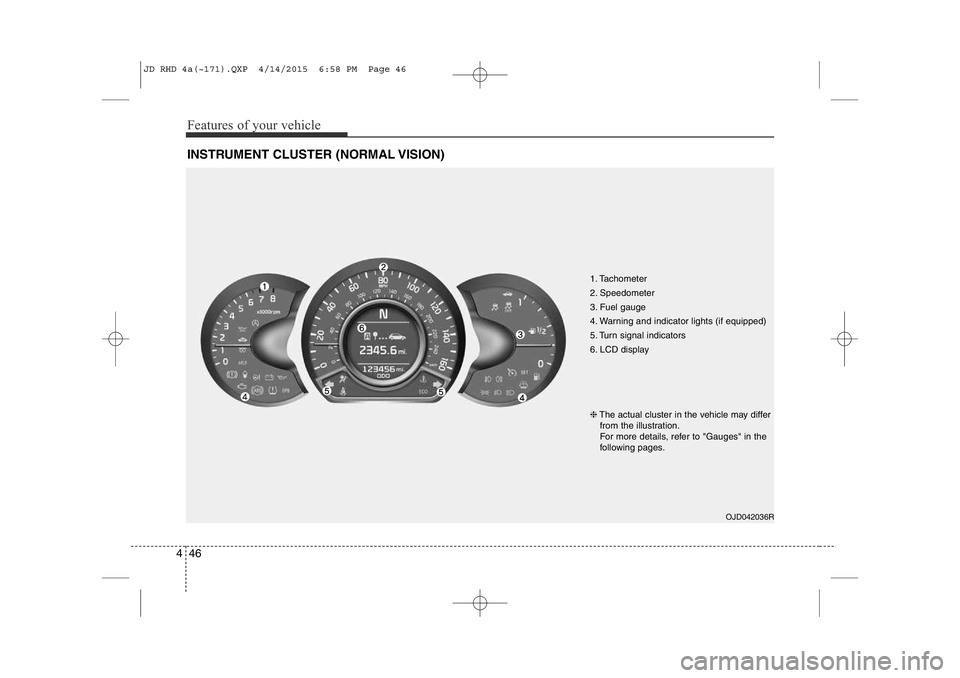

INSTRUMENT CLUSTER (NORMAL VISION)
1. Tachometer
2. Speedometer
3. Fuel gauge
4. Warning and indicator lights (if equipped)
5. Turn signal indicators
6. LCD display
OJD042036R
❈
The actual cluster in the vehicle may differ
from the illustration.
For more details, refer to "Gauges" in the
following pages.
JD RHD 4a(~171).QXP 4/14/2015 6:58 PM Page 46

447
Features of your vehicle
CAUTION
Do not operate the engine withinthe tachometer's RED ZONE. This
may cause severe engine damage.

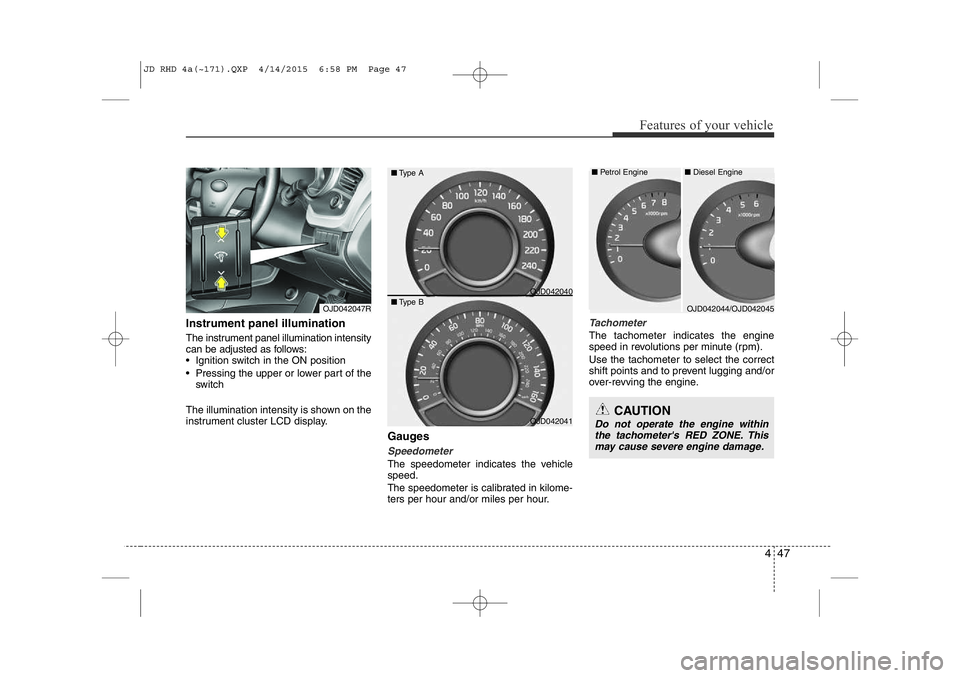

Instrument panel illumination
The instrument panel illumination intensity
can be adjusted as follows:
• Ignition switch in the ON position
• Pressing the upper or lower part of the switch
The illumination intensity is shown on the
instrument cluster LCD display. Gauges
Speedometer
The speedometer indicates the vehicle speed.
The speedometer is calibrated in kilome-
ters per hour and/or miles per hour.
Tachometer
The tachometer indicates the engine
speed in revolutions per minute (rpm). Use the tachometer to select the correct
shift points and to prevent lugging and/or
over-revving the engine.
OJD042047ROJD042044/OJD042045
OJD042040
OJD042041■
Diesel Engine
■ Petrol Engine
■ Type A
■ Type B
JD RHD 4a(~171).QXP 4/14/2015 6:58 PM Page 47

Features of your vehicle
48
4

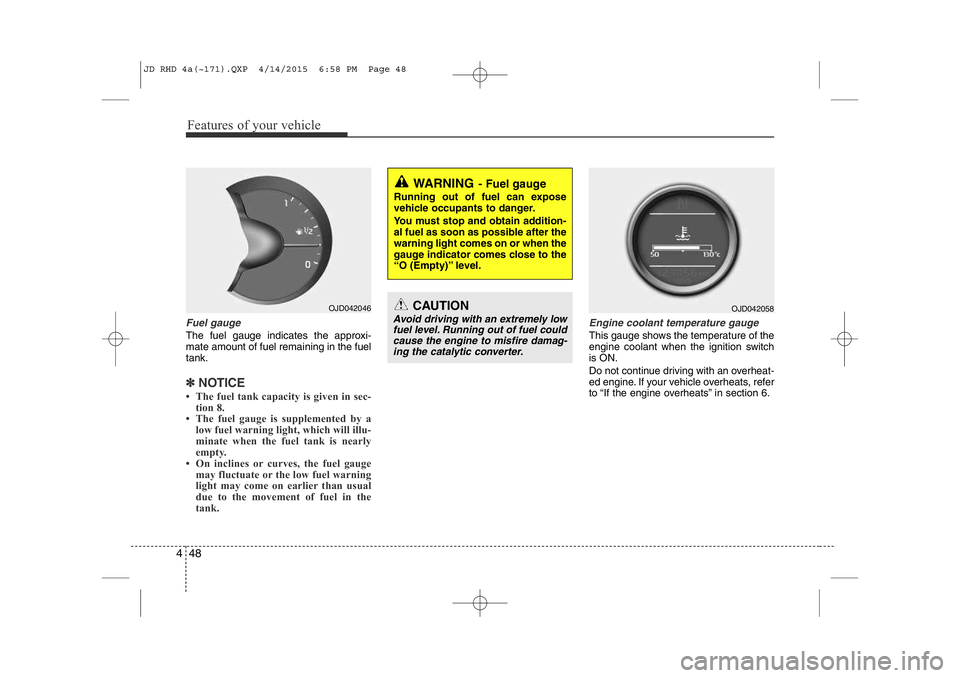

Fuel gauge
The fuel gauge indicates the approxi- mate amount of fuel remaining in the fueltank.
✽NOTICE
• The fuel tank capacity is given in sec- tion 8.
• The fuel gauge is supplemented by a
low fuel warning light, which will illu-
minate when the fuel tank is nearly
empty.
• On inclines or curves, the fuel gauge may fluctuate or the low fuel warning
light may come on earlier than usual
due to the movement of fuel in the
tank.
Engine coolant temperature gauge
This gauge shows the temperature of the
engine coolant when the ignition switchis ON.
Do not continue driving with an overheat-
ed engine. If your vehicle overheats, refer
to “If the engine overheats” in section 6.
WARNING - Fuel gauge
Running out of fuel can expose
vehicle occupants to danger.
You must stop and obtain addition-
al fuel as soon as possible after the warning light comes on or when the
gauge indicator comes close to the
“O (Empty)” level.
CAUTION
Avoid driving with an extremely low fuel level. Running out of fuel could
cause the engine to misfire damag-ing the catalytic converter.
OJD042046OJD042058
JD RHD 4a(~171).QXP 4/14/2015 6:58 PM Page 48

449
Features of your vehicle

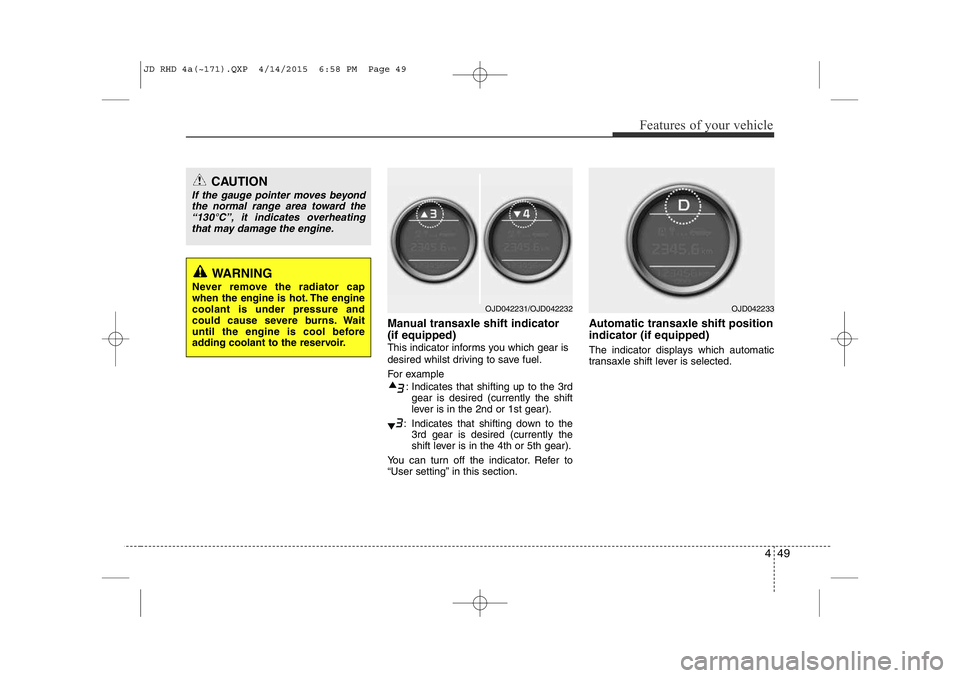

Manual transaxle shift indicator (if equipped)
This indicator informs you which gear is
desired whilst driving to save fuel.
For example: Indicates that shifting up to the 3rdgear is desired (currently the shift
lever is in the 2nd or 1st gear).
: Indicates that shifting down to the 3rd gear is desired (currently the
shift lever is in the 4th or 5th gear).
You can turn off the indicator. Refer to
“User setting” in this section. Automatic transaxle shift position indicator (if equipped)
The indicator displays which automatic
transaxle shift lever is selected.
OJD042233OJD042231/OJD042232
CAUTION
If the gauge pointer moves beyond
the normal range area toward the “130°C”, it indicates overheating that may damage the engine.
WARNING
Never remove the radiator cap
when the engine is hot. The enginecoolant is under pressure and
could cause severe burns. Wait
until the engine is cool before
adding coolant to the reservoir.
JD RHD 4a(~171).QXP 4/14/2015 6:58 PM Page 49

Features of your vehicle
50
4

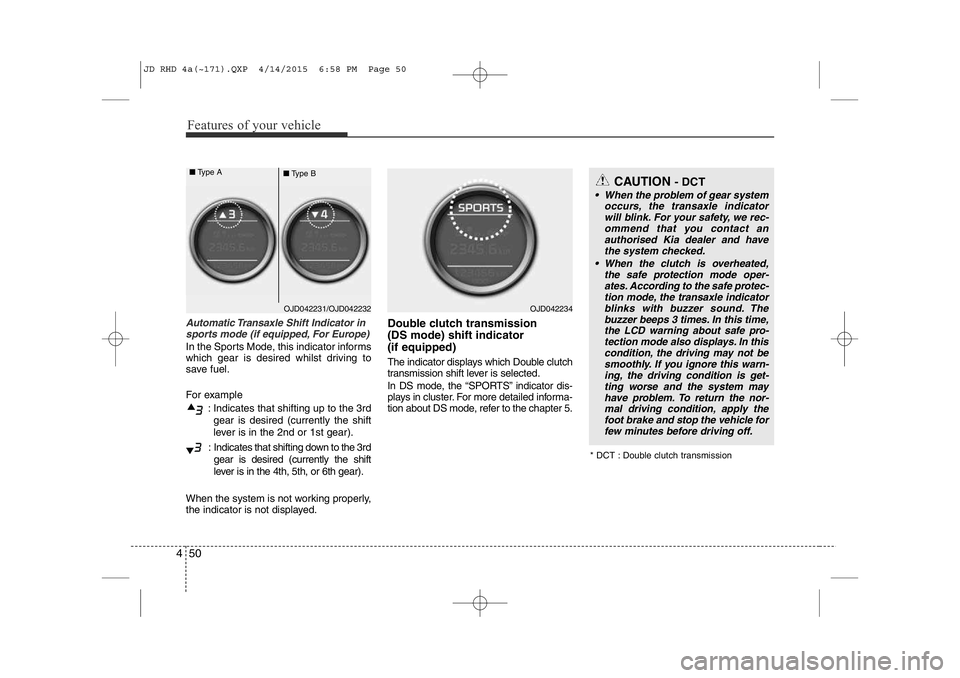

Automatic Transaxle Shift Indicator in
sports mode (if equipped, For Europe)
In the Sports Mode, this indicator informs
which gear is desired whilst driving to
save fuel.
For example
: Indicates that shifting up to the 3rdgear is desired (currently the shift
lever is in the 2nd or 1st gear).
: Indicates that shifting down to the 3rd gear is desired (currently the shift
lever is in the 4th, 5th, or 6th gear).
When the system is not working properly,
the indicator is not displayed. Double clutch transmission (DS mode) shift indicator(if equipped)
The indicator displays which Double clutch
transmission shift lever is selected.
In DS mode, the “SPORTS” indicator dis-
plays in cluster. For more detailed informa-
tion about DS mode, refer to the chapter 5.
OJD042234
* DCT : Double clutch transmission
CAUTION - DCT
• When the problem of gear system
occurs, the transaxle indicatorwill blink. For your safety, we rec-ommend that you contact an authorised Kia dealer and have
the system checked.
• When the clutch is overheated, the safe protection mode oper-ates. According to the safe protec-
tion mode, the transaxle indicatorblinks with buzzer sound. The buzzer beeps 3 times. In this time, the LCD warning about safe pro-
tection mode also displays. In this
condition, the driving may not besmoothly. If you ignore this warn-ing, the driving condition is get- ting worse and the system mayhave problem. To return the nor-
mal driving condition, apply thefoot brake and stop the vehicle forfew minutes before driving off.
OJD042231/OJD042232
■
Type A
■Type B
JD RHD 4a(~171).QXP 4/14/2015 6:58 PM Page 50

451
Features of your vehicle

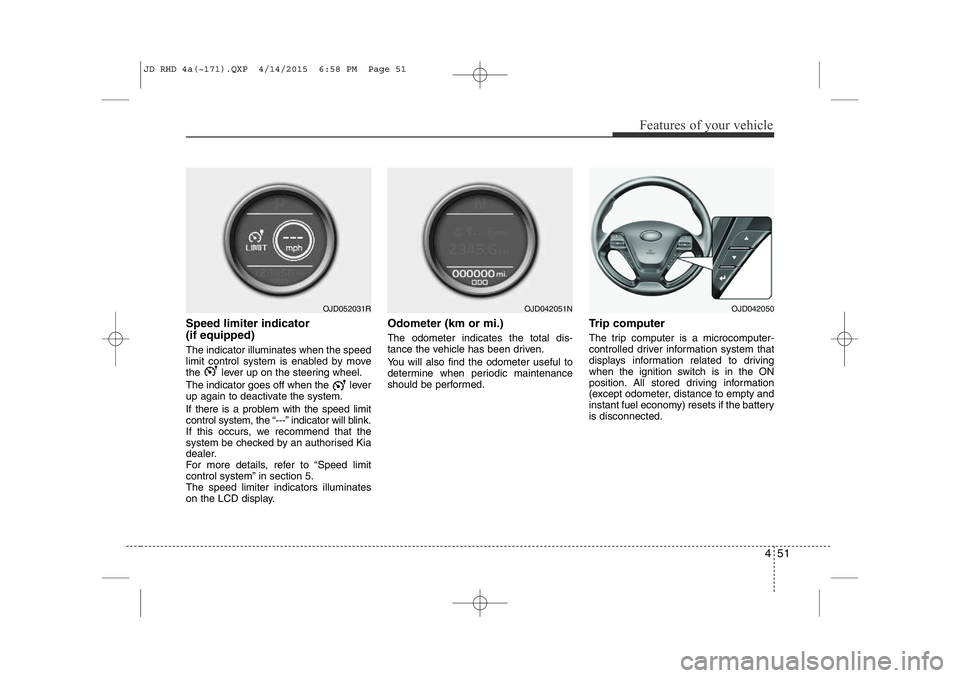

Speed limiter indicator (if equipped) The indicator illuminates when the speed
limit control system is enabled by move
the lever up on the steering wheel.
The indicator goes off when the lever
up again to deactivate the system.
If there is a problem with the speed limit
control system, the “---” indicator will blink.
If this occurs, we recommend that the
system be checked by an authorised Kia
dealer.
For more details, refer to “Speed limit
control system” in section 5.The speed limiter indicators illuminates
on the LCD display.Odometer (km or mi.) The odometer indicates the total dis-
tance the vehicle has been driven.
You will also find the odometer useful to
determine when periodic maintenance
should be performed.
Trip computer
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving
when the ignition switch is in the ON
position. All stored driving information
(except odometer, distance to empty and
instant fuel economy) resets if the batteryis disconnected.
OJD042050OJD042051NOJD052031R
JD RHD 4a(~171).QXP 4/14/2015 6:58 PM Page 51

Features of your vehicle
52
4

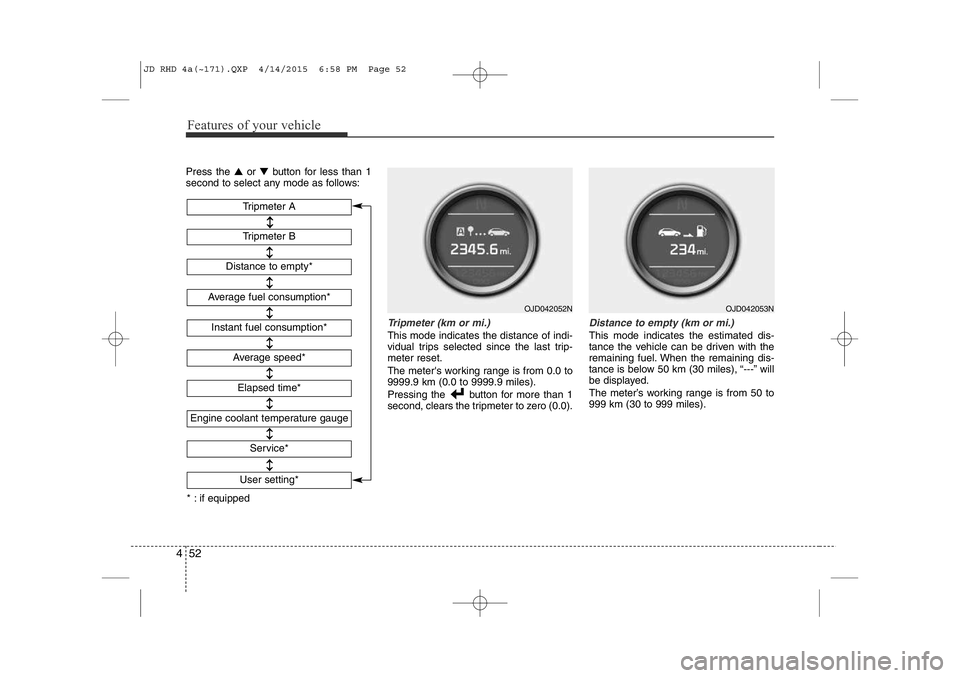

Press the ▲or  button for less than 1
second to select any mode as follows:
Tripmeter (km or mi.)
This mode indicates the distance of indi-
vidual trips selected since the last trip-meter reset.
The meter's working range is from 0.0 to 9999.9 km (0.0 to 9999.9 miles).
Pressing the button for more than 1
second, clears the tripmeter to zero (0.0).
Distance to empty (km or mi.)
This mode indicates the estimated dis-
tance the vehicle can be driven with the
remaining fuel. When the remaining dis-
tance is below 50 km (30 miles), “---” will
be displayed.
The meter’s working range is from 50 to 999 km (30 to 999 miles).
OJD042053NOJD042052N
Tripmeter B
Instant fuel consumption*
Tripmeter A
Distance to empty*
Average fuel consumption*
Engine coolant temperature gauge
* : if equipped Elapsed time*
Average speed*







Service*

User setting*

JD RHD 4a(~171).QXP 4/14/2015 6:58 PM Page 52

453
Features of your vehicle

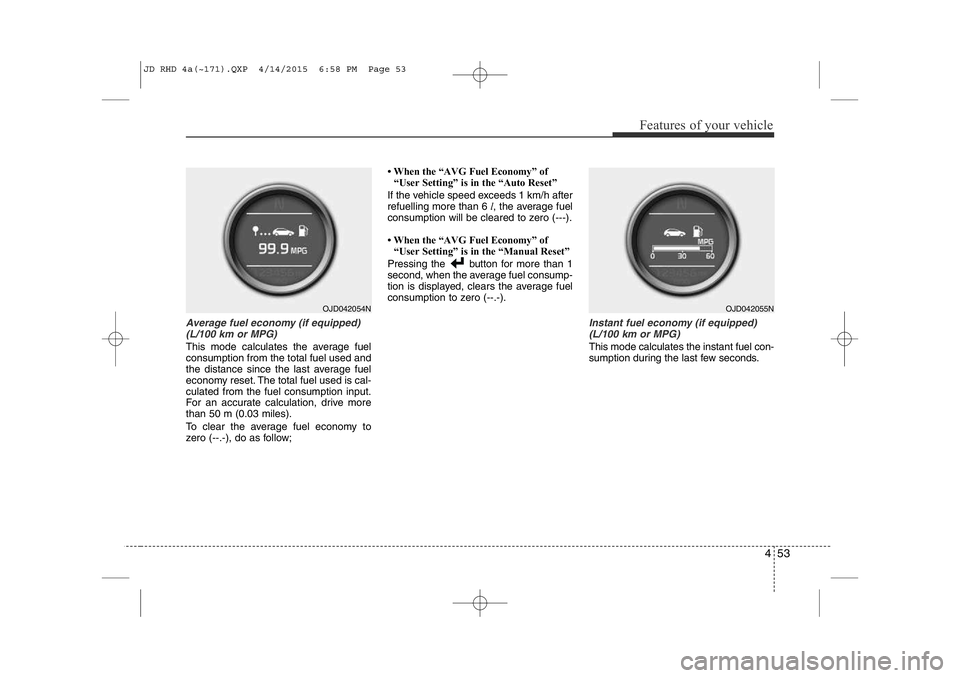

Average fuel economy (if equipped)(L/100 km or MPG)
This mode calculates the average fuel consumption from the total fuel used and
the distance since the last average fuel
economy reset. The total fuel used is cal- culated from the fuel consumption input.
For an accurate calculation, drive more than 50 m (0.03 miles).
To clear the average fuel economy to
zero (--.-), do as follow; • When the “AVG Fuel Economy” of
“User Setting” is in the “Auto Reset”
If the vehicle speed exceeds 1 km/h afterrefuelling more than 6 l, the average fuel
consumption will be cleared to zero (---).
• When the “AVG Fuel Economy” of “User Setting” is in the “Manual Reset”
Pressing the button for more than 1
second, when the average fuel consump-
tion is displayed, clears the average fuel
consumption to zero (--.-).
Instant fuel economy (if equipped) (L/100 km or MPG)
This mode calculates the instant fuel con-
sumption during the last few seconds.
OJD042055NOJD042054N
JD RHD 4a(~171).QXP 4/14/2015 6:58 PM Page 53

Features of your vehicle
54
4
✽NOTICE
• If the vehicle is not on level ground or the battery power has been interrupt-
ed, the “Distance to empty” function
may not operate correctly.
The trip computer may not register
additional fuel if less than 6 litres (1.6
gallons) of fuel are added to the vehi-
cle.
• The fuel economy and distance to empty may vary significantly based
on driving conditions, driving habits,
and condition of the vehicle.
• The distance to empty is an estimate
of the available driving distance. This
value may differ from the actual driv-
ing distance.
Average speed (km/h or MPH)
This mode calculates the average speed
of the vehicle since the last averagespeed reset.
Even if the vehicle is not in motion, the
average speed keeps going whilst the
engine is running.
Pressing the button for more than 1
second, when the average speed is dis-
played, clears the average speed to zero(---).
Elapsed time
This mode indicates the total time trav-
eled since the last driving time reset.
Even if the vehicle is not in motion, the
driving time keeps going whilst the
engine is running.
The meter’s working range is from 0:00~99:59.
Pressing the button for more than 1
second, when the driving time is being
displayed, clears the driving time to zero (0:00).
OJD042057OJD042056N
JD RHD 4a(~171).QXP 4/14/2015 6:58 PM Page 54

455
Features of your vehicle

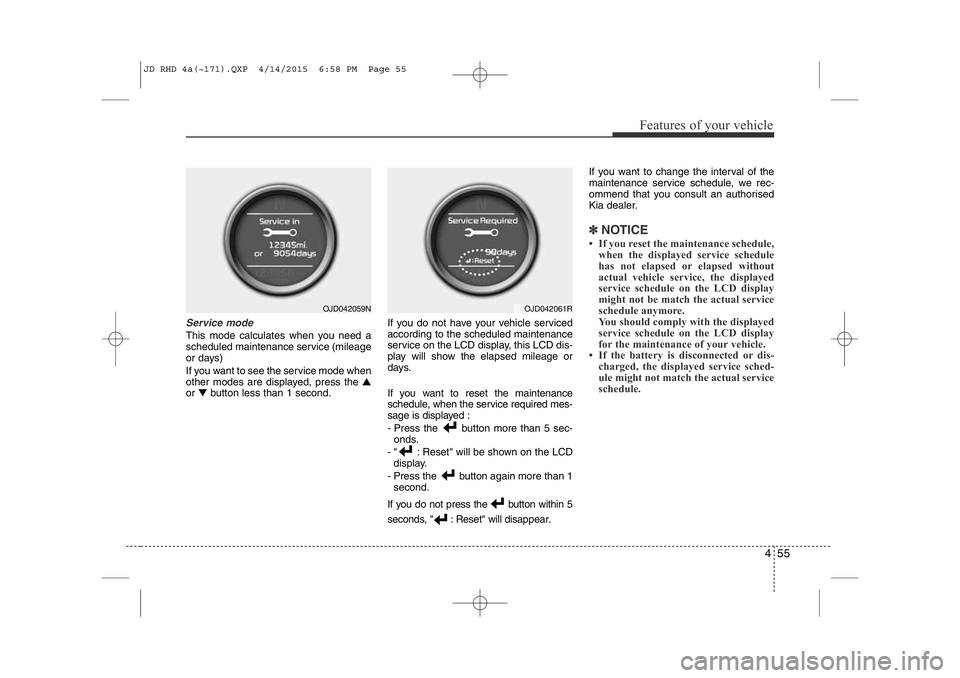

Service mode
This mode calculates when you need a
scheduled maintenance service (mileage
or days)
If you want to see the service mode when
other modes are displayed, press the ▲
or  button less than 1 second. If you do not have your vehicle servicedaccording to the scheduled maintenance
service on the LCD display, this LCD dis-
play will show the elapsed mileage or
days.
If you want to reset the maintenance
schedule, when the service required mes-
sage is displayed :
- Press the button more than 5 sec-
onds.
- " : Reset" will be shown on the LCD display.
- Press the button again more than 1 second.
If you do not press the button within 5
seconds, " : Reset" will disap pear.If you want to change the interval of the
maintenance service schedule, we rec-
ommend that you consult an authorised
Kia dealer.
✽NOTICE
• If you reset the maintenance schedule, when the displayed service schedule
has not elapsed or elapsed without
actual vehicle service, the displayed
service schedule on the LCD display
might not be match the actual service
schedule anymore.
You should comply with the displayed
service schedule on the LCD display
for the maintenance of your vehicle.
• If the battery is disconnected or dis- charged, the displayed service sched-
ule might not match the actual service
schedule.
OJD042061ROJD042059N
