KIA CEED 2016 Owners Manual

Features of your vehicle
58
4
 AVG fuel ECO Reset
Auto Reset - The average fuel economy
will reset automatically
when you drive after refuel-ing.
Manual Reset - The average fuel econo- my will not reset auto-
matically when you drive
after refueling. You can
reset the average fuel
economy by pressing
the button for morethan 1 second when the
average fuel economy is
displayed.
 Language
Choose the language you prefer within
the LCD display.
JD PE eng 4.QXP 1/28/2016 5:15 PM Page 58

459
Features of your vehicle
INSTRUMENT CLUSTER (SUPERVISION)
1. Tachometer
2. Speedometer
3. Fuel gauge
4. Warning and indicator lights (if equipped)
5. Turn signal indicators
6. LCD display ❈The actual cluster in the vehicle may differ
from the illustration.
For more details, refer to "Gauges" in the
following pages.
OJD045100
■ Type A
JD PE eng 4.QXP 1/28/2016 5:15 PM Page 59

Features of your vehicle
60
4
1. Tachometer
2. Speedometer
3. Fuel gauge
4. Warning and indicator lights (if equipped)
5. Turn signal indicators
6. LCD display
7. Engine torque gauge
8. Turbo boost pressure gauge
9. Engine coolant temperature gauge
OJD043038/OJD043248
❈
The actual cluster in the vehicle may differ
from the illustration.
For more details, refer to "Gauges" in the
following pages.
■ Type B (for T-GDI engine)

JD PE eng 4.QXP 1/28/2016 5:15 PM Page 60

461
Features of your vehicle
Instrument panel illumination
The instrument panel illumination intensity
can be adjusted as follows:
Ignition switch in the ON position
Pressing the upper or lower part of theswitch
The illumination intensity is shown on the
instrument cluster LCD display. Gauges
Tachometer
The tachometer indicates the engine
speed in revolutions per minute (rpm). Use the tachometer to select the correct
shift points and to prevent lugging and/or
over-revving the engine.
OJD042047
CAUTION
Do not operate the engine within
the tachometer's RED ZONE. Thismay cause severe engine damage.
OJD042044/OJD042045
■
Diesel Engine
■ Gasoline Engine
JD PE eng 4.QXP 1/28/2016 5:15 PM Page 61

Features of your vehicle
62
4
Speedometer
The speedometer indicates the vehicle speed.
The speedometer is calibrated in kilome-
ters per hour and/or miles per hour.
Fuel gauge
The fuel gauge indicates the approxi- mate amount of fuel remaining in the fueltank.
✽✽
NOTICE
 The fuel tank capacity is given in chapter 8.
 The fuel gauge is supplemented by a low fuel warning light, which will illu-
minate when the fuel tank is nearly
empty.
 On inclines or curves, the fuel gauge may fluctuate or the low fuel warning
light may come on earlier than usual
due to the movement of fuel in the tank.
OJD042046
OJD042042
OJD043505
OJD043506
■Type B

■ Type A

OJD043507
OJD043508

■Type C

JD PE eng 4.QXP 1/28/2016 5:16 PM Page 62

463
Features of your vehicle

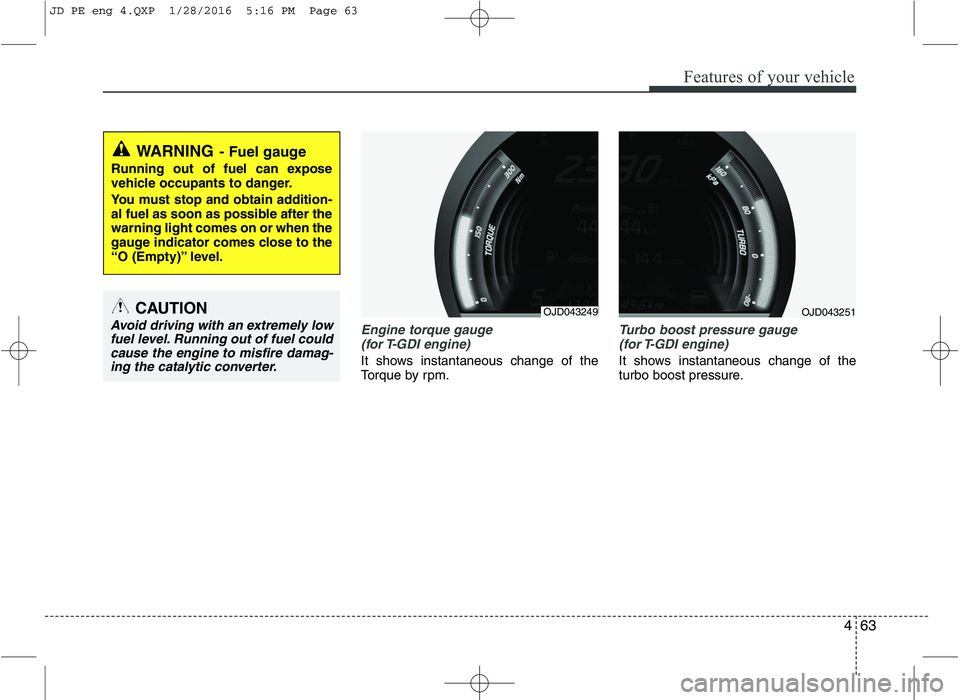

Engine torque gauge(for T-GDI engine)
It shows instantaneous change of the
Torque by rpm.
Turbo boost pressure gauge (for T-GDI engine)
It shows instantaneous change of the
turbo boost pressure.
WARNING - Fuel gauge
Running out of fuel can expose
vehicle occupants to danger.
You must stop and obtain addition-
al fuel as soon as possible after thewarning light comes on or when the
gauge indicator comes close to the
“O (Empty)” level.
CAUTION
Avoid driving with an extremely low fuel level. Running out of fuel could cause the engine to misfire damag-ing the catalytic converter.OJD043249OJD043251
JD PE eng 4.QXP 1/28/2016 5:16 PM Page 63

Features of your vehicle
64
4
Engine coolant temperature gauge
This gauge shows the temperature of the
engine coolant when the ignition switchis ON.
Do not continue driving with an overheat-
ed engine. If your vehicle overheats, refer
to “If the engine overheats” in chapter 6. Manual transaxle shift indicator
This indicator informs you which gear is
desired while driving to save fuel.
For example
: Indicates that shifting up to the 3rdgear is desired (currently the shift
lever is in the 2nd or 1st gear).
: Indicates that shifting down to the 3rd gear is desired (currently the
shift lever is in the 4th or 5th gear).
OJD042236/OJD042237
CAUTION
If the gauge pointer moves beyond
the normal range area toward the“130°C” position, it indicates over-heating that may damage the engine.
WARNING
Never remove the radiator cap
when the engine is hot. The enginecoolant is under pressure and
could cause severe burns. Wait
until the engine is cool before
adding coolant to the reservoir.
OJD043250
■ Type B
■Type A
OJD045176L
JD PE eng 4.QXP 1/28/2016 5:16 PM Page 64

465
Features of your vehicle
Automatic transaxle shift position indicator (if equipped)
The indicator displays which automatic
transaxle shift lever is selected.Automatic Transaxle Shift Indicator insports mode (if equipped, For Europe)
In the Sports Mode, this indicator informs
which gear is desired while driving to
save fuel.
For example
: Indicates that shifting up to the 3rdgear is desired (currently the shift
lever is in the 2nd or 1st gear).
: Indicates that shifting down to the 3rd gear is desired (currently the shift
lever is in the 4th, 5th, or 6th gear).
When the system is not working properly,
the indicator is not displayed. Dual clutch transmission (DS mode) shift indicator (if equipped)
The indicator displays which Dual clutch
transmission shift lever is selected.
In DS mode, the “S” indicator displays
with “SPORTS” indicator in cluster. For
more detailed information about DS
mode, refer to the chapter 5.
OJD045235OJD045236/OJD045237OJD045238
JD PE eng 4.QXP 1/28/2016 5:16 PM Page 65

Features of your vehicle
66
4
Speed limiter indicator (if equipped) The indicator illuminates when the speed
limit control system is enabled by move
the lever up on the steering wheel.
The indicator goes off when the lever
up again to deactivate the system.
If there is a problem with the speed limit
control system, the “---” indicator will blink.
If this occurs, we recommend that the
system be checked by an authorized Kia
dealer.
For more details, refer to “Speed limit
control system” in chapter 5. The speed limiter indicators illuminates
on the LCD display. Odometer (km or mi.) The odometer indicates the total dis-
tance the vehicle has been driven.
You will also find the odometer useful to
determine when periodic maintenance
should be performed.
CAUTION
- DCT
When the problem of gear system
occurs, the transaxle indicatorwill blink. For your safety, we rec- ommend that you contact an
authorized Kia dealer and havethe system checked.
When the clutch is overheated, the safe protection mode oper-ates. According to the safe protec-
tion mode, the transaxle indicator blinks with buzzer sound. Thebuzzer beeps 3 times. In this time,the LCD warning about safe pro-
tection mode also displays. In this condition, the driving may not besmoothly. If you ignore this warn-ing, the driving condition is get-
ting worse and the system mayhave problem. To return the nor-mal driving condition, apply thefoot brake and stop the vehicle for
few minutes before driving off.
❈ DCT : Dual clutch transmission
OJD055043
OJD043504
■ Type B
■Type A
OJD045173
JD PE eng 4.QXP 1/28/2016 5:16 PM Page 66

467
Features of your vehicle
Trip computer
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving
when the ignition switch is in the ONposition.Press the button for less than 1 sec-
ond to select any group as follows :
OJD042172
Engine coolant temperature gauge*
User setting mode
Service mode
LANE DEPARTURE WARNING
SYSTEM*
Trip mode
* : if equipped
Trip mode A
Trip mode B
Driving information mode
Press the▼button for less than 1
second to select in Trip mode group
as follows :
