keyless KIA CEED 2016 Owners Manual

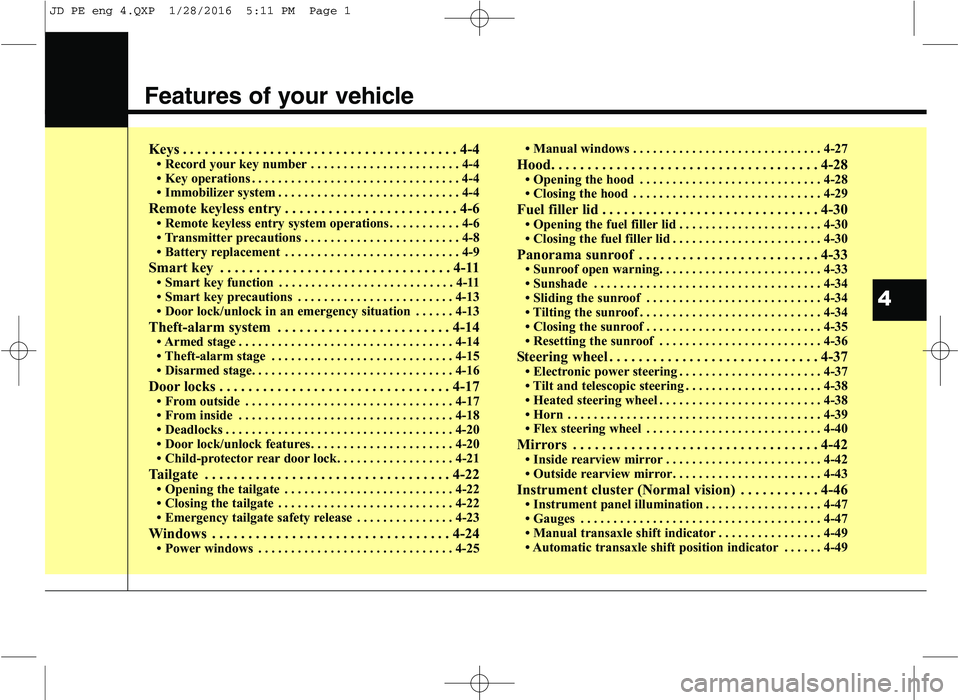

Features of your vehicle
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4 Record your key number . . . . . . . . . . . . . . . . . . . . . . . 4-4
 Key operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
 Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Remote keyless entry . . . . . . . . . . . . . . . . . . . . . . . . 4-6  Remote keyless entry system operations . . . . . . . . . . . 4-6
 Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . . . 4-8
 Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11  Smart key function . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
 Smart key precautions . . . . . . . . . . . . . . . . . . . . . . . . 4-13
 Door lock/unlock in an emergency situation . . . . . . 4-13
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . 4-14  Armed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
 Theft-alarm stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
 Disarmed stage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17  From outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
 From inside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18
 Deadlocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
 Door lock/unlock features. . . . . . . . . . . . . . . . . . . . . . 4-20
 Child-protector rear door lock. . . . . . . . . . . . . . . . . . 4-21
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22  Opening the tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
 Closing the tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
 Emergency tailgate safety release . . . . . . . . . . . . . . . 4-23
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24  Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25  Manual windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27
Hood. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28  Opening the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28
 Closing the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-30  Opening the fuel filler lid . . . . . . . . . . . . . . . . . . . . . . 4-30
 Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . 4-30
Panorama sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-33  Sunroof open warning. . . . . . . . . . . . . . . . . . . . . . . . . 4-33
 Sunshade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34
 Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34
 Tilting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34
 Closing the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-35
 Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37  Electronic power steering . . . . . . . . . . . . . . . . . . . . . . 4-37
 Tilt and telescopic steering . . . . . . . . . . . . . . . . . . . . . 4-38
 Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . 4-38
 Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-39
 Flex steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-42  Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . 4-42
 Outside rearview mirror. . . . . . . . . . . . . . . . . . . . . . . 4-43
Instrument cluster (Normal vision) . . . . . . . . . . . 4-46  Instrument panel illumination . . . . . . . . . . . . . . . . . . 4-47
 Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-47
 Manual transaxle shift indicator . . . . . . . . . . . . . . . . 4-49
 Automatic transaxle shift position indicator . . . . . . 4-49
4
JD PE eng 4.QXP 1/28/2016 5:11 PM Page 1

Features of your vehicle
6
4

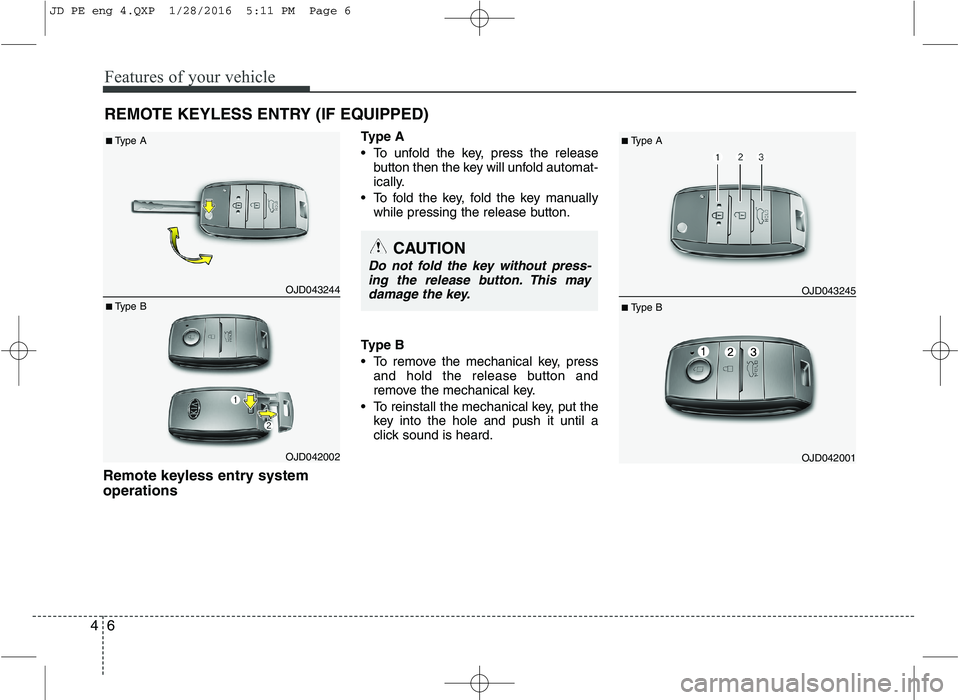

Remote keyless entry system operations Type A
To unfold the key, press the release
button then the key will unfold automat-
ically.
To fold the key, fold the key manually while pressing the release button.
Type B
To remove the mechanical key, press and hold the release button and
remove the mechanical key.
To reinstall the mechanical key, put the key into the hole and push it until a
click sound is heard.
REMOTE KEYLESS ENTRY (IF EQUIPPED)
CAUTION
Do not fold the key without press-
ing the release button. This maydamage the key.
OJD043244
OJD042002
■ Type A
■ Type B
OJD043245
OJD042001
■ Type A
■ Type B
JD PE eng 4.QXP 1/28/2016 5:11 PM Page 6

Features of your vehicle
8
4
Transmitter precautions
✽✽
NOTICE
The transmitter will not work if any of
following occur:
 The ignition key is in ignition switch.
 You exceed the operating distance limit (about 10 m [30 feet]).
 The battery in the transmitter is weak.
 Other vehicles or objects may be blocking the signal.
 The weather is extremely cold.
 The transmitter is close to a radio transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.
When the transmitter does not work cor-
rectly, open and close the door with the
ignition key. If you have a problem with
the transmitter, we recommend that you
contact an authorized Kia dealer. (Continued)(Continued)
 If the transmitter is in close proximity
to your cell phone or smart phone, the
signal from the transmitter could be
blocked by normal operation of your
cell phone or smart phone. This is
especially important when the phone
is active such as making call, receiving
calls, text messaging, and/or sending/
receiving emails. Avoid placing the
transmitter and your cell phone or
smart phone in the same pants or
jacket pocket and maintain adequate
distance between the two devices. CAUTION
Changes or modifications not
expressly approved by the partyresponsible for compliance couldvoid the user’s authority to operate
the equipment. If the keyless entrysystem is inoperative due to changes or modifications notexpressly approved by the party
responsible for compliance, it willnot be covered by your manufactur-er’s vehicle warranty.
CAUTION
Keep the transmitter away from
water or any liquid. If the keylessentry system is inoperative due toexposure to water or liquids, itwill not be covered by your manu-
facturer vehicle warranty.
Keep the transmitter away from electromagnetic materials thatblocks electromagnetic waves to
the key surface.
JD PE eng 4.QXP 1/28/2016 5:11 PM Page 8

411
Features of your vehicle
SMART KEY (IF EQUIPPED)
Smart key function
1. Door lock
2. Door unlock
3. Tailgate unlock
With a smart key, you can lock or unlock
a door and tailgate and even start the
engine without inserting the key.
The functions of the buttons on a smart
key are similar to the remote keyless
entry. Refer to the “Remote keyless
entry” in this chapter. Carrying the smart key, you may lock and
unlock the vehicle doors and tailgate.
Also, you may start the engine. Refer to
the following, for more details.
Locking
1. Carry the smart key.
2. Close all doors.
3. Press the button of the outside door
handle.
4. The hazard warning lights will blink once (the engine hood and tailgate
must be closed). Also, the outside
rearview mirror will automatically fold
if the outside rearview mirror folding
switch is in the AUTO position (ifequipped).
5. Make sure that doors are locked by pulling the outside door handle.
✽✽ NOTICE
 The button will only operate when the smart key is within 0.7 m (28 in.) from
the outside door handle.
 Even though you press the outside
door handle button, the doors will not
lock and the chime will sound for 3
seconds if any of following occur:- The smart key is in the vehicle.
- The engine start/stop button is in ACC or ON position.
- Any door except the tailgate is opened.
OJD042001OJD042008
JD PE eng 4.QXP 1/28/2016 5:12 PM Page 11

413
Features of your vehicle
Smart key precautions
✽✽NOTICE
 If, for some reason, you happen to lose your smart key, you will not be able to
start the engine. Tow the vehicle, if
necessary, we recommend that you
contact an authorized Kia dealer.
 A maximum of 2 smart keys can be
registered to a single vehicle. If you
lose a smart key, we recommend that
you contact an authorized Kia dealer.
 The smart key will not work if any of
the following occurs:
- The smart key is close to a radiotransmitter such as a radio station or
an airport which can interfere with
normal operation of the smart key.
- The smart key is near a mobile two-
way radio system or a cellular
phone.
- Another vehicle’s smart key is being operated close to your vehicle.
When the smart key does not work
properly, open and close the door with
the mechanical key. If you have a
problem with the smart key, we rec-
ommend that you contact an author-
ized Kia dealer. (Continued)(Continued)
 If the smart key is in close proximity
to your cell phone or smart phone, the
signal from the smart key could be
blocked by normal operation of your
cell phone or smart phone. This is
especially important when the phone
is active such as making call, receiving
calls, text messaging, and/or
sending/receiving emails. Avoid plac-
ing the smart key and your cell phone
or smart phone in the same pants or
jacket pocket and maintain adequate
distance between the two devices.
Door lock/unlock in an emer-
gency situation
If the smart key does not operate normal-
ly, you can lock or unlock the doors by
using the mechanical key.
1. Press and hold the release button (1)and remove the mechanical key (2).
2. Insert the key into the hole of the out- side door handle. Turn the key toward
the rear of the vehicle to unlock and
toward the front of the vehicle to lock.
3. To reinstall the mechanical key, put the key into the hole and push it until a
click sound is heard.
CAUTION
Keep the smart key away from
water or any liquid. If the keyless entry system is inoperative due to
exposure to water or liquids, it willnot be covered by your manufactur-er’s vehicle warranty.
OJD042002
JD PE eng 4.QXP 1/28/2016 5:12 PM Page 13

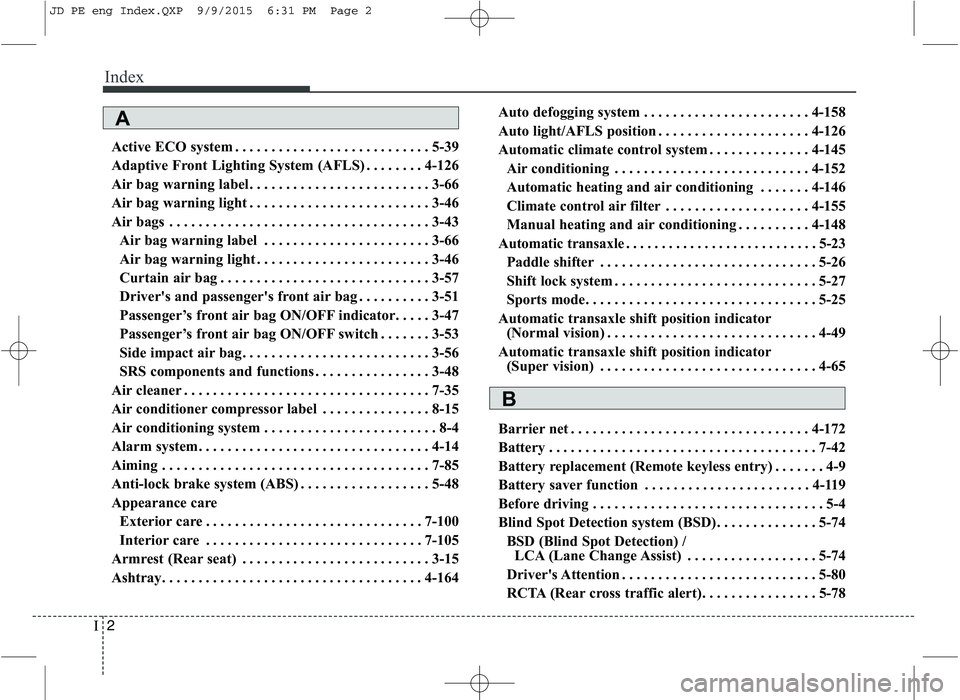

Index
2
I
Active ECO system . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-39
Adaptive Front Lighting System (AFLS) . . . . . . . . 4-126
Air bag warning label . . . . . . . . . . . . . . . . . . . . . . . . . 3-66
Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . . 3-46
Air bags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-43
Air bag warning label . . . . . . . . . . . . . . . . . . . . . . . 3-66
Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . 3-46
Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-57
Driver's and passenger's front air bag . . . . . . . . . . 3-51
Passenger’s front air bag ON/OFF indicator. . . . . 3-47
Passenger’s front air bag ON/OFF switch . . . . . . . 3-53
Side impact air bag. . . . . . . . . . . . . . . . . . . . . . . . . . 3-56
SRS components and functions . . . . . . . . . . . . . . . . 3-48
Air cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-35
Air conditioner compressor label . . . . . . . . . . . . . . . 8-15
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Alarm system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Aiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-85
Anti-lock brake system (ABS) . . . . . . . . . . . . . . . . . . 5-48
Appearance care Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-100
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-105
Armrest (Rear seat) . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
Ashtray. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-164 Auto defogging system . . . . . . . . . . . . . . . . . . . . . . . 4-158
Auto light/AFLS position . . . . . . . . . . . . . . . . . . . . . 4-126
Automatic climate control system . . . . . . . . . . . . . . 4-145
Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-152
Automatic heating and air conditioning . . . . . . . 4-146
Climate control air filter . . . . . . . . . . . . . . . . . . . . 4-155
Manual heating and air conditioning . . . . . . . . . . 4-148
Automatic transaxle . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-23 Paddle shifter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-26
Shift lock system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-27
Sports mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-25
Automatic transaxle shift position indicator (Normal vision) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-49
Automatic transaxle shift position indicator (Super vision) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-65
Barrier net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-172
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-42
Battery replacement (Remote keyless entry) . . . . . . . 4-9
Battery saver function . . . . . . . . . . . . . . . . . . . . . . . 4-119
Before driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Blind Spot Detection system (BSD). . . . . . . . . . . . . . 5-74 BSD (Blind Spot Detection) / LCA (Lane Change Assist) . . . . . . . . . . . . . . . . . . 5-74
Driver's Attention . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-80
RCTA (Rear cross traffic alert). . . . . . . . . . . . . . . . 5-78
A
B
JD PE eng Index.QXP 9/9/2015 6:31 PM Page 2

Index
10
I
Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-40
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-168
Power window lock button. . . . . . . . . . . . . . . . . . . . . 4-26
Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . . 3-26
Push starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Rear combination light bulb replacement . . . . . . . . 7-93
Rear parking assist system. . . . . . . . . . . . . . . . . . . . . 4-93
Rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Rear view camera . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-118
Rear window wiper . . . . . . . . . . . . . . . . . . . . . . . . . . 4-130
Recommended cold tire inflation pressures . . . . . . . 7-45
Recommended lubricants and capacities . . . . . . . . . . 8-9
Recommended SAE viscosity number . . . . . . . . . . 8-12
Recommends Engine oil . . . . . . . . . . . . . . . . . . . . . . 8-11
Refrigerant label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-15
Remote keyless entry Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Remote keyless entry . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Replacement light bulb . . . . . . . . . . . . . . . . . . . . . . . 7-79
Road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-83
Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-132
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-179 Scheduled maintenance service . . . . . . . . . . . . . . . . . 7-11
Maintenance under severe usage conditions (except Europe, including Russia) . . . . . . . . . . . . 7-22
Maintenance under severe usage conditions (for Europe, except Russia) . . . . . . . . . . . . . . . . . . 7-16
Normal maintenance schedule (except Europe, including Russia) . . . . . . . . . . . . 7-18
Normal maintenance schedule (for Europe, except Russia) . . . . . . . . . . . . . . . . . . 7-12
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20 Hight adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-23
Lap/shoulder belt . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-23
Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . 3-26
Seat belt warning . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21
Seat warmer(front) . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 Armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
Driver position memory system . . . . . . . . . . . . . . . . 3-8
Folding the rear seat. . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Front seat adjustment (Manual seat) . . . . . . . . . . . . 3-4
Front seat adjustment (Automatic seat) . . . . . . . . . . 3-6
Headrest (front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Headrest (rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Lumbar support (Automatic Seat) . . . . . . . . . . . . . . 3-7
R
S
JD PE eng Index.QXP 9/9/2015 6:31 PM Page 10
