KIA CERATO 2005 Owners Manual
Manufacturer: KIA, Model Year: 2005, Model line: CERATO, Model: KIA CERATO 2005Pages: 318, PDF Size: 58.49 MB
Page 311 of 318
1 23456789Specifications / 8-2
Specifications
Page 312 of 318
Inflation pressure bar (psi,kPa)
Front Rear Front Rear
185/65R15 88H 6.0J×15 2.1 2.1 2.1 2.2
195/60R15 88H 6.0J×15 (30, 210) (30, 210) (30, 210) (32, 220)
205/50R16 87V 6.0J×16
185/65R15 88H 6.0J×15 2.1 2.1 2.1 2.1
195/60R15 88H 6.0J×15 (30, 210) (30, 210) (30, 210) (30, 210)
205/50R16 87V 6.0J×16
Specifications
2
8
1 23456789
Item 4 Door 5 Door
Overall length 4,480 (176.4) 4,340 (170.9)
Overall width 1,735 (68.3) 1,735 (68.3)
Overall height 1,470 (57.9) 1,470 (57.9)
Front tread 1,495 (58.9) 1,495 (58.9)
Rear tread 1,485 (58.5) 1,485 (58.5)
Wheelbase 2,610 (102.8) 2,610 (102.8)

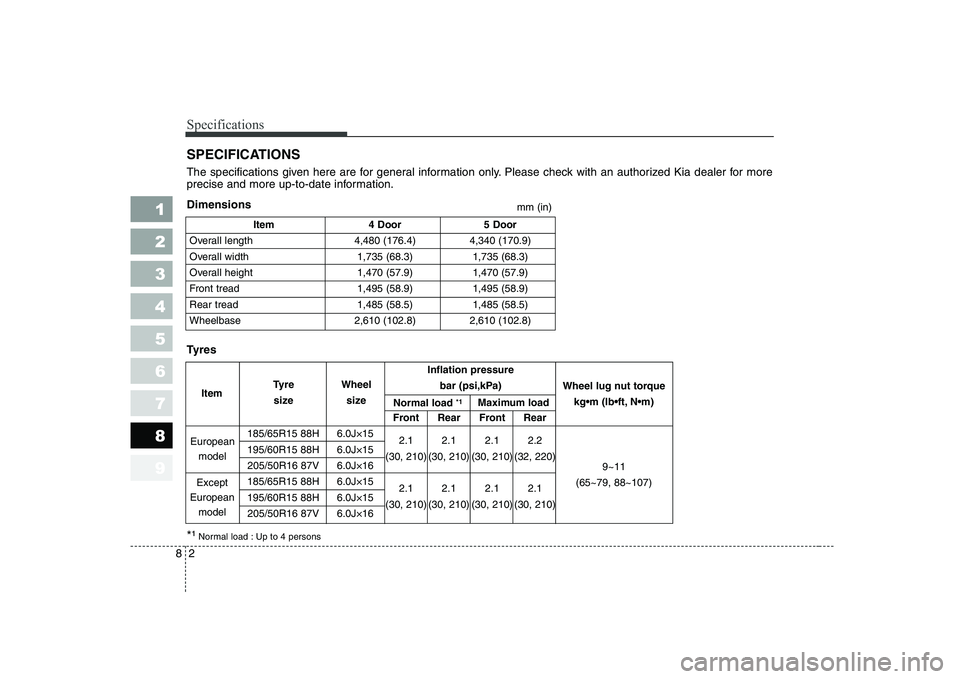

SPECIFICATIONS
The specifications given here are for general information only. Please check with an authorized Kia dealer for more
precise and more up-to-date information.
European model
Except
European model Normal load
*1
Maximum load Wheel lug nut torque
9~11
(65~79, 88~107)
Dimensions
mm (in)
Tyres *¹ Normal load : Up to 4 personsItem
Tyre
size Wheel
size
Page 313 of 318
83
1 23456789
Specifications
*¹Refer to the recommended SAE viscosity numbers on the page 7-61.

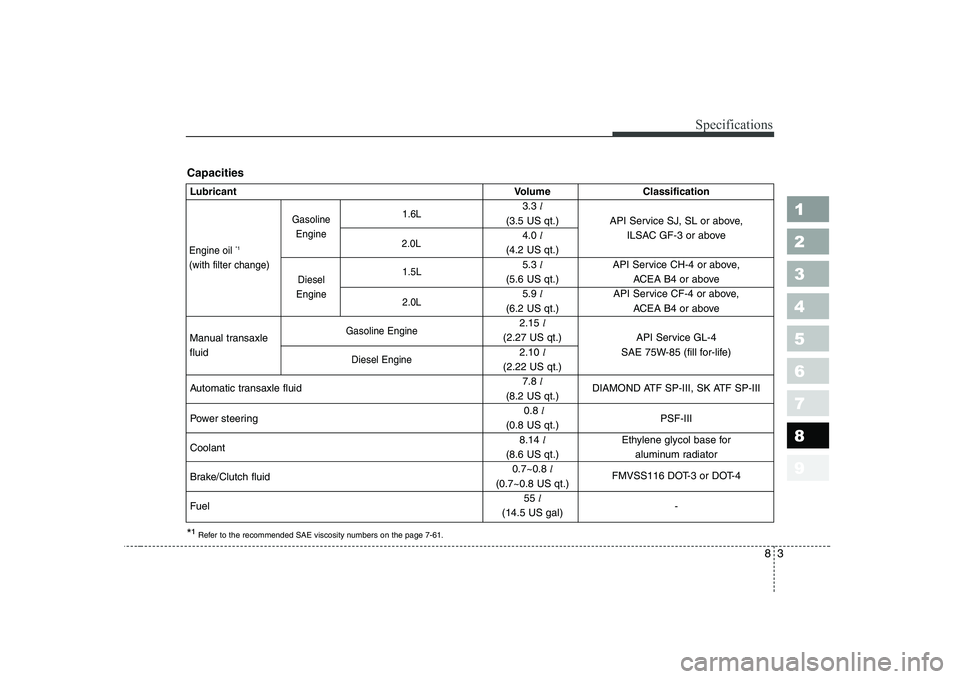

Lubricant Volume Classification
3.3 l
(3.5 US qt.) API Service SJ, SL or above,
4.0 l ILSAC GF-3 or above
(4.2 US qt.)
5.3 l API Service CH-4 or above,
(5.6 US qt.) ACEA B4 or above
5.9 l API Service CF-4 or above,
(6.2 US qt.) ACEA B4 or above
2.15 l
(2.27 US qt.) API Service GL-4
2.10 l SAE 75W-85 (fill for-life)
(2.22 US qt.)
Automatic transaxle fluid 7.8
l
DIAMOND ATF SP-III, SK ATF SP-III
(8.2 US qt.)
Power steering 0.8
l
PSF-III
(0.8 US qt.)
Coolant 8.14
l Ethylene glycol base for
(8.6 US qt.) aluminum radiator
Brake/Clutch fluid 0.7~0.8
l
FMVSS116 DOT-3 or DOT-4
(0.7~0.8 US qt.)
Fuel 55
l
-
(14.5 US gal)
Engine oil *1
(with filter change)
Manual transaxle fluid
Gasoline
Engine
Gasoline Engine
Diesel
Engine
Diesel Engine1.6L
2.0L
2.0L 1.5L
Capacities
Page 314 of 318
Specifications
4
8
1 23456789

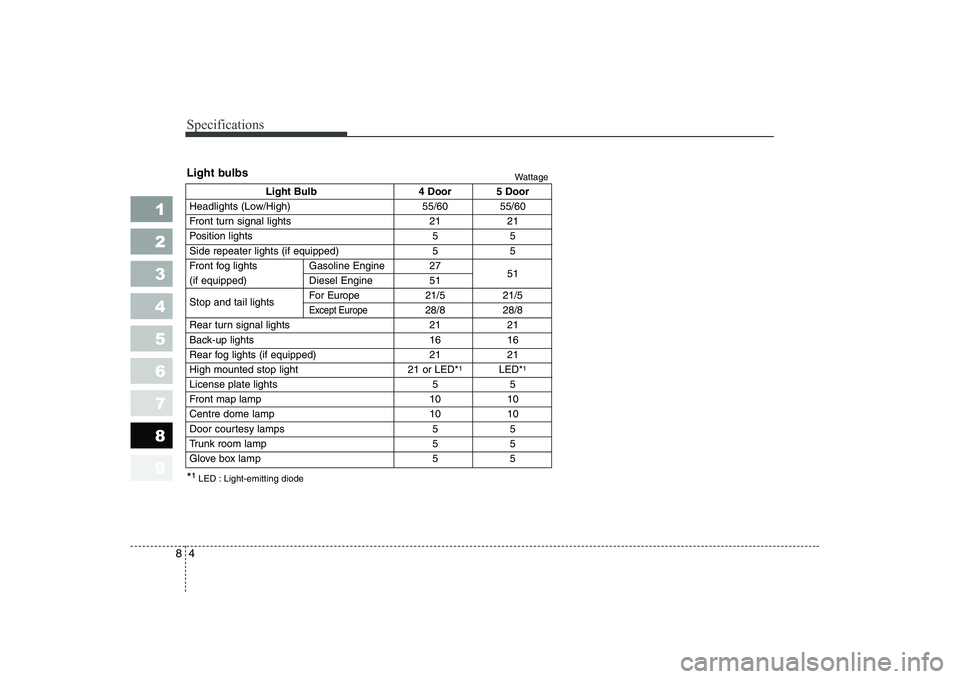

Light Bulb 4 Door 5 Door
Headlights (Low/High) 55/60 55/60
Front turn signal lights 21 21
Position lights 5 5
Side repeater lights (if equipped) 5 5
Front fog lights Gasoline Engine 27 51
(if equipped) Diesel Engine 51 Stop and tail lights For Europe
21/5 21/5
Except Europe28/8 28/8
Rear turn signal lights 21 21
Back-up lights 16 16
Rear fog lights (if equipped) 21 21
High mounted stop light 21 or LED* 1
LED*1
License plate lights 5 5
Front map lamp 10 10
Centre dome lamp 10 10
Door courtesy lamps 5 5
Trunk room lamp 5 5
Glove box lamp 5 5
Light bulbs
Wattage
*¹ LED : Light-emitting diode
Page 315 of 318
1 23456789
Index
Page 316 of 318

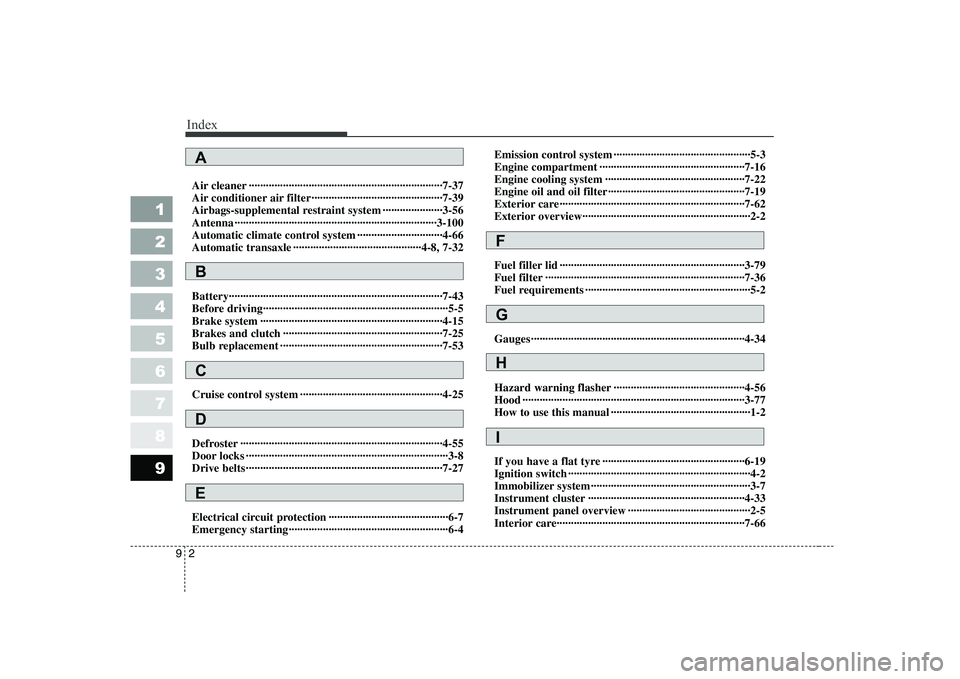

Index
2
9
1 23456789
Air cleaner ····································································7-37
Air conditioner air filter··············································7-39
Airbags-supplemental restraint system ·····················3-56
Antenna ·······································································3-100
Automatic climate control system ······························4-66
Automatic transaxle ·············································4-8, 7-32
Battery···········································································7-43
Before driving·································································5-5
Brake system ································································4-15
Brakes and clutch ························································7-25
Bulb replacement ·························································7-53
Cruise control system ··················································4-25
Defroster ·······································································4-55
Door locks ·······································································3-8
Drive belts ·····································································7-27
Electrical circuit protection ··········································6-7
Emergency starting························································6-4 Emission control system ················································5-3
Engine compartment ···················································7-16
Engine cooling system ·················································7-22
Engine oil and oil filter················································7-19
Exterior care·································································7-62
Exterior overview···························································2-2
Fuel filler lid ·································································3-79
Fuel filter ······································································7-36
Fuel requirements ··························································5-2
Gauges ···········································································4-34
Hazard warning flasher ··············································4-56
Hood ··············································································3-77
How to use this manual ·················································1-2
If you have a flat tyre ··················································6-19
Ignition switch ································································4-2
Immobilizer system ························································3-7
Instrument cluster ·······················································4-33
Instrument panel overview ···········································2-5
Interior care··································································7-66
A
B
C
D
E
F
G
H
I
Page 317 of 318
93
1 23456789

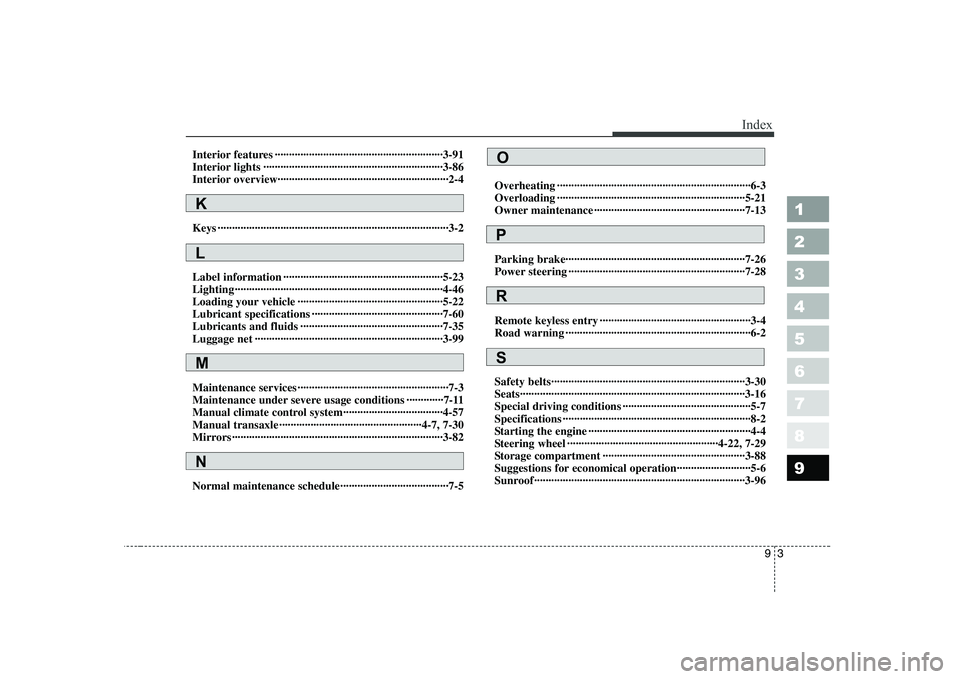

Index
Interior features ···························································3-91
Interior lights ·······························································3-86
Interior overview····························································2-4
Keys ·················································································3-2
Label information ························································5-23
Lighting ·········································································4-46
Loading your vehicle ···················································5-22
Lubricant specifications ··············································7-60
Lubricants and fluids ··················································7-35
Luggage net ··································································3-99
Maintenance services ·····················································7-3
Maintenance under severe usage conditions ·············7-11
Manual climate control system···································4-57
Manual transaxle ··················································4-7, 7-30
Mirrors ··········································································3-82
Normal maintenance schedule······································7-5Overheating ····································································6-3
Overloading ··································································5-21
Owner maintenance ·····················································7-13
Parking brake·······························································7-26
Power steering ······························································7-28
Remote keyless entry ·····················································3-4
Road warning ·································································6-2
Safety belts····································································3-30
Seats···············································································3-16
Special driving conditions ·············································5-7
Specifications ··································································8-2
Starting the engine ·························································4-4
Steering wheel ·····················································4-22, 7-29
Storage compartment ··················································3-88
Suggestions for economical operation··························5-6
Sunroof ··········································································3-96
K
L
M
N
O
P
R
S
Page 318 of 318

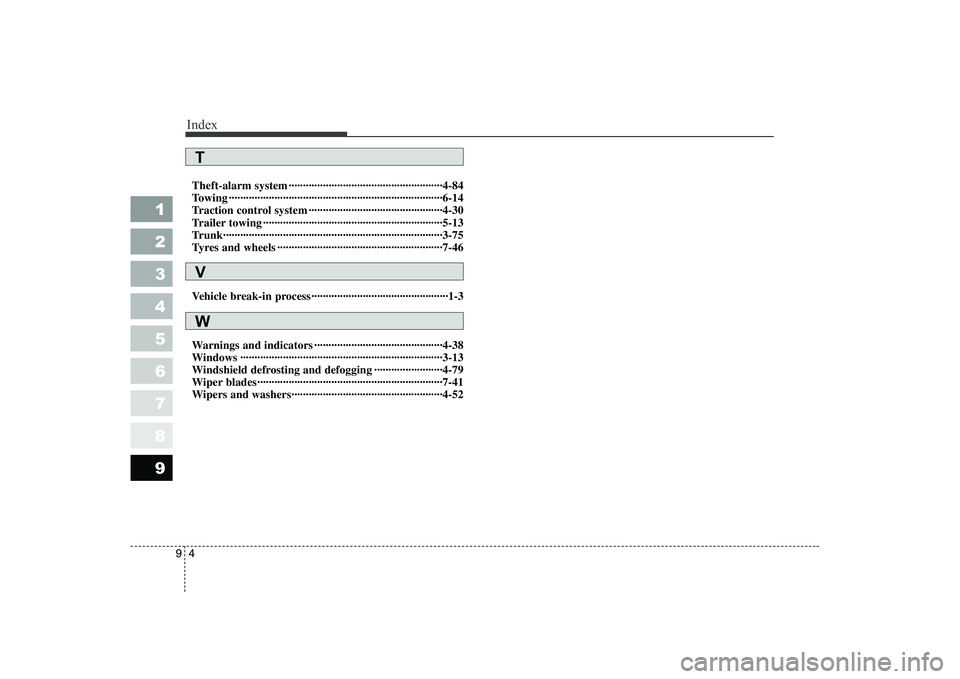

Index
4
9
1 23456789
Theft-alarm system ······················································4-84
Towing ···········································································6-14
Traction control system ···············································4-30
Trailer towing ·······························································5-13
Trunk·············································································3-75
Tyres and wheels ··························································7-46
Vehicle break-in process ················································1-3
Warnings and indicators ·············································4-38
Windows ·······································································3-13
Windshield defrosting and defogging ························4-79
Wiper blades·································································7-41
Wipers and washers·····················································4-52
V
W
T
