Maintenance
56
7
Do not operate the engine in confined
or closed areas (such as garages) any
more than what is necessary to move
the vehicle in or out of the area.
When the vehicle is stopped in an open area for more than a short time
with the engine running, adjust the
ventilation system (as needed) to draw
outside air into the vehicle.
Never sit in a parked or stopped vehi- cle for any extended time with the
engine running.
When the engine stalls or fails to start, excessive attempts to restart the
engine may cause damage to the
emission control system.G270303AAM
Operating precautions for catalyticconverters (if equipped)
Your vehicle is equipped with a catalytic
converter emission control device.
Therefore, the following precautions
must be observed:
Use only UNLEADED FUEL for gaso- line engines.
Do not operate the vehicle when there are signs of engine malfunction, such
as misfire or a noticeable loss of per-
formance. Do not misuse or abuse the engine.
Examples of misuse are coasting with
the ignition off and descending steep
grades in gear with the ignition off.
Do not operate the engine at high idle speed for extended periods (5 minutes
or more).
Do not modify or tamper with any part of the engine or emission control sys-
tem. All inspections and adjustments
must be made by an authorized KIA
dealer.
Avoid driving with a extremely low fuel level. Running out of fuel could cause
the engine to misfire, damaging the
catalytic converter.
Failure to observe these precautions
could result in damage to the catalytic
converter and to your vehicle.
Additionally, such actions could void your
warranties.
WARNING- Fire
A hot exhaust system can ignite
flammable items under your vehi-
cle. Do not park, idle or drive the
vehicle over or near flammable
objects, such as grass, vegetation,
paper, leaves, etc.

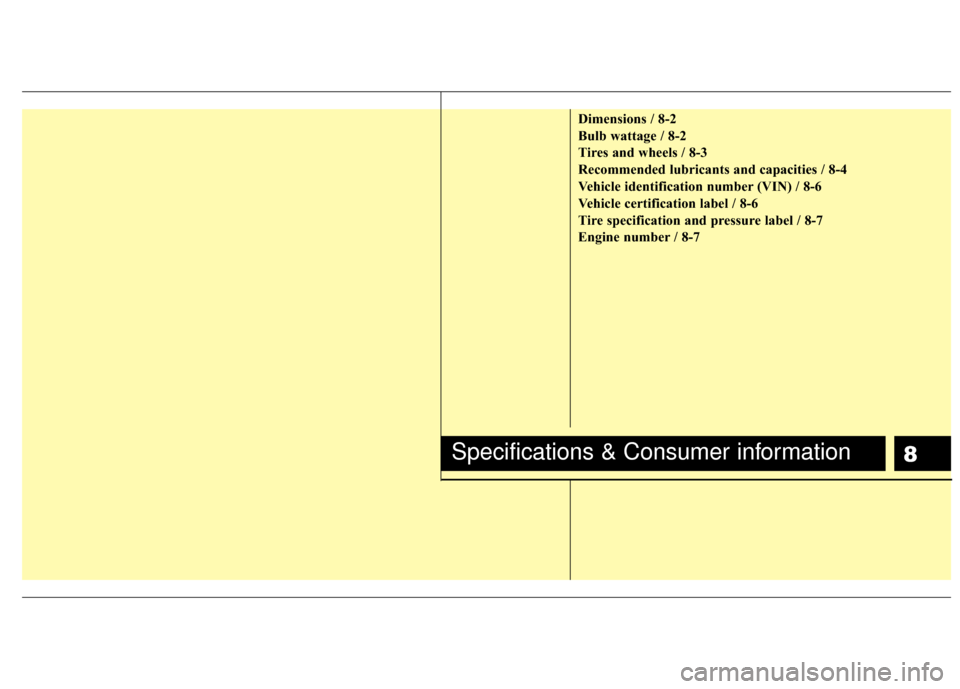

Dimensions / 8-2
Bulb wattage / 8-2
Tires and wheels / 8-3
Recommended lubricants and capacities / 8-4
Vehicle identification number (VIN) / 8-6
Vehicle certification label / 8-6
Tire specification and pressure label / 8-7
Engine number / 8-7
Specifications & Consumer information8

Specifications & Consumer information
28

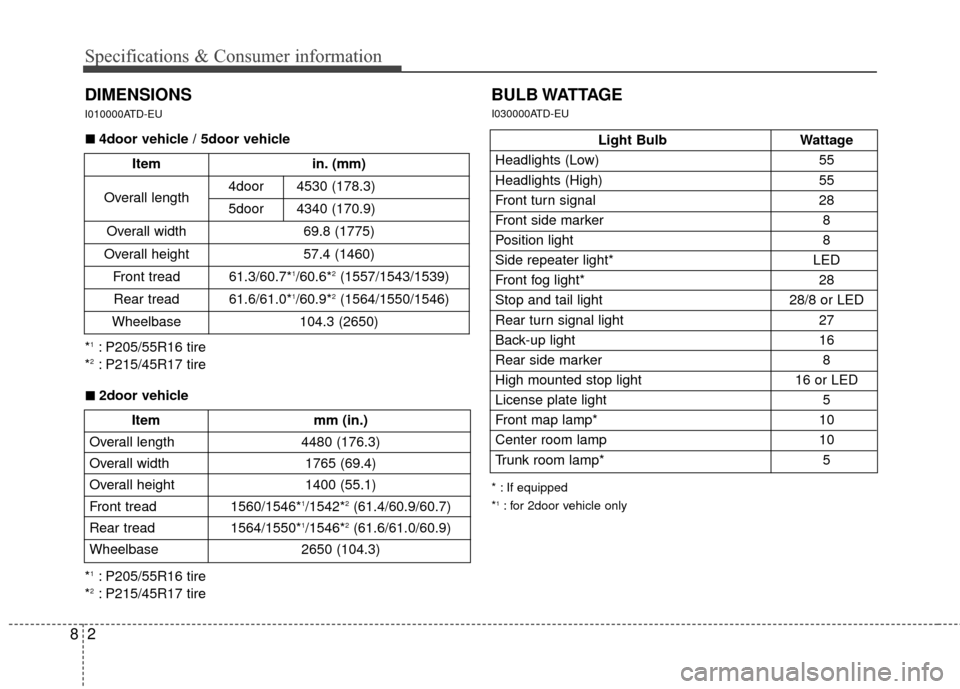

DIMENSIONS
I010000ATD-EU
Light BulbWattage
Headlights (Low) 55
Headlights (High) 55
Front turn signal 28
Front side marker 8
Position light 8
Side repeater light* LED
Front fog light* 28
Stop and tail light 28/8 or LED
Rear turn signal light 27
Back-up light 16
Rear side marker 8
High mounted stop light 16 or LED
License plate light 5
Front map lamp* 10
Center room lamp 10
Trunk room lamp* 5
BULB WATTAGE
I030000ATD-EU
* : If equipped
*1: for 2door vehicle only
Itemmm (in.)
Overall length 4480 (176.3)
Overall width 1765 (69.4)
Overall height 1400 (55.1)
Front tread 1560/1546*
1/1542*2(61.4/60.9/60.7)
Rear tread 1564/1550*
1/1546*2(61.6/61.0/60.9)
Wheelbase 2650 (104.3)
*1: P205/55R16 tire
*2: P215/45R17 tire
■ ■2door vehicle
*
1: P205/55R16 tire
*2: P215/45R17 tire
■
■4door vehicle / 5door vehicle
Itemin. (mm)
Overall length4door4530 (178.3)
5door4340 (170.9)
Overall width69.8 (1775)
Overall height57.4 (1460)
Front tread61.3/60.7*1/60.6*2(1557/1543/1539)
Rear tread61.6/61.0*1/60.9*2(1564/1550/1546)
Wheelbase104.3 (2650)

83
Specifications & Consumer information

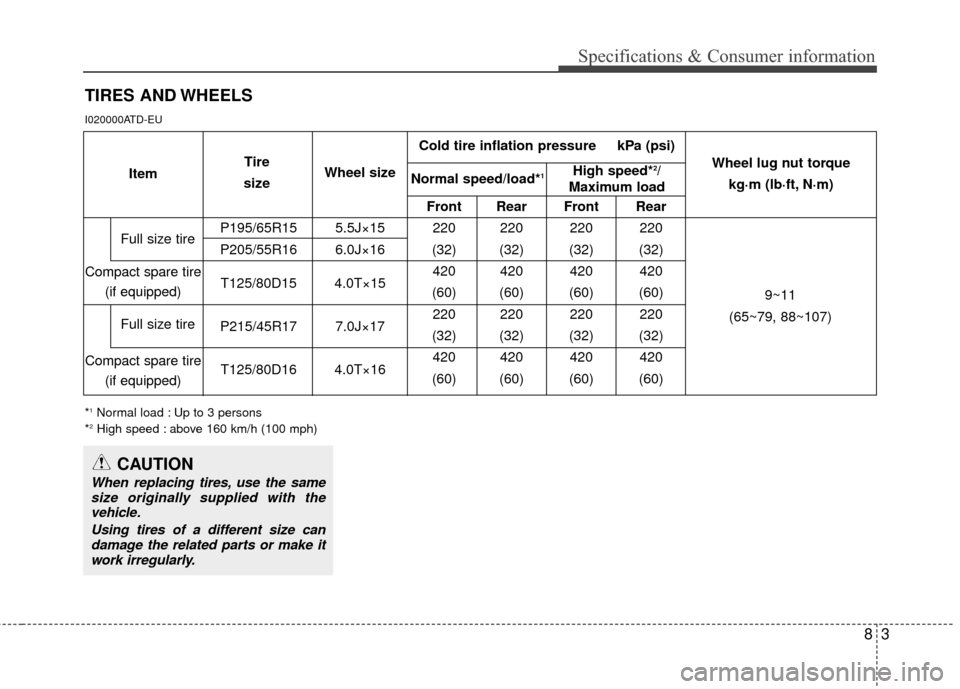

TIRES AND WHEELS
I020000ATD-EU
*1Normal load : Up to 3 persons
*2High speed : above 160 km/h (100 mph)
Front Rear Front Rear
P195/65R15 5.5J×15 220 220 220 220
P205/55R16 6.0J×16 (32) (32) (32) (32) 420 420 420 420
T125/80D15 4.0T×15 (60) (60) (60) (60)
P215/45R17 7.0J×17 220 220 220 220
(32) (32) (32) (32) 420 420 420 420
T125/80D16 4.0T×16 (60) (60) (60) (60)
Full size tire
Compact spare tire (if equipped)
Compact spare tire (if equipped) Wheel lug nut torque
kg·m (lb·ft, N·m)
9~11
(65~79, 88~107)
Item
Tire
size Wheel size
CAUTION
When replacing tires, use the same
size originally supplied with the vehicle.
Using tires of a different size candamage the related parts or make itwork irregularly.
Full size tire
Normal speed/load*1High speed*2/
Maximum load
Cold tire inflation pressure kPa (psi)

Specifications & Consumer information
48
RECOMMENDED LUBRICANTS AND CAPACITIES
I040000ATD-EC
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil *1 *22.0 Engine 3.9l(4.1US qt.)API Service SM*3,
(drain and refill, with oil filter) 2.4 Engine 4.3 l(4.5 US qt.) ILSAC GF-4 or above
Manual transaxle fluid 2.0 Engine 1.9l
(2.0 US qt.)
API GL-4 (SAE 75W-85, fill for life)
2.4 Engine 1.8l (1.9 US qt.)
2.0 Engine 6.6l (6.9 US qt.) MICHANG ATF SP-IV
Automatic transaxle fluid SK ATF SP-IV
2.4 Engine 7.6l (8.0 US qt.) NOCA ATF SP-IV
KIA genuine ATF SP-IV
Power steering 0.9 l(0.9 US qt.) PSF-4
Coolant 6.0l (6.3 US qt.)
Brake/Clutch fluid 0.7~0.8l (0.7~0.8 US qt.)FMVSS116 DOT-3 or DOT-4
Fuel 52l(13.7 US gal.) -
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing the
amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s time,
they can offer significant cost and energy savings.
*3If the API service SM engine oil is not available in your country, you are able to use API service SL.
Mixture of antifreeze and water (Ethylene glycol
base coolant for aluminum radiator)

85
Specifications & Consumer information
I040100ATD-EU
Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operation (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-
ommended could result in engine dam-
age.When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, ordipstick before checking or drain-ing any lubricant. This is especiallyimportant in dusty or sandy areasand when the vehicle is used onunpaved roads. Cleaning the plug and dipstick areas will prevent dirtand grit from entering the engineand other mechanisms that couldbe damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
1. For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4). However, if
the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
10W-30
5W-20, 5W-30

Specifications & Consumer information
68
H010000APB

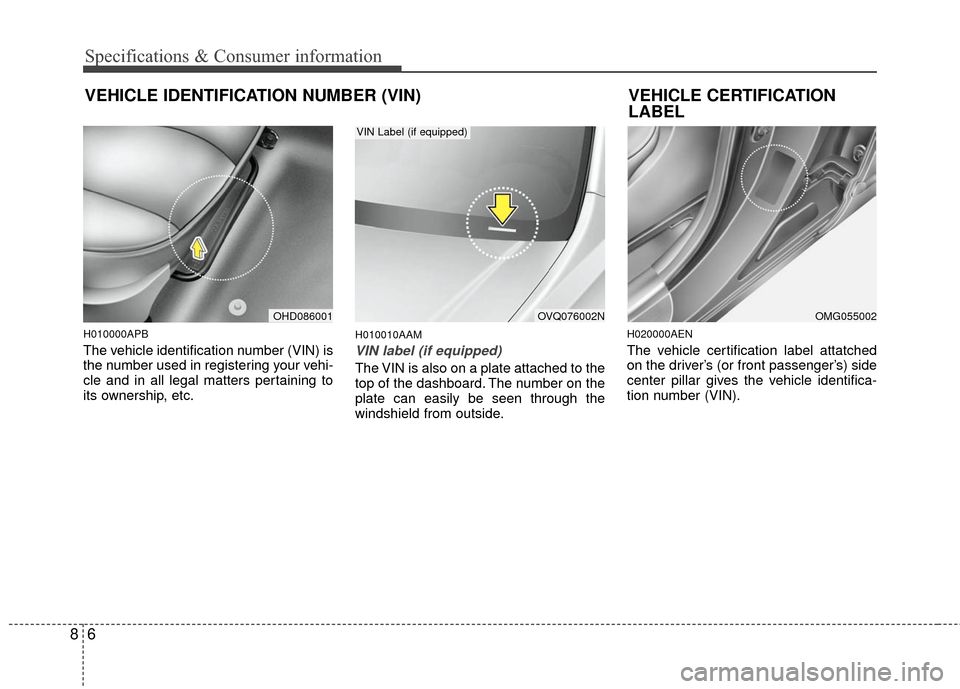

The vehicle identification number (VIN) is
the number used in registering your vehi-
cle and in all legal matters pertaining to
its ownership, etc.
H010010AAM
VIN label (if equipped)
The VIN is also on a plate attached to the
top of the dashboard. The number on the
plate can easily be seen through the
windshield from outside.
H020000AEN
The vehicle certification label attatched
on the driver’s (or front passenger’s) side
center pillar gives the vehicle identifica-
tion number (VIN).
OMG055002
VEHICLE CERTIFICATION
LABEL
OVQ076002N
VIN Label (if equipped)
VEHICLE IDENTIFICATION NUMBER (VIN)
OHD086001

87
Specifications & Consumer information
H030000APB

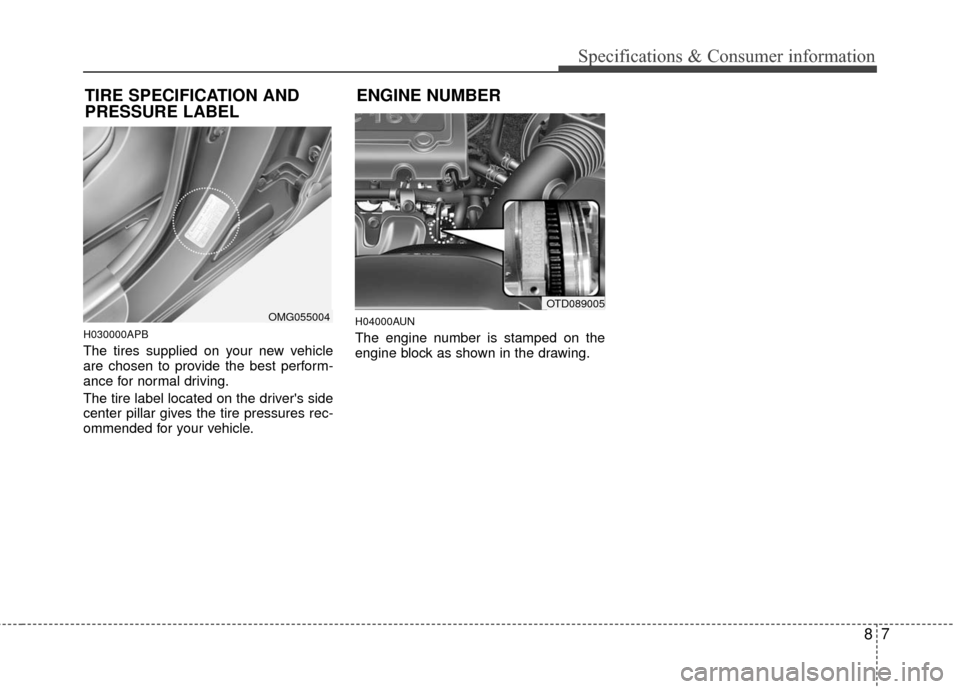

The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your vehicle.
H04000AUN
The engine number is stamped on the
engine block as shown in the drawing.
OMG055004OTD089005
ENGINE NUMBERTIRE SPECIFICATION AND
PRESSURE LABEL
