23
Your vehicle at a glance
10. Door locks ........................................4-18
11. Fuel filler lid ......................................4-31
12. Rear combination lamp
13. High mounted stop lamp
14. Trunk.................................................4-22
15. Antenna ..........................................4-144
16. Parking assist system ......................4-86
OYDEIN2002

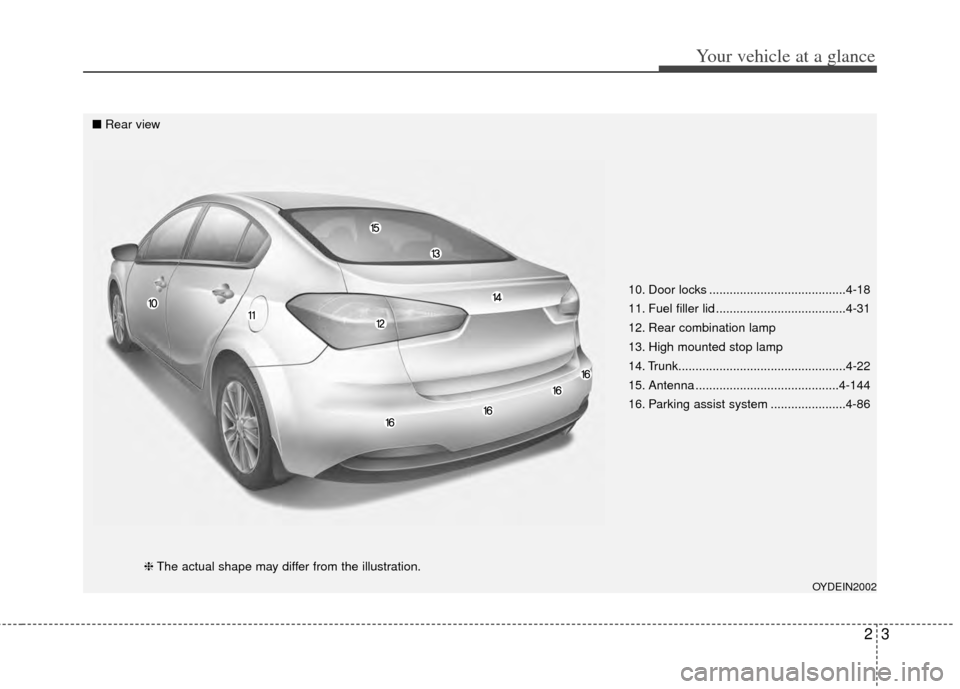

■Rear view
❈The actual shape may differ from the illustration.
Page 12 of 446
Your vehicle at a glance
42

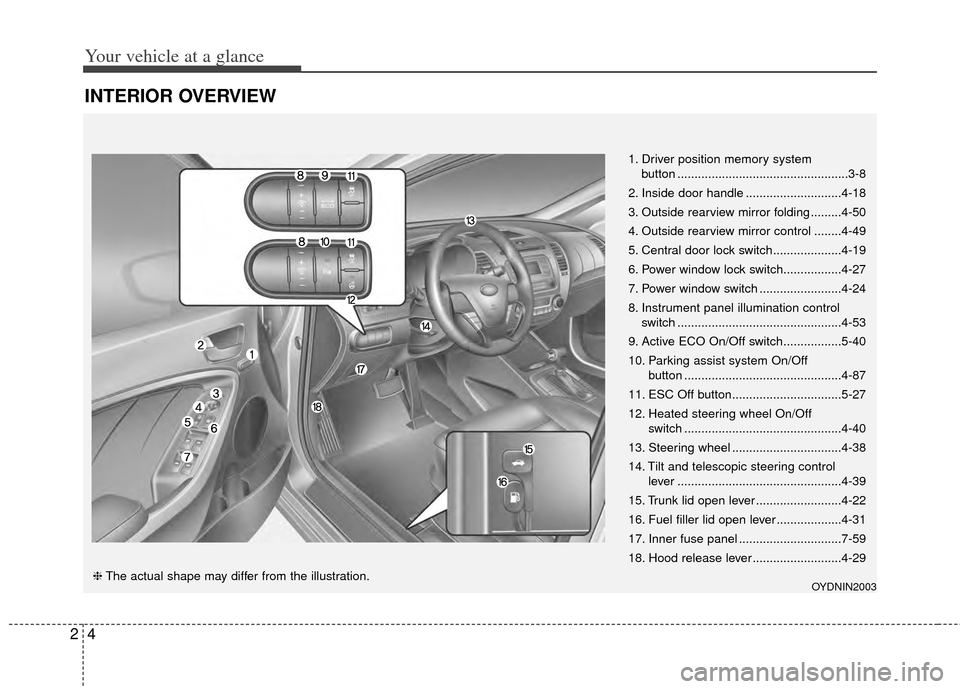

INTERIOR OVERVIEW
1. Driver position memory systembutton ..................................................3-8
2. Inside door handle ............................4-18
3. Outside rearview mirror folding .........4-50
4. Outside rearview mirror control ........4-49
5. Central door lock switch....................4-19
6. Power window lock switch.................4-27
7. Power window switch ........................4-24
8. Instrument panel illumination control switch ................................................4-53
9. Active ECO On/Off switch.................5-40
10. Parking assist system On/Off button ..............................................4-87
11. ESC Off button................................5-27
12. Heated steering wheel On/Off switch ..............................................4-40
13. Steering wheel ................................4-38
14. Tilt and telescopic steering control lever ................................................4-39
15. Trunk lid open lever .........................4-22
16. Fuel filler lid open lever ...................4-31
17. Inner fuse panel ..............................7-59
18. Hood release lever ..........................4-29
OYDNIN2003❈ The actual shape may differ from the illustration.
Page 13 of 446
25
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
1. Instrument cluster ................................4-52
2. Lighting control lever ...........................4-93
3. Audio remote control buttons ............4-145
4. Horn.....................................................4-39
5. Driver's front air bag ............................3-44
6. Cruise control button ...........................5-35
7. Wiper and washer control lever ...........4-99
8. Ignition switch orEngine start/stop button .................5-5, 5-7
9. Digital clock .......................................4-141
10. Hazard warning flasher .......................6-2
11. Audio ...............................................4-144
12. Climate control system.........4-107, 4-117
13. Shift lever .................................5-13, 5-16
14. Passenger's front air bag ..................3-44
15. Glove box ........................................4-132
16. Parking brake ....................................5-23
17. Cup holder .......................................4-136
18. LCD display control button ................4-54
OYDEIN2004CN
❈ The actual shape may differ from the illustration.
Page 14 of 446
Your vehicle at a glance
62
ENGINE COMPARTMENT
1. Engine oil filler cap ...........................7-29
2. Engine oil dipstick .............................7-29
3. Brake/clutch fluid reservoir ...............7-34
4. Air cleaner.........................................7-36
5. Fuse box ...........................................7-58
6. Positive battery terminal ...................7-41
7. Negative battery terminal..................7-41
8. Windshield washer fluid reservoir .....7-35
9. Radiator cap .....................................7-32
10. Engine coolant reservoir .................7-31
OYDNMC2041
* The actual engine room in the vehicle may differ from the illustration.
Page 15 of 446

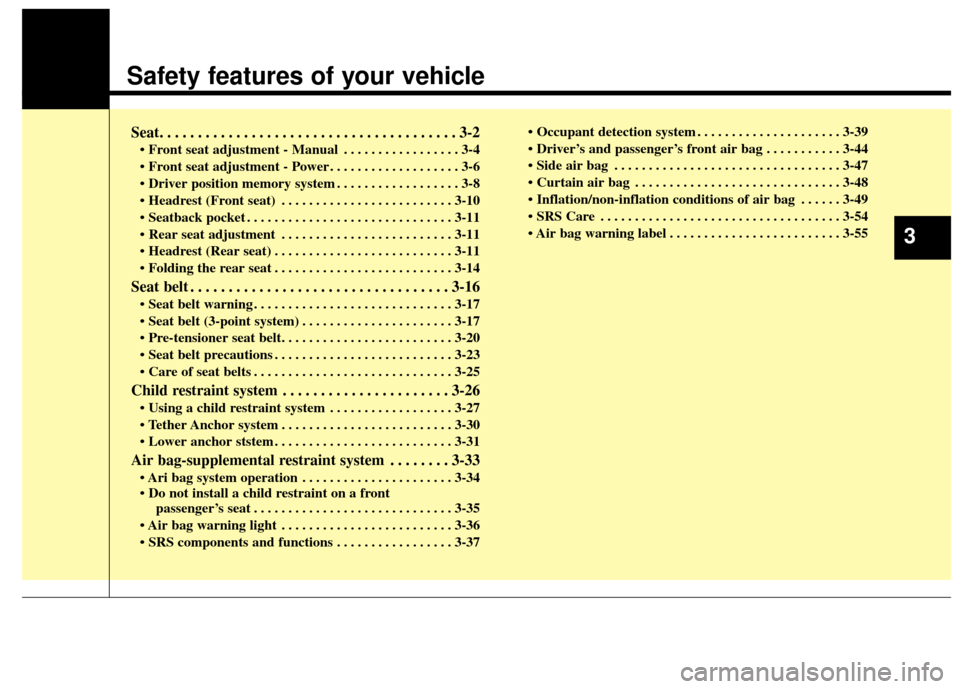

Safety features of your vehicle
Seat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 3-2
• Front seat adjustment - Manual . . . . . . . . . . . . . . . . . 3-4
. . . . . . . . . . . . . . . . . . . 3-6
. . . . . . . . . . . . . . . . . . 3-8
. . . . . . . . . . . . . . . . . . . . . . . . . 3-10
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
. . . . . . . . . . . . . . . . . . . . . . . . . 3-11
. . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
. . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Seat belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17
. . . . . . . . . . . . . . . . . . . . . . 3-17
. . . . . . . . . . . . . . . . . . . . . . . . . . 3-23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25
Child restraint system . . . . . . . . . . . . . . . . . . . . . . 3-26
. . . . . . . . . . . . . . . . . . 3-27
. . . . . . . . . . . . . . . . . . . . . . . . . 3-30
. . . . . . . . . . . . . . . . . . . . . . . . . . 3-31
Air bag-supplemental restraint system . . . . . . . . 3-33
. . . . . . . . . . . . . . . . . . . . . . 3-34
passenger’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-35
. . . . . . . . . . . . . . . . . . . . . . . . . 3-36
. . . . . . . . . . . . . . . . . 3-37 . . . . . . . . . . . . . . . . . . . . . 3-39
. . . . . . . . . . . 3-44
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-48
. . . . . . 3-49
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
54
. . . . . . . . . . . . . . . . . . . . . . . . . 3-55
3
Page 16 of 446
Safety features of your vehicle
23
Driver’s seat
(1) Seat adjustment, forward / back-ward
(2) Seatback recliner
(3) Seat adjustment, height (for driver’s
seat)
(4) Lumbar support (for driver’s seat)
(5) Driver position memory system*
(6) Headrest
Front passenger’s seat
(7) Seat adjustment, forward / back- ward
(8) Seatback recliner
(9) Headrest
Rear seat
(10) Armrest
(11) Ski through
(12) Headrest
(13) Seat-back folding lever
* : if equipped
SEAT
OYDDSA2001
Manual seat
Power seat
Page 17 of 446
33
Safety features of your vehicle
WARNING - Uprighting
seat
Do not press the release lever
on a manual seatback without
holding and controlling the
seatback. The seatback will
spring upright possibly impact-
ing you or other passengers.
WARNING- Loose
objects
Do not place anything in the dri-
ver's foot well or under the front
seats. Loose objects in the dri-
ver's foot area could interfere
with the operation of the foot
pedals.WARNING- Driver
responsibility for passen-
gers
The driver must advise the pas-
senger to keep the seatback in
an upright position whenever
the vehicle is in motion. If a seat
is reclined during an accident,
the restraint system's ability to
restrain will be greatly reduced.WARNING - Seat cushion
Occupants should never sit on
seat cushions. The passenger's
hips may slide under the lap
portion of the seat belt during
an accident or a sudden stop.
1KMN3661
Page 18 of 446
Safety features of your vehicle
43

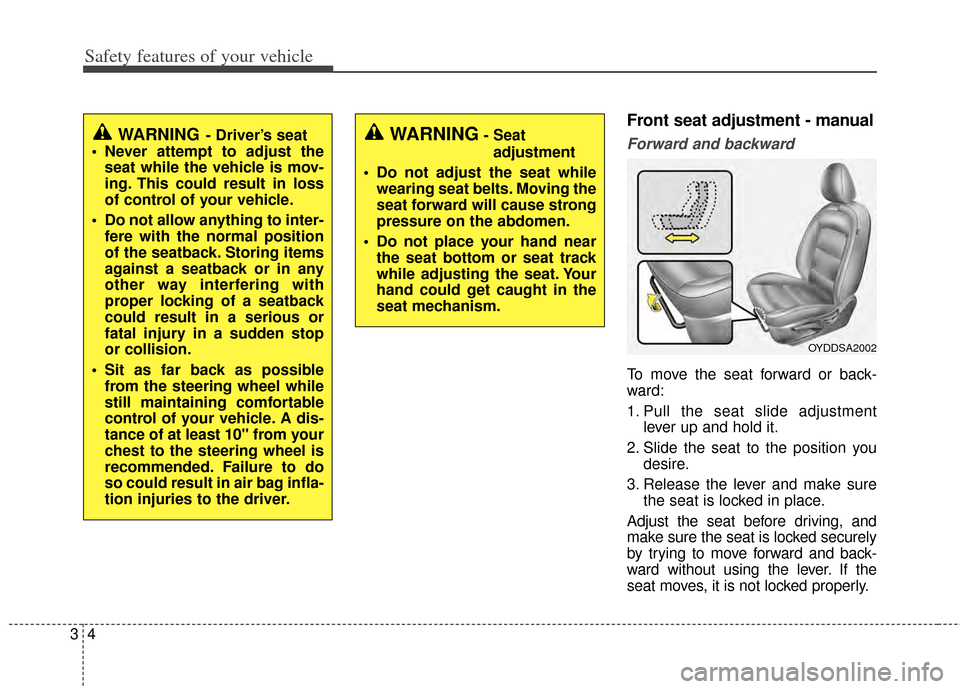

Front seat adjustment - manual
Forward and backward
To move the seat forward or back-
ward:
1. Pull the seat slide adjustmentlever up and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and
make sure the seat is locked securely
by trying to move forward and back-
ward without using the lever. If the
seat moves, it is not locked properly.
WARNING- Seat adjustment
Do not adjust the seat while wearing seat belts. Moving the
seat forward will cause strong
pressure on the abdomen.
Do not place your hand near the seat bottom or seat track
while adjusting the seat. Your
hand could get caught in the
seat mechanism.WARNING- Driver’s seat
Never attempt to adjust the seat while the vehicle is mov-
ing. This could result in loss
of control of your vehicle.
Do not allow anything to inter- fere with the normal position
of the seatback. Storing items
against a seatback or in any
other way interfering with
proper locking of a seatback
could result in a serious or
fatal injury in a sudden stop
or collision.
Sit as far back as possible from the steering wheel while
still maintaining comfortable
control of your vehicle. A dis-
tance of at least 10" from your
chest to the steering wheel is
recommended. Failure to do
so could result in air bag infla-
tion injuries to the driver.
OYDDSA2002
Page 19 of 446
35
Safety features of your vehicle

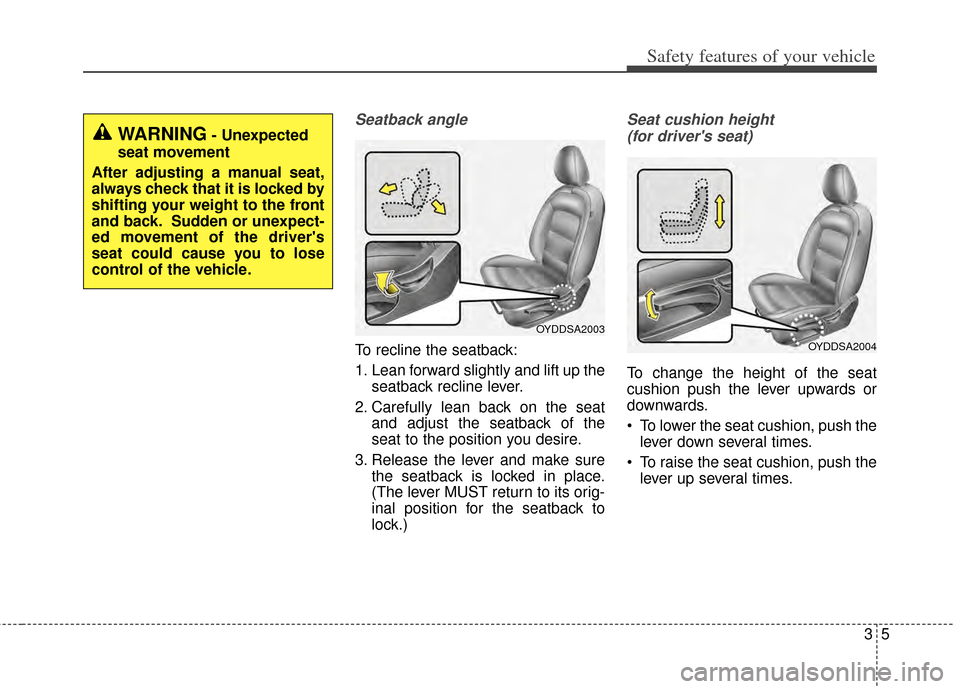

Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up theseatback recline lever.
2. Carefully lean back on the seat and adjust the seatback of the
seat to the position you desire.
3. Release the lever and make sure the seatback is locked in place.
(The lever MUST return to its orig-
inal position for the seatback to
lock.)
Seat cushion height
(for driver's seat)
To change the height of the seat
cushion push the lever upwards or
downwards.
To lower the seat cushion, push the lever down several times.
To raise the seat cushion, push the lever up several times.
WARNING- Unexpected
seat movement
After adjusting a manual seat,
always check that it is locked by
shifting your weight to the front
and back. Sudden or unexpect-
ed movement of the driver's
seat could cause you to lose
control of the vehicle.
OYDDSA2004
OYDDSA2003
Page 20 of 446
Safety features of your vehicle
63
Lumbar support (for driver’s seat)
Press the front portion of the switch
to increase support, or the rear por-
tion of the switch to decrease sup-
port.
Front seat adjustment - power
The front seat can be adjusted by
using the control switch located on
the outside of the seat cushion.
Before driving, adjust the seat to the
proper position so as to easily con-
trol the steering wheel, pedals and
switches on the instrument panel.

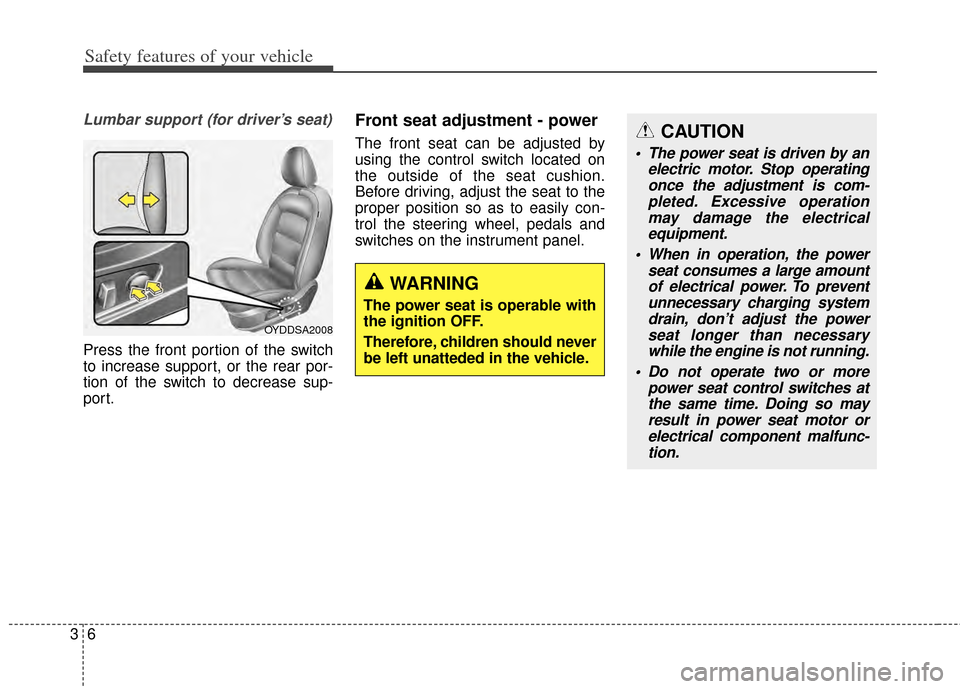

WARNING
The power seat is operable with
the ignition OFF.
Therefore, children should never
be left unatteded in the vehicle.
CAUTION
The power seat is driven by anelectric motor. Stop operatingonce the adjustment is com-pleted. Excessive operationmay damage the electricalequipment.
When in operation, the power seat consumes a large amountof electrical power. To preventunnecessary charging systemdrain, don’t adjust the powerseat longer than necessarywhile the engine is not running.
Do not operate two or more power seat control switches atthe same time. Doing so mayresult in power seat motor orelectrical component malfunc-tion.
OYDDSA2008
