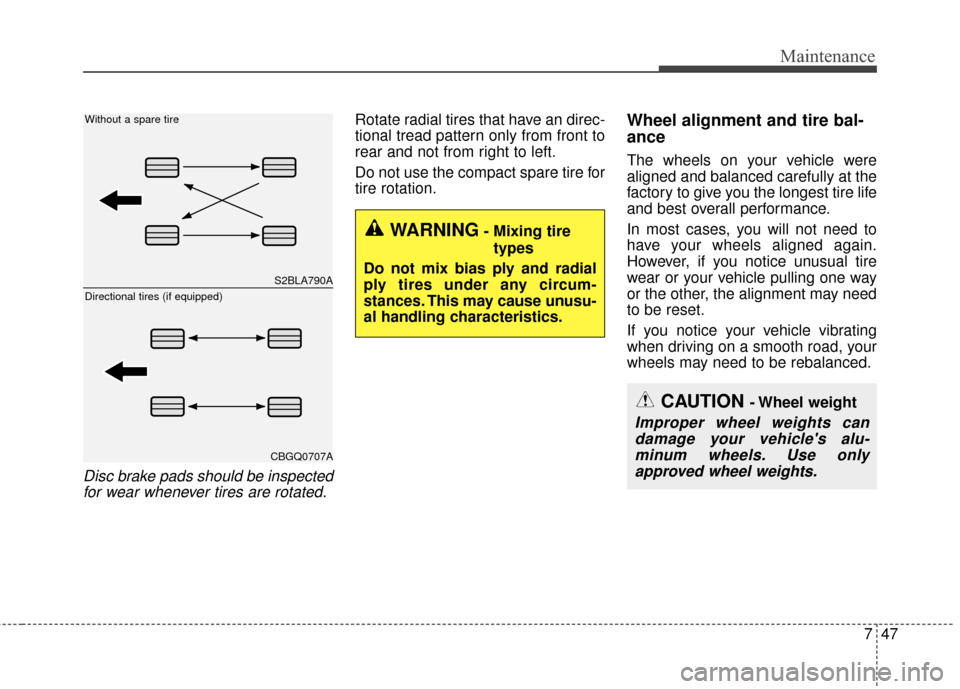

Page 401 of 452

KIA Cerato 2015 2.G Owners Manual 747
Maintenance
Disc brake pads should be inspectedfor wear whenever tires are rotated.
Rotate radial tires that have an direc-
tional tread pattern only from front to
rear and not from right to left.

Page 402 of 452

KIA Cerato 2015 2.G Owners Manual Maintenance
48
7
Tire replacement
If the tire is worn evenly, a tread wear
indicator will appear as a solid band
across the tread. This shows there is
less than 1.6 mm (1/16 inch) of tread
left on the

Page 403 of 452

KIA Cerato 2015 2.G Owners Manual 749
Maintenance

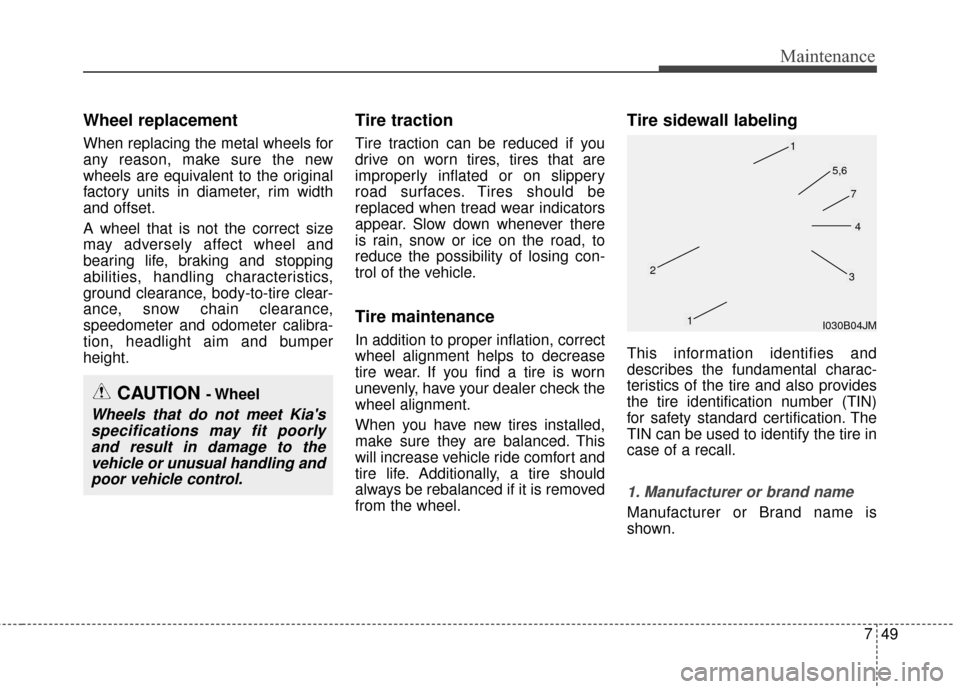

Wheel replacement
When replacing the metal wheels for
any reason, make sure the new
wheels are equivalent to the original
factory units in diameter, rim width
and offset.
A wheel that

Page 404 of 452

KIA Cerato 2015 2.G Owners Manual Maintenance
50
7

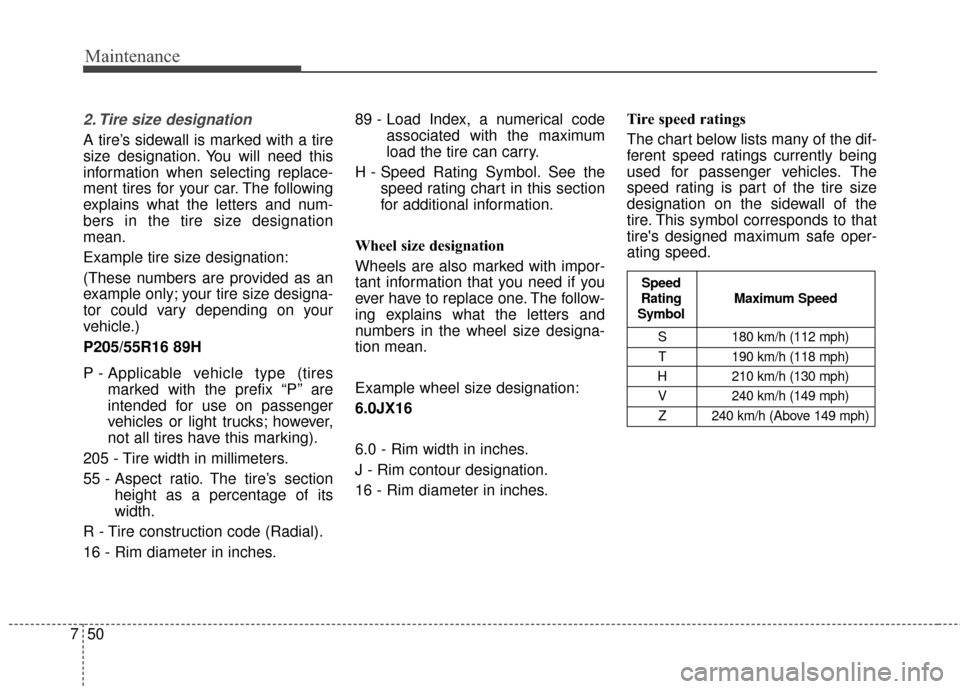

2. Tire size designation
A tire’s sidewall is marked with a tire
size designation. You will need this
information when selecting replace-
ment tires for your car. The following
ex

Page 405 of 452

KIA Cerato 2015 2.G Owners Manual 751
Maintenance

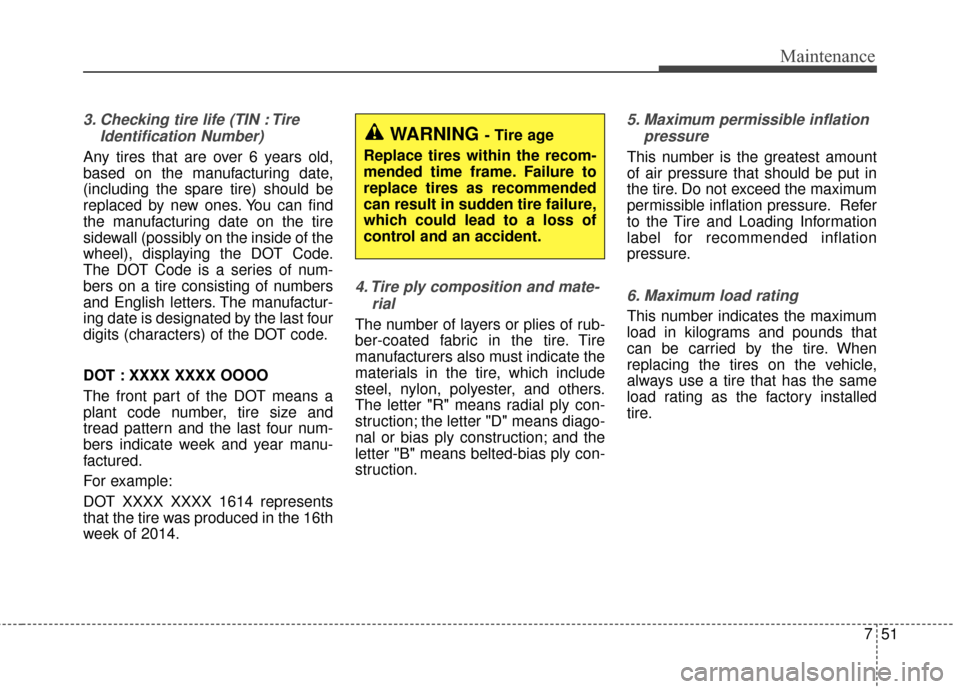

3. Checking tire life (TIN : TireIdentification Number)
Any tires that are over 6 years old,
based on the manufacturing date,
(including the spare tire) should be
replaced by new ones

Page 406 of 452

KIA Cerato 2015 2.G Owners Manual Maintenance
52
7

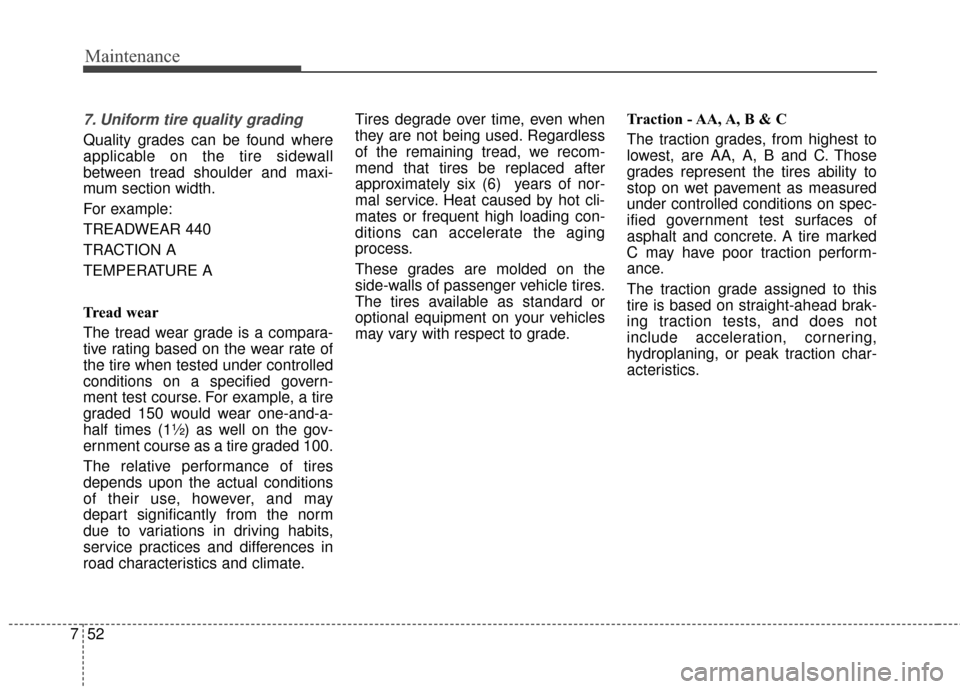

7. Uniform tire quality grading
Quality grades can be found where
applicable on the tire sidewall
between tread shoulder and maxi-
mum section width.
For example:
TREADWEAR 440

Page 407 of 452

KIA Cerato 2015 2.G Owners Manual 753
Maintenance

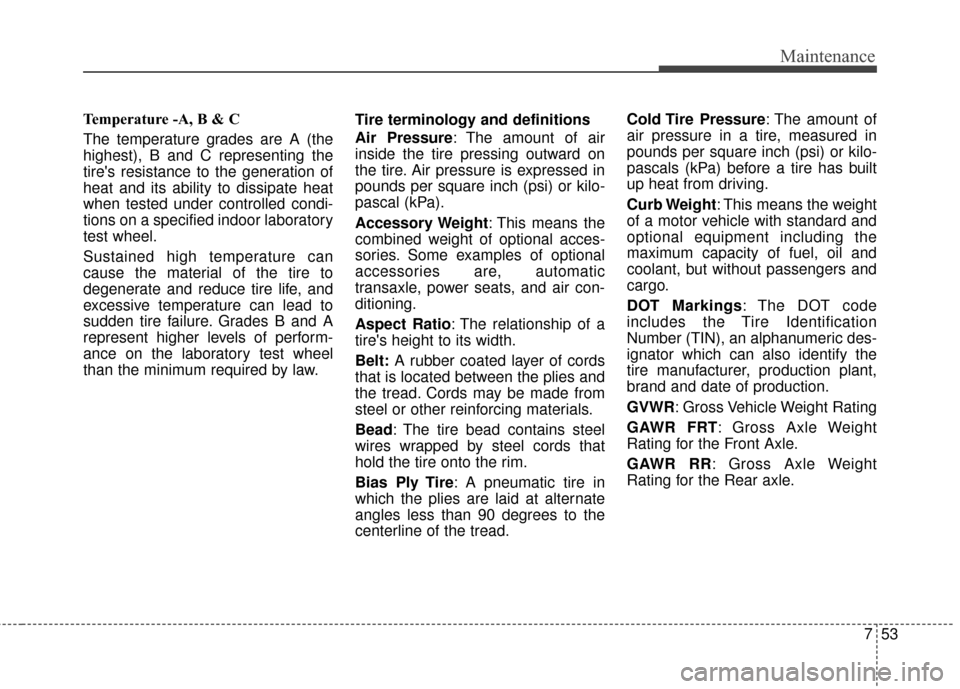

Temperature -A, B & C
The temperature grades are A (the
highest), B and C representing the
tires resistance to the generation of
heat and its ability to dissipate heat
when tested und

Page 408 of 452

KIA Cerato 2015 2.G Owners Manual Maintenance
54
7

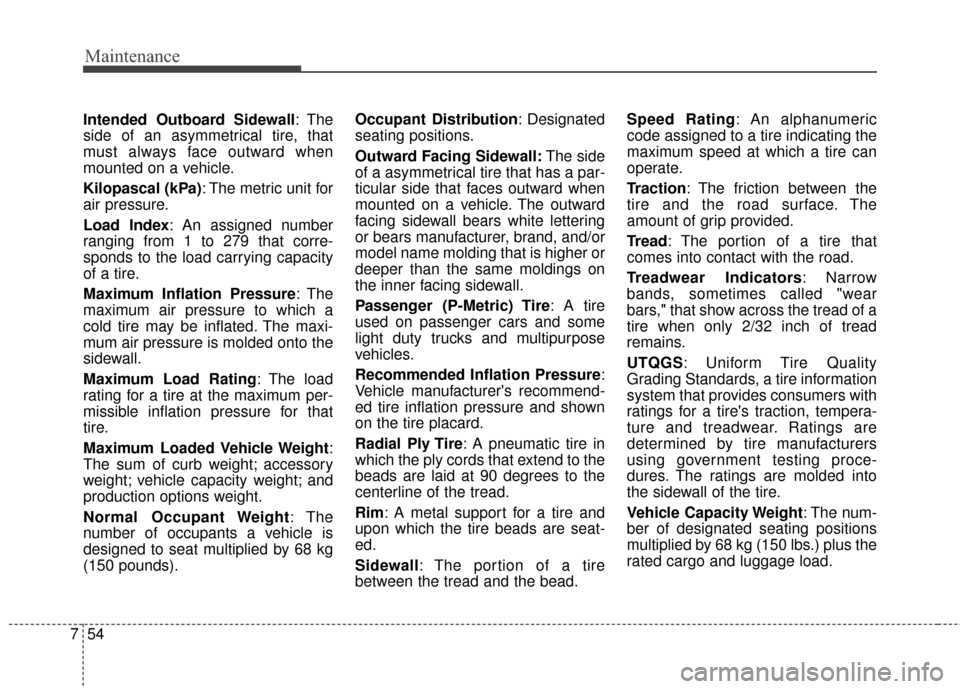

Intended Outboard Sidewall : The
side of an asymmetrical tire, that
must always face outward when
mounted on a vehicle.
Kilopascal (kPa): The metric unit for
air pressure.
Load Index:

Page 409 of 452

KIA Cerato 2015 2.G Owners Manual 755
Maintenance

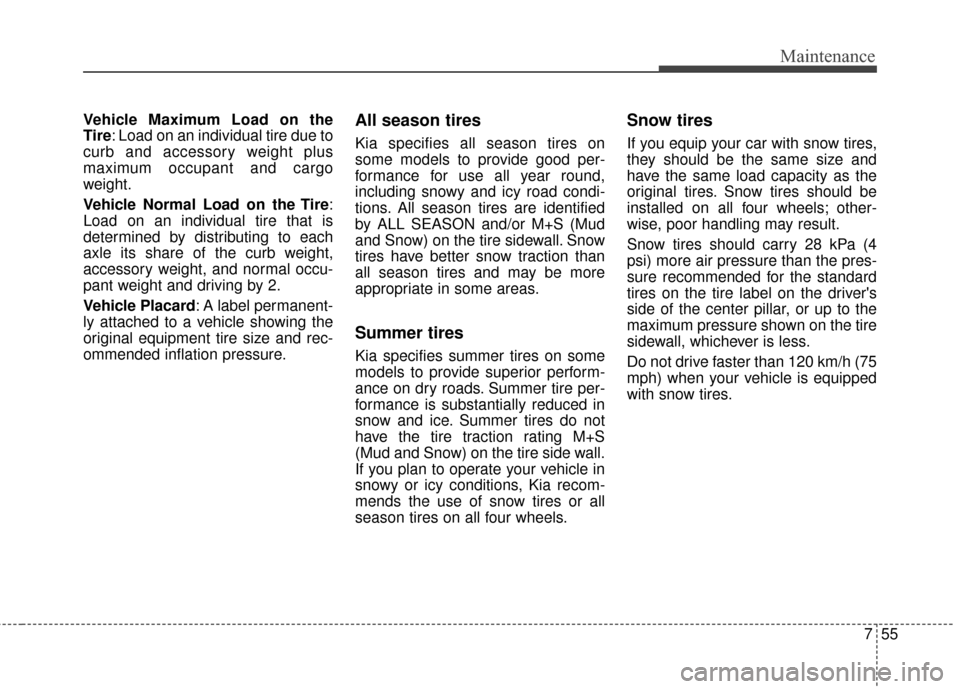

Vehicle Maximum Load on the
Tire: Load on an individual tire due to
curb and accessory weight plus
maximum occupant and cargo
weight.
Vehicle Normal Load on the Tire:
Load on an indivi

Page 410 of 452

KIA Cerato 2015 2.G Owners Manual Maintenance
56
7

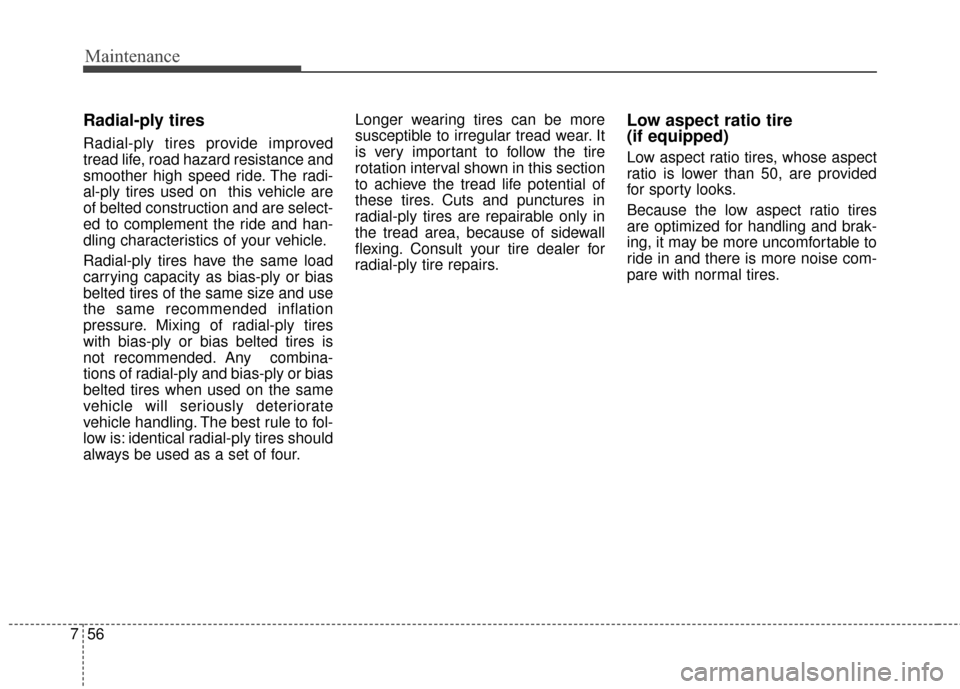

Radial-ply tires
Radial-ply tires provide improved
tread life, road hazard resistance and
smoother high speed ride. The radi-
al-ply tires used on  this vehicle are
of belted construc
