KIA FORTE 2017 Owners Manual

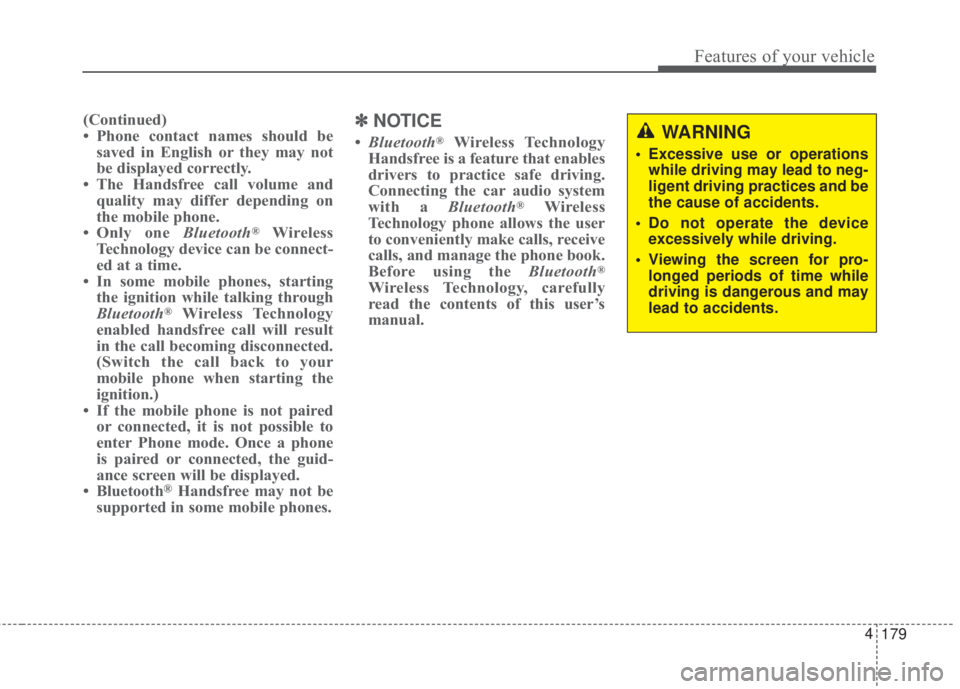

179 4
Features of your vehicle
(Continued)
• Phone contact names should be
saved in English or they may not
be displayed correctly.
• The Handsfree call volume and
quality may differ depending on
the mobile phone.
• Only one Bluetooth
®Wireless
Technology device can be connect-
ed at a time.
• In some mobile phones, starting
the ignition while talking through
Bluetooth
®Wireless Technology
enabled handsfree call will result
in the call becoming disconnected.
(Switch the call back to your
mobile phone when starting the
ignition.)
• If the mobile phone is not paired
or connected, it is not possible to
enter Phone mode. Once a phone
is paired or connected, the guid-
ance screen will be displayed.
• Bluetooth
®Handsfree may not be
supported in some mobile phones.
✽NOTICE
•Bluetooth®Wireless Technology
Handsfree is a feature that enables
drivers to practice safe driving.
Connecting the car audio system
with a Bluetooth
®Wireless
Technology phone allows the user
to conveniently make calls, receive
calls, and manage the phone book.
Before using the Bluetooth
®
Wireless Technology, carefully
read the contents of this user’s
manual.
WARNING
• Excessive use or operations
while driving may lead to neg-
ligent driving practices and be
the cause of accidents.
• Do not operate the device
excessively while driving.
• Viewing the screen for pro-
longed periods of time while
driving is dangerous and may
lead to accidents.

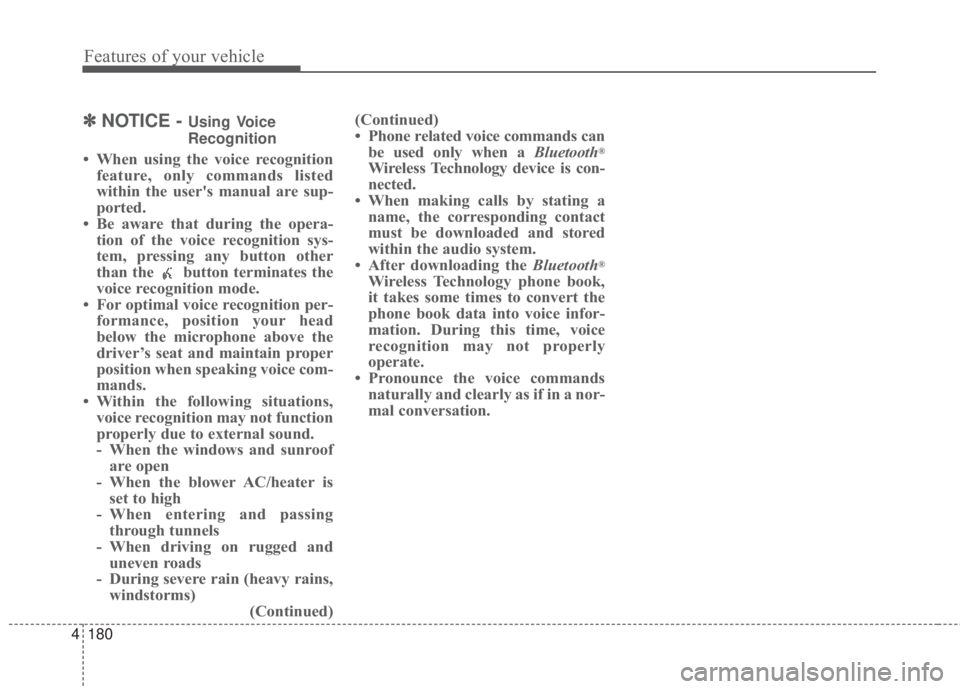

4 180
Features of your vehicle
✽NOTICE - Using Voice
Recognition
• When using the voice recognition
feature, only commands listed
within the user's manual are sup-
ported.
• Be aware that during the opera-
tion of the voice recognition sys-
tem, pressing any button other
than the button terminates the
voice recognition mode.
• For optimal voice recognition per-
formance, position your head
below the microphone above the
driver’s seat and maintain proper
position when speaking voice com-
mands.
• Within the following situations,
voice recognition may not function
properly due to external sound.
- When the windows and sunroof
are open
- When the blower AC/heater is
set to high
- When entering and passing
through tunnels
- When driving on rugged and
uneven roads
- During severe rain (heavy rains,
windstorms)
(Continued)(Continued)
• Phone related voice commands can
be used only when a Bluetooth®
Wireless Technology device is con-
nected.
• When making calls by stating a
name, the corresponding contact
must be downloaded and stored
within the audio system.
• After downloading the Bluetooth
®
Wireless Technology phone book,
it takes some times to convert the
phone book data into voice infor-
mation. During this time, voice
recognition may not properly
operate.
• Pronounce the voice commands
naturally and clearly as if in a nor-
mal conversation.

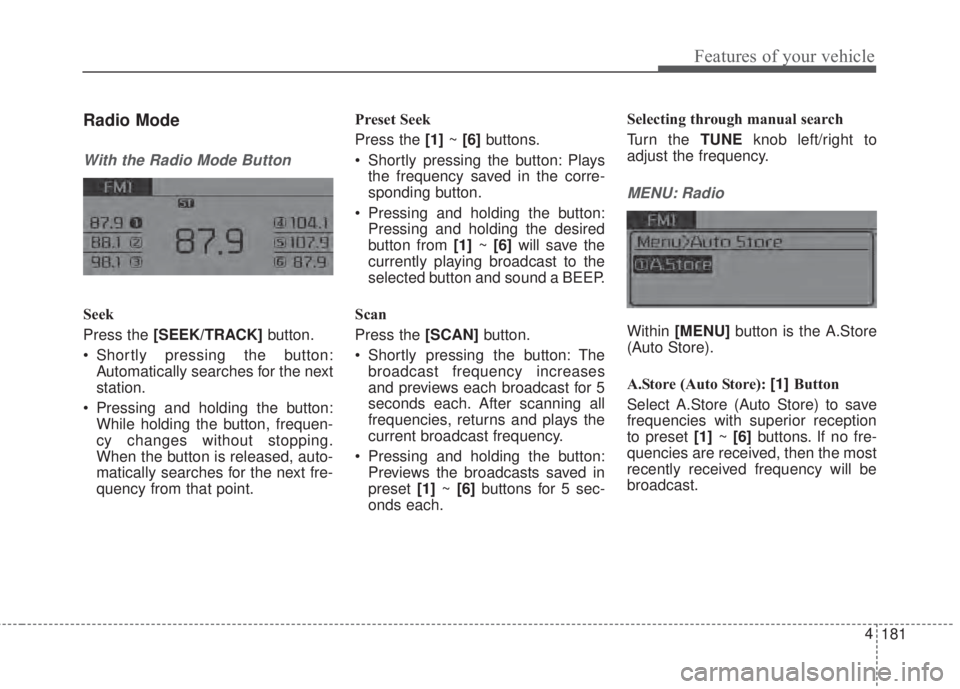

181 4
Features of your vehicle
Radio Mode
With the Radio Mode Button
Seek
Press the [SEEK/TRACK]button.
• Shortly pressing the button:
Automatically searches for the next
station.
• Pressing and holding the button:
While holding the button, frequen-
cy changes without stopping.
When the button is released, auto-
matically searches for the next fre-
quency from that point.Preset Seek
Press the [1]~[6]buttons.
• Shortly pressing the button: Plays
the frequency saved in the corre-
sponding button.
• Pressing and holding the button:
Pressing and holding the desired
button from [1]~[6]will save the
currently playing broadcast to the
selected button and sound a BEEP.
Scan
Press the [SCAN]button.
• Shortly pressing the button: The
broadcast frequency increases
and previews each broadcast for 5
seconds each. After scanning all
frequencies, returns and plays the
current broadcast frequency.
• Pressing and holding the button:
Previews the broadcasts saved in
preset[1]~[6]buttons for 5 sec-
onds each.Selecting through manual search
Tu r n t h e TUNEknob left/right to
adjust the frequency.
MENU: Radio
Within[MENU]button is the A.Store
(Auto Store).
A.Store (Auto Store): [1]Button
Select A.Store (Auto Store) to save
frequencies with superior reception
to preset [1]~[6]buttons. If no fre-
quencies are received, then the most
recently received frequency will be
broadcast.

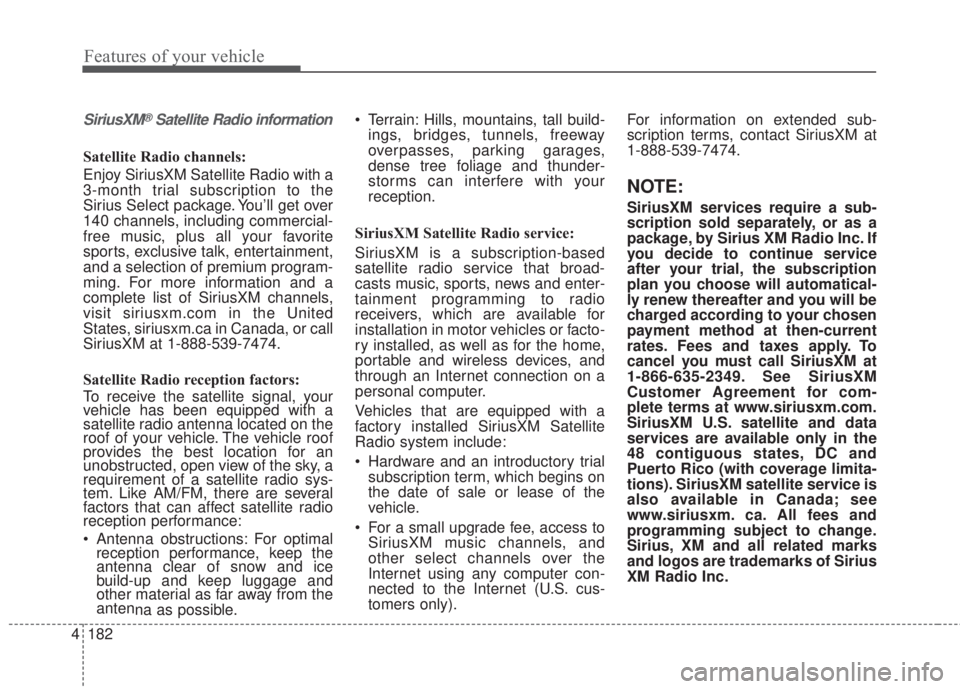

4 182
Features of your vehicle
SiriusXM®Satellite Radio information
Satellite Radio channels:
Enjoy SiriusXM Satellite Radio with a
3-month trial subscription to the
Sirius Select package. You’ll get over
140 channels, including commercial-
free music, plus all your favorite
sports, exclusive talk, entertainment,
and a selection of premium program-
ming. For more information and a
complete list of SiriusXM channels,
visit siriusxm.com in the United
States, siriusxm.ca in Canada, or call
SiriusXM at 1-888-539-7474.
Satellite Radio reception factors:
To receive the satellite signal, your
vehicle has been equipped with a
satellite radio antenna located on the
roof of your vehicle. The vehicle roof
provides the best location for an
unobstructed, open view of the sky, a
requirement of a satellite radio sys-
tem. Like AM/FM, there are several
factors that can affect satellite radio
reception performance:
• Antenna obstructions: For optimal
reception performance, keep the
antenna clear of snow and ice
build-up and keep luggage and
other material as far away from the
anten
na as possible.• Terrain: Hills, mountains, tall build-
ings, bridges, tunnels, freeway
overpasses, parking garages,
dense tree foliage and thunder-
storms can interfere with your
reception.
SiriusXM Satellite Radio service:
SiriusXM is a subscription-based
satellite radio service that broad-
casts music, sports, news and enter-
tainment programming to radio
receivers, which are available for
installation in motor vehicles or facto-
ry installed, as well as for the home,
portable and wireless devices, and
through an Internet connection on a
personal computer.
Vehicles that are equipped with a
factory installed SiriusXM Satellite
Radio system include:
• Hardware and an introductory trial
subscription term, which begins on
the date of sale or lease of the
vehicle.
• For a small upgrade fee, access to
SiriusXM music channels, and
other select channels over the
Internet using any computer con-
nected to the Internet (U.S. cus-
tomers only).For information on extended sub-
scription terms, contact SiriusXM at
1-888-539-7474.
NOTE:
SiriusXM services require a sub-
scription sold separately, or as a
package, by Sirius XM Radio Inc. If
you decide to continue service
after your trial, the subscription
plan you choose will automatical-
ly renew thereafter and you will be
charged according to your chosen
payment method at then-current
rates. Fees and taxes apply. To
cancel you must call SiriusXM at
1-866-635-2349. See SiriusXM
Customer Agreement for com-
plete terms at www.siriusxm.com.
SiriusXM U.S. satellite and data
services are available only in the
48 contiguous states, DC and
Puerto Rico (with coverage limita-
tions). SiriusXM satellite service is
also available in Canada; see
www.siriusxm. ca. All fees and
programming subject to change.
Sirius, XM and all related marks
and logos are trademarks of Sirius
XM Radio Inc.

183 4
Features of your vehicle

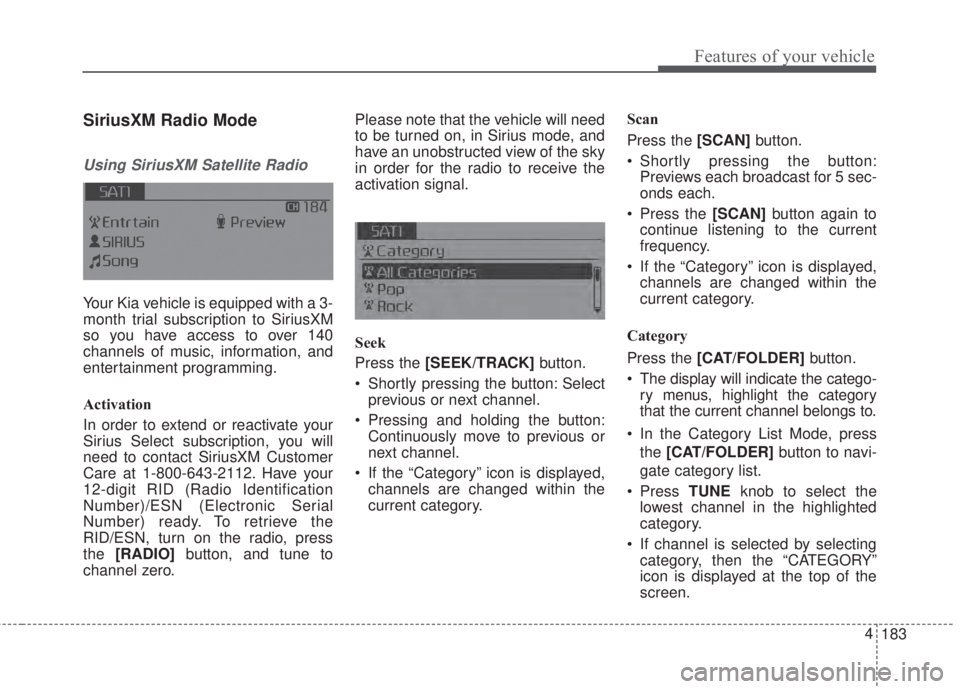

SiriusXM Radio Mode
Using SiriusXM Satellite Radio
Your Kia vehicle is equipped with a 3-
month trial subscription to SiriusXM
so you have access to over 140
channels of music, information, and
entertainment programming.
Activation
In order to extend or reactivate your
Sirius Select subscription, you will
need to contact SiriusXM Customer
Care at 1-800-643-2112. Have your
12-digit RID (Radio Identification
Number)/ESN (Electronic Serial
Number) ready. To retrieve the
RID/ESN, turn on the radio, press
the[RADIO]button, and tune to
channel zero.Please note that the vehicle will need
to be turned on, in Sirius mode, and
have an unobstructed view of the sky
in order for the radio to receive the
activation signal.
Seek
Press the [SEEK/TRACK]button.
• Shortly pressing the button: Select
previous or next channel.
• Pressing and holding the button:
Continuously move to previous or
next channel.
• If the “Category” icon is displayed,
channels are changed within the
current category.Scan
Press the [SCAN]button.
• Shortly pressing the button:
Previews each broadcast for 5 sec-
onds each.
• Press the [SCAN]button again to
continue listening to the current
frequency.
• If the “Category” icon is displayed,
channels are changed within the
current category.
Category
Press the [CAT/FOLDER]button.
• The display will indicate the catego-
ry menus, highlight the category
that the current channel belongs to.
• In the Category List Mode, press
the[CAT/FOLDER]button to navi-
gate category list.
• Press TUNEknob to select the
lowest channel in the highlighted
category.
• If channel is selected by selecting
category, then the “CATEGORY”
icon is displayed at the top of the
screen.

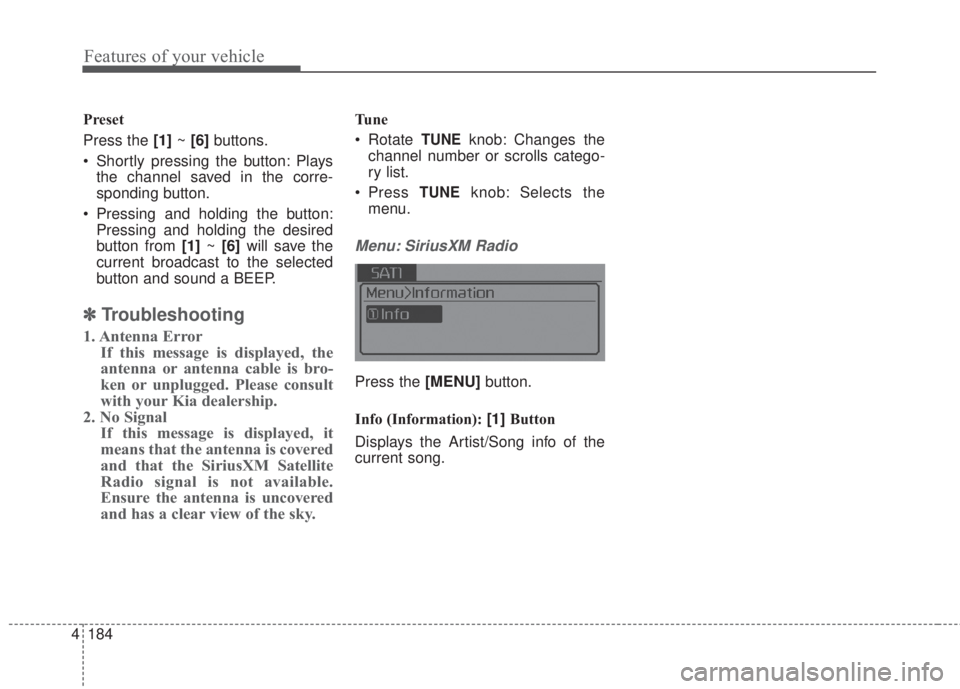

4 184
Features of your vehicle
Preset
Press the [1]~[6]buttons.
• Shortly pressing the button: Plays
the channel saved in the corre-
sponding button.
• Pressing and holding the button:
Pressing and holding the desired
button from [1]~[6]will save the
current broadcast to the selected
button and sound a BEEP.
✽Troubleshooting
1. Antenna Error
If this message is displayed, the
antenna or antenna cable is bro-
ken or unplugged. Please consult
with your Kia dealership.
2. No Signal
If this message is displayed, it
means that the antenna is covered
and that the SiriusXM Satellite
Radio signal is not available.
Ensure the antenna is uncovered
and has a clear view of the sky.
Tune
• Rotate
TUNEknob: Changes the
channel number or scrolls catego-
ry list.
• Press
TUNEknob: Selects the
menu.
Menu: SiriusXM Radio
Press the [MENU]button.
Info (Information): [1]Button
Displays the Artist/Song info of the
current song.

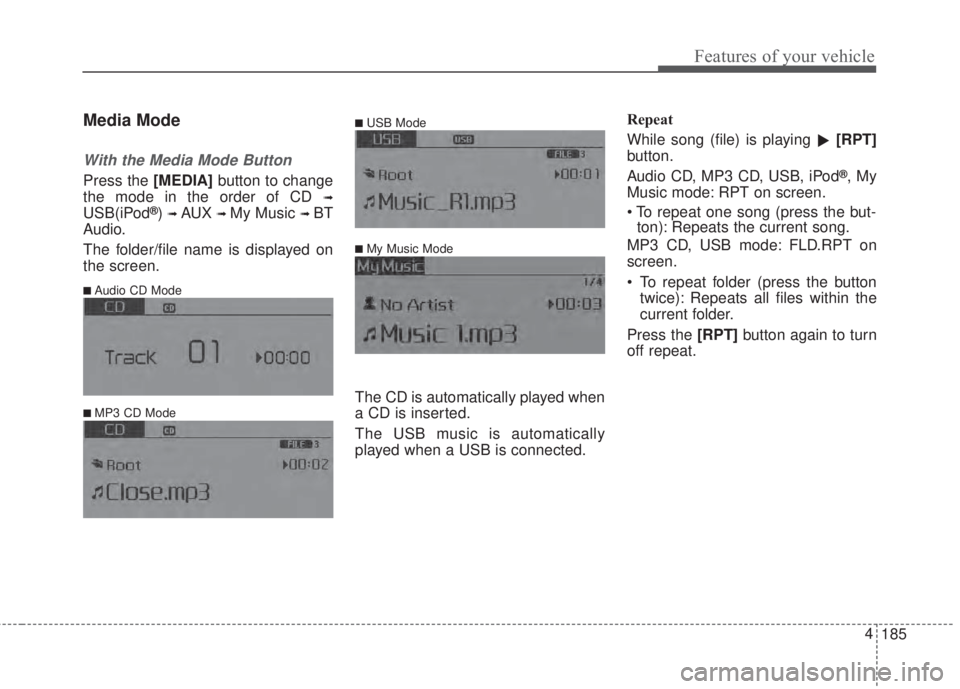

185 4
Features of your vehicle
Media Mode
With the Media Mode Button
Press the [MEDIA]button to change
the mode in the order of CD
➟
USB(iPod®)➟ AUX ➟ My Music ➟ BT
Audio.
The folder/file name is displayed on
the screen.
The CD is automatically played when
a CD is inserted.
The USB music is automatically
played when a USB is connected.Repeat
While song (file) is playing
[RPT]
button.
Audio CD, MP3 CD, USB, iPod
®, My
Music mode: RPT on screen.
• To repeat one song (press the but-
ton): Repeats the current song.
MP3 CD, USB mode: FLD.RPT on
screen.
• To repeat folder (press the button
twice): Repeats all files within the
current folder.
Press the [RPT]button again to turn
off repeat.
■ My Music Mode
■ USB Mode
■ MP3 CD Mode
■ Audio CD Mode

4 186
Features of your vehicle

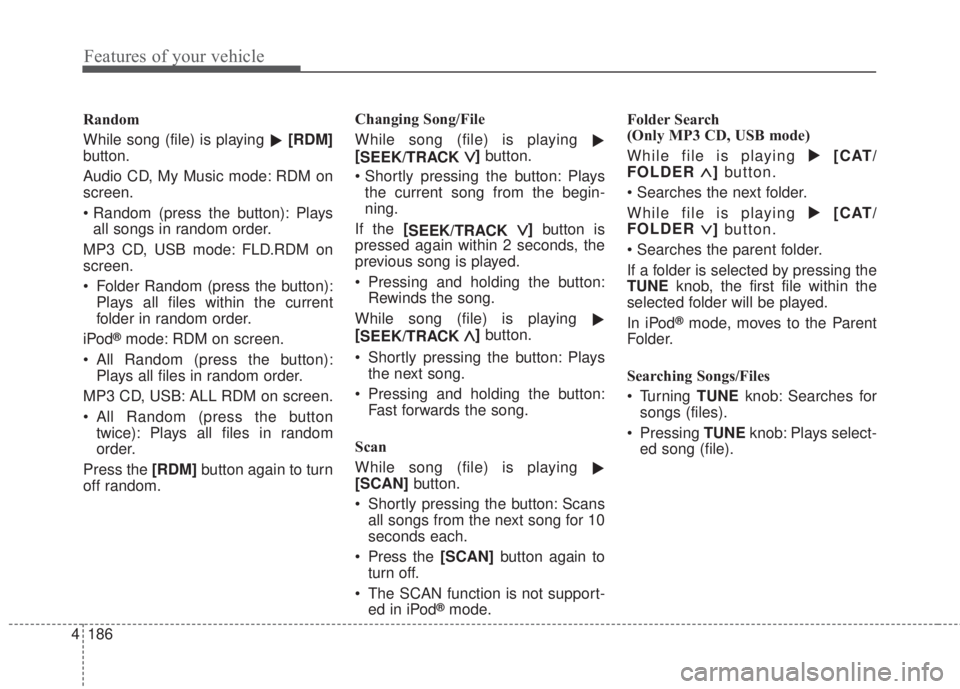

Random
While song (file) is playing
[RDM]
button.
Audio CD, My Music mode: RDM on
screen.
• Random (press the button): Plays
all songs in random order.
MP3 CD, USB mode: FLD.RDM on
screen.
• Folder Random (press the button):
Plays all files within the current
folder in random order.
iPod
®mode: RDM on screen.
• All Random (press the button):
Plays all files in random order.
MP3 CD, USB: ALL RDM on screen.
• All Random (press the button
twice): Plays all files in random
order.
Press the [RDM]button again to turn
off random.Changing Song/File
While song (file) is playing

[
SEEK/TRACK
∨]button.
• Shortly pressing the button: Plays
the current song from the begin-
ning.
If the [
SEEK/TRACK
∨]button is
pressed again within 2 seconds, the
previous song is played.
• Pressing and holding the button:
Rewinds the song.
While song (file) is playing

[
SEEK/TRACK
∧]button.
• Shortly pressing the button: Plays
the next song.
• Pressing and holding the button:
Fast forwards the song.
Scan
While song (file) is playing

[SCAN]button.
• Shortly pressing the button: Scans
all songs from the next song for 10
seconds each.
• Press the [SCAN]button again to
turn off.
• The SCAN function is not support-
ed in iPod
®mode.Folder Search
(Only MP3 CD, USB mode)
While file is playing [CAT/
FOLDER
∧]button.
• Searches the next folder.
While file is playing [CAT/
FOLDER
∨]button.
• Searches the parent folder.
If a folder is selected by pressing the
TUNEknob, the first file within the
selected folder will be played.
In iPod
®mode, moves to the Parent
Folder.
Searching Songs/Files
• Turning TUNEknob: Searches for
songs (files).
• Pressing TUNEknob: Plays select-
ed song (file).

187 4
Features of your vehicle

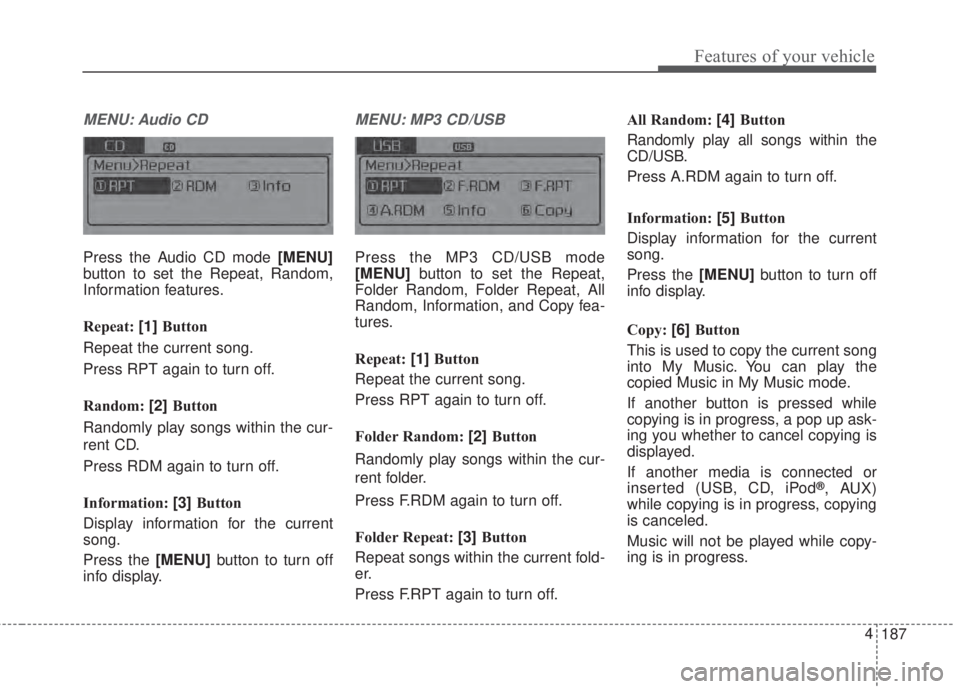

MENU: Audio CD
Press the Audio CD mode [MENU]
button to set the Repeat, Random,
Information features.
Repeat: [1]Button
Repeat the current song.
Press RPT again to turn off.
Random: [2]Button
Randomly play songs within the cur-
rent CD.
Press RDM again to turn off.
Information: [3]Button
Display information for the current
song.
Press the [MENU]button to turn off
info display.
MENU: MP3 CD/USB
Press the MP3 CD/USB mode
[MENU]button to set the Repeat,
Folder Random, Folder Repeat, All
Random, Information, and Copy fea-
tures.
Repeat: [1]Button
Repeat the current song.
Press RPT again to turn off.
Folder Random: [2]Button
Randomly play songs within the cur-
rent folder.
Press F.RDM again to turn off.
Folder Repeat: [3]Button
Repeat songs within the current fold-
er.
Press F.RPT again to turn off.All Random: [4]Button
Randomly play all songs within the
CD/USB.
Press A.RDM again to turn off.
Information: [5]Button
Display information for the current
song.
Press the [MENU]button to turn off
info display.
Copy: [6]Button
This is used to copy the current song
into My Music. You can play the
copied Music in My Music mode.
If another button is pressed while
copying is in progress, a pop up ask-
ing you whether to cancel copying is
displayed.
If another media is connected or
inserted (USB, CD, iPod
®, AUX)
while copying is in progress, copying
is canceled.
Music will not be played while copy-
ing is in progress.

4 188
Features of your vehicle

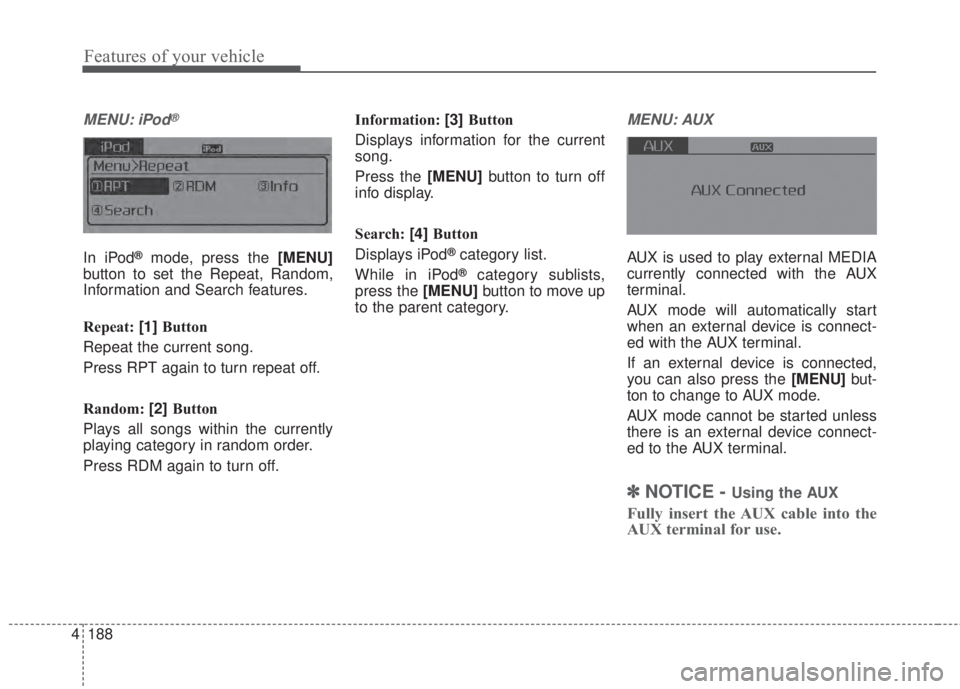

MENU: iPod®
In iPod®mode, press the [MENU]
button to set the Repeat, Random,
Information and Search features.
Repeat: [1]Button
Repeat the current song.
Press RPT again to turn repeat off.
Random: [2]Button
Plays all songs within the currently
playing category in random order.
Press RDM again to turn off.Information: [3]Button
Displays information for the current
song.
Press the [MENU]button to turn off
info display.
Search: [4]Button
Displays iPod®category list.
While in iPod
®category sublists,
press the [MENU]button to move up
to the parent category.
MENU: AUX
AUX is used to play external MEDIA
currently connected with the AUX
terminal.
AUX mode will automatically start
when an external device is connect-
ed with the AUX terminal.
If an external device is connected,
you can also press the [MENU]but-
ton to change to AUX mode.
AUX mode cannot be started unless
there is an external device connect-
ed to the AUX terminal.
✽NOTICE - Using the AUX
Fully insert the AUX cable into the
AUX terminal for use.
