KIA FORTE 2017 Owners Manual

249 4
Features of your vehicle

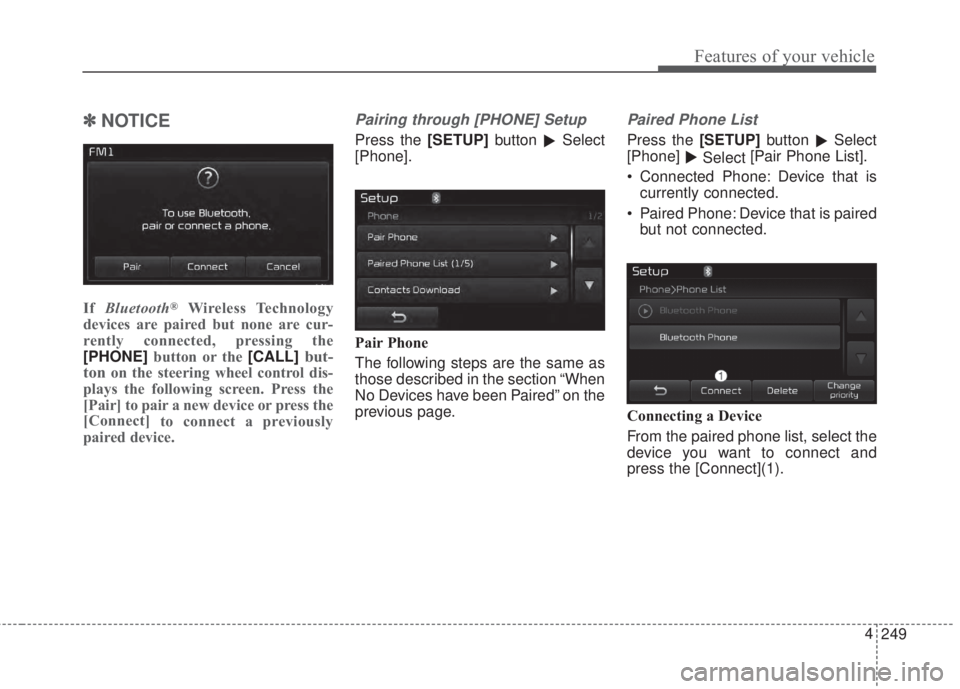

✽NOTICE
If Bluetooth®Wireless Technology
devices are paired but none are cur-
rently connected, pressing the
[PHONE]button or the [CALL]
but-
ton
on the steering wheel control dis-
plays the following screen. Press the
[Pair] to pair a new device or press the
[Connect]
to connect a previously
paired device.
Pairing through [PHONE] Setup
Press the [SETUP]button
Select
[Phone].
Pair Phone
The following steps are the same as
those described in the section “When
No Devices have been Paired” on the
previous page.
Paired Phone List
Press the [SETUP]button
Select
[Phone]
Select[Pair Phone List].
• Connected Phone: Device that is
currently connected.
• Paired Phone: Device that is paired
but not connected.
Connecting a Device
From the paired phone list, select the
device you want to connect and
press the [Connect](1).

4 250
Features of your vehicle

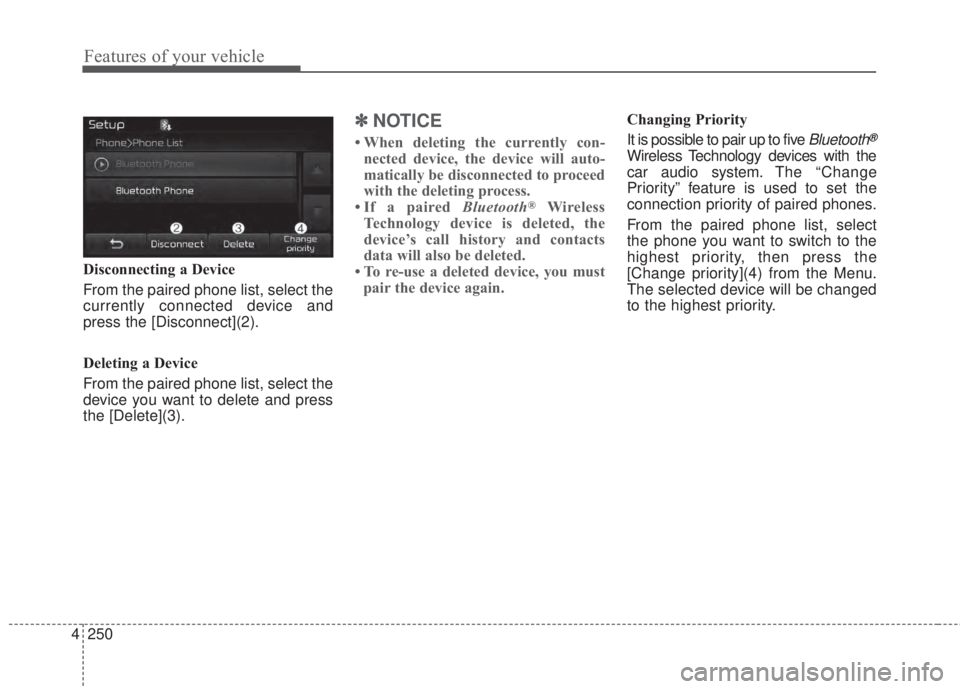

Disconnecting a Device
From the paired phone list, select the
currently connected device and
press the [Disconnect](2).
Deleting a Device
From the paired phone list, select the
device you want to delete and press
the [Delete](3).
✽NOTICE
• When deleting the currently con-
nected device, the device will auto-
matically be disconnected to proceed
with the deleting process.
• If a paired Bluetooth
®Wireless
Technology device is deleted, the
device’s call history and contacts
data will also be deleted.
• To re-use a deleted device, you must
pair the device again.Changing Priority
It is possible to pair up to five
Bluetooth®
Wireless Technology devices with the
car audio system. The “Change
Priority” feature is used to set the
connection priority of paired phones.
From the paired phone list, select
the phone you want to switch to the
highest priority, then press the
[Change priority](4) from the Menu.
The selected device will be changed
to the highest priority.

251 4
Features of your vehicle
Phone Menu Screen
Phone Menus
With a
Bluetooth®Wireless Technology
device connected, press the
[PHONE]button to display the
Phone menu screen.
• Favorites: Up to 20 frequently used
contacts can be saved for easy
access.
• Call History: Displays the call histo-
ry list screen.
• Contacts: Displays the Contacts
list screen.
• Dial Number: Displays the dial
screen where numbers can be
dialed to make calls.
• Setup: Displays Phone related set-
tings.
✽NOTICE
• If you press the [Call History] but
there is no call history data, a
prompt is displayed which asks to
download call history data.
• If you press the [Contacts] but there
is no contact data stored, a prompt is
displayed which asks to download
contacts data.
• This feature may not be supported in
some mobile phones. For more infor-
mation on download support, refer
to your mobile phone user’s manual.Favorites
• Saved favorite contact: Connects
call upon selection.
• To add favorite: Downloaded con-
tacts be saved as favorite.
• Delete All: Deletes all stored
favorite contacts.
✽NOTICE
• To save Favorite, contacts should be
downloaded.
• Contact saved in Favorites will not be
automatically updated if the contact
has been updated in the phone. To
update Favorites, delete the Favorite
and create a new Favorite.

4 252
Features of your vehicle

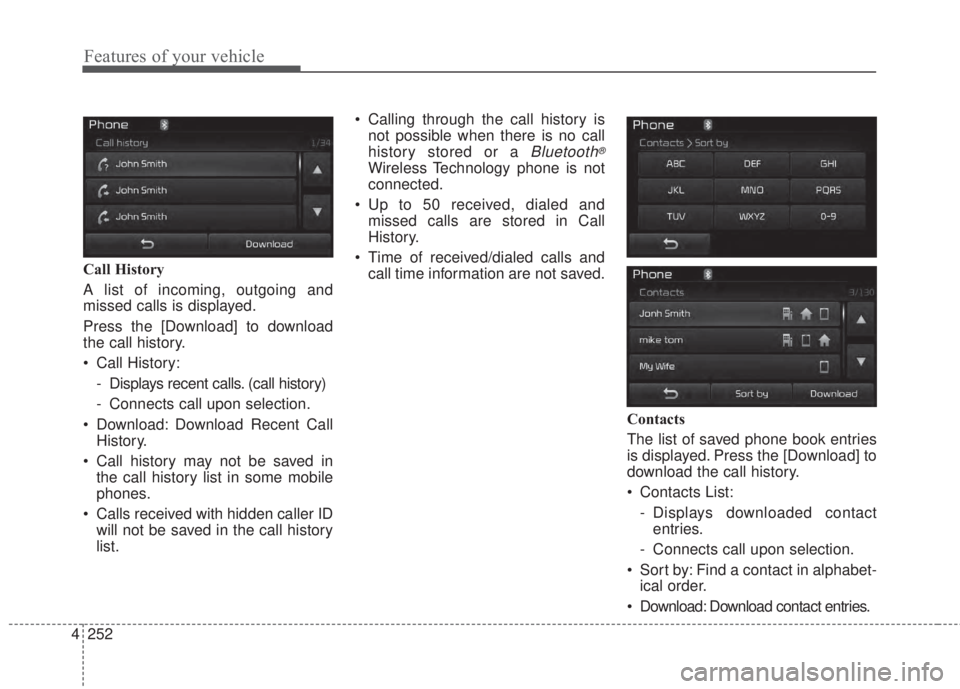

Call History
A list of incoming, outgoing and
missed calls is displayed.
Press the [Download] to download
the call history.
• Call History:
- Displays recent calls. (call history)
- Connects call upon selection.
• Download: Download Recent Call
History.
• Call history may not be saved in
the call history list in some mobile
phones.
• Calls received with hidden caller ID
will not be saved in the call history
list.• Calling through the call history is
not possible when there is no call
history stored or a
Bluetooth®
Wireless Technology phone is not
connected.
• Up to 50 received, dialed and
missed calls are stored in Call
History.
• Time of received/dialed calls and
call time information are not saved.
Contacts
The list of saved phone book entries
is displayed. Press the [Download] to
download the call history.
• Contacts List:
- Displays downloaded contact
entries.
- Connects call upon selection.
• Sort by: Find a contact in alphabet-
ical order.
• Download: Download contact entries.

253 4
Features of your vehicle

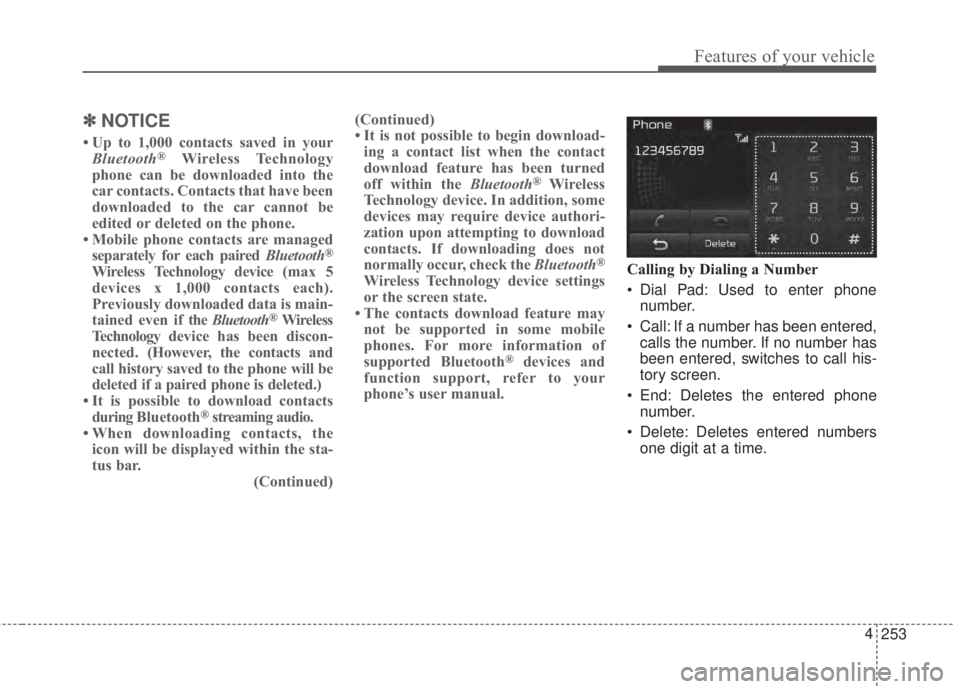

✽NOTICE
• Up to 1,000 contacts saved in your
Bluetooth®Wireless Technology
phone can be downloaded into the
car contacts. Contacts that have been
downloaded to the car cannot be
edited or deleted on the phone.
• Mobile phone contacts are managed
separately for each paired Bluetooth
®
Wireless Technology device (max 5
devices x 1,000 contacts each).
Previously downloaded data is main-
tained even if the Bluetooth
®Wireless
Technology device has been discon-
nected. (However, the contacts and
call history saved to the phone will be
deleted if a paired phone is deleted.)
• It is possible to download contacts
during Bluetooth
®streaming audio.
• When downloading contacts, the
icon will be displayed within the sta-
tus bar.
(Continued)(Continued)
• It is not possible to begin download-
ing a contact list when the contact
download feature has been turned
off within the Bluetooth
®Wireless
Technology device. In addition, some
devices may require device authori-
zation upon attempting to download
contacts. If downloading does not
normally occur, check the Bluetooth
®
Wireless Technology device settings
or the screen state.
• The contacts download feature may
not be supported in some mobile
phones. For more information of
supported Bluetooth
®devices and
function support, refer to your
phone’s user manual.Calling by Dialing a Number
• Dial Pad: Used to enter phone
number.
• Call: If a number has been entered,
calls the number. If no number has
been entered, switches to call his-
tory screen.
• End: Deletes the entered phone
number.
• Delete: Deletes entered numbers
one digit at a time.

4 254
Features of your vehicle

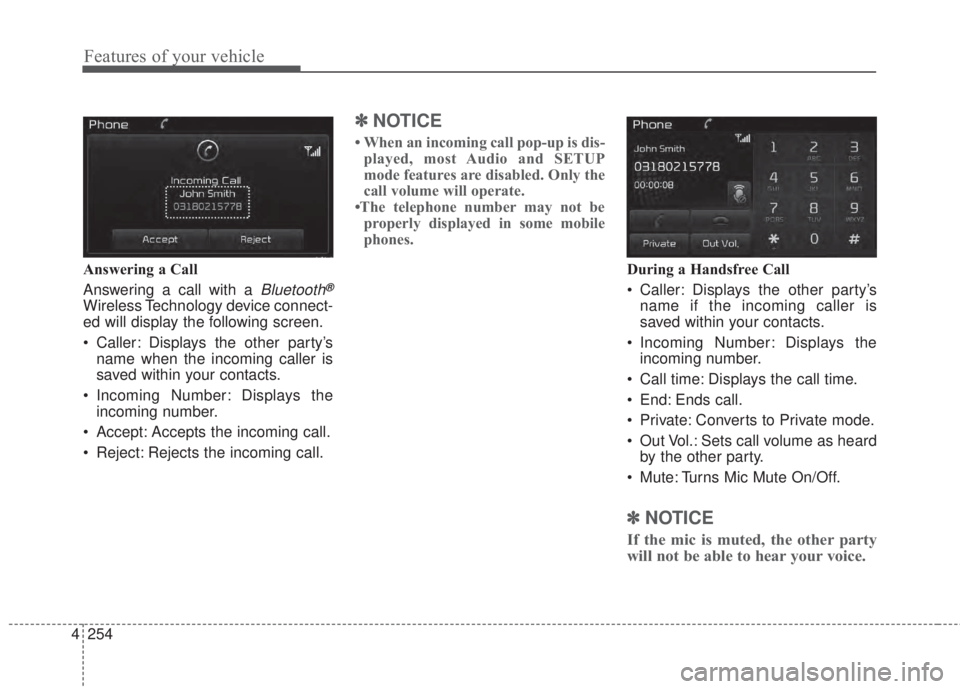

Answering a Call
Answering a call with a
Bluetooth®
Wireless Technology device connect-
ed will display the following screen.
• Caller: Displays the other party’s
name when the incoming caller is
saved within your contacts.
• Incoming Number: Displays the
incoming number.
• Accept: Accepts the incoming call.
• Reject: Rejects the incoming call.
✽NOTICE
• When an incoming call pop-up is dis-
played, most Audio and SETUP
mode features are disabled. Only the
call volume will operate.
•The telephone number may not be
properly displayed in some mobile
phones.
During a Handsfree Call
• Caller: Displays the other party’s
name if the incoming caller is
saved within your contacts.
• Incoming Number: Displays the
incoming number.
• Call time: Displays the call time.
• End: Ends call.
• Private: Converts to Private mode.
• Out Vol.: Sets call volume as heard
by the other party.
• Mute: Turns Mic Mute On/Off.
✽NOTICE
If the mic is muted, the other party
will not be able to hear your voice.

255 4
Features of your vehicle

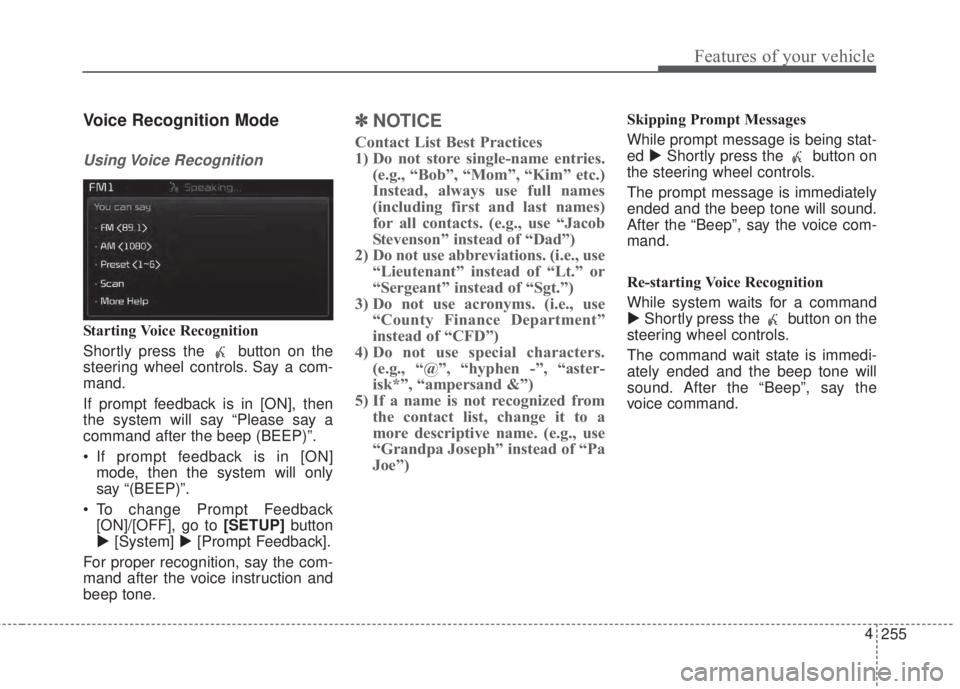

Voice Recognition Mode
Using Voice Recognition
Starting Voice Recognition
Shortly press the button on the
steering wheel controls. Say a com-
mand.
If prompt feedback is in [ON], then
the system will say “Please say a
command after the beep (BEEP)”.
• If prompt feedback is in [ON]
mode, then the system will only
say “(BEEP)”.
• To change Prompt Feedback
[ON]/[OFF], go to [SETUP]button
[System][Prompt Feedback].
For proper recognition, say the com-
mand after the voice instruction and
beep tone.
✽NOTICE
Contact List Best Practices
1) Do not store single-name entries.
(e.g., “Bob”, “Mom”, “Kim” etc.)
Instead, always use full names
(including first and last names)
for all contacts. (e.g., use “Jacob
Stevenson” instead of “Dad”)
2) Do not use abbreviations. (i.e., use
“Lieutenant” instead of “Lt.” or
“Sergeant” instead of “Sgt.”)
3) Do not use acronyms. (i.e., use
“County Finance Department”
instead of “CFD”)
4) Do not use special characters.
(e.g., “@”, “hyphen -”, “aster-
isk*”, “ampersand &”)
5) If a name is not recognized from
the contact list, change it to a
more descriptive name. (e.g., use
“Grandpa Joseph” instead of “Pa
Joe”)
Skipping Prompt Messages
While prompt message is being stat-
edShortly press the button on
the steering wheel controls.
The prompt message is immediately
ended and the beep tone will sound.
After the “Beep”, say the voice com-
mand.
Re-starting Voice Recognition
While system waits for a command
Shortly press the button on the
steering wheel controls.
The command wait state is immedi-
ately ended and the beep tone will
sound. After the “Beep”, say the
voice command.

4 256
Features of your vehicle
Illustration on Using Voice Recognition
Starting Voice Recognition
Shortly pressing the button:
Skipping Voice Recognition
Shortly pressing the button:
Shortly pressing the button:Ending Voice Recognition
Shortly pressing the button:
while guidance message is being stated
More Help
Contacts
Cancel
More Help
Please say a command after
the beep. (BEEP)
Please say a...
Please say the contact name you want to call.
Beep~
More Help
Here are some examples of mode commands.
You can say a radio type like ‘FM’, ‘AM’, or ‘Satellite’.
You can also say a media source like ‘CD’, ‘USB’, ‘My
Music’, or ‘iPod
®’.
Additionally, there are phone commands like
‘Contacts’, ‘Call History’, or ‘Dial Number’.
You can find more detailed commands in the user's
manual.
Please say a command after the beep.
More Help
Here are some examples of mode commands.
You can say a radio type like ‘FM’, ‘AM’, or ‘Satellite’.
You can also say a media source like ‘CD’, ‘USB’, ‘My
Music’, or ‘iPod
®’.
Additionally, there are phone commands like
‘Contacts’, ‘Call History’, or ‘Dial Number’.
You can find more detailed commands in the user's
manual.
Please say a command after the beep.
Please say a command after
the beep. (BEEP)
(BEEP)

257 4
Features of your vehicle

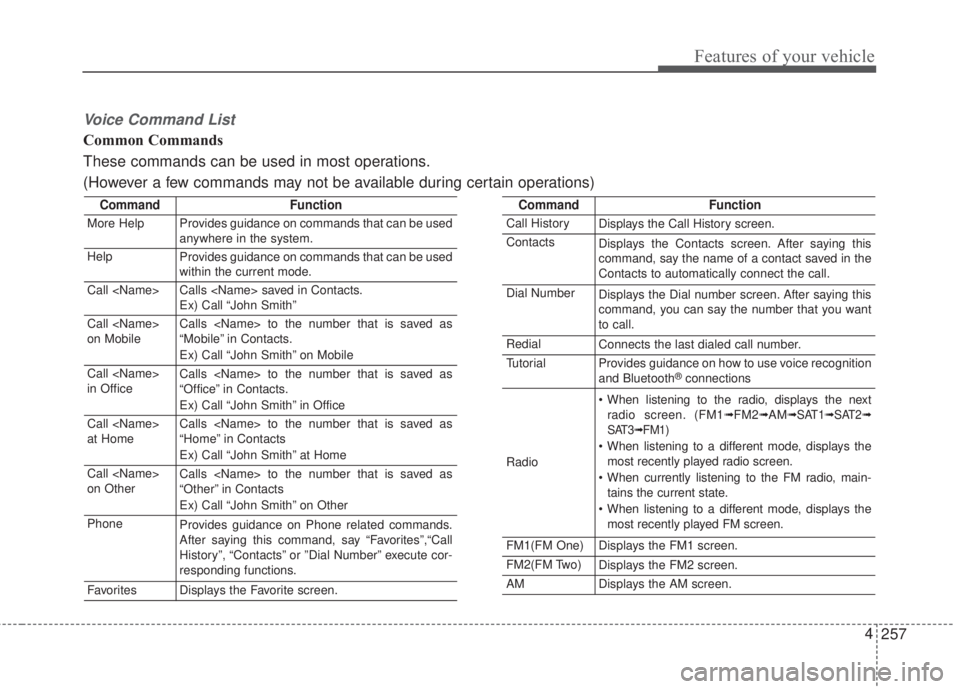

Voice Command List
Common Commands
These commands can be used in most operations.
(However a few commands may not be available during certain operations)
CommandFunction
More HelpProvides guidance on commands that can be used
anywhere in the system.
HelpProvides guidance on commands that can be used
within the current mode.
Call Calls saved in Contacts.
Ex) Call “John Smith”
Call
on MobileCalls to the number that is saved as
“Mobile” in Contacts.
Ex) Call “John Smith” on Mobile
Call
in OfficeCalls to the number that is saved as
“Office” in Contacts.
Ex) Call “John Smith” in Office
Call
at HomeCalls to the number that is saved as
“Home” in Contacts
Ex) Call “John Smith” at Home
Call
on OtherCalls to the number that is saved as
“Other” in Contacts
Ex) Call “John Smith” on Other
PhoneProvides guidance on Phone related commands.
After saying this command, say “Favorites”,“Call
History”, “Contacts” or ”Dial Number” execute cor-
responding functions.
Favor itesDisplays the Favorite screen.
CommandFunction
Call HistoryDisplays the Call History screen.
ContactsDisplays the Contacts screen. After saying this
command, say the name of a contact saved in the
Contacts to automatically connect the call.
Dial NumberDisplays the Dial number screen. After saying this
command, you can say the number that you want
to call.
RedialConnects the last dialed call number.
TutorialProvides guidance on how to use voice recognition
and Bluetooth®connections
Radio
• When listening to the radio, displays the next
radio screen. (FM1➟FM2➟AM➟SAT1➟SAT2➟
SAT3➟FM1)
• When listening to a different mode, displays the
most recently played radio screen.
• When currently listening to the FM radio, main-
tains the current state.
• When listening to a different mode, displays the
most recently played FM screen.
FM1(FM One)Displays the FM1 screen.
FM2(FM Two)Displays the FM2 screen.
AMDisplays the AM screen.

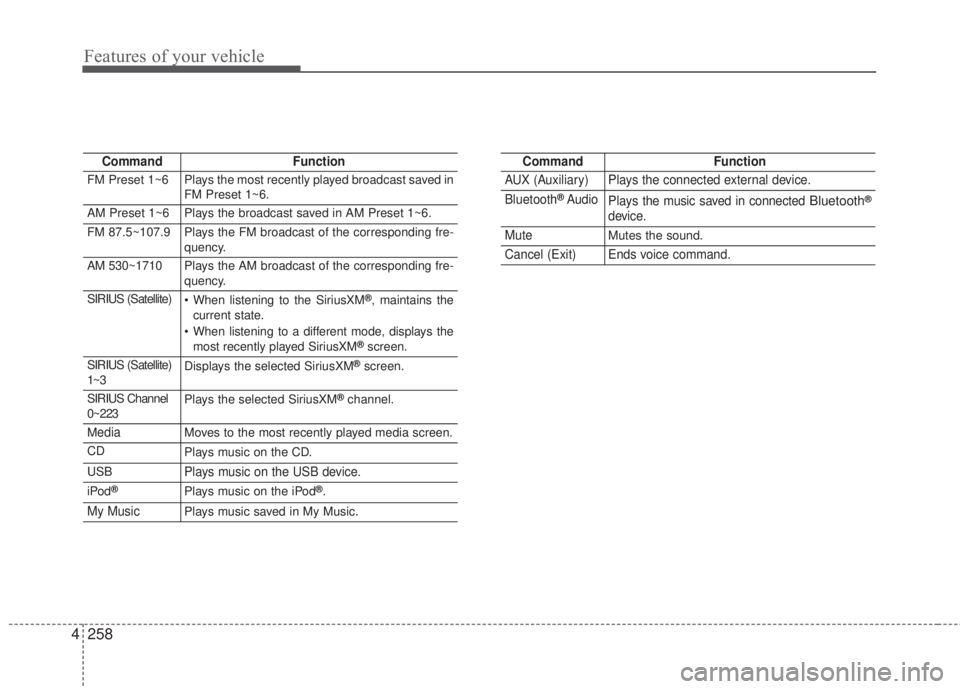

4 258
Features of your vehicle
CommandFunction
FM Preset 1~6Plays the most recently played broadcast saved in
FM Preset 1~6.
AM Preset 1~6Plays the broadcast saved in AM Preset 1~6.
FM 87.5~107.9Plays the FM broadcast of the corresponding fre-
quency.
AM 530~1710Plays the AM broadcast of the corresponding fre-
quency.
SIRIUS (Satellite)• When listening to the SiriusXM®, maintains the
current state.
• When listening to a different mode, displays the
most recently played SiriusXM
®screen.
SIRIUS (Satellite)
1~3Displays the selected SiriusXM®screen.
SIRIUS Channel
0~223Plays the selected SiriusXM®channel.
MediaMoves to the most recently played media screen.
CDPlays music on the CD.
USBPlays music on the USB device.
iPod®Plays music on the iPod®.
My MusicPlays music saved in My Music.
CommandFunction
AUX (Auxiliary)Plays the connected external device.
Bluetooth®AudioPlays the music saved in connected Bluetooth®
device.
MuteMutes the sound.
Cancel (Exit)Ends voice command.
