KIA FORTE 2017 Owners Manual

259 4
Features of your vehicle

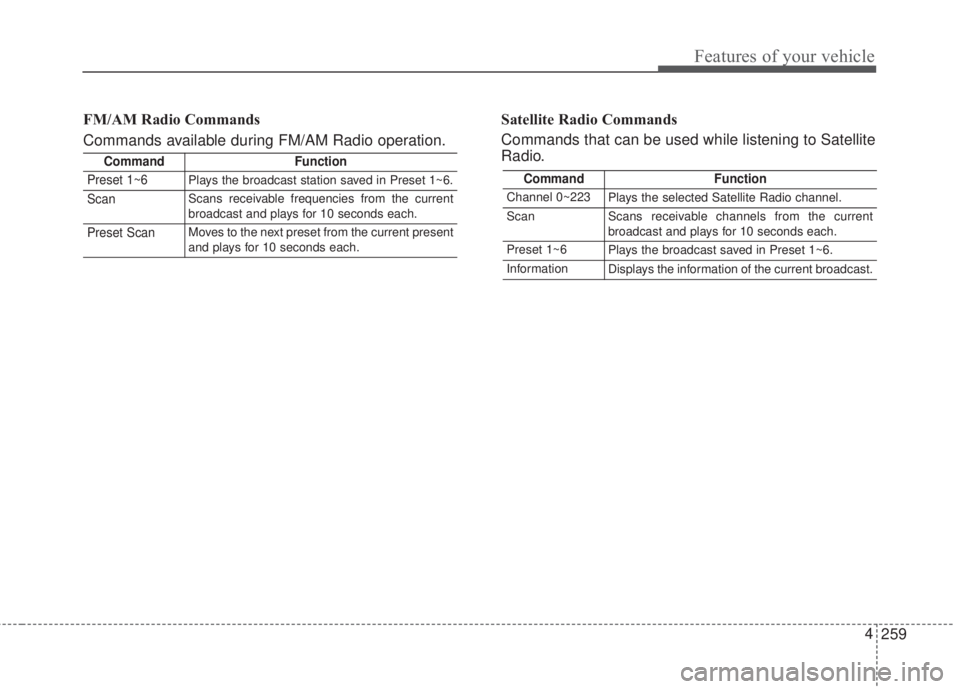

FM/AM Radio Commands
Commands available during FM/AM Radio operation.Satellite Radio Commands
Commands that can be used while listening to Satellite
Radio.
CommandFunction
Preset 1~6Plays the broadcast station saved in Preset 1~6.
ScanScans receivable frequencies from the current
broadcast and plays for 10 seconds each.
Preset ScanMoves to the next preset from the current present
and plays for 10 seconds each.
CommandFunction
Channel 0~223Plays the selected Satellite Radio channel.
ScanScans receivable channels from the current
broadcast and plays for 10 seconds each.
Preset 1~6Plays the broadcast saved in Preset 1~6.
InformationDisplays the information of the current broadcast.

4 260
Features of your vehicle

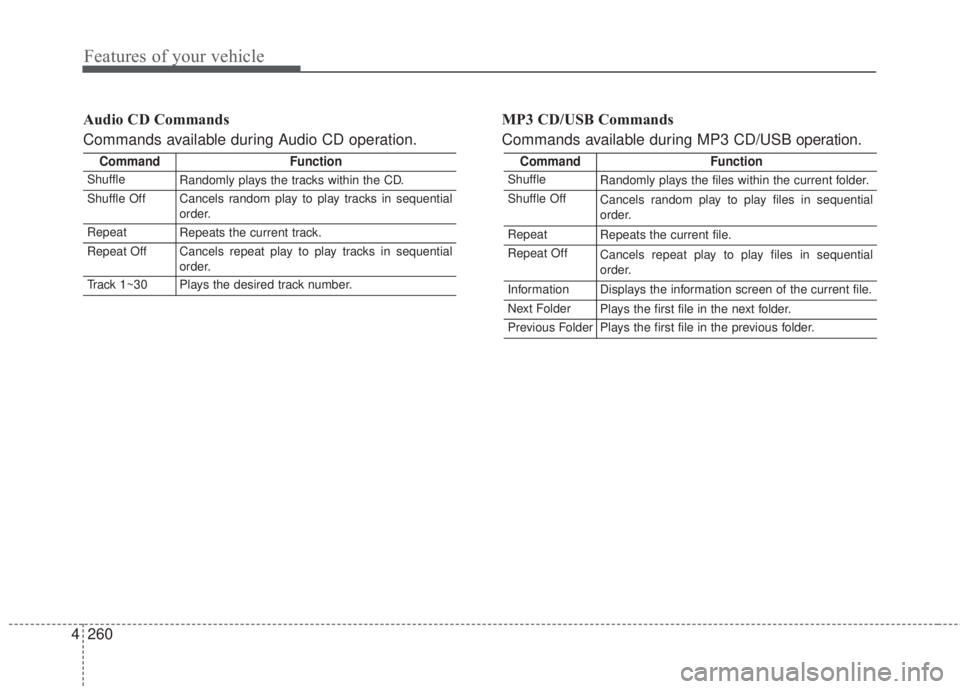

Audio CD Commands
Commands available during Audio CD operation.MP3 CD/USB Commands
Commands available during MP3 CD/USB operation.
CommandFunction
ShuffleRandomly plays the files within the current folder.
Shuffle OffCancels random play to play files in sequential
order.
RepeatRepeats the current file.
Repeat OffCancels repeat play to play files in sequential
order.
InformationDisplays the information screen of the current file.
Next FolderPlays the first file in the next folder.
Previous FolderPlays the first file in the previous folder.
CommandFunction
ShuffleRandomly plays the tracks within the CD.
Shuffle OffCancels random play to play tracks in sequential
order.
RepeatRepeats the current track.
Repeat OffCancels repeat play to play tracks in sequential
order.
Track 1~30Plays the desired track number.

261 4
Features of your vehicle

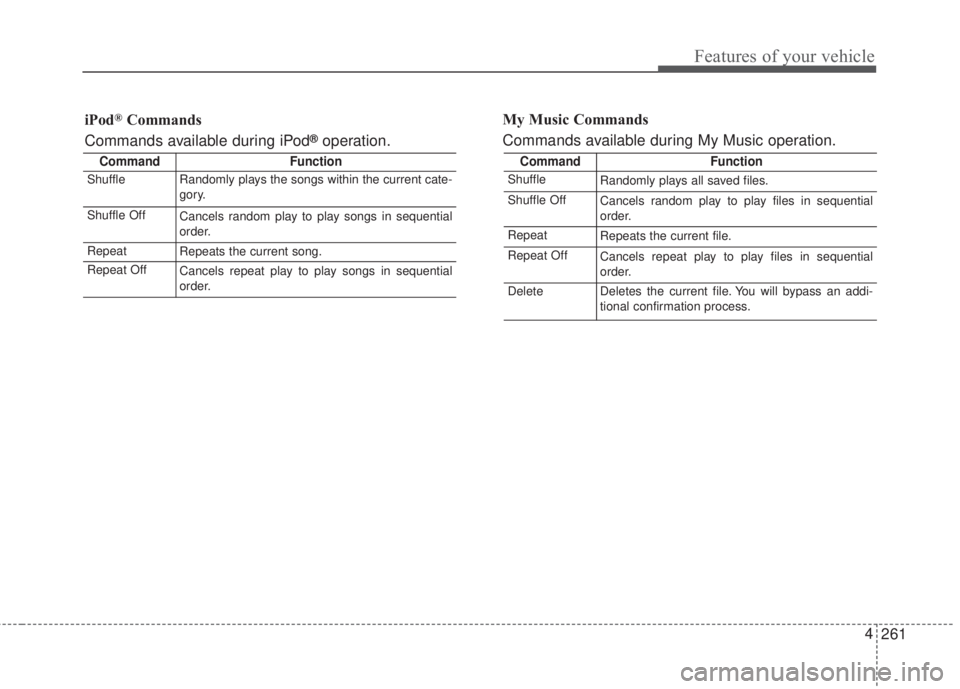

iPod®Commands
Commands available during iPod
®operation.My Music Commands
Commands available during My Music operation.
CommandFunction
ShuffleRandomly plays all saved files.
Shuffle OffCancels random play to play files in sequential
order.
RepeatRepeats the current file.
Repeat OffCancels repeat play to play files in sequential
order.
DeleteDeletes the current file. You will bypass an addi-
tional confirmation process.
CommandFunction
ShuffleRandomly plays the songs within the current cate-
gory.
Shuffle OffCancels random play to play songs in sequential
order.
RepeatRepeats the current song.
Repeat OffCancels repeat play to play songs in sequential
order.

4 262
Features of your vehicle

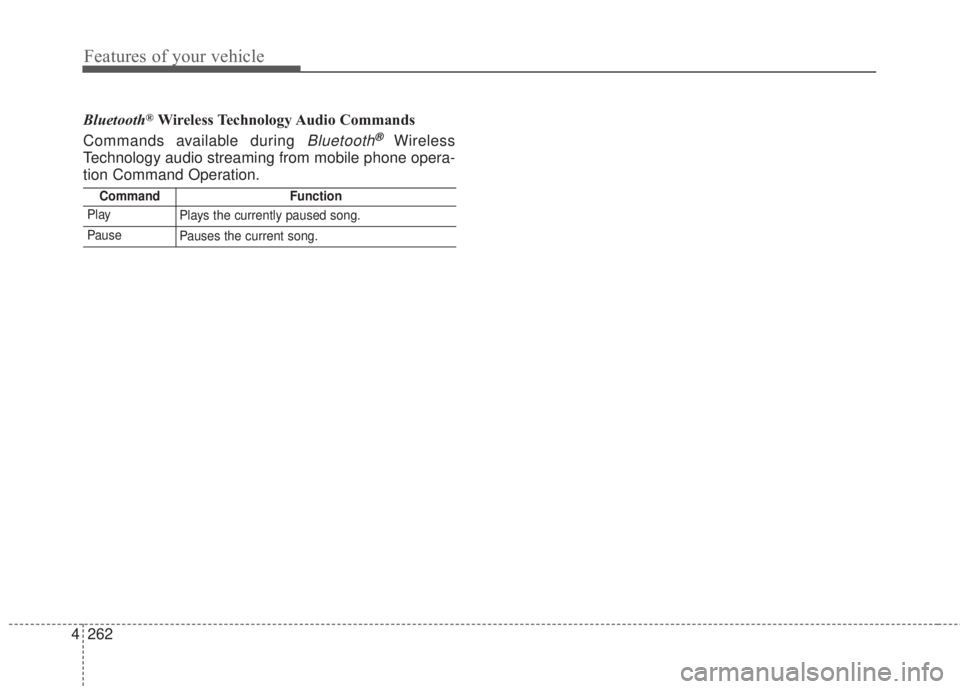

Bluetooth®Wireless Technology Audio Commands
Commands available during
Bluetooth®Wireless
Technology audio streaming from mobile phone opera-
tion Command Operation.
CommandFunction
PlayPlays the currently paused song.
PausePauses the current song.

263 4
Features of your vehicle

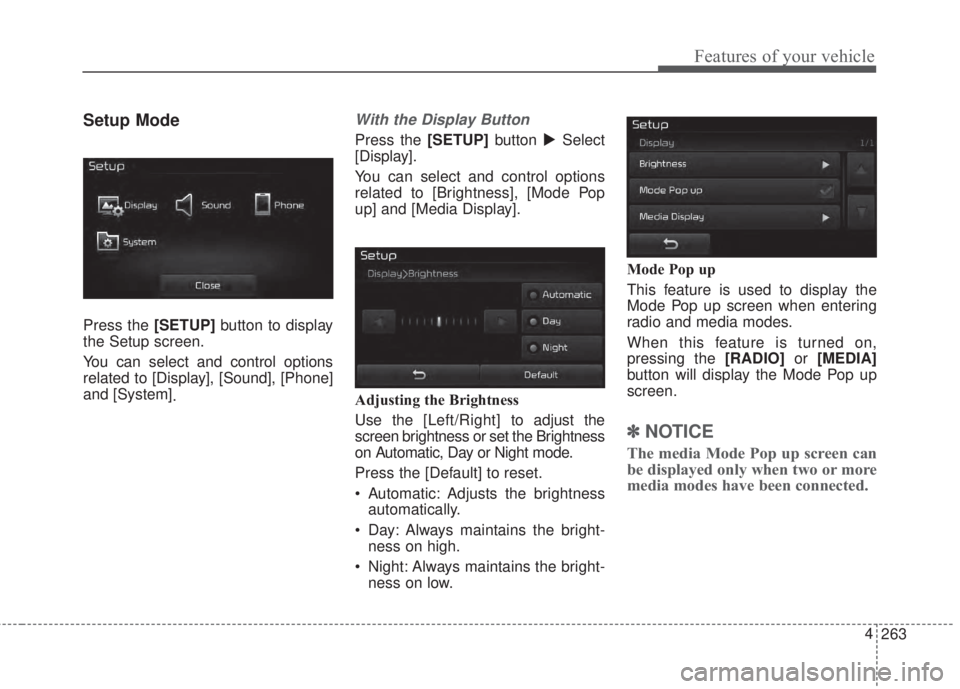

Setup Mode
Press the [SETUP]button to display
the Setup screen.
You can select and control options
related to [Display], [Sound], [Phone]
and [System]
.
With the Display Button
Press the [SETUP]button Select
[Display].
You can select and control options
related to [Brightness], [Mode Pop
up] and [Media Display].
Adjusting the Brightness
Use the [Left/Right] to adjust the
screen brightness or set the Brightness
on Automatic, Day or Night mode.
Press the [Default] to reset.
• Automatic: Adjusts the brightness
automatically.
• Day: Always maintains the bright-
ness on high.
• Night: Always maintains the bright-
ness on low.Mode Pop up
This feature is used to display the
Mode Pop up screen when entering
radio and media modes.
When this feature is turned on,
pressing the [RADIO]or[MEDIA]
button will display the Mode Pop up
screen.
✽NOTICE
The media Mode Pop up screen can
be displayed only when two or more
media modes have been connected.

4 264
Features of your vehicle

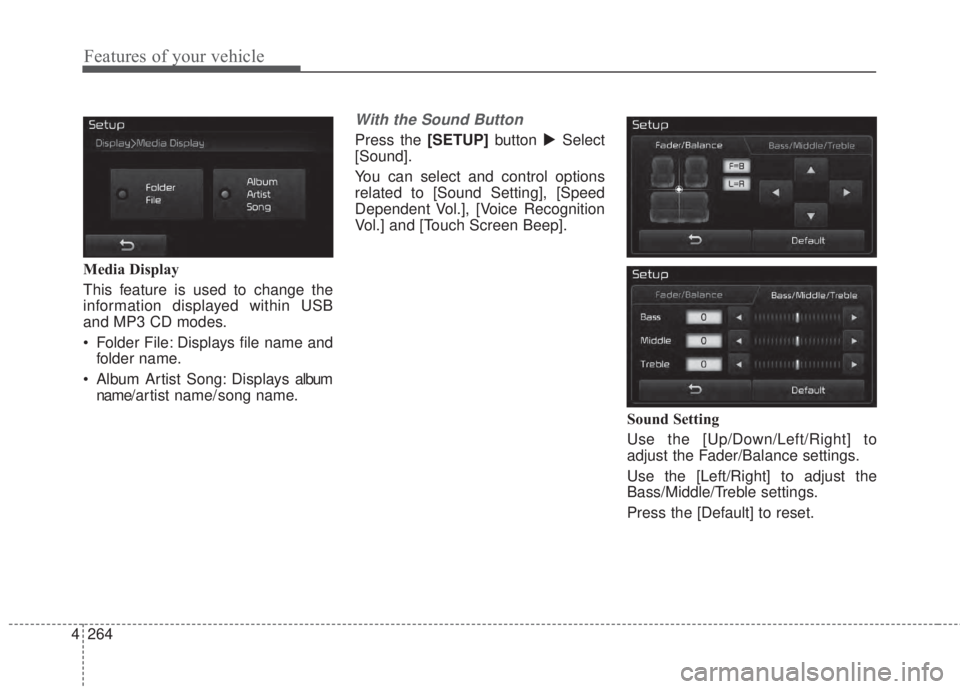

Media Display
This feature is used to change the
information displayed within USB
and MP3 CD modes.
• Folder File: Displays file name and
folder name.
• Album Artist Song: Displays album
name/artist name/ song name.
With the Sound Button
Press the [SETUP]button Select
[Sound].
You can select and control options
related to [Sound Setting], [Speed
Dependent Vol.], [Voice Recognition
Vol.] and [Touch Screen Beep].
Sound Setting
Use the [Up/Down/Left/Right] to
adjust the Fader/Balance settings.
Use the [Left/Right] to adjust the
Bass/Middle/Treble settings.
Press the [Default] to reset.

265 4
Features of your vehicle

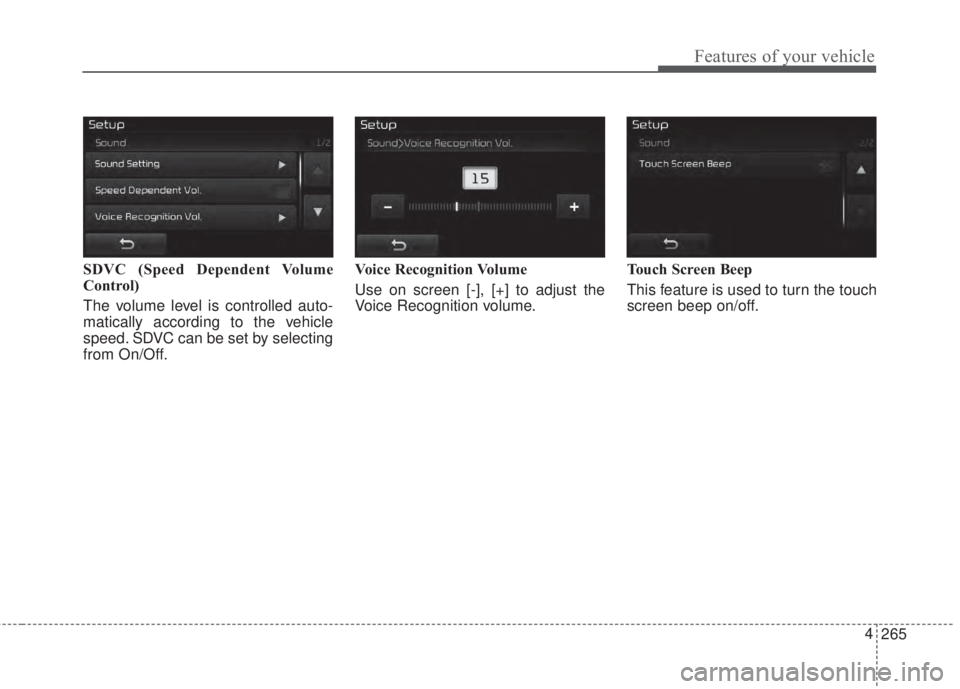

SDVC (Speed Dependent Volume
Control)
The volume level is controlled auto-
matically according to the vehicle
speed. SDVC can be set by selecting
from On/Off.Voice Recognition Volume
Use on screen [-], [+] to adjust the
Voice Recognition volume.Touch Screen Beep
This feature is used to turn the touch
screen beep on/off.

4 266
Features of your vehicle

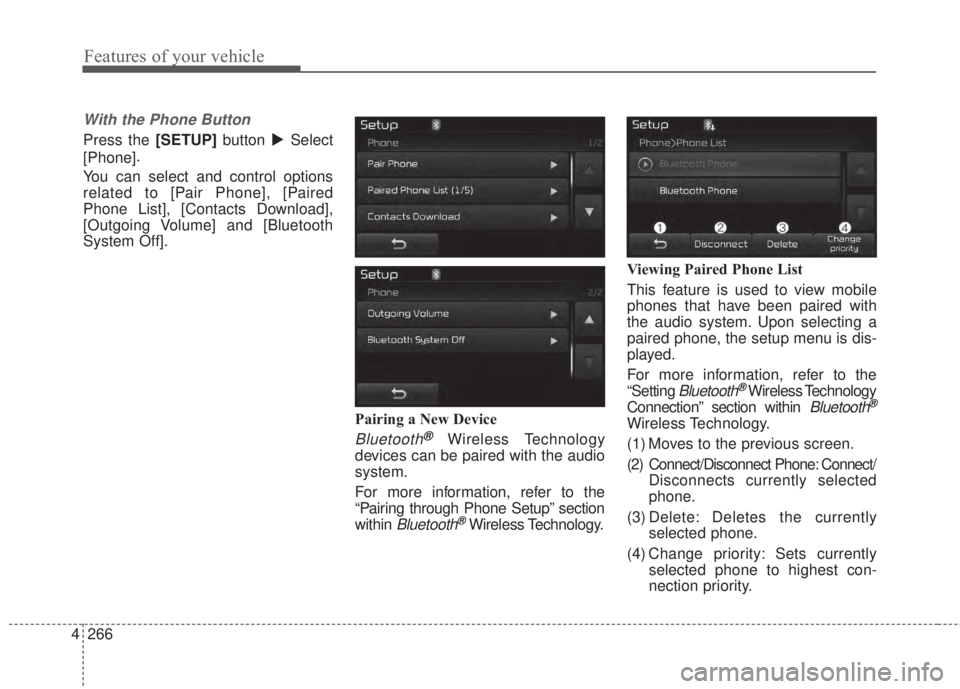

With the Phone Button
Press the [SETUP]button Select
[Phone].
You can select and control options
related to [Pair Phone], [Paired
Phone List], [Contacts Download],
[Outgoing Volume] and [Bluetooth
System Off].
Pairing a New Device
Bluetooth®Wireless Technology
devices can be paired with the audio
system.
For more information, refer to the
“Pairing through Phone Setup” section
within
Bluetooth®Wireless Technology.Viewing Paired Phone List
This feature is used to view mobile
phones that have been paired with
the audio system. Upon selecting a
paired phone, the setup menu is dis-
played.
For more information, refer to the
“Setting
Bluetooth®Wireless Technology
Connection” section within
Bluetooth®
Wireless Technology.
(1) Moves to the previous screen.
(2) Connect/Disconnect Phone: Connect/
Disconnects currently selected
phone.
(3) Delete: Deletes the currently
selected phone.
(4) Change priority: Sets currently
selected phone to highest con-
nection priority.

267 4
Features of your vehicle

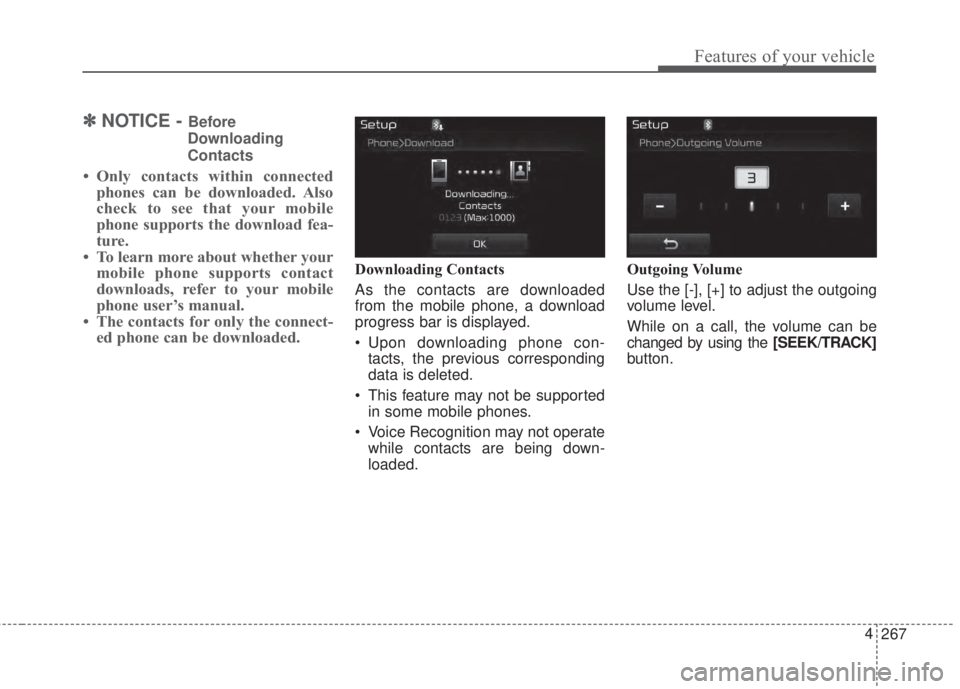

✽NOTICE - Before
Downloading
Contacts
• Only contacts within connected
phones can be downloaded. Also
check to see that your mobile
phone supports the download fea-
ture.
• To learn more about whether your
mobile phone supports contact
downloads, refer to your mobile
phone user’s manual.
• The contacts for only the connect-
ed phone can be downloaded.
Downloading Contacts
As the contacts are downloaded
from the mobile phone, a download
progress bar is displayed.
• Upon downloading phone con-
tacts, the previous corresponding
data is deleted.
• This feature may not be supported
in some mobile phones.
• Voice Recognition may not operate
while contacts are being down-
loaded.Outgoing Volume
Use the [-], [+] to adjust the outgoing
volume level.
While on a call, the volume can be
changed by using the [SEEK/TRACK]
button.

4 268
Features of your vehicle

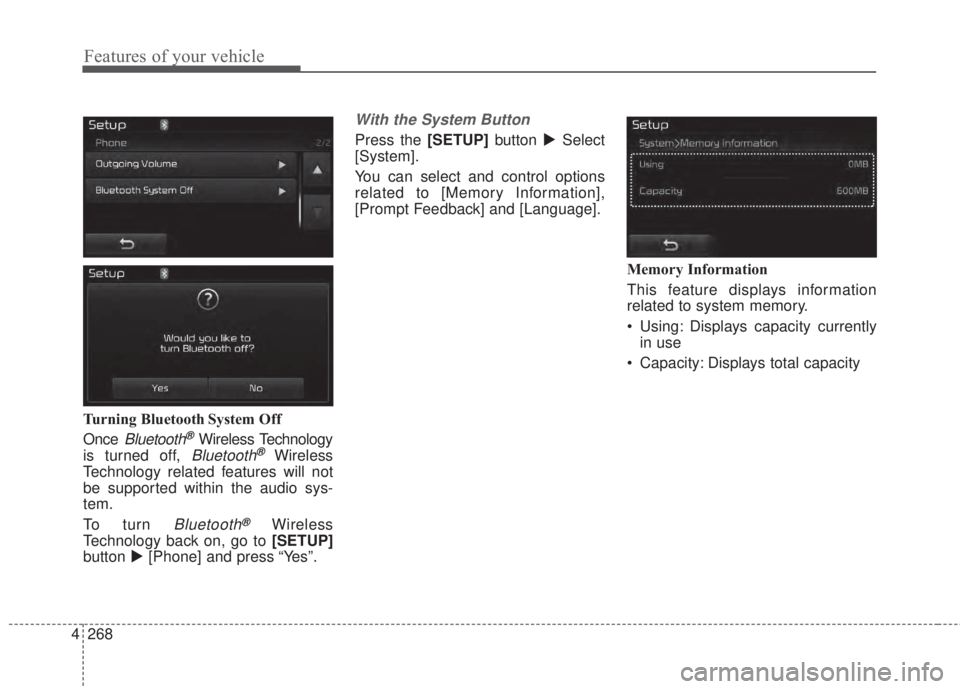

Turning Bluetooth System Off
Once
Bluetooth®Wireless Technology
is turned off,
Bluetooth®Wireless
Technology related features will not
be supported within the audio sys-
tem.
To t u r n
Bluetooth®Wireless
Technology back on, go to [SETUP]
button[Phone] and press “Yes”.
With the System Button
Press the [SETUP]button Select
[System].
You can select and control options
related to [Memory Information],
[Prompt Feedback] and [Language].
Memory Information
This feature displays information
related to system memory.
• Using: Displays capacity currently
in use
• Capacity: Displays total capacity
