767
Maintenance

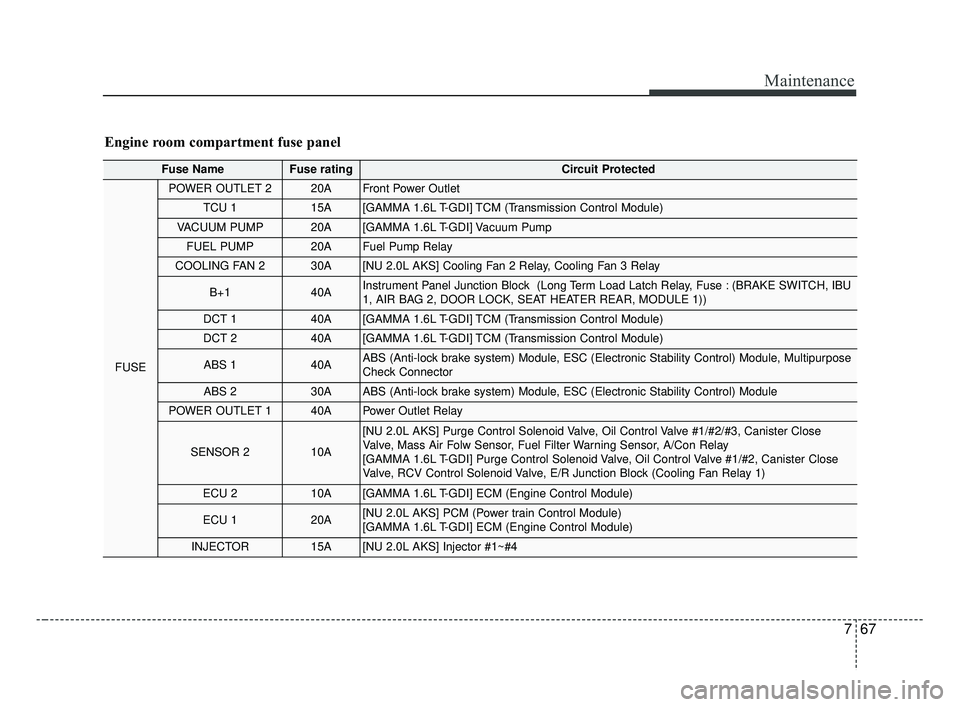

Fuse Name Fuse ratingCircuit Protected
FUSE
POWER OUTLET 220AFront Power Outlet
TCU 115A [GAMMA 1.6L T-GDI] TCM (Transmission Control Module)
VACUUM PUMP20A[GAMMA 1.6L T-GDI] Vacuum Pump
FUEL PUMP20AFuel Pump Relay
COOLING FAN 230A[NU 2.0L AKS] Cooling Fan 2 Relay, Cooling Fan 3 Relay
B+140AInstrument Panel Junction Block (Long Term Load Latch Relay, Fuse : (BRAKE SWITCH, IBU
1, AIR BAG 2, DOOR LOCK, SEAT HEATER REAR, MODULE 1))
DCT 140A[GAMMA 1.6L T-GDI] TCM (Transmission Control Module)
DCT 240A[GAMMA 1.6L T-GDI] TCM (Transmission Control Module)
ABS 140AABS (Anti-lock brake system) Module, ESC (Electronic Stability Control) Module, Multipurpose
Check Connector
ABS 230AABS (Anti-lock brake system) Module, ESC (Electronic Stability Control) Module
POWER OUTLET 140APower Outlet Relay
SENSOR 210A
[NU 2.0L AKS] Purge Control Solenoid Valve, Oil Control Valve #1/#2/#3, Canister Close
Valve, Mass Air Folw Sensor, Fuel Filter Warning Sensor, A/Con Relay
[GAMMA 1.6L T-GDI] Purge Control Solenoid Valve, Oil Control Valve #1/#2, Canister Close
Valve, RCV Control Solenoid Valve, E/R Junction Block (Cooling Fan Relay 1)
ECU 210A[GAMMA 1.6L T-GDI] ECM (Engine Control Module)
ECU 120A[NU 2.0L AKS] PCM (Power train Control Module)
[GAMMA 1.6L T-GDI] ECM (Engine Control Module)
INJECTOR15A[NU 2.0L AKS] Injector #1~#4
Engine room compartment fuse panel
BDm CAN (ENG) 7.qxp 7/4/2018 10:26 AM Page 67

Maintenance
68
7

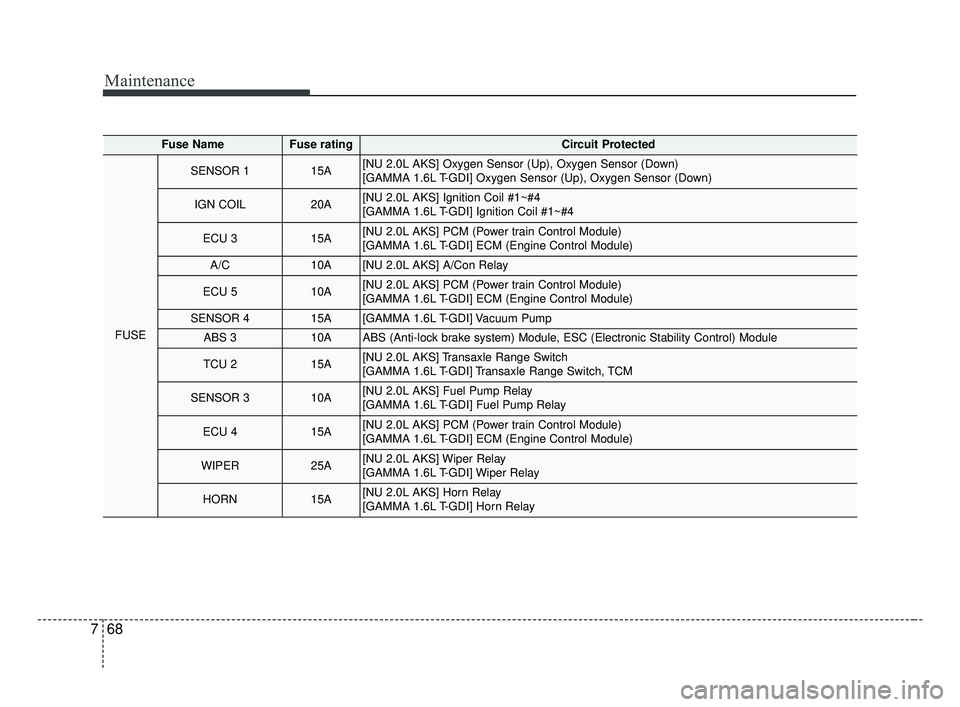

Fuse Name Fuse ratingCircuit Protected
FUSE
SENSOR 115A[NU 2.0L AKS] Oxygen Sensor (Up), Oxygen Sensor (Down)
[GAMMA 1.6L T-GDI] Oxygen Sensor (Up), Oxygen Sensor (Down)
IGN COIL20A[NU 2.0L AKS] Ignition Coil #1~#4
[GAMMA 1.6L T-GDI] Ignition Coil #1~#4
ECU 315A[NU 2.0L AKS] PCM (Power train Control Module)
[GAMMA 1.6L T-GDI] ECM (Engine Control Module)
A/C10A[NU 2.0L AKS] A/Con Relay
ECU 510A[NU 2.0L AKS] PCM (Power train Control Module)
[GAMMA 1.6L T-GDI] ECM (Engine Control Module)
SENSOR 415A[GAMMA 1.6L T-GDI] Vacuum Pump
ABS 310AABS (Anti-lock brake system) Module, ESC (Electronic Stability Control) Module
TCU 215A[NU 2.0L AKS] Transaxle Range Switch
[GAMMA 1.6L T-GDI] Transaxle Range Switch, TCM
SENSOR 310A[NU 2.0L AKS] Fuel Pump Relay
[GAMMA 1.6L T-GDI] Fuel Pump Relay
ECU 415A[NU 2.0L AKS] PCM (Power train Control Module)
[GAMMA 1.6L T-GDI] ECM (Engine Control Module)
WIPER25A[NU 2.0L AKS] Wiper Relay
[GAMMA 1.6L T-GDI] Wiper Relay
HORN15A[NU 2.0L AKS] Horn Relay
[GAMMA 1.6L T-GDI] Horn Relay
BDm CAN (ENG) 7.qxp 7/4/2018 10:26 AM Page 68

791
Maintenance

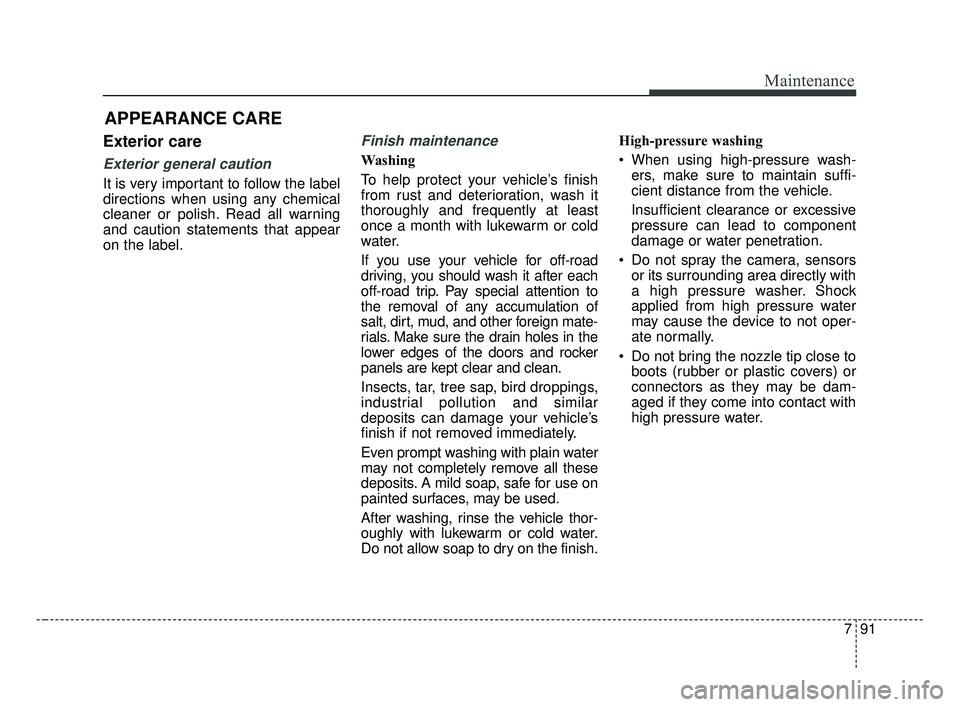

APPEARANCE CARE
Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning
and caution statements that appear
on the label.
Finish maintenance
Washing
To help protect your vehicle’s finish
from rust and deterioration, wash it
thoroughly and frequently at least
once a month with lukewarm or cold
water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to
the removal of any accumulation of
salt, dirt, mud, and other foreign mate-
rials. Make sure the drain holes in the
lower edges of the doors and rocker
panels are kept clear and clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar
deposits can damage your vehicle’s
finish if not removed immediately.
Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, may be used.
After washing, rinse the vehicle thor-
oughly with lukewarm or cold water.
Do not allow soap to dry on the finish.High-pressure washing
When using high-pressure wash-
ers, make sure to maintain suffi-
cient distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.
Do not spray the camera, sensors or its surrounding area directly with
a high pressure washer. Shock
applied from high pressure water
may cause the device to not oper-
ate normally.
Do not bring the nozzle tip close to boots (rubber or plastic covers) or
connectors as they may be dam-
aged if they come into contact with
high pressure water.
BDm CAN (ENG) 7.qxp 7/4/2018 10:27 AM Page 91

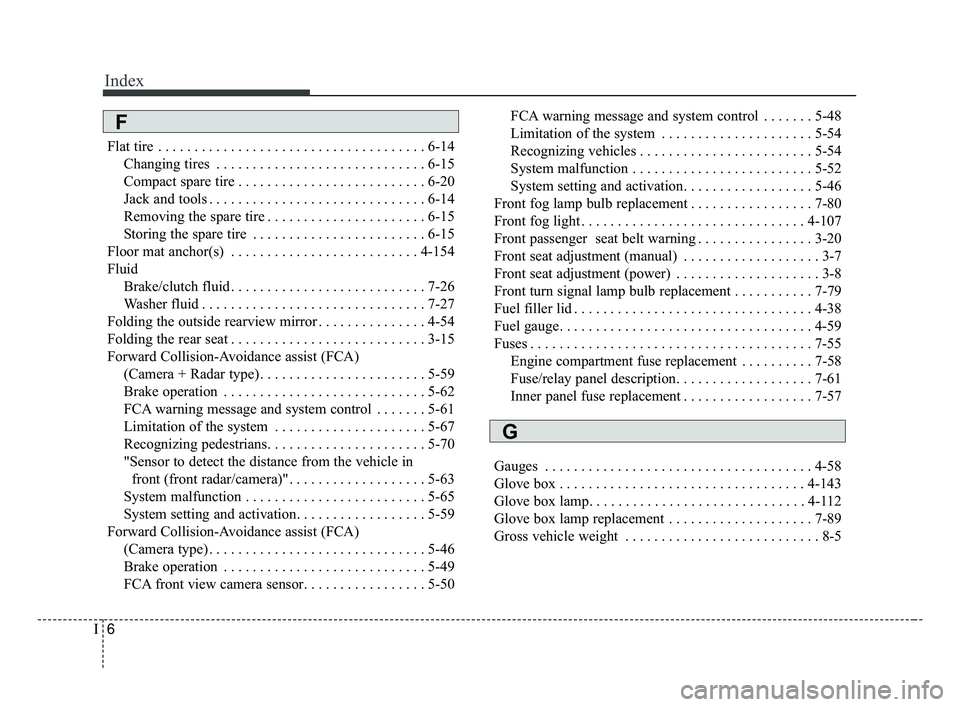

Index
6I
Flat tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 6-14Changing tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15
Compact spare tire . . . . . . . . . . . . . . . . . . . . . . . . . . 6-20
Jack and tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
Removing the spare tire . . . . . . . . . . . . . . . . . . . . . . 6-15
Storing the spare tire . . . . . . . . . . . . . . . . . . . . . . . . 6-15
Floor mat anchor(s) . . . . . . . . . . . . . . . . . . . . . . . . . . 4-154
Fluid Brake/clutch fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-26
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-27
Folding the outside rearview mirror . . . . . . . . . . . . . . . 4-54
Folding the rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
Forward Collision-Avoidance assist (FCA) (Camera + Radar type) . . . . . . . . . . . . . . . . . . . . . . . 5-59
Brake operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-62
FCA warning message and system control . . . . . . . 5-61
Limitation of the system . . . . . . . . . . . . . . . . . . . . . 5-67
Recognizing pedestrians. . . . . . . . . . . . . . . . . . . . . . 5-70
"Sensor to detect the distance from the vehicle in front (front radar/camera)" . . . . . . . . . . . . . . . . . . . 5-63
System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 5-65
System setting and activation. . . . . . . . . . . . . . . . . . 5-59
Forward Collision-Avoidance assist (FCA) (Camera type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-46
Brake operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-49
FCA front view camera sensor. . . . . . . . . . . . . . . . . 5-50 FCA warning message and system control . . . . . . . 5-48
Limitation of the system . . . . . . . . . . . . . . . . . . . . . 5-54
Recognizing vehicles . . . . . . . . . . . . . . . . . . . . . . . . 5-54
System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 5-52
System setting and activation. . . . . . . . . . . . . . . . . . 5-46
Front fog lamp bulb replacement . . . . . . . . . . . . . . . . . 7-80
Front fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-107
Front passenger seat belt warning . . . . . . . . . . . . . . . . 3-20
Front seat adjustment (manual) . . . . . . . . . . . . . . . . . . . 3-7
Front seat adjustment (power) . . . . . . . . . . . . . . . . . . . . 3-8
Front turn signal lamp bulb replacement . . . . . . . . . . . 7-79
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-38
Fuel gauge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
59
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . 7-55 Engine compartment fuse replacement . . . . . . . . . . 7-58
Fuse/relay panel description. . . . . . . . . . . . . . . . . . . 7-61
Inner panel fuse replacement . . . . . . . . . . . . . . . . . . 7-57
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 4-58
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14\
3
Glove box lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-112
Glove box lamp replacement . . . . . . . . . . . . . . . . . . . . 7-89
Gross vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
F
G
