KIA FORTE 2022 Features and Functions Guide

*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 39
CENTER PANEL
CENTER PANEL
•If the AUTO STOP indicator A is solid yellow, the system is functional, but just has not met all its enabling criteria to activate ISG at that time.
•
The ISG system is disabled when:
•A seat belt is unfastened
•The hood or a door is opened
•Bat ter y condition is poor
•
The front or rear defroster is turned on
•
Engine coolant temperature is low
•
The outside ambient temperature is too low/high
•
Emission control devices activate
•
The vehicle is on a steep slope
QUICK TIPS
Idle, Stop & Go (ISG) System
The ISG system is designed to reduce fuel consumption by automatically shutting down the engine when the vehicle is at a standstill.
When the ISG system is ON and the vehicle is at a standstill, the engine will stop, and the green AUTO STOP indicator A on the instrument cluster will illuminate.
The engine will restart when the brake pedal is released or the shift lever is moved from D (Drive) to the R (Reverse) position or to Manual Shift mode. When engine restarts, the green AUTO STOP indicator on the instrument cluster will turn off.
To deactivate the ISG System, press the ISG OFF button B. If you press again, the system will be activated.
REMINDERS:
•ISG is active by default at vehicle star tup. When ignition is cycled, ISG will turn ON again
•
Under cer tain conditions, the engine will restar t automatically even if the brake pedal is still depressed
•
If the AUTO STOP indicator is continuously blinking yellow and the ISG but ton LED is on, please contact an authorized Kia dealer
Images are for illustrative purposes only and may not reflect actual feature or operation.
Refer to section 5 in the Owner ’s Manual for more information.
0
20
40 60
80
100
120
140
160
180
200
220
240
260
0
1 2
3
4
5
6
7
8km/h
EPB
C H
x1000rpm
0
20 40
60
80
100
120
1 40
1 60
E
F
MPH
AUTO
HOLD
DRIVE
MODE
OFF
SHIFT
LOCK
RELEASE
P
R
N D
+
_
(But ton on center console below gear shift)
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Idle, Stop & Go Video
QR CODE
A
B

*IF EQUIPPED40K5 FEATURES & FUNCTIONS GUIDE
CENTER PANEL
CENTER PANEL
(Located behind Gear Shift)

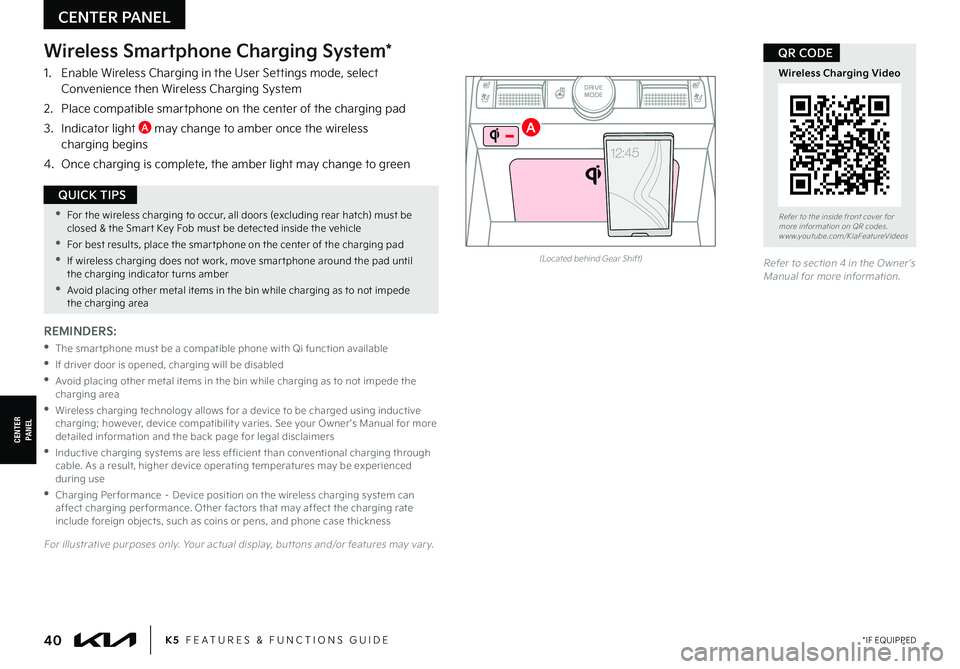

Wireless Smartphone Charging System*
1. Enable Wireless Charging in the User Settings mode, select Convenience then Wireless Charging System
2. Place compatible smartphone on the center of the charging pad
3. Indicator light A may change to amber once the wireless charging begins
4. Once charging is complete, the amber light may change to green
For illustrative purposes only. Your actual display, but tons and/or features may var y.
AUTO
HOLD
DRIVE
MODE
OFF
VIEW
SHIFT
LOCK
RELEASE
P
R
N D
+
_
•For the wireless charging to occur, all doors (excluding rear hatch) must be closed & the Smar t Key Fob must be detected inside the vehicle
•For best results, place the smar tphone on the center of the charging pad
•If wireless charging does not work, move smar tphone around the pad until the charging indicator turns amber
•Avoid placing other metal items in the bin while charging as to not impede the charging area
QUICK TIPS
REMINDERS:
•
The smar tphone must be a compatible phone with Qi function available
•If driver door is opened, charging will be disabled
•
Avoid placing other metal items in the bin while charging as to not impede the charging area
•
Wireless charging technology allows for a device to be charged using inductive charging; however, device compatibilit y varies. See your Owner ’s Manual for more detailed information and the back page for legal disclaimers
•
Inductive charging systems are less ef ficient than conventional charging through cable. As a result, higher device operating temperatures may be experienced during use
•
Charging Per formance – Device position on the wireless charging system can affect charging per formance. Other factors that may affect the charging rate include foreign objects, such as coins or pens, and phone case thickness
Refer to section 4 in the Owner ’s Manual for more information.
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Wireless Charging Video
QR CODE
A

*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 41
CENTER PANEL
CENTER PANEL
•Defrost mode activates A /C and opens Fresh Air Vent to help dehumidify the air and improve Defroster per formance
•During Auto Operation, the A /C indicator will NOT illuminate. The fan speed, air intake, air flow and air conditioning may automatically be engaged at any time to reach desired temperature and reduce humidit y
•Keep the inside glass as clean as possible to reduce window fogging
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Automatic Climate Control Operation Video
Auto Defogging System(ADS) Video
QR CODEAutomatic Climate Control (Type B)
Climate Control Auto Function
1. Select AUTO for Full Auto Operation. Press once for the air flow high setting, twice for medium setting and once more for the lower setting. The Auto setting automatically controls the air flow modes, fan speeds, air intake and air conditioning according to the temperature setting selected
2. Set desired Temperature
3. Press SYNC to synchronize driver and passenger temperature
Air Flow Modes
To select Air Flow Modes, press the Mode selection buttons:
Face-Level
Bi-Level
Floor-Level
Floor/Defrost- Level
REMINDERS:
•
Continuous use of the climate control system in the recirculated air position may allow humidit y to increase inside the vehicle which may fog the glass and obscure visibilit y
•
Pressing any but ton during AUTO operation will deactivate the AUTO function and switch to manual mode, except for Temperature Control
•
When in AUTO mode, Air Flow mode and Fan Speed do not display on the Climate Control Display
•
Warm air may flow in through vents if Recirculated Air but ton is not pressed ON (LED lit)
Defrost Outside Windshield:
1.
Set Fan Speed to the highest position
2. Set Temperature to Hot
3.
Press the Front Defrost button
Defog Inside Windshield:
1. Set Fan Speed to highest position
2. Set Temperature to highest position
3.
Press the Front Defrost button
Fan speed control but tons
Rear windshield defroster but tonFront windshield defroster but tonAir flow mode selection but ton
Passenger’s temperature control knob
Air conditioning on/off but ton
Recirculated air but tonAir intake but ton
Dual temperature control button
System off button
Driver ’s temperature control knobAutomatic climate control but ton
12VUSB180W
AUTO
OFF SYNC
FRONT
REAR
Auto Defogging System (ADS):
Auto defogging is designed to reduce the fogging up of the inside of the windshield by automatically sensing the moisture of the inside of the windshield. The system will automatically change to defrost mode when needed.
Auto Defogging is set ON by default and will operate when the Climate Control system is ON. To cancel Auto Defogging, press the Front Defrost button for three seconds, when the ignition is in on (ADS OFF icon will illuminate). To turn Auto Defogging on again, press the Front Defrost button for three seconds.
Y o u r Automatic Climate Control system may differ from those in the illustrations. Refer to section 4 in the Owner ’s Manual for more information.

*IF EQUIPPED42K5 FEATURES & FUNCTIONS GUIDE
REMINDERS:
•
As a bulb check, the EPB malfunction indicator will illuminate for approximately 3 seconds when the ignition switch is turned ON
•
If the warning light does not illuminate temporarily, or continues to remain lit, take your vehicle to an authorized Kia dealer and have the system checked
•The EPB should not be operated while the vehicle is moving
•
A click or electric brake motor sound may be heard while operating or releasing the EPB, but these conditions are normal and indicate that the EPB is functioning properly
Refer to page 4 for location of Instrument Cluster indicators. Refer to section 5 in the Owner ’s Manual for more information. For illustrative purposes only. Your actual display, but tons and/or features may var y.
CENTER PANEL
CENTER PANEL
•When leaving your keys with parking lot at tendants or valet, make sure to inform them how to operate the EPB
•Pull up and hold EPB switch for 3 seconds to increase brake pressure if parked on a decline or incline
•If parked on a steep incline, pull up the EPB switch for more than 3 seconds for a firmer EPB application
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Electric Parking Brake Video
QR CODEAuto Hold
Auto Hold temporarily maintains the vehicle at a standstill even though the brake pedal is not depressed after the driver brings the vehicle to a complete stop by depressing the brake pedal. Auto Hold can be turned On/Off using the AUTO HOLD button B on the center panel below the gear shift. Before Auto Hold will operate, the driver ’s door, engine hood and trunk must be closed.
The Auto Hold indicator on the Instrument Cluster has four states:
White: Standby – With vehicle in Park and at a standstill, when the AUTO HOLD button B is pressed on, the indicator will illuminate white. While driving the vehicle (vehicle is not at a standstill), the Auto Hold indicator will remain white.
Green: Engaged – When coming to a complete stop by depressing the brake pedal, the Auto Hold indicator changes from white to green.
Off (not illuminated) – The indicator will turn Off when the AUTO HOLD button B is manually pressed Off or when the EPB is manually turned On.
Yellow: Malfunction – When the indicator is illuminated yellow, there may be a system malfunction. Take your vehicle to a local Kia dealer.
REMINDERS:
•
Auto Hold only operates when vehicle is in Drive or Neutral. Auto Hold turns off when the ignition is cycled
•
To reduce the risk of an accident, do not activate Auto Hold while driving downhill, backing up or parking your vehicle
•
Do not solely rely on the Auto Hold system to keep the vehicle stopped. Always pay at tention to traf fic and road conditions, and be prepared to depress the brakes
Refer to section 5 in the Owner ’s Manual for more information.
AUTO
HOLD
OFF
SHIFT
LOCK
RELEASEP
R
N D
+
_
DRIVE
MODE
-PDBUFE
CFMPX
HFBS
TIJGU

Electronic Parking Brake (EPB)
The Electronic Parking Brake (EPB) system utilizes an electric motor to engage the parking brake.
Applying the Parking Brake
Depress the brake pedal and pull up the EPB switch A. Ensure that the indicator light is illuminated on the instrument cluster.
Releasing the Parking Brake
The EPB will automatically release when the shifter is placed in Reverse or Drive.
To release EPB manually, depress the brake pedal, then press the EPB switch A, with the ignition switch in the ON position. Ensure that the indicator light is OFF.
AB

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 43
CENTER PANEL
CENTER PANEL
•Press brake pedal and depress release lock but ton to move gearshift from N to P, N to R or from P to any gear
•Manual mode downshifts are made automatically when the vehicle slows down. When the vehicle stops, 1st gear is automatically selected
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Sportmatic® Shifting Video
Paddle Shifters Video
QR CODE
P: Park
R: Reverse
N: Neutral
D: Drive
Manual Mode: To enter Manual mode, move shift lever from D to left gate A.
To shift while in Manual mode, move shift lever up [+] to upshift or down [–] to downshift.
Automatic Gear Shift with Sportmatic® Shifting†2 0
Paddle Shifters*
Paddle Shifters are operable when the shift lever is moved into the left gate of the D position
(Manual mode).
Paddle Shifting: Pull the [+] or [-] paddle shifter once to shift up or down one gear.
REMINDER: When in Manual mode, pulling the left and right paddle shifters at the same time will NOT shift gears.
For illustrative purposes only. Your actual display, but tons and/or features may var y.
Refer to section 5 in the Owner ’s Manual for more information.
DRIVE
MODE
SHIFT
LOCK
RELEASE
P
R
N D
+
_
(Paddles on rear side of steering wheel)
[+]: Manual Mode Upshift
[–]: Manual Mode Downshift
Refer to section 5 in the Owner ’s Manual for more information.
A

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED44K5 FEATURES & FUNCTIONS GUIDE
CENTER PANEL
CENTER PANEL
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Dual Clutch Transmission (DCT) Video
Heated and Ventilated Seats Video
QR CODESeat Warmers*†1 8
Toggle button once for high setting (3 LEDs lit), again for medium setting (2 LEDs lit), again for low setting (1 LED lit) and again to turn OFF.
Seat Warmers*†1 8 / Ventilated Seats*
Seat Warmers - Press top of button once for high setting (3 LEDs lit), again for medium setting (2 LEDs lit), again for low setting (1 LED lit) and again to turn OFF.
Ventilated Seats - Press bottom of button once for high setting (3 LEDs lit), again for medium set ting (2 LEDs lit), again for low set ting (1 LED lit) and again to turn OFF.
Yellow Color: Warming
AUTO
HOLD
DRIVE
MODE
OFF
VIEW
SHIFT
LOCK
RELEASE
P
R
N D
+
_
Yellow Color: WarmingBlue Color: Ventilating
AUTO
HOLD
OFF
VIEW
SHIFT
LOCK
RELEASE
P
R
N D
+
_
DRIVE
MODE
For illustrative purposes only. Your actual display, but tons and/or features may var y.
Refer to section 4 in the Owner ’s Manual for more information.
Refer to section 4 in the Owner ’s Manual for more information.
Dual Clutch Transmission (DCT)*
Some Kia vehicles are equipped with Dual Clutch Transmission (DCT) for automatic transmissions. The following are unique driving tips for the Dual Clutch Transmission:
•To hold the vehicle stationary on an incline, the service brake or parking brake MUST be used or the gear shift MUST be in the (P) Park position. If the vehicle is held stationary by applying the accelerator pedal on a slope, the clutch/transmission may overheat, resulting in damage
•Avoid aggressive launches on steep grades as this may result in an overheated clutch and transmission
•A slight time lag may be experienced at takeoff from standstill during aggressive acceleration maneuvers
If the clutch is overheating, an amber warning light* will be displayed in the instrument cluster. Should this condition occur, pull over and place the vehicle in Park and idle the engine.
Refer to section 5 in the Owner ’s Manual for additional information on DCT operation or call Kia Consumer Affairs for additional information.
•With the seat warmer switch in the ON position, the heating system in the seat turns OFF or ON automatically depending on the seat temperature
•System is OFF by default. To turn system ON again, press the Heated Steering Wheel but ton
•When the Climate Control System’s temperature is turned up to high heat, the Seat Warmers turn on automatically
QUICK TIPSREMINDER: Use extreme caution when using the seat warmers to avoid burns. Refer to the Owner ’s Manual for more information.

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 45
REMINDER: Do not at tempt to operate the driver position memor y system while the vehicle is moving. This could result in loss of control of the vehicle.
REMINDER: Do not at tempt to adjust the seat while the vehicle is moving. This could result in loss of control of the vehicle.
SEATING
SEATING
SeatbackLumbarSeatSeat Cushion
Power Adjustable Driver’s Seat*†1 6
Move/Press controls to adjust Seat forward/backward, Seat Cushion tilt up/down, Seatback forward/backward or Lumbar up/down/forward/backward.
For illustrative purposes only. Your actual display, but tons and/or features may var y.
Refer to section 3 in the Owner ’s Manual for more information.
SET
1
2
Driver Position Memory System†1 6
The integrated system stores into memory the position of the Driver ’s Seat and the Outside Rearview Mirrors.
To store a seating position into memory, first place the shifter into P (Park) while the ignition is ON. Then:
1. Adjust the driver ’s seat and outside mirrors
2. Press the SET button A on the control panel. System will beep once
3. Press one of the memory buttons B within 5 seconds. The system will beep twice when memory has been stored
4. “Driver (1 or 2) set is memorized” will appear on the instrument cluster LCD screen
(But tons located on Driver ’s Door Panel)
Refer to section 3 in the Owner ’s Manual for more information.
A
D
DDEF
EF
B

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED46K5 FEATURES & FUNCTIONS GUIDE
SEATING
SEATING
When adjusting seat for ward or backward, ensure seat clicks or locks into place before driving vehicle.
QUICK TIPRefer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Rear Occupant Alert (ROA) with Door Monitoring Video
Manual Seat Adjustment Video
QR CODE6-Way Manual Adjustable
Driver’s Seat*†9
Pull lever A to slide Seat forward/backward.
Pull lever B up several times to raise Seat Height. Push lever B down several times to lower Seat Height.
Pull lever C to adjust Seatback recline.
Press D to adjust Lumbar support.
Do not at tempt to adjust the seat while the vehicle is moving. This could result in loss of control of the vehicle.
For illustrative purposes only. Your actual display, but tons and/or features may var y.
Refer to section 3 in the Owner ’s Manual for more information.
Front Seat Headrest Adjustment†9
To raise headrest: Pull headrest up to the desired position.
To lower headrest: Press lock F, then press the headrest down.
REMINDERS:
•
But ton may be hard to see if headrest is in its lowest position
•
Do not operate the vehicle with the headrests removed. Headrests can provide critical neck and head suppor t in an accident
Refer to section 3 in the Owner ’s Manual for more information.
B
C
F
DA
REMINDER: Always be sure to check the passenger areas before leaving the vehicle.
Check rear seats
: Alarm OffOK
Rear Occupant Alert (ROA)
with Door Monitoring
The Rear Occupant Alert (ROA) with Door Monitoring can help alert the driver when a rear passenger may be left in the vehicle. The alert will be a message on the Instrument Cluster stating to “Check rear seats” E and a chime will sound.
The factory default is set to OFF. To turn the system ON or OFF, go to User Settings in the Instrument cluster or Vehicle Settings*, on the audio head unit select Convenience, then Rear Occupant Alert and check/uncheck the box.
ROA is not a substitute for one’s at tention. Always check the vehicle’s interior before exiting.
Refer to section 4 in the Owner ’s Manual for more information.
Image is for illustrative purposes only and may not reflect actual feature or operation.
E

*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 47
To stop the sunroof/sunshade at any position, push or pull the sunroof control lever in any direction.
QUICK TIP
Refer to section 4 in the Owner ’s Manual for more information. Refer to section 4 in the Owner ’s Manual for more information. For illustrative purposes only. Your actual display, but tons and/or features may var y.
REMINDERS:
• Sunshade needs to remain OPEN while sunroof is open
•
When closing, be mindful of any objects or persons
OTHER KEY FEATURES
OTHER KEY FEATURES
Panoramic Sunroof with
Power Sunshade*
The Sunroof and Sunshade operation is controlled through a multi-directional switch/lever. The ignition or Engine Start/Stop button* needs to be in the ON position to operate the sunroof.
To slide the sunshade and sunroof:
•
Auto Open: Slide the lever E backward to the farthest position and release
•
Auto Close (sunroof only): Slide the lever E forward to the farthest position and release
To slide the sunshade only:
•
Open: Slide the lever E partially backward to the first detent position and release
•
Auto Close: Slide the lever E partially forward to the first detent position and release
To slide the sunroof (with sunshade open):
•Open: Slide the lever E backward to the first detent position and release
•
Close: Slide the lever E forward to the first detent position and release to close sunroof glass only. Slide the lever forward to the farthest position and release to close sunroof glass and sunshade
To tilt the sunroof:
•Raise: Push lever E upward
•Lower: Push lever E forward
PASSENGERAIR BAGOFF
(Type B)
Map/Room Lamps
Automatic turn off function*
The interior lights automatically turn off approximately 30 seconds after the ignition or Engine Start/Stop button* is OFF.
Map Lamp/Room Lamp Operation – Push the lens A to turn the map lamp ON/OFF. This light produces a spot beam for convenient use as a map lamp or as a personal lamp for the driver or the front passenger.
Map/Room Lamp Button – Press button B to turn the front and rear room lamps on and off.
Door Mode Button – Press button C to enable or disable Door Mode. In Door Mode, the map and room lamps turn on when any door is opened. When all doors are locked or the ignition is on, the map and room lamp will turn off immediately.
Rear Room Lamps – Press the button D to turn the rear passenger lamp ON/OFF.
E
D
A
BC
A
•When doors are unlocked by the Smar t Key, the lamp turns ON for approximately 30 seconds
•If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 3 seconds after the system is in armed stage
•Using interior lights for an extended period of time may cause bat ter y discharge
QUICK TIPS
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Sunroof Operation Video
QR CODE

•If the Smar t Key bat ter y is weak or not working properly, hold the Smar t Key fob up to the Engine Star t/Stop but ton (Lock but ton side closest) and press to star t engine
•The Smar t Key ’s signal can be blocked by the normal operation of a cell phone or smar tphone. To help prevent this, store each device separately
QUICK TIPS
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED48K5 FEATURES & FUNCTIONS GUIDE
F
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Kia Smart & Folding Key Fobs Video
Remote Start Video
QR CODE
OTHER KEY FEATURES
OTHER KEY FEATURES
(Type B handle shown)

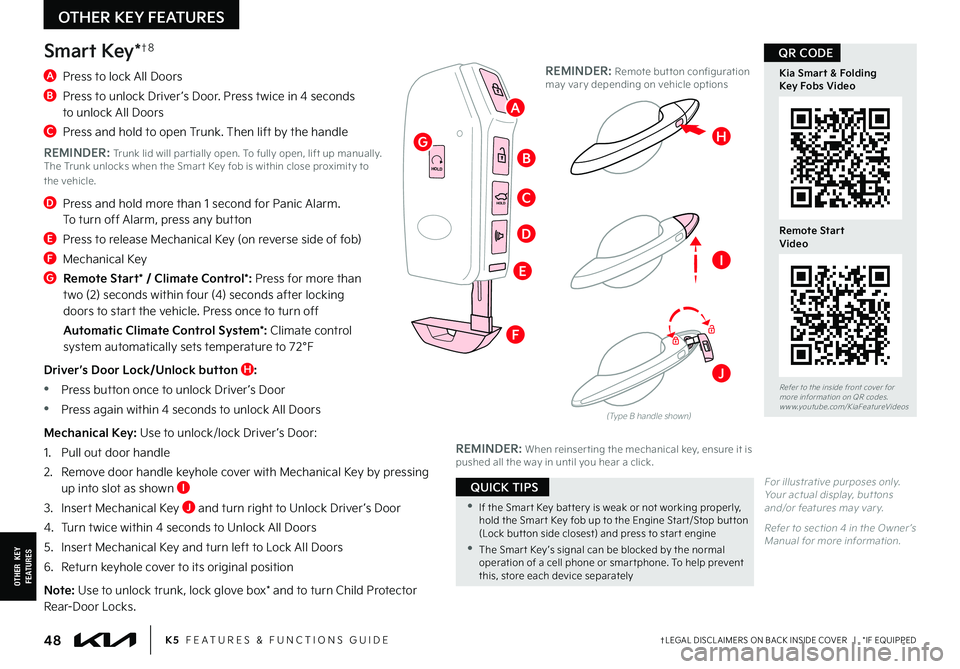

Smart Key*†8
A Press to lock All Doors
B Press to unlock Driver ’s Door. Press twice in 4 seconds to unlock All Doors
C Press and hold to open Trunk. Then lift by the handle
REMINDER: Tr u n k lid will par tially open. To fully open, lift up manually. The Tr u n k unlocks when the Smar t Key fob is within close proximit y to the vehicle.
D Press and hold more than 1 second for Panic Alarm. To turn off Alarm, press any button
E Press to release Mechanical Key (on reverse side of fob)
F Mechanical Key
G Remote Start* / Climate Control*: Press for more than two (2) seconds within four (4) seconds after locking doors to start the vehicle. Press once to turn off
Automatic Climate Control System*: Climate control system automatically sets temperature to 72°F
Driver’s Door Lock/Unlock button H:
•
Press button once to unlock Driver ’s Door
•Press again within 4 seconds to unlock All Doors
Mechanical Key: Use to unlock/lock Driver ’s Door:
1. Pull out door handle
2.
Remove door handle keyhole cover with Mechanical Key by pressing up into slot as shown I
3.
Insert Mechanical Key J and turn right to Unlock Driver ’s Door
4. Turn twice within 4 seconds to Unlock All Doors
5. Insert Mechanical Key and turn left to Lock All Doors
6. Return keyhole cover to its original position
Note: Use to unlock trunk, lock glove box* and to turn Child Protector Rear-Door Locks.
REMINDER: When reinser ting the mechanical key, ensure it is pushed all the way in until you hear a click.
REMINDER: Remote button configuration may var y depending on vehicle options
For illustrative purposes only. Your actual display, but tons and/or features may var y.
Refer to section 4 in the Owner ’s Manual for more information.
HOLD
HOLD
HOLD
GH
I
J
A
B
C
D
E
