KIA FORTE 2023 Features and Functions Guide
Manufacturer: KIA, Model Year: 2023, Model line: FORTE, Model: KIA FORTE 2023Pages: 56, PDF Size: 4.98 MB
Page 31 of 56
29†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
Bluetooth® Wireless Technology†3 , 1 8 (continued)
Voice Recognition* and Phone Contact Tips
The system may have difficulty understanding some accents or uncommon names Improve the per formance by making a few simple changes to your phone contacts, listed below To help optimize the Bluetooth® Wireless Technology Voice Recognition system, see other tips and reminders under Quick Tips
•Use full names (first and last names) vs short or single-syllable names (“John Smith” vs “Dad," “Smith Residence” vs “Home”)
•Avoid using special characters, emojis or hyphenated names (@, &, #, /, -, *, +, etc )
•Avoid using acronyms (“In Case of Emergency” vs “ICE”) or words with all capital letters
•Spell words completely, no abbreviations (“Doctor Smith” vs “Dr Smith”)
REMINDER: Bluetooth® Wireless Technology audio and calling functions are suppor ted when connected to a Bluetooth® enabled device
•
The system may register or pair multiple Bluetooth® devices See the Car Infotainment System Quick Reference Guide for more information on setup and limitations
• Bluetooth® Music Streaming – If the Bluetooth® music is inaudible or too low, you may need to turn up the volume on the connected phone
•
When placing a call, speak in a natural, moderate tone, with clear pronunciation The system may have trouble recognizing commands if you speak too softly or too loudly
•Always wait for the beep before speaking any commands
•
Close windows and sunroof and turn off A /C - Open windows, sunroof, weather (wind/rain), or an A /C fan operating at higher speeds can inter fere with Voice Recognition
•Press the talk but ton and say “Help” to get a list of available commands
QUICK TIPS
E
Audio MODE button: Press to cycle through the FM/AM/SiriusXM®†1 8/Media modes Audio System ON/OFF: Press to turn power on; Press and hold to turn power off Press and hold to go to Advanced Setting / Steering Wheel mode (Kia Connect with Navigation)
F
Seek/Preset button: Radio Mode (FM/AM/SiriusXM®*†1 8) - Press to advance through the Preset Stations Press and hold to Auto Seek Media Mode - Press to move track forward/back Press & hold to fast forward/rewind (except for Bluetooth® Audio)
G Volume button: Press up/down to raise/lower volume Mute button: Press to mute all audio (in some Media modes the media pauses when pressed)
Driving while distracted is dangerous and should be avoided Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving
For illustrative purposes only Your actual display, but tons and/or features may var y
Audio Controls†1 8
CANCEL
OK
RES
SET
—
+
—
+
MODE
Your vehicle’s steering wheel but tons may differ from those in the illustrations Refer to section 4 in the Owner ’s Manual for more information
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Voice RecognitionTips Video
QR CODE
INFOTAINMENT SYSTEMS
INFOTAINMENTSYSTEMS
E
FG
Page 32 of 56
30†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE
Android Auto™†3 / Apple CarPlay®†3 Setup
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe bodily injur y, and death The driver ’s primar y responsibilit y is in the safe and legal operation of a vehicle, and any handheld devices, other equipment, or vehicle systems which take the driver ’s eyes, at tention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle
Android Auto™ compatible smartphone setup – Download the Android Auto™ app from the Google Play™ Store†3 Open the Android Auto™ app and proceed with the onscreen instructions to complete setup on the mobile device
Wireless Connection setup for Android Auto™ & Apple CarPlay® (Standard Audio System):
1 Press the SETUP key on the Infotainment System
2 Press DEVICE CONNECTION SETTINGS
3 Press PHONE PROJECTION, then ADD NEW
Cable Connection setup for Android Auto™ (Standard Audio System & Kia Connect with Navigation):
1 Press the SETUP key on the Infotainment System
2 Press DEVICE CONNECTION, select PHONE PROJECTION SETTINGS, then select ANDROID AUTO Review all terms, conditions and requests on the Infotainment System and phone, and, if you agree, accept them in order to use Android Auto™
3 Connect the Android™ device with the vehicle’s USB port using the manufacturer ’s cable provided with your phone
4 From the Infotainment System home screen, select the Android Auto™ button, where you’ll see all the Android Auto™ supported apps
Cable Connection setup for Apple CarPlay® (Kia Connect with Navigation only):
1 Connect the Apple CarPlay® compatible iPhone®†3 with the vehicle’s USB port using the manufacturer ’s cable provided with your iPhone®†3
2 Press the SETUP key on the Infotainment System
3 Press DEVICE CONNECTION on the screen, select PHONE PROJECTION SETTINGS, then select Apple CarPlay®
4 Select ENABLE APPLE CARPL AY Review all terms, conditions and requests on the Infotainment System and phone, and, if you agree, accept them in order to use Apple CarPlay®
5 From the Infotainment System home screen, select the Apple CarPlay® button, where you’ll see all the Apple CarPlay® supported apps
REMINDERS:
•Android Auto™ compatibilit y requirements for connection: -Kia Connect with Navigation (USB cable connection only): OS Android™ 5 0 or higher, phone manufacturer ’s USB cable and data plan for applicable feature(s) -Standard Audio System (USB cable & wireless connection): -
USB cable connection - OS Android™ 5 0 or higher, phone manufacturer ’s USB cable and data plan for applicable feature(s) -
Wireless connection - OS Android™ 9 0 or higher with data plan for applicable feature(s) •Apple CarPlay® compatibilit y requirements for connection: -Kia Connect with Navigation (USB cable connection only): iOS soft ware 8 0 or higher, phone manufacturer ’s USB cable and data plan for applicable feature(s) -
Standard Audio System (Wireless connection only): iOS soft ware 10 0 and higher with data plan for applicable feature(s) •
It is recommended to always update your phone to the latest operating system release •
Wireless Android Auto™ system only works for cer tain Android models Use the manufacturer ’s USB cable when wireless feature is not available
Refer to the Car Infotainment System Quick Reference Guide for more information
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Wireless Apple CarPlay® & Android Auto™ Video
QR CODE
•If Android Auto™ / Apple CarPlay® randomly disconnects:
– Ensure the USB cable is cer tified by the phone manufacture for both power and data
– Clean the phone’s por t, which the USB cable connects to, as instructed by the phone’s manufacturer
– The Phone should not be disturbed while driving as this can cause a disconnection at the phone’s USB por t
– Visit the phone manufacturer ’s website for Android Auto™ / Apple CarPlay® app concerns
QUICK TIPS
INFOTAINMENTSYSTEMS
INFOTAINMENT SYSTEMS
Page 33 of 56
31†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
Standard Audio System* – FM/AM/Media (USB, Bluetooth®†3 Audio)*
RADIOMEDIA SEEKTRACK SETUP
Sound Settings: To adjust the audio system sound settings:
1
Press the SETUP key on the audio head unit or the on-screen MENU button, when in MEDIA mode
2 Select the on-screen SOUND button
3 Select the menu item (Position, Volume, Tone, Priority, Advanced, Default)
4
Use the onscreen buttons to adjust settings Press the return button to save settings
Radio Presets: Press the Custom H C V U U P O O F Y U U P P S C F M P X U I F 3 B E J P 4 U B U J P O E J T Q M B Z 5 I J T T B W F T U I F D V S S F O U T U B U J P O B T B Q S F T F U
Custom Key H: A programmable key to provide quick access to one of several available system features To program the Custom Key, press and hold the Custom Key Select one of the available features you would like the Custom Key to open
Software updates - To keep your software up to date, free of charge, visit the official Kia update webpage at https://update kia com/US/EN/Main Note, visiting a dealer for software update may include an additional charge
Your vehicle’s Infotainment System may differ from that in the illustration For fur ther audio system operation, refer to pages 28-34 or see your Car Infotainment System Quick Reference Guide
REMINDER: Driving while distracted is dangerous and should be avoided Drivers should remain at tentive to driving and always exercise caution when using the audio system controls while driving To help minimize driver distraction, some audio system functionalit y has been modified while the vehicle is in Drive, Reverse or moved out of Park
Press to enter R ADIO modePress to enter MEDIA mode
Press to Power ON/OFF Rotate to adjust Volume
Press briefly to do the following:• FM/AM mode: Play the previous/next frequency• MEDIA mode: Change the track, file or title Press and hold to do the following (over 0 8 seconds):• FM/AM mode: Move quickly through all of the frequencies When released, the system seeks the next available frequency• MEDIA mode: Rewinds or fast for wards the track or file (except for Bluetooth® Audio)
In Radio/Media modes, rotate knob to search for stations/channels/tracks/ songs/files Press the knob to receive the selected channel/track/song/file
Press to enter Custom mode
Press to enter Setup mode
•Volume level bet ween different audio modes:
– When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc ), the audio system saves the previous volume level you were listening to For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
– When using Bluetooth® Audio, the overall volume is dependent on your device’s volume If the volume is
turned down low on your device it will remain low even if the system volume is turned up
•
When connected to Android Auto™ or Apple CarPlay® on your smar tphone, the smar tphone’s navigation system may also be available
•
A warning screen may appear periodically to remind users that the audio system should be operated when the engine is running to prevent bat ter y discharge
•Prolonged use of the audio head unit in ACC mode may drain the vehicle’s bat ter y
QUICK TIPS
INFOTAINMENTSYSTEMS
INFOTAINMENT SYSTEMS
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Standard Audio SystemVideo
Standard Audio System Updates Video
QR CODE
Page 34 of 56
32†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE
Kia Connect Activation*†1 (Systems equipped with Kia Connect only)
Follow these steps to activate your Kia Connect system:
1 Enter the activation screen on your vehicle’s head unit:
a Press SETUP key b Press Kia Connect icon c Press Activate
2 Read and agree to Terms of Service and Privacy Policy and press SUBMIT
3 Enter smartphone number or email address to receive a verification code, then press SUBMIT
4 Follow these steps to receive your verification code using your phone text message or email:
a Check your phone text message or email for verification codeb Open the link in your text message or email A page will open requesting that you create your account
N o t e : If you already have a Kia Owners Portal account using the email or phone number as your login ID, you will need to provide your password prior to receiving the verification code
REMINDER: This vehicle is not equipped with over-the-air system updates
c Enter your first name, last name, email, phone number, an account password, and click CREATE ACCOUNT A page will open displaying your verification code
d Enter the code in the head unit and press ACTIVATE
e Go back to the page with your verification code and press “I have entered my verification code ” A link will be provided to download the Kia Access app from your app store After installing the app, log in and enjoy
(But tons on overhead console*; In some models, the but tons are located in the Rear View Mirror)
PASSENGEROFFAIR BAG
BCA
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Kia Access App Video
Kia Connect Activation Video
Kia Connect may be unavailable for model year 2022 and newer vehicles sold or purchased in Massachuset ts See Kia Connect Terms of Ser vice at owners kia com for more information
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe bodily injur y, and death The driver ’s primar y responsibilit y is in the safe and legal operation of a vehicle, and any handheld devices, other equipment, or vehicle systems which take the driver ’s eyes, at tention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle
Virtual Assistant A – Press to connect to a virtual assistant to hear information about the Kia Connect features
Kia Connect Voice Local Search B (systems with navigation) - Press to connect to the search function to find points of interest or other locations, like “cafe”
Kia Connect Voice Local Search B (non-navigation systems) - Press to activate phone projection with Android Auto™ or Apple CarPlay® (smartphone must be connected via wireless or USB cable — see previous page for availability and setup)
Roadside Assist†1 4 C – Press to connect to a Roadside Assistant where you can request vehicle towing services
Kia Connect Assistance*†1
Kia Connect Assistance Video
QR CODES
REMINDER: These but tons may be located in the rear view mirror or the overhead console
For more information, refer to the Car Infotainment System Quick Reference Guide On cer tain models, Kia Connect Assistance but tons are located on the Rear view Mirror
INFOTAINMENTSYSTEMS
INFOTAINMENT SYSTEMS
Page 35 of 56
33*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
Kia Access App Download
Go to an app marketplace to download the Kia Access App Once you download the app, make sure you register your vehicle and start an account (refer to Kia Connect Activation page) Get to know your new Kia and the available convenient features on the app
2020 SOULMILEAGE722 mi.
355 miEst. RangeDOOR LOCKSREMOTE STARTFind My Car
•The smar tphone and vehicle need to be connected to a cellular net work with a good wireless signal strength in order to use Kia Connect If these conditions are not met, remote command may not execute or may take a long time It will also affect voice commands such as navigation POI or address search
•
To use Remote Star t* or Remote Star t* with Climate Control feature, all doors, hood and trunk/liftgate must be closed and locked
•
When Remote Star t* is activated, if the driver does not enter the vehicle within 10 minutes, the Remote Star t* will turn the engine off
•When using Remote Star t* with Climate Control, turn on for at least a few minutes before get ting into the vehicle, allowing the vehicle interior to reach your desired temperature
•
The quickest way to obtain accurate vehicle status through the app is by pressing the refresh but ton on the app or refreshing the web page when using the customer web por tal
•In order to preser ve the vehicle bat ter y, Kia Connect will not turn on seven days after the last ignition was on You will need to restar t the vehicle with a key fob in order to use Kia Connect again
QUICK TIPS
The Kia Access App Features Guide is a guide helping you utilize the app to its full potential by detailing how to use each feature and adjust various settings Below are some of the topics included:
•Remote Commands
•Set Climate*
•Schedule Service
•Dealer Settings
•Manage Vehicles and Profiles
Kia Access App Features Guide
Kia App Screen for illustrative purposes only Actual App screen and functionalit y may var y
For fur ther Kia Connect operations, refer to the Car Infotainment System Quick Reference Guide
Kia Connect may be unavailable for model year 2022 and newer vehicles sold or purchased in Massachuset ts See Kia Connect Terms of Ser vice at owners kia com for more information
Do not use remote climate control or remote star t if vehicle is in an enclosed area (e g , closed garage) or a par tially enclosed area without ventilation Close all doors leading from adjacent living areas to the vehicle area before executing a remote climate control or remote star t command
Kia Access Features Guide. Click this dynamic QR code to access the guide Some phone’s operating systems may need to be updated to scan dynamic QR codes
Download the Kia Access App by clicking this dynamic QR code Some phone’s operating systems may need to be updated to scan dynamic QR codes
QR CODES
INFOTAINMENTSYSTEMS
INFOTAINMENT SYSTEMS
Page 36 of 56
34†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE
Kia Connect with Navigation*†1 , 9–FM/AM/SiriusXM®†1 7/Media (USB, Bluetooth®†3 Audio)
Sound Settings: To adjust the infotainment system sound settings, press the SETUP key on the Infotainment System or the on-screen MENU button, when in MEDIA mode Select the on-screen SOUND button, then select the menu item (Premium Sound, Position, Tone, Guidance, Radio Noise, Driver Assistance, Connected Devices) Use the onscreen buttons to adjust settings
Radio Presets: To save a preset, press the Custom H C V U U P O O F Y U U P P S C F M P X U I F 3 B E J P 4 U B U J P O E J T Q M B Z 5 I J T T B W F T U I F D V S S F O U T U B U J P O B T B Q S F T F U
SiriusXM® Smart Favorites: In Radio mode, choose SiriusXM®, then select any of the first six
favorites During song or program play, tap the Skip Backward icon to start from the beginning of the song or program Tap the Play Live icon to return to the live broadcast
Custom Key H To program the Custom Key, press and hold the Custom Key, then select one of the available features you would like the Custom Key to open
REMINDERS: •
To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park •
Prolonged use of the audio head unit in ACC mode may drain the vehicle’s bat ter y •
Map/software updates: To keep your map and soft ware up to date, free of charge, visit the of ficial Kia update webpage at ht tps://update kia com/US/EN/Main Note, visiting a dealer for soft ware update may include an additional charge
MAP RADIO
NAV SEEKTRACK SETUP
MEDIA
Press to Power ON/OFF Rotate to adjust VolumePress to enter MAP screenPress to enter NAVIGATION mode
Press briefly to do the following:• FM/AM mode: Play the previous/next frequency• SiriusXM™ mode: Change the channel• MEDIA mode: Change the track, file or titlePress and hold to do the following (over 0 8 seconds):• FM/AM mode: Move quickly through all of the frequencies When released, the system seeks the next available frequency• MEDIA mode: Rewinds or fast for wards the track or file (except for Bluetooth® Audio)
Press to enter SETUP mode
Press to enter MEDIA mode
Rotate to change Radio/SiriusXM™ Station/Media tracks/files
Press to enter Custom modePress to enter R ADIO mode
•Volume level bet ween different audio modes: – When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc ), the audio system saves the previous volume level you were listening to For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio– When using Bluetooth® Audio, the overall volume is dependent on your device’s volume If the volume is turned down low on your device it will remain low even if the system volume is turned up •When connected to Android Auto™ or Apple CarPlay® on your smar tphone, the device’s navigation system may also be available •At any time, you can interrupt the Voice Command Feedback: Press the TALK but ton on the steering wheel •Prolonged use of the navigation system in ACC mode may drain the vehicle’s bat ter y A warning screen may appear periodically to remind users that the navigation system should be operated when the engine is running to prevent bat ter y discharge •When using the voice command feature, wait for the system BEEP before speaking the command
QUICK TIPS
For further Kia Connect with Navigation operations, refer to the Car Infotainment System Quick Reference Guide For other audio system information, see pages 28-33
Yo u r vehicle’s audio system may differ from that in the illustration
INFOTAINMENTSYSTEMS
INFOTAINMENT SYSTEMS
Kia Connect may be currently unavailable for model year 2022 vehicles sold or purchased in Massachuset ts See Kia Connect Terms of Ser vice at owners kia com for more information
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Kia Connect with Navigation Video
Navigation System Important Tips Video
Navigation System Updates Video
QR CODE
Page 37 of 56
35*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
CENTERPANEL
Press the SETUP key on the Infotainment System, then General Press the onscreen Date/Time button to enter the clock settings Then use the onscreen buttons to navigate through setup and return to exit
Digital Clock (Navigation System)*
Multimedia USB Port, Power Outlets* & USB Charger Ports*
Multimedia USB Port* A
Use the Multimedia USB port to connect USB audio devices and smartphones
Power Outlets* B
Use the power outlets for mobile phones and other devices designed to operate on a 12V (180W max) power outlet
USB Charger Ports* C
Devices can be recharged using a USB cable The Engine Start/Stop button needs to be in the ACC/ON/START position to operate the USB Charger Port
REMINDERS: •
Using the power outlets (accessor y plugs) for prolonged periods of time, with the Engine Star t/Stop but ton in the ACC position (Engine off) may cause the bat ter y to discharge
•
Use only the charging cables that your device manufacturer supplied Third par t y cables may cause damage to your device
For more information on the Multimedia USB Por t, Power Outlets & USB Charger Por ts, refer to section 4 in the Owner's Manual
For illustrative purposes only Your actual display, but tons and/or features may var y
For more information, refer to the Car Infotainment System Quick Reference Guide
(Por ts and power outlets are located on lower par t of Center Panel in front of gear shift and also in the back of the center console; power por ts may be configured differently on your vehicle)
•When needed, Daylight Savings must be enabled in the Clock Set tings screen
•To access the manual date and time set ting, turn GPS Time off in the Clock Set tings
QUICK TIPS
•The power outlets are inactive when ignition is in the off position
•
The USB data por t (Multimedia USB por t) is located next to the Power Outlets The USB Charger Por ts do not suppor t data transfer
•
The Multimedia USB Por t in the center panel charges slower than the USB Charger Por ts throughout the vehicle
QUICK TIPS
12V 180W
12V 180W
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Multimedia/Charger USB Ports & Power Outlets Video
QR CODE
CENTER PANEL
A
BC
Page 38 of 56
36*IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE
Automatic Climate Control*
Driver or dual temperature control knob
Automatic climate control but ton
System OFF button
Front windshield defroster but tonRear windshield defroster but tonMode selection but tonRecirculated air but tonFan speed control but ton
FRONTREAR
A/C
OFF SYNC
AUTO
MODE
A
AUTO
ADS OFF
Cluster Ionizer
8
88°F888°F
U TO
PASSENGER
AIR BAG
Passenger temperature control knob
Sync temperature control mode but ton
Air conditioning ON/OFF but ton
Defrost Outside Windshield:
1 Set Temperature to hot
2
Press the Front Defrost button
Defog Inside Windshield:
1 Set Fan Speed to highest position
2 Set Temperature to highest position
3 Press the Front Defrost button
Air Flow Modes:
To select Air Flow Modes, press the mode selection buttons:
Auto Defogging System:
Auto Defogging is designed to reduce the fogging up of the inside of the windshield by automatically sensing the moisture of the inside of the windshield The system will automatically change to defrost mode when needed
Auto Defogging is set on by default To cancel Auto Defogging, press the Front Defrost button FRONT for three seconds, when the ignition is on (ADS OFF icon will illuminate) To turn Auto Defogging on again, press the
Front Defrost button FRONT for three seconds
Climate Control Auto Function:
1 Press AUTO to select Full Auto Operation – The Auto setting automatically controls the air flow modes, fan speeds, air intake and air conditioning according to the temperature setting selected
2 Set desired Temperature
3 Rotate Passenger Temperature knob to select Dual Temperature Control Operation
REMINDERS: •
Cold or warm ambient air may flow in through vents if Recirculated Air but ton is not pressed ON (LED lit)
•
Pressing any but ton during AUTO operation will deactivate the AUTO function and switch to manual mode, except for Temperature Control or SYNC Temperature Control
•
Continuous use of the climate control system in the recirculated air position may allow humidit y to increase inside the vehicle which may fog the glass and obscure visibilit y
•
When in AUTO mode, Air Flow Mode and Fan Speed do not display on the Climate Control Display
Bi-LevelFloor/Defrost-LevelFace-LevelFloor-Level
Your Automatic Climate Control system may differ from those in the illustrations Refer to section 4 in the Owner ’s Manual for more information
•Defrost Mode activates A /C and opens Fresh Air Vent to help dehumidify the air and improve Defroster per formance
•During Auto Operation, the A /C indicator will NOT illuminate The fan speed, air intake, air flow and air conditioning may automatically be engaged at any time to reach desired temperature and reduce humidit y
•Keep inside glass as clean as possible to reduce window fogging
QUICK TIPS
CENTERPANEL
CENTER PANEL
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Automatic Climate Control Operation Video
Auto Defogging System (ADS) Video
QR CODES
Page 39 of 56
37*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
Temperature control knobMode Selectionknob
Air Intake Control but ton
Rear Window Defroster but tonAir Conditioning but ton*
Fan speed control knob

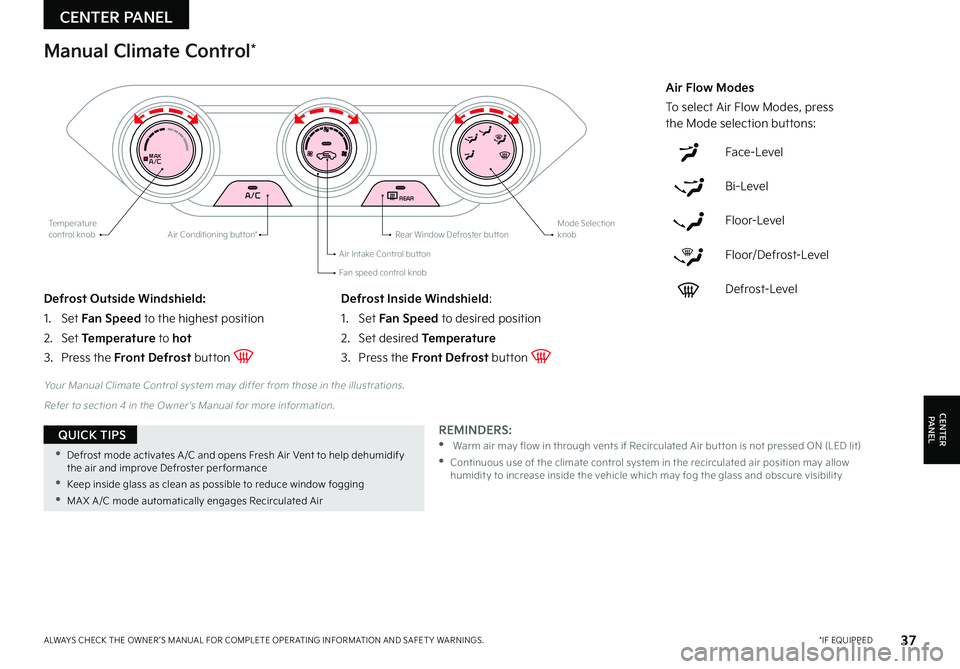

Manual Climate Control*
Defrost Outside Windshield:
1 S e t Fan Speed to the highest position
2 Set Temperature to hot
3
Press the Front Defrost button
Defrost Inside Windshield:
1 S e t Fan Speed to desired position
2 Set desired Temperature
3
Press the Front Defrost button
Your Manual Climate Control system may differ from those in the illustrations
Refer to section 4 in the Owner ’s Manual for more information
Air Flow Modes
To select Air Flow Modes, press the Mode selection buttons:
Face-Level
Bi-Level
Floor-Level
Floor/Defrost-Level
Defrost-Level
REARA/C
MAXA/C
REMINDERS: • Warm air may flow in through vents if Recirculated Air but ton is not pressed ON (LED lit)
•
Continuous use of the climate control system in the recirculated air position may allow humidit y to increase inside the vehicle which may fog the glass and obscure visibilit y
•Defrost mode activates A /C and opens Fresh Air Vent to help dehumidify the air and improve Defroster per formance
•
Keep inside glass as clean as possible to reduce window fogging
•
MA X A /C mode automatically engages Recirculated Air
QUICK TIPS
CENTERPANEL
CENTER PANEL
Page 40 of 56
38†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE
DRIVE
MODE
P
R N
D
S
Automatic Gear Shift with Sportmatic®†3 Shifting* (Manual Mode)
P: Park
R: Reverse
N: Neutral
D: Drive
[+]: Manual Mode Upshift
[–] : Manual Mode Downshift
Manual Mode: To enter Manual Mode, move shift lever from D to left gate A
To shift while in Manual Mode, move shift lever up [+] to upshift or down [–] to downshift A
Paddle Shifters*
Paddle Shifters are operable when the shift lever is moved into the left gate of the D position (Manual mode)
Paddle Shifting: Pull the [+] or [-] paddle shifter once to shift up or down one gear
REMINDER: When in Manual mode, pulling the left and right paddle shifters at the same time will NOT shift gears
For illustrative purposes only Your actual display, but tons and/or features may var y
Refer to section 5 in the Owner ’s Manual for more information
REMINDERS:
•
When in P (Park), if the Release but ton is not pressed while shifting, the transmission does not shift
•
If going through a car wash, remind the at tendant to keep the vehicle in Neutral (N) and keep the engine running Also, disable the power liftgate lid control, turn off the auto rain sensing wipers and fold in the mirrors
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Automatic Transmission - Sportmatic Shifting with Paddle Shifters Video
Intelligent Variable Transmission (IVT) Driving Experience Video
•Press brake pedal and depress release but ton Bto move gearshift from N to P, N to R or from P to any gear
•Manual Mode downshifts are made automatically when the vehicle slows down When the vehicle stops, 1st gear is automatically selected
QUICK TIPS
A
A
B
QR CODES
CENTERPANEL
CENTER PANEL
