KIA FORTE 2023 Features and Functions Guide
Manufacturer: KIA, Model Year: 2023, Model line: FORTE, Model: KIA FORTE 2023Pages: 56, PDF Size: 4.98 MB
Page 21 of 56
19†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
PWR
60 MPH
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
60 MPH
0 KMH
020 4060
202 m１00 kWh/ １00m96%Lv １66°F
2 72m
CHG
PWR
60 MPHCRUISED
AUTO
(But tons located on right side of the steering wheel)
B
C
When engaged, Highway Driving Assist is not a substitute for safe driving, may not detect all objects around the vehicle, and only functions on cer tain federal highways
Always drive safely and use caution
See section 5 in the Owner ’s Manual for more detailed information, limitations and conditions
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Highway Driving Assist (HDA) Video
QR CODE
Images are for illustrative purposes only and may not reflect actual feature or operation
Highway Driving Assist (HDA)*†4
Highway Driving Assist (HDA) is designed to help detect vehicles and lanes ahead, and help maintain distance from the vehicle ahead, maintain the set speed, and help center the vehicle in the lane
When HDA is activated and the conditions are met, the Instrument Cluster indicator A will illuminate green If the conditions are not met, HDA will be in standby mode and the indicator light A will illuminate white When in operation, and if both lanes are recognized, the Instrument Cluster will show the lanes illuminated white and the HDA indicator illuminated green A
Hands-off Warning - If the driver takes their hands off the Steering Wheel for several seconds, a warning message will appear on the Instrument Cluster, and an audible warning will sound If hands on the Steering Wheel is not detected, HDA will cancel
HDA settings:
•HDA can be turned on/off by going to the User Settings* in the Instrument Cluster or the Vehicle Settings* in the Infotainment System
•Only adjust settings when the vehicle is at a standstill, gear shift is in Park and the ignition is on or the Engine Start/Stop button* is in the on position
•To access User settings* in the Instrument Cluster - Press the Mode button B on the Steering Wheel to toggle to User Settings Press the OK button C up/down to toggle to Driver Assistance, then Driving Assist Select Highway Driving Assist and press the OK button C
•To access Vehicle settings* in the Infotainment System – Press the SETUP key or the onscreen SETUP button Press VEHICLE to enter Vehicle Settings Select Driver Assistance, then Driver Convenience Select Highway Driving Assist to activate
AREMINDERS:
•When the ignition is cycled, the system returns to its previous state, on or off
•
If the driver changes the speed while in automatic speed set ting mode, it deactivates and enters a manual mode
When engaged, Highway Driving Assist is not a substitute for safe driving, may not detect all objects around the vehicle, and only functions on cer tain federal highways Always drive safely and use caution Refer to section 5 in the Owner ’s Manual for more detailed information, limitations and conditions
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
Page 22 of 56
20†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Forward/Reverse Parking Distance Warning (PDW) Video
QR CODEReverse Parking Distance Warning (PDW)*†4
Reverse Parking Distance Warning (PDW) is not a substitute for proper and safe backing-up procedures Always drive safely and use caution when backing up The Reverse Parking Distance Warning (PDW) may not detect ever y object behind the vehicle
For illustrative purposes only Your actual display, but tons and/or features may var y
Refer to section 4 in the Owner ’s Manual for more information
When engaged, Reverse PDW is a supplemental system that is designed to assist the driver by chiming if an object is detected within the sensing area to the rear and side of the vehicle when backing up When the ignition is ON, the system is activated, while the vehicle is in Reverse
The Warning Volume can be adjusted in the User Set tings or the Vehicle Set tings* on the Infotainment System When adjusted, the Warning Volume for other driver assistance systems may be adjusted
QUICK TIP
REMINDERS:
•
If the vehicle is moving at speeds over 3 mph, the system may not activate correctly
•
When more than t wo objects are sensed at the same time, the closest one will be recognized first
Check sur roundings for your safety.
Rear View Monitor (RVM)†4
Rear View Monitor is a supplemental system that displays the view behind the vehicle through the Infotainment System screen while the vehicle is in Reverse
Rear View Monitor activates when the:
1 Ignition or the Engine Start/Stop button* is in the ON position
2 Gear Shift Lever is in the R (Reverse) position
REMINDERS:
•
Always drive carefully and use caution when backing up
•
Through normal use and after inclement weather or washing, the rear camera may become dir t y Use a clean, microfiber cloth to remove any dir t, debris or spots that may have accumulated on the lens
•
While Rear View Monitor is active the volume will be lowered on all audio modes
When enabled, Rear View Monitor is not a substitute for proper and safe backing-up procedures Rear View Monitor may not display ever y object behind the vehicle
For illustrative purposes only Your actual display, but tons and/ or features may var y
Refer to section 4 in the Owner ’s Manual for more information
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Page 23 of 56
21†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
Rear Cross-traffic Collision Avoidance Assist (RCCA)*†4
REMINDERS:
•
When vehicle power is cycled, RCCA will remain in the previous state
•
When a vehicle is approaching within the sensing range, and traveling faster than 3 mph, the RCCA system will show a warning
Rear Cross-traffic Collision-Avoidance Assist is designed to detect vehicles approaching from the rear left and right side A while your vehicle is reversing, and warning the driver that a collision is imminent with a warning message and an audible warning Also, to help prevent collisions, braking assist may be applied
RCCA will sound a warning, the warning indicators on the outside rearview mirror will illuminate and a message will appear on the Instrument Cluster LCD B If RCCA detects that the collision risk has increased, the system automatically applies the brakes to reduce your speed, potentially helping to minimize the effects of a possible collision
RCCA is designed to operate under the following conditions:
•
When the gear shift is in Reverse
•When the vehicle is moving slower than 5 mph
RCCA Settings:
•RCCA can be turned on/off by going to the User Settings* in the Instrument Cluster or the Vehicle Settings* in the Infotainment System
•Only adjust settings when the vehicle is at a standstill, gear shift is in Park and the ignition is on or the Engine Start/Stop button* is in the on position
•To access User settings* in the Instrument Cluster - Press the Mode button C on the Steering Wheel to toggle to User Settings Press the OK button D up/down to toggle to Driver Assistance, then Parking Safety Select Rear Cross-traffic Safety and press the OK button D
•To access Vehicle settings* in the Infotainment System – Press the SETUP key or the onscreen SETUP button Press VEHICLE to enter Vehicle Settings Select Driver Assistance, then Parking Safety and select Rear Cross-traffic Safety
•Warning Timing – When in the Driver Assistance menu, select Warning Timing and one of the following:
- Normal: Maximizes the amount of distance between the vehicles before the initial warning occurs
- Later: Reduces the amount of distance between the vehicles before the initial warning occurs
Refer to section 4 in the Owner ’s Manual for more information
When engaged, RCCA is a supplemental system Do not solely rely on this system and always pay at tention to the road and its conditions
(But tons located on steering wheel)
Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings on the audio head unit Go to Driver Assistance, then Warning Volume When adjusted, the Warning Volume for other driver assistance systems may be adjusted
QUICK TIP
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Rear Cross-traffic Collision Avoidance Assist (RCCA) Video
QR CODE
A
B
C
D
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
Page 24 of 56
22†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE
(Located left of steering wheel)
Refer to section 5 in the Owner ’s Manual for more information
HAC does not replace the need to apply brakes while the vehicle is stopped on an incline
For illustrative purposes only Your actual display, but tons and/or features may var y
Refer to section 5 in the Owner ’s Manual for more information
Electronic Stability Control (ESC)†6
The ESC system is designed to help stabilize the vehicle during certain cornering maneuvers It is a good idea to keep the ESC turned on for daily driving whenever possible Press ESC button A to turn ESC on or off
REMINDERS:
•
ESC is turned ON by default at vehicle star t-up When ignition is cycled, ESC will turn ON again
•
The ESC Indicator Light in the instrument cluster will be lit momentarily whenever ESC is active
Hill-start Assist Control (HAC)†6
HAC is designed to help prevent the vehicle from rolling backwards when accelerating from a stop while on a steep incline The HAC automatically activates whether the ESC is on or off but does NOT activate when the ESC has malfunctioned
Refer to section 4 in the Owner ’s Manual for more information
Instrument Cluster Control
With parking lights/headlights on, press button B (+) or (-) to adjust the brightness of the instrument panel illumination
REMINDER: The Instrument Cluster Control does not adjust brightness on the audio head unit screens Use the display set tings in the Setup menu to adjust the brightness on the screen
REMINDERS:
•
The HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position
•
In the event of HAC system malfunctions, see Authorized Kia Dealer for ser vice
•When HAC is active (e g , during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator – this is normal HAC operation
•HAC provides a 2-second delay before the vehicle may star t rolling backwards
QUICK TIPS
AB
DRIVER'S PANEL
DRIVER’SPANEL
Page 25 of 56
23†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
Refer to section 5 in the Owner ’s Manual for more information
ENGINESTART
STOP

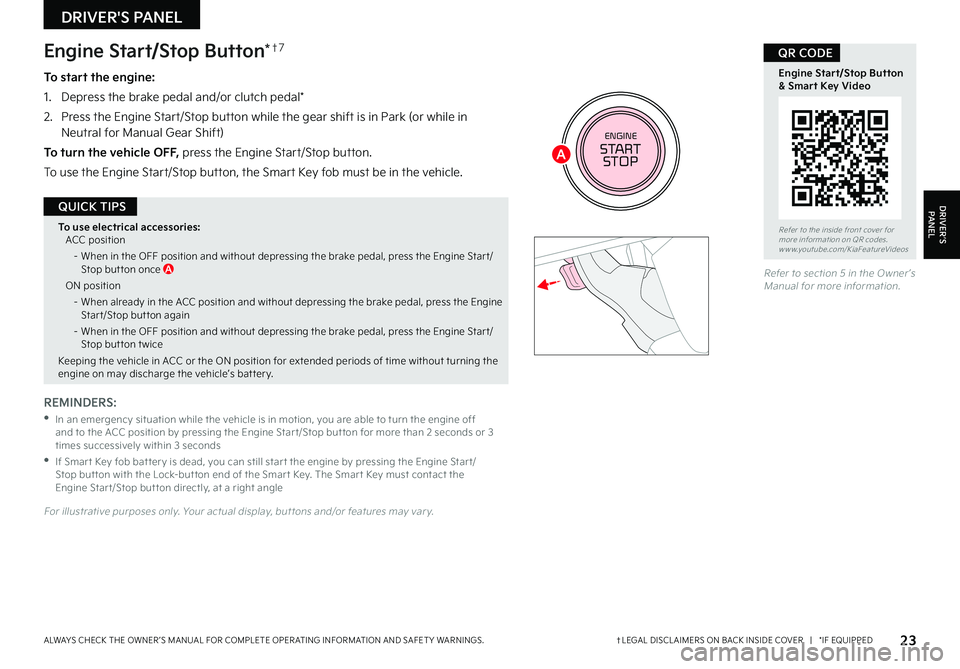

Engine Start/Stop Button*†7
To start the engine:
1 Depress the brake pedal and/or clutch pedal*
2
Press the Engine Start/Stop button while the gear shift is in Park (or while in Neutral for Manual Gear Shift)
To turn the vehicle OFF, press the Engine Start/Stop button
To use the Engine Start/Stop button, the Smart Key fob must be in the vehicle
REMINDERS:
•
In an emergency situation while the vehicle is in motion, you are able to turn the engine off and to the ACC position by pressing the Engine Star t/Stop but ton for more than 2 seconds or 3 times successively within 3 seconds
•
If Smar t Key fob bat ter y is dead, you can still star t the engine by pressing the Engine Star t/Stop but ton with the Lock-but ton end of the Smar t Key The Smar t Key must contact the Engine Star t/Stop but ton directly, at a right angle
For illustrative purposes only Your actual display, but tons and/or features may var y
To use electrical accessories:ACC position
– When in the OFF position and without depressing the brake pedal, press the Engine Star t/Stop but ton once A
ON position
– When already in the ACC position and without depressing the brake pedal, press the Engine Star t/Stop but ton again
– When in the OFF position and without depressing the brake pedal, press the Engine Star t/Stop but ton t wice
Keeping the vehicle in ACC or the ON position for extended periods of time without turning the engine on may discharge the vehicle’s bat ter y
QUICK TIPS
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Engine Start/Stop Button& Smart Key Video
QR CODE
DRIVER'S PANEL
DRIVER’SPANEL
A
Page 26 of 56
24*IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE
LR
Power Windows, Window Lock & Central Door Lock
A Pull/Press to operate Driver ’s & Passenger's Window Auto Up/Down*
B Press to Unlock/Lock All Doors
C Press to disable Rear Passenger Windows
Automatic Door Lock/Unlock
Auto Door Lock/Unlock will engage when the gear shift is moved into or out of the P (Park) position Refer to the User Settings on how to turn Auto Door Lock/Unlock on or off
Refer to section 4 in the Owner ’s Manual for more information
Heated Outside Mirrors*
Mirror heaters automatically turn ON/OFF at the same time the Rear Window Defroster is turned on or off The Rear Window Defroster button* is
located on climate control system panel
Refer to section 4 in the Owner ’s Manual for more information
(Driver ’s Door)
Button configuration may var y depending on vehicle model
REMINDERS:
•
When but ton C is pressed, the rear window controls for the Rear Passenger Windows are disabled
•When closing, be mindful of any objects or persons
D Press the L or R buttons to select the mirror to adjust
E Press button arrows left/right or up/down to adjust mirror position
F Toggle button to unfold/fold the outside rearview mirrors Toggle button
to automatically fold/unfold mirrors when:
– Smart Key* lock/unlock buttons are pressed
– Outside door handle button is pressed
– Driver approaches the vehicle with the Smart Key*
REMINDERS:
•
When mirror but ton F is depressed, press the Lock but ton on the Smar t Key to automatically fold the mirrors
•To lock position of mirrors, toggle switch to the left position
•
The mirrors will automatically unfold when the Smar t Key* is within close proximit y to the vehicle (if activated in User Set tings)
Refer to section 4 in the Owner ’s Manual for more information
Manual Folding Mirrors*
To fold the mirrors in manually, pull the mirror towards the window
Refer to section 4 in the Owner ’s Manual for more information
•Press but ton A again to stop Auto Up/Down function
•While driving with the rear windows down or with the sunroof* in an open or par tially open position, a wind buffeting or pulsation noise may be heard This noise is a normal occurrence and can be reduced or eliminated by the following:
– If the noise occurs with one or both of the rear windows down, par tially lower both front windows approximately 1 inch
– If the noise occurs with the sunroof open, slightly reduce the size of the sunroof opening
QUICK TIPS
If needed, pull the mirror firmly until it folds
QUICK TIP
Power Folding Outside Mirrors*
Refer to section 4 in the Owner ’s Manual for more information
DRIVER'S PANEL
DRIVER’SPANEL
A
A
B
C
D
E
F
Page 27 of 56
25*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
Headlights & High BeamsHigh Beam Assist (HBA)*
To operate:
•Rotate switch to change the Headlight function
•Push lever to turn High Beams on
•Pull lever to flash Headlights/High Beams
AUTO Light — When the light switch is in the AUTO Light position, the tail lights and head-lights will turn on or off automatically depending on the amount of light outside the vehicle
Daytime Running Lights (DRL)* — DRL may help others to see the front of your vehicle during the day The lights will be on automatically when the ignition or Engine Start/Stop button is on and the headlight switch is in the AUTO position, unless one of the following occurs:
• Headlights are on
• Parking brake is applied
• Engine is turned off
• Switch is in the DRL OFF position
AUTOAuto Light / DRL* / High Beam Assist*
Headlight position
Parking light position
OFFOFF position
OFF
OFFAUTO
Turn Signals & Fog Lights*
To operate:
•Turn Signals - Move lever Up/Down for Right/Left Turn Signal
•Slightly move lever up/down to activate One-Touch Lane Change Signal
•Fog Lights - Press switch A up/down to turn Fog Lights on/off
REMINDER: Headlights must be ON for Fog Light operation
One-Touch Lane Change Signal is activated by briefly pressing the Turn Signal lever up/down slightly for less than 1 second and then releasing The lane change signal will blink 3-7 times
To change how many times the Lane Change Signal blinks (3/5/7), go to User Settings Mode in the LCD Instrument Cluster and select Lights, then One-Touch Turn Signal One-Touch Lane Change Signal is located in
some models in the audio head unit -> Vehicles Settings -> Lights Menu
Refer to section 4 in the Owner ’s Manual for more information For illustrative purposes only Your actual display, but tons and/or features may var y
One-Touch Lane ChangeFront Fog Light Control
.
3 F G F S U P U I F J O T J E F G S P O U D P W F S G P S N P S F J O G P S N B U J P O P O 2 3 D P E F T X X X Z P V U V C F D P N , J B ' F B U V S F 7 J E F P T
High Beam Assist (HBA) Video
QR CODE
High Beam Assist is designed to automatically adjust the headlight range by switching between high and low beams based on light detected from other vehicles and road conditions To enable HBA , toggle the light switch to the AUTO Light position and turn on the high beams by pushing the lever away from you The High Beam Assist indicator will illuminate
REMINDERS:
•
High Beam Assist does not operate below cer tain speeds, or in some lighting and driving conditions Please be aware of your surroundings and exercise proper road etiquet te when operating a vehicle using the high beams
•HBA will operate when vehicle speed exceeds 25 mph
•
If the lever is pushed away from you while HBA is operational, HBA will turn off and the high beams will be on continuously If the lever is pulled toward you while HBA is operational, HBA will turn off
•
If the light switch is switched to the headlight position, HBA will turn off and low beams will be on continuously
DRIVER'S PANEL
DRIVER’SPANEL
A
Page 28 of 56
Refer to section 7 in the Owner ’s Manual for more information
Illustrations are for demonstration purposes only Actual features on vehicle may var y
Lifting Wipers (Wiper Service Mode)
To lift the windshield wipers to clean windshield, inspect or replace wiper blades or raise wipers in snow/ice conditions without damaging the hood, the blades need to be moved to the service position B
When the ignition is on, turn the ignition off, and within 20 seconds move the wiper switch to the MIST position A and hold the switch for more than two seconds until the wiper blade is in the fully up position
To return wipers to normal position, turn the ignition on, then activate MIST
Windshield Wipers & Washers
To operate:
•Move lever up/down to change Wiper modes
•Rotate switch to adjust Wiper mode
•Press INT switch up/down A to adjust Intermittent Wipe Speed
•Pull lever to spray and wipe
MIST
OFF
AUTO LOHIINT
PULL
3 F G F S U P T F D U J P O J O U I F 0 X O F S s T . B O V B M G P S N P S F J O G P S N B U J P O
STEERING WHEEL
CONTROLS
•Pressing INT switch up increases Intermit tent wipe frequency and wipe speed Pressing INT switch down decreases frequency of wipes
•Set the wiper to OFF position when the wiper is not in use
QUICK TIPS
26*IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE
MIST: Single wipeOFF: Wiper offI N T:
Intermittent wipeLO: Slow wipeHI: Fast wipe
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Wipers and Wiper Stalk Video
Lifting Wipers (WiperService Mode) Video
QR CODE
STEERING WHEEL CONTROLS
A
B
Page 29 of 56
Tilt/Telescoping Steering Wheel†2 0
To adjust the Steering Wheel, push down the Lock-Release Lever A and adjust to desired angle B and distance C
When finished, pull up the Lock-Release Lever A to lock Steering Wheel in place
Refer to section 4 in the Owner ’s Manual for more information
Do not adjust the steering wheel while driving as this may cause you to lose control of the vehicle
For illustrative purposes only; your steering wheel may differ STEERING WHEEL
CONTROLS
It may be helpful to pull/push bot tom of the Steering Wheel towards/away from you to adjust desired distance
QUICK TIP
27†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Tilt/Telescoping Steering Wheel Video
QR CODE
STEERING WHEEL CONTROLS
A
B
C
Page 30 of 56
28†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDFORTE FEATURES & FUNCTIONS GUIDE
—
+
MODE
Bluetooth® Wireless Technology†3 , 1 8
A
Volume button: Press up/down to raise/lower speaker volume
Mute button: Press to mute the microphone during a call and to mute the audio system speakers, or to pause Bluetooth® streaming media
B
Talk button: Press to activate voice recognition/bring up menus/place calls with minimal voice command prompts from the system Press and hold to exit voice recognition Kia Connect with Navigation system* – When enrolled with a Kia Connect subscription, press this button to activate the Kia Connect Voice Assist to use navigation guidance and search destinations
C
Receive/Place/End Call button: Press to receive/place/end calls, reject an incoming call or cancel a function If no phone is paired, press button to pair a phone
D Custom Button (Steering Wheel): Press and hold to set the button to bring up certain menus on the infotainment/audio system screen Press briefly to go that menu
Driving while distracted is dangerous and should be avoided Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving
For more information, refer to the Car Infotainment System Quick Reference Guide For Bluetooth® Wireless Technology FAQs, go to w w w kia com, Owners section, or call Consumer Information for Bluetooth® Technology at (800) 333-4KIA Refer to your Owner ’s Manual for more specific Bluetooth® Wireless Technology phone pairing and operation instructions
Pairing a Phone
For instructions on how to pair a phone, refer to the audio system’s user ’s guide or your vehicle’s Quick Star t Guide
How to Place a Call
When using the voice command feature, waiting for the system BEEP before speaking the command
There are two options for placing a call using the Steering Wheel controls:
•Option 1: Press the Receive/Place Call button C (displays the call history)
•Option 2: Press the Talk button B Then say the command “Call {name}” or Dial {number}
Your vehicle’s steering wheel but tons may differ from those in the illustrations See your Owner ’s Manual for more details
REMINDER: Bluetooth® Wireless Technology audio and calling functions are suppor ted when connected to a Bluetooth® enabled device
(Type B)
During the pairing process, be sure to accept the connection requests on the phone for phonebook download and to allow acceptance of all future Bluetooth® connection requests
QUICK TIP
•The system can register or pair multiple Bluetooth® devices See the Car Infotainment System Quick Reference Guide for more information on setup and limitations
•When using the voice command feature, wait for the system BEEP before speaking the command
•
Phonebook transfer upload time varies by phone model and with number of phonebook entries
•Because of differences in phone qualit y, ser vice providers and Bluetooth® Wireless Technology chip programming, functionalit y may differ from one phone to another
QUICK TIPS
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Steering Wheel Controls Video
Star, Favorite & Radio Presets Buttons Video
QR CODE
INFOTAINMENT SYSTEMS
INFOTAINMENTSYSTEMS
A
B
CD
