KIA FORTE 2023 Navigation System Quick Reference Guide

5-5

A
Vehicle location may not be displayed correctly if:

The vehicle is driving on a Y-shaped or winding road with narrow angles.

The vehicle is driving closely to another road.

The vehicle is driving on a road where there are many tall buildings in the vicinity.

The vehicle is driving on a new road or a road under construction.

The vehicle is transported by a ferry or heavy-duty transport vehicle.

The vehicle is driving in a rugged mountain area or on a steep curve road.

The vehicle is entering a public road after making a turn through the turntable in an
underground parking lot or multi-story parking lot.

The vehicle stops and starts repeatedly or moves slowly in front of an intersection.

The system reboots after the vehicle battery has been recharged or replaced.

The vehicle is driving on a slippery road due to heavy snow, etc.

The tires have been replaced recently or spare tires (or studless tires) are used.

Improper-sized tires are used or the pressure of each tire is different.

The replaced tire is worn out or the studless tires have been used for over two seasons.

A roof carrier is installed on the vehicle.

On a highway continued driving causes the system to perform map matching or apply
the updated GPS data.

A
Navigation service may not be provided correctly under the following conditions:

When the vehicle drives on a straight road continuously, the system may guide you to
drive straight. It is not a malfunction.

Guidance may not be followed immediately after the vehicle makes a turn at an
intersection or drives through an intersection.

The system may guide you to make a U-turn in a prohibited area.

The system may guide you to a traffic-blocked road (e.g. no-entry road or road under
construction).

The system may guide you to a road away from the destination when there is no road
to the destination or there are only narrow roads on the way.

Guidance may not be proper when the vehicle is off the route.

Guidance may not match the actual distance on an overpass or underpass due to the
difference of the start point.

When you are driving at high speeds, route recalculations may take longer.

A
Because the navigation system is used for information purposes only, Kia does not
assume responsibility of the accuracy of the information.

A
When the traffic information is not received, the status icon (
) appears at the top of the
map screen.

5-6
Map screen
The map screen provides various functions and informations, as follows:
j
ih
k
a
b
c
d
e
f
lmn
g
Option A
o
2SWLRQ%(9\
RQO\\f
a a Displays the Home screen.
b b Used to change the map display mode.
• (2D Heading Up): Rotates the map depending on the travel direction.
• (2D North Up): Displays the map with the north fixed at the top.
• (3D Map): Rotates the map depending on the travel direction for 3D view.
c c Adjust the navigation sound volume.
d d Zooms in the map.
e e Set the map scale change mode to automatic or manual.
f f Zooms out the map.

5-7
g g Displays the system information on the map. (It can display up to two items.)
•Traffic information (with an icon if there is no HD data reception)
•Bluetooth connection status
h h Displays the point to change the driving direction.
i i Displays the next point to change the driving direction.
j j Displays the lanes in different colors.
•Orange: Recommended lane
•White: Available lane
•Gray: Unavailable lane
k k Displays quick menu items.
l l Stop the navigation guidance. > See "
Canceling the route guidance."
m m Displays the remaining distance to the destination and the estimated time of arrival. For
more details, press the information item.
n n Displays or hides the detailed guidance.
o o Check the range you can drive with the current amount of battery (EV only).

A
To see only the map with no destination, press the map area on the Home screen or on
the All Menus screen, press Map. Or press the [ MAP] button on the control panel.

A
The screen may differ depending on the vehicle model and specifications.
ÝWarning
Be sure to check the road conditions while driving, because the camera information may get
changed occasionally after a map update to the latest version. Relying solely on the driving
assist system may cause violation of traffic rules and regulations, resulting in an accident.

5-8
Using the detailed guidance
When the vehicle needs to change the driving direction or lanes, a zoomed-in map
automatically appears.
A
To display or hide the detailed guidance, press
or .
When the detailed guidance appears while driving, select and perform the
desired function.
•To view basic information including sections for turns, press Simple.
•To check the types of convenience facilities in a rest area, press Rest Areas.
•For information details about each zone such as intersections, interchanges, and rest
areas, press Details.

5-9
Adjusting the navigation volume
You can adjust the volume of navigation or GPS warning sound.
On the map screen, press and then press or , or use the control bar
to adjust the volume.

A
To have the navigation sound always output first over media sound, check Navigation
Volume Priority.

A
To turn off the navigation voice, press
and then press .

A
To turn off the navigation sound effects, press and then press .
Canceling the route guidance
To cancel route guidance, press Cancel Route. Alternatively, press
Navigation Menu >
Cancel Route on the All Menus screen.
The destination displayed at the bottom of the screen disappears and changes to .

A
Press to search for the target destination to obtain an optimum route.

A
To maintain the specified destination and stop the route guidance, press and hold Cancel
Route at the bottom of the screen. The guidance stops and the Resume Route button
appears. You can use the button to search for a previous destination and resume route
guidance.

5-10

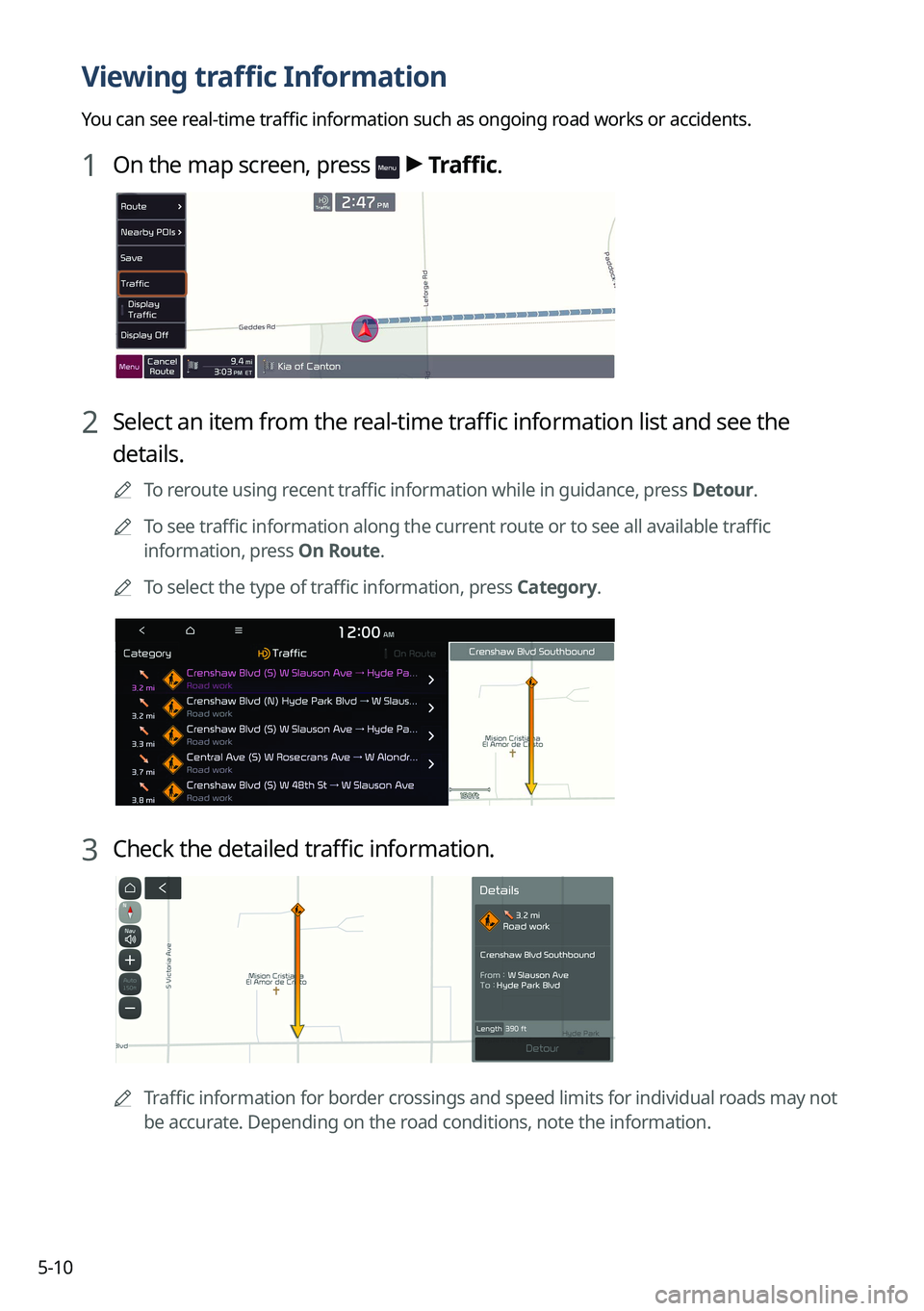

Viewing traffic Information
You can see real-time traffic information such as ongoing road works or accidents.
1 On the map screen, press > Traffic.
2 Select an item from the real-time traffic information list and see the
details.

A
To reroute using recent traffic information while in guidance, press Detour.

A
To see traffic information along the current route or to see all available traffic
information, press On Route.

A
To select the type of traffic information, press Category.
3 Check the detailed traffic information.

A
Traffic information for border crossings and speed limits for individual roads may not
be accurate. Depending on the road conditions, note the information.

5-11
Various ways to find routes
On the Navigation menu, you can set the destination by using various searches, such as
entering the location information or selecting from recent destinations or categorized places.
Perform any of the following methods:
•On the All Menus screen, press Navigation Menu.
•On the control panel, press the [
NAV] button.

A
Available icons and their arrangement may differ depending on the vehicle model and
specifications.
Searching by keyword
Search for a location by entering various types of keywords such as place name, coordinates,
and address.
1 On the Navigation Menu screen, press Places.
AAvailable icons and their arrangement may differ depending on the vehicle model
and specifications.

5-12
2 Enter the location data such as place name, address, or coordinates and
then press OK.

A
When there are any similar matches, the recommendations appear at the left of
keypad.

A
To access the online user's manual on the Places screen, press
>
User's Manual
on Web (QR Code) and then scan the displayed QR code.
3 Select a destination from the search result.

A
You can see the sites in the list on the preview screen at the right.

A
To sort the search results in a different order, press on the attribute to toggle between
options.
4 Check the location of the destination and then press Set as Destination.
A
If you press Parking at the bottom right of the screen, the map screen displays the
location icon of the parking a lot.
5 Select a route and press Start Guidance.

5-13
Searching from previous destinations
You can set a destination by selecting from the recently searched ones.
1 On the Navigation Menu screen, press Previous Destinations.
The navigated destinations appear in the list.
AAvailable icons and their arrangement may differ depending on the vehicle model
and specifications.
2 Select the desired destination from the list.

A
To sort the search results in a different order, press on the attribute to toggle between
options.

A
To access the online user's manual on the Previous Destinations screen, press
>

User's Manual on Web (QR Code) and then scan the displayed QR code.
3 Check the location of the destination and then press Set as Destination.
4 Select a route and press Start Guidance.

5-14
Deleting a previous destination
1 On the Previous Destinations screen, press Delete.
2 Select the destination(s) to delete and press Delete.
You can delete the selected place(s) or all places.
Searching for Kia Dealerships
You can easily search for service centers or service stations.
1 On the Navigation Menu screen, press Kia Dealerships.
AAvailable icons and their arrangement may differ depending on the vehicle model
and specifications.
2 Select a Kia Dealerships from the list.

A
To sort the search results in a different order, press on the attribute to toggle between
options.

A
To access the online user's manual, on the Kia Dealerships screen, press
>

User's Manual on Web (QR Code) and then scan the displayed QR code.
3 Check the location of the destination and then press Set as Destination.
4 Select a route and press Start Guidance.
