Maintenance
72 7
✽NOTICE
• If the fuse switch is in the OFF
position, the warning chime,
audio, clock and interior lamps,
etc., will not operate. Some items
must be reset after replacement.
Refer to “Battery” in this chapter.
• Even when the fuse switch is in the
OFF position, the battery can still
be discharged by operation of the
headlights or other electrical
devices.
Engine compartment fuse
replacement
1.Turn the ignition switch and all
other switches off.
2.Remove the fuse panel cover by
pressing the tab and pulling the
cover up.
When the blade type fuse is dis-
connected, remove it by using the
clip designed for changing fuses
located in the engine room fuse
box. Upon removal, securely insert
reserve fuse of equal quantity.3. Check the removed fuse; replace it
if it is blown. To remove or insert
the fuse, use the fuse puller in the
engine compartment fuse panel.
4. Push in a new fuse of the same
rating, and make sure it fits tightly
in the clips. If it fits loosely, consult
an authorized Kia dealer.
CAUTION - Fuse panel
covers
After checking the fuse panel in
the engine compartment,
securely install the fuse panel
cover. If not, electrical failures
may occur from water contact.
OYDDMC2011

789
Maintenance

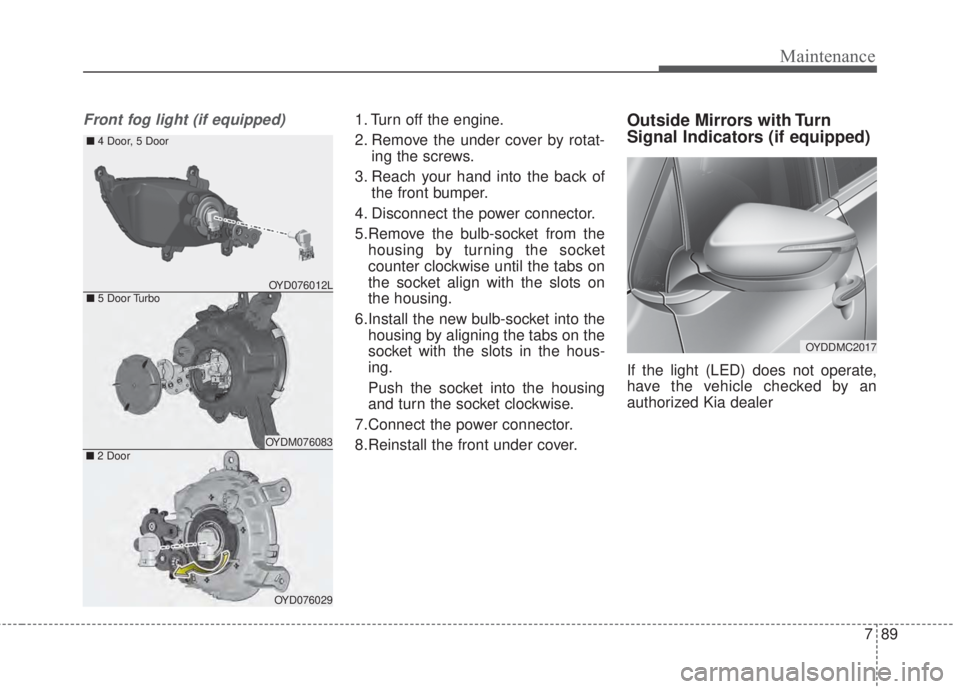

Front fog light (if equipped)1. Turn off the engine.
2. Remove the under cover by rotat-
ing the screws.
3. Reach your hand into the back of
the front bumper.
4. Disconnect the power connector.
5.Remove the bulb-socket from the
housing by turning the socket
counter clockwise until the tabs on
the socket align with the slots on
the housing.
6.Install the new bulb-socket into the
housing by aligning the tabs on the
socket with the slots in the hous-
ing.
Push the socket into the housing
and turn the socket clockwise.
7.Connect the power connector.
8.Reinstall the front under cover.Outside Mirrors with Turn
Signal Indicators (if equipped)
If the light (LED) does not operate,
have the vehicle checked by an
authorized Kia dealer
■5 Door Turbo
■4 Door, 5 Door
OYDM076083■2 Door
OYD076029
OYD076012L
OYDDMC2017

7 109
Maintenance

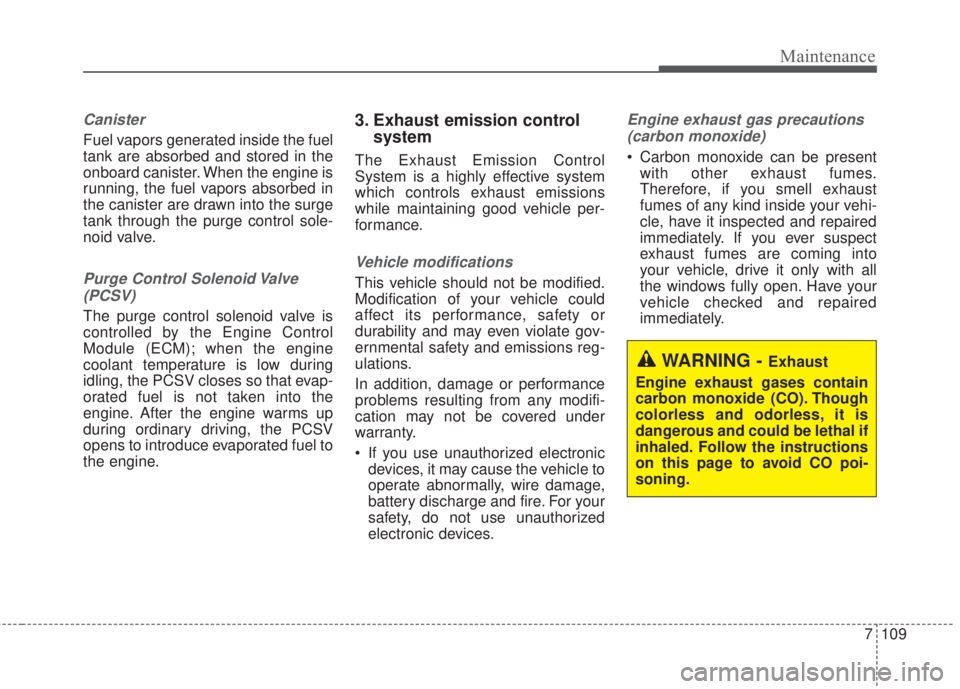

Canister
Fuel vapors generated inside the fuel
tank are absorbed and stored in the
onboard canister. When the engine is
running, the fuel vapors absorbed in
the canister are drawn into the surge
tank through the purge control sole-
noid valve.
Purge Control Solenoid Valve
(PCSV)
The purge control solenoid valve is
controlled by the Engine Control
Module (ECM); when the engine
coolant temperature is low during
idling, the PCSV closes so that evap-
orated fuel is not taken into the
engine. After the engine warms up
during ordinary driving, the PCSV
opens to introduce evaporated fuel to
the engine.
3. Exhaust emission control
system
The Exhaust Emission Control
System is a highly effective system
which controls exhaust emissions
while maintaining good vehicle per-
for mance.
Vehicle modifications
This vehicle should not be modified.
Modification of your vehicle could
affect its performance, safety or
durability and may even violate gov-
ernmental safety and emissions reg-
ulations.
In addition, damage or performance
problems resulting from any modifi-
cation may not be covered under
warranty.
• If you use unauthorized electronic
devices, it may cause the vehicle to
operate abnormally, wire damage,
battery discharge and fire. For your
safety, do not use unauthorized
electronic devices.
Engine exhaust gas precautions
(carbon monoxide)
• Carbon monoxide can be present
with other exhaust fumes.
Therefore, if you smell exhaust
fumes of any kind inside your vehi-
cle, have it inspected and repaired
immediately. If you ever suspect
exhaust fumes are coming into
your vehicle, drive it only with all
the windows fully open. Have your
vehicle checked and repaired
immediately.
WARNING - Exhaust
Engine exhaust gases contain
carbon monoxide (CO). Though
colorless and odorless, it is
dangerous and could be lethal if
inhaled. Follow the instructions
on this page to avoid CO poi-
soning.

89
Specifications & Consumer information

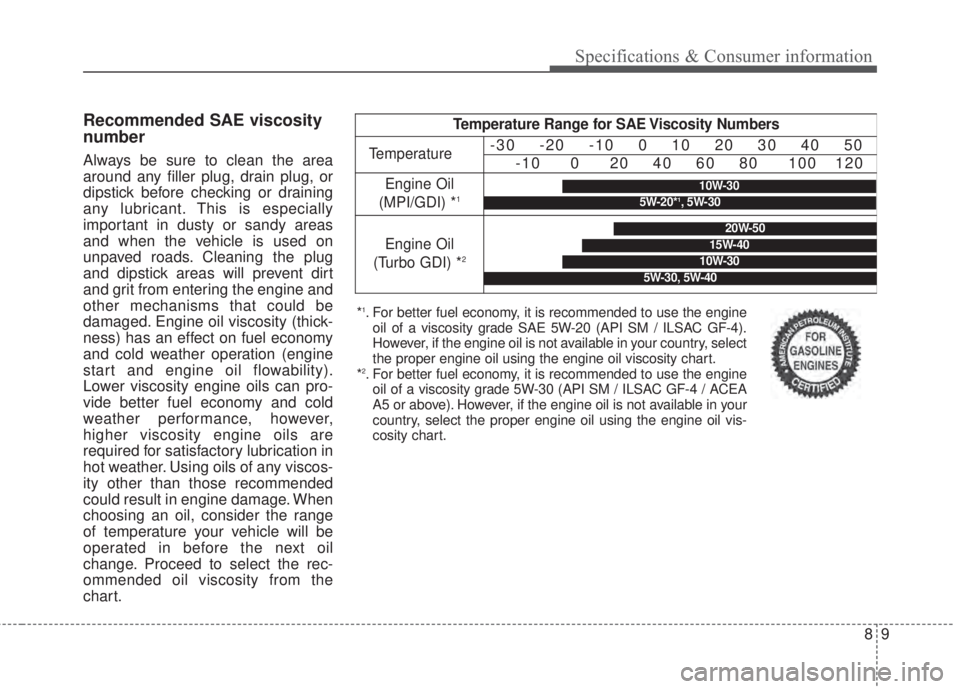

Recommended SAE viscosity
number
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or draining
any lubricant. This is especially
important in dusty or sandy areas
and when the vehicle is used on
unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt
and grit from entering the engine and
other mechanisms that could be
damaged. Engine oil viscosity (thick-
ness) has an effect on fuel economy
and cold weather operation (engine
start and engine oil flowability).
Lower viscosity engine oils can pro-
vide better fuel economy and cold
weather performance, however,
higher viscosity engine oils are
required for satisfactory lubrication in
hot weather. Using oils of any viscos-
ity other than those recommended
could result in engine damage. When
choosing an oil, consider the range
of temperature your vehicle will be
operated in before the next oil
change. Proceed to select the rec-
ommended oil viscosity from the
chart.
Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Engine Oil
(MPI/GDI) *1
Engine Oil
(Turbo GDI) *2
*1. For better fuel economy, it is recommended to use the engine
oil of a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4).
However, if the engine oil is not available in your country, select
the proper engine oil using the engine oil viscosity chart.
*
2. For better fuel economy, it is recommended to use the engine
oil of a viscosity grade 5W-30 (API SM / ILSAC GF-4 / ACEA
A5 or above). However, if the engine oil is not available in your
country, select the proper engine oil using the engine oil vis-
cosity chart.
10W-30
5W-20*1,5W-30
20W-50
10W-30
15W-40
5W-30, 5W-40

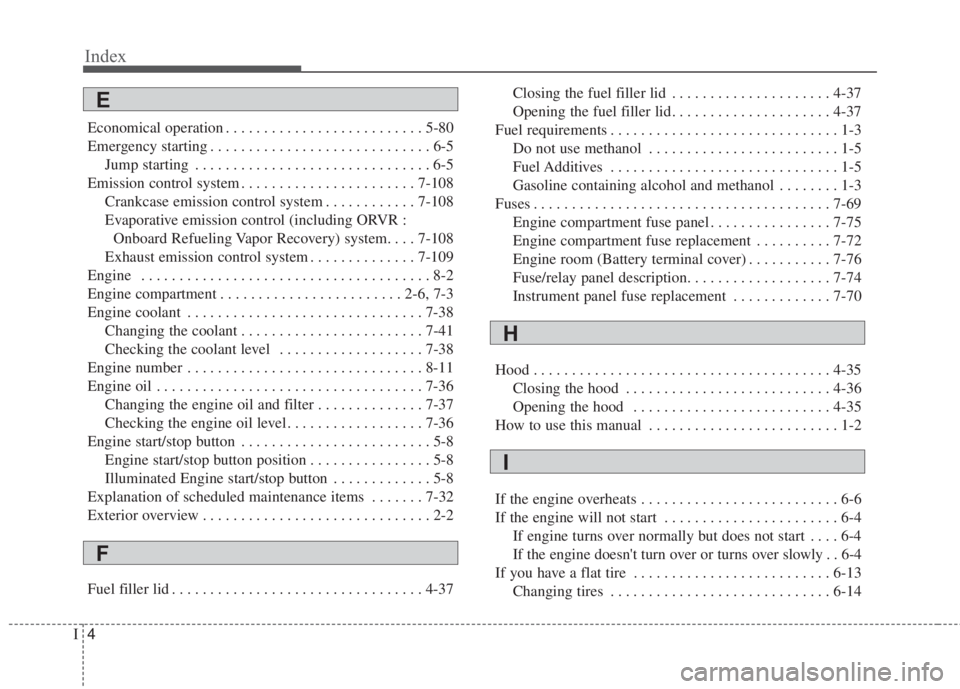

Index
4I
Economical operation . . . . . . . . . . . . . . . . . . . . . . . . . . 5-80
Emergency starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Jump starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Emission control system . . . . . . . . . . . . . . . . . . . . . . . 7-108
Crankcase emission control system . . . . . . . . . . . . 7-108
Evaporative emission control (including ORVR :
Onboard Refueling Vapor Recovery) system. . . . 7-108
Exhaust emission control system . . . . . . . . . . . . . . 7-109
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . 2-6, 7-3
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-38
Changing the coolant . . . . . . . . . . . . . . . . . . . . . . . . 7-41
Checking the coolant level . . . . . . . . . . . . . . . . . . . 7-38
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-36
Changing the engine oil and filter . . . . . . . . . . . . . . 7-37
Checking the engine oil level . . . . . . . . . . . . . . . . . . 7-36
Engine start/stop button . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Engine start/stop button position . . . . . . . . . . . . . . . . 5-8
Illuminated Engine start/stop button . . . . . . . . . . . . . 5-8
Explanation of scheduled maintenance items . . . . . . . 7-32
Exterior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . 4-37
Opening the fuel filler lid. . . . . . . . . . . . . . . . . . . . . 4-37
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Do not use methanol . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Gasoline containing alcohol and methanol . . . . . . . . 1-3
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-69
Engine compartment fuse panel . . . . . . . . . . . . . . . . 7-75
Engine compartment fuse replacement . . . . . . . . . . 7-72
Engine room (Battery terminal cover) . . . . . . . . . . . 7-76
Fuse/relay panel description. . . . . . . . . . . . . . . . . . . 7-74
Instrument panel fuse replacement . . . . . . . . . . . . . 7-70
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-35
Closing the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
Opening the hood . . . . . . . . . . . . . . . . . . . . . . . . . . 4-35
How to use this manual . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
If the engine overheats . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6
If the engine will not start . . . . . . . . . . . . . . . . . . . . . . . 6-4
If engine turns over normally but does not start . . . . 6-4
If the engine doesn't turn over or turns over slowly . . 6-4
If you have a flat tire . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
Changing tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-14
I
E
F
H

I5
Index
Jack and tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13
Jack label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-21
Removing and storing the spare tire . . . . . . . . . . . . 6-14
If you have a flat tire (with Tire Mobility Kit). . . . . . . . 6-7
Checking the tire inflation pressure . . . . . . . . . . . . . 6-11
Components of the Tire Mobility Kit . . . . . . . . . . . . 6-9
Distributing the sealant . . . . . . . . . . . . . . . . . . . . . . 6-11
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Notes on the safe use of the Tire Mobility Kit . . . . . 6-8
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12
Using the Tire Mobility Kit . . . . . . . . . . . . . . . . . . . 6-10
In case of an emergency while driving . . . . . . . . . . . . . . 6-3
If engine stalls while driving . . . . . . . . . . . . . . . . . . . 6-3
If the engine stalls at a crossroad or crossing . . . . . . 6-3
If you have a flat tire while driving . . . . . . . . . . . . . . 6-3
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-58
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-60
Instrument cluster control . . . . . . . . . . . . . . . . . . . . 4-59
LCD window control . . . . . . . . . . . . . . . . . . . . . . . . 4-59
Transaxle shift indicator . . . . . . . . . . . . . . . . . . . . . . 4-62
Instrument panel overview . . . . . . . . . . . . . . . . . . . . . . . 2-5
Interior features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-141
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-141
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-141
Climate control seat . . . . . . . . . . . . . . . . . . . . . . . . 4-145
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-148
Covering shelf (5 Door) . . . . . . . . . . . . . . . . . . . . . 4-150Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-142
Floor mat anchor(s) . . . . . . . . . . . . . . . . . . . . . . . . 4-148
LCD monitor (Clock) . . . . . . . . . . . . . . . . . . . . . . . 4-147
Luggage net (Holder) . . . . . . . . . . . . . . . . . . . . . . . 4-149
Navigation system . . . . . . . . . . . . . . . . . . . . . . . . . 4-151
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-146
Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-143
Sliding armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-142
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-143
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
Automatic turn off function . . . . . . . . . . . . . . . . . . 4-108
Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-111
Luggage room lamp . . . . . . . . . . . . . . . . . . . . . . . . 4-110
Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-109
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . 4-111
Interior overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Key positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Ignition switch position . . . . . . . . . . . . . . . . . . . . . . . 5-6
Illuminated ignition switch . . . . . . . . . . . . . . . . . . . . 5-6
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Key operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Record your key number . . . . . . . . . . . . . . . . . . . . . . 4-4
K

I7

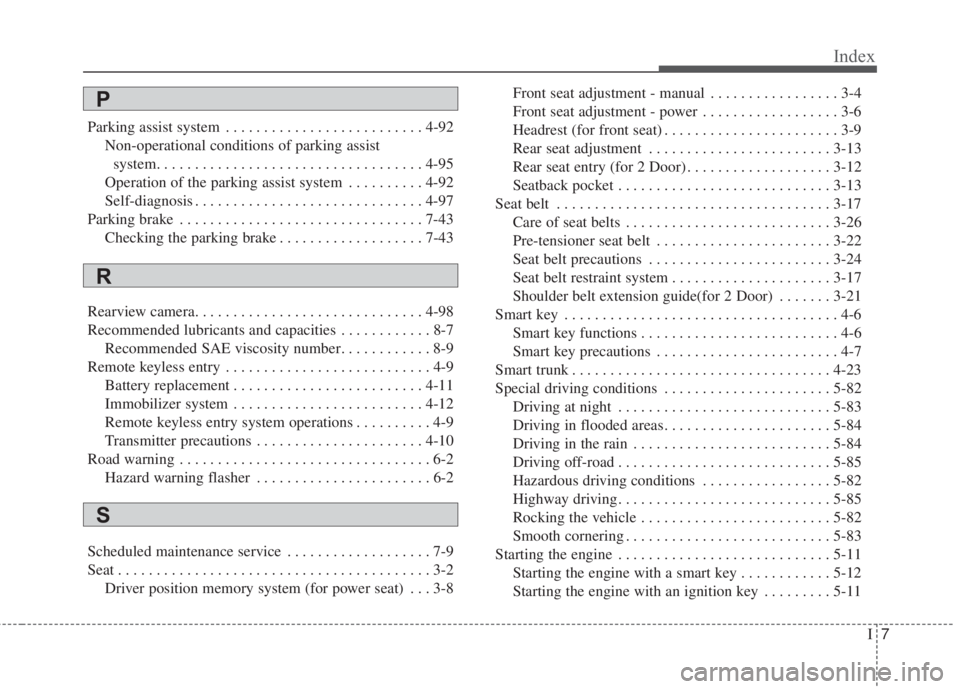

Index
Parking assist system . . . . . . . . . . . . . . . . . . . . . . . . . . 4-92
Non-operational conditions of parking assist
system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-95
Operation of the parking assist system . . . . . . . . . . 4-92
Self-diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-97
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
Checking the parking brake . . . . . . . . . . . . . . . . . . . 7-43
Rearview camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-98
Recommended lubricants and capacities . . . . . . . . . . . . 8-7
Recommended SAE viscosity number. . . . . . . . . . . . 8-9
Remote keyless entry . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Remote keyless entry system operations . . . . . . . . . . 4-9
Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . 4-10
Road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Hazard warning flasher . . . . . . . . . . . . . . . . . . . . . . . 6-2
Scheduled maintenance service . . . . . . . . . . . . . . . . . . . 7-9
Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Driver position memory system (for power seat) . . . 3-8Front seat adjustment - manual . . . . . . . . . . . . . . . . . 3-4
Front seat adjustment - power . . . . . . . . . . . . . . . . . . 3-6
Headrest (for front seat) . . . . . . . . . . . . . . . . . . . . . . . 3-9
Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Rear seat entry (for 2 Door) . . . . . . . . . . . . . . . . . . . 3-12
Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Seat belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17
Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-26
Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . 3-22
Seat belt precautions . . . . . . . . . . . . . . . . . . . . . . . . 3-24
Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . 3-17
Shoulder belt extension guide(for 2 Door) . . . . . . . 3-21
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Smart key functions . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Smart key precautions . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Smart trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23
Special driving conditions . . . . . . . . . . . . . . . . . . . . . . 5-82
Driving at night . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-83
Driving in flooded areas. . . . . . . . . . . . . . . . . . . . . . 5-84
Driving in the rain . . . . . . . . . . . . . . . . . . . . . . . . . . 5-84
Driving off-road . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-85
Hazardous driving conditions . . . . . . . . . . . . . . . . . 5-82
Highway driving. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-85
Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 5-82
Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-83
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11
Starting the engine with a smart key . . . . . . . . . . . . 5-12
Starting the engine with an ignition key . . . . . . . . . 5-11
P
R
S
