reset sun roof KIA FORTE KOUP 2017 Owners Manual

Features of your vehicle
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
• Record your key number . . . . . . . . . . . . . . . . . . . . . . . 4-4
• Key operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
• Smart key functions . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
• Smart key precautions . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Remote keyless entry . . . . . . . . . . . . . . . . . . . . . . . . 4-9
• Remote keyless entry system operations . . . . . . . . . . . 4-9
• Transmitter precautions . . . . . . . . . . . . . . . . . . . . . . . 4-10
• Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
• Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . 4-15
• Armed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
• Theft-alarm stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
• Disarmed stage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
• Operating door locks from outside the vehicle . . . . 4-17
• Operating door locks from inside the vehicle. . . . . . 4-17
• Impact sensing door unlock system . . . . . . . . . . . . . . 4-19
• Auto door lock/unlock feature . . . . . . . . . . . . . . . . . . 4-19
• Child-protector rear door lock . . . . . . . . . . . . . . . . . 4-20
Trunk (4 Door, 2 Door) . . . . . . . . . . . . . . . . . . . . . 4-21
• Opening the trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21
• Closing the trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
• Emergency trunk safety release . . . . . . . . . . . . . . . . . 4-22
Smart trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23
Liftgate (5 Door) . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27
• Opening the liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27
• Closing the liftgate. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-27
• Emergency liftgate safety release. . . . . . . . . . . . . . . . 4-28
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-30
• Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-31
Hood. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-35
• Opening the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-35
• Closing the hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37
• Opening the fuel filler lid . . . . . . . . . . . . . . . . . . . . . . 4-37
• Closing the fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . 4-37
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-39
• Sunroof open warning. . . . . . . . . . . . . . . . . . . . . . . . . 4-40
• Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-41
• Tilting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-42
• Sunshade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43
• Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 4-43
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-44
• Electric power steering (EPS) . . . . . . . . . . . . . . . . . . 4-44
• Tilt and telescoping steering. . . . . . . . . . . . . . . . . . . . 4-45
• Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-45
• Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . 4-46
• Flex steer(5 Door) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-47
4

443

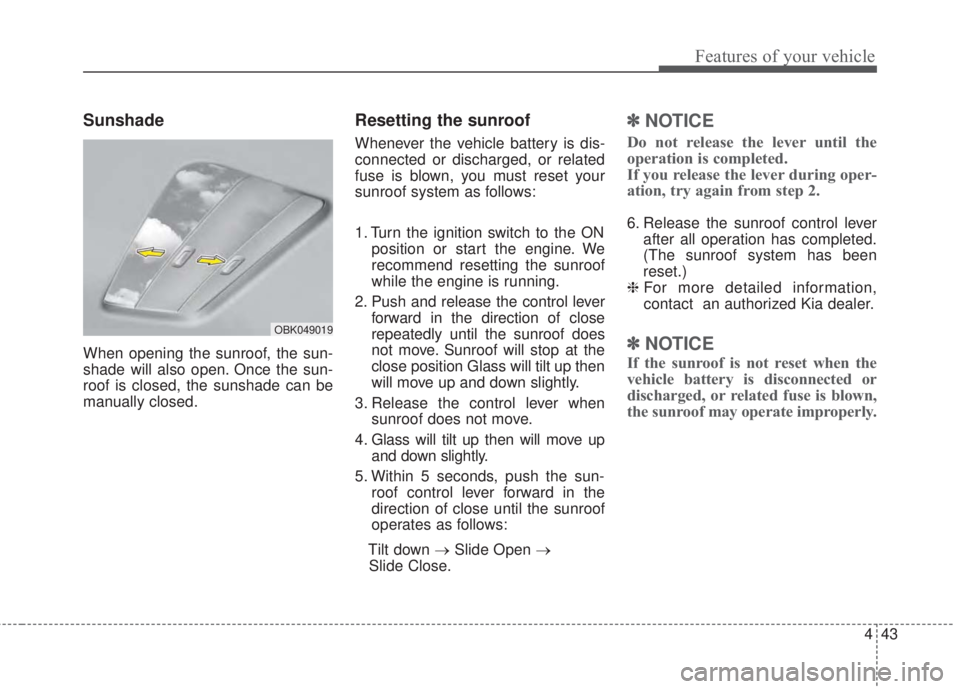

Features of your vehicle
Sunshade
When opening the sunroof, the sun-
shade will also open. Once the sun-
roof is closed, the sunshade can be
manually closed.
Resetting the sunroof
Whenever the vehicle battery is dis-
connected or discharged, or related
fuse is blown, you must reset your
sunroof system as follows:
1. Turn the ignition switch to the ON
position or start the engine. We
recommend resetting the sunroof
while the engine is running.
2. Push and release the control lever
forward in the direction of close
repeatedly until the sunroof does
not move. Sunroof will stop at the
close position Glass will tilt up then
will move up and down slightly.
3. Release the control lever when
sunroof does not move.
4. Glass will tilt up then will move up
and down slightly.
5. Within 5 seconds, push the sun-
roof control lever forward in the
direction of close until the sunroof
operates as follows:
Tilt down →Slide Open →
Slide Close.
✽NOTICE
Do not release the lever until the
operation is completed.
If you release the lever during oper-
ation, try again from step 2.
6. Release the sunroof control lever
after all operation has completed.
(The sunroof system has been
reset.)
❈For more detailed information,
contact an authorized Kia dealer.
✽NOTICE
If the sunroof is not reset when the
vehicle battery is disconnected or
discharged, or related fuse is blown,
the sunroof may operate improperly.
OBK049019

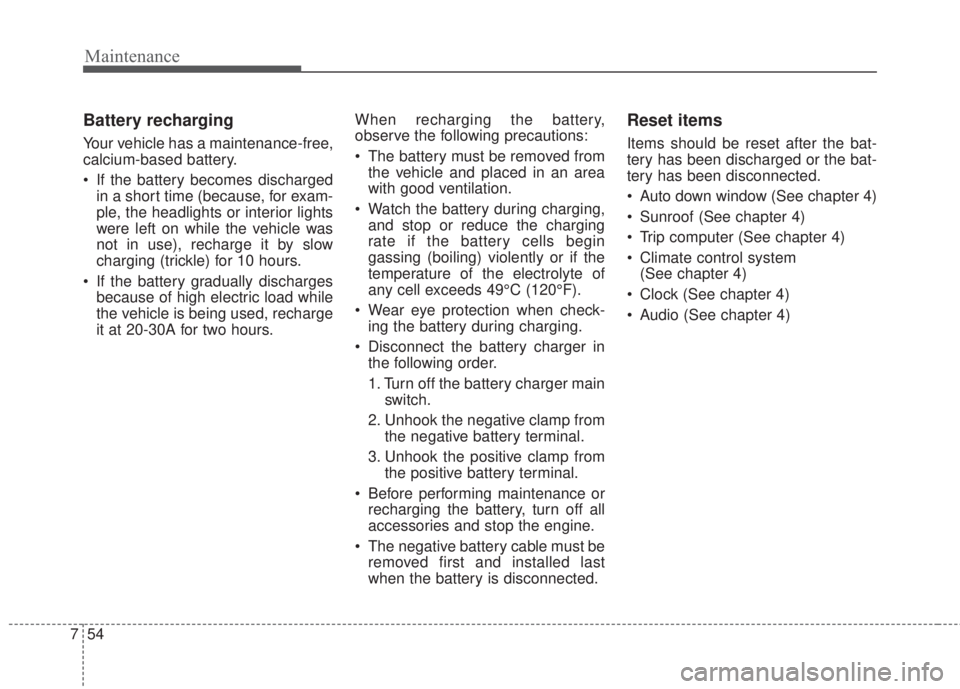

Maintenance
54 7
Battery recharging
Your vehicle has a maintenance-free,
calcium-based battery.
• If the battery becomes discharged
in a short time (because, for exam-
ple, the headlights or interior lights
were left on while the vehicle was
not in use), recharge it by slow
charging (trickle) for 10 hours.
• If the battery gradually discharges
because of high electric load while
the vehicle is being used, recharge
it at 20-30A for two hours.When recharging the battery,
observe the following precautions:
• The battery must be removed from
the vehicle and placed in an area
with good ventilation.
• Watch the battery during charging,
and stop or reduce the charging
rate if the battery cells begin
gassing (boiling) violently or if the
temperature of the electrolyte of
any cell exceeds 49°C (120°F).
• Wear eye protection when check-
ing the battery during charging.
• Disconnect the battery charger in
the following order.
1. Turn off the battery charger main
switch.
2. Unhook the negative clamp from
the negative battery terminal.
3. Unhook the positive clamp from
the positive battery terminal.
• Before performing maintenance or
recharging the battery, turn off all
accessories and stop the engine.
• The negative battery cable must be
removed first and installed last
when the battery is disconnected.
Reset items
Items should be reset after the bat-
tery has been discharged or the bat-
tery has been disconnected.
• Auto down window (See chapter 4)
• Sunroof (See chapter 4)
• Trip computer (See chapter 4)
• Climate control system
(See chapter 4)
• Clock (See chapter 4)
• Audio (See chapter 4)

Index
8I
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-44
Electric power steering (EPS) . . . . . . . . . . . . . . . . . 4-44
Flex steer(5 Door) . . . . . . . . . . . . . . . . . . . . . . . . . . 4-47
Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . 4-46
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-45
Tilt and telescoping steering . . . . . . . . . . . . . . . . . . 4-45
Storage compartment . . . . . . . . . . . . . . . . . . . . . . . . . 4-139
Center console storage . . . . . . . . . . . . . . . . . . . . . . 4-139
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-139
Luggage tray (5 Door) . . . . . . . . . . . . . . . . . . . . . . 4-140
Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-140
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-39
Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . 4-43
Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-41
Sunroof open warning . . . . . . . . . . . . . . . . . . . . . . . 4-40
Sunshade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43
Tilting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-42
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Armed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Disarmed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Theft-alarm stage . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Tire specification and pressure label . . . . . . . . . . . . . . 8-11
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-55
All season tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-66Checking tire inflation pressure . . . . . . . . . . . . . . . . 7-56
Low aspect ratio tire. . . . . . . . . . . . . . . . . . . . . . . . . 7-67
Radial-ply tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-67
Recommended cold tire inflation pressures . . . . . . . 7-55
Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-67
Summer tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-66
Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-55
Tire maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-60
Tire replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-59
Tire rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-57
Tire sidewall labeling . . . . . . . . . . . . . . . . . . . . . . . . 7-60
Tire traction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-60
Wheel alignment and tire balance . . . . . . . . . . . . . . 7-58
Wheel replacement . . . . . . . . . . . . . . . . . . . . . . . . . 7-60
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-22
Emergency towing . . . . . . . . . . . . . . . . . . . . . . . . . . 6-23
Removable towing hook (front) . . . . . . . . . . . . . . . . 6-23
Towing service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-22
Trunk (4 Door, 2 Door) . . . . . . . . . . . . . . . . . . . . . . . . 4-21
Closing the trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
Emergency trunk safety release . . . . . . . . . . . . . . . . 4-22
Opening the trunk. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21
Vehicle break-in process . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Vehicle certification label . . . . . . . . . . . . . . . . . . . . . . . 8-10
Vehicle data collection and event data recorders . . . . . . 1-7
