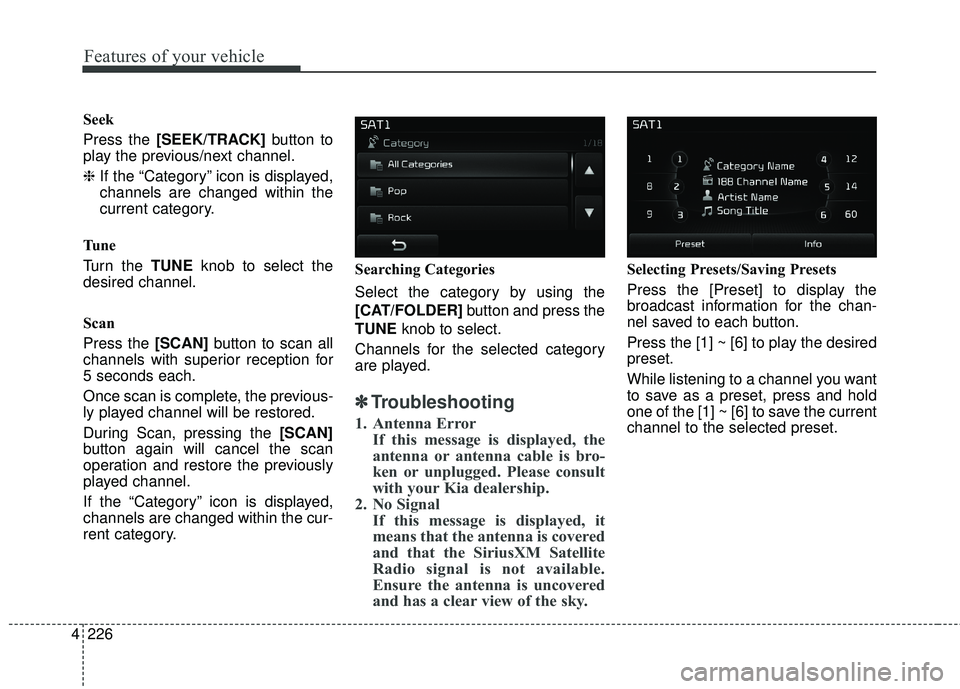

KIA FORTE KOUP 2018 Owners Manual

4 226
Features of your vehicle
Seek
Press the [SEEK/TRACK]button to
play the previous/next channel.
❈ If the “Category” icon is displayed,
channels are changed within the
current category.
Tu n e
Turn the TUNE knob to select the
desired channel.
Scan
Press the [SCAN] button to scan all
channels with superior reception for
5 seconds each.
Once scan is complete, the previous-
ly played channel will be restored.
During Scan, pressing the [SCAN]
button again will cancel the scan
operation and restore the previously
played channel.
If the “Category” icon is displayed,
channels are changed within the cur-
rent category. Searching Categories
Select the category by using the
[CAT/FOLDER]
button and press the
TUNE knob to select.
Channels for the selected category
are played.
✽ ✽ Troubleshooting
1. Antenna Error
If this message is displayed, the
antenna or antenna cable is bro-
ken or unplugged. Please consult
with your Kia dealership.
2. No Signal If this message is displayed, it
means that the antenna is covered
and that the SiriusXM Satellite
Radio signal is not available.
Ensure the antenna is uncovered
and has a clear view of the sky.
Selecting Presets/Saving Presets
Press the [Preset] to display the
broadcast information for the chan-
nel saved to each button.
Press the [1] ~ [6] to play the desired
preset.
While listening to a channel you want
to save as a preset, press and hold
one of the [1] ~ [6] to save the current
channel to the selected preset.

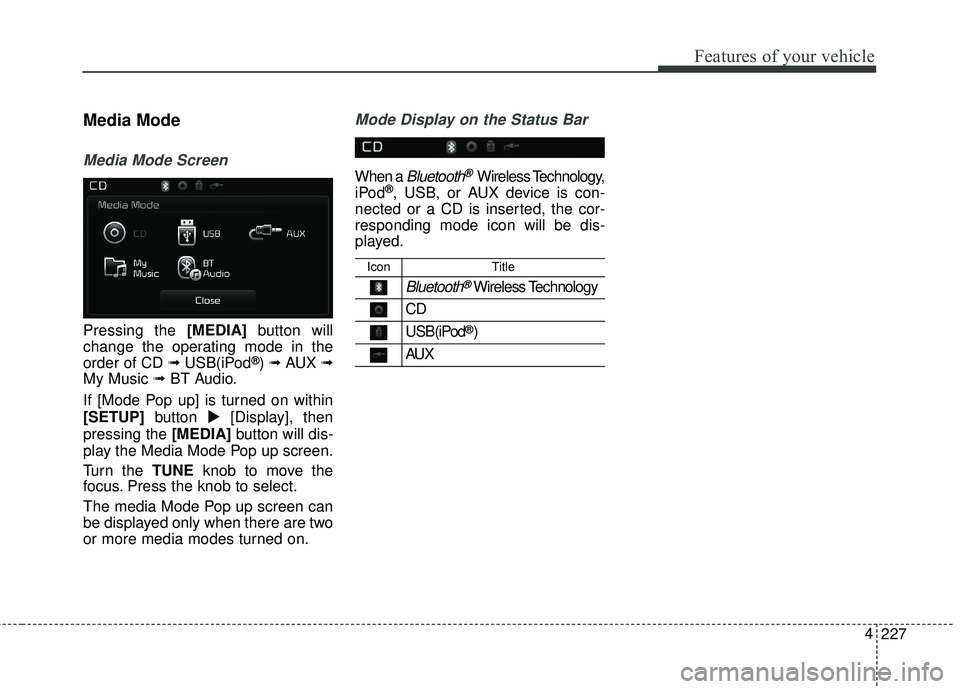

227
4
Features of your vehicle
Media Mode
Media Mode Screen
Pressing the [MEDIA]
button will
change the operating mode in the
order of CD
➟ USB(iPod®) ➟ AUX ➟
My Music ➟BT Audio.
If [Mode Pop up] is turned on within
[SETUP] button[Display], then
pressing the [MEDIA] button will dis-
play the Media Mode Pop up screen.
Turn the TUNE knob to move the
focus. Press the knob to select.
The media Mode Pop up screen can
be displayed only when there are two
or more media modes turned on.
Mode Display on the Status Bar
When a Bluetooth®Wireless Technology,
iPod®, USB, or AUX device is con-
nected or a CD is inserted, the cor-
responding mode icon will be dis-
played.
IconTitle
Bluetooth®Wireless Technology
CD
USB(iPod®)
AUX

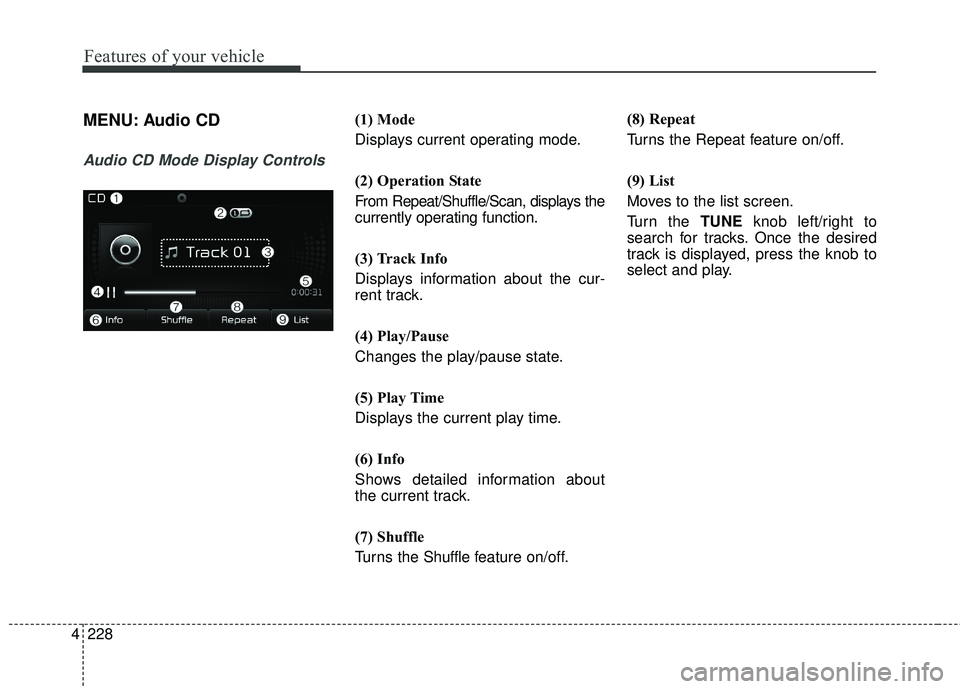

4 228
Features of your vehicle
MENU: Audio CD
Audio CD Mode Display Controls
(1) Mode
Displays current operating mode.
(2) Operation State
From Repeat/Shuffle/Scan, displays the
currently operating function.
(3) Track Info
Displays information about the cur-
rent track.
(4) Play/Pause
Changes the play/pause state.
(5) Play Time
Displays the current play time.
(6) Info
Shows detailed information about
the current track.
(7) Shuffle
Turns the Shuffle feature on/off. (8) Repeat
Turns the Repeat feature on/off.
(9) List
Moves to the list screen.
Turn the TUNE
knob left/right to
search for tracks. Once the desired
track is displayed, press the knob to
select and play.

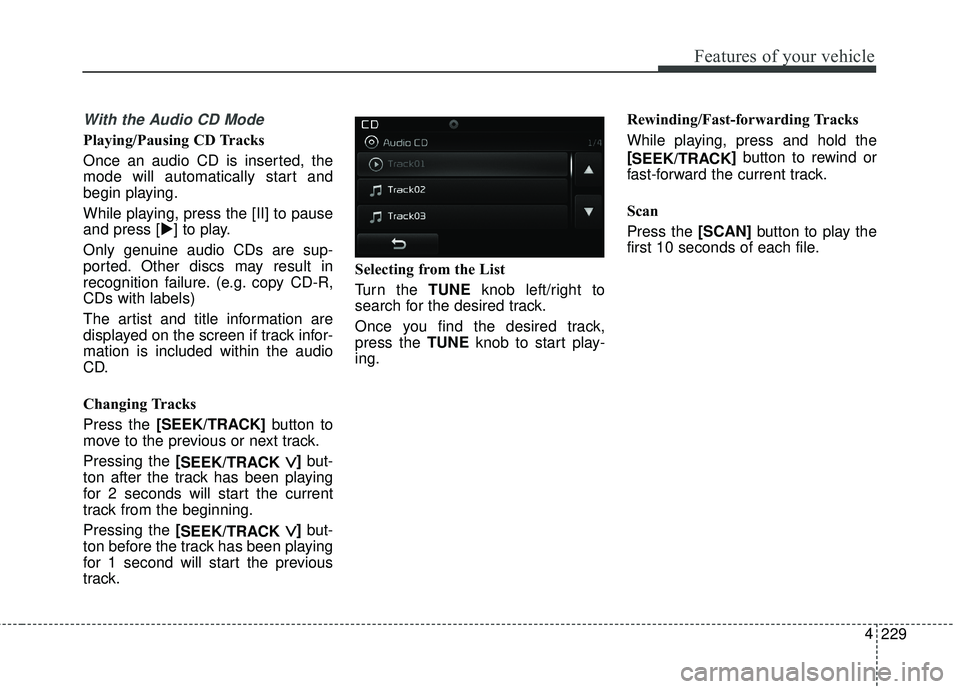

229
4
Features of your vehicle
With the Audio CD Mode
Playing/Pausing CD Tracks
Once an audio CD is inserted, the
mode will automatically start and
begin playing.
While playing, press the [II] to pause
and press [] to play.
Only genuine audio CDs are sup-
ported. Other discs may result in
recognition failure. (e.g. copy CD-R,
CDs with labels)
The artist and title information are
displayed on the screen if track infor-
mation is included within the audio
CD.
Changing Tracks
Press the [SEEK/TRACK]
button to
move to the previous or next track.
Pressing the [ SEEK/TRACK
∨ ∨]but-
ton after the track has been playing
for 2 seconds will start the current
track from the beginning.
Pressing the [ SEEK/TRACK
∨ ∨]but-
ton before the track has been playing
for 1 second will start the previous
track. Selecting from the List
Turn the TUNE
knob left/right to
search for the desired track.
Once you find the desired track,
press the TUNE knob to start play-
ing. Rewinding/Fast-forwarding Tracks
While playing, press and hold the
[
SEEK/TRACK ]
button to rewind or
fast-forward the current track.
Scan
Press the [SCAN] button to play the
first 10 seconds of each file.

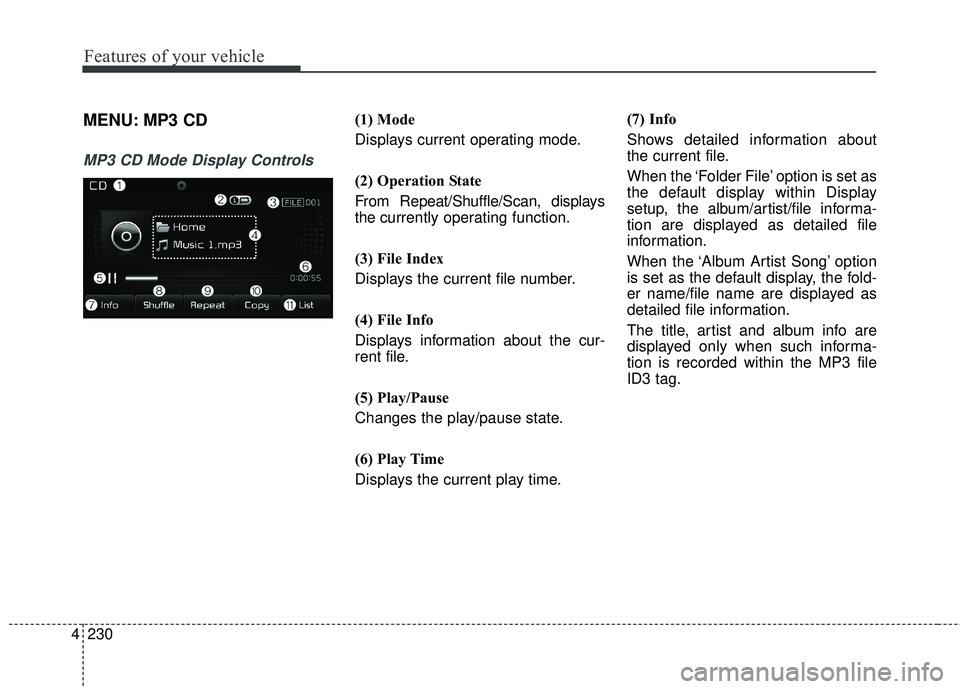

4 230
Features of your vehicle
MENU: MP3 CD
MP3 CD Mode Display Controls
(1) Mode
Displays current operating mode.
(2) Operation State
From Repeat/Shuffle/Scan, displays
the currently operating function.
(3) File Index
Displays the current file number.
(4) File Info
Displays information about the cur-
rent file.
(5) Play/Pause
Changes the play/pause state.
(6) Play Time
Displays the current play time.(7) Info
Shows detailed information about
the current file.
When the ‘Folder File’ option is set as
the default display within Display
setup, the album/artist/file informa-
tion are displayed as detailed file
information.
When the ‘Album Artist Song’ option
is set as the default display, the fold-
er name/file name are displayed as
detailed file information.
The title, artist and album info are
displayed only when such informa-
tion is recorded within the MP3 file
ID3 tag.

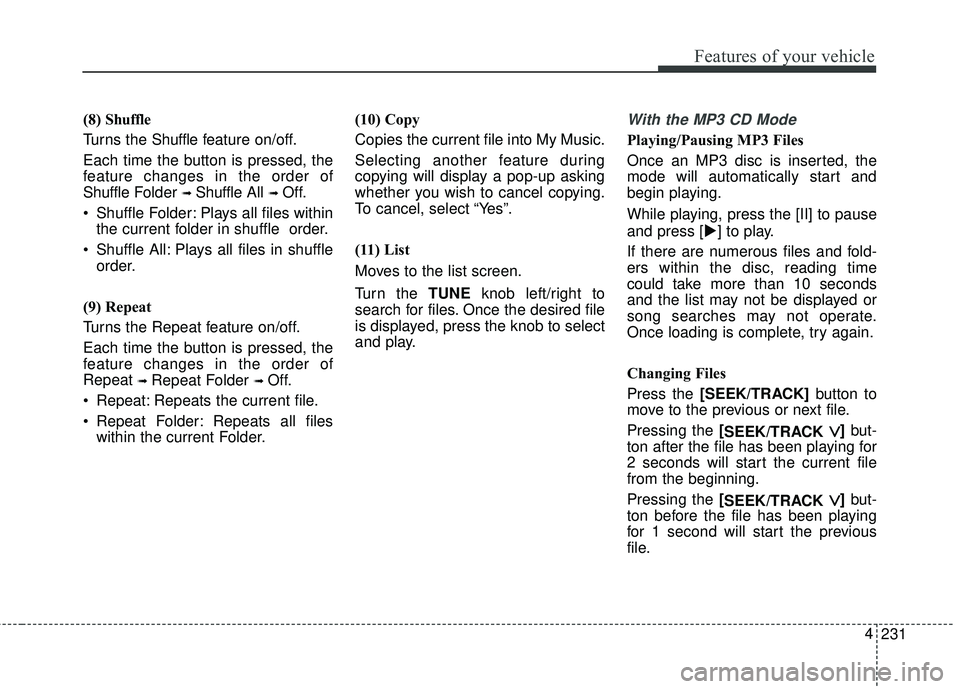

231
4
Features of your vehicle
(8)
Shuffle
Turns the Shuffle f eature on/off.
Each time the button is pressed, the
feature changes in the order of
Shuffle Folder
➟ Shuffle All ➟ Off.
Shuffle Folder: Plays all files within the current folder in shuffle order.
Shuffle All: Plays all files in shuffle order.
(9) Repeat
Turns the Repeat feature on/off.
Each time the button is pressed, the
feature changes in the order of
Repeat
➟ Repeat Folder ➟ Off.
Repeat: Repeats the current file.
Repeat Folder: Repeats all files within the current Folder. (10) Copy
Copies the current file into My Music.
Selecting another feature during
copying will display a pop-up asking
whether you wish to cancel copying.
To cancel, select “Yes”.
(11) List
Moves to the list screen.
Turn the TUNE
knob left/right to
search for files. Once the desired file
is displayed, press the knob to select
and play.
With the MP3 CD Mode
Playing/Pausing MP3 Files
Once an MP3 disc is inserted, the
mode will automatically start and
begin playing.
While playing, press the [II] to pause
and press [] to play.
If there are numerous files and fold-
ers within the disc, reading time
could take more than 10 seconds
and the list may not be displayed or
song searches may not operate.
Once loading is complete, try again.
Changing Files
Press the [SEEK/TRACK] button to
move to the previous or next file.
Pressing the [ SEEK/TRACK
∨ ∨]but-
ton after the file has been playing for
2 seconds will start the current file
from the beginning.
Pressing the [ SEEK/TRACK
∨ ∨]but-
ton before the file has been playing
for 1 second will start the previous
file.

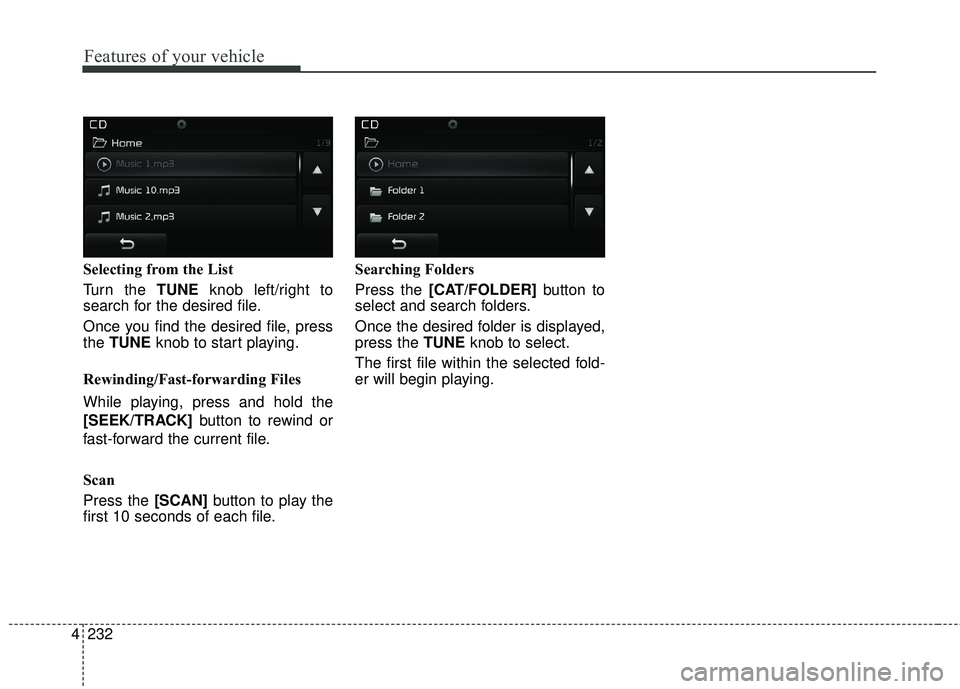

4 232
Features of your vehicle
Selecting from the List
Turn the TUNEknob left/right to
search for the desired file.
Once you find the desired file, press
the TUNE knob to start playing.
Rewinding/Fast-forwarding Files
While playing, press and hold the
[SEEK/TRACK] button to rewind or
fast-forward the current file.
Scan
Press the [SCAN] button to play the
first 10 seconds of each file. Searching Folders
Press the [CAT/FOLDER]
button to
select and search folders.
Once the desired folder is displayed,
press the TUNE knob to select.
The first file within the selected fold-
er will begin playing.

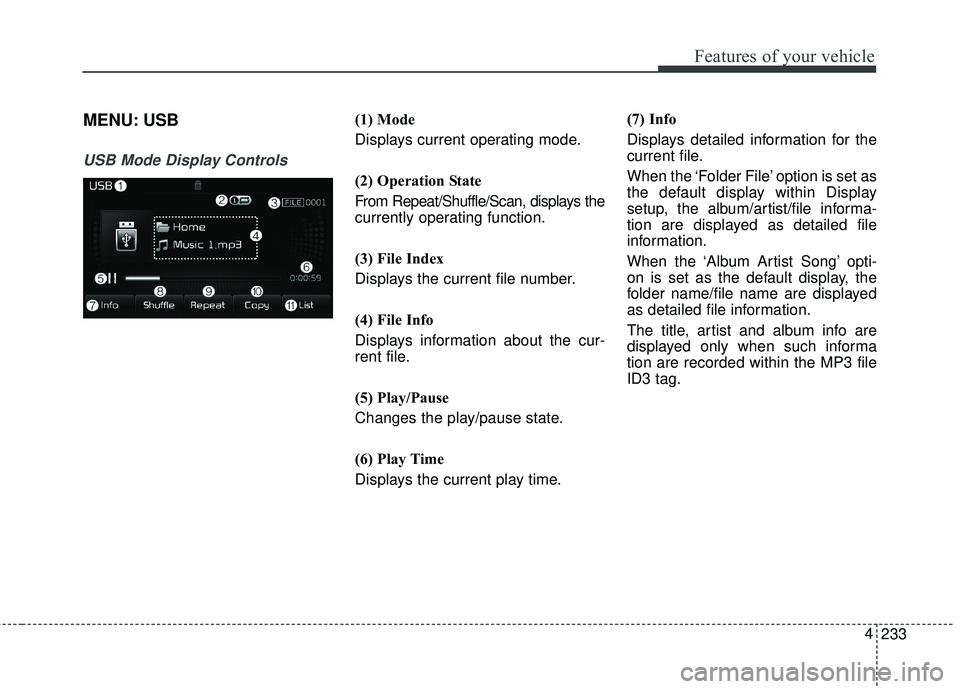

233
4
Features of your vehicle
MENU: USB
USB Mode Display Controls
(1) Mode
Displays current operating mode.
(2) Operation State
From Repeat/Shuffle/Scan, displays the
currently operating function.
(3) File Index
Displays the current file number.
(4) File Info
Displays information about the cur-
rent file.
(5) Play/Pause
Changes the play/pause state.
(6) Play Time
Displays the current play time. (7) Info
Displays detailed information for the
current file.
When the ‘Folder File’ option is set as
the default display within Display
setup, the album/artist/file informa-
tion are displayed as detailed file
information.
When the ‘Album Artist Song’ opti-
on is set as the default display, the
folder name/file name are displayed
as detailed file information.
The title, artist and album info are
displayed only when such informa
tion are recorded within the MP3 file
ID3 tag.

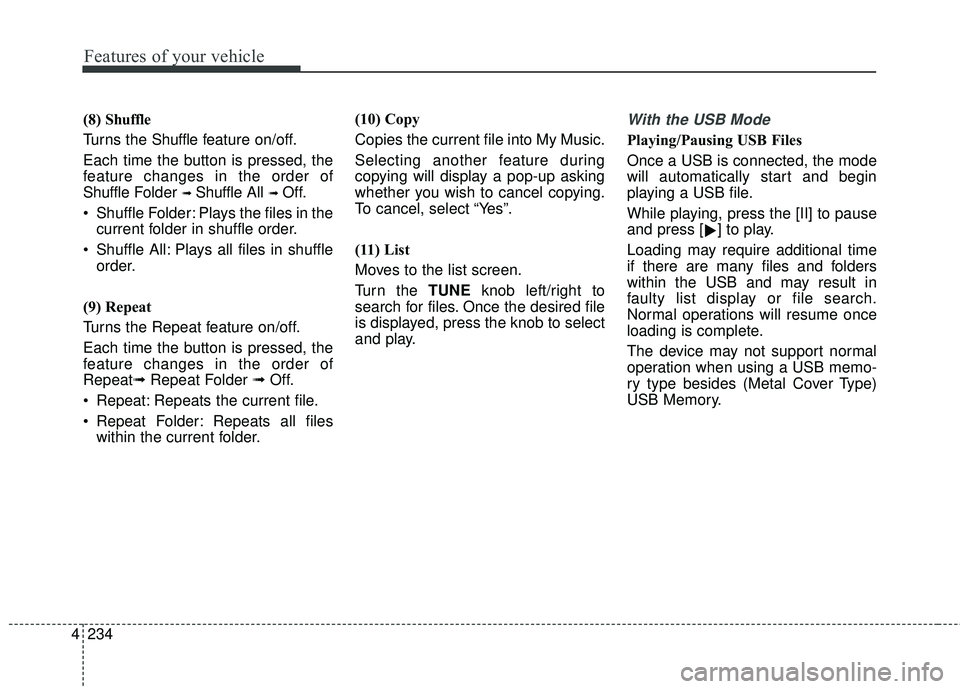

4 234
Features of your vehicle
(8) Shuffle
Turns the Shuffle f eature on/off.
Each time the button is pressed, the
feature changes in the order of
Shuffle Folder
➟ Shuffle All ➟ Off.
Shuffle Folder: Plays the files in the current folder in shuffle order.
Shuffle All: Plays all files in shuffle order.
(9) Repeat
Turns the Repeat feature on/off.
Each time the button is pressed, the
feature changes in the order of
Repeat➟ Repeat Folder ➟ Off.
Repeat: Repeats the current file.
Repeat Folder: Repeats all files within the current folder. (10) Copy
Copies the current file into My Music.
Selecting another feature during
copying will display a pop-up asking
whether you wish to cancel copying.
To cancel, select “Yes”.
(11) List
Moves to the list screen.
Turn the TUNE
knob left/right to
search for files. Once the desired file
is displayed, press the knob to select
and play.
With the USB Mode
Playing/Pausing USB Files
Once a USB is connected, the mode
will automatically start and begin
playing a USB file.
While playing, press the [II] to pause
and press [ ] to play.
Loading may require additional time
if there are many files and folders
within the USB and may result in
faulty list display or file search.
Normal operations will resume once
loading is complete.
The device may not support normal
operation when using a USB memo-
ry type besides (Metal Cover Type)
USB Memory.

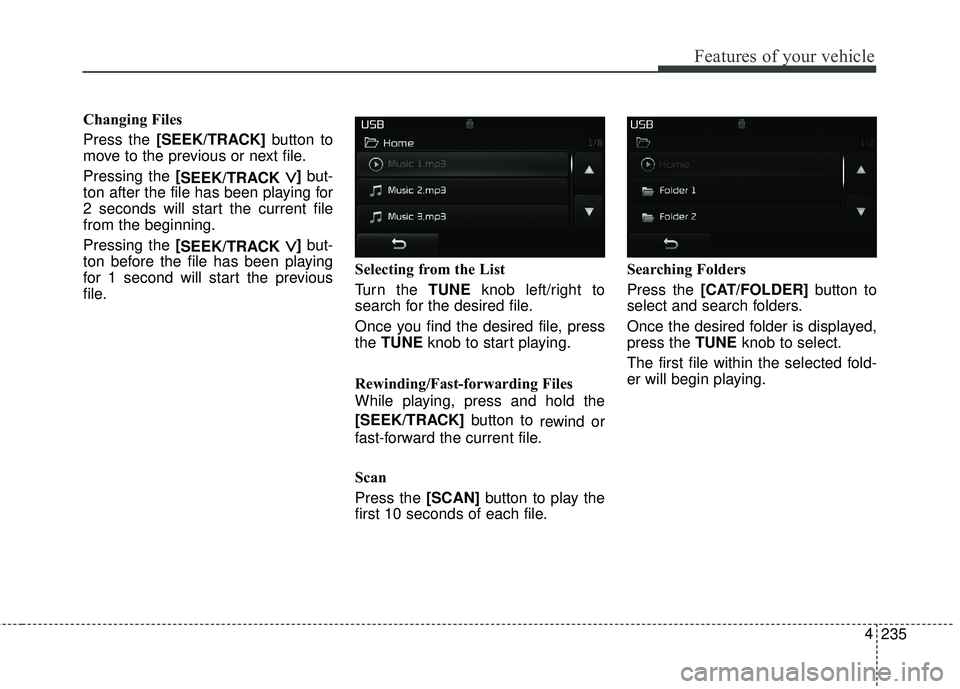

235
4
Features of your vehicle
Changing Files
Press the [SEEK/TRACK]
button to
move to the previous or next file.
Pressing the [ SEEK/TRACK
∨ ∨]but-
ton after the file has been playing for
2 seconds will start the current file
from the beginning.
Pressing the [ SEEK/TRACK
∨ ∨]but-
ton before the file has been playing
for 1 second will start the previous
file. Selecting from the List
Turn the TUNE
knob left/right to
search for the desired file.
Once you find the desired file, press
the TUNE knob to start playing.
Rewinding/Fast-forwarding Files
While playing, press and hold the
[SEEK/TRACK] button to
rewind or
fast-forward the current file.
Scan
Press the [SCAN] button to play the
first 10 seconds of each file. Searching Folders
Press the [CAT/FOLDER]
button to
select and search folders.
Once the desired folder is displayed,
press the TUNE knob to select.
The first file within the selected fold-
er will begin playing.
