KIA FORTE KOUP 2018 Owners Manual

87
Specifications & Consumer information

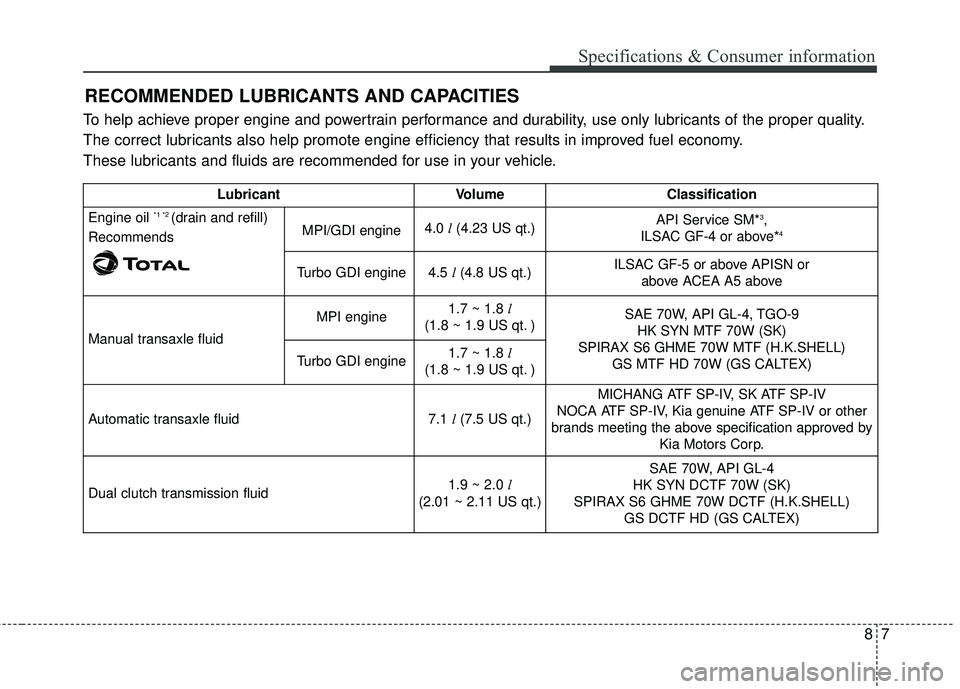

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil *1 *2 (drain and refill)
RecommendsMPI/GDI engine4.0 l(4.23 US qt.)API Service SM*3,
ILSAC GF-4 or above*4
Turbo GDI engine4.5 l(4.8 US qt.)ILSAC GF-5 or above APISN or
above ACEA A5 above
Manual transaxle fluid
MPI engine1.7 ~ 1.8 l
(1.8 ~ 1.9 US qt. )SAE 70W, API GL-4, TGO-9 HK SYN MTF 70W (SK)
SPIRAX S6 GHME 70W MTF (H.K.SHELL) GS MTF HD 70W (GS CALTEX)
Turbo GDI engine1.7 ~ 1.8 l
(1.8 ~ 1.9 US qt. )
Automatic transaxle fluid7.1 l(7.5 US qt.)
MICHANG ATF SP-IV, SK ATF SP-IV
NOCA ATF SP-IV, Kia genuine ATF SP-IV or other
brands meeting the above specification approved by Kia Motors Corp.
Dual clutch transmission fluid1.9 ~ 2.0 l
(2.01 ~ 2.11 US qt.)
SAE 70W, API GL-4
HK SYN DCTF 70W (SK)
SPIRAX S6 GHME 70W DCTF (H.K.SHELL) GS DCTF HD (GS CALTEX)

88
Specifications & Consumer information
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your country, you are able to use API service SL.

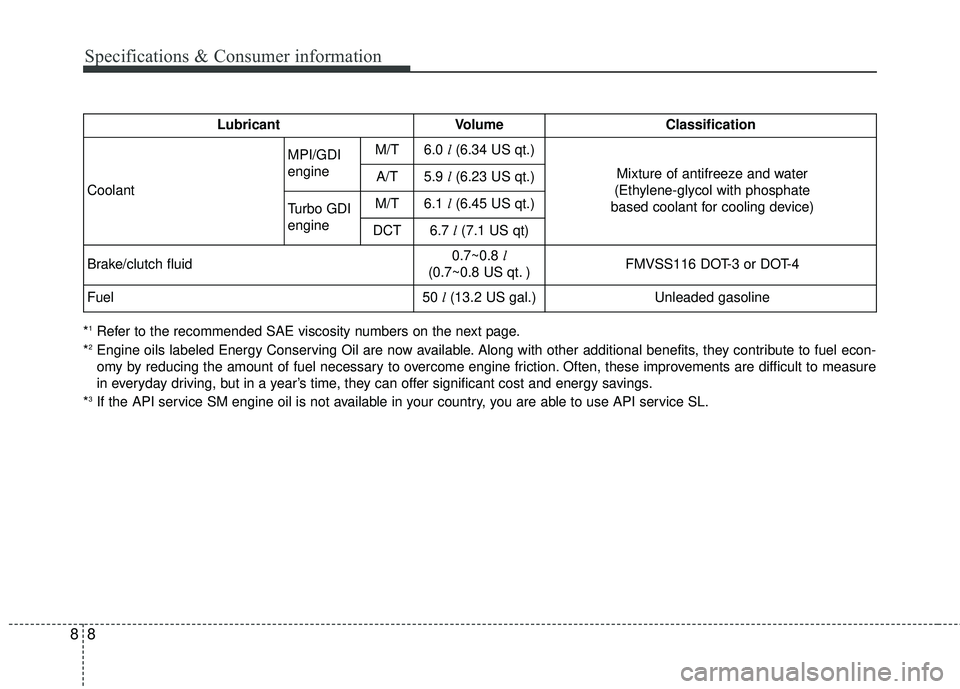

LubricantVolumeClassification
Coolant
MPI/GDI
engineM/T6.0 l(6.34 US qt.)
Mixture of antifreeze and water
(Ethylene-glycol with phosphate
based coolant for cooling device)A/T5.9 l(6.23 US qt.)
Turbo GDI
engineM/T6.1 l(6.45 US qt.)
DCT6.7 l(7.1 US qt)
Brake/clutch fluid0.7~0.8 l
(0.7~0.8 US qt. )FMVSS116 DOT-3 or DOT-4
Fuel50 l(13.2 US gal.)Unleaded gasoline

89
Specifications & Consumer information

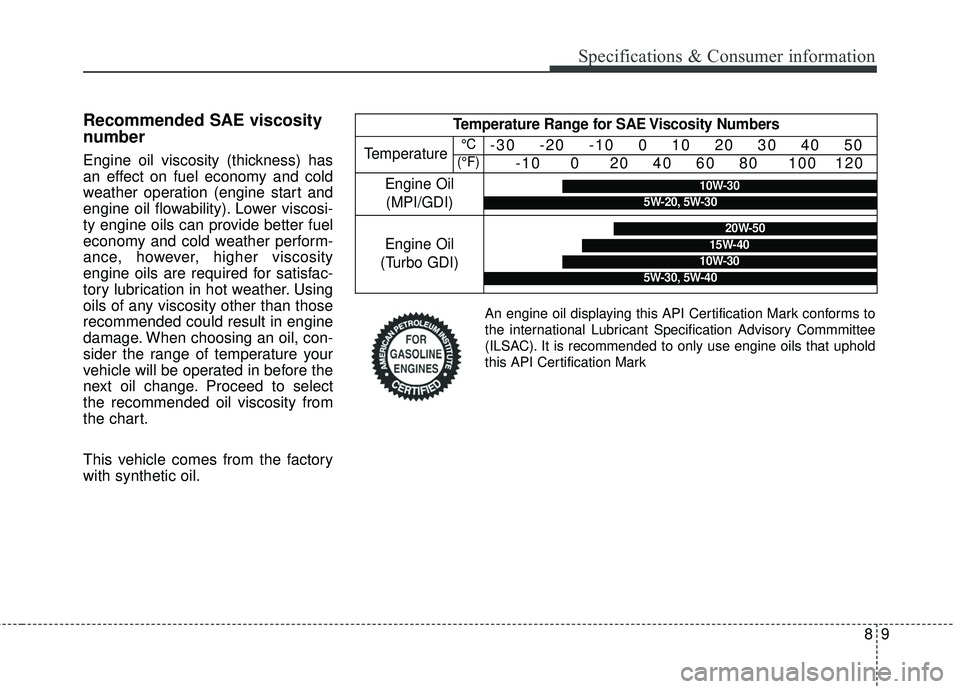

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operation (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage. When choosing an oil, con-
sider the range of temperature your
vehicle will be operated in before the
next oil change. Proceed to select
the recommended oil viscosity from
the chart.
This vehicle comes from the factory
with synthetic oil.
Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Engine Oil(MPI/GDI)
Engine Oil
(Turbo GDI)
10W-30
5W-20, 5W-30
20W-50
10W-30
15W-40
5W-30, 5W-40
°C
(°F)
An engine oil displaying this API Certification Mark conforms to
the international Lubricant Specification Advisory Commmittee
(ILSAC). It is recommended to only use engine oils that uphold
this API Certification Mark

10
8
Specifications & Consumer information
VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.VIN label
The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside. The vehicle certification label
attatched on the driver’s side center
pillar gives the vehicle identification
number (VIN).
OBH088005N
VIN Label
OFS080001
OFS080002
VEHICLE CERTIFICATION-
LABEL
Frame Number

811
Specifications & Consumer information

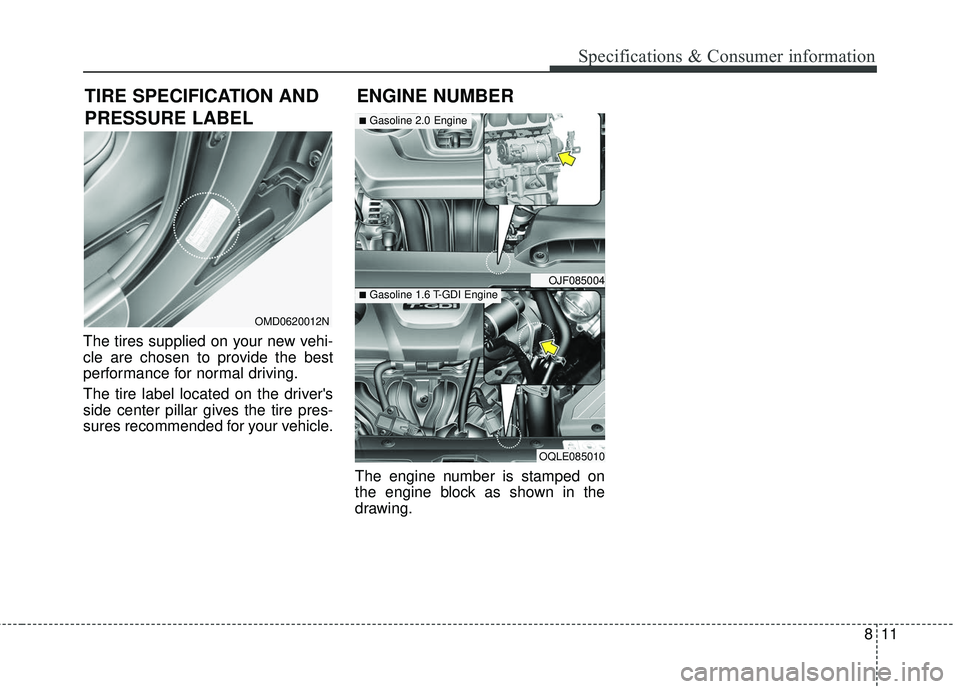

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle.The engine number is stamped on
the engine block as shown in the
drawing.
TIRE SPECIFICATION AND
PRESSURE LABEL
OMD0620012N
ENGINE NUMBER
OJF085004
■Gasoline 2.0 Engine
■Gasoline 1.6 T-GDI Engine
OQLE085010
