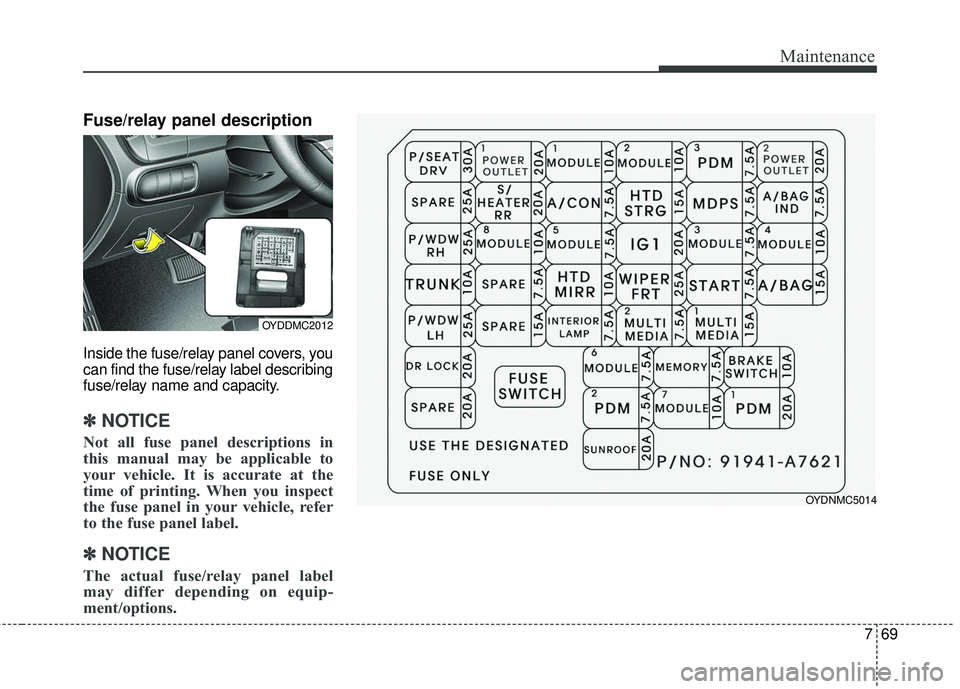

Fuse/relay panel description
Inside the fuse/relay panel covers, you
can find the fuse/relay label describing
fuse/relay name and capacity.
✽ ✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
✽ ✽NOTICE
The actual fuse/relay panel label
may differ depending on equip-
ment/options.
OYDNMC5014
OYDDMC2012

Maintenance
70
7

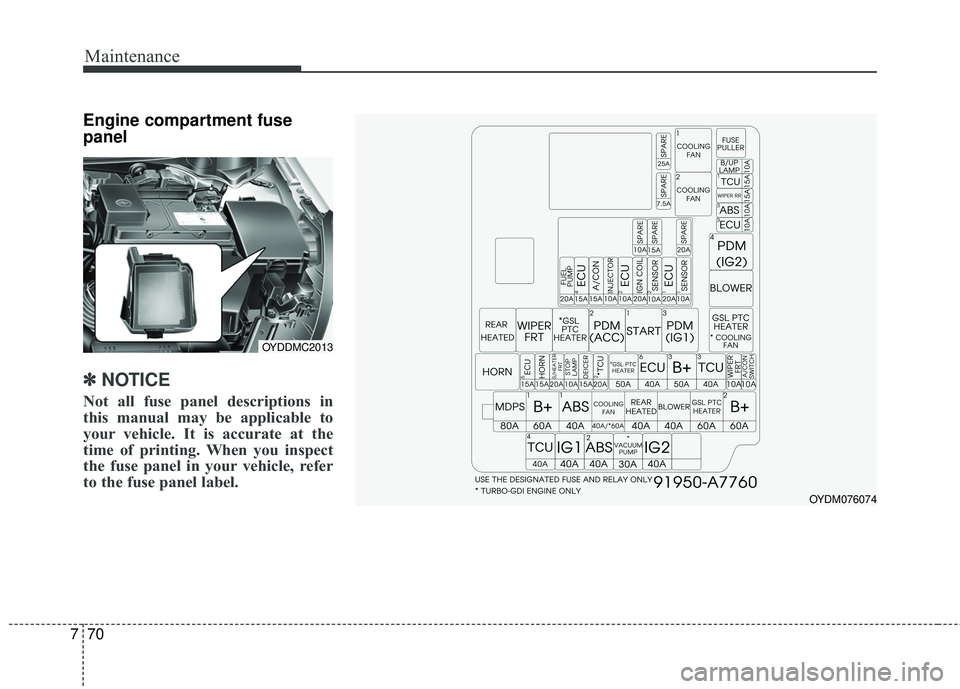

Engine compartment fuse
panel
✽ ✽
NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OYDM076074
OYDDMC2013

771
Maintenance

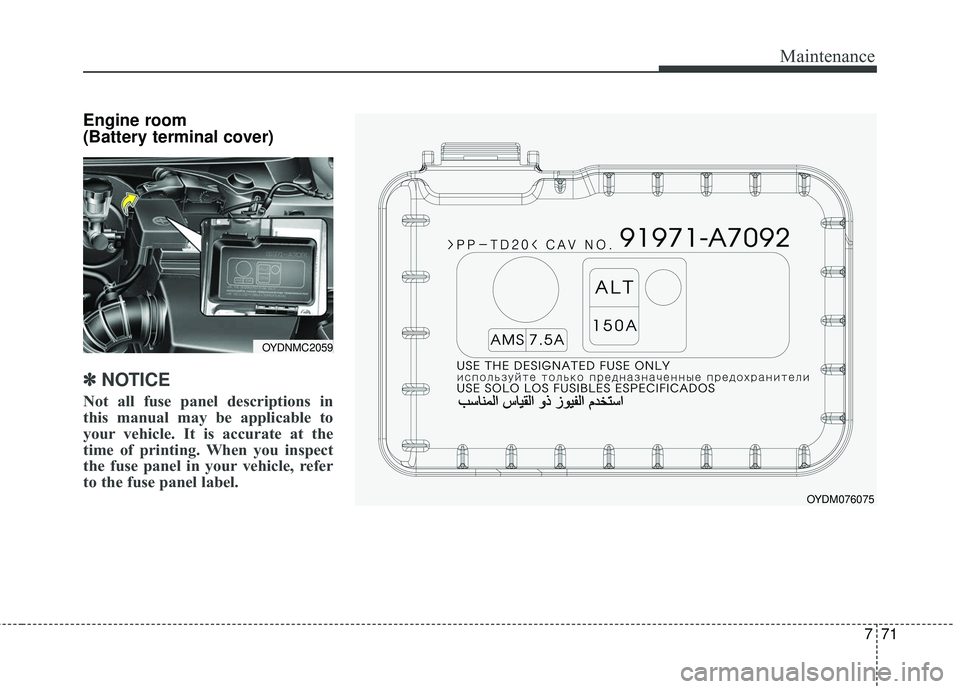

Engine room
(Battery terminal cover)
✽ ✽NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OYDM076075
OYDNMC2059

Maintenance
72
7

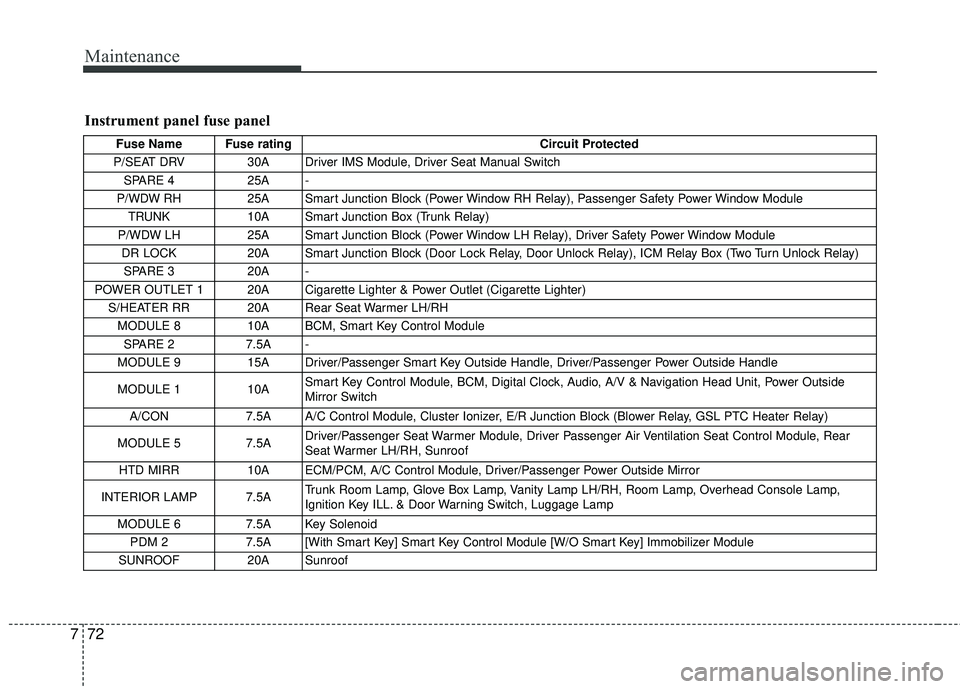

Instrument panel fuse panel
Fuse Name Fuse rating Circuit Protected
P/SEAT DRV 30A Driver IMS Module, Driver Seat Manual Switch
SPARE 4 25A -
P/WDW RH 25A Smart Junction Block (Power Window RH Relay), Passenger Safety Power Window Module
TRUNK 10A Smart Junction Box (Trunk Relay)
P/WDW LH 25A Smart Junction Block (Power Window LH Relay), Driver Safety Power Window Module
DR LOCK 20A Smart Junction Block (Door Lock Relay, Door Unlock Relay), ICM Relay Box (Two Turn Unlock Relay)
SPARE 3 20A -
POWER OUTLET 1 20A Cigarette Lighter & Power Outlet (Cigarette Lighter) S/HEATER RR 20A Rear Seat Warmer LH/RH MODULE 8 10A BCM, Smart Key Control Module
SPARE 2 7.5A -
MODULE 9 15A Driver/Passenger Smart Key Outside Handle, Driver/Passenger Power Outside Handle
MODULE 1 10ASmart Key Control Module, BCM, Digital Clock, Audio, A/V & Navigation Head Unit, Power Outside
Mirror Switch
A/CON 7.5A A/C Control Module, Cluster Ionizer, E/R Junction Block (Blower Relay, GSL PTC Heater Relay)
MODULE 5 7.5A Driver/Passenger Seat Warmer Module, Driver Passenger Air Ventilation Seat Control Module, Rear
Seat Warmer LH/RH, Sunroof
HTD MIRR 10A ECM/PCM, A/C Control Module, Driver/Passenger Power Outside Mirror
INTERIOR LAMP 7.5A Trunk Room Lamp, Glove Box Lamp, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp,
Ignition Key ILL. & Door Warning Switch, Luggage Lamp
MODULE 6 7.5A Key Solenoid PDM 2 7.5A [With Smart Key] Smart Key Control Module [W/O Smart Key] Immobilizer Module
SUNROOF 20A Sunroof

773
Maintenance

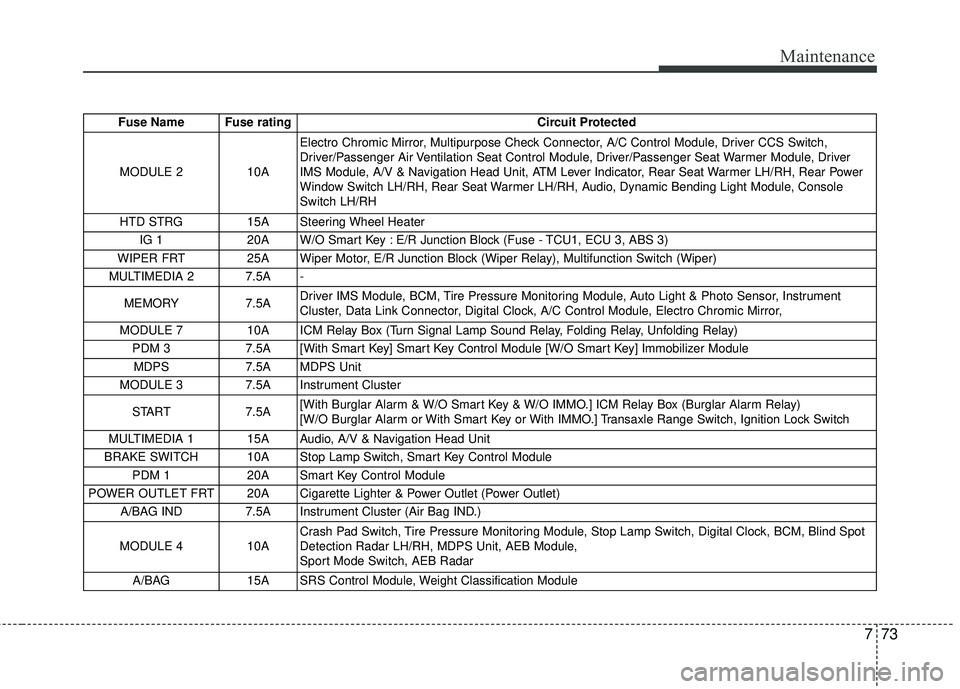

Fuse Name Fuse ratingCircuit Protected
MODULE 2 10A Electro Chromic Mirror, Multipurpose Check Connector, A/C Control Module, Driver CCS Switch,
Driver/Passenger Air Ventilation Seat Control Module, Driver/Passenger Seat Warmer Module, Driver
IMS Module, A/V & Navigation Head Unit, ATM Lever Indicator, Rear Seat Warmer LH/RH, Rear Power
Window Switch LH/RH, Rear Seat Warmer LH/RH, Audio, Dynamic Bending Light Module, Console
Switch LH/RH
HTD STRG 15A Steering Wheel Heater
IG 1 20A W/O Smart Key : E/R Junction Block (Fuse - TCU1, ECU 3, ABS 3)
WIPER FRT 25A Wiper Motor, E/R Junction Block (Wiper Relay), Multifunction Switch (Wiper)
MULTIMEDIA 2 7.5A -
MEMORY 7.5ADriver IMS Module, BCM, Tire Pressure Monitoring Module, Auto Light & Photo Sensor, Instrument
Cluster, Data Link Connector, Digital Clock, A/C Control Module, Electro Chromic Mirror,
MODULE 7 10A ICM Relay Box (Turn Signal Lamp Sound Relay, Folding Relay, Unfolding Relay)
PDM 3 7.5A [With Smart Key] Smart Key Control Module [W/O Smart Key] Immobilizer Module
MDPS 7.5A MDPS Unit
MODULE 3 7.5A Instrument Cluster
START 7.5A[With Burglar Alarm & W/O Smart Key & W/O IMMO.] ICM Relay Box (Burglar Alarm Relay)
[W/O Burglar Alarm or With Smart Key or With IMMO.] Transaxle Range Switch, Ignition Lock Switch
MULTIMEDIA 1 15A Audio, A/V & Navigation Head Unit
BRAKE SWITCH 10A Stop Lamp Switch, Smart Key Control Module PDM 1 20A Smart Key Control Module
POWER OUTLET FRT 20A Cigarette Lighter & Power Outlet (Power Outlet) A/BAG IND 7.5A Instrument Cluster (Air Bag IND.)
MODULE 4 10ACrash Pad Switch, Tire Pressure Monitoring Module, Stop Lamp Switch, Digital Clock, BCM, Blind Spot
Detection Radar LH/RH, MDPS Unit, AEB Module,
Sport Mode Switch, AEB Radar
A/BAG 15A SRS Control Module, Weight Classification Module

Maintenance
74
7

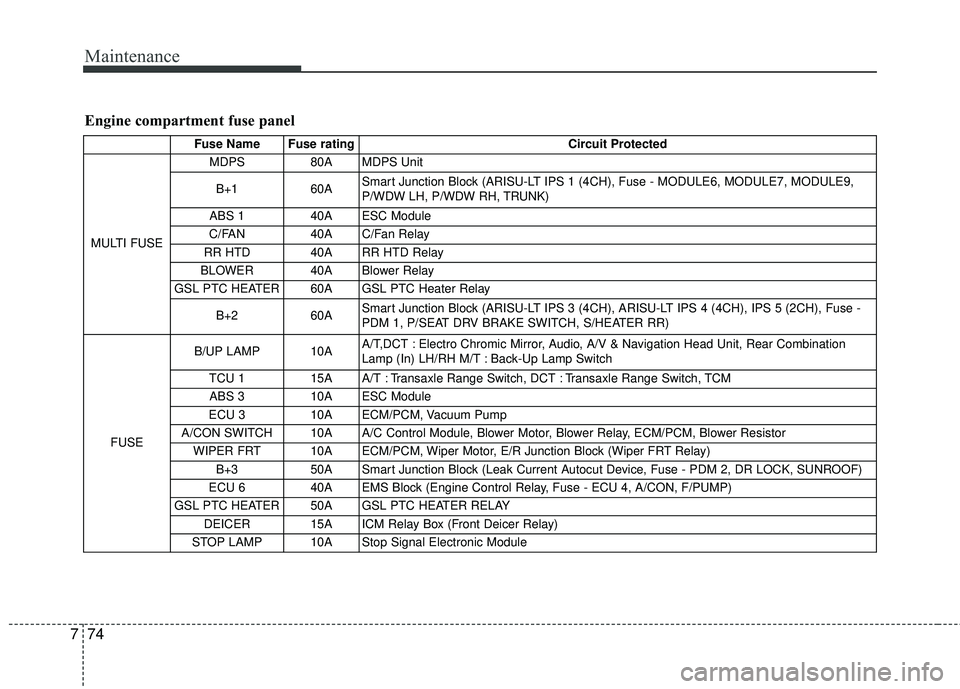

Engine compartment fuse panel
Fuse Name Fuse rating Circuit Protected
MULTI FUSE MDPS 80A MDPS
Unit
B+1 60A Smart Junction Block (ARISU-LT IPS 1 (4CH), Fuse - MODULE6, MODULE7, MODULE9,
P/WDW LH, P/WDW RH, TRUNK)
ABS 1 40A ESC Module
C/FAN 40A C/Fan Relay
RR HTD 40A RR HTD Relay
BLOWER 40A Blower Relay
GSL PTC HEATER 60A GSL PTC Heater Relay
B+2 60A Smart Junction Block (ARISU-LT IPS 3 (4CH), ARISU-LT IPS 4 (4CH), IPS 5 (2CH), Fuse -
PDM 1, P/SEAT DRV BRAKE SWITCH, S/HEATER RR)
FUSE B/UP LAMP 10A
A/T,DCT : Electro Chromic Mirror, Audio, A/V & Navigation Head Unit, Rear Combination
Lamp (In) LH/RH M/T : Back-Up Lamp Switch
TCU 1 15A A/T : Transaxle Range Switch, DCT : Transaxle Range Switch, TCM
ABS 3 10A ESC Module
ECU 3 10A ECM/PCM, Vacuum Pump
A/CON SWITCH 10A A/C Control Module, Blower Motor, Blower Relay, ECM/PCM, Blower Resistor WIPER FRT 10A ECM/PCM, Wiper Motor, E/R Junction Block (Wiper FRT Relay) B+3 50A Smart Junction Block (Leak Current Autocut Device, Fuse - PDM 2, DR LOCK, SUNROOF)
ECU 6 40A EMS Block (Engine Control Relay, Fuse - ECU 4, A/CON, F/PUMP)
GSL PTC HEATER 50A GSL PTC HEATER RELAY DEICER 15A ICM Relay Box (Front Deicer Relay)
STOP LAMP 10A Stop Signal Electronic Module

775
Maintenance

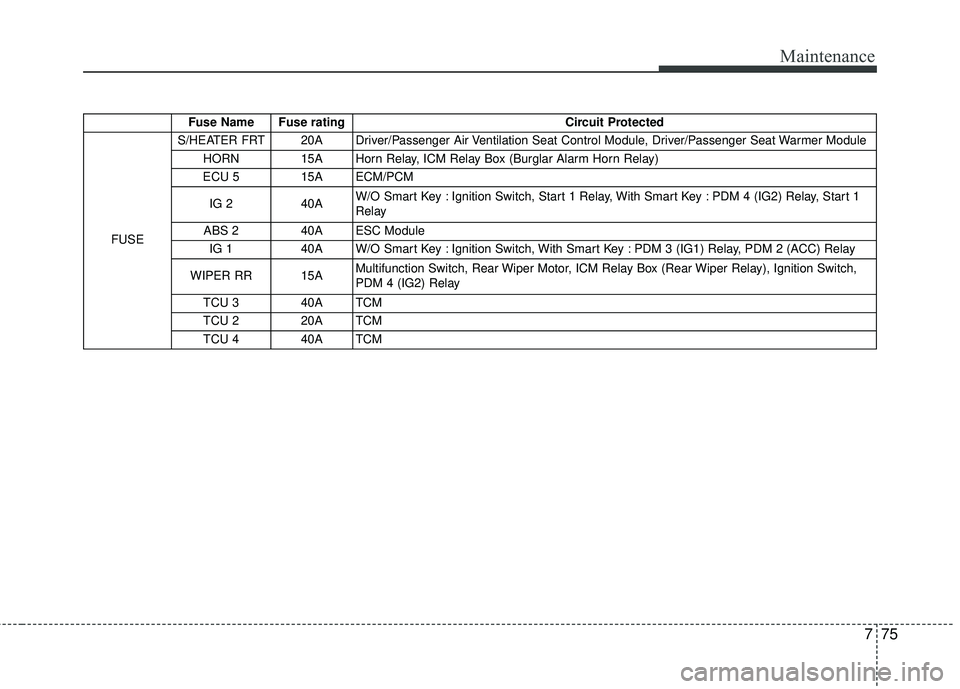

Fuse Name Fuse ratingCircuit Protected
FUSE S/HEATER FRT 20A Driver/Passenger Air Ventilation Seat Control Module, Driver/Passenger Seat Warmer Module
HORN 15A Horn Relay, ICM Relay Box (Burglar Alarm Horn Relay)
ECU 5 15A ECM/PCM
IG 2 40A W/O Smart Key : Ignition Switch, Start 1 Relay, With Smart Key : PDM 4 (IG2) Relay, Start 1
Relay
ABS 2 40A ESC Module
IG 1 40A W/O Smart Key : Ignition Switch, With Smart Key : PDM 3 (IG1) Relay, PDM 2 (ACC) Relay
WIPER RR 15A Multifunction Switch, Rear Wiper Motor, ICM Relay Box (Rear Wiper Relay), Ignition Switch,
PDM 4 (IG2) Relay
TCU 3 40A TCM
TCU 2 20A TCM
TCU 4 40A TCM

Maintenance
76
7

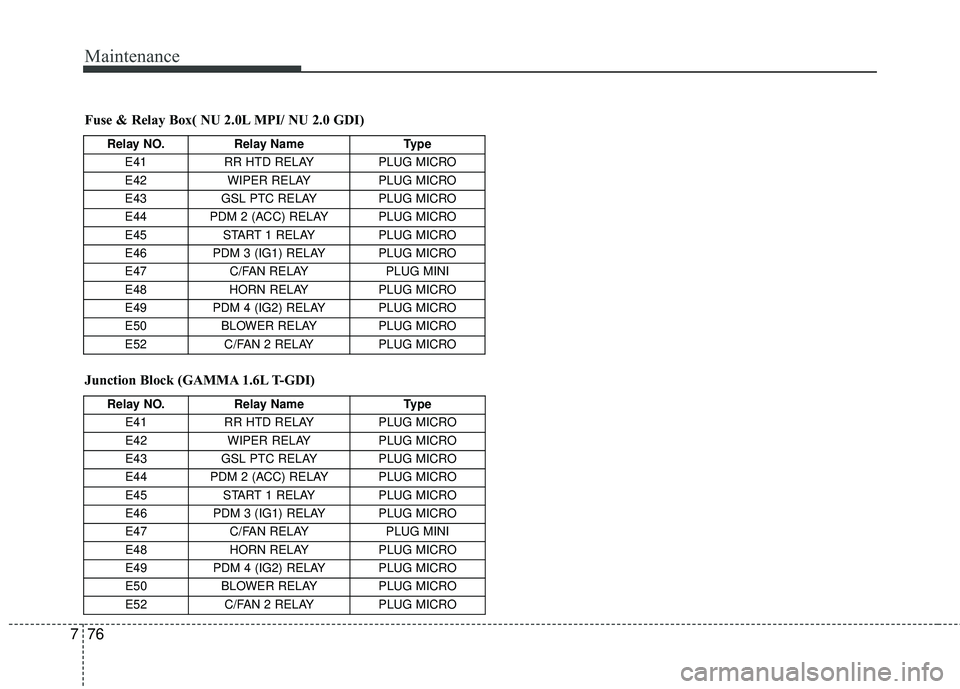

Fuse & Relay Box( NU 2.0L MPI/ NU 2.0 GDI)
Relay NO. Relay Name Type
E41 RR HTD RELAY PLUG MICRO
E42 WIPER RELAY PLUG MICRO
E43 GSL PTC RELAY PLUG MICRO
E44 PDM 2 (ACC) RELAY PLUG MICRO
E45 START 1 RELAY PLUG MICRO
E46 PDM 3 (IG1) RELAY PLUG MICRO
E47 C/FAN RELAY PLUG MINI
E48 HORN RELAY PLUG MICRO
E49 PDM 4 (IG2) RELAY PLUG MICRO
E50 BLOWER RELAY PLUG MICRO
E52 C/FAN 2 RELAY PLUG MICRO
Junction Block (GAMMA 1.6L T-GDI)
Relay NO.Relay Name Type
E41 RR HTD RELAY PLUG MICRO
E42 WIPER RELAY PLUG MICRO
E43 GSL PTC RELAY PLUG MICRO
E44 PDM 2 (ACC) RELAY PLUG MICRO
E45 START 1 RELAY PLUG MICRO
E46 PDM 3 (IG1) RELAY PLUG MICRO
E47 C/FAN RELAY PLUG MINI
E48 HORN RELAY PLUG MICRO
E49 PDM 4 (IG2) RELAY PLUG MICRO
E50 BLOWER RELAY PLUG MICRO
E52 C/FAN 2 RELAY PLUG MICRO

777
Maintenance

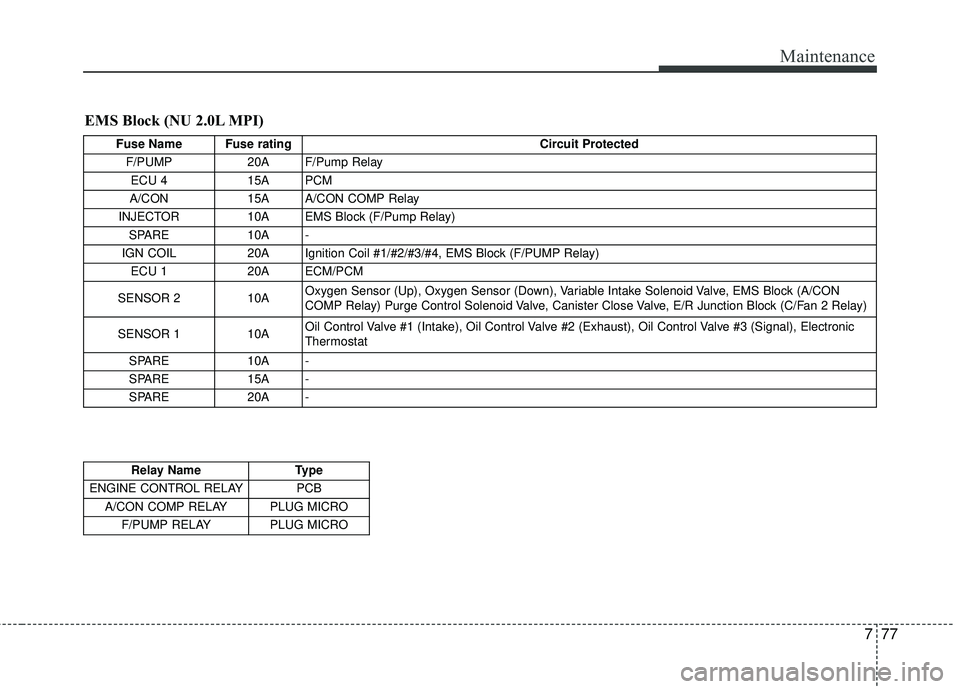

EMS Block (NU 2.0L MPI)
Fuse Name Fuse ratingCircuit Protected
F/PUMP 20A F/Pump Relay
ECU 4 15A PCM
A/CON 15A A/CON COMP Relay
INJECTOR 10A EMS Block (F/Pump Relay)
SPARE 10A -
IGN COIL 20A Ignition Coil #1/#2/#3/#4, EMS Block (F/PUMP Relay)
ECU 1 20A ECM/PCM
SENSOR 2 10A Oxygen Sensor (Up), Oxygen Sensor (Down), Variable Intake Solenoid Valve, EMS Block (A/CON
COMP Relay) Purge Control Solenoid Valve, Canister Close Valve, E/R Junction Block (C/Fan 2 Relay)
SENSOR 1 10A Oil Control Valve #1 (Intake), Oil Control Valve #2 (Exhaust), Oil Control Valve #3 (Signal), Electronic
Thermostat
SPARE 10A -
SPARE 15A -
SPARE 20A -
Relay Name Type
ENGINE CONTROL RELAY PCB A/CON COMP RELAY PLUG MICRO F/PUMP RELAY PLUG MICRO

Maintenance
78
7

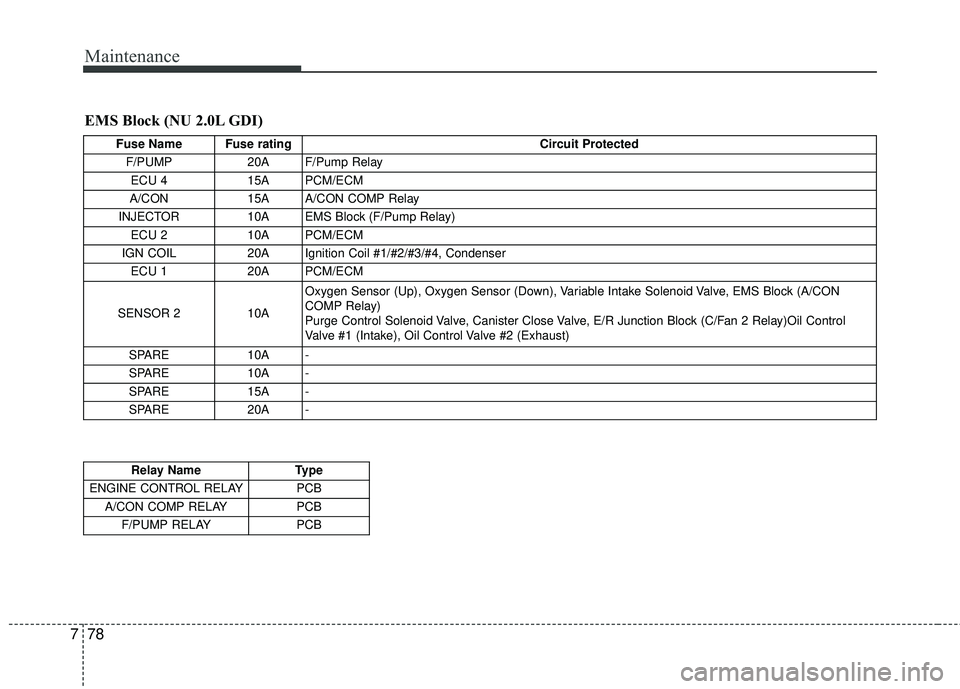

EMS Block (NU 2.0L GDI)
Fuse Name Fuse rating Circuit Protected
F/PUMP 20A F/Pump Relay
ECU 4 15A PCM/ECM
A/CON 15A A/CON COMP Relay
INJECTOR 10A EMS Block (F/Pump Relay)
ECU 2 10A PCM/ECM
IGN COIL 20A Ignition Coil #1/#2/#3/#4, Condenser
ECU 1 20A PCM/ECM
SENSOR 2 10A Oxygen Sensor (Up), Oxygen Sensor (Down), Variable Intake Solenoid Valve, EMS Block (A/CON
COMP Relay)
Purge Control Solenoid Valve, Canister Close Valve, E/R Junction Block (C/Fan 2 Relay)Oil Control
Valve #1 (Intake), Oil Control Valve #2 (Exhaust)
SPARE 10A -
SPARE 10A -
SPARE 15A -
SPARE 20A -
Relay Name Type
ENGINE CONTROL RELAY PCB A/CON COMP RELAY PCB
F/PUMP RELAY PCB
