lock KIA K5 2022 Features and Functions Guide

•If the Smar t Key bat ter y is weak or not working properly, hold the Smar t Key fob up to the Engine Star t/Stop but ton (Lock but ton side closest) and press to star t engine
•The Smar t Key ’s signal can be blocked by the normal operation of a cell phone or smar tphone. To help prevent this, store each device separately
QUICK TIPS
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED48K5 FEATURES & FUNCTIONS GUIDE
F
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Kia Smart & Folding Key Fobs Video
Remote Start Video
QR CODE
OTHER KEY FEATURES
OTHER KEY FEATURES
(Type B handle shown)
Smart Key*†8
A Press to lock All Doors
B Press to unlock Driver ’s Door. Press twice in 4 seconds to unlock All Doors
C Press and hold to open Trunk. Then lift by the handle
REMINDER: Tr u n k lid will par tially open. To fully open, lift up manually. The Tr u n k unlocks when the Smar t Key fob is within close proximit y to the vehicle.
D Press and hold more than 1 second for Panic Alarm. To turn off Alarm, press any button
E Press to release Mechanical Key (on reverse side of fob)
F Mechanical Key
G Remote Start* / Climate Control*: Press for more than two (2) seconds within four (4) seconds after locking doors to start the vehicle. Press once to turn off
Automatic Climate Control System*: Climate control system automatically sets temperature to 72°F
Driver’s Door Lock/Unlock button H:
•
Press button once to unlock Driver ’s Door
•Press again within 4 seconds to unlock All Doors
Mechanical Key: Use to unlock/lock Driver ’s Door:
1. Pull out door handle
2.
Remove door handle keyhole cover with Mechanical Key by pressing up into slot as shown I
3.
Insert Mechanical Key J and turn right to Unlock Driver ’s Door
4. Turn twice within 4 seconds to Unlock All Doors
5. Insert Mechanical Key and turn left to Lock All Doors
6. Return keyhole cover to its original position
Note: Use to unlock trunk, lock glove box* and to turn Child Protector Rear-Door Locks.
REMINDER: When reinser ting the mechanical key, ensure it is pushed all the way in until you hear a click.
REMINDER: Remote button configuration may var y depending on vehicle options
For illustrative purposes only. Your actual display, but tons and/or features may var y.
Refer to section 4 in the Owner ’s Manual for more information.
HOLD
HOLD
HOLD
GH
I
J
A
B
C
D
E

*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 49
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Kia Smart & Folding Key Fobs Video
One-Click Fuel Cap Video
QR CODE
OTHER KEY FEATURES
OTHER KEY FEATURES
REMINDERS:
•
Vehicle must be unlocked first before at tempting to open fuel door
•
It is normal to hear one click when tightening and for the Fuel Cap to click back when released
B
C
D
Lock
Unlock
Remote Keyless Entry (Folding Key)*
A Press to release Folding Key
B Press to lock All Doors
C Press to unlock Driver ’s Door. Press twice in 4 seconds to unlock All Doors
D Press and hold to unlock Trunk and manually open
E Press and hold more than 1 second for Panic Alarm. To turn off Alarm, press any button
Remote but ton configuration may var y depending on vehicle options.
Refer to section 4 in the Owner ’s Manual for more information.
Fuel Cap / Malfunction
Indicator (Check Engine Light)
Tighten for ONE CLICK to prevent Malfunction Indicator from illuminating.
Fuel Filler Door Release
To open the Fuel Door, turn off the engine and ensure driver ’s door is unlocked. Press on the right center edge F of the Fuel Filler Door.
Refer to section 4 in the Owner ’s Manual for more information.
Double-Turn Lock/Unlock All
•Turn clockwise once to unlock Driver ’s Door
•Turn clockwise again within 4 seconds to unlock All Doors
•Turn counterclockwise once to lock All Doors
For illustrative purposes only. Your actual display, but tons and/or features may var y.
Refer to section 4 in the Owner ’s Manual for more information.
HOLD
HOLD
HOLD
A
E
F

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED50K5 FEATURES & FUNCTIONS GUIDE
OTHER KEY FEATURES
OTHER KEY FEATURES

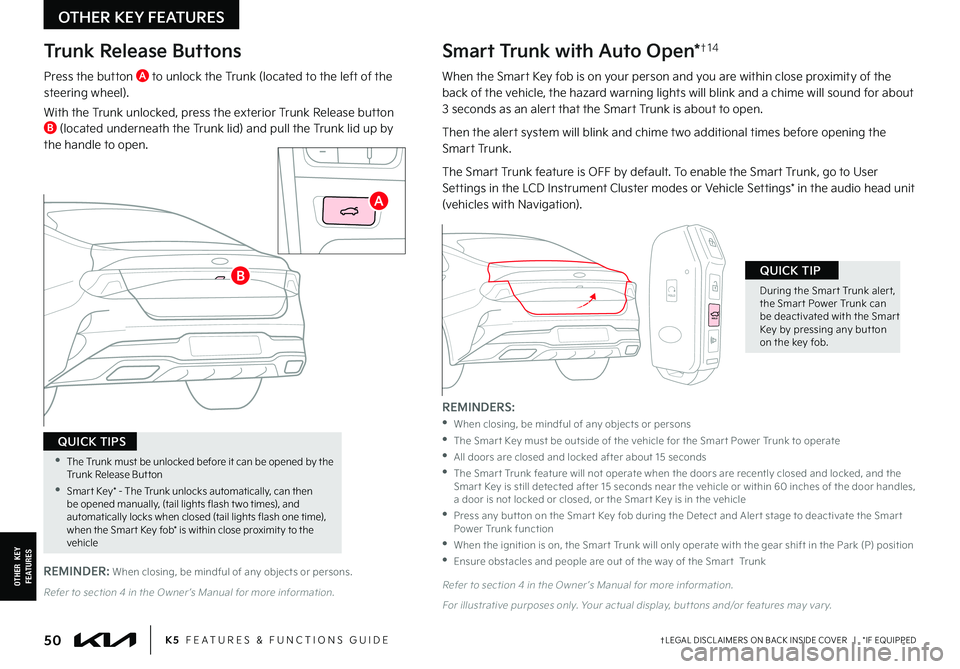

Trunk Release Buttons
Press the button A to unlock the Trunk (located to the left of the steering wheel).
With the Trunk unlocked, press the exterior Trunk Release button B (located underneath the Trunk lid) and pull the Trunk lid up by the handle to open.
Smart Trunk with Auto Open*†1 4
When the Smart Key fob is on your person and you are within close proximity of the back of the vehicle, the hazard warning lights will blink and a chime will sound for about 3 seconds as an alert that the Smart Trunk is about to open.
Then the alert system will blink and chime two additional times before opening the Smart Trunk.
The Smart Trunk feature is OFF by default. To enable the Smart Trunk, go to User Settings in the LCD Instrument Cluster modes or Vehicle Settings* in the audio head unit (vehicles with Navigation).
HOLD
HOLD
HOLD
A
B
•The Trunk must be unlocked before it can be opened by the Trunk Release But ton
•Smar t Key* - The Trunk unlocks automatically, can then be opened manually, (tail lights flash t wo times), and automatically locks when closed (tail lights flash one time), when the Smar t Key fob* is within close proximit y to the vehicle
QUICK TIPS
During the Smar t Trunk aler t, the Smar t Power Trunk can be deactivated with the Smar t Key by pressing any but ton on the key fob.
QUICK TIP
Refer to section 4 in the Owner ’s Manual for more information.
REMINDERS:
•When closing, be mindful of any objects or persons
•The Smar t Key must be outside of the vehicle for the Smar t Power Trunk to operate
•All doors are closed and locked after about 15 seconds
•
The Smar t Trunk feature will not operate when the doors are recently closed and locked, and the Smar t Key is still detected after 15 seconds near the vehicle or within 60 inches of the door handles, a door is not locked or closed, or the Smar t Key is in the vehicle
•
Press any but ton on the Smar t Key fob during the Detect and Aler t stage to deactivate the Smar t Power Trunk function
•
When the ignition is on, the Smar t Trunk will only operate with the gear shift in the Park (P) position
•Ensure obstacles and people are out of the way of the Smar t Trunk
Refer to section 4 in the Owner ’s Manual for more information.
For illustrative purposes only. Your actual display, but tons and/or features may var y.
REMINDER: When closing, be mindful of any objects or persons.

†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS. 51
OTHER KEY FEATURES
OTHER KEY FEATURES
(Located on Driver side kick panel)(Located inside of Hood's center)
Hood Release Lever and Latch
Opening the Hood:
1. Pull the Hood Release Lever A to unlatch the Hood
2. In the front of the vehicle, lift the Hood slightly, push the secondary Latch B to the left inside of the Hood’s center and lift the Hood
Closing the Hood:
Lower the Hood by pressing the front center of the Hood. Then, press down to securely lock in place.
Sunvisor†2 2
Use the Sunvisor to shield direct light through the front or side windows. Slide the Sunvisor out and adjust as needed.
REMINDERS:
•The Sunvisor may impair visibilit y if not adjusted properly
•Sunvisor may not shield all direct light
•
Do not operate the vehicle if Sunvisor is impairing your visibilit y
•
Be aware of your seating position when adjusting or swinging Sunvisor around from the front or side windows
Refer to section 4 in the Owner ’s Manual for more information.
REMINDERS:
•
While lowering and closing, keep hands away from under the Hood
•
Open the Hood only after turning the engine off, on a flat sur face, with the gear shift in the P (Park) position and set ting the parking brake
Refer to section 4 in the Owner ’s Manual for more information.
A
B

D
The seat belt warning chime operates for driver ’s seat only.
QUICK TIP
†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED52K5 FEATURES & FUNCTIONS GUIDESAFETYFEATURES
SAFETY FEATURES
PRESS
Occupant Detection System (ODS)†1 3 /
Passenger Airbag Off Indicator†2
ODS is designed to detect the presence and position of the front passenger and adjusts or turns off airbag deployment accordingly.
Depending on the situation and type of accident, the system may:
•Deploy the airbag (Adult)
•Not deploy the airbag (Unoccupied)
If the system determines that the airbag should not be deployed, the “PASSENGER AIR BAG OFF” light will illuminate.
Seat Belts†1 7
To properly fasten your safety belts:
1.
Insert the belt tongue plate A into the buckle B until it clicks
2.
Position the lap portion of the belt across your lap as LOW ON THE HIPS as possible C. Adjust the belt to a SNUG FIT by pulling up on the shoulder portion D
Seat Belt Retractor Locks †1 6
Retractor locks allow lap/shoulder safety belts to remain unlocked during normal vehicle operation for freedom of movement and increased comfort.
During a STRONG STOP, SUDDEN TURN OR CERTAIN COLLISIONS, seat belt retractors will automatically lock the belts to help reduce the risk of injury.
Refer to section 3 in the Owner ’s Manual for more information.
PASSENGER
AIR BAGOFFPASSENGERAIR BAGOFF
C
A
B
REMINDER: For maximum protection, always wear your Seat Belt.
REMINDER: Do not allow an adult passenger to ride in the front seat when the Passenger Airbag Indicator is illuminated OFF because the airbag will not deploy in the event of a crash. The driver must instruct the passenger to reposition her/himself in the seat.
For illustrative purposes only. Your actual display, but tons and/or features may var y. Refer to section 3 in the Owner ’s Manual for more information.
Child-Protector Rear Door Locks (Manual)*
Locate these locks on the rear edge of the rear passenger doors. Turn the Child-Protector Rear Door Lock to the LOCK position to disable the inner door handles from opening the rear doors.
REMINDER: Child-Protector Rear Door Locks are located on rear passenger ’s door jamb.
Refer to the Owner ’s Manual for more information.

KEY FEATURE WALKTHROUGHDURING DELIVERY Tire Pressure Monitoring System (TPMS) – page 5 Engine Start/Stop Button* – page 24 Multimedia USB Port – page 38 Digital Clock – page 38 Seat Warmers*/ Ventilated Seats* – page 44 Sunvisor – page 51
Panoramic Sunroof with Power Sunshade* – page 47 Reverse Parking Collision-Avoidance Assist (PCA)

– page 22 Smart Key* – page 48 Rear View Monitor (RVM) – page 20 Passenger Airbag Off Indicator – page 52
Demonstrate the following with the customer:
Explain first service process and schedule first service appointment Tour Parts & Service departments, introduce staff and explain value of Kia Parts and Service Review recommended maintenance schedule and maintenance requirements to validate warranty Review business hours Review the Kia 10-year/100,000-mile warranty program Ensure 100% satisfaction with sales and delivery process and no problems with the vehicle Confirm time and best contact number for initial dealer follow-upSales Consultant:
____________________________________________________________________________________
Date:
___________________________
Sales Manager:
_______________________________________________________________________________________
Date:
___________________________
Customer:
____________________________________________________________________________________________
Date:
___________________________
K5
CUSTOMER DELIVERY CHECKLIST
*IF EQUIPPED
Standard Audio System - Value* – page 33For more information, refer to the Car Infotainment

System Quick Reference Guide.
Standard Audio System - Value with UVO link* /

UVO link with Navigation* – pages 36-37For more information, refer to the Car Infotainment

System Quick Reference Guide.
Smar t Cruise Control

– page 16Demonstrate operation.
Wireless Smar tphone Charging System*

– page 40Demonstrate operation.

Bluetooth
® Wireless
Technology – page 30Demonstrate operation.
Android Auto
™ / Apple CarPlay
®
Setup – page 32 UVO link Activation* /

UVO Assistance* – page 34 Kia Access with UVO link App Download / Kia Access with

UVO link App Features Guide

– page 35For fur ther UVO operations, refer

to the Car Infotainment System

Quick Reference Guide.
RADIO < SEEKMEDIATRACK >
SETUP
MAP
< SEEKMEDIARADIO
N AV
TRACK >
SETUP
AUTO
HOLD
DRIVE
MODE
OFF
VIEW
SHIFT
LOCK
RELEASEP
R
N D
+
_
(Navigation System
shown)

Automatic Climate Control – page 41Demonstrate Air Flow Modes, Defog and Defrosting Windshield Fan Speed
Windshield Wipers & Washers – page 27
*IF EQUIPPED
Electronic Parking Brake (EPB) and Auto Hold

– page 42
Demonstrate operation.Owner ’s Name:
VIN:
Mileage:

Dealership Name:
Sales Consultant:
Date:
BEFORE DELIVERY Test and confirm “Good Battery” using a Kia battery tester and affix Results Label Verify all tire pressures are to spec (see driver ’s door label) LF

LR

RF

RR

Verify proper operation of Remote Keyless Entry and Smart Key lock/unlock Ensure floor mats are snapped into place (if applicable) Verify vehicle is clean (interior and exterior), in good condition and free of chips and scratches Ensure all key documents are in the vehicle (Owner ’s Manual, Warranty and Consumer Information booklet, Tire Warranty booklet and Features & Functions Guide and any Audio System User ’s Manual)KEY FEATURE WALKTHROUGH
To operate:• Move lever Up/Down to change Wiper modes• Press switch Up/Down to adjust Intermit tent Wipe Speed• Pull lever to spray and wipe
MIST:
Single wipe
OFF:
Wiper off
I N T:

Intermittent wipe
LO:
Slow wipe
HI: Fast wipe
K5
CUSTOMER DELIVERY CHECKLIST12V
USB
180W
AUTO
OFF SYNC
FRONT
REAR
AUTO
HOLDOFFSHIFT
LOCK
RELEASEP
R
N D
+
_
DRIVE
MODE
